View Issue Details [ Jump to Notes ]

[ Print ]

Project

Category

View Status

Date Submitted

Last Update

0014361

ParaView

(No Category)

public

2013-10-25 10:46

2016-08-12 09:59

Reporter

Andy Bauer

Assigned To

Utkarsh Ayachit

Priority

normal

Severity

minor

Reproducibility

have not tried

Status

closed

Resolution

moved

Platform

OS Version

Product Version

git-master

Target Version

Fixed in Version

Summary

0014361: file series reader not working properly for 5000 vtu files

Description

If I create the 5000 vtu files with the following python script I have trouble reading them back in to paraview:
===============
try: paraview.simple
except: from paraview.simple import *
paraview.simple._DisableFirstRenderCameraReset()
Wavelet1 = Wavelet()
Wavelet1.WholeExtent = [0, 5, 0, 5, 0, 5]
Clip1 = Clip( ClipType="Plane" )
Clip1.Scalars = ['POINTS', 'RTData']
Clip1.ClipType.Origin = [2.5, 2.5, 2.5]
Clip1.ClipType = "Plane"
Clip1.Value = 132.19195199012756
Calculator1 = Calculator()
w = XMLUnstructuredGridWriter()
for i in range(5001):
    Calculator1.Function = str(i)
    name = "phi0" + format(i, "05d") + "000000.vtu"
    print name, Calculator1.Function
    w.FileName = name
    w.UpdatePipeline()
============

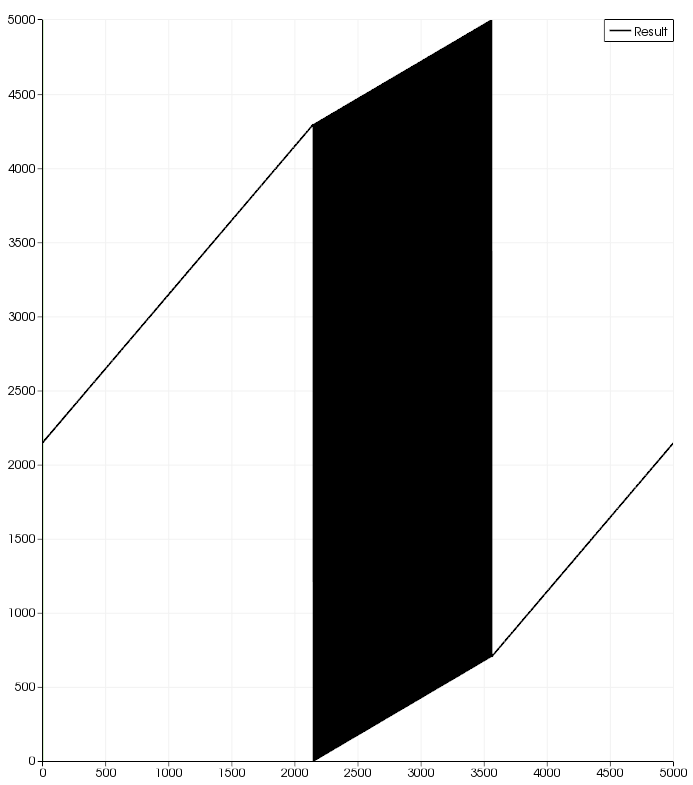

The problem is easily demonstrated by loading in the files and then selecting a point and using the plot selection over time. This was done with a ParaView version from the repo around 10/15/2013. The image is the result that I got but should be a straight line.

Tags

No tags attached.

Project

TBD

Topic Name

Type

incorrect functionality

Attached Files

badfileseriesreader.png [^] (1,635,501 bytes) 2013-10-25 10:46

Relationships

Notes
(0038454) Kitware Robot (administrator) 2016-08-12 09:59	Resolving issue as `moved`. This issue tracker is no longer used. Further discussion of this issue may take place in the current ParaView Issues page linked in the banner at the top of this page.

Issue History
Date Modified	Username	Field	Change
2013-10-25 10:46	Andy Bauer	New Issue
2013-10-25 10:46	Andy Bauer	Assigned To	=> Utkarsh Ayachit
2013-10-25 10:46	Andy Bauer	File Added: badfileseriesreader.png
2016-08-12 09:59	Kitware Robot	Note Added: 0038454
2016-08-12 09:59	Kitware Robot	Status	backlog => closed
2016-08-12 09:59	Kitware Robot	Resolution	open => moved
