#include <vtkBoundingRectContextDevice2D.h>

Inheritance diagram for vtkBoundingRectContextDevice2D:

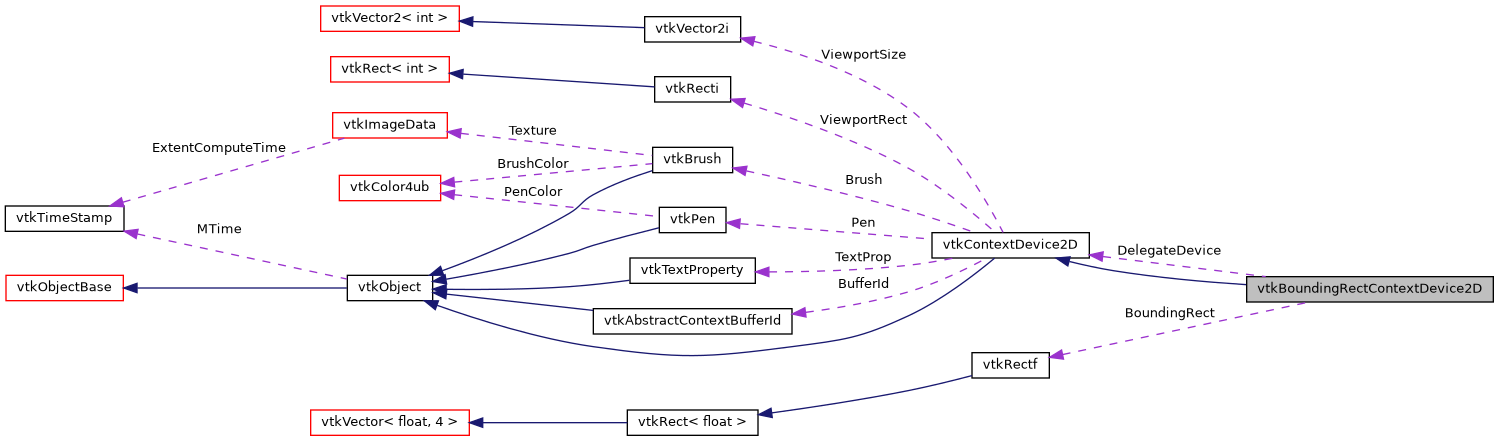

Collaboration diagram for vtkBoundingRectContextDevice2D:

[legend]

Public Types
typedef vtkContextDevice2D	Superclass

Public Types inherited from vtkContextDevice2D
enum	TextureProperty

typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

virtual void	SetDelegateDevice (vtkContextDevice2D *)
	Set/get delegate device used to compute bounding boxes around strings. More...

virtual vtkContextDevice2D *	GetDelegateDevice ()

void	Reset ()
	Reset the bounding box. More...

vtkRectf	GetBoundingRect ()
	Get the bounding rect that contains all the primitives rendered by the device so far. More...

void	DrawString (float *point, const vtkStdString &string) override
	Expand bounding box to contain the string's bounding box. More...

void	DrawMathTextString (float *point, const vtkStdString &string) override
	Expand bounding box to contain the string's bounding box. More...

void	DrawImage (float p[2], float scale, vtkImageData *image) override
	Expand bounding box to contain the image's bounding box. More...

void	DrawImage (const vtkRectf &pos, vtkImageData *image) override
	Expand bounding box to contain the image's bounding box. More...

void	DrawPolyData (float vtkNotUsed(p)[2], float vtkNotUsed(scale), vtkPolyData vtkNotUsed(polyData), vtkUnsignedCharArray vtkNotUsed(colors), int vtkNotUsed(scalarMode)) override
	Draw the supplied PolyData at the given x, y (p[0], p[1]) (bottom corner), scaled by scale (1.0 would match the actual dataset). More...

void	SetColor4 (unsigned char color[4]) override
	Implement pure virtual member function. More...

void	SetTexture (vtkImageData *image, int properties) override
	Implement pure virtual member function. More...

void	SetPointSize (float size) override
	Implement pure virtual member function. More...

void	SetLineWidth (float width) override
	Implement pure virtual member function. More...

void	SetLineType (int type) override
	Implement pure virtual member function. More...

void	SetMatrix (vtkMatrix3x3 *m) override
	Forward current matrix to delegate device. More...

void	GetMatrix (vtkMatrix3x3 *m) override
	Get current matrix from delegate device. More...

void	MultiplyMatrix (vtkMatrix3x3 *m) override
	Multiply the current matrix in the delegate device by this one. More...

void	PushMatrix () override
	Push matrix in the delegate device. More...

void	PopMatrix () override
	Pope matrix from the delegate device. More...

void	EnableClipping (bool enable) override
	Implement pure virtual member function. More...

void	SetClipping (int *x) override
	Implement pure virtual member function. More...

void	ApplyPen (vtkPen *pen) override
	Forward the pen to the delegate device. More...

vtkPen *	GetPen () override
	Get the pen from the delegate device. More...

void	ApplyBrush (vtkBrush *brush) override
	Forward the brush to the delegate device. More...

vtkBrush *	GetBrush () override
	Get the brush from the delegate device. More...

void	ApplyTextProp (vtkTextProperty *prop) override
	Forward the text property to the delegate device. More...

vtkTextProperty *	GetTextProp () override
	Get the text property from the delegate device. More...

void	DrawPoly (float points, int n, unsigned char colors=nullptr, int nc_comps=0) override
	Expand bounding box to contain the given polygon. More...

void	DrawLines (float f, int n, unsigned char colors=nullptr, int nc_comps=0) override
	Expand bounding rect to contain the given lines. More...

void	DrawPoints (float points, int n, unsigned char colors=nullptr, int nc_comps=0) override
	Expand bounding rect to contain the given points. More...

void	DrawPointSprites (vtkImageData sprite, float points, int n, unsigned char *colors=nullptr, int nc_comps=0) override
	Expand bounding rect to contain the point sprites. More...

void	DrawMarkers (int shape, bool highlight, float points, int n, unsigned char colors=nullptr, int nc_comps=0) override
	Expand bounding rect to contain the markers. More...

void	DrawEllipseWedge (float x, float y, float outRx, float outRy, float inRx, float inRy, float startAngle, float stopAngle) override
	Expand bounding rect to contain the ellipse. More...

void	DrawEllipticArc (float x, float y, float rX, float rY, float startAngle, float stopAngle) override
	Expand bounding rect to contain the elliptic arc. More...

void	ComputeStringBounds (const vtkStdString &string, float bounds[4]) override
	Forward string bounds calculation to the delegate device. More...

void	ComputeJustifiedStringBounds (const char *string, float bounds[4]) override
	Forward string bounds calculation to the delegate device. More...

void	Begin (vtkViewport *) override
	Call before drawing to this device. More...

void	End () override
	Call after drawing to this device. More...

bool	GetBufferIdMode () const override
	Get value from delegate device. More...

void	BufferIdModeBegin (vtkAbstractContextBufferId *bufferId) override
	Begin ID buffering mode. More...

void	BufferIdModeEnd () override
	End ID buffering mode. More...

Public Member Functions inherited from vtkContextDevice2D
vtkContextDevice2D *	NewInstance () const

virtual void	DrawQuad (float *, int)

virtual void	DrawQuadStrip (float *, int)

virtual void	DrawPolygon (float *, int)

virtual void	DrawString (float *point, const vtkUnicodeString &string)=0

virtual bool	MathTextIsSupported ()

virtual int	GetWidth ()

virtual int	GetHeight ()

virtual void	DisableClipping ()

virtual void	SetViewportSize (const vtkVector2i &size)

virtual vtkVector2i	GetViewportSize ()

virtual void	SetViewportRect (const vtkRecti &rect)

virtual vtkRecti	GetViewportRect ()

virtual void	ComputeStringBounds (const vtkUnicodeString &string, float bounds[4])=0

virtual void	ComputeStringBounds (const vtkUnicodeString &string, float bounds[4])=0

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static int	IsTypeOf (const char *type)

static vtkBoundingRectContextDevice2D *	SafeDownCast (vtkObject *o)

static vtkBoundingRectContextDevice2D *	New ()

static vtkRectf	GetBoundingRect (vtkAbstractContextItem item, vtkViewport viewport)
	Get the bounding rect that contains the given vtkAbstractContextItem. More...

Static Public Member Functions inherited from vtkContextDevice2D
static int	IsTypeOf (const char *type)

static vtkContextDevice2D *	SafeDownCast (vtkObjectBase *o)

static vtkContextDevice2D *	New ()

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkBoundingRectContextDevice2D ()

	~vtkBoundingRectContextDevice2D () override

void	AddPoint (float x, float y)
	Add a point to the cumulative bounding rect. More...

void	AddPoint (float point[2])

void	AddRect (const vtkRectf &rect)
	Add a rect to the cumulative bounding rect. More...

Protected Member Functions inherited from vtkContextDevice2D
virtual vtkObjectBase *	NewInstanceInternal () const

	vtkContextDevice2D ()

	~vtkContextDevice2D ()

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Protected Attributes
bool	Initialized
	Is the bounding rect initialized? More...

vtkRectf	BoundingRect
	Cumulative rect holding the bounds of the primitives rendered by the device. More...

vtkContextDevice2D *	DelegateDevice
	Delegate ContextDevice2D to handle certain computations. More...

Protected Attributes inherited from vtkContextDevice2D
int	Geometry [2]

vtkVector2i	ViewportSize

vtkRecti	ViewportRect

vtkAbstractContextBufferId *	BufferId

vtkPen *	Pen

vtkBrush *	Brush

vtkTextProperty *	TextProp

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Additional Inherited Members
Public Attributes inherited from vtkContextDevice2D
	Nearest

	Linear

	Stretch

	Repeat

Detailed Description

Definition at line 45 of file vtkBoundingRectContextDevice2D.h.

Member Typedef Documentation

◆ Superclass

typedef vtkContextDevice2D vtkBoundingRectContextDevice2D::Superclass

Definition at line 48 of file vtkBoundingRectContextDevice2D.h.

Constructor & Destructor Documentation

◆ vtkBoundingRectContextDevice2D()

vtkBoundingRectContextDevice2D::vtkBoundingRectContextDevice2D ( )

protected

◆ ~vtkBoundingRectContextDevice2D()

vtkBoundingRectContextDevice2D::~vtkBoundingRectContextDevice2D ( )

overrideprotected

Member Function Documentation

◆ GetClassName()

virtual const char* vtkBoundingRectContextDevice2D::GetClassName ( )

virtual

◆ IsTypeOf()

static int vtkBoundingRectContextDevice2D::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkBoundingRectContextDevice2D::IsA ( const char * type )

virtual

Reimplemented from vtkContextDevice2D.

◆ SafeDownCast()

static vtkBoundingRectContextDevice2D* vtkBoundingRectContextDevice2D::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkBoundingRectContextDevice2D::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkContextDevice2D.

◆ New()

static vtkBoundingRectContextDevice2D* vtkBoundingRectContextDevice2D::New ( )

static

◆ SetDelegateDevice()

virtual void vtkBoundingRectContextDevice2D::SetDelegateDevice ( vtkContextDevice2D * )

virtual

Set/get delegate device used to compute bounding boxes around strings.

◆ GetDelegateDevice()

virtual vtkContextDevice2D* vtkBoundingRectContextDevice2D::GetDelegateDevice ( )

virtual

◆ Reset()

void vtkBoundingRectContextDevice2D::Reset ( )

Reset the bounding box.

◆ GetBoundingRect() [1/2]

static vtkRectf vtkBoundingRectContextDevice2D::GetBoundingRect	(	vtkAbstractContextItem *	item,
		vtkViewport *	viewport
	)

static

Get the bounding rect that contains the given vtkAbstractContextItem.

◆ GetBoundingRect() [2/2]

vtkRectf vtkBoundingRectContextDevice2D::GetBoundingRect ( )

Get the bounding rect that contains all the primitives rendered by the device so far.

◆ DrawString()

void vtkBoundingRectContextDevice2D::DrawString	(	float *	point,
		const vtkStdString &	string
	)

overridevirtual

Expand bounding box to contain the string's bounding box.

Implements vtkContextDevice2D.

◆ DrawMathTextString()

void vtkBoundingRectContextDevice2D::DrawMathTextString	(	float *	point,
		const vtkStdString &	string
	)

overridevirtual

Expand bounding box to contain the string's bounding box.

Implements vtkContextDevice2D.

◆ DrawImage() [1/2]

void vtkBoundingRectContextDevice2D::DrawImage	(	float	p[2],
		float	scale,
		vtkImageData *	image
	)

overridevirtual

Expand bounding box to contain the image's bounding box.

Implements vtkContextDevice2D.

◆ DrawImage() [2/2]

void vtkBoundingRectContextDevice2D::DrawImage	(	const vtkRectf &	pos,
		vtkImageData *	image
	)

overridevirtual

Expand bounding box to contain the image's bounding box.

Implements vtkContextDevice2D.

◆ DrawPolyData()

void vtkBoundingRectContextDevice2D::DrawPolyData	(	float	vtkNotUsed(p)[2],
		float	vtkNotUsedscale,
		vtkPolyData *	vtkNotUsedpolyData,
		vtkUnsignedCharArray *	vtkNotUsedcolors,
		int	vtkNotUsedscalarMode
	)

inlineoverride

Draw the supplied PolyData at the given x, y (p[0], p[1]) (bottom corner), scaled by scale (1.0 would match the actual dataset).

Warning: Not currently implemented.

Definition at line 99 of file vtkBoundingRectContextDevice2D.h.

◆ SetColor4()

void vtkBoundingRectContextDevice2D::SetColor4 ( unsigned char color[4] )

overridevirtual

Implement pure virtual member function.

Does not affect bounding rect.

Implements vtkContextDevice2D.

◆ SetTexture()

void vtkBoundingRectContextDevice2D::SetTexture	(	vtkImageData *	image,
		int	properties
	)

overridevirtual

Implement pure virtual member function.

Does not affect bounding rect.

Implements vtkContextDevice2D.

◆ SetPointSize()

void vtkBoundingRectContextDevice2D::SetPointSize ( float size )

overridevirtual

Implement pure virtual member function.

Does not affect bounding rect.

Implements vtkContextDevice2D.

◆ SetLineWidth()

void vtkBoundingRectContextDevice2D::SetLineWidth ( float width )

overridevirtual

Implement pure virtual member function.

Forward line width to delegate device.

Implements vtkContextDevice2D.

◆ SetLineType()

void vtkBoundingRectContextDevice2D::SetLineType ( int type )

overridevirtual

Implement pure virtual member function.

Forward line type to delegate device.

Implements vtkContextDevice2D.

◆ SetMatrix()

void vtkBoundingRectContextDevice2D::SetMatrix ( vtkMatrix3x3 * m )

overridevirtual

Forward current matrix to delegate device.

Implements vtkContextDevice2D.

◆ GetMatrix()

void vtkBoundingRectContextDevice2D::GetMatrix ( vtkMatrix3x3 * m )

overridevirtual

Get current matrix from delegate device.

Implements vtkContextDevice2D.

◆ MultiplyMatrix()

void vtkBoundingRectContextDevice2D::MultiplyMatrix ( vtkMatrix3x3 * m )

overridevirtual

Multiply the current matrix in the delegate device by this one.

Implements vtkContextDevice2D.

◆ PushMatrix()

void vtkBoundingRectContextDevice2D::PushMatrix ( )

overridevirtual

Push matrix in the delegate device.

Implements vtkContextDevice2D.

◆ PopMatrix()

void vtkBoundingRectContextDevice2D::PopMatrix ( )

overridevirtual

Pope matrix from the delegate device.

Implements vtkContextDevice2D.

◆ EnableClipping()

void vtkBoundingRectContextDevice2D::EnableClipping ( bool enable )

overridevirtual

Implement pure virtual member function.

Does nothing.

Implements vtkContextDevice2D.

◆ SetClipping()

void vtkBoundingRectContextDevice2D::SetClipping ( int * x )

overridevirtual

Implement pure virtual member function.

Does nothing.

Implements vtkContextDevice2D.

◆ ApplyPen()

void vtkBoundingRectContextDevice2D::ApplyPen ( vtkPen * pen )

overridevirtual

Forward the pen to the delegate device.

Reimplemented from vtkContextDevice2D.

◆ GetPen()

vtkPen* vtkBoundingRectContextDevice2D::GetPen ( )

overridevirtual

Get the pen from the delegate device.

Reimplemented from vtkContextDevice2D.

◆ ApplyBrush()

void vtkBoundingRectContextDevice2D::ApplyBrush ( vtkBrush * brush )

overridevirtual

Forward the brush to the delegate device.

Reimplemented from vtkContextDevice2D.

◆ GetBrush()

vtkBrush* vtkBoundingRectContextDevice2D::GetBrush ( )

overridevirtual

Get the brush from the delegate device.

Reimplemented from vtkContextDevice2D.

◆ ApplyTextProp()

void vtkBoundingRectContextDevice2D::ApplyTextProp ( vtkTextProperty * prop )

overridevirtual

Forward the text property to the delegate device.

Reimplemented from vtkContextDevice2D.

◆ GetTextProp()

vtkTextProperty* vtkBoundingRectContextDevice2D::GetTextProp ( )

overridevirtual

Get the text property from the delegate device.

Reimplemented from vtkContextDevice2D.

◆ DrawPoly()

void vtkBoundingRectContextDevice2D::DrawPoly	(	float *	points,
		int	n,
		unsigned char *	colors = `nullptr`,
		int	nc_comps = `0`
	)

overridevirtual

Expand bounding box to contain the given polygon.

Implements vtkContextDevice2D.

◆ DrawLines()

void vtkBoundingRectContextDevice2D::DrawLines	(	float *	f,
		int	n,
		unsigned char *	colors = `nullptr`,
		int	nc_comps = `0`
	)

overridevirtual

Expand bounding rect to contain the given lines.

Implements vtkContextDevice2D.

◆ DrawPoints()

void vtkBoundingRectContextDevice2D::DrawPoints	(	float *	points,
		int	n,
		unsigned char *	colors = `nullptr`,
		int	nc_comps = `0`
	)

overridevirtual

Expand bounding rect to contain the given points.

Implements vtkContextDevice2D.

◆ DrawPointSprites()

void vtkBoundingRectContextDevice2D::DrawPointSprites	(	vtkImageData *	sprite,
		float *	points,
		int	n,
		unsigned char *	colors = `nullptr`,
		int	nc_comps = `0`
	)

overridevirtual

Expand bounding rect to contain the point sprites.

Implements vtkContextDevice2D.

◆ DrawMarkers()

void vtkBoundingRectContextDevice2D::DrawMarkers	(	int	shape,
		bool	highlight,
		float *	points,
		int	n,
		unsigned char *	colors = `nullptr`,
		int	nc_comps = `0`
	)

overridevirtual

Expand bounding rect to contain the markers.

Reimplemented from vtkContextDevice2D.

◆ DrawEllipseWedge()

void vtkBoundingRectContextDevice2D::DrawEllipseWedge	(	float	x,
		float	y,
		float	outRx,
		float	outRy,
		float	inRx,
		float	inRy,
		float	startAngle,
		float	stopAngle
	)

overridevirtual

Expand bounding rect to contain the ellipse.

Implements vtkContextDevice2D.

◆ DrawEllipticArc()

void vtkBoundingRectContextDevice2D::DrawEllipticArc	(	float	x,
		float	y,
		float	rX,
		float	rY,
		float	startAngle,
		float	stopAngle
	)

overridevirtual

Expand bounding rect to contain the elliptic arc.

Implements vtkContextDevice2D.

◆ ComputeStringBounds()

void vtkBoundingRectContextDevice2D::ComputeStringBounds	(	const vtkStdString &	string,
		float	bounds[4]
	)

overridevirtual

Forward string bounds calculation to the delegate device.

Implements vtkContextDevice2D.

◆ ComputeJustifiedStringBounds()

void vtkBoundingRectContextDevice2D::ComputeJustifiedStringBounds	(	const char *	string,
		float	bounds[4]
	)

overridevirtual

Forward string bounds calculation to the delegate device.

Implements vtkContextDevice2D.

◆ Begin()

void vtkBoundingRectContextDevice2D::Begin ( vtkViewport * )

overridevirtual

Call before drawing to this device.

Reimplemented from vtkContextDevice2D.

◆ End()

void vtkBoundingRectContextDevice2D::End ( )

overridevirtual

Call after drawing to this device.

Reimplemented from vtkContextDevice2D.

◆ GetBufferIdMode()

bool vtkBoundingRectContextDevice2D::GetBufferIdMode ( ) const

overridevirtual

Get value from delegate device.

Reimplemented from vtkContextDevice2D.

◆ BufferIdModeBegin()

void vtkBoundingRectContextDevice2D::BufferIdModeBegin ( vtkAbstractContextBufferId * bufferId )

overridevirtual

Begin ID buffering mode.

Reimplemented from vtkContextDevice2D.

◆ BufferIdModeEnd()

void vtkBoundingRectContextDevice2D::BufferIdModeEnd ( )

overridevirtual

End ID buffering mode.

Reimplemented from vtkContextDevice2D.

◆ AddPoint() [1/2]

void vtkBoundingRectContextDevice2D::AddPoint	(	float	x,
		float	y
	)

protected

Add a point to the cumulative bounding rect.

◆ AddPoint() [2/2]

void vtkBoundingRectContextDevice2D::AddPoint ( float point[2] )

protected

◆ AddRect()

void vtkBoundingRectContextDevice2D::AddRect ( const vtkRectf & rect )

protected

Add a rect to the cumulative bounding rect.

Member Data Documentation

◆ Initialized

bool vtkBoundingRectContextDevice2D::Initialized

protected

Is the bounding rect initialized?

Definition at line 278 of file vtkBoundingRectContextDevice2D.h.

◆ BoundingRect

vtkRectf vtkBoundingRectContextDevice2D::BoundingRect

protected

Cumulative rect holding the bounds of the primitives rendered by the device.

Definition at line 283 of file vtkBoundingRectContextDevice2D.h.

◆ DelegateDevice

vtkContextDevice2D* vtkBoundingRectContextDevice2D::DelegateDevice

protected

Delegate ContextDevice2D to handle certain computations.

Definition at line 288 of file vtkBoundingRectContextDevice2D.h.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Remoting/Views/vtkBoundingRectContextDevice2D.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Superclass

Constructor & Destructor Documentation

◆ vtkBoundingRectContextDevice2D()

◆ ~vtkBoundingRectContextDevice2D()

Member Function Documentation

◆ GetClassName()

◆ IsTypeOf()

◆ IsA()

◆ SafeDownCast()

◆ PrintSelf()

◆ New()

◆ SetDelegateDevice()

◆ GetDelegateDevice()

◆ Reset()

◆ GetBoundingRect() [1/2]

◆ GetBoundingRect() [2/2]

◆ DrawString()

◆ DrawMathTextString()

◆ DrawImage() [1/2]

◆ DrawImage() [2/2]

◆ DrawPolyData()

◆ SetColor4()

◆ SetTexture()

◆ SetPointSize()

◆ SetLineWidth()

◆ SetLineType()

◆ SetMatrix()

◆ GetMatrix()

◆ MultiplyMatrix()

◆ PushMatrix()

◆ PopMatrix()

◆ EnableClipping()

◆ SetClipping()

◆ ApplyPen()

◆ GetPen()

◆ ApplyBrush()

◆ GetBrush()

◆ ApplyTextProp()

◆ GetTextProp()

◆ DrawPoly()

◆ DrawLines()

◆ DrawPoints()

◆ DrawPointSprites()

◆ DrawMarkers()

◆ DrawEllipseWedge()

◆ DrawEllipticArc()

◆ ComputeStringBounds()

◆ ComputeJustifiedStringBounds()

◆ Begin()

◆ End()

◆ GetBufferIdMode()

◆ BufferIdModeBegin()

◆ BufferIdModeEnd()

◆ AddPoint() [1/2]

◆ AddPoint() [2/2]

◆ AddRect()

Member Data Documentation

◆ Initialized

◆ BoundingRect

◆ DelegateDevice
