Public Types | Public Member Functions | Static Public Member Functions | Protected Member Functions | List of all members
vtkDisplayConfiguration Class Reference

display configuration container More...

#include <vtkDisplayConfiguration.h>

Inheritance diagram for vtkDisplayConfiguration:
Inheritance graph
[legend]

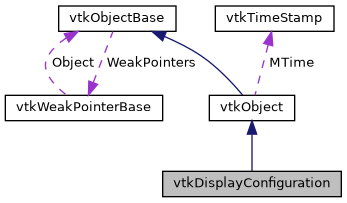

Collaboration diagram for vtkDisplayConfiguration:
Collaboration graph
[legend]

Public Types

typedef vtkObject Superclass


Public Member Functions

virtual const char * GetClassName ()

virtual int IsA (const char *type)

void PrintSelf (ostream &os, vtkIndent indent) override

virtual bool GetShowBorders ()
 Get whether to use window borders / frames are to be shown. More...

virtual bool GetFullScreen ()
 Returns true of each display should simply be full-screen. More...

virtual double GetEyeSeparation ()
 Get eye separation. More...

int GetNumberOfDisplays () const
 Returns the count for display specified. More...

bool LoadPVX (const char *fname)
 Parses a PVX file to load display configuration information. More...

const char * GetEnvironment (int index) const
 Returns information about each display specified. More...

vtkTuple< int, 4 > GetGeometry (int index) const
 Returns information about each display specified. More...

vtkTuple< double, 3 > GetLowerLeft (int index) const
 Returns information about each display specified. More...

vtkTuple< double, 3 > GetLowerRight (int index) const
 Returns information about each display specified. More...

vtkTuple< double, 3 > GetUpperRight (int index) const
 Returns information about each display specified. More...

bool GetHasCorners (int index) const
 Returns information about each display specified. More...

- Public Member Functions inherited from vtkObject
 vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void DebugOn ()

virtual void DebugOff ()

bool GetDebug ()

void SetDebug (bool debugFlag)

virtual void Modified ()

virtual vtkMTimeType GetMTime ()

void RemoveObserver (unsigned long tag)

void RemoveObservers (unsigned long event)

void RemoveObservers (const char *event)

void RemoveAllObservers ()

int HasObserver (unsigned long event)

int HasObserver (const char *event)

int InvokeEvent (unsigned long event)

int InvokeEvent (const char *event)

unsigned long AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long AddObserver (const char *event, vtkCommand *, float priority=0.0f)

vtkCommand * GetCommand (unsigned long tag)

void RemoveObserver (vtkCommand *)

void RemoveObservers (unsigned long event, vtkCommand *)

void RemoveObservers (const char *event, vtkCommand *)

int HasObserver (unsigned long event, vtkCommand *)

int HasObserver (const char *event, vtkCommand *)

unsigned long AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long AddObserver (unsigned long event, U observer, void(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)

unsigned long AddObserver (unsigned long event, U observer, bool(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)

int InvokeEvent (unsigned long event, void *callData)

int InvokeEvent (const char *event, void *callData)

unsigned long AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long AddObserver (const char *event, vtkCommand *, float priority=0.0f)

vtkCommand * GetCommand (unsigned long tag)

void RemoveObserver (vtkCommand *)

void RemoveObservers (unsigned long event, vtkCommand *)

void RemoveObservers (const char *event, vtkCommand *)

int HasObserver (unsigned long event, vtkCommand *)

int HasObserver (const char *event, vtkCommand *)

unsigned long AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long AddObserver (unsigned long event, U observer, void(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)

unsigned long AddObserver (unsigned long event, U observer, bool(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)

int InvokeEvent (unsigned long event, void *callData)

int InvokeEvent (const char *event, void *callData)

- Public Member Functions inherited from vtkObjectBase
const char * GetClassName () const

virtual void Delete ()

virtual void FastDelete ()

void Print (ostream &os)

virtual void Register (vtkObjectBase *o)

virtual void UnRegister (vtkObjectBase *o)

void SetReferenceCount (int)

virtual void PrintHeader (ostream &os, vtkIndent indent)

virtual void PrintTrailer (ostream &os, vtkIndent indent)

int GetReferenceCount ()

void PrintRevisions (ostream &)

virtual void PrintHeader (ostream &os, vtkIndent indent)

virtual void PrintTrailer (ostream &os, vtkIndent indent)

int GetReferenceCount ()

void PrintRevisions (ostream &)


Static Public Member Functions

static vtkDisplayConfiguration * New ()

static int IsTypeOf (const char *type)

static vtkDisplayConfiguration * SafeDownCast (vtkObject *o)

- Static Public Member Functions inherited from vtkObject
static vtkObject * New ()

static void BreakOnError ()

static void SetGlobalWarningDisplay (int val)

static void GlobalWarningDisplayOn ()

static void GlobalWarningDisplayOff ()

static int GetGlobalWarningDisplay ()

static void SetGlobalWarningDisplay (int val)

static void GlobalWarningDisplayOn ()

static void GlobalWarningDisplayOff ()

static int GetGlobalWarningDisplay ()

- Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool IsTypeOf (const char *name)

static vtkObjectBase * New ()

static vtkObjectBase * New ()


Protected Member Functions

 vtkDisplayConfiguration ()

 ~vtkDisplayConfiguration () override

- Protected Member Functions inherited from vtkObject
 vtkObject ()

virtual ~vtkObject ()

void RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void InternalGrabFocus (vtkCommand *mouseEvents, vtkCommand *keypressEvents=NULL)

void InternalReleaseFocus ()

void InternalGrabFocus (vtkCommand *mouseEvents, vtkCommand *keypressEvents=NULL)

void InternalReleaseFocus ()

- Protected Member Functions inherited from vtkObjectBase
 vtkObjectBase ()

virtual ~vtkObjectBase ()

virtual void CollectRevisions (ostream &)

virtual void ReportReferences (vtkGarbageCollector *)

 vtkObjectBase (const vtkObjectBase &)

void operator= (const vtkObjectBase &)


Additional Inherited Members

- Protected Attributes inherited from vtkObject
bool Debug

vtkTimeStamp MTime

vtkSubjectHelper * SubjectHelper

- Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32 ReferenceCount

vtkWeakPointerBase ** WeakPointers


Detailed Description

display configuration container

vtkDisplayConfiguration is a container used by vtkRemotingCoreConfiguration to manage display configurations which are needed for CAVE and other immersive displays.

Definition at line 20 of file vtkDisplayConfiguration.h.

Member Typedef Documentation

◆ Superclass

typedef vtkObject vtkDisplayConfiguration::Superclass

Definition at line 24 of file vtkDisplayConfiguration.h.

Constructor & Destructor Documentation

◆ vtkDisplayConfiguration()

vtkDisplayConfiguration::vtkDisplayConfiguration ( )
protected

◆ ~vtkDisplayConfiguration()

vtkDisplayConfiguration::~vtkDisplayConfiguration ( )
overrideprotected

Member Function Documentation

◆ New()

static vtkDisplayConfiguration* vtkDisplayConfiguration::New ( )
static

◆ GetClassName()

virtual const char* vtkDisplayConfiguration::GetClassName ( )
virtual

◆ IsTypeOf()

static int vtkDisplayConfiguration::IsTypeOf ( const char *  type)
static

◆ IsA()

virtual int vtkDisplayConfiguration::IsA ( const char *  type)
virtual

Reimplemented from vtkObjectBase.

◆ SafeDownCast()

static vtkDisplayConfiguration* vtkDisplayConfiguration::SafeDownCast ( vtkObject *  o)
static

◆ PrintSelf()

void vtkDisplayConfiguration::PrintSelf ( ostream &  os,
vtkIndent  indent
)
overridevirtual

Reimplemented from vtkObject.

◆ GetShowBorders()

virtual bool vtkDisplayConfiguration::GetShowBorders ( )
virtual

Get whether to use window borders / frames are to be shown.

◆ GetFullScreen()

virtual bool vtkDisplayConfiguration::GetFullScreen ( )
virtual

Returns true of each display should simply be full-screen.

If so, display geometry is ignored.

◆ GetEyeSeparation()

virtual double vtkDisplayConfiguration::GetEyeSeparation ( )
virtual

Get eye separation.

◆ GetNumberOfDisplays()

int vtkDisplayConfiguration::GetNumberOfDisplays ( ) const

Returns the count for display specified.

◆ GetEnvironment()

const char* vtkDisplayConfiguration::GetEnvironment ( int  index) const

Returns information about each display specified.

◆ GetGeometry()

vtkTuple<int, 4> vtkDisplayConfiguration::GetGeometry ( int  index) const

Returns information about each display specified.

◆ GetLowerLeft()

vtkTuple<double, 3> vtkDisplayConfiguration::GetLowerLeft ( int  index) const

Returns information about each display specified.

◆ GetLowerRight()

vtkTuple<double, 3> vtkDisplayConfiguration::GetLowerRight ( int  index) const

Returns information about each display specified.

◆ GetUpperRight()

vtkTuple<double, 3> vtkDisplayConfiguration::GetUpperRight ( int  index) const

Returns information about each display specified.

◆ GetHasCorners()

bool vtkDisplayConfiguration::GetHasCorners ( int  index) const

Returns information about each display specified.

◆ LoadPVX()

bool vtkDisplayConfiguration::LoadPVX ( const char *  fname)

Parses a PVX file to load display configuration information.

The documentation for this class was generated from the following file:
