This is a helper class for vtkIceTRenderManager and vtkOpenGLIceTRenderer. More...

#include <vtkIceTContext.h>

Inheritance diagram for vtkIceTContext:

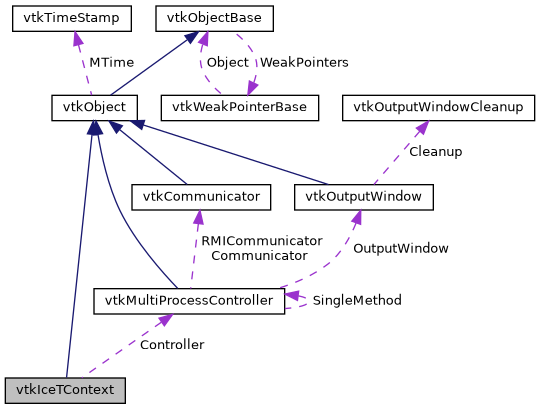

Collaboration diagram for vtkIceTContext:

[legend]

Public Types
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

virtual void	MakeCurrent ()
	Make this context the current one. More...

virtual void	CopyState (vtkIceTContext *src)
	Copy the state from the given context to this context. More...

virtual int	IsValid ()
	Returns true if the current state is valid. More...


virtual void	SetController (vtkMultiProcessController *controller)
	Associate the context with the given controller. More...

virtual vtkMultiProcessController *	GetController ()
	Associate the context with the given controller. More...


virtual int	GetUseOpenGL ()
	Turn this on to enable the OpenGL layer in IceT. More...

virtual void	SetUseOpenGL (int flag)
	Turn this on to enable the OpenGL layer in IceT. More...

virtual void	UseOpenGLOn ()
	Turn this on to enable the OpenGL layer in IceT. More...

virtual void	UseOpenGLOff ()
	Turn this on to enable the OpenGL layer in IceT. More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static int	IsTypeOf (const char *type)

static vtkIceTContext *	SafeDownCast (vtkObject *o)

static vtkIceTContext *	New ()

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkIceTContext ()

	~vtkIceTContext () override

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Protected Attributes
vtkMultiProcessController *	Controller

int	UseOpenGL

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Detailed Description

This is a helper class for vtkIceTRenderManager and vtkOpenGLIceTRenderer.

Most users will never need this class.

This class was conceived to pass IceT contexts between vtkIceTRenderManager and vtkOpenGLIceTRenderer without having to include the IceT header file in either class. Along the way, some functionality was added.

Bug:: If you set the communicator to nullptr and then to a valid value, the IceT state will be lost.

See also: vtkIceTRenderManager

Definition at line 35 of file vtkIceTContext.h.

Member Typedef Documentation

◆ Superclass

typedef vtkObject vtkIceTContext::Superclass

Definition at line 38 of file vtkIceTContext.h.

Constructor & Destructor Documentation

◆ vtkIceTContext()

vtkIceTContext::vtkIceTContext ( )

protected

◆ ~vtkIceTContext()

vtkIceTContext::~vtkIceTContext ( )

overrideprotected

Member Function Documentation

◆ GetClassName()

virtual const char* vtkIceTContext::GetClassName ( )

virtual

◆ IsTypeOf()

static int vtkIceTContext::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkIceTContext::IsA ( const char * type )

virtual

Reimplemented from vtkObjectBase.

◆ SafeDownCast()

static vtkIceTContext* vtkIceTContext::SafeDownCast ( vtkObject * o )

static

◆ New()

static vtkIceTContext* vtkIceTContext::New ( )

static

◆ PrintSelf()

void vtkIceTContext::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkObject.

◆ SetController()

virtual void vtkIceTContext::SetController ( vtkMultiProcessController * controller )

virtual

Associate the context with the given controller.

Currently, this must be a vtkMPIController. The context is not valid until a controller is set.

◆ GetController()

virtual vtkMultiProcessController* vtkIceTContext::GetController ( )

virtual

Associate the context with the given controller.

Currently, this must be a vtkMPIController. The context is not valid until a controller is set.

◆ MakeCurrent()

virtual void vtkIceTContext::MakeCurrent ( )

virtual

Make this context the current one.

◆ GetUseOpenGL()

virtual int vtkIceTContext::GetUseOpenGL ( )

virtual

Turn this on to enable the OpenGL layer in IceT.

By default this is off. Unless you explicitly plan to use the OpenGL layer, it should probably remain off to ensure that you don't accidentally use a feature you did not intend to use.

◆ SetUseOpenGL()

virtual void vtkIceTContext::SetUseOpenGL ( int flag )

virtual

Turn this on to enable the OpenGL layer in IceT.

By default this is off. Unless you explicitly plan to use the OpenGL layer, it should probably remain off to ensure that you don't accidentally use a feature you did not intend to use.

◆ UseOpenGLOn()

virtual void vtkIceTContext::UseOpenGLOn ( )

virtual

Turn this on to enable the OpenGL layer in IceT.

By default this is off. Unless you explicitly plan to use the OpenGL layer, it should probably remain off to ensure that you don't accidentally use a feature you did not intend to use.

◆ UseOpenGLOff()

virtual void vtkIceTContext::UseOpenGLOff ( )

virtual

Turn this on to enable the OpenGL layer in IceT.

By default this is off. Unless you explicitly plan to use the OpenGL layer, it should probably remain off to ensure that you don't accidentally use a feature you did not intend to use.

◆ CopyState()

virtual void vtkIceTContext::CopyState ( vtkIceTContext * src )

virtual

Copy the state from the given context to this context.

◆ IsValid()

virtual int vtkIceTContext::IsValid ( )

virtual

Returns true if the current state is valid.

Member Data Documentation

◆ Controller

vtkMultiProcessController* vtkIceTContext::Controller

protected

Definition at line 83 of file vtkIceTContext.h.

◆ UseOpenGL

int vtkIceTContext::UseOpenGL

protected

Definition at line 85 of file vtkIceTContext.h.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Remoting/Views/vtkIceTContext.h
