helper to assist in determine process order when rendering More...

#include <vtkOrderedCompositingHelper.h>

Inheritance diagram for vtkOrderedCompositingHelper:

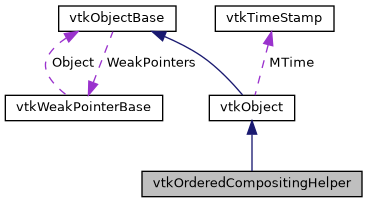

Collaboration diagram for vtkOrderedCompositingHelper:

[legend]

Public Types
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

void	SetBoundingBoxes (const std::vector< vtkBoundingBox > &boxes)

const std::vector< vtkBoundingBox > &	GetBoundingBoxes () const

const vtkBoundingBox &	GetBoundingBox (int index) const

std::vector< int >	ComputeSortOrder (vtkCamera *camera)

std::vector< int >	ComputeSortOrderInViewDirection (const double directionOfProjection[3])

std::vector< int >	ComputeSortOrderFromPosition (const double position[3])

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkOrderedCompositingHelper *	New ()

static int	IsTypeOf (const char *type)

static vtkOrderedCompositingHelper *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkOrderedCompositingHelper ()

	~vtkOrderedCompositingHelper () override

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Protected Attributes
std::vector< vtkBoundingBox >	Boxes

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Detailed Description

helper to assist in determine process order when rendering

vtkOrderedCompositingHelper is used to help determine compositing order for ranks when ordered-compositing is being used.

Definition at line 23 of file vtkOrderedCompositingHelper.h.

Member Typedef Documentation

◆ Superclass

typedef vtkObject vtkOrderedCompositingHelper::Superclass

Definition at line 27 of file vtkOrderedCompositingHelper.h.

Constructor & Destructor Documentation

◆ vtkOrderedCompositingHelper()

vtkOrderedCompositingHelper::vtkOrderedCompositingHelper ( )

protected

◆ ~vtkOrderedCompositingHelper()

vtkOrderedCompositingHelper::~vtkOrderedCompositingHelper ( )

overrideprotected

Member Function Documentation

◆ New()

static vtkOrderedCompositingHelper* vtkOrderedCompositingHelper::New ( )

static

◆ GetClassName()

virtual const char* vtkOrderedCompositingHelper::GetClassName ( )

virtual

◆ IsTypeOf()

static int vtkOrderedCompositingHelper::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkOrderedCompositingHelper::IsA ( const char * type )

virtual

Reimplemented from vtkObjectBase.

◆ SafeDownCast()

static vtkOrderedCompositingHelper* vtkOrderedCompositingHelper::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkOrderedCompositingHelper::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkObject.

◆ SetBoundingBoxes()

void vtkOrderedCompositingHelper::SetBoundingBoxes ( const std::vector< vtkBoundingBox > & boxes )

◆ GetBoundingBoxes()

const std::vector<vtkBoundingBox>& vtkOrderedCompositingHelper::GetBoundingBoxes ( ) const

inline

Definition at line 31 of file vtkOrderedCompositingHelper.h.

◆ GetBoundingBox()

const vtkBoundingBox& vtkOrderedCompositingHelper::GetBoundingBox ( int index ) const

◆ ComputeSortOrder()

std::vector<int> vtkOrderedCompositingHelper::ComputeSortOrder ( vtkCamera * camera )

◆ ComputeSortOrderInViewDirection()

std::vector<int> vtkOrderedCompositingHelper::ComputeSortOrderInViewDirection ( const double directionOfProjection[3] )

◆ ComputeSortOrderFromPosition()

std::vector<int> vtkOrderedCompositingHelper::ComputeSortOrderFromPosition ( const double position[3] )

Member Data Documentation

◆ Boxes

std::vector<vtkBoundingBox> vtkOrderedCompositingHelper::Boxes

protected

Definition at line 42 of file vtkOrderedCompositingHelper.h.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Remoting/Views/vtkOrderedCompositingHelper.h
