parallel Phasta meta-file reader vtkPPhastaReader reads XML based Phasta meta-files and the underlying Phasta files. More...

#include <vtkPPhastaReader.h>

Inheritance diagram for vtkPPhastaReader:

[legend]

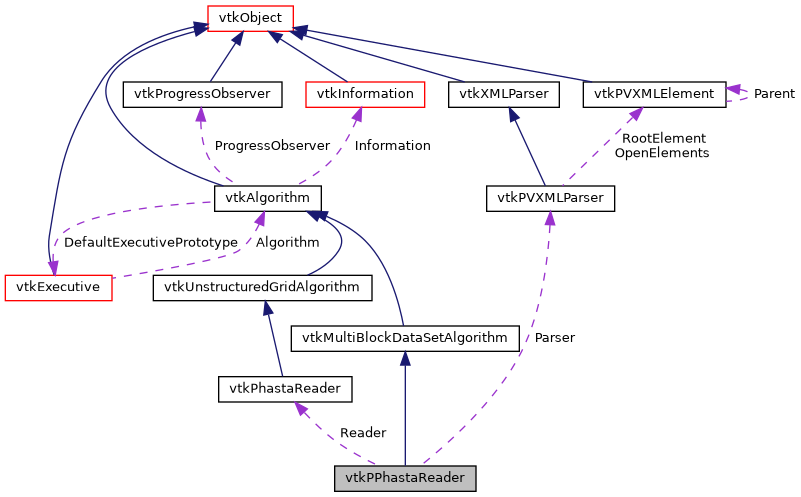

Collaboration diagram for vtkPPhastaReader:

[legend]

Public Types
typedef vtkMultiBlockDataSetAlgorithm	Superclass

Public Types inherited from vtkMultiBlockDataSetAlgorithm
typedef vtkAlgorithm	Superclass

Public Types inherited from vtkAlgorithm
enum	DesiredOutputPrecision

enum	DesiredOutputPrecision

typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override


virtual void	SetFileName (const char *)
	Set and get the Phasta meta file name. More...

virtual char *	GetFileName ()
	Set and get the Phasta meta file name. More...


virtual void	SetTimeStepIndex (int)
	Set the step number for the geometry. More...

virtual int	GetTimeStepIndex ()
	Set the step number for the geometry. More...


virtual int *	GetTimeStepRange ()
	The min and max values of timesteps. More...

virtual void	GetTimeStepRange (int &, int &)
	The min and max values of timesteps. More...

virtual void	GetTimeStepRange (int [2])
	The min and max values of timesteps. More...

Public Member Functions inherited from vtkMultiBlockDataSetAlgorithm
vtkMultiBlockDataSetAlgorithm *	NewInstance () const

vtkMultiBlockDataSet *	GetOutput ()

vtkMultiBlockDataSet *	GetOutput (int)

void	SetInputData (vtkDataObject *)

void	SetInputData (int, vtkDataObject *)

virtual int	ProcessRequest (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)

vtkMultiBlockDataSet *	GetOutput ()

vtkMultiBlockDataSet *	GetOutput (int)

void	SetInputData (vtkDataObject *)

void	SetInputData (int, vtkDataObject *)

virtual int	ProcessRequest (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)

Public Member Functions inherited from vtkAlgorithm
vtkAlgorithm *	NewInstance () const

int	HasExecutive ()

vtkExecutive *	GetExecutive ()

virtual void	SetExecutive (vtkExecutive *executive)

virtual int	ModifyRequest (vtkInformation *request, int when)

vtkInformation *	GetInputPortInformation (int port)

vtkInformation *	GetOutputPortInformation (int port)

int	GetNumberOfInputPorts ()

int	GetNumberOfOutputPorts ()

void	UpdateProgress (double amount)

vtkInformation *	GetInputArrayInformation (int idx)

void	RemoveAllInputs ()

vtkDataObject *	GetOutputDataObject (int port)

virtual void	RemoveInputConnection (int port, vtkAlgorithmOutput *input)

virtual void	RemoveInputConnection (int port, int idx)

virtual void	RemoveAllInputConnections (int port)

int	GetNumberOfInputConnections (int port)

int	GetTotalNumberOfInputConnections ()

vtkAlgorithmOutput *	GetInputConnection (int port, int index)

vtkAlgorithm *	GetInputAlgorithm (int port, int index, int &algPort)

vtkAlgorithm *	GetInputAlgorithm (int port, int index)

vtkExecutive *	GetInputExecutive (int port, int index)

vtkInformation *	GetInputInformation (int port, int index)

vtkInformation *	GetOutputInformation (int port)

virtual int	Update (int port, vtkInformationVector *requests)

virtual int	Update (vtkInformation *requests)

virtual int	UpdateExtent (const int extents[6])

virtual void	UpdateInformation ()

virtual void	UpdateDataObject ()

virtual void	PropagateUpdateExtent ()

virtual void	UpdateWholeExtent ()

void	ConvertTotalInputToPortConnection (int ind, int &port, int &conn)

int	SetUpdateExtentToWholeExtent (int port)

int	SetUpdateExtentToWholeExtent ()

void	SetUpdateExtent (int port, int extent[6])

void	SetUpdateExtent (int extent[6])

int	ProcessRequest (vtkInformation request, vtkCollection inInfo, vtkInformationVector *outInfo)

virtual int	ComputePipelineMTime (vtkInformation request, vtkInformationVector inInfoVec, vtkInformationVector outInfoVec, int requestFromOutputPort, vtkMTimeType *mtime)

virtual vtkInformation *	GetInformation ()

virtual void	SetInformation (vtkInformation *)

void	Register (vtkObjectBase *o) VTK_OVERRIDE

void	UnRegister (vtkObjectBase *o) VTK_OVERRIDE

virtual void	SetAbortExecute (int)

virtual int	GetAbortExecute ()

virtual void	AbortExecuteOn ()

virtual void	AbortExecuteOff ()

virtual void	SetProgress (double)

virtual double	GetProgress ()

void	SetProgressText (const char *ptext)

virtual char *	GetProgressText ()

virtual unsigned long	GetErrorCode ()

virtual void	SetInputArrayToProcess (int idx, int port, int connection, int fieldAssociation, const char *name)

virtual void	SetInputArrayToProcess (int idx, int port, int connection, int fieldAssociation, int fieldAttributeType)

virtual void	SetInputArrayToProcess (int idx, vtkInformation *info)

virtual void	SetInputArrayToProcess (int idx, int port, int connection, const char fieldAssociation, const char attributeTypeorName)

vtkDataObject *	GetInputDataObject (int port, int connection)

virtual void	SetInputConnection (int port, vtkAlgorithmOutput *input)

virtual void	SetInputConnection (vtkAlgorithmOutput *input)

virtual void	AddInputConnection (int port, vtkAlgorithmOutput *input)

virtual void	AddInputConnection (vtkAlgorithmOutput *input)

virtual void	SetInputDataObject (int port, vtkDataObject *data)

virtual void	SetInputDataObject (vtkDataObject *data)

virtual void	AddInputDataObject (int port, vtkDataObject *data)

virtual void	AddInputDataObject (vtkDataObject *data)

vtkAlgorithmOutput *	GetOutputPort (int index)

vtkAlgorithmOutput *	GetOutputPort ()

vtkAlgorithm *	GetInputAlgorithm ()

vtkExecutive *	GetInputExecutive ()

vtkInformation *	GetInputInformation ()

virtual void	Update (int port)

virtual void	Update ()

virtual int	UpdatePiece (int piece, int numPieces, int ghostLevels, const int extents[6]=0)

virtual int	UpdateTimeStep (double time, int piece=-1, int numPieces=1, int ghostLevels=0, const int extents[6]=0)

virtual void	SetReleaseDataFlag (int)

virtual int	GetReleaseDataFlag ()

void	ReleaseDataFlagOn ()

void	ReleaseDataFlagOff ()

int	UpdateExtentIsEmpty (vtkInformation pinfo, vtkDataObject output)

int	UpdateExtentIsEmpty (vtkInformation *pinfo, int extentType)

void	SetUpdateExtent (int port, int piece, int numPieces, int ghostLevel)

void	SetUpdateExtent (int piece, int numPieces, int ghostLevel)

int *	GetUpdateExtent ()

int *	GetUpdateExtent (int port)

void	GetUpdateExtent (int &x0, int &x1, int &y0, int &y1, int &z0, int &z1)

void	GetUpdateExtent (int port, int &x0, int &x1, int &y0, int &y1, int &z0, int &z1)

void	GetUpdateExtent (int extent[6])

void	GetUpdateExtent (int port, int extent[6])

int	GetUpdatePiece ()

int	GetUpdatePiece (int port)

int	GetUpdateNumberOfPieces ()

int	GetUpdateNumberOfPieces (int port)

int	GetUpdateGhostLevel ()

int	GetUpdateGhostLevel (int port)

void	SetProgressObserver (vtkProgressObserver *)

virtual vtkProgressObserver *	GetProgressObserver ()

int	ProcessRequest (vtkInformation request, vtkCollection inInfo, vtkInformationVector *outInfo)

virtual int	ComputePipelineMTime (vtkInformation request, vtkInformationVector inInfoVec, vtkInformationVector outInfoVec, int requestFromOutputPort, vtkMTimeType *mtime)

virtual vtkInformation *	GetInformation ()

virtual void	SetInformation (vtkInformation *)

void	Register (vtkObjectBase *o) VTK_OVERRIDE

void	UnRegister (vtkObjectBase *o) VTK_OVERRIDE

virtual void	SetAbortExecute (int)

virtual int	GetAbortExecute ()

virtual void	AbortExecuteOn ()

virtual void	AbortExecuteOff ()

virtual void	SetProgress (double)

virtual double	GetProgress ()

void	SetProgressText (const char *ptext)

virtual char *	GetProgressText ()

virtual unsigned long	GetErrorCode ()

virtual void	SetInputArrayToProcess (int idx, int port, int connection, int fieldAssociation, const char *name)

virtual void	SetInputArrayToProcess (int idx, int port, int connection, int fieldAssociation, int fieldAttributeType)

virtual void	SetInputArrayToProcess (int idx, vtkInformation *info)

virtual void	SetInputArrayToProcess (int idx, int port, int connection, const char fieldAssociation, const char attributeTypeorName)

vtkDataObject *	GetInputDataObject (int port, int connection)

virtual void	SetInputConnection (int port, vtkAlgorithmOutput *input)

virtual void	SetInputConnection (vtkAlgorithmOutput *input)

virtual void	AddInputConnection (int port, vtkAlgorithmOutput *input)

virtual void	AddInputConnection (vtkAlgorithmOutput *input)

virtual void	SetInputDataObject (int port, vtkDataObject *data)

virtual void	SetInputDataObject (vtkDataObject *data)

virtual void	AddInputDataObject (int port, vtkDataObject *data)

virtual void	AddInputDataObject (vtkDataObject *data)

vtkAlgorithmOutput *	GetOutputPort (int index)

vtkAlgorithmOutput *	GetOutputPort ()

vtkAlgorithm *	GetInputAlgorithm ()

vtkExecutive *	GetInputExecutive ()

vtkInformation *	GetInputInformation ()

virtual void	Update (int port)

virtual void	Update ()

virtual int	UpdatePiece (int piece, int numPieces, int ghostLevels, const int extents[6]=0)

virtual int	UpdateTimeStep (double time, int piece=-1, int numPieces=1, int ghostLevels=0, const int extents[6]=0)

virtual void	SetReleaseDataFlag (int)

virtual int	GetReleaseDataFlag ()

void	ReleaseDataFlagOn ()

void	ReleaseDataFlagOff ()

int	UpdateExtentIsEmpty (vtkInformation pinfo, vtkDataObject output)

int	UpdateExtentIsEmpty (vtkInformation *pinfo, int extentType)

void	SetUpdateExtent (int port, int piece, int numPieces, int ghostLevel)

void	SetUpdateExtent (int piece, int numPieces, int ghostLevel)

int *	GetUpdateExtent ()

int *	GetUpdateExtent (int port)

void	GetUpdateExtent (int &x0, int &x1, int &y0, int &y1, int &z0, int &z1)

void	GetUpdateExtent (int port, int &x0, int &x1, int &y0, int &y1, int &z0, int &z1)

void	GetUpdateExtent (int extent[6])

void	GetUpdateExtent (int port, int extent[6])

int	GetUpdatePiece ()

int	GetUpdatePiece (int port)

int	GetUpdateNumberOfPieces ()

int	GetUpdateNumberOfPieces (int port)

int	GetUpdateGhostLevel ()

int	GetUpdateGhostLevel (int port)

void	SetProgressObserver (vtkProgressObserver *)

virtual vtkProgressObserver *	GetProgressObserver ()

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkPPhastaReader *	New ()

static int	IsTypeOf (const char *type)

static vtkPPhastaReader *	SafeDownCast (vtkObject *o)

static int	CanReadFile (const char *filename)

Static Public Member Functions inherited from vtkMultiBlockDataSetAlgorithm
static vtkMultiBlockDataSetAlgorithm *	New ()

static int	IsTypeOf (const char *type)

static vtkMultiBlockDataSetAlgorithm *	SafeDownCast (vtkObjectBase *o)

Static Public Member Functions inherited from vtkAlgorithm
static vtkAlgorithm *	New ()

static int	IsTypeOf (const char *type)

static vtkAlgorithm *	SafeDownCast (vtkObjectBase *o)

static vtkInformationIntegerKey *	INPUT_IS_OPTIONAL ()

static vtkInformationIntegerKey *	INPUT_IS_REPEATABLE ()

static vtkInformationInformationVectorKey *	INPUT_REQUIRED_FIELDS ()

static vtkInformationStringVectorKey *	INPUT_REQUIRED_DATA_TYPE ()

static vtkInformationInformationVectorKey *	INPUT_ARRAYS_TO_PROCESS ()

static vtkInformationIntegerKey *	INPUT_PORT ()

static vtkInformationIntegerKey *	INPUT_CONNECTION ()

static vtkInformationIntegerKey *	CAN_PRODUCE_SUB_EXTENT ()

static vtkInformationIntegerKey *	CAN_HANDLE_PIECE_REQUEST ()

static void	SetDefaultExecutivePrototype (vtkExecutive *proto)

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkPPhastaReader ()

	~vtkPPhastaReader () override

int	RequestInformation (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector) override

int	RequestData (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector) override

Protected Member Functions inherited from vtkMultiBlockDataSetAlgorithm
virtual vtkObjectBase *	NewInstanceInternal () const

	vtkMultiBlockDataSetAlgorithm ()

	~vtkMultiBlockDataSetAlgorithm ()

virtual vtkExecutive *	CreateDefaultExecutive ()

virtual int	FillOutputPortInformation (int port, vtkInformation *info)

virtual int	FillInputPortInformation (int port, vtkInformation *info)

vtkDataObject *	GetInput (int port)

virtual int	RequestDataObject (vtkInformation , vtkInformationVector , vtkInformationVector )

virtual int	RequestUpdateExtent (vtkInformation , vtkInformationVector , vtkInformationVector )

virtual int	RequestDataObject (vtkInformation , vtkInformationVector , vtkInformationVector )

virtual int	RequestUpdateExtent (vtkInformation , vtkInformationVector , vtkInformationVector )

Protected Member Functions inherited from vtkAlgorithm
	vtkAlgorithm ()

	~vtkAlgorithm ()

virtual void	SetNumberOfInputPorts (int n)

virtual void	SetNumberOfOutputPorts (int n)

int	InputPortIndexInRange (int index, const char *action)

int	OutputPortIndexInRange (int index, const char *action)

int	GetInputArrayAssociation (int idx, vtkInformationVector **inputVector)

void	ReportReferences (vtkGarbageCollector *) VTK_OVERRIDE

virtual void	SetNumberOfInputConnections (int port, int n)

int	GetInputArrayAssociation (int idx, int connection, vtkInformationVector **inputVector)

int	GetInputArrayAssociation (int idx, vtkDataObject *input)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkInformationVector **inputVector)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkInformationVector **inputVector, int &association)

vtkDataArray *	GetInputArrayToProcess (int idx, int connection, vtkInformationVector **inputVector)

vtkDataArray *	GetInputArrayToProcess (int idx, int connection, vtkInformationVector **inputVector, int &association)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkDataObject *input)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkDataObject *input, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkInformationVector **inputVector)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkInformationVector **inputVector, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, int connection, vtkInformationVector **inputVector)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, int connection, vtkInformationVector **inputVector, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkDataObject *input)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkDataObject *input, int &association)

vtkInformation *	GetInputArrayFieldInformation (int idx, vtkInformationVector **inputVector)

virtual void	SetNthInputConnection (int port, int index, vtkAlgorithmOutput *input)

void	SetInputDataInternal (int port, vtkDataObject *input)

void	AddInputDataInternal (int port, vtkDataObject *input)

int	GetInputArrayAssociation (int idx, int connection, vtkInformationVector **inputVector)

int	GetInputArrayAssociation (int idx, vtkDataObject *input)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkInformationVector **inputVector)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkInformationVector **inputVector, int &association)

vtkDataArray *	GetInputArrayToProcess (int idx, int connection, vtkInformationVector **inputVector)

vtkDataArray *	GetInputArrayToProcess (int idx, int connection, vtkInformationVector **inputVector, int &association)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkDataObject *input)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkDataObject *input, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkInformationVector **inputVector)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkInformationVector **inputVector, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, int connection, vtkInformationVector **inputVector)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, int connection, vtkInformationVector **inputVector, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkDataObject *input)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkDataObject *input, int &association)

vtkInformation *	GetInputArrayFieldInformation (int idx, vtkInformationVector **inputVector)

virtual void	SetErrorCode (unsigned long)

virtual void	SetNthInputConnection (int port, int index, vtkAlgorithmOutput *input)

void	SetInputDataInternal (int port, vtkDataObject *input)

void	AddInputDataInternal (int port, vtkDataObject *input)

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Protected Attributes
char *	FileName

int	TimeStepIndex

int	TimeStepRange [2]
	Store the range of time steps. More...

vtkPhastaReader *	Reader

vtkPVXMLParser *	Parser

int	ActualTimeStep

Protected Attributes inherited from vtkAlgorithm
vtkInformation *	Information

double	Progress

char *	ProgressText

vtkProgressObserver *	ProgressObserver

unsigned long	ErrorCode

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Additional Inherited Members
Public Attributes inherited from vtkAlgorithm
	SINGLE_PRECISION

	DOUBLE_PRECISION

	DEFAULT_PRECISION

int	AbortExecute

Static Protected Member Functions inherited from vtkAlgorithm
static vtkInformationIntegerKey *	PORT_REQUIREMENTS_FILLED ()

Static Protected Attributes inherited from vtkAlgorithm
static vtkExecutive *	DefaultExecutivePrototype

Detailed Description

parallel Phasta meta-file reader vtkPPhastaReader reads XML based Phasta meta-files and the underlying Phasta files.

The meta-file has the following form:

* <?xml version="1.0" ?>
*
* <PhastaMetaFile number_of_pieces="2">
*   <GeometryFileNamePattern pattern="geombc.dat.%d"
*                            has_piece_entry="1"
*                            has_time_entry="0"/>
*   <FieldFileNamePattern pattern="restart.%d.%d"
*                         has_piece_entry="1"
*                         has_time_entry="1"/>
*
*   <TimeSteps number_of_steps="2"
*              auto_generate_indices="1"
*              start_index="0"
*              increment_index_by="20"
*              start_value="0."
*              increment_value_by="20.">
*     <TimeStep index="0" geometry_index="" field_index="0" value="0.0"/>
*     <TimeStep index="1" geometry_index="" field_index="20" value="20.0"/>
*   </TimeSteps>
*   <Fields number_of_fields="2">
*     <Field paraview_field_tag="velocity"
*            phasta_field_tag="solution"
*            start_index_in_phasta_array="1"
*            number_of_componenets="3"
*            datadependency="0"
*            data_type="double"/>
*     <Field paraview_field_tag="average speed"
*            phasta_field_tag="ybar"
*            start_index_in_phasta_array="4"
*            number_of_componenets="1"/>
*   </Fields>
*</PhastaMetaFile>
*

The GeometryFileNamePattern and FieldFileNamePattern elements have three attributes:

pattern: This is the pattern used to get the Phasta filenames. The d placeholders will be replaced by appropriate indices. The first index is time (if specified), the second one is piece.
has_piece_entry (0 or 1): Specifies whether the pattern has a piece placeholder. The piece placeholder is replaced by the update piece number.
has_time_entry (0 or 1): Specified whether the pattern has a time placeholder. The time placeholder is replaced by an index specified in the TimeSteps element

The TimeSteps element contains TimeStep sub-elements. Each TimeStep element specifies an index (index attribute), an index used in the geometry filename pattern (geometry_index), an index used in the field filename pattern (field_index) and a time value (float). In the example above, there are two timesteps. The first one is stored in files named geombc.dat.(0,1), restart.(0,20).(0,1). The time placeholders are substituted with the the geometry_index and field_index attribute values.

Normally there is one TimeStep element per timestep. However, it is possible to ask the reader to automatically generate timestep entries. This is done with setting the (optional) auto_generate_indices to 1. In this case, the reader will generate number_of_steps entries. The geometry_index and field_index of these entries will start at start_index and will be incremented by increment_index_by. The time value of these entries will start at start_value and will be incremented by increment_value_by. Note that it is possible to use a combination of both approaches. Any values specified with the TimeStep elements will overwrite anything automatically computed. A common use of this is to let the reader compute all indices for field files and overwrite the geometry indices with TimeStep elements.

The Fields element contain number_of_fields Field sub-element. Each Field element specifies tag attribute to be used in paraview, tag under which the field is stored in phasta files, start index of the array in phasta files, number of components of the field, data dependency, i.e., either 0 for nodal or 1 for elemental and data type, i.e., "double" (as of now supports only 1, 3 & 9 for number of components, i.e., scalars, vectors & tensors, and "double" for type of data). In the example above, there are two fields to be visualized one is velocity field stored under tag solution from index 1 to 3 in phasta files which is a vector field defined on nodes with double values, and the other field is average speed scalar field stored under tag ybar at index 4 in phasta files If any Field element is specified then default attribute values are : (phasta_field_tag is mandatory) paraview_field_tag = Field <number> start_index_in_phasta_array = 0 number_of_components = 1 data_dependency = 0 data_type = double If no Field(s) is/are specified then the default is following 3 fields : pressure (index 0 under solution), velocity (index 1-3 under solution) temperature (index 4 under soltuion)

See also: vtkPhastaReader

Definition at line 119 of file vtkPPhastaReader.h.

Member Typedef Documentation

◆ Superclass

typedef vtkMultiBlockDataSetAlgorithm vtkPPhastaReader::Superclass

Definition at line 123 of file vtkPPhastaReader.h.

Constructor & Destructor Documentation

◆ vtkPPhastaReader()

vtkPPhastaReader::vtkPPhastaReader ( )

protected

◆ ~vtkPPhastaReader()

vtkPPhastaReader::~vtkPPhastaReader ( )

overrideprotected

Member Function Documentation

◆ New()

static vtkPPhastaReader* vtkPPhastaReader::New ( )

static

◆ GetClassName()

virtual const char* vtkPPhastaReader::GetClassName ( )

virtual

◆ IsTypeOf()

static int vtkPPhastaReader::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkPPhastaReader::IsA ( const char * type )

virtual

Reimplemented from vtkMultiBlockDataSetAlgorithm.

◆ SafeDownCast()

static vtkPPhastaReader* vtkPPhastaReader::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkPPhastaReader::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkMultiBlockDataSetAlgorithm.

◆ SetFileName()

virtual void vtkPPhastaReader::SetFileName ( const char * )

virtual

Set and get the Phasta meta file name.

◆ GetFileName()

virtual char* vtkPPhastaReader::GetFileName ( )

virtual

Set and get the Phasta meta file name.

◆ SetTimeStepIndex()

virtual void vtkPPhastaReader::SetTimeStepIndex ( int )

virtual

Set the step number for the geometry.

◆ GetTimeStepIndex()

virtual int vtkPPhastaReader::GetTimeStepIndex ( )

virtual

Set the step number for the geometry.

◆ GetTimeStepRange() [1/3]

virtual int* vtkPPhastaReader::GetTimeStepRange ( )

virtual

The min and max values of timesteps.

◆ GetTimeStepRange() [2/3]

virtual void vtkPPhastaReader::GetTimeStepRange	(	int &	,
		int &
	)

virtual

The min and max values of timesteps.

◆ GetTimeStepRange() [3/3]

virtual void vtkPPhastaReader::GetTimeStepRange ( int [2] )

virtual

The min and max values of timesteps.

◆ CanReadFile()

static int vtkPPhastaReader::CanReadFile ( const char * filename )

static

◆ RequestInformation()

int vtkPPhastaReader::RequestInformation	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)

overrideprotectedvirtual

Reimplemented from vtkMultiBlockDataSetAlgorithm.

◆ RequestData()

int vtkPPhastaReader::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)

overrideprotectedvirtual

Reimplemented from vtkMultiBlockDataSetAlgorithm.

Member Data Documentation

◆ FileName

char* vtkPPhastaReader::FileName

protected

Definition at line 160 of file vtkPPhastaReader.h.

◆ TimeStepIndex

int vtkPPhastaReader::TimeStepIndex

protected

Definition at line 162 of file vtkPPhastaReader.h.

◆ TimeStepRange

int vtkPPhastaReader::TimeStepRange[2]

protected

Store the range of time steps.

Definition at line 167 of file vtkPPhastaReader.h.

◆ Reader

vtkPhastaReader* vtkPPhastaReader::Reader

protected

Definition at line 169 of file vtkPPhastaReader.h.

◆ Parser

vtkPVXMLParser* vtkPPhastaReader::Parser

protected

Definition at line 170 of file vtkPPhastaReader.h.

◆ ActualTimeStep

int vtkPPhastaReader::ActualTimeStep

protected

Definition at line 172 of file vtkPPhastaReader.h.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/VTKExtensions/IOGeneral/vtkPPhastaReader.h
