a window associated with current process, if any. More...

#include <vtkPVProcessWindow.h>

Inheritance diagram for vtkPVProcessWindow:

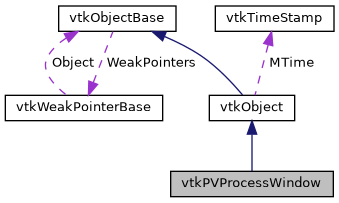

Collaboration diagram for vtkPVProcessWindow:

[legend]

Public Types
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static int	IsTypeOf (const char *type)

static vtkPVProcessWindow *	SafeDownCast (vtkObject *o)

static vtkRenderWindow *	GetRenderWindow ()
	Returns the render window for this process. More...

static void	PrepareForRendering ()
	This may be called to ensured that the shared window is created/initialized at least once. More...

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkPVProcessWindow ()

	~vtkPVProcessWindow () override

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Static Protected Member Functions
static vtkRenderWindow *	NewWindow ()

static vtkRenderWindow *	NewTileDisplayWindow ()

static vtkRenderWindow *	NewCAVEWindow ()

Additional Inherited Members
Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Detailed Description

a window associated with current process, if any.

In certain configurations, a ParaView process may have a single vtkRenderWindow per process that is used to show the rendering results. For example, in CAVE or tile-display mode, each render-server (or pvserver) process may show its results on a user-viewable window. This class provides access to that window.

It is a singleton, since each process can have at most one such window.

Definition at line 24 of file vtkPVProcessWindow.h.

Member Typedef Documentation

◆ Superclass

typedef vtkObject vtkPVProcessWindow::Superclass

Definition at line 27 of file vtkPVProcessWindow.h.

Constructor & Destructor Documentation

◆ vtkPVProcessWindow()

vtkPVProcessWindow::vtkPVProcessWindow ( )

protected

◆ ~vtkPVProcessWindow()

vtkPVProcessWindow::~vtkPVProcessWindow ( )

overrideprotected

Member Function Documentation

◆ GetClassName()

virtual const char* vtkPVProcessWindow::GetClassName ( )

virtual

◆ IsTypeOf()

static int vtkPVProcessWindow::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkPVProcessWindow::IsA ( const char * type )

virtual

Reimplemented from vtkObjectBase.

◆ SafeDownCast()

static vtkPVProcessWindow* vtkPVProcessWindow::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkPVProcessWindow::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkObject.

◆ GetRenderWindow()

static vtkRenderWindow* vtkPVProcessWindow::GetRenderWindow ( )

static

Returns the render window for this process.

May return nullptr on processes where ParaView rules dictate no such process specific window is necessary. The first time this method is called the window may get created and initialized based on the configuration.

◆ PrepareForRendering()

static void vtkPVProcessWindow::PrepareForRendering ( )

static

This may be called to ensured that the shared window is created/initialized at least once.

◆ NewWindow()

static vtkRenderWindow* vtkPVProcessWindow::NewWindow ( )

staticprotected

◆ NewTileDisplayWindow()

static vtkRenderWindow* vtkPVProcessWindow::NewTileDisplayWindow ( )

staticprotected

◆ NewCAVEWindow()

static vtkRenderWindow* vtkPVProcessWindow::NewCAVEWindow ( )

staticprotected

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Remoting/Views/vtkPVProcessWindow.h
