Extracts material fragments from multi-block vtkRectilinearGrid datasets based on the selected volume fraction array(s) and a fraction isovalue and integrates the associated attributes. More...

#include <vtkRectilinearGridConnectivity.h>

Inheritance diagram for vtkRectilinearGridConnectivity:

[legend]

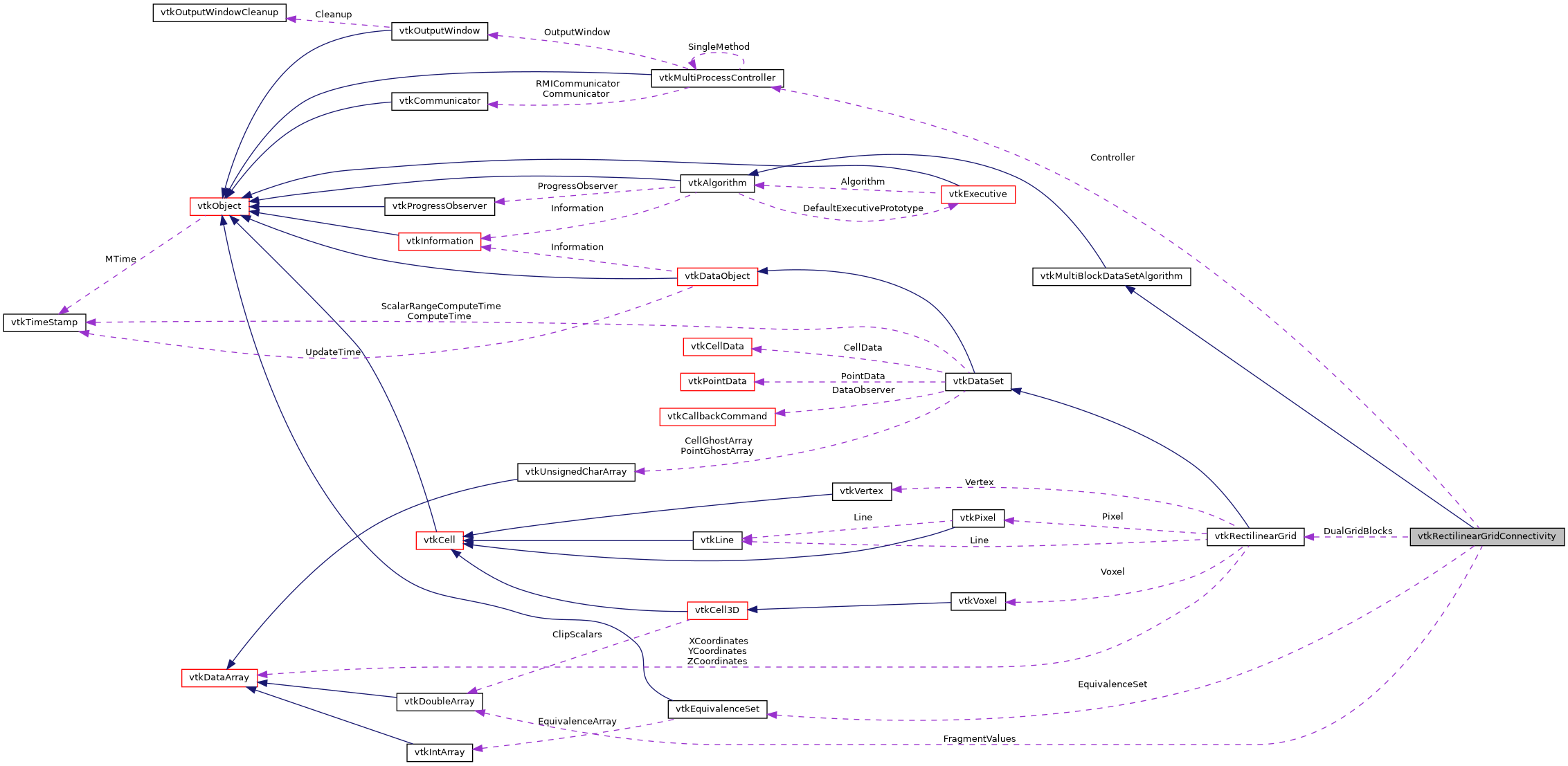

Collaboration diagram for vtkRectilinearGridConnectivity:

[legend]

Public Types
typedef vtkMultiBlockDataSetAlgorithm	Superclass

Public Types inherited from vtkMultiBlockDataSetAlgorithm
typedef vtkAlgorithm	Superclass

Public Types inherited from vtkAlgorithm
enum	DesiredOutputPrecision

enum	DesiredOutputPrecision

typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

void	RemoveAllVolumeArrayNames ()
	Remove all volume array names. More...

void	RemoveDoubleVolumeArrayNames ()
	Remove double-type volume array names. More...

void	RemoveFloatVolumeArrayNames ()
	Remove float-type volume array names. More...

void	RemoveUnsignedCharVolumeArrayNames ()
	Remove unsigned char-type volume array names. More...

void	AddDoubleVolumeArrayName (char *arayName)
	Add a double-type volume array name to the selection list. More...

void	AddFloatVolumeArrayName (char *arayName)
	Add a float-type volume array name to the selection list. More...

void	AddUnsignedCharVolumeArrayName (char *arayName)
	Add an unsigned char-type volume array name to the selection list. More...

void	AddVolumeArrayName (char *arayName)
	Add a volume array (of any type) name to the selection list. More...


virtual void	SetVolumeFractionSurfaceValue (double)
	Set / get the volume fraction value [0, 1] used for extracting fragments. More...

virtual double	GetVolumeFractionSurfaceValue ()
	Set / get the volume fraction value [0, 1] used for extracting fragments. More...

Public Member Functions inherited from vtkMultiBlockDataSetAlgorithm
vtkMultiBlockDataSetAlgorithm *	NewInstance () const

vtkMultiBlockDataSet *	GetOutput ()

vtkMultiBlockDataSet *	GetOutput (int)

void	SetInputData (vtkDataObject *)

void	SetInputData (int, vtkDataObject *)

virtual int	ProcessRequest (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)

vtkMultiBlockDataSet *	GetOutput ()

vtkMultiBlockDataSet *	GetOutput (int)

void	SetInputData (vtkDataObject *)

void	SetInputData (int, vtkDataObject *)

virtual int	ProcessRequest (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)

Public Member Functions inherited from vtkAlgorithm
vtkAlgorithm *	NewInstance () const

int	HasExecutive ()

vtkExecutive *	GetExecutive ()

virtual void	SetExecutive (vtkExecutive *executive)

virtual int	ModifyRequest (vtkInformation *request, int when)

vtkInformation *	GetInputPortInformation (int port)

vtkInformation *	GetOutputPortInformation (int port)

int	GetNumberOfInputPorts ()

int	GetNumberOfOutputPorts ()

void	UpdateProgress (double amount)

vtkInformation *	GetInputArrayInformation (int idx)

void	RemoveAllInputs ()

vtkDataObject *	GetOutputDataObject (int port)

virtual void	RemoveInputConnection (int port, vtkAlgorithmOutput *input)

virtual void	RemoveInputConnection (int port, int idx)

virtual void	RemoveAllInputConnections (int port)

int	GetNumberOfInputConnections (int port)

int	GetTotalNumberOfInputConnections ()

vtkAlgorithmOutput *	GetInputConnection (int port, int index)

vtkAlgorithm *	GetInputAlgorithm (int port, int index, int &algPort)

vtkAlgorithm *	GetInputAlgorithm (int port, int index)

vtkExecutive *	GetInputExecutive (int port, int index)

vtkInformation *	GetInputInformation (int port, int index)

vtkInformation *	GetOutputInformation (int port)

virtual int	Update (int port, vtkInformationVector *requests)

virtual int	Update (vtkInformation *requests)

virtual int	UpdateExtent (const int extents[6])

virtual void	UpdateInformation ()

virtual void	UpdateDataObject ()

virtual void	PropagateUpdateExtent ()

virtual void	UpdateWholeExtent ()

void	ConvertTotalInputToPortConnection (int ind, int &port, int &conn)

int	SetUpdateExtentToWholeExtent (int port)

int	SetUpdateExtentToWholeExtent ()

void	SetUpdateExtent (int port, int extent[6])

void	SetUpdateExtent (int extent[6])

int	ProcessRequest (vtkInformation request, vtkCollection inInfo, vtkInformationVector *outInfo)

virtual int	ComputePipelineMTime (vtkInformation request, vtkInformationVector inInfoVec, vtkInformationVector outInfoVec, int requestFromOutputPort, vtkMTimeType *mtime)

virtual vtkInformation *	GetInformation ()

virtual void	SetInformation (vtkInformation *)

void	Register (vtkObjectBase *o) VTK_OVERRIDE

void	UnRegister (vtkObjectBase *o) VTK_OVERRIDE

virtual void	SetAbortExecute (int)

virtual int	GetAbortExecute ()

virtual void	AbortExecuteOn ()

virtual void	AbortExecuteOff ()

virtual void	SetProgress (double)

virtual double	GetProgress ()

void	SetProgressText (const char *ptext)

virtual char *	GetProgressText ()

virtual unsigned long	GetErrorCode ()

virtual void	SetInputArrayToProcess (int idx, int port, int connection, int fieldAssociation, const char *name)

virtual void	SetInputArrayToProcess (int idx, int port, int connection, int fieldAssociation, int fieldAttributeType)

virtual void	SetInputArrayToProcess (int idx, vtkInformation *info)

virtual void	SetInputArrayToProcess (int idx, int port, int connection, const char fieldAssociation, const char attributeTypeorName)

vtkDataObject *	GetInputDataObject (int port, int connection)

virtual void	SetInputConnection (int port, vtkAlgorithmOutput *input)

virtual void	SetInputConnection (vtkAlgorithmOutput *input)

virtual void	AddInputConnection (int port, vtkAlgorithmOutput *input)

virtual void	AddInputConnection (vtkAlgorithmOutput *input)

virtual void	SetInputDataObject (int port, vtkDataObject *data)

virtual void	SetInputDataObject (vtkDataObject *data)

virtual void	AddInputDataObject (int port, vtkDataObject *data)

virtual void	AddInputDataObject (vtkDataObject *data)

vtkAlgorithmOutput *	GetOutputPort (int index)

vtkAlgorithmOutput *	GetOutputPort ()

vtkAlgorithm *	GetInputAlgorithm ()

vtkExecutive *	GetInputExecutive ()

vtkInformation *	GetInputInformation ()

virtual void	Update (int port)

virtual void	Update ()

virtual int	UpdatePiece (int piece, int numPieces, int ghostLevels, const int extents[6]=0)

virtual int	UpdateTimeStep (double time, int piece=-1, int numPieces=1, int ghostLevels=0, const int extents[6]=0)

virtual void	SetReleaseDataFlag (int)

virtual int	GetReleaseDataFlag ()

void	ReleaseDataFlagOn ()

void	ReleaseDataFlagOff ()

int	UpdateExtentIsEmpty (vtkInformation pinfo, vtkDataObject output)

int	UpdateExtentIsEmpty (vtkInformation *pinfo, int extentType)

void	SetUpdateExtent (int port, int piece, int numPieces, int ghostLevel)

void	SetUpdateExtent (int piece, int numPieces, int ghostLevel)

int *	GetUpdateExtent ()

int *	GetUpdateExtent (int port)

void	GetUpdateExtent (int &x0, int &x1, int &y0, int &y1, int &z0, int &z1)

void	GetUpdateExtent (int port, int &x0, int &x1, int &y0, int &y1, int &z0, int &z1)

void	GetUpdateExtent (int extent[6])

void	GetUpdateExtent (int port, int extent[6])

int	GetUpdatePiece ()

int	GetUpdatePiece (int port)

int	GetUpdateNumberOfPieces ()

int	GetUpdateNumberOfPieces (int port)

int	GetUpdateGhostLevel ()

int	GetUpdateGhostLevel (int port)

void	SetProgressObserver (vtkProgressObserver *)

virtual vtkProgressObserver *	GetProgressObserver ()

int	ProcessRequest (vtkInformation request, vtkCollection inInfo, vtkInformationVector *outInfo)

virtual int	ComputePipelineMTime (vtkInformation request, vtkInformationVector inInfoVec, vtkInformationVector outInfoVec, int requestFromOutputPort, vtkMTimeType *mtime)

virtual vtkInformation *	GetInformation ()

virtual void	SetInformation (vtkInformation *)

void	Register (vtkObjectBase *o) VTK_OVERRIDE

void	UnRegister (vtkObjectBase *o) VTK_OVERRIDE

virtual void	SetAbortExecute (int)

virtual int	GetAbortExecute ()

virtual void	AbortExecuteOn ()

virtual void	AbortExecuteOff ()

virtual void	SetProgress (double)

virtual double	GetProgress ()

void	SetProgressText (const char *ptext)

virtual char *	GetProgressText ()

virtual unsigned long	GetErrorCode ()

virtual void	SetInputArrayToProcess (int idx, int port, int connection, int fieldAssociation, const char *name)

virtual void	SetInputArrayToProcess (int idx, int port, int connection, int fieldAssociation, int fieldAttributeType)

virtual void	SetInputArrayToProcess (int idx, vtkInformation *info)

virtual void	SetInputArrayToProcess (int idx, int port, int connection, const char fieldAssociation, const char attributeTypeorName)

vtkDataObject *	GetInputDataObject (int port, int connection)

virtual void	SetInputConnection (int port, vtkAlgorithmOutput *input)

virtual void	SetInputConnection (vtkAlgorithmOutput *input)

virtual void	AddInputConnection (int port, vtkAlgorithmOutput *input)

virtual void	AddInputConnection (vtkAlgorithmOutput *input)

virtual void	SetInputDataObject (int port, vtkDataObject *data)

virtual void	SetInputDataObject (vtkDataObject *data)

virtual void	AddInputDataObject (int port, vtkDataObject *data)

virtual void	AddInputDataObject (vtkDataObject *data)

vtkAlgorithmOutput *	GetOutputPort (int index)

vtkAlgorithmOutput *	GetOutputPort ()

vtkAlgorithm *	GetInputAlgorithm ()

vtkExecutive *	GetInputExecutive ()

vtkInformation *	GetInputInformation ()

virtual void	Update (int port)

virtual void	Update ()

virtual int	UpdatePiece (int piece, int numPieces, int ghostLevels, const int extents[6]=0)

virtual int	UpdateTimeStep (double time, int piece=-1, int numPieces=1, int ghostLevels=0, const int extents[6]=0)

virtual void	SetReleaseDataFlag (int)

virtual int	GetReleaseDataFlag ()

void	ReleaseDataFlagOn ()

void	ReleaseDataFlagOff ()

int	UpdateExtentIsEmpty (vtkInformation pinfo, vtkDataObject output)

int	UpdateExtentIsEmpty (vtkInformation *pinfo, int extentType)

void	SetUpdateExtent (int port, int piece, int numPieces, int ghostLevel)

void	SetUpdateExtent (int piece, int numPieces, int ghostLevel)

int *	GetUpdateExtent ()

int *	GetUpdateExtent (int port)

void	GetUpdateExtent (int &x0, int &x1, int &y0, int &y1, int &z0, int &z1)

void	GetUpdateExtent (int port, int &x0, int &x1, int &y0, int &y1, int &z0, int &z1)

void	GetUpdateExtent (int extent[6])

void	GetUpdateExtent (int port, int extent[6])

int	GetUpdatePiece ()

int	GetUpdatePiece (int port)

int	GetUpdateNumberOfPieces ()

int	GetUpdateNumberOfPieces (int port)

int	GetUpdateGhostLevel ()

int	GetUpdateGhostLevel (int port)

void	SetProgressObserver (vtkProgressObserver *)

virtual vtkProgressObserver *	GetProgressObserver ()

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static int	IsTypeOf (const char *type)

static vtkRectilinearGridConnectivity *	SafeDownCast (vtkObject *o)

static vtkRectilinearGridConnectivity *	New ()

Static Public Member Functions inherited from vtkMultiBlockDataSetAlgorithm
static vtkMultiBlockDataSetAlgorithm *	New ()

static int	IsTypeOf (const char *type)

static vtkMultiBlockDataSetAlgorithm *	SafeDownCast (vtkObjectBase *o)

Static Public Member Functions inherited from vtkAlgorithm
static vtkAlgorithm *	New ()

static int	IsTypeOf (const char *type)

static vtkAlgorithm *	SafeDownCast (vtkObjectBase *o)

static vtkInformationIntegerKey *	INPUT_IS_OPTIONAL ()

static vtkInformationIntegerKey *	INPUT_IS_REPEATABLE ()

static vtkInformationInformationVectorKey *	INPUT_REQUIRED_FIELDS ()

static vtkInformationStringVectorKey *	INPUT_REQUIRED_DATA_TYPE ()

static vtkInformationInformationVectorKey *	INPUT_ARRAYS_TO_PROCESS ()

static vtkInformationIntegerKey *	INPUT_PORT ()

static vtkInformationIntegerKey *	INPUT_CONNECTION ()

static vtkInformationIntegerKey *	CAN_PRODUCE_SUB_EXTENT ()

static vtkInformationIntegerKey *	CAN_HANDLE_PIECE_REQUEST ()

static void	SetDefaultExecutivePrototype (vtkExecutive *proto)

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkRectilinearGridConnectivity ()

	~vtkRectilinearGridConnectivity () override

vtkExecutive *	CreateDefaultExecutive () override

int	FillInputPortInformation (int, vtkInformation *) override

int	RequestData (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector) override

int	GetNumberOfVolumeFractionArrays ()
	Get the number of selected volume fraction arrays. More...

int	GetNumberOfVolumeArrays ()
	Get the number of all volume arrays (not necessarily selected as the ones for extracting fragemnts). More...

const char *	GetVolumeFractionArrayName (int arrayIdx)
	Get the name of a selected volume fraction array specified by arrayIdx. More...

bool	IsVolumeFractionArray (const char *arayName)
	This function determines whether the specified name (arayName) refers to a selected volume fraction array (1) or not (0). More...

bool	IsVolumeArray (const char *arayName)
	This function determines whether the specified name (arayName) refers to a volume array (1) or not (0). More...

int	CheckVolumeDataArrays (vtkRectilinearGrid **recGrids, int numGrids)
	This function checks the consistency between a number (numGrids) of vtkRectilinearGrid blocks (recGrids, the original ones still with cell data attributes) in terms of the number of data attributes and specific data attribute array names. More...

void	CreateDualRectilinearGrid (vtkRectilinearGrid rectGrid, vtkRectilinearGrid dualGrid)
	Given an input vtkRectilinearGrid dataset (rectGrid) with cell data attributes, this function creates a dual vtkRectilinearGrid dataset with point data attributes. More...

void	ExtractFragments (vtkRectilinearGrid *dualGrds, int numBlcks, double boundBox[6], unsigned char partIndx, vtkPolyData polyData)
	Given numBlcks vtkRectilinearGrid blocks with point data attributes (i.e.,the dual grid version of the original blocks with cell data attributes), the bounding box (boundBox) covering these blocks, and a selected volume fraction array specified by the material index (partIndx), this function extracts fragments based on this volume fraction array and exports the result to a vtkPolyData (polyData). More...

void	IntegrateFragmentAttributes (int fragIndx, int numComps, double *attrVals)
	Given the raw fragment index (fragIndx) of either an original sub-volume extracted from marching cubes of a block or a macro-volume (combination of intra-process inter-block sub-volumes), the number (numComps) of all integrated components (of multiple cell data attributes), and the array (attrVals) storing the specific integrated values, this function integrates the attributes based on the fragment index, specifically by accumulating the input integration values to the target entry (specified by the fragment index) of a global integration array. More...

void	ResolveEquivalentFragments ()
	This function resolves the equivalence set (intra-process intra-block, intra-process inter-block, or inter-process), followed by the face fragment Ids and integrated fragment attributes. More...

void	ResolveFaceFragmentIds ()
	With the equivalence set (intra-process intra-block, intra-process inter- block, or inter-process) resolved in advance, this function updates each face / polygon stored in the face hash with a resolved fragment Id. More...

void	ResolveIntegratedFragmentAttributes ()
	With the equivalence set (intra-process intra-block, intra-process inter- block, or inter-process) resolved in advance, this function integrates cell data attributes based on the fragment Id. More...

void	ExtractFragmentPolyhedra (vtkRectilinearGrid rectGrid, const char fracName, double isoValue, vtkPolyData *plyHedra)

void	InitializeFaceHash (vtkPolyData *plyHedra)
	Given a vtkPolyData (plyHedra) storing the polygons of the greater-than- isovalue sub-volumes (or polyhedra) extracted from a data block, this function initializes the size of the face hash (with the number of points of the polyhedra) used to maintain the polygons of the polyhedra. More...

void	AddPolygonsToFaceHash (int blockIdx, vtkPolyData *plyHedra)
	Given a data block index (blockIdx) and a vtkPolyData (plyHedra) storing the polygons of the greater-than-isovalue sub-volumes (or polyhedra) that are extracted from the block, this function pushes the polygons on a per sub-volume basis to the face hash (the sub-volume Ids are used to group polygons into sub-volumes). More...

void	ExtractFragmentPolygons (int blockIdx, int &maxFsize, vtkPolyData plyHedra, vtkPolyData polygons, vtkIncrementalOctreePointLocator *gPtIdGen)
	Given the index of the data block (blockIdx), the vtkPolyData (plyHedra) storing the polygons / faces of the greater-than-isovalue sub-volumes (or polyhedra) extracted from this block via marching cubes, and a global (intra-process inter-block) point locator, the function extracts fragments from this block by initializing the face hash with the raw polygons extracted from the block (via marching cubes), pushing these polygons to the face hash on a per sub-volume basis, detecting internal faces or polygons, registering faces to the intra-process intra-block equivalence set by the intermediate fragment Id, resolving the equivalence set, updating the fragment Id of each polygon, and integrating cell data attributes based on the fragment Id, grouping / re-arranging the 'valid' faces (as opposed to those removed internal faces) in the face hash by the fragment Id (to construct macro-volumes), accessing the full version of each valid face from the original polyhedra, and attaching the fragment Id as well as other integrated cell data attributes to each cell in the output vtkPolyData data (polygons) where each point is assigned with a global (intra-process inter-block) Id (via a global point locator gPtIdGen) used for subsequent combination of fragments extracted from multiple blocks. More...

void	InitializeFaceHash (vtkPolyData **plyDatas, int numPolys)
	Given a number (numPolys) of vtkPolyData objects (plyDatas) storing the fragments extracted from the multiple data blocks, this function inits the face hash (with the maximum global inter-block point Id: a point data attribute attached to each point of these vtkPolyData objects) that is used to combine these intermediate fragments. More...

void	AddPolygonsToFaceHash (vtkPolyData *plyDatas, int maxFsize, int numPolys)
	Given a number (numPolys) of vtkPolyData objects (plyDatas) storing the initial fragments (macro-volumes — combination of greater-than-isovalue sub-volumes) extracted from multiple blocks and an array of values (maxFsize) storing the maximum number of faces that a macro-volume may contain in each block (used to allocate appropriate memory for buffering the polygons of a macro-volume), this function pushes these polygons on a per macro-volume basis to the face hash (fragment Ids are used to group polygons to macro-volumes), detects internal faces / polygons, and then registers polygons to the (intra-process inter-block) equivalence set by the intermediate fragment Id. More...

void	GenerateOutputFromSingleProcess (vtkPolyData *surfaces, int numSurfs, unsigned char partIndx, vtkPolyData polyData)
	With the intra-process inter-block equivalence set resolved, intra-process inter-block fragment Ids resolved, and cell data attributes integrated by the fragment Id, this function retrieves the face hash for the 'valid' faces (as opposed to those removed internal faces), accesses their full version from the vtkPolyData objects ('surfaces') that store the polygons of intermediate fragments extracted from multiple ('numSurfs') data blocks, and exports these complete yet 'valid' polygons to the output vtkPolyData ('polyData') while attaching the index of the material (partIndx, i.e. More...

void	CreateInterProcessPolygons (vtkPolyData fragPoly, vtkPolyData procPoly, vtkIncrementalOctreePointLocator *gPtIdGen, int &maxFsize)
	Given the vtkPolyData (fragPoly) storing the fragments extracted from a single process (assigned with either one block or multiple blocks), this function groups / re-arranges the polygons by the (intra-process inter- block) fragment Id, determines the maximum number (maxFsize) of polygons (belonging to a fragment) with the same fragment Id, and exports the re- arranged polygons with the associated fragment Ids and all integrated cell data attributes to the output inter-process vtkPolyData (procPoly) where each point is assigned with a global inter-process point Id (through a global point locator 'gPtIdGen') as the point data attribute used later for combining the fragments across multiple processes. More...

void	AddInterProcessPolygonsToFaceHash (vtkPolyData *procPlys, int maxFsize, int numProcs)
	Given a number (numProcs) of vtkPolyData objects (procPlys) storing the (initial) fragments extracted from multiple processes and an array of values (maxFsize) storing the maximum number of faces that an initial fragment may contain on each process (used to allocate appropriate memory for buffering the polygons of an initial fragment), this function pushes these polygons to the face hash on a per fragment basis (the fragment Ids are used to group polygons into initial fragments), detects internal faces / polygons, and registers polygons to the inter-process equivalence set by the intermediate fragment Id. More...

void	GenerateOutputFromMultiProcesses (vtkPolyData *procPlys, int numProcs, unsigned char partIndx, vtkPolyData polyData)
	With the inter-process equivalence set resolved, inter-process fragment Ids resolved, and cell data attributes integrated by the fragment Id, this function retrieves the face hash for the 'valid' faces (as opposed to the removed internal faces), accesses their complete version (according to the information stored in the face) from the vtkPolyData objects (procPlys) that store the polygons of the fragments extracted from multiple (numProcs) processes, and exports these complete 'valid' polygons to the output vtkPolyData (polyData) while attaching the index of the material (partIndx, corresponding to the volume fraction array used to extract the fragments) to each polygon as a cell data attribute. More...

Protected Member Functions inherited from vtkMultiBlockDataSetAlgorithm
virtual vtkObjectBase *	NewInstanceInternal () const

	vtkMultiBlockDataSetAlgorithm ()

	~vtkMultiBlockDataSetAlgorithm ()

virtual int	FillOutputPortInformation (int port, vtkInformation *info)

vtkDataObject *	GetInput (int port)

virtual int	RequestDataObject (vtkInformation , vtkInformationVector , vtkInformationVector )

virtual int	RequestInformation (vtkInformation , vtkInformationVector , vtkInformationVector )

virtual int	RequestUpdateExtent (vtkInformation , vtkInformationVector , vtkInformationVector )

virtual int	RequestDataObject (vtkInformation , vtkInformationVector , vtkInformationVector )

virtual int	RequestInformation (vtkInformation , vtkInformationVector , vtkInformationVector )

virtual int	RequestUpdateExtent (vtkInformation , vtkInformationVector , vtkInformationVector )

Protected Member Functions inherited from vtkAlgorithm
	vtkAlgorithm ()

	~vtkAlgorithm ()

virtual void	SetNumberOfInputPorts (int n)

virtual void	SetNumberOfOutputPorts (int n)

int	InputPortIndexInRange (int index, const char *action)

int	OutputPortIndexInRange (int index, const char *action)

int	GetInputArrayAssociation (int idx, vtkInformationVector **inputVector)

void	ReportReferences (vtkGarbageCollector *) VTK_OVERRIDE

virtual void	SetNumberOfInputConnections (int port, int n)

int	GetInputArrayAssociation (int idx, int connection, vtkInformationVector **inputVector)

int	GetInputArrayAssociation (int idx, vtkDataObject *input)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkInformationVector **inputVector)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkInformationVector **inputVector, int &association)

vtkDataArray *	GetInputArrayToProcess (int idx, int connection, vtkInformationVector **inputVector)

vtkDataArray *	GetInputArrayToProcess (int idx, int connection, vtkInformationVector **inputVector, int &association)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkDataObject *input)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkDataObject *input, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkInformationVector **inputVector)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkInformationVector **inputVector, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, int connection, vtkInformationVector **inputVector)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, int connection, vtkInformationVector **inputVector, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkDataObject *input)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkDataObject *input, int &association)

vtkInformation *	GetInputArrayFieldInformation (int idx, vtkInformationVector **inputVector)

virtual void	SetNthInputConnection (int port, int index, vtkAlgorithmOutput *input)

void	SetInputDataInternal (int port, vtkDataObject *input)

void	AddInputDataInternal (int port, vtkDataObject *input)

int	GetInputArrayAssociation (int idx, int connection, vtkInformationVector **inputVector)

int	GetInputArrayAssociation (int idx, vtkDataObject *input)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkInformationVector **inputVector)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkInformationVector **inputVector, int &association)

vtkDataArray *	GetInputArrayToProcess (int idx, int connection, vtkInformationVector **inputVector)

vtkDataArray *	GetInputArrayToProcess (int idx, int connection, vtkInformationVector **inputVector, int &association)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkDataObject *input)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkDataObject *input, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkInformationVector **inputVector)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkInformationVector **inputVector, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, int connection, vtkInformationVector **inputVector)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, int connection, vtkInformationVector **inputVector, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkDataObject *input)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkDataObject *input, int &association)

vtkInformation *	GetInputArrayFieldInformation (int idx, vtkInformationVector **inputVector)

virtual void	SetErrorCode (unsigned long)

virtual void	SetNthInputConnection (int port, int index, vtkAlgorithmOutput *input)

void	SetInputDataInternal (int port, vtkDataObject *input)

void	AddInputDataInternal (int port, vtkDataObject *input)

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Protected Attributes
int	DualGridsReady

int	NumberOfBlocks

double	DataBlocksTime

double	DualGridBounds [6]

double	VolumeFractionSurfaceValue

vtkDoubleArray *	FragmentValues

vtkEquivalenceSet *	EquivalenceSet

vtkRectilinearGrid **	DualGridBlocks

vtkMultiProcessController *	Controller

vtkRectilinearGridConnectivityFaceHash *	FaceHash

vtkRectilinearGridConnectivityInternal *	Internal

Protected Attributes inherited from vtkAlgorithm
vtkInformation *	Information

double	Progress

char *	ProgressText

vtkProgressObserver *	ProgressObserver

unsigned long	ErrorCode

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Additional Inherited Members
Public Attributes inherited from vtkAlgorithm
	SINGLE_PRECISION

	DOUBLE_PRECISION

	DEFAULT_PRECISION

int	AbortExecute

Static Protected Member Functions inherited from vtkAlgorithm
static vtkInformationIntegerKey *	PORT_REQUIREMENTS_FILLED ()

Static Protected Attributes inherited from vtkAlgorithm
static vtkExecutive *	DefaultExecutivePrototype

Detailed Description

Extracts material fragments from multi-block vtkRectilinearGrid datasets based on the selected volume fraction array(s) and a fraction isovalue and integrates the associated attributes.

Given one or multiple vtkRectilinearGrid datasets with one or multiple volume fraction arrays (representing some materials) and possibly other attributes (like pressure, density, and et al) as the cell data, this filter extracts fragments from the dual grids (with the aforementioned values as the point data) based on the (at least one) selected fraction array(s) in combination with a specified fraction value and integrates the attributes (e.g., volume, pressure, density) across the surface of each fragment. Each material, made up of one or multiple disconnected fragments, is exported to the output vtkMultiBlockDataSet as a single block that is a vtkPolyData storing the exterior polygons of the fragment (s) and the associated cell data attributes as the integrated result (of the fragment) in terms of the volume, pressure, density, and et al.

This filter differs from a closely related filter vtkGridConnectivity in that the former extracts fragments at a sub-cell resolution to create relatively smooth surfaces while the latter works at the cell granularity (a whole cell is taken as either inside or outside a fragment) to cause staircasing artifacts. In fact, an extended 256-entry marching cubes LUT is designed for generating cube faces (either truncated by iso-lines or not) in addition to iso-triangles. These two kinds of polygons in combination represent the surface(s) of the greater-than-isovalue sub- volume(s) extracted in a cube.

vtkRectilinearGridConnectivity performs fragments extraction using a three-level mechanism, i.e., intra-process intra-block, intra-process inter-block, and inter-process in increasing order, with the fragments extracted (in the form of polygons stored as a vtkPolyData) at a lower level submitted to its upper level for further extraction (specifically by combining multiple disconnected fragments into a single one wherever possible). Since a fragment is represented by means of its exterior faces / polygons, extracting fragments turns into the task of detecting and removing internal faces (an internal face is the one shared by two sub- volumes or fragments) in a way of combining the associated sub-volumes or fragments. For the fragemnts extraction conducted at any level, the polygons of the input (e.g., greater-than-isovalue sub-volumes resulting from marching cubes for the lowest level extraction) are pushed to a face hash (that accepts the three smallest point Ids of a polygon: triangle, quad, or pentagon) on a per sub-volume or fragment basis. Once the face hash detects an internal face, an entry is added to an equivalence set (by means of class vtkEquivalenceSet) to correlate the two fragment Ids that are attached to the two associated sub-volumes or fragments' polygons. After resolving the equivalence set, each face that remains in the face hash (internal faces are masked as invalid) is updated with a resolved fragment Id. In this way the original complete polygons (triangles, quads, pentagons) pointed to by the remaining hashed faces with the same resolved fragment Id are retrieved from the input vtkPolyData and hence combined by means of the same fragemnt Id.

See also: vtkGridConnectivity vtkExtractCTHPart vtkPolyData vtkRectilinearGrid vtkMultiBlockDataSetAlgorithm

Definition at line 82 of file vtkRectilinearGridConnectivity.h.

Member Typedef Documentation

◆ Superclass

typedef vtkMultiBlockDataSetAlgorithm vtkRectilinearGridConnectivity::Superclass

Definition at line 86 of file vtkRectilinearGridConnectivity.h.

Constructor & Destructor Documentation

◆ vtkRectilinearGridConnectivity()

vtkRectilinearGridConnectivity::vtkRectilinearGridConnectivity ( )

protected

◆ ~vtkRectilinearGridConnectivity()

vtkRectilinearGridConnectivity::~vtkRectilinearGridConnectivity ( )

overrideprotected

Member Function Documentation

◆ GetClassName()

virtual const char* vtkRectilinearGridConnectivity::GetClassName ( )

virtual

◆ IsTypeOf()

static int vtkRectilinearGridConnectivity::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkRectilinearGridConnectivity::IsA ( const char * type )

virtual

Reimplemented from vtkMultiBlockDataSetAlgorithm.

◆ SafeDownCast()

static vtkRectilinearGridConnectivity* vtkRectilinearGridConnectivity::SafeDownCast ( vtkObject * o )

static

◆ New()

static vtkRectilinearGridConnectivity* vtkRectilinearGridConnectivity::New ( )

static

◆ PrintSelf()

void vtkRectilinearGridConnectivity::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkMultiBlockDataSetAlgorithm.

◆ SetVolumeFractionSurfaceValue()

virtual void vtkRectilinearGridConnectivity::SetVolumeFractionSurfaceValue ( double )

virtual

Set / get the volume fraction value [0, 1] used for extracting fragments.

◆ GetVolumeFractionSurfaceValue()

virtual double vtkRectilinearGridConnectivity::GetVolumeFractionSurfaceValue ( )

virtual

Set / get the volume fraction value [0, 1] used for extracting fragments.

◆ RemoveAllVolumeArrayNames()

void vtkRectilinearGridConnectivity::RemoveAllVolumeArrayNames ( )

Remove all volume array names.

◆ RemoveDoubleVolumeArrayNames()

void vtkRectilinearGridConnectivity::RemoveDoubleVolumeArrayNames ( )

Remove double-type volume array names.

◆ RemoveFloatVolumeArrayNames()

void vtkRectilinearGridConnectivity::RemoveFloatVolumeArrayNames ( )

Remove float-type volume array names.

◆ RemoveUnsignedCharVolumeArrayNames()

void vtkRectilinearGridConnectivity::RemoveUnsignedCharVolumeArrayNames ( )

Remove unsigned char-type volume array names.

◆ AddDoubleVolumeArrayName()

void vtkRectilinearGridConnectivity::AddDoubleVolumeArrayName ( char * arayName )

Add a double-type volume array name to the selection list.

◆ AddFloatVolumeArrayName()

void vtkRectilinearGridConnectivity::AddFloatVolumeArrayName ( char * arayName )

Add a float-type volume array name to the selection list.

◆ AddUnsignedCharVolumeArrayName()

void vtkRectilinearGridConnectivity::AddUnsignedCharVolumeArrayName ( char * arayName )

Add an unsigned char-type volume array name to the selection list.

◆ AddVolumeArrayName()

void vtkRectilinearGridConnectivity::AddVolumeArrayName ( char * arayName )

Add a volume array (of any type) name to the selection list.

◆ CreateDefaultExecutive()

vtkExecutive* vtkRectilinearGridConnectivity::CreateDefaultExecutive ( )

overrideprotectedvirtual

Reimplemented from vtkMultiBlockDataSetAlgorithm.

◆ FillInputPortInformation()

int vtkRectilinearGridConnectivity::FillInputPortInformation	(	int	,
		vtkInformation *
	)

overrideprotectedvirtual

Reimplemented from vtkMultiBlockDataSetAlgorithm.

◆ RequestData()

int vtkRectilinearGridConnectivity::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)

overrideprotectedvirtual

Reimplemented from vtkMultiBlockDataSetAlgorithm.

◆ GetNumberOfVolumeFractionArrays()

int vtkRectilinearGridConnectivity::GetNumberOfVolumeFractionArrays ( )

protected

Get the number of selected volume fraction arrays.

◆ GetNumberOfVolumeArrays()

int vtkRectilinearGridConnectivity::GetNumberOfVolumeArrays ( )

protected

Get the number of all volume arrays (not necessarily selected as the ones for extracting fragemnts).

◆ GetVolumeFractionArrayName()

const char* vtkRectilinearGridConnectivity::GetVolumeFractionArrayName ( int arrayIdx )

protected

Get the name of a selected volume fraction array specified by arrayIdx.

◆ IsVolumeFractionArray()

bool vtkRectilinearGridConnectivity::IsVolumeFractionArray ( const char * arayName )

protected

This function determines whether the specified name (arayName) refers to a selected volume fraction array (1) or not (0).

◆ IsVolumeArray()

bool vtkRectilinearGridConnectivity::IsVolumeArray ( const char * arayName )

protected

This function determines whether the specified name (arayName) refers to a volume array (1) or not (0).

Note the array is not necessarily a selected one used for extracting fragments.

◆ CheckVolumeDataArrays()

int vtkRectilinearGridConnectivity::CheckVolumeDataArrays	(	vtkRectilinearGrid **	recGrids,
		int	numGrids
	)

protected

This function checks the consistency between a number (numGrids) of vtkRectilinearGrid blocks (recGrids, the original ones still with cell data attributes) in terms of the number of data attributes and specific data attribute array names.

It also checks the consistency of multiple (unless one) volume fraction arrays in the data type. This function returns 1 for consistency and 0 for inconsistency.

◆ CreateDualRectilinearGrid()

void vtkRectilinearGridConnectivity::CreateDualRectilinearGrid	(	vtkRectilinearGrid *	rectGrid,
		vtkRectilinearGrid *	dualGrid
	)

protected

Given an input vtkRectilinearGrid dataset (rectGrid) with cell data attributes, this function creates a dual vtkRectilinearGrid dataset with point data attributes.

◆ ExtractFragments()

void vtkRectilinearGridConnectivity::ExtractFragments	(	vtkRectilinearGrid **	dualGrds,
		int	numBlcks,
		double	boundBox[6],
		unsigned char	partIndx,
		vtkPolyData *	polyData
	)

protected

Given numBlcks vtkRectilinearGrid blocks with point data attributes (i.e.,the dual grid version of the original blocks with cell data attributes), the bounding box (boundBox) covering these blocks, and a selected volume fraction array specified by the material index (partIndx), this function extracts fragments based on this volume fraction array and exports the result to a vtkPolyData (polyData).

◆ IntegrateFragmentAttributes()

void vtkRectilinearGridConnectivity::IntegrateFragmentAttributes	(	int	fragIndx,
		int	numComps,
		double *	attrVals
	)

protected

Given the raw fragment index (fragIndx) of either an original sub-volume extracted from marching cubes of a block or a macro-volume (combination of intra-process inter-block sub-volumes), the number (numComps) of all integrated components (of multiple cell data attributes), and the array (attrVals) storing the specific integrated values, this function integrates the attributes based on the fragment index, specifically by accumulating the input integration values to the target entry (specified by the fragment index) of a global integration array.

In this way, different sub-volumes or macro-volumes belonging to the same fragment have their integrated results summed together.

◆ ResolveEquivalentFragments()

void vtkRectilinearGridConnectivity::ResolveEquivalentFragments ( )

protected

This function resolves the equivalence set (intra-process intra-block, intra-process inter-block, or inter-process), followed by the face fragment Ids and integrated fragment attributes.

◆ ResolveFaceFragmentIds()

void vtkRectilinearGridConnectivity::ResolveFaceFragmentIds ( )

protected

With the equivalence set (intra-process intra-block, intra-process inter- block, or inter-process) resolved in advance, this function updates each face / polygon stored in the face hash with a resolved fragment Id.

In this way, polygons of multiple sub-volumes or macro-volumes that have different (old) fragment Ids are automatically grouped into a single entity (macro-volume or fragment, respectively) by being assigned with the same (new) fragment Id.

◆ ResolveIntegratedFragmentAttributes()

void vtkRectilinearGridConnectivity::ResolveIntegratedFragmentAttributes ( )

protected

With the equivalence set (intra-process intra-block, intra-process inter- block, or inter-process) resolved in advance, this function integrates cell data attributes based on the fragment Id.

Specifically, multiple entries (of the old array of integrated attributes) with the same fragment Id have their integration results summed together and are then combined into a single entry (of the new shortened array of integrated attributes).

◆ ExtractFragmentPolyhedra()

void vtkRectilinearGridConnectivity::ExtractFragmentPolyhedra	(	vtkRectilinearGrid *	rectGrid,
		const char *	fracName,
		double	isoValue,
		vtkPolyData *	plyHedra
	)

protected

◆ InitializeFaceHash() [1/2]

void vtkRectilinearGridConnectivity::InitializeFaceHash ( vtkPolyData * plyHedra )

protected

Given a vtkPolyData (plyHedra) storing the polygons of the greater-than- isovalue sub-volumes (or polyhedra) extracted from a data block, this function initializes the size of the face hash (with the number of points of the polyhedra) used to maintain the polygons of the polyhedra.

◆ AddPolygonsToFaceHash() [1/2]

void vtkRectilinearGridConnectivity::AddPolygonsToFaceHash	(	int	blockIdx,
		vtkPolyData *	plyHedra
	)

protected

Given a data block index (blockIdx) and a vtkPolyData (plyHedra) storing the polygons of the greater-than-isovalue sub-volumes (or polyhedra) that are extracted from the block, this function pushes the polygons on a per sub-volume basis to the face hash (the sub-volume Ids are used to group polygons into sub-volumes).

For each internal polygon / face shared by two sub-volumes, an entry is added to the (intra-process intra-block) equivalence set to associate the fragment Ids assigned to the two sub- volumes' polygons.

◆ ExtractFragmentPolygons()

void vtkRectilinearGridConnectivity::ExtractFragmentPolygons	(	int	blockIdx,
		int &	maxFsize,
		vtkPolyData *	plyHedra,
		vtkPolyData *	polygons,
		vtkIncrementalOctreePointLocator *	gPtIdGen
	)

protected

Given the index of the data block (blockIdx), the vtkPolyData (plyHedra) storing the polygons / faces of the greater-than-isovalue sub-volumes (or polyhedra) extracted from this block via marching cubes, and a global (intra-process inter-block) point locator, the function extracts fragments from this block by initializing the face hash with the raw polygons extracted from the block (via marching cubes), pushing these polygons to the face hash on a per sub-volume basis, detecting internal faces or polygons, registering faces to the intra-process intra-block equivalence set by the intermediate fragment Id, resolving the equivalence set, updating the fragment Id of each polygon, and integrating cell data attributes based on the fragment Id, grouping / re-arranging the 'valid' faces (as opposed to those removed internal faces) in the face hash by the fragment Id (to construct macro-volumes), accessing the full version of each valid face from the original polyhedra, and attaching the fragment Id as well as other integrated cell data attributes to each cell in the output vtkPolyData data (polygons) where each point is assigned with a global (intra-process inter-block) Id (via a global point locator gPtIdGen) used for subsequent combination of fragments extracted from multiple blocks.

Argument maxFSize returns the maximum number of faces a macro-volume (combination of sub-volumes) may contain in a block.

◆ InitializeFaceHash() [2/2]

void vtkRectilinearGridConnectivity::InitializeFaceHash	(	vtkPolyData **	plyDatas,
		int	numPolys
	)

protected

Given a number (numPolys) of vtkPolyData objects (plyDatas) storing the fragments extracted from the multiple data blocks, this function inits the face hash (with the maximum global inter-block point Id: a point data attribute attached to each point of these vtkPolyData objects) that is used to combine these intermediate fragments.

◆ AddPolygonsToFaceHash() [2/2]

void vtkRectilinearGridConnectivity::AddPolygonsToFaceHash	(	vtkPolyData **	plyDatas,
		int *	maxFsize,
		int	numPolys
	)

protected

Given a number (numPolys) of vtkPolyData objects (plyDatas) storing the initial fragments (macro-volumes — combination of greater-than-isovalue sub-volumes) extracted from multiple blocks and an array of values (maxFsize) storing the maximum number of faces that a macro-volume may contain in each block (used to allocate appropriate memory for buffering the polygons of a macro-volume), this function pushes these polygons on a per macro-volume basis to the face hash (fragment Ids are used to group polygons to macro-volumes), detects internal faces / polygons, and then registers polygons to the (intra-process inter-block) equivalence set by the intermediate fragment Id.

For each internal polygon / face shared by two macro-volumes, an entry is added to the equivalence set to associate the fragment Ids assigned to the two macro-volumes' polygons.

◆ GenerateOutputFromSingleProcess()

void vtkRectilinearGridConnectivity::GenerateOutputFromSingleProcess	(	vtkPolyData **	surfaces,
		int	numSurfs,
		unsigned char	partIndx,
		vtkPolyData *	polyData
	)

protected

With the intra-process inter-block equivalence set resolved, intra-process inter-block fragment Ids resolved, and cell data attributes integrated by the fragment Id, this function retrieves the face hash for the 'valid' faces (as opposed to those removed internal faces), accesses their full version from the vtkPolyData objects ('surfaces') that store the polygons of intermediate fragments extracted from multiple ('numSurfs') data blocks, and exports these complete yet 'valid' polygons to the output vtkPolyData ('polyData') while attaching the index of the material (partIndx, i.e.

the volume fraction array used to extract fragments) to each polygon as a cell data attribute. In a word, this function exports a combined version of the fragments extracted from multiple blocks assigned to a single process.

◆ CreateInterProcessPolygons()

void vtkRectilinearGridConnectivity::CreateInterProcessPolygons	(	vtkPolyData *	fragPoly,
		vtkPolyData *	procPoly,
		vtkIncrementalOctreePointLocator *	gPtIdGen,
		int &	maxFsize
	)

protected

Given the vtkPolyData (fragPoly) storing the fragments extracted from a single process (assigned with either one block or multiple blocks), this function groups / re-arranges the polygons by the (intra-process inter- block) fragment Id, determines the maximum number (maxFsize) of polygons (belonging to a fragment) with the same fragment Id, and exports the re- arranged polygons with the associated fragment Ids and all integrated cell data attributes to the output inter-process vtkPolyData (procPoly) where each point is assigned with a global inter-process point Id (through a global point locator 'gPtIdGen') as the point data attribute used later for combining the fragments across multiple processes.

◆ AddInterProcessPolygonsToFaceHash()

void vtkRectilinearGridConnectivity::AddInterProcessPolygonsToFaceHash	(	vtkPolyData **	procPlys,
		int *	maxFsize,
		int	numProcs
	)

protected

Given a number (numProcs) of vtkPolyData objects (procPlys) storing the (initial) fragments extracted from multiple processes and an array of values (maxFsize) storing the maximum number of faces that an initial fragment may contain on each process (used to allocate appropriate memory for buffering the polygons of an initial fragment), this function pushes these polygons to the face hash on a per fragment basis (the fragment Ids are used to group polygons into initial fragments), detects internal faces / polygons, and registers polygons to the inter-process equivalence set by the intermediate fragment Id.

For each internal polygon / face shared by two initial fragments, an entry is added to the equivalence set in a way to associate the fragment Ids assigned to the two initial fragments' polygons. Note each face in the face hash is assigned with a process Id that is used later to retrieve the source vtkPolyData for the target complete polygon if the face remains in the face hash after removing internal faces.

◆ GenerateOutputFromMultiProcesses()

void vtkRectilinearGridConnectivity::GenerateOutputFromMultiProcesses	(	vtkPolyData **	procPlys,
		int	numProcs,
		unsigned char	partIndx,
		vtkPolyData *	polyData
	)

protected

With the inter-process equivalence set resolved, inter-process fragment Ids resolved, and cell data attributes integrated by the fragment Id, this function retrieves the face hash for the 'valid' faces (as opposed to the removed internal faces), accesses their complete version (according to the information stored in the face) from the vtkPolyData objects (procPlys) that store the polygons of the fragments extracted from multiple (numProcs) processes, and exports these complete 'valid' polygons to the output vtkPolyData (polyData) while attaching the index of the material (partIndx, corresponding to the volume fraction array used to extract the fragments) to each polygon as a cell data attribute.

In a word, this function exports a combined version of the fragments extracted from multiple processes (of which each is assigned with either one block or multiple blocks).

Member Data Documentation

◆ DualGridsReady

int vtkRectilinearGridConnectivity::DualGridsReady

protected

Definition at line 142 of file vtkRectilinearGridConnectivity.h.

◆ NumberOfBlocks

int vtkRectilinearGridConnectivity::NumberOfBlocks

protected

Definition at line 143 of file vtkRectilinearGridConnectivity.h.

◆ DataBlocksTime

double vtkRectilinearGridConnectivity::DataBlocksTime

protected

Definition at line 144 of file vtkRectilinearGridConnectivity.h.

◆ DualGridBounds

double vtkRectilinearGridConnectivity::DualGridBounds[6]

protected

Definition at line 145 of file vtkRectilinearGridConnectivity.h.

◆ VolumeFractionSurfaceValue

double vtkRectilinearGridConnectivity::VolumeFractionSurfaceValue

protected

Definition at line 146 of file vtkRectilinearGridConnectivity.h.

◆ FragmentValues

vtkDoubleArray* vtkRectilinearGridConnectivity::FragmentValues

protected

Definition at line 147 of file vtkRectilinearGridConnectivity.h.

◆ EquivalenceSet

vtkEquivalenceSet* vtkRectilinearGridConnectivity::EquivalenceSet

protected

Definition at line 148 of file vtkRectilinearGridConnectivity.h.

◆ DualGridBlocks

vtkRectilinearGrid** vtkRectilinearGridConnectivity::DualGridBlocks

protected

Definition at line 149 of file vtkRectilinearGridConnectivity.h.

◆ Controller

vtkMultiProcessController* vtkRectilinearGridConnectivity::Controller

protected

Definition at line 150 of file vtkRectilinearGridConnectivity.h.

◆ FaceHash

vtkRectilinearGridConnectivityFaceHash* vtkRectilinearGridConnectivity::FaceHash

protected

Definition at line 151 of file vtkRectilinearGridConnectivity.h.

◆ Internal

vtkRectilinearGridConnectivityInternal* vtkRectilinearGridConnectivity::Internal

protected

Definition at line 152 of file vtkRectilinearGridConnectivity.h.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/VTKExtensions/FiltersGeneral/vtkRectilinearGridConnectivity.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Superclass

Constructor & Destructor Documentation

◆ vtkRectilinearGridConnectivity()

◆ ~vtkRectilinearGridConnectivity()

Member Function Documentation

◆ GetClassName()

◆ IsTypeOf()

◆ IsA()

◆ SafeDownCast()

◆ New()

◆ PrintSelf()

◆ SetVolumeFractionSurfaceValue()

◆ GetVolumeFractionSurfaceValue()

◆ RemoveAllVolumeArrayNames()

◆ RemoveDoubleVolumeArrayNames()

◆ RemoveFloatVolumeArrayNames()

◆ RemoveUnsignedCharVolumeArrayNames()

◆ AddDoubleVolumeArrayName()

◆ AddFloatVolumeArrayName()

◆ AddUnsignedCharVolumeArrayName()

◆ AddVolumeArrayName()

◆ CreateDefaultExecutive()

◆ FillInputPortInformation()

◆ RequestData()

◆ GetNumberOfVolumeFractionArrays()

◆ GetNumberOfVolumeArrays()

◆ GetVolumeFractionArrayName()

◆ IsVolumeFractionArray()

◆ IsVolumeArray()

◆ CheckVolumeDataArrays()

◆ CreateDualRectilinearGrid()

◆ ExtractFragments()

◆ IntegrateFragmentAttributes()

◆ ResolveEquivalentFragments()

◆ ResolveFaceFragmentIds()

◆ ResolveIntegratedFragmentAttributes()

◆ ExtractFragmentPolyhedra()

◆ InitializeFaceHash() [1/2]

◆ AddPolygonsToFaceHash() [1/2]

◆ ExtractFragmentPolygons()

◆ InitializeFaceHash() [2/2]

◆ AddPolygonsToFaceHash() [2/2]

◆ GenerateOutputFromSingleProcess()

◆ CreateInterProcessPolygons()

◆ AddInterProcessPolygonsToFaceHash()

◆ GenerateOutputFromMultiProcesses()

Member Data Documentation

◆ DualGridsReady

◆ NumberOfBlocks

◆ DataBlocksTime

◆ DualGridBounds

◆ VolumeFractionSurfaceValue

◆ FragmentValues

◆ EquivalenceSet

◆ DualGridBlocks

◆ Controller

◆ FaceHash

◆ Internal
