Abstract class for specifying tensor fields at points. More...

#include <vtkCPTensorFieldFunction.h>

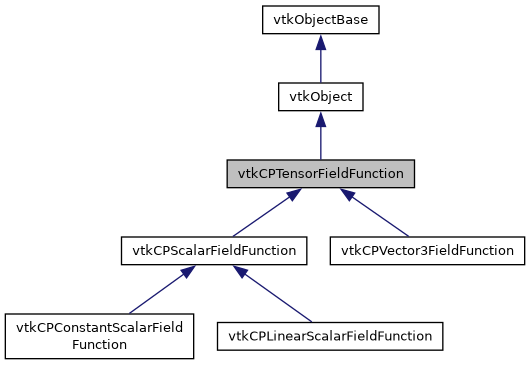

Inheritance diagram for vtkCPTensorFieldFunction:

[legend]

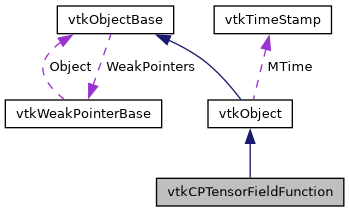

Collaboration diagram for vtkCPTensorFieldFunction:

[legend]

Public Types
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

virtual unsigned int	GetNumberOfComponents ()=0
	Get the NumberOfComponents. More...

virtual double	ComputeComponenentAtPoint (unsigned int component, double point[3], unsigned long timeStep, double time)=0
	Compute the field value at Point. More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static int	IsTypeOf (const char *type)

static vtkCPTensorFieldFunction *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkCPTensorFieldFunction ()

	~vtkCPTensorFieldFunction () override

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Additional Inherited Members
Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Detailed Description

Abstract class for specifying tensor fields at points.

Abstract class for specifying tensor fields at specified points.

Definition at line 16 of file vtkCPTensorFieldFunction.h.

Member Typedef Documentation

◆ Superclass

typedef vtkObject vtkCPTensorFieldFunction::Superclass

Definition at line 19 of file vtkCPTensorFieldFunction.h.

Constructor & Destructor Documentation

◆ vtkCPTensorFieldFunction()

vtkCPTensorFieldFunction::vtkCPTensorFieldFunction ( )

protected

◆ ~vtkCPTensorFieldFunction()

vtkCPTensorFieldFunction::~vtkCPTensorFieldFunction ( )

overrideprotected

Member Function Documentation

◆ GetClassName()

virtual const char* vtkCPTensorFieldFunction::GetClassName ( )

virtual

Reimplemented in vtkCPLinearScalarFieldFunction, vtkCPConstantScalarFieldFunction, vtkCPScalarFieldFunction, and vtkCPVector3FieldFunction.

◆ IsTypeOf()

static int vtkCPTensorFieldFunction::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkCPTensorFieldFunction::IsA ( const char * type )

virtual

Reimplemented from vtkObjectBase.

Reimplemented in vtkCPLinearScalarFieldFunction, vtkCPConstantScalarFieldFunction, vtkCPScalarFieldFunction, and vtkCPVector3FieldFunction.

◆ SafeDownCast()

static vtkCPTensorFieldFunction* vtkCPTensorFieldFunction::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkCPTensorFieldFunction::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkObject.

Reimplemented in vtkCPVector3FieldFunction.

◆ GetNumberOfComponents()

virtual unsigned int vtkCPTensorFieldFunction::GetNumberOfComponents ( )

pure virtual

Get the NumberOfComponents.

This is abstract to make sure that the value for the NumberOfComponents cannot be changed.

Implemented in vtkCPScalarFieldFunction, and vtkCPVector3FieldFunction.

◆ ComputeComponenentAtPoint()

virtual double vtkCPTensorFieldFunction::ComputeComponenentAtPoint	(	unsigned int	component,
		double	point[3],
		unsigned long	timeStep,
		double	time
	)

pure virtual

Compute the field value at Point.

Implemented in vtkCPScalarFieldFunction, vtkCPVector3FieldFunction, and vtkCPLinearScalarFieldFunction.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Adaptors/CatalystTestDriver/vtkCPTensorFieldFunction.h
