combine multiple representations into one with only 1 representation active at a time. More...

#include <vtkCompositeRepresentation.h>

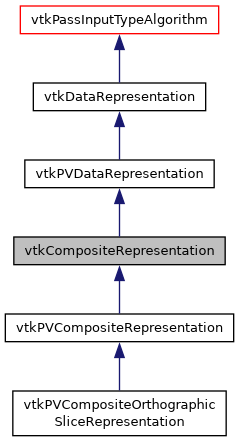

Inheritance diagram for vtkCompositeRepresentation:

[legend]

Collaboration diagram for vtkCompositeRepresentation:

[legend]

Public Types
typedef vtkPVDataRepresentation	Superclass

Public Types inherited from vtkPVDataRepresentation
enum	{ SkippedUpdateDataEvent = vtkCommand::UserEvent + 91, UpdateTimeChangedEvent }

typedef vtkDataRepresentation	Superclass

Public Types inherited from vtkDataRepresentation
typedef vtkPassInputTypeAlgorithm	Superclass

Public Types inherited from vtkPassInputTypeAlgorithm
typedef vtkAlgorithm	Superclass

Public Types inherited from vtkAlgorithm
enum	DesiredOutputPrecision

enum	DesiredOutputPrecision

typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

int	ProcessViewRequest (vtkInformationRequestKey request_type, vtkInformation inInfo, vtkInformation *outInfo) override
	vtkAlgorithm::ProcessRequest() equivalent for rendering passes. More...

void	SetVisibility (bool val) override
	Methods overridden to propagate to the active representation. More...

vtkPVDataRepresentation *	GetActiveRepresentation ()
	Returns the active representation if valid. More...

void	SetSelectionConnection (vtkAlgorithmOutput *input)
	Set the selection connection. More...

void	MarkModified () override
	Propagate the modification to all internal representations. More...

vtkDataObject *	GetRenderedDataObject (int port) override
	Returns the data object that is rendered from the given input port. More...

vtkStringArray *	GetRepresentationTypes ()
	Returns the list of available representation types as a string array. More...


virtual void	AddRepresentation (const char key, vtkPVDataRepresentation repr)
	Add/Remove representations. More...

virtual void	RemoveRepresentation (vtkPVDataRepresentation *repr)
	Add/Remove representations. More...

virtual void	RemoveRepresentation (const char *key)
	Add/Remove representations. More...


void	SetActiveRepresentation (const char *key)
	Set the active key. More...

const char *	GetActiveRepresentationKey ()
	Set the active key. More...


void	SetInputConnection (int port, vtkAlgorithmOutput *input) override
	Overridden to simply pass the input to the internal representations. More...

void	SetInputConnection (vtkAlgorithmOutput *input) override
	Overridden to simply pass the input to the internal representations. More...

void	AddInputConnection (int port, vtkAlgorithmOutput *input) override
	Overridden to simply pass the input to the internal representations. More...

void	AddInputConnection (vtkAlgorithmOutput *input) override
	Overridden to simply pass the input to the internal representations. More...

void	RemoveInputConnection (int port, vtkAlgorithmOutput *input) override
	Overridden to simply pass the input to the internal representations. More...

void	RemoveInputConnection (int port, int idx) override
	Overridden to simply pass the input to the internal representations. More...


void	SetUpdateTime (double time) override
	Passed on to internal representations as well. More...

void	SetForceUseCache (bool val) override
	Passed on to internal representations as well. More...

void	SetForcedCacheKey (double val) override
	Passed on to internal representations as well. More...

Public Member Functions inherited from vtkPVDataRepresentation
void	PrintSelf (ostream &os, vtkIndent indent) override

virtual unsigned int	Initialize (unsigned int minIdAvailable, unsigned int maxIdAvailable)
	Initialize the representation with an identifier range so each internal representation can own a unique ID. More...

unsigned int	GetUniqueIdentifier ()
	Return 0 if the Initialize() method was not called otherwise a unique ID that will be shared across the processes for that same object. More...

virtual bool	GetVisibility ()

virtual vtkDataObject *	GetRenderedDataObject (int vtkNotUsed(port))
	Returns the data object that is rendered from the given input port. More...

double	GetCacheKey () const
	Returns the cache-key the representation is currently using. More...

vtkAlgorithmOutput *	GetInternalOutputPort () override
	Retrieves an output port for the input data object at the specified port and connection index. More...

vtkAlgorithmOutput *	GetInternalOutputPort (int port) override

vtkAlgorithmOutput *	GetInternalOutputPort (int port, int conn) override

vtkView *	GetView () const
	Provides access to the view. More...

vtkMTimeType	GetPipelineDataTime ()
	Returns the timestamp when `RequestData` was executed on the representation. More...

bool	GetNeedsUpdate ()
	Returns true if the representation needs an update. More...

virtual void	SetArrayIdNames (const char vtkNotUsed(pointArray), const char vtkNotUsed(cellArray))
	Specify the array names used for the selection. More...

virtual double	GetUpdateTime ()
	Set the update time. More...

virtual bool	GetUpdateTimeValid ()
	Get whether the UpdateTime is valid. More...

void	ResetUpdateTime ()
	Get whether the UpdateTime is valid. More...

virtual double	GetForcedCacheKey ()
	Generally, caching is within the purview of the vtkPVView (and subclasses). More...

virtual bool	GetForceUseCache ()
	Generally, caching is within the purview of the vtkPVView (and subclasses). More...

bool	AddToView (vtkView *view) override
	Making these methods public. More...

bool	RemoveFromView (vtkView *view) override
	Making these methods public. More...

virtual void	SetLogName (const std::string &name)
	This is solely intended to simplify debugging and use for any other purpose is vehemently discouraged. More...

const std::string &	GetLogName () const
	This is solely intended to simplify debugging and use for any other purpose is vehemently discouraged. More...

virtual bool	GetHasTemporalPipeline ()
	This flag indicates if the representation is for a temporal pipeline. More...

virtual void	SetHasTemporalPipeline (bool)
	This flag indicates if the representation is for a temporal pipeline. More...

void	SetInputConnection (int port, vtkAlgorithmOutput *input) override
	Overridden to ensure that `MarkModified` is called. More...

void	AddInputConnection (int port, vtkAlgorithmOutput *input) override
	Overridden to ensure that `MarkModified` is called. More...

Public Member Functions inherited from vtkDataRepresentation
vtkDataRepresentation *	NewInstance () const

virtual void	ApplyViewTheme (vtkViewTheme *vtkNotUsed(theme))

virtual vtkSelection *	ConvertSelection (vtkView view, vtkSelection selection)

vtkAlgorithmOutput *	GetInputConnection (int port=0, int index=0)

vtkAnnotationLink *	GetAnnotationLink ()

void	SetAnnotationLink (vtkAnnotationLink *link)

void	Select (vtkView view, vtkSelection selection)

void	Select (vtkView view, vtkSelection selection, bool extend)

void	Annotate (vtkView view, vtkAnnotationLayers annotations)

void	Annotate (vtkView view, vtkAnnotationLayers annotations, bool extend)

virtual void	SetSelectable (bool)

virtual bool	GetSelectable ()

virtual void	SelectableOn ()

virtual void	SelectableOff ()

void	UpdateSelection (vtkSelection *selection)

void	UpdateSelection (vtkSelection *selection, bool extend)

void	UpdateAnnotations (vtkAnnotationLayers *annotations)

void	UpdateAnnotations (vtkAnnotationLayers *annotations, bool extend)

virtual vtkAlgorithmOutput *	GetInternalAnnotationOutputPort ()

virtual vtkAlgorithmOutput *	GetInternalAnnotationOutputPort (int port)

virtual vtkAlgorithmOutput *	GetInternalAnnotationOutputPort (int port, int conn)

virtual vtkAlgorithmOutput *	GetInternalSelectionOutputPort ()

virtual vtkAlgorithmOutput *	GetInternalSelectionOutputPort (int port)

virtual vtkAlgorithmOutput *	GetInternalSelectionOutputPort (int port, int conn)

virtual void	SetSelectionType (int)

virtual int	GetSelectionType ()

virtual void	SetSelectionArrayNames (vtkStringArray *names)

virtual vtkStringArray *	GetSelectionArrayNames ()

virtual void	SetSelectionArrayName (const char *name)

virtual const char *	GetSelectionArrayName ()

vtkAlgorithmOutput *	GetInputConnection (int port=0, int index=0)

vtkAnnotationLink *	GetAnnotationLink ()

void	SetAnnotationLink (vtkAnnotationLink *link)

void	Select (vtkView view, vtkSelection selection)

void	Select (vtkView view, vtkSelection selection, bool extend)

void	Annotate (vtkView view, vtkAnnotationLayers annotations)

void	Annotate (vtkView view, vtkAnnotationLayers annotations, bool extend)

virtual void	SetSelectable (bool)

virtual bool	GetSelectable ()

virtual void	SelectableOn ()

virtual void	SelectableOff ()

void	UpdateSelection (vtkSelection *selection)

void	UpdateSelection (vtkSelection *selection, bool extend)

void	UpdateAnnotations (vtkAnnotationLayers *annotations)

void	UpdateAnnotations (vtkAnnotationLayers *annotations, bool extend)

virtual vtkAlgorithmOutput *	GetInternalAnnotationOutputPort ()

virtual vtkAlgorithmOutput *	GetInternalAnnotationOutputPort (int port)

virtual vtkAlgorithmOutput *	GetInternalAnnotationOutputPort (int port, int conn)

virtual vtkAlgorithmOutput *	GetInternalSelectionOutputPort ()

virtual vtkAlgorithmOutput *	GetInternalSelectionOutputPort (int port)

virtual vtkAlgorithmOutput *	GetInternalSelectionOutputPort (int port, int conn)

virtual void	SetSelectionType (int)

virtual int	GetSelectionType ()

virtual void	SetSelectionArrayNames (vtkStringArray *names)

virtual vtkStringArray *	GetSelectionArrayNames ()

virtual void	SetSelectionArrayName (const char *name)

virtual const char *	GetSelectionArrayName ()

Public Member Functions inherited from vtkPassInputTypeAlgorithm
vtkPassInputTypeAlgorithm *	NewInstance () const

vtkPolyData *	GetPolyDataOutput ()

vtkStructuredPoints *	GetStructuredPointsOutput ()

vtkImageData *	GetImageDataOutput ()

vtkStructuredGrid *	GetStructuredGridOutput ()

vtkUnstructuredGrid *	GetUnstructuredGridOutput ()

vtkRectilinearGrid *	GetRectilinearGridOutput ()

vtkTable *	GetTableOutput ()

vtkGraph *	GetGraphOutput ()

vtkDataObject *	GetInput ()

vtkDataObject *	GetOutput ()

vtkDataObject *	GetOutput (int)

void	SetInputData (vtkDataObject *)

void	SetInputData (int, vtkDataObject *)

void	AddInputData (vtkDataObject *)

void	AddInputData (int, vtkDataObject *)

virtual int	ProcessRequest (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)

vtkDataObject *	GetOutput ()

vtkDataObject *	GetOutput (int)

void	SetInputData (vtkDataObject *)

void	SetInputData (int, vtkDataObject *)

void	AddInputData (vtkDataObject *)

void	AddInputData (int, vtkDataObject *)

virtual int	ProcessRequest (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)

Public Member Functions inherited from vtkAlgorithm
vtkAlgorithm *	NewInstance () const

int	HasExecutive ()

vtkExecutive *	GetExecutive ()

virtual void	SetExecutive (vtkExecutive *executive)

virtual int	ModifyRequest (vtkInformation *request, int when)

vtkInformation *	GetInputPortInformation (int port)

vtkInformation *	GetOutputPortInformation (int port)

int	GetNumberOfInputPorts ()

int	GetNumberOfOutputPorts ()

void	UpdateProgress (double amount)

vtkInformation *	GetInputArrayInformation (int idx)

void	RemoveAllInputs ()

vtkDataObject *	GetOutputDataObject (int port)

virtual void	RemoveAllInputConnections (int port)

int	GetNumberOfInputConnections (int port)

int	GetTotalNumberOfInputConnections ()

vtkAlgorithmOutput *	GetInputConnection (int port, int index)

vtkAlgorithm *	GetInputAlgorithm (int port, int index, int &algPort)

vtkAlgorithm *	GetInputAlgorithm (int port, int index)

vtkExecutive *	GetInputExecutive (int port, int index)

vtkInformation *	GetInputInformation (int port, int index)

vtkInformation *	GetOutputInformation (int port)

virtual int	Update (int port, vtkInformationVector *requests)

virtual int	Update (vtkInformation *requests)

virtual int	UpdateExtent (const int extents[6])

virtual void	UpdateInformation ()

virtual void	UpdateDataObject ()

virtual void	PropagateUpdateExtent ()

virtual void	UpdateWholeExtent ()

void	ConvertTotalInputToPortConnection (int ind, int &port, int &conn)

int	SetUpdateExtentToWholeExtent (int port)

int	SetUpdateExtentToWholeExtent ()

void	SetUpdateExtent (int port, int extent[6])

void	SetUpdateExtent (int extent[6])

int	ProcessRequest (vtkInformation request, vtkCollection inInfo, vtkInformationVector *outInfo)

virtual int	ComputePipelineMTime (vtkInformation request, vtkInformationVector inInfoVec, vtkInformationVector outInfoVec, int requestFromOutputPort, vtkMTimeType *mtime)

virtual vtkInformation *	GetInformation ()

virtual void	SetInformation (vtkInformation *)

void	Register (vtkObjectBase *o) VTK_OVERRIDE

void	UnRegister (vtkObjectBase *o) VTK_OVERRIDE

virtual void	SetAbortExecute (int)

virtual int	GetAbortExecute ()

virtual void	AbortExecuteOn ()

virtual void	AbortExecuteOff ()

virtual void	SetProgress (double)

virtual double	GetProgress ()

void	SetProgressText (const char *ptext)

virtual char *	GetProgressText ()

virtual unsigned long	GetErrorCode ()

virtual void	SetInputArrayToProcess (int idx, int port, int connection, int fieldAssociation, const char *name)

virtual void	SetInputArrayToProcess (int idx, int port, int connection, int fieldAssociation, int fieldAttributeType)

virtual void	SetInputArrayToProcess (int idx, vtkInformation *info)

virtual void	SetInputArrayToProcess (int idx, int port, int connection, const char fieldAssociation, const char attributeTypeorName)

vtkDataObject *	GetInputDataObject (int port, int connection)

virtual void	SetInputDataObject (int port, vtkDataObject *data)

virtual void	SetInputDataObject (vtkDataObject *data)

virtual void	AddInputDataObject (int port, vtkDataObject *data)

virtual void	AddInputDataObject (vtkDataObject *data)

vtkAlgorithmOutput *	GetOutputPort (int index)

vtkAlgorithmOutput *	GetOutputPort ()

vtkAlgorithm *	GetInputAlgorithm ()

vtkExecutive *	GetInputExecutive ()

vtkInformation *	GetInputInformation ()

virtual void	Update (int port)

virtual void	Update ()

virtual int	UpdatePiece (int piece, int numPieces, int ghostLevels, const int extents[6]=0)

virtual int	UpdateTimeStep (double time, int piece=-1, int numPieces=1, int ghostLevels=0, const int extents[6]=0)

virtual void	SetReleaseDataFlag (int)

virtual int	GetReleaseDataFlag ()

void	ReleaseDataFlagOn ()

void	ReleaseDataFlagOff ()

int	UpdateExtentIsEmpty (vtkInformation pinfo, vtkDataObject output)

int	UpdateExtentIsEmpty (vtkInformation *pinfo, int extentType)

void	SetUpdateExtent (int port, int piece, int numPieces, int ghostLevel)

void	SetUpdateExtent (int piece, int numPieces, int ghostLevel)

int *	GetUpdateExtent ()

int *	GetUpdateExtent (int port)

void	GetUpdateExtent (int &x0, int &x1, int &y0, int &y1, int &z0, int &z1)

void	GetUpdateExtent (int port, int &x0, int &x1, int &y0, int &y1, int &z0, int &z1)

void	GetUpdateExtent (int extent[6])

void	GetUpdateExtent (int port, int extent[6])

int	GetUpdatePiece ()

int	GetUpdatePiece (int port)

int	GetUpdateNumberOfPieces ()

int	GetUpdateNumberOfPieces (int port)

int	GetUpdateGhostLevel ()

int	GetUpdateGhostLevel (int port)

void	SetProgressObserver (vtkProgressObserver *)

virtual vtkProgressObserver *	GetProgressObserver ()

int	ProcessRequest (vtkInformation request, vtkCollection inInfo, vtkInformationVector *outInfo)

virtual int	ComputePipelineMTime (vtkInformation request, vtkInformationVector inInfoVec, vtkInformationVector outInfoVec, int requestFromOutputPort, vtkMTimeType *mtime)

virtual vtkInformation *	GetInformation ()

virtual void	SetInformation (vtkInformation *)

void	Register (vtkObjectBase *o) VTK_OVERRIDE

void	UnRegister (vtkObjectBase *o) VTK_OVERRIDE

virtual void	SetAbortExecute (int)

virtual int	GetAbortExecute ()

virtual void	AbortExecuteOn ()

virtual void	AbortExecuteOff ()

virtual void	SetProgress (double)

virtual double	GetProgress ()

void	SetProgressText (const char *ptext)

virtual char *	GetProgressText ()

virtual unsigned long	GetErrorCode ()

virtual void	SetInputArrayToProcess (int idx, int port, int connection, int fieldAssociation, const char *name)

virtual void	SetInputArrayToProcess (int idx, int port, int connection, int fieldAssociation, int fieldAttributeType)

virtual void	SetInputArrayToProcess (int idx, vtkInformation *info)

virtual void	SetInputArrayToProcess (int idx, int port, int connection, const char fieldAssociation, const char attributeTypeorName)

vtkDataObject *	GetInputDataObject (int port, int connection)

virtual void	SetInputDataObject (int port, vtkDataObject *data)

virtual void	SetInputDataObject (vtkDataObject *data)

virtual void	AddInputDataObject (int port, vtkDataObject *data)

virtual void	AddInputDataObject (vtkDataObject *data)

vtkAlgorithmOutput *	GetOutputPort (int index)

vtkAlgorithmOutput *	GetOutputPort ()

vtkAlgorithm *	GetInputAlgorithm ()

vtkExecutive *	GetInputExecutive ()

vtkInformation *	GetInputInformation ()

virtual void	Update (int port)

virtual void	Update ()

virtual int	UpdatePiece (int piece, int numPieces, int ghostLevels, const int extents[6]=0)

virtual int	UpdateTimeStep (double time, int piece=-1, int numPieces=1, int ghostLevels=0, const int extents[6]=0)

virtual void	SetReleaseDataFlag (int)

virtual int	GetReleaseDataFlag ()

void	ReleaseDataFlagOn ()

void	ReleaseDataFlagOff ()

int	UpdateExtentIsEmpty (vtkInformation pinfo, vtkDataObject output)

int	UpdateExtentIsEmpty (vtkInformation *pinfo, int extentType)

void	SetUpdateExtent (int port, int piece, int numPieces, int ghostLevel)

void	SetUpdateExtent (int piece, int numPieces, int ghostLevel)

int *	GetUpdateExtent ()

int *	GetUpdateExtent (int port)

void	GetUpdateExtent (int &x0, int &x1, int &y0, int &y1, int &z0, int &z1)

void	GetUpdateExtent (int port, int &x0, int &x1, int &y0, int &y1, int &z0, int &z1)

void	GetUpdateExtent (int extent[6])

void	GetUpdateExtent (int port, int extent[6])

int	GetUpdatePiece ()

int	GetUpdatePiece (int port)

int	GetUpdateNumberOfPieces ()

int	GetUpdateNumberOfPieces (int port)

int	GetUpdateGhostLevel ()

int	GetUpdateGhostLevel (int port)

void	SetProgressObserver (vtkProgressObserver *)

virtual vtkProgressObserver *	GetProgressObserver ()

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkCompositeRepresentation *	New ()

static int	IsTypeOf (const char *type)

static vtkCompositeRepresentation *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkPVDataRepresentation
static int	IsTypeOf (const char *type)

static vtkPVDataRepresentation *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkDataRepresentation
static vtkDataRepresentation *	New ()

static int	IsTypeOf (const char *type)

static vtkDataRepresentation *	SafeDownCast (vtkObjectBase *o)

Static Public Member Functions inherited from vtkPassInputTypeAlgorithm
static vtkPassInputTypeAlgorithm *	New ()

static int	IsTypeOf (const char *type)

static vtkPassInputTypeAlgorithm *	SafeDownCast (vtkObjectBase *o)

Static Public Member Functions inherited from vtkAlgorithm
static vtkAlgorithm *	New ()

static int	IsTypeOf (const char *type)

static vtkAlgorithm *	SafeDownCast (vtkObjectBase *o)

static vtkInformationIntegerKey *	INPUT_IS_OPTIONAL ()

static vtkInformationIntegerKey *	INPUT_IS_REPEATABLE ()

static vtkInformationInformationVectorKey *	INPUT_REQUIRED_FIELDS ()

static vtkInformationStringVectorKey *	INPUT_REQUIRED_DATA_TYPE ()

static vtkInformationInformationVectorKey *	INPUT_ARRAYS_TO_PROCESS ()

static vtkInformationIntegerKey *	INPUT_PORT ()

static vtkInformationIntegerKey *	INPUT_CONNECTION ()

static vtkInformationIntegerKey *	CAN_PRODUCE_SUB_EXTENT ()

static vtkInformationIntegerKey *	CAN_HANDLE_PIECE_REQUEST ()

static void	SetDefaultExecutivePrototype (vtkExecutive *proto)

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkCompositeRepresentation ()

	~vtkCompositeRepresentation () override

int	FillInputPortInformation (int, vtkInformation *info) override

bool	AddToView (vtkView *view) override
	Adds the representation to the view. More...

bool	RemoveFromView (vtkView *view) override
	Removes the representation to the view. More...

void	TriggerUpdateDataEvent ()
	Fires UpdateDataEvent. More...

Protected Member Functions inherited from vtkPVDataRepresentation
	vtkPVDataRepresentation ()

	~vtkPVDataRepresentation () override

vtkExecutive *	CreateDefaultExecutive () override
	Create a default executive. More...

int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector ) override
	Overridden to invoke vtkCommand::UpdateDataEvent. More...

int	RequestUpdateExtent (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector) override

int	RequestUpdateTime (vtkInformation , vtkInformationVector , vtkInformationVector ) override

Protected Member Functions inherited from vtkDataRepresentation
virtual vtkObjectBase *	NewInstanceInternal () const

	vtkDataRepresentation ()

	~vtkDataRepresentation ()

virtual void	ProcessEvents (vtkObject caller, unsigned long eventId, void callData)

virtual bool	AddToView (vtkView *vtkNotUsed(view))

virtual bool	RemoveFromView (vtkView *vtkNotUsed(view))

virtual vtkAnnotationLayers *	ConvertAnnotations (vtkView view, vtkAnnotationLayers annotations)

vtkTrivialProducer *	GetInternalInput (int port, int conn)

void	SetInternalInput (int port, int conn, vtkTrivialProducer *producer)

virtual void	SetAnnotationLinkInternal (vtkAnnotationLink *link)

Protected Member Functions inherited from vtkPassInputTypeAlgorithm
	vtkPassInputTypeAlgorithm ()

	~vtkPassInputTypeAlgorithm ()

virtual int	RequestUpdateTimeDependentInformation (vtkInformation , vtkInformationVector , vtkInformationVector )

virtual int	FillOutputPortInformation (int port, vtkInformation *info)

vtkDataObject *	GetInput (int port)

virtual int	RequestInformation (vtkInformation , vtkInformationVector , vtkInformationVector )

virtual int	RequestDataObject (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)

virtual int	RequestInformation (vtkInformation , vtkInformationVector , vtkInformationVector )

virtual int	RequestDataObject (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)

Protected Member Functions inherited from vtkAlgorithm
	vtkAlgorithm ()

	~vtkAlgorithm ()

virtual void	SetNumberOfInputPorts (int n)

virtual void	SetNumberOfOutputPorts (int n)

int	InputPortIndexInRange (int index, const char *action)

int	OutputPortIndexInRange (int index, const char *action)

int	GetInputArrayAssociation (int idx, vtkInformationVector **inputVector)

void	ReportReferences (vtkGarbageCollector *) VTK_OVERRIDE

virtual void	SetNumberOfInputConnections (int port, int n)

int	GetInputArrayAssociation (int idx, int connection, vtkInformationVector **inputVector)

int	GetInputArrayAssociation (int idx, vtkDataObject *input)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkInformationVector **inputVector)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkInformationVector **inputVector, int &association)

vtkDataArray *	GetInputArrayToProcess (int idx, int connection, vtkInformationVector **inputVector)

vtkDataArray *	GetInputArrayToProcess (int idx, int connection, vtkInformationVector **inputVector, int &association)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkDataObject *input)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkDataObject *input, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkInformationVector **inputVector)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkInformationVector **inputVector, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, int connection, vtkInformationVector **inputVector)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, int connection, vtkInformationVector **inputVector, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkDataObject *input)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkDataObject *input, int &association)

vtkInformation *	GetInputArrayFieldInformation (int idx, vtkInformationVector **inputVector)

virtual void	SetNthInputConnection (int port, int index, vtkAlgorithmOutput *input)

void	SetInputDataInternal (int port, vtkDataObject *input)

void	AddInputDataInternal (int port, vtkDataObject *input)

int	GetInputArrayAssociation (int idx, int connection, vtkInformationVector **inputVector)

int	GetInputArrayAssociation (int idx, vtkDataObject *input)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkInformationVector **inputVector)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkInformationVector **inputVector, int &association)

vtkDataArray *	GetInputArrayToProcess (int idx, int connection, vtkInformationVector **inputVector)

vtkDataArray *	GetInputArrayToProcess (int idx, int connection, vtkInformationVector **inputVector, int &association)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkDataObject *input)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkDataObject *input, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkInformationVector **inputVector)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkInformationVector **inputVector, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, int connection, vtkInformationVector **inputVector)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, int connection, vtkInformationVector **inputVector, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkDataObject *input)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkDataObject *input, int &association)

vtkInformation *	GetInputArrayFieldInformation (int idx, vtkInformationVector **inputVector)

virtual void	SetErrorCode (unsigned long)

virtual void	SetNthInputConnection (int port, int index, vtkAlgorithmOutput *input)

void	SetInputDataInternal (int port, vtkDataObject *input)

void	AddInputDataInternal (int port, vtkDataObject *input)

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Additional Inherited Members
Public Attributes inherited from vtkAlgorithm
	SINGLE_PRECISION

	DOUBLE_PRECISION

	DEFAULT_PRECISION

int	AbortExecute

Static Protected Member Functions inherited from vtkAlgorithm
static vtkInformationIntegerKey *	PORT_REQUIREMENTS_FILLED ()

Protected Attributes inherited from vtkPVDataRepresentation
double	UpdateTime

bool	UpdateTimeValid

unsigned int	UniqueIdentifier

Protected Attributes inherited from vtkDataRepresentation
bool	Selectable

int	SelectionType

vtkStringArray *	SelectionArrayNames

Command *	Observer

vtkAnnotationLink *	AnnotationLinkInternal

Protected Attributes inherited from vtkAlgorithm
vtkInformation *	Information

double	Progress

char *	ProgressText

vtkProgressObserver *	ProgressObserver

unsigned long	ErrorCode

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Static Protected Attributes inherited from vtkAlgorithm
static vtkExecutive *	DefaultExecutivePrototype

Detailed Description

combine multiple representations into one with only 1 representation active at a time.

vtkCompositeRepresentation makes is possible to combine multiple representations into one. Only one representation can be active at a give time. vtkCompositeRepresentation provides API to add the representations that form the composite and to pick the active representation.

vtkCompositeRepresentation relies on call AddToView and RemoveFromView on the internal representations whenever it needs to change the active representation. So it is essential that representations handle those methods correctly and don't suffer from uncanny side effects when that's done repeatedly.

Definition at line 28 of file vtkCompositeRepresentation.h.

Member Typedef Documentation

◆ Superclass

typedef vtkPVDataRepresentation vtkCompositeRepresentation::Superclass

Definition at line 32 of file vtkCompositeRepresentation.h.

Constructor & Destructor Documentation

◆ vtkCompositeRepresentation()

vtkCompositeRepresentation::vtkCompositeRepresentation ( )

protected

◆ ~vtkCompositeRepresentation()

vtkCompositeRepresentation::~vtkCompositeRepresentation ( )

overrideprotected

Member Function Documentation

◆ New()

static vtkCompositeRepresentation* vtkCompositeRepresentation::New ( )

static

◆ GetClassName()

virtual const char* vtkCompositeRepresentation::GetClassName ( )

virtual

Reimplemented from vtkPVDataRepresentation.

Reimplemented in vtkPVCompositeRepresentation, and vtkPVCompositeOrthographicSliceRepresentation.

◆ IsTypeOf()

static int vtkCompositeRepresentation::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkCompositeRepresentation::IsA ( const char * type )

virtual

Reimplemented from vtkPVDataRepresentation.

Reimplemented in vtkPVCompositeRepresentation, and vtkPVCompositeOrthographicSliceRepresentation.

◆ SafeDownCast()

static vtkCompositeRepresentation* vtkCompositeRepresentation::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkCompositeRepresentation::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkDataRepresentation.

Reimplemented in vtkPVCompositeRepresentation, and vtkPVCompositeOrthographicSliceRepresentation.

◆ ProcessViewRequest()

int vtkCompositeRepresentation::ProcessViewRequest	(	vtkInformationRequestKey *	request_type,
		vtkInformation *	inInfo,
		vtkInformation *	outInfo
	)

overridevirtual

vtkAlgorithm::ProcessRequest() equivalent for rendering passes.

This is typically called by the vtkView to request meta-data from the representations or ask them to perform certain tasks e.g. PrepareForRendering.

Note: Starting with ParaView 5.8, this method is no longer called for hidden representation i.e. representations for which vtkDataRepresentation::GetVisibility() returns false.

Reimplemented from vtkPVDataRepresentation.

◆ SetVisibility()

void vtkCompositeRepresentation::SetVisibility ( bool val )

overridevirtual

Methods overridden to propagate to the active representation.

Reimplemented from vtkPVDataRepresentation.

Reimplemented in vtkPVCompositeRepresentation, and vtkPVCompositeOrthographicSliceRepresentation.

◆ AddRepresentation()

virtual void vtkCompositeRepresentation::AddRepresentation	(	const char *	key,
		vtkPVDataRepresentation *	repr
	)

virtual

Add/Remove representations.

key is a unique string used to identify that representation.

◆ RemoveRepresentation() [1/2]

virtual void vtkCompositeRepresentation::RemoveRepresentation ( vtkPVDataRepresentation * repr )

virtual

Add/Remove representations.

key is a unique string used to identify that representation.

◆ RemoveRepresentation() [2/2]

virtual void vtkCompositeRepresentation::RemoveRepresentation ( const char * key )

virtual

Add/Remove representations.

key is a unique string used to identify that representation.

◆ SetActiveRepresentation()

void vtkCompositeRepresentation::SetActiveRepresentation ( const char * key )

Set the active key.

If a valid key is not specified, then none of the representations is treated as active.

◆ GetActiveRepresentationKey()

const char* vtkCompositeRepresentation::GetActiveRepresentationKey ( )

Set the active key.

If a valid key is not specified, then none of the representations is treated as active.

◆ GetActiveRepresentation()

vtkPVDataRepresentation* vtkCompositeRepresentation::GetActiveRepresentation ( )

Returns the active representation if valid.

◆ SetInputConnection() [1/2]

void vtkCompositeRepresentation::SetInputConnection	(	int	port,
		vtkAlgorithmOutput *	input
	)

overridevirtual

Overridden to simply pass the input to the internal representations.

We won't need this if vtkPVDataRepresentation correctly respected in the arguments passed to it during ProcessRequest() etc.

Reimplemented from vtkAlgorithm.

Reimplemented in vtkPVCompositeRepresentation, and vtkPVCompositeOrthographicSliceRepresentation.

◆ SetInputConnection() [2/2]

void vtkCompositeRepresentation::SetInputConnection ( vtkAlgorithmOutput * input )

overridevirtual

Overridden to simply pass the input to the internal representations.

We won't need this if vtkPVDataRepresentation correctly respected in the arguments passed to it during ProcessRequest() etc.

Reimplemented from vtkAlgorithm.

Reimplemented in vtkPVCompositeRepresentation, and vtkPVCompositeOrthographicSliceRepresentation.

◆ AddInputConnection() [1/2]

void vtkCompositeRepresentation::AddInputConnection	(	int	port,
		vtkAlgorithmOutput *	input
	)

overridevirtual

Overridden to simply pass the input to the internal representations.

We won't need this if vtkPVDataRepresentation correctly respected in the arguments passed to it during ProcessRequest() etc.

Reimplemented from vtkAlgorithm.

Reimplemented in vtkPVCompositeRepresentation, and vtkPVCompositeOrthographicSliceRepresentation.

◆ AddInputConnection() [2/2]

void vtkCompositeRepresentation::AddInputConnection ( vtkAlgorithmOutput * input )

overridevirtual

Overridden to simply pass the input to the internal representations.

We won't need this if vtkPVDataRepresentation correctly respected in the arguments passed to it during ProcessRequest() etc.

Reimplemented from vtkAlgorithm.

Reimplemented in vtkPVCompositeRepresentation, and vtkPVCompositeOrthographicSliceRepresentation.

◆ RemoveInputConnection() [1/2]

void vtkCompositeRepresentation::RemoveInputConnection	(	int	port,
		vtkAlgorithmOutput *	input
	)

overridevirtual

Overridden to simply pass the input to the internal representations.

We won't need this if vtkPVDataRepresentation correctly respected in the arguments passed to it during ProcessRequest() etc.

Reimplemented from vtkAlgorithm.

Reimplemented in vtkPVCompositeRepresentation, and vtkPVCompositeOrthographicSliceRepresentation.

◆ RemoveInputConnection() [2/2]

void vtkCompositeRepresentation::RemoveInputConnection	(	int	port,
		int	idx
	)

overridevirtual

Overridden to simply pass the input to the internal representations.

We won't need this if vtkPVDataRepresentation correctly respected in the arguments passed to it during ProcessRequest() etc.

Reimplemented from vtkAlgorithm.

Reimplemented in vtkPVCompositeRepresentation, and vtkPVCompositeOrthographicSliceRepresentation.

◆ SetSelectionConnection()

void vtkCompositeRepresentation::SetSelectionConnection ( vtkAlgorithmOutput * input )

Set the selection connection.

This is used to pass a selection source output to the mapper in order to display the selection content.

◆ MarkModified()

void vtkCompositeRepresentation::MarkModified ( )

overridevirtual

Propagate the modification to all internal representations.

Reimplemented from vtkPVDataRepresentation.

Reimplemented in vtkPVCompositeOrthographicSliceRepresentation, and vtkPVCompositeRepresentation.

◆ GetRenderedDataObject()

vtkDataObject* vtkCompositeRepresentation::GetRenderedDataObject ( int port )

override

Returns the data object that is rendered from the given input port.

◆ GetRepresentationTypes()

vtkStringArray* vtkCompositeRepresentation::GetRepresentationTypes ( )

Returns the list of available representation types as a string array.

◆ SetUpdateTime()

void vtkCompositeRepresentation::SetUpdateTime ( double time )

overridevirtual

Passed on to internal representations as well.

Reimplemented from vtkPVDataRepresentation.

Reimplemented in vtkPVCompositeRepresentation.

◆ SetForceUseCache()

void vtkCompositeRepresentation::SetForceUseCache ( bool val )

overridevirtual

Passed on to internal representations as well.

Reimplemented from vtkPVDataRepresentation.

Reimplemented in vtkPVCompositeRepresentation.

◆ SetForcedCacheKey()

void vtkCompositeRepresentation::SetForcedCacheKey ( double val )

overridevirtual

Passed on to internal representations as well.

Reimplemented from vtkPVDataRepresentation.

Reimplemented in vtkPVCompositeRepresentation.

◆ FillInputPortInformation()

int vtkCompositeRepresentation::FillInputPortInformation	(	int	,
		vtkInformation *	info
	)

overrideprotectedvirtual

Reimplemented from vtkPassInputTypeAlgorithm.

◆ AddToView()

bool vtkCompositeRepresentation::AddToView ( vtkView * view )

overrideprotected

Adds the representation to the view.

This is called from vtkView::AddRepresentation(). Subclasses should override this method. Returns true if the addition succeeds.

◆ RemoveFromView()

bool vtkCompositeRepresentation::RemoveFromView ( vtkView * view )

overrideprotected

Removes the representation to the view.

This is called from vtkView::RemoveRepresentation(). Subclasses should override this method. Returns true if the removal succeeds.

◆ TriggerUpdateDataEvent()

void vtkCompositeRepresentation::TriggerUpdateDataEvent ( )

protected

Fires UpdateDataEvent.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Remoting/Views/vtkCompositeRepresentation.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Superclass

Constructor & Destructor Documentation

◆ vtkCompositeRepresentation()

◆ ~vtkCompositeRepresentation()

Member Function Documentation

◆ New()

◆ GetClassName()

◆ IsTypeOf()

◆ IsA()

◆ SafeDownCast()

◆ PrintSelf()

◆ ProcessViewRequest()

◆ SetVisibility()

◆ AddRepresentation()

◆ RemoveRepresentation() [1/2]

◆ RemoveRepresentation() [2/2]

◆ SetActiveRepresentation()

◆ GetActiveRepresentationKey()

◆ GetActiveRepresentation()

◆ SetInputConnection() [1/2]

◆ SetInputConnection() [2/2]

◆ AddInputConnection() [1/2]

◆ AddInputConnection() [2/2]

◆ RemoveInputConnection() [1/2]

◆ RemoveInputConnection() [2/2]

◆ SetSelectionConnection()

◆ MarkModified()

◆ GetRenderedDataObject()

◆ GetRepresentationTypes()

◆ SetUpdateTime()

◆ SetForceUseCache()

◆ SetForcedCacheKey()

◆ FillInputPortInformation()

◆ AddToView()

◆ RemoveFromView()

◆ TriggerUpdateDataEvent()
