Call a class member method in response to a VTK event. More...

#include <vtkMemberFunctionCommand.h>

Inheritance diagram for vtkMemberFunctionCommand< ClassT >:

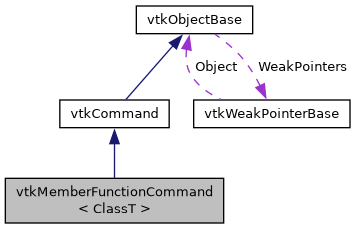

Collaboration diagram for vtkMemberFunctionCommand< ClassT >:

Public Types
typedef vtkCommand	Superclass

Public Member Functions
const char *	GetClassNameInternal () const override

void	PrintSelf (ostream &os, vtkIndent indent) override

void	SetCallback (ClassT &object, void(ClassT::method2)(vtkObject , unsigned long, void *))

void	Execute (vtkObject caller, unsigned long event, void calldata) override

void	Reset ()


void	SetCallback (ClassT &object, void(ClassT::*method)())
	Set which class instance and member function will be called when a VTK event is received. More...

Public Member Functions inherited from vtkCommand
	vtkBaseTypeMacro (vtkCommand, vtkObjectBase)

void	UnRegister ()

virtual void	UnRegister (vtkObjectBase *)

void	SetAbortFlag (int f)

int	GetAbortFlag ()

void	AbortFlagOn ()

void	AbortFlagOff ()

void	SetPassiveObserver (int f)

int	GetPassiveObserver ()

void	PassiveObserverOn ()

void	PassiveObserverOff ()

void	UnRegister ()

virtual void	UnRegister (vtkObjectBase *)

void	SetAbortFlag (int f)

int	GetAbortFlag ()

void	AbortFlagOn ()

void	AbortFlagOff ()

void	SetPassiveObserver (int f)

int	GetPassiveObserver ()

void	PassiveObserverOn ()

void	PassiveObserverOff ()

	vtkCommand ()

virtual	~vtkCommand ()

	vtkCommand (const vtkCommand &c)

void	operator= (const vtkCommand &)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual vtkTypeBool	IsA (const char *name)

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static ThisT *	SafeDownCast (vtkObjectBase *o)

static ThisT *	New ()

Static Public Member Functions inherited from vtkCommand
static const char *	GetStringFromEventId (unsigned long event)

static unsigned long	GetEventIdFromString (const char *event)

static const char *	GetStringFromEventId (unsigned long event)

static unsigned long	GetEventIdFromString (const char *event)

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Additional Inherited Members
Public Attributes inherited from vtkCommand
vtkEventDeclarationMacro(EventIds) protected int	PassiveObserver

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	RegisterInternal (vtkObjectBase *, vtkTypeBool check)

virtual void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Detailed Description

template<class ClassT>
class vtkMemberFunctionCommand< ClassT >

Call a class member method in response to a VTK event.

vtkMemberFunctionCommand is a vtkCommand-derivative that will listen for VTK events, calling a class member function when a VTK event is received.

It is generally more useful than vtkCallbackCommand, which can only call non-member functions in response to a VTK event.

Usage: create an instance of vtkMemberFunctionCommand, specialized for the class that will receive events. Use the SetCallback() method to pass the instance and member function that will be called when an event is received. Use vtkObject::AddObserver() to control which VTK events the vtkMemberFunctionCommand object will receive.

Usage:

vtkObject* subject = ... foo* observer = ... vtkMemberFunctionCommand<foo>* adapter = vtkMemberFunctionCommand<foo>::New(); adapter->SetCallback(observer, &foo::bar); subject->AddObserver(vtkCommand::AnyEvent, adapter);

Alternative Usage

vtkCommand* command = vtkMakeMemberFunctionCommand(*observer, &foo::Callback); subject->AddObserver(vtkCommand::AnyEvent, command);

There are two types of callback methods that could be defined.

void Callback() – which takes no arguments.
void Callback(vtkObject* caller, unsigned long event, void* calldata) – which is passed the same arguments as vtkCommand::Execute(), thus making it possible to get additional details about the event.
See also
vtkCallbackCommand

Definition at line 49 of file vtkMemberFunctionCommand.h.

Member Typedef Documentation

◆ Superclass

template<class ClassT>

typedef vtkCommand vtkMemberFunctionCommand< ClassT >::Superclass

Definition at line 54 of file vtkMemberFunctionCommand.h.

Member Function Documentation

◆ GetClassNameInternal()

template<class ClassT>

const char* vtkMemberFunctionCommand< ClassT >::GetClassNameInternal ( ) const

inlineoverride

Definition at line 56 of file vtkMemberFunctionCommand.h.

◆ SafeDownCast()

template<class ClassT>

static ThisT* vtkMemberFunctionCommand< ClassT >::SafeDownCast ( vtkObjectBase * o )

inlinestatic

Definition at line 58 of file vtkMemberFunctionCommand.h.

◆ New()

template<class ClassT>

static ThisT* vtkMemberFunctionCommand< ClassT >::New ( void )

inlinestatic

Definition at line 60 of file vtkMemberFunctionCommand.h.

◆ PrintSelf()

template<class ClassT>

void vtkMemberFunctionCommand< ClassT >::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

inlineoverridevirtual

Reimplemented from vtkObjectBase.

Definition at line 62 of file vtkMemberFunctionCommand.h.

◆ SetCallback() [1/2]

template<class ClassT>

void vtkMemberFunctionCommand< ClassT >::SetCallback	(	ClassT &	object,
		void(ClassT::*)()	method
	)

inline

Set which class instance and member function will be called when a VTK event is received.

Definition at line 72 of file vtkMemberFunctionCommand.h.

◆ SetCallback() [2/2]

template<class ClassT>

void vtkMemberFunctionCommand< ClassT >::SetCallback	(	ClassT &	object,
		void(ClassT::)(vtkObject , unsigned long, void *)	method2
	)

inline

Definition at line 79 of file vtkMemberFunctionCommand.h.

◆ Execute()

template<class ClassT>

void vtkMemberFunctionCommand< ClassT >::Execute	(	vtkObject *	caller,
		unsigned long	event,
		void *	calldata
	)

inlineoverridevirtual

Implements vtkCommand.

Definition at line 85 of file vtkMemberFunctionCommand.h.

◆ Reset()

template<class ClassT>

void vtkMemberFunctionCommand< ClassT >::Reset ( )

inline

Definition at line 96 of file vtkMemberFunctionCommand.h.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/VTKExtensions/Core/vtkMemberFunctionCommand.h
