vtkPVXMLElement Class Reference

This is used by vtkPVXMLParser to represent an XML document starting at the root element. More...

#include <vtkPVXMLElement.h>

Inheritance diagram for vtkPVXMLElement:

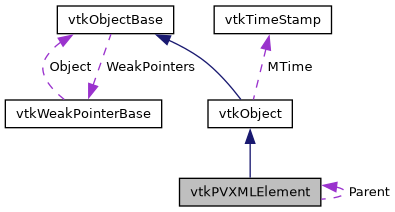

Collaboration diagram for vtkPVXMLElement:

Public Types
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent) override
const char *	GetAttribute (const char *name)
	Get the attribute with the given name. More...
const char *	GetAttributeOrEmpty (const char *name)
	Get the attribute with the given name. More...
const char *	GetAttributeOrDefault (const char *name, const char *notFound)
	Get the attribute with the given name. More...
const char *	GetCharacterData ()
	Get the character data for the element. More...
vtkPVXMLElement *	GetParent ()
	Get the parent of this element. More...
unsigned int	GetNumberOfNestedElements ()
	Get the number of elements nested in this one. More...
vtkPVXMLElement *	GetNestedElement (unsigned int index)
	Get the element nested in this one at the given index. More...
vtkPVXMLElement *	FindNestedElement (const char *id)
	Find a nested element with the given id. More...
vtkPVXMLElement *	FindNestedElementByName (const char *name)
	Locate a nested element with the given tag name. More...
void	FindNestedElementByName (const char *name, vtkCollection *elements)
	Locate a set of nested elements with the given tag name. More...
void	RemoveAllNestedElements ()
	Removes all nested elements. More...
void	RemoveNestedElement (vtkPVXMLElement *)
	Remove a particular element. More...
void	ReplaceNestedElement (vtkPVXMLElement *elementToReplace, vtkPVXMLElement *element)
	Replace a particular element with another. More...
vtkPVXMLElement *	LookupElement (const char *id)
	Lookup the element with the given id, starting at this scope. More...
void	RemoveAttribute (const char *attrName)
	Remove the attribute from the current element. More...
void	SetAttribute (const char *attrName, const char *attrValue)
	Given it's name and value, set an attribute. More...
void	Merge (vtkPVXMLElement *element, const char *attributeName)
	Merges another element with this one, both having the same name. More...
bool	Equals (vtkPVXMLElement *other)
	Return true if the current object has the same content as the other. More...
void	CopyTo (vtkPVXMLElement *other)
	Copy the current XML element content into the provided one. More...
void	CopyAttributesTo (vtkPVXMLElement *other)
	Copy the attributes from current XML element content into the provided one. More...
virtual void	SetName (const char *)
	Set/Get the name of the element. More...
virtual char *	GetName ()
	Set/Get the name of the element. More...
virtual char *	GetId ()
	Get the id of the element. More...
int	GetScalarAttribute (const char *name, int *value)
	Get the attribute with the given name converted to a scalar value. More...
int	GetScalarAttribute (const char *name, float *value)
	Get the attribute with the given name converted to a scalar value. More...
int	GetScalarAttribute (const char *name, double *value)
	Get the attribute with the given name converted to a scalar value. More...
int	GetVectorAttribute (const char *name, int length, int *value)
	Get the attribute with the given name converted to a scalar value. More...
int	GetVectorAttribute (const char *name, int length, float *value)
	Get the attribute with the given name converted to a scalar value. More...
int	GetVectorAttribute (const char *name, int length, double *value)
	Get the attribute with the given name converted to a scalar value. More...
int	GetCharacterDataAsVector (int length, int *value)
	Get the character data converted to a scalar value. More...
int	GetCharacterDataAsVector (int length, float *value)
	Get the character data converted to a scalar value. More...
int	GetCharacterDataAsVector (int length, double *value)
	Get the character data converted to a scalar value. More...
void	AddAttribute (const char *attrName, const char *attrValue)
	Given it's name and value, add an attribute. More...
void	AddAttribute (const char *attrName, unsigned int attrValue)
	Given it's name and value, add an attribute. More...
void	AddAttribute (const char *attrName, double attrValue)
	Given it's name and value, add an attribute. More...
void	AddAttribute (const char *attrName, double attrValue, int precision)
	Given it's name and value, add an attribute. More...
void	AddAttribute (const char *attrName, int attrValue)
	Given it's name and value, add an attribute. More...
void	AddNestedElement (vtkPVXMLElement *element, int setPrent)
	Add a sub-element. More...
void	AddNestedElement (vtkPVXMLElement *element)
	Add a sub-element. More...
void	PrintXML (ostream &os, vtkIndent indent)
	Serialize (as XML) in the given stream. More...
void	PrintXML ()
	Serialize (as XML) in the given stream. More...
void	GetElementsByName (const char *name, vtkCollection *elements)
	Similar to DOM specific getElementsByTagName(). More...
void	GetElementsByName (const char *name, vtkCollection *elements, bool recursively)
	Similar to DOM specific getElementsByTagName(). More...
Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)
virtual void	DebugOn ()
virtual void	DebugOff ()
bool	GetDebug ()
void	SetDebug (bool debugFlag)
virtual void	Modified ()
virtual vtkMTimeType	GetMTime ()
void	RemoveObserver (unsigned long tag)
void	RemoveObservers (unsigned long event)
void	RemoveObservers (const char *event)
void	RemoveAllObservers ()
int	HasObserver (unsigned long event)
int	HasObserver (const char *event)
int	InvokeEvent (unsigned long event)
int	InvokeEvent (const char *event)
unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)
unsigned long	AddObserver (const char *event, vtkCommand *, float priority=0.0f)
vtkCommand *	GetCommand (unsigned long tag)
void	RemoveObserver (vtkCommand *)
void	RemoveObservers (unsigned long event, vtkCommand *)
void	RemoveObservers (const char *event, vtkCommand *)
int	HasObserver (unsigned long event, vtkCommand *)
int	HasObserver (const char *event, vtkCommand *)
unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)
unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)
unsigned long	AddObserver (unsigned long event, U observer, bool(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)
int	InvokeEvent (unsigned long event, void *callData)
int	InvokeEvent (const char *event, void *callData)
unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)
unsigned long	AddObserver (const char *event, vtkCommand *, float priority=0.0f)
vtkCommand *	GetCommand (unsigned long tag)
void	RemoveObserver (vtkCommand *)
void	RemoveObservers (unsigned long event, vtkCommand *)
void	RemoveObservers (const char *event, vtkCommand *)
int	HasObserver (unsigned long event, vtkCommand *)
int	HasObserver (const char *event, vtkCommand *)
unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)
unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)
unsigned long	AddObserver (unsigned long event, U observer, bool(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)
int	InvokeEvent (unsigned long event, void *callData)
int	InvokeEvent (const char *event, void *callData)
Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const
virtual void	Delete ()
virtual void	FastDelete ()
void	Print (ostream &os)
virtual void	Register (vtkObjectBase *o)
virtual void	UnRegister (vtkObjectBase *o)
void	SetReferenceCount (int)
virtual void	PrintHeader (ostream &os, vtkIndent indent)
virtual void	PrintTrailer (ostream &os, vtkIndent indent)
int	GetReferenceCount ()
void	PrintRevisions (ostream &)
virtual void	PrintHeader (ostream &os, vtkIndent indent)
virtual void	PrintTrailer (ostream &os, vtkIndent indent)
int	GetReferenceCount ()
void	PrintRevisions (ostream &)

Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkPVXMLElement *	SafeDownCast (vtkObject *o)
static vtkPVXMLElement *	New ()
static std::string	Encode (const char *plaintext)
	Encode a string. More...
Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()
static void	BreakOnError ()
static void	SetGlobalWarningDisplay (int val)
static void	GlobalWarningDisplayOn ()
static void	GlobalWarningDisplayOff ()
static int	GetGlobalWarningDisplay ()
static void	SetGlobalWarningDisplay (int val)
static void	GlobalWarningDisplayOn ()
static void	GlobalWarningDisplayOff ()
static int	GetGlobalWarningDisplay ()
Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)
static vtkObjectBase *	New ()
static vtkObjectBase *	New ()

Protected Member Functions
	vtkPVXMLElement ()
	~vtkPVXMLElement () override
virtual void	SetId (const char *)
void	ReadXMLAttributes (const char **atts)
void	AddCharacterData (const char *data, int length)
vtkPVXMLElement *	LookupElementInScope (const char *id)
vtkPVXMLElement *	LookupElementUpScope (const char *id)
void	SetParent (vtkPVXMLElement *parent)
Protected Member Functions inherited from vtkObject
	vtkObject ()
virtual	~vtkObject ()
void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE
void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE
void	InternalGrabFocus (vtkCommand *mouseEvents, vtkCommand *keypressEvents=NULL)
void	InternalReleaseFocus ()
void	InternalGrabFocus (vtkCommand *mouseEvents, vtkCommand *keypressEvents=NULL)
void	InternalReleaseFocus ()
Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()
virtual	~vtkObjectBase ()
virtual void	CollectRevisions (ostream &)
virtual void	ReportReferences (vtkGarbageCollector *)
	vtkObjectBase (const vtkObjectBase &)
void	operator= (const vtkObjectBase &)

Protected Attributes
vtkPVXMLElementInternals *	Internal
char *	Name
char *	Id
vtkPVXMLElement *	Parent
Protected Attributes inherited from vtkObject
bool	Debug
vtkTimeStamp	MTime
vtkSubjectHelper *	SubjectHelper
Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount
vtkWeakPointerBase **	WeakPointers

Friends
class	vtkPVXMLParser

Detailed Description

This is used by vtkPVXMLParser to represent an XML document starting at the root element.

Definition at line 23 of file vtkPVXMLElement.h.

Member Typedef Documentation

Superclass

typedef vtkObject vtkPVXMLElement::Superclass

Definition at line 26 of file vtkPVXMLElement.h.

Constructor & Destructor Documentation

vtkPVXMLElement()

vtkPVXMLElement::vtkPVXMLElement ( )

protected

~vtkPVXMLElement()

vtkPVXMLElement::~vtkPVXMLElement ( )

overrideprotected

Member Function Documentation

GetClassName()

virtual const char* vtkPVXMLElement::GetClassName ( )

virtual

IsTypeOf()

static int vtkPVXMLElement::IsTypeOf ( const char *  type )

static

IsA()

virtual int vtkPVXMLElement::IsA ( const char *  type )

virtual

Reimplemented from vtkObjectBase.

SafeDownCast()

static vtkPVXMLElement* vtkPVXMLElement::SafeDownCast ( vtkObject *  o )

static

PrintSelf()

void vtkPVXMLElement::PrintSelf ( ostream &  os, vtkIndent  indent  )

overridevirtual

Reimplemented from vtkObject.

New()

static vtkPVXMLElement* vtkPVXMLElement::New ( )

static

SetName()

virtual void vtkPVXMLElement::SetName ( const char *  )

virtual

Set/Get the name of the element.

This is its XML tag. (<Name/>).

GetName()

virtual char* vtkPVXMLElement::GetName ( )

virtual

Set/Get the name of the element.

This is its XML tag. (<Name/>).

GetId()

virtual char* vtkPVXMLElement::GetId ( )

virtual

Get the id of the element.

This is assigned by the XML parser and can be used as an identifier to an element.

GetAttribute()

const char* vtkPVXMLElement::GetAttribute ( const char *  name )

inline

Get the attribute with the given name.

If it doesn't exist, returns nullptr.

Definition at line 51 of file vtkPVXMLElement.h.

GetAttributeOrEmpty()

const char* vtkPVXMLElement::GetAttributeOrEmpty ( const char *  name )

inline

Get the attribute with the given name.

If it doesn't exist, returns "".

Definition at line 57 of file vtkPVXMLElement.h.

GetAttributeOrDefault()

const char* vtkPVXMLElement::GetAttributeOrDefault	(	const char *	name,
		const char *	notFound
	)

Get the attribute with the given name.

If it doesn't exist, returns the provided notFound value.

GetCharacterData()

const char* vtkPVXMLElement::GetCharacterData

(

)

Get the character data for the element.

GetScalarAttribute() [1/3]

int vtkPVXMLElement::GetScalarAttribute	(	const char *	name,
		int *	value
	)

Get the attribute with the given name converted to a scalar value.

Returns 1 if a value was extracted.

GetScalarAttribute() [2/3]

int vtkPVXMLElement::GetScalarAttribute	(	const char *	name,
		float *	value
	)

Get the attribute with the given name converted to a scalar value.

Returns 1 if a value was extracted.

GetScalarAttribute() [3/3]

int vtkPVXMLElement::GetScalarAttribute	(	const char *	name,
		double *	value
	)

Get the attribute with the given name converted to a scalar value.

Returns 1 if a value was extracted.

GetVectorAttribute() [1/3]

int vtkPVXMLElement::GetVectorAttribute	(	const char *	name,
		int	length,
		int *	value
	)

Get the attribute with the given name converted to a scalar value.

Returns length of vector read.

GetVectorAttribute() [2/3]

int vtkPVXMLElement::GetVectorAttribute	(	const char *	name,
		int	length,
		float *	value
	)

Get the attribute with the given name converted to a scalar value.

Returns length of vector read.

GetVectorAttribute() [3/3]

int vtkPVXMLElement::GetVectorAttribute	(	const char *	name,
		int	length,
		double *	value
	)

Get the attribute with the given name converted to a scalar value.

Returns length of vector read.

GetCharacterDataAsVector() [1/3]

int vtkPVXMLElement::GetCharacterDataAsVector	(	int	length,
		int *	value
	)

Get the character data converted to a scalar value.

Returns length of vector read.

GetCharacterDataAsVector() [2/3]

int vtkPVXMLElement::GetCharacterDataAsVector	(	int	length,
		float *	value
	)

Get the character data converted to a scalar value.

Returns length of vector read.

GetCharacterDataAsVector() [3/3]

int vtkPVXMLElement::GetCharacterDataAsVector	(	int	length,
		double *	value
	)

Get the character data converted to a scalar value.

Returns length of vector read.

GetParent()

vtkPVXMLElement* vtkPVXMLElement::GetParent

(

)

Get the parent of this element.

GetNumberOfNestedElements()

unsigned int vtkPVXMLElement::GetNumberOfNestedElements

(

)

Get the number of elements nested in this one.

GetNestedElement()

vtkPVXMLElement* vtkPVXMLElement::GetNestedElement

(

unsigned int

index

)

Get the element nested in this one at the given index.

FindNestedElement()

vtkPVXMLElement* vtkPVXMLElement::FindNestedElement

(

const char *

id

)

Find a nested element with the given id.

Not that this searches only the immediate children of this vtkPVXMLElement.

FindNestedElementByName() [1/2]

vtkPVXMLElement* vtkPVXMLElement::FindNestedElementByName

(

const char *

name

)

Locate a nested element with the given tag name.

FindNestedElementByName() [2/2]

void vtkPVXMLElement::FindNestedElementByName	(	const char *	name,
		vtkCollection *	elements
	)

Locate a set of nested elements with the given tag name.

RemoveAllNestedElements()

void vtkPVXMLElement::RemoveAllNestedElements

(

)

Removes all nested elements.

RemoveNestedElement()

void vtkPVXMLElement::RemoveNestedElement

(

vtkPVXMLElement *

)

Remove a particular element.

ReplaceNestedElement()

void vtkPVXMLElement::ReplaceNestedElement	(	vtkPVXMLElement *	elementToReplace,
		vtkPVXMLElement *	element
	)

Replace a particular element with another.

LookupElement()

vtkPVXMLElement* vtkPVXMLElement::LookupElement

(

const char *

id

)

Lookup the element with the given id, starting at this scope.

AddAttribute() [1/5]

void vtkPVXMLElement::AddAttribute	(	const char *	attrName,
		const char *	attrValue
	)

Given it's name and value, add an attribute.

AddAttribute() [2/5]

void vtkPVXMLElement::AddAttribute	(	const char *	attrName,
		unsigned int	attrValue
	)

Given it's name and value, add an attribute.

AddAttribute() [3/5]

void vtkPVXMLElement::AddAttribute	(	const char *	attrName,
		double	attrValue
	)

Given it's name and value, add an attribute.

AddAttribute() [4/5]

void vtkPVXMLElement::AddAttribute	(	const char *	attrName,
		double	attrValue,
		int	precision
	)

Given it's name and value, add an attribute.

AddAttribute() [5/5]

void vtkPVXMLElement::AddAttribute	(	const char *	attrName,
		int	attrValue
	)

Given it's name and value, add an attribute.

RemoveAttribute()

void vtkPVXMLElement::RemoveAttribute

(

const char *

attrName

)

Remove the attribute from the current element.

SetAttribute()

void vtkPVXMLElement::SetAttribute	(	const char *	attrName,
		const char *	attrValue
	)

Given it's name and value, set an attribute.

If an attribute with the given name already exists, it replaces the old attribute. chars that need to be XML escaped will be done so internally for example " will be converted to "

AddNestedElement() [1/2]

void vtkPVXMLElement::AddNestedElement	(	vtkPVXMLElement *	element,
		int	setPrent
	)

Add a sub-element.

The parent element keeps a reference to sub-element. If setParent is true, the nested element's parent is set as this.

AddNestedElement() [2/2]

void vtkPVXMLElement::AddNestedElement

(

vtkPVXMLElement *

element

)

Add a sub-element.

The parent element keeps a reference to sub-element. If setParent is true, the nested element's parent is set as this.

PrintXML() [1/2]

void vtkPVXMLElement::PrintXML	(	ostream &	os,
		vtkIndent	indent
	)

Serialize (as XML) in the given stream.

PrintXML() [2/2]

void vtkPVXMLElement::PrintXML

(

)

Serialize (as XML) in the given stream.

Merge()

void vtkPVXMLElement::Merge	(	vtkPVXMLElement *	element,
		const char *	attributeName
	)

Merges another element with this one, both having the same name.

If any attribute, character data or nested element exists in both, the passed in one will override this one's. If they don't exist, they'll be added. If nested elements have the same names, the optional attributeName maybe passed in as another criteria to determine what to merge in case of same names.

GetElementsByName() [1/2]

void vtkPVXMLElement::GetElementsByName	(	const char *	name,
		vtkCollection *	elements
	)

Similar to DOM specific getElementsByTagName().

Returns a list of vtkPVXMLElements with the given name in the order in which they will be encountered in a preorder traversal of the sub-tree under this node. The elements are populated in the vtkCollection passed as an argument.

GetElementsByName() [2/2]

void vtkPVXMLElement::GetElementsByName	(	const char *	name,
		vtkCollection *	elements,
		bool	recursively
	)

Similar to DOM specific getElementsByTagName().

Returns a list of vtkPVXMLElements with the given name in the order in which they will be encountered in a preorder traversal of the sub-tree under this node. The elements are populated in the vtkCollection passed as an argument.

Encode()

static std::string vtkPVXMLElement::Encode ( const char *  plaintext )

static

Encode a string.

Equals()

bool vtkPVXMLElement::Equals

(

vtkPVXMLElement *

other

)

Return true if the current object has the same content as the other.

The comparison implementation is pretty weak in the mean that we compare resulting XML string.

CopyTo()

void vtkPVXMLElement::CopyTo

(

vtkPVXMLElement *

other

)

Copy the current XML element content into the provided one.

CopyAttributesTo()

void vtkPVXMLElement::CopyAttributesTo

(

vtkPVXMLElement *

other

)

Copy the attributes from current XML element content into the provided one.

SetId()

virtual void vtkPVXMLElement::SetId ( const char *  )

protectedvirtual

ReadXMLAttributes()

void vtkPVXMLElement::ReadXMLAttributes ( const char **  atts )

protected

AddCharacterData()

void vtkPVXMLElement::AddCharacterData ( const char *  data, int  length  )

protected

LookupElementInScope()

vtkPVXMLElement* vtkPVXMLElement::LookupElementInScope ( const char *  id )

protected

LookupElementUpScope()

vtkPVXMLElement* vtkPVXMLElement::LookupElementUpScope ( const char *  id )

protected

SetParent()

void vtkPVXMLElement::SetParent ( vtkPVXMLElement *  parent )

protected

Friends And Related Function Documentation

vtkPVXMLParser

friend class vtkPVXMLParser

friend

Definition at line 276 of file vtkPVXMLElement.h.

Member Data Documentation

Internal

vtkPVXMLElementInternals* vtkPVXMLElement::Internal

protected

Definition at line 258 of file vtkPVXMLElement.h.

Name

char* vtkPVXMLElement::Name

protected

Definition at line 260 of file vtkPVXMLElement.h.

Id

char* vtkPVXMLElement::Id

protected

Definition at line 261 of file vtkPVXMLElement.h.

Parent

vtkPVXMLElement* vtkPVXMLElement::Parent

protected

Definition at line 264 of file vtkPVXMLElement.h.

---

The documentation for this class was generated from the following file:

• /builds/gitlab-kitware-sciviz-ci/VTKExtensions/Core/vtkPVXMLElement.h
