deserializes proxies from their Protobuf states. More...

#include <vtkSMDeserializerProtobuf.h>

Inheritance diagram for vtkSMDeserializerProtobuf:

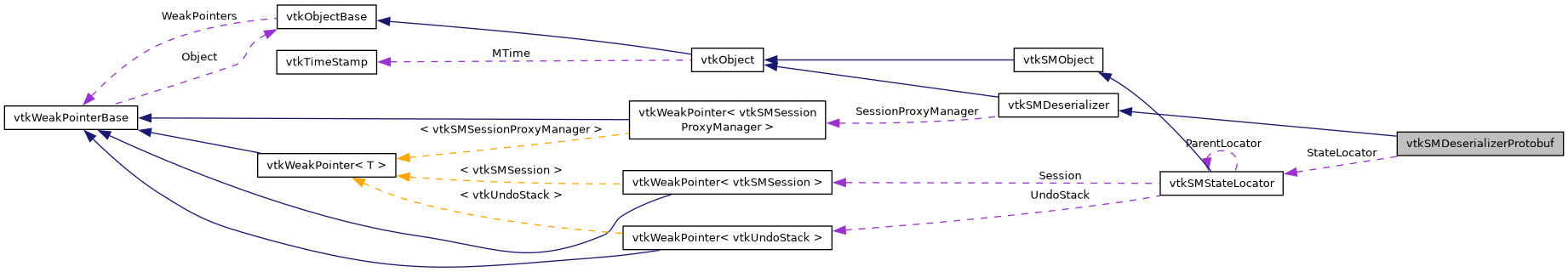

Collaboration diagram for vtkSMDeserializerProtobuf:

[legend]

Public Types
typedef vtkSMDeserializer	Superclass

Public Types inherited from vtkSMDeserializer
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override


virtual vtkSMStateLocator *	GetStateLocator ()
	Get/Set the session. More...

virtual void	SetStateLocator (vtkSMStateLocator *)
	Get/Set the session. More...

Public Member Functions inherited from vtkSMDeserializer
void	SetSession (vtkSMSession *session)
	Convenience method for setting the SessionProxyManager. More...

vtkSMSession *	GetSession ()
	Provides access to the session. More...

vtkSMSessionProxyManager *	GetSessionProxyManager ()
	Get/Set the proxy manager on which this deserializer is expected to operate. More...

void	SetSessionProxyManager (vtkSMSessionProxyManager *)
	Get/Set the proxy manager on which this deserializer is expected to operate. More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkSMDeserializerProtobuf *	New ()

static int	IsTypeOf (const char *type)

static vtkSMDeserializerProtobuf *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMDeserializer
static int	IsTypeOf (const char *type)

static vtkSMDeserializer *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkSMDeserializerProtobuf ()

	~vtkSMDeserializerProtobuf () override

vtkSMProxy *	NewProxy (vtkTypeUInt32 id, vtkSMProxyLocator *locator) override
	First ask the session, to find the given proxy. More...

Protected Member Functions inherited from vtkSMDeserializer
	vtkSMDeserializer ()

	~vtkSMDeserializer () override

virtual vtkSMProxy *	CreateProxy (const char xmlgroup, const char xmlname, const char *subProxyName=nullptr)
	Create a new proxy of the given group and name. More...

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Protected Attributes
vtkSMStateLocator *	StateLocator

Protected Attributes inherited from vtkSMDeserializer
vtkWeakPointer< vtkSMSessionProxyManager >	SessionProxyManager

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Friends
class	vtkSMProxyLocator

Detailed Description

deserializes proxies from their Protobuf states.

vtkSMDeserializerProtobuf is used to deserialize proxies from their Protobuf states. This is the base class of deserialization classes that load Protobuf messagess to restore proxy/servermanager state (or part thereof).

Definition at line 23 of file vtkSMDeserializerProtobuf.h.

Member Typedef Documentation

◆ Superclass

typedef vtkSMDeserializer vtkSMDeserializerProtobuf::Superclass

Definition at line 27 of file vtkSMDeserializerProtobuf.h.

Constructor & Destructor Documentation

◆ vtkSMDeserializerProtobuf()

vtkSMDeserializerProtobuf::vtkSMDeserializerProtobuf ( )

protected

◆ ~vtkSMDeserializerProtobuf()

vtkSMDeserializerProtobuf::~vtkSMDeserializerProtobuf ( )

overrideprotected

Member Function Documentation

◆ New()

static vtkSMDeserializerProtobuf* vtkSMDeserializerProtobuf::New ( )

static

◆ GetClassName()

virtual const char* vtkSMDeserializerProtobuf::GetClassName ( )

virtual

Reimplemented from vtkSMDeserializer.

◆ IsTypeOf()

static int vtkSMDeserializerProtobuf::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkSMDeserializerProtobuf::IsA ( const char * type )

virtual

Reimplemented from vtkSMDeserializer.

◆ SafeDownCast()

static vtkSMDeserializerProtobuf* vtkSMDeserializerProtobuf::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkSMDeserializerProtobuf::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkSMDeserializer.

◆ GetStateLocator()

virtual vtkSMStateLocator* vtkSMDeserializerProtobuf::GetStateLocator ( )

virtual

Get/Set the session.

◆ SetStateLocator()

virtual void vtkSMDeserializerProtobuf::SetStateLocator ( vtkSMStateLocator * )

virtual

Get/Set the session.

◆ NewProxy()

vtkSMProxy* vtkSMDeserializerProtobuf::NewProxy	(	vtkTypeUInt32	id,
		vtkSMProxyLocator *	locator
	)

overrideprotectedvirtual

First ask the session, to find the given proxy.

If not found in the session then Create a new proxy with the id if possible.

Implements vtkSMDeserializer.

Friends And Related Function Documentation

◆ vtkSMProxyLocator

friend class vtkSMProxyLocator

friend

Definition at line 43 of file vtkSMDeserializerProtobuf.h.

Member Data Documentation

◆ StateLocator

vtkSMStateLocator* vtkSMDeserializerProtobuf::StateLocator

protected

Definition at line 51 of file vtkSMDeserializerProtobuf.h.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Remoting/ServerManager/vtkSMDeserializerProtobuf.h
