builder server manager undo sets for render view interactions and pushes them on the undo stack. More...

#include <vtkSMInteractionUndoStackBuilder.h>

Inheritance diagram for vtkSMInteractionUndoStackBuilder:

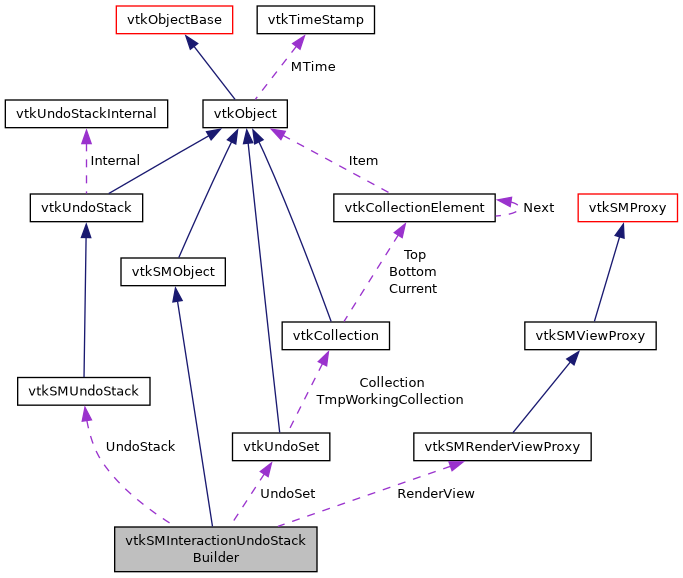

Collaboration diagram for vtkSMInteractionUndoStackBuilder:

[legend]

Public Types
typedef vtkSMObject	Superclass

Public Types inherited from vtkSMObject
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

void	Clear ()
	Clear the undo set currently being recorded. More...

void	StartInteraction ()
	Called to record the state at the beginning of an interaction. More...

void	EndInteraction ()
	Called to record the state at the end of an interaction and push it on the stack. More...


void	SetRenderView (vtkSMRenderViewProxy *)
	Get/Set the render view proxy for which we are monitoring the interactions. More...

virtual vtkSMRenderViewProxy *	GetRenderView ()
	Get/Set the render view proxy for which we are monitoring the interactions. More...


virtual vtkSMUndoStack *	GetUndoStack ()
	Get/Set the undo stack that this builder will build. More...

virtual void	SetUndoStack (vtkSMUndoStack *)
	Get/Set the undo stack that this builder will build. More...

Public Member Functions inherited from vtkSMObject
void	PrintSelf (ostream &os, vtkIndent indent) override

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkSMInteractionUndoStackBuilder *	New ()

static int	IsTypeOf (const char *type)

static vtkSMInteractionUndoStackBuilder *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMObject
static vtkSMObject *	New ()

static int	IsTypeOf (const char *type)

static vtkSMObject *	SafeDownCast (vtkObject *o)

static std::string	CreatePrettyLabel (const std::string &name)
	Return a well-formated label using provided name by adding spaces between lower cases and upper cases: More...

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkSMInteractionUndoStackBuilder ()

	~vtkSMInteractionUndoStackBuilder () override

void	ExecuteEvent (vtkObject caller, unsigned long event, void data)
	Event handler. More...

void	PropertyModified (const char *pname)

Protected Member Functions inherited from vtkSMObject
	vtkSMObject ()

	~vtkSMObject () override

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Protected Attributes
vtkSMRenderViewProxy *	RenderView

vtkSMUndoStack *	UndoStack

vtkUndoSet *	UndoSet

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Friends
class	vtkSMInteractionUndoStackBuilderObserver

Detailed Description

builder server manager undo sets for render view interactions and pushes them on the undo stack.

vtkSMInteractionUndoStackBuilder specializes in interaction. This class can create undo elements for only one render view at a time.

Definition at line 24 of file vtkSMInteractionUndoStackBuilder.h.

Member Typedef Documentation

◆ Superclass

typedef vtkSMObject vtkSMInteractionUndoStackBuilder::Superclass

Definition at line 28 of file vtkSMInteractionUndoStackBuilder.h.

Constructor & Destructor Documentation

◆ vtkSMInteractionUndoStackBuilder()

vtkSMInteractionUndoStackBuilder::vtkSMInteractionUndoStackBuilder ( )

protected

◆ ~vtkSMInteractionUndoStackBuilder()

vtkSMInteractionUndoStackBuilder::~vtkSMInteractionUndoStackBuilder ( )

overrideprotected

Member Function Documentation

◆ New()

static vtkSMInteractionUndoStackBuilder* vtkSMInteractionUndoStackBuilder::New ( )

static

◆ GetClassName()

virtual const char* vtkSMInteractionUndoStackBuilder::GetClassName ( )

virtual

Reimplemented from vtkSMObject.

◆ IsTypeOf()

static int vtkSMInteractionUndoStackBuilder::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkSMInteractionUndoStackBuilder::IsA ( const char * type )

virtual

Reimplemented from vtkSMObject.

◆ SafeDownCast()

static vtkSMInteractionUndoStackBuilder* vtkSMInteractionUndoStackBuilder::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkSMInteractionUndoStackBuilder::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkObject.

◆ SetRenderView()

void vtkSMInteractionUndoStackBuilder::SetRenderView ( vtkSMRenderViewProxy * )

Get/Set the render view proxy for which we are monitoring the interactions.

◆ GetRenderView()

virtual vtkSMRenderViewProxy* vtkSMInteractionUndoStackBuilder::GetRenderView ( )

virtual

Get/Set the render view proxy for which we are monitoring the interactions.

◆ GetUndoStack()

virtual vtkSMUndoStack* vtkSMInteractionUndoStackBuilder::GetUndoStack ( )

virtual

Get/Set the undo stack that this builder will build.

◆ SetUndoStack()

virtual void vtkSMInteractionUndoStackBuilder::SetUndoStack ( vtkSMUndoStack * )

virtual

Get/Set the undo stack that this builder will build.

◆ Clear()

void vtkSMInteractionUndoStackBuilder::Clear ( )

Clear the undo set currently being recorded.

◆ StartInteraction()

void vtkSMInteractionUndoStackBuilder::StartInteraction ( )

Called to record the state at the beginning of an interaction.

Usually, this method isn't called directly, since the builder listens to interaction events on the interactor and calls it automatically. May be used when changing the camera programmatically.

◆ EndInteraction()

void vtkSMInteractionUndoStackBuilder::EndInteraction ( )

Called to record the state at the end of an interaction and push it on the stack.

Usually, this method isn't called directly, since the builder listens to interaction events on the interactor and calls it automatically. May be used when changing the camera programmatically.

◆ ExecuteEvent()

void vtkSMInteractionUndoStackBuilder::ExecuteEvent	(	vtkObject *	caller,
		unsigned long	event,
		void *	data
	)

protected

Event handler.

◆ PropertyModified()

void vtkSMInteractionUndoStackBuilder::PropertyModified ( const char * pname )

protected

Friends And Related Function Documentation

◆ vtkSMInteractionUndoStackBuilderObserver

friend class vtkSMInteractionUndoStackBuilderObserver

friend

Definition at line 87 of file vtkSMInteractionUndoStackBuilder.h.

Member Data Documentation

◆ RenderView

vtkSMRenderViewProxy* vtkSMInteractionUndoStackBuilder::RenderView

protected

Definition at line 76 of file vtkSMInteractionUndoStackBuilder.h.

◆ UndoStack

vtkSMUndoStack* vtkSMInteractionUndoStackBuilder::UndoStack

protected

Definition at line 77 of file vtkSMInteractionUndoStackBuilder.h.

◆ UndoSet

vtkUndoSet* vtkSMInteractionUndoStackBuilder::UndoSet

protected

Definition at line 78 of file vtkSMInteractionUndoStackBuilder.h.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Remoting/Misc/vtkSMInteractionUndoStackBuilder.h
