This is the concrete implementation for the Undo element for a property modification event. More...

#include <vtkSMPropertyModificationUndoElement.h>

Inheritance diagram for vtkSMPropertyModificationUndoElement:

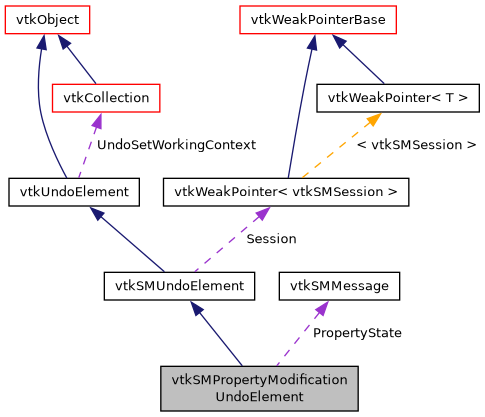

Collaboration diagram for vtkSMPropertyModificationUndoElement:

[legend]

Public Types
typedef vtkSMUndoElement	Superclass

Public Types inherited from vtkSMUndoElement
typedef vtkUndoElement	Superclass

Public Types inherited from vtkUndoElement
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

int	Undo () override
	Undo the operation encapsulated by this element. More...

int	Redo () override
	Redo the operation encaspsulated by this element. More...

void	ModifiedProperty (vtkSMProxy proxy, const char propertyname)
	Set the property/proxy that was modified. More...

bool	Merge (vtkUndoElement *vtkNotUsed(new_element)) override
	Called on the older element in the UndoSet to merge with the element being added if both the elements are `mergeable`. More...

Public Member Functions inherited from vtkSMUndoElement
void	PrintSelf (ostream &os, vtkIndent indent) override

virtual vtkSMSession *	GetSession ()

virtual void	SetSession (vtkSMSession *)

virtual vtkSMSessionProxyManager *	GetSessionProxyManager ()
	Return the corresponding ProxyManager if any. More...

Public Member Functions inherited from vtkUndoElement
void	PrintSelf (ostream &os, vtkIndent indent) override

virtual void	SetUndoSetWorkingContext (vtkCollection *workCTX)

virtual bool	GetMergeable ()
	Returns if this undo element can be merged with other undo elements. More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkSMPropertyModificationUndoElement *	New ()

static int	IsTypeOf (const char *type)

static vtkSMPropertyModificationUndoElement *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMUndoElement
static int	IsTypeOf (const char *type)

static vtkSMUndoElement *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkUndoElement
static int	IsTypeOf (const char *type)

static vtkUndoElement *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkSMPropertyModificationUndoElement ()

	~vtkSMPropertyModificationUndoElement () override

int	RevertToState ()

virtual void	SetPropertyName (const char *)

Protected Member Functions inherited from vtkSMUndoElement
	vtkSMUndoElement ()

	~vtkSMUndoElement () override

Protected Member Functions inherited from vtkUndoElement
	vtkUndoElement ()

	~vtkUndoElement () override

virtual void	SetMergeable (bool)
	Subclasses must set this flag to enable merging of consecutive elements in an UndoSet. More...

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Protected Attributes
vtkTypeUInt32	ProxyGlobalID

char *	PropertyName

vtkSMMessage *	PropertyState

Protected Attributes inherited from vtkSMUndoElement
vtkWeakPointer< vtkSMSession >	Session

Protected Attributes inherited from vtkUndoElement
bool	Mergeable
	Subclasses must set this flag to enable merging of consecutive elements in an UndoSet. More...

vtkCollection *	UndoSetWorkingContext
	Subclasses must set this flag to enable merging of consecutive elements in an UndoSet. More...

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Detailed Description

This is the concrete implementation for the Undo element for a property modification event.

The undo action sets the property to the value that was pushed on to the server previous to the modification. The redo action sets the property to the modified value.

Definition at line 21 of file vtkSMPropertyModificationUndoElement.h.

Member Typedef Documentation

◆ Superclass

typedef vtkSMUndoElement vtkSMPropertyModificationUndoElement::Superclass

Definition at line 25 of file vtkSMPropertyModificationUndoElement.h.

Constructor & Destructor Documentation

◆ vtkSMPropertyModificationUndoElement()

vtkSMPropertyModificationUndoElement::vtkSMPropertyModificationUndoElement ( )

protected

◆ ~vtkSMPropertyModificationUndoElement()

vtkSMPropertyModificationUndoElement::~vtkSMPropertyModificationUndoElement ( )

overrideprotected

Member Function Documentation

◆ New()

static vtkSMPropertyModificationUndoElement* vtkSMPropertyModificationUndoElement::New ( )

static

◆ GetClassName()

virtual const char* vtkSMPropertyModificationUndoElement::GetClassName ( )

virtual

Reimplemented from vtkSMUndoElement.

◆ IsTypeOf()

static int vtkSMPropertyModificationUndoElement::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkSMPropertyModificationUndoElement::IsA ( const char * type )

virtual

Reimplemented from vtkSMUndoElement.

◆ SafeDownCast()

static vtkSMPropertyModificationUndoElement* vtkSMPropertyModificationUndoElement::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkSMPropertyModificationUndoElement::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkObject.

◆ Undo()

int vtkSMPropertyModificationUndoElement::Undo ( )

overridevirtual

Undo the operation encapsulated by this element.

Implements vtkUndoElement.

◆ Redo()

int vtkSMPropertyModificationUndoElement::Redo ( )

overridevirtual

Redo the operation encaspsulated by this element.

Implements vtkUndoElement.

◆ ModifiedProperty()

void vtkSMPropertyModificationUndoElement::ModifiedProperty	(	vtkSMProxy *	proxy,
		const char *	propertyname
	)

Set the property/proxy that was modified.

◆ Merge()

bool vtkSMPropertyModificationUndoElement::Merge ( vtkUndoElement * vtkNotUsednew_element )

overridevirtual

Called on the older element in the UndoSet to merge with the element being added if both the elements are mergeable.

vtkSMPropertyModificationUndoElement is mergeable with vtkSMPropertyModificationUndoElement alone if both represent change to the same property. Returns if the merge was successful.

Reimplemented from vtkUndoElement.

◆ RevertToState()

int vtkSMPropertyModificationUndoElement::RevertToState ( )

protected

◆ SetPropertyName()

virtual void vtkSMPropertyModificationUndoElement::SetPropertyName ( const char * )

protectedvirtual

Member Data Documentation

◆ ProxyGlobalID

vtkTypeUInt32 vtkSMPropertyModificationUndoElement::ProxyGlobalID

protected

Definition at line 59 of file vtkSMPropertyModificationUndoElement.h.

◆ PropertyName

char* vtkSMPropertyModificationUndoElement::PropertyName

protected

Definition at line 62 of file vtkSMPropertyModificationUndoElement.h.

◆ PropertyState

vtkSMMessage* vtkSMPropertyModificationUndoElement::PropertyState

protected

Definition at line 63 of file vtkSMPropertyModificationUndoElement.h.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Remoting/ServerManager/vtkSMPropertyModificationUndoElement.h
