is a factory for creating a reader proxy based on the filename/extension. More...

#include <vtkSMReaderFactory.h>

Inheritance diagram for vtkSMReaderFactory:

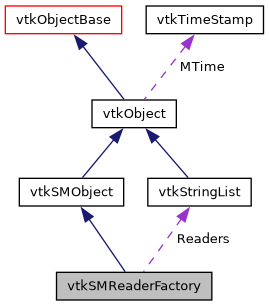

Collaboration diagram for vtkSMReaderFactory:

[legend]

Public Types
typedef vtkSMObject	Superclass

Public Types inherited from vtkSMObject
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

void	Initialize ()
	Cleanup all registered prototypes. More...

void	RegisterPrototype (const char xmlgroup, const char xmlname)
	Register a prototype. More...

bool	CanReadFile (const char filename, vtkSMSession session)
	Returns true if a reader can be determined that can read the file. More...

vtkStringList *	GetPossibleReaders (const char filename, vtkSMSession session)
	Get the list of readers that can possibly read the file. More...

vtkStringList *	GetReaders (vtkSMSession *session)
	Returns a list of 3-tuples where the 1st string is the group, the 2nd string is the reader name and the 3rd string is the reader description This returns all the possible readers with a given connection id. More...

vtkStringList *	GetReaders (const char filename, vtkSMSession session)
	Returls list of readers that can read the file using its extension and connection id. More...

virtual const char *	GetSupportedFileTypes (vtkSMSession *session)
	Returns a formatted string with all supported file types. More...

virtual std::vector< FileTypeDetailed >	GetSupportedFileTypesDetailed (vtkSMSession *session)
	Returns the list of supported file types with details on the corresponding readers and its supported patterns. More...

unsigned int	GetNumberOfRegisteredPrototypes ()
	Returns the number of registered prototypes. More...

virtual void	UpdateAvailableReaders ()
	Every time a new proxy definition is added we check to see if it is a reader and then we add it to the list of available readers. More...


virtual char *	GetReaderName ()
	Returns the xml-name for the reader that can read the file queried by the most recent CanReadFile() call. More...


virtual char *	GetReaderGroup ()
	Returns the xml-group for the reader that can read the file queried by the most recent CanReadFile() call. More...


void	AddGroup (const char *groupName)
	Add/remove a group name to look for readers in. More...

void	RemoveGroup (const char *groupName)
	Add/remove a group name to look for readers in. More...

void	GetGroups (vtkStringList *groups)
	Add/remove a group name to look for readers in. More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkSMReaderFactory *	New ()

static int	IsTypeOf (const char *type)

static vtkSMReaderFactory *	SafeDownCast (vtkObject *o)

static bool	TestFileReadability (const char filename, vtkSMSession session)
	Helper method to test is a file is readable on the server side. More...

static void	AddReaderToWhitelist (const char readerxmlgroup, const char readerxmlname)
	This function is for ParaView based applications that only wish to expose a subset of the readers. More...


static bool	CanReadFile (const char filename, vtkSMProxy reader)
	Helper method to check if the reader can read the given file. More...

static bool	CanReadFile (const char filename, const char readerxmlgroup, const char readerxmlname, vtkSMSession session)
	Helper method to check if the reader can read the given file. More...

Static Public Member Functions inherited from vtkSMObject
static vtkSMObject *	New ()

static int	IsTypeOf (const char *type)

static vtkSMObject *	SafeDownCast (vtkObject *o)

static std::string	CreatePrettyLabel (const std::string &name)
	Return a well-formated label using provided name by adding spaces between lower cases and upper cases: More...

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Static Public Attributes
static const std::string	SUPPORTED_TYPES_DESCRIPTION
	Description of the file type used for all supported types. More...

static const std::string	ALL_FILES_DESCRIPTION
	Description of the file type used for all files. More...

Protected Member Functions
	vtkSMReaderFactory ()

	~vtkSMReaderFactory () override

void	RegisterPrototype (const char xmlgroup, const char xmlname, const char extensions, const char description)

virtual void	SetReaderName (const char *)

virtual void	SetReaderGroup (const char *)

Protected Member Functions inherited from vtkSMObject
	vtkSMObject ()

	~vtkSMObject () override

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Static Protected Member Functions
static bool	GetFilenameIsDirectory (const char fname, vtkSMSession session)
	Returns true if the fname refers to a directory or a link to a directory. More...

Protected Attributes
char *	ReaderName

char *	ReaderGroup

vtkStringList *	Readers

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Detailed Description

is a factory for creating a reader proxy based on the filename/extension.

vtkSMReaderFactory is a factory for creating a reader that reads a particular file. The reader factory needs to be configured to register the reader prototypes supported by the application. This is done automatically when the reader's proxy definition is registered AND if it has the extensions specified in the Hints section of the XML proxy definition. It is done with the following format:

* <ReaderFactory extensions="[list of expected extensions]"
*     file_description="[description of the file]" />
*

Once the factory has been configured, the API to create readers, get available readers etc. can be used.

Definition at line 45 of file vtkSMReaderFactory.h.

Member Typedef Documentation

◆ Superclass

typedef vtkSMObject vtkSMReaderFactory::Superclass

Definition at line 49 of file vtkSMReaderFactory.h.

Constructor & Destructor Documentation

◆ vtkSMReaderFactory()

vtkSMReaderFactory::vtkSMReaderFactory ( )

protected

◆ ~vtkSMReaderFactory()

vtkSMReaderFactory::~vtkSMReaderFactory ( )

overrideprotected

Member Function Documentation

◆ New()

static vtkSMReaderFactory* vtkSMReaderFactory::New ( )

static

◆ GetClassName()

virtual const char* vtkSMReaderFactory::GetClassName ( )

virtual

Reimplemented from vtkSMObject.

◆ IsTypeOf()

static int vtkSMReaderFactory::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkSMReaderFactory::IsA ( const char * type )

virtual

Reimplemented from vtkSMObject.

◆ SafeDownCast()

static vtkSMReaderFactory* vtkSMReaderFactory::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkSMReaderFactory::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkSMObject.

◆ Initialize()

void vtkSMReaderFactory::Initialize ( )

Cleanup all registered prototypes.

◆ RegisterPrototype() [1/2]

void vtkSMReaderFactory::RegisterPrototype	(	const char *	xmlgroup,
		const char *	xmlname
	)

Register a prototype.

If it is already registered this becomes a no-op.

◆ CanReadFile() [1/3]

bool vtkSMReaderFactory::CanReadFile	(	const char *	filename,
		vtkSMSession *	session
	)

Returns true if a reader can be determined that can read the file.

When this returns true, one can use GetReaderGroup() and GetReaderName() to obtain the xmlgroup and xmlname for the reader that can read the file. When this returns false, use GetPossibleReaders() to get the list of readers that can possibly read the file.

◆ GetReaderName()

virtual char* vtkSMReaderFactory::GetReaderName ( )

virtual

Returns the xml-name for the reader that can read the file queried by the most recent CanReadFile() call.

This is valid only if CanReadFile() returned true.

◆ GetReaderGroup()

virtual char* vtkSMReaderFactory::GetReaderGroup ( )

virtual

Returns the xml-group for the reader that can read the file queried by the most recent CanReadFile() call.

This is valid only if CanReadFile() returned true.

◆ GetPossibleReaders()

vtkStringList* vtkSMReaderFactory::GetPossibleReaders	(	const char *	filename,
		vtkSMSession *	session
	)

Get the list of readers that can possibly read the file.

This is used when the factory cannot determine which reader to use for reading the file. The user can then choose from the provided options. Returns a list of 3-tuples where the 1st string is the group, the 2nd string is the reader name and the 3rd string is the reader description Note that the extension test is skipped in this case.

◆ GetReaders() [1/2]

vtkStringList* vtkSMReaderFactory::GetReaders ( vtkSMSession * session )

Returns a list of 3-tuples where the 1st string is the group, the 2nd string is the reader name and the 3rd string is the reader description This returns all the possible readers with a given connection id.

◆ GetReaders() [2/2]

vtkStringList* vtkSMReaderFactory::GetReaders	(	const char *	filename,
		vtkSMSession *	session
	)

Returls list of readers that can read the file using its extension and connection id.

Returns a list of 3-tuples where the 1st string is the group, the 2nd string is the reader name and the 3rd string is the reader description

◆ TestFileReadability()

static bool vtkSMReaderFactory::TestFileReadability	(	const char *	filename,
		vtkSMSession *	session
	)

static

Helper method to test is a file is readable on the server side.

This has nothing to do with the whether the file is readable by a reader, just test the file permissions etc. Internally uses the ServerFileListing proxy.

◆ GetSupportedFileTypes()

virtual const char* vtkSMReaderFactory::GetSupportedFileTypes ( vtkSMSession * session )

virtual

Returns a formatted string with all supported file types.

cid is not used currently. An example returned string would look like:

* "Supported Files (*.vtk *.pvd);;PVD Files (*.pvd);;VTK Files (*.vtk)"
*

◆ GetSupportedFileTypesDetailed()

virtual std::vector<FileTypeDetailed> vtkSMReaderFactory::GetSupportedFileTypesDetailed ( vtkSMSession * session )

virtual

Returns the list of supported file types with details on the corresponding readers and its supported patterns.

The two first values of this vector are Supported Type and All Files to simplify its use with the pqFileDialog. They do not have a name or group fields.

◆ CanReadFile() [2/3]

static bool vtkSMReaderFactory::CanReadFile	(	const char *	filename,
		vtkSMProxy *	reader
	)

static

Helper method to check if the reader can read the given file.

This is a generic method that simply tries to call CanReadFile() on the reader. If the reader des not support CanReadFile() then we assume the reader can read the file, and return true.

◆ CanReadFile() [3/3]

static bool vtkSMReaderFactory::CanReadFile	(	const char *	filename,
		const char *	readerxmlgroup,
		const char *	readerxmlname,
		vtkSMSession *	session
	)

static

Helper method to check if the reader can read the given file.

This is a generic method that simply tries to call CanReadFile() on the reader. If the reader des not support CanReadFile() then we assume the reader can read the file, and return true.

◆ GetNumberOfRegisteredPrototypes()

unsigned int vtkSMReaderFactory::GetNumberOfRegisteredPrototypes ( )

Returns the number of registered prototypes.

◆ UpdateAvailableReaders()

virtual void vtkSMReaderFactory::UpdateAvailableReaders ( )

virtual

Every time a new proxy definition is added we check to see if it is a reader and then we add it to the list of available readers.

◆ AddGroup()

void vtkSMReaderFactory::AddGroup ( const char * groupName )

Add/remove a group name to look for readers in.

By default "source" is included.

◆ RemoveGroup()

void vtkSMReaderFactory::RemoveGroup ( const char * groupName )

Add/remove a group name to look for readers in.

By default "source" is included.

◆ GetGroups()

void vtkSMReaderFactory::GetGroups ( vtkStringList * groups )

Add/remove a group name to look for readers in.

By default "source" is included.

◆ AddReaderToWhitelist()

static void vtkSMReaderFactory::AddReaderToWhitelist	(	const char *	readerxmlgroup,
		const char *	readerxmlname
	)

static

This function is for ParaView based applications that only wish to expose a subset of the readers.

If this function is never called, the reader factory will expose all the readers as it has in the past. However, if any readers are specified by passing their group name and reader name to this function, then only those readers will be available in any reader factories created by the application. This is intended to be called at the beginning of the application's execution before any sessions are created.

◆ RegisterPrototype() [2/2]

void vtkSMReaderFactory::RegisterPrototype	(	const char *	xmlgroup,
		const char *	xmlname,
		const char *	extensions,
		const char *	description
	)

protected

◆ GetFilenameIsDirectory()

static bool vtkSMReaderFactory::GetFilenameIsDirectory	(	const char *	fname,
		vtkSMSession *	session
	)

staticprotected

Returns true if the fname refers to a directory or a link to a directory.

◆ SetReaderName()

virtual void vtkSMReaderFactory::SetReaderName ( const char * )

protectedvirtual

◆ SetReaderGroup()

virtual void vtkSMReaderFactory::SetReaderGroup ( const char * )

protectedvirtual

Member Data Documentation

◆ SUPPORTED_TYPES_DESCRIPTION

const std::string vtkSMReaderFactory::SUPPORTED_TYPES_DESCRIPTION

static

Description of the file type used for all supported types.

Definition at line 187 of file vtkSMReaderFactory.h.

◆ ALL_FILES_DESCRIPTION

const std::string vtkSMReaderFactory::ALL_FILES_DESCRIPTION

static

Description of the file type used for all files.

Definition at line 192 of file vtkSMReaderFactory.h.

◆ ReaderName

char* vtkSMReaderFactory::ReaderName

protected

Definition at line 208 of file vtkSMReaderFactory.h.

◆ ReaderGroup

char* vtkSMReaderFactory::ReaderGroup

protected

Definition at line 211 of file vtkSMReaderFactory.h.

◆ Readers

vtkStringList* vtkSMReaderFactory::Readers

protected

Definition at line 212 of file vtkSMReaderFactory.h.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Remoting/ServerManager/vtkSMReaderFactory.h

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ Superclass

Constructor & Destructor Documentation

◆ vtkSMReaderFactory()

◆ ~vtkSMReaderFactory()

Member Function Documentation

◆ New()

◆ GetClassName()

◆ IsTypeOf()

◆ IsA()

◆ SafeDownCast()

◆ PrintSelf()

◆ Initialize()

◆ RegisterPrototype() [1/2]

◆ CanReadFile() [1/3]

◆ GetReaderName()

◆ GetReaderGroup()

◆ GetPossibleReaders()

◆ GetReaders() [1/2]

◆ GetReaders() [2/2]

◆ TestFileReadability()

◆ GetSupportedFileTypes()

◆ GetSupportedFileTypesDetailed()

◆ CanReadFile() [2/3]

◆ CanReadFile() [3/3]

◆ GetNumberOfRegisteredPrototypes()

◆ UpdateAvailableReaders()

◆ AddGroup()

◆ RemoveGroup()

◆ GetGroups()

◆ AddReaderToWhitelist()

◆ RegisterPrototype() [2/2]

◆ GetFilenameIsDirectory()

◆ SetReaderName()

◆ SetReaderGroup()

Member Data Documentation

◆ SUPPORTED_TYPES_DESCRIPTION

◆ ALL_FILES_DESCRIPTION

◆ ReaderName

◆ ReaderGroup

◆ Readers
