pqDoubleSliderWidget Class Reference

A widget with a tied slider and line edit for editing a double property. More...

#include <pqDoubleSliderWidget.h>

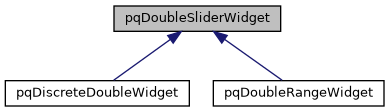

Inheritance diagram for pqDoubleSliderWidget:

Public Slots
void	setValue (double val)
	set the value More...
void	setNotation (pqDoubleLineEdit::RealNumberNotation _notation)
	Set the notation used to display the number. More...
void	setPrecision (int precision)
	Set the precision used to display the number. More...
void	setUseGlobalPrecisionAndNotation (bool value)
	Set whether to use global precision and notation values. More...

Signals
void	valueChanged (double)
	signal the value changed More...
void	valueEdited (double)
	signal the value was edited this means the user is done changing text or the user is done moving the slider. More...

Public Member Functions
	pqDoubleSliderWidget (QWidget *parent=nullptr)
	~pqDoubleSliderWidget () override
double	value () const
	get the value More...
pqDoubleLineEdit::RealNumberNotation	notation () const
	Return the notation used to display the number. More...
int	precision () const
	Return the precision used to display the number. More...
bool	useGlobalPrecisionAndNotation () const
	useGlobalPrecisionAndNotation indicates if the pqDoubleLineEdit used by this widget should use global precision and notation values instead of the parameters specified on this instance. More...

Protected Member Functions
virtual int	valueToSliderPos (double val)
virtual double	sliderPosToValue (int pos)
void	setValidator (QDoubleValidator *validator)
const QDoubleValidator *	validator () const
void	setSliderRange (int min, int max)
void	updateSlider ()

Properties
double	value
pqDoubleLineEdit::RealNumberNotation	notation
int	precision
bool	useGlobalPrecisionAndNotation

Detailed Description

A widget with a tied slider and line edit for editing a double property.

Definition at line 16 of file pqDoubleSliderWidget.h.

Constructor & Destructor Documentation

pqDoubleSliderWidget()

pqDoubleSliderWidget::pqDoubleSliderWidget

(

QWidget *

parent = nullptr

)

~pqDoubleSliderWidget()

pqDoubleSliderWidget::~pqDoubleSliderWidget ( )

override

Member Function Documentation

value()

double pqDoubleSliderWidget::value

(

)

const

get the value

notation()

pqDoubleLineEdit::RealNumberNotation pqDoubleSliderWidget::notation

(

)

const

Return the notation used to display the number.

See also

setNotation()

precision()

int pqDoubleSliderWidget::precision

(

)

const

Return the precision used to display the number.

See also

setPrecision()

useGlobalPrecisionAndNotation()

bool pqDoubleSliderWidget::useGlobalPrecisionAndNotation

(

)

const

useGlobalPrecisionAndNotation indicates if the pqDoubleLineEdit used by this widget should use global precision and notation values instead of the parameters specified on this instance.

valueChanged

void pqDoubleSliderWidget::valueChanged ( double  )

signal

signal the value changed

valueEdited

void pqDoubleSliderWidget::valueEdited ( double  )

signal

signal the value was edited this means the user is done changing text or the user is done moving the slider.

It implies value was changed and editing has finished.

setValue

void pqDoubleSliderWidget::setValue ( double  val )

slot

set the value

setNotation

void pqDoubleSliderWidget::setNotation ( pqDoubleLineEdit::RealNumberNotation  _notation )

slot

Set the notation used to display the number.

See also

notation()

setPrecision

void pqDoubleSliderWidget::setPrecision ( int  precision )

slot

Set the precision used to display the number.

See also

precision()

setUseGlobalPrecisionAndNotation

void pqDoubleSliderWidget::setUseGlobalPrecisionAndNotation ( bool  value )

slot

Set whether to use global precision and notation values.

See also

useGlobalPrecisionAndNotation()

valueToSliderPos()

virtual int pqDoubleSliderWidget::valueToSliderPos ( double  val )

protectedvirtual

Reimplemented in pqDoubleRangeWidget, and pqDiscreteDoubleWidget.

sliderPosToValue()

virtual double pqDoubleSliderWidget::sliderPosToValue ( int  pos )

protectedvirtual

Reimplemented in pqDoubleRangeWidget, and pqDiscreteDoubleWidget.

setValidator()

void pqDoubleSliderWidget::setValidator ( QDoubleValidator *  validator )

protected

validator()

const QDoubleValidator* pqDoubleSliderWidget::validator ( ) const

protected

setSliderRange()

void pqDoubleSliderWidget::setSliderRange ( int  min, int  max  )

protected

updateSlider()

void pqDoubleSliderWidget::updateSlider ( )

protected

Property Documentation

value

double pqDoubleSliderWidget::value

readwrite

Definition at line 19 of file pqDoubleSliderWidget.h.

notation

pqDoubleLineEdit::RealNumberNotation pqDoubleSliderWidget::notation

readwrite

Definition at line 20 of file pqDoubleSliderWidget.h.

precision

int pqDoubleSliderWidget::precision

readwrite

Definition at line 21 of file pqDoubleSliderWidget.h.

useGlobalPrecisionAndNotation

bool pqDoubleSliderWidget::useGlobalPrecisionAndNotation

readwrite

Definition at line 23 of file pqDoubleSliderWidget.h.

---

The documentation for this class was generated from the following file:

• /builds/gitlab-kitware-sciviz-ci/Qt/Widgets/pqDoubleSliderWidget.h
