command line options manager More...

#include <vtkCLIOptions.h>

Inheritance diagram for vtkCLIOptions:

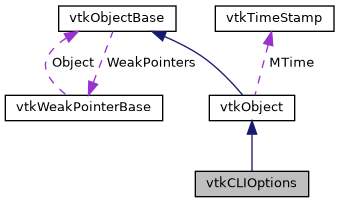

Collaboration diagram for vtkCLIOptions:

[legend]

Public Types
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

CLI::App *	GetCLI11App () const
	Returns the `CLI::App` reference that can be used to populate command line options. More...

const char *	GetHelp () const
	Returns the help string. More...

bool	Parse (int &argc, char **&argv)
	Parse command line arguments. More...

const std::string &	GetLastErrorMessage () const
	Returns error message from the most recent call to `Parse`, if any. More...

virtual bool	GetHelpRequested ()
	Returns true of help was requested in the most recent call to `Parse`. More...

std::string	GetUsage () const
	Returns usage string. More...


void	SetName (const char *name)
	Get/Set the application name to use. More...

const char *	GetName () const
	Get/Set the application name to use. More...


void	SetDescription (const char *desc)
	Get/Set the application description to use. More...

const char *	GetDescription () const
	Get/Set the application description to use. More...


void	SetAllowExtras (bool val)
	Indicate whether extra arguments should be allowed/ignored. More...

bool	GetAllowExtras () const
	Indicate whether extra arguments should be allowed/ignored. More...


void	SetStopOnUnrecognizedArgument (bool val)
	Indicate whether the parsing should stop as soon as the first unrecognized option is detected. More...

bool	GetStopOnUnrecognizedArgument () const
	Indicate whether the parsing should stop as soon as the first unrecognized option is detected. More...


virtual void	SetGenerateWarnings (bool)
	When set to true (default), warnings messages are generated with incorrectly named short arguments are automatically converted to long arguments. More...

virtual bool	GetGenerateWarnings ()
	When set to true (default), warnings messages are generated with incorrectly named short arguments are automatically converted to long arguments. More...

virtual void	GenerateWarningsOn ()
	When set to true (default), warnings messages are generated with incorrectly named short arguments are automatically converted to long arguments. More...

virtual void	GenerateWarningsOff ()
	When set to true (default), warnings messages are generated with incorrectly named short arguments are automatically converted to long arguments. More...


virtual void	SetHandleLegacyArgumentFormats (bool)
	When set to true (default), attempts to convert legacy forms of argument specifications in `Parse`. More...

virtual bool	GetHandleLegacyArgumentFormats ()
	When set to true (default), attempts to convert legacy forms of argument specifications in `Parse`. More...

virtual void	HandleLegacyArgumentFormatsOn ()
	When set to true (default), attempts to convert legacy forms of argument specifications in `Parse`. More...

virtual void	HandleLegacyArgumentFormatsOff ()
	When set to true (default), attempts to convert legacy forms of argument specifications in `Parse`. More...


const std::vector< std::string > &	GetExtraArguments () const
	Returns unparsed / extra arguments left over from the most reset `Parse` call. More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkCLIOptions *	New ()

static int	IsTypeOf (const char *type)

static vtkCLIOptions *	SafeDownCast (vtkObject *o)

static vtkCLIOptions *	New (const std::shared_ptr< CLI::App > &app)
	Use this overload of `New` to use an existing CLI::App instance. More...

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkCLIOptions ()

	~vtkCLIOptions () override

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Additional Inherited Members
Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Detailed Description

command line options manager

vtkCLIOptions handles command line arguments processing in ParaView. To use, create a vtkCLIOptions instance, populate it with available arguments and then call Parse. Various modules in ParaView offer ways of populating vtkCLIOptions instance with supported command line arguments. For example:

vtkNew<vtkCLIOptions> options;
vtkProcessModuleConfiguration::GetInstance()->PopulateOptions(options);
vtkRemotingCoreConfiguration::GetInstance()->PopulateOptions(options);

Applications can add custom configuration classes that expose new command line options and configuration parameters.

ParaView uses CLI11 for the processing on command line arguments. The CLI11 App can be accessed using GetCLI11App. vtkCLIOptions automatically creates a CLI::App on instantiation. One can also pass it an existing app using vtkCLIOptions::New(app).

Definition at line 46 of file vtkCLIOptions.h.

Member Typedef Documentation

◆ Superclass

typedef vtkObject vtkCLIOptions::Superclass

Definition at line 50 of file vtkCLIOptions.h.

Constructor & Destructor Documentation

◆ vtkCLIOptions()

vtkCLIOptions::vtkCLIOptions ( )

protected

◆ ~vtkCLIOptions()

vtkCLIOptions::~vtkCLIOptions ( )

overrideprotected

Member Function Documentation

◆ New() [1/2]

static vtkCLIOptions* vtkCLIOptions::New ( )

static

◆ GetClassName()

virtual const char* vtkCLIOptions::GetClassName ( )

virtual

◆ IsTypeOf()

static int vtkCLIOptions::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkCLIOptions::IsA ( const char * type )

virtual

Reimplemented from vtkObjectBase.

◆ SafeDownCast()

static vtkCLIOptions* vtkCLIOptions::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkCLIOptions::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkObject.

◆ New() [2/2]

static vtkCLIOptions* vtkCLIOptions::New ( const std::shared_ptr< CLI::App > & app )

static

Use this overload of New to use an existing CLI::App instance.

The app will not be initialized i.e. the formatter, AllowExtras and StopOnUnrecognizedArgument state etc. will be left unchanged.

◆ GetCLI11App()

CLI::App* vtkCLIOptions::GetCLI11App ( ) const

Returns the CLI::App reference that can be used to populate command line options.

◆ GetHelp()

const char* vtkCLIOptions::GetHelp ( ) const

Returns the help string.

◆ SetName()

void vtkCLIOptions::SetName ( const char * name )

Get/Set the application name to use.

If none specified, one is set using the arguments passed to Parse.

◆ GetName()

const char* vtkCLIOptions::GetName ( ) const

Get/Set the application name to use.

If none specified, one is set using the arguments passed to Parse.

◆ SetDescription()

void vtkCLIOptions::SetDescription ( const char * desc )

Get/Set the application description to use.

◆ GetDescription()

const char* vtkCLIOptions::GetDescription ( ) const

Get/Set the application description to use.

◆ SetAllowExtras()

void vtkCLIOptions::SetAllowExtras ( bool val )

Indicate whether extra arguments should be allowed/ignored.

Unparsed arguments can be obtained using GetExtraArguments.

Forwards to CLI::App::allow_extras.

By default, this is set to true.

◆ GetAllowExtras()

bool vtkCLIOptions::GetAllowExtras ( ) const

Indicate whether extra arguments should be allowed/ignored.

Unparsed arguments can be obtained using GetExtraArguments.

Forwards to CLI::App::allow_extras.

By default, this is set to true.

◆ SetStopOnUnrecognizedArgument()

void vtkCLIOptions::SetStopOnUnrecognizedArgument ( bool val )

Indicate whether the parsing should stop as soon as the first unrecognized option is detected.

Setting this to false implies to ignore the "AllowExtras" status.

Forwards to CLI::App::prefix_command by inverting the provided boolean. Note there seem to be an issue in the documentation for CLI::App::prefix_command See https://github.com/CLIUtils/CLI11/issues/1052 for more information.

By default, this is set to false.

◆ GetStopOnUnrecognizedArgument()

bool vtkCLIOptions::GetStopOnUnrecognizedArgument ( ) const

Indicate whether the parsing should stop as soon as the first unrecognized option is detected.

Setting this to false implies to ignore the "AllowExtras" status.

Forwards to CLI::App::prefix_command by inverting the provided boolean. Note there seem to be an issue in the documentation for CLI::App::prefix_command See https://github.com/CLIUtils/CLI11/issues/1052 for more information.

By default, this is set to false.

◆ SetGenerateWarnings()

virtual void vtkCLIOptions::SetGenerateWarnings ( bool )

virtual

When set to true (default), warnings messages are generated with incorrectly named short arguments are automatically converted to long arguments.

See also: SetConvertInvalidShortNamesToLong

◆ GetGenerateWarnings()

virtual bool vtkCLIOptions::GetGenerateWarnings ( )

virtual

When set to true (default), warnings messages are generated with incorrectly named short arguments are automatically converted to long arguments.

See also: SetConvertInvalidShortNamesToLong

◆ GenerateWarningsOn()

virtual void vtkCLIOptions::GenerateWarningsOn ( )

virtual

When set to true (default), warnings messages are generated with incorrectly named short arguments are automatically converted to long arguments.

See also: SetConvertInvalidShortNamesToLong

◆ GenerateWarningsOff()

virtual void vtkCLIOptions::GenerateWarningsOff ( )

virtual

When set to true (default), warnings messages are generated with incorrectly named short arguments are automatically converted to long arguments.

See also: SetConvertInvalidShortNamesToLong

◆ SetHandleLegacyArgumentFormats()

virtual void vtkCLIOptions::SetHandleLegacyArgumentFormats ( bool )

virtual

When set to true (default), attempts to convert legacy forms of argument specifications in Parse.

Currently, the following cases are supported:

Invalid short flags/options for the from -name are converted to --name.
Equals (=) used as separator between short option name and its value is replaced by a space ().

If GenerateWarnings is true, a warning is raised when any option is convert thusly.

Note, these conversions are only performed till the first positional separator, --, is detected. All arguments after the first positional separator are left unchanged.

◆ GetHandleLegacyArgumentFormats()

virtual bool vtkCLIOptions::GetHandleLegacyArgumentFormats ( )

virtual

When set to true (default), attempts to convert legacy forms of argument specifications in Parse.

Currently, the following cases are supported:

Invalid short flags/options for the from -name are converted to --name.
Equals (=) used as separator between short option name and its value is replaced by a space ().

If GenerateWarnings is true, a warning is raised when any option is convert thusly.

Note, these conversions are only performed till the first positional separator, --, is detected. All arguments after the first positional separator are left unchanged.

◆ HandleLegacyArgumentFormatsOn()

virtual void vtkCLIOptions::HandleLegacyArgumentFormatsOn ( )

virtual

When set to true (default), attempts to convert legacy forms of argument specifications in Parse.

Currently, the following cases are supported:

Invalid short flags/options for the from -name are converted to --name.
Equals (=) used as separator between short option name and its value is replaced by a space ().

If GenerateWarnings is true, a warning is raised when any option is convert thusly.

Note, these conversions are only performed till the first positional separator, --, is detected. All arguments after the first positional separator are left unchanged.

◆ HandleLegacyArgumentFormatsOff()

virtual void vtkCLIOptions::HandleLegacyArgumentFormatsOff ( )

virtual

When set to true (default), attempts to convert legacy forms of argument specifications in Parse.

Currently, the following cases are supported:

Invalid short flags/options for the from -name are converted to --name.
Equals (=) used as separator between short option name and its value is replaced by a space ().

If GenerateWarnings is true, a warning is raised when any option is convert thusly.

Note, these conversions are only performed till the first positional separator, --, is detected. All arguments after the first positional separator are left unchanged.

◆ Parse()

bool vtkCLIOptions::Parse	(	int &	argc,
		char **&	argv
	)

Parse command line arguments.

Returns true on success else false.

If HandleLegacyArgumentFormats is true, -option are converted to --option until the first positional separator is encountered. Likewise, -l=foo is split as -l foo.

If GenerateWarnings is true, a warning message is generated for each such converted option.

◆ GetExtraArguments()

const std::vector<std::string>& vtkCLIOptions::GetExtraArguments ( ) const

inline

Returns unparsed / extra arguments left over from the most reset Parse call.

Definition at line 167 of file vtkCLIOptions.h.

◆ GetLastErrorMessage()

const std::string& vtkCLIOptions::GetLastErrorMessage ( ) const

inline

Returns error message from the most recent call to Parse, if any.

Definition at line 173 of file vtkCLIOptions.h.

◆ GetHelpRequested()

virtual bool vtkCLIOptions::GetHelpRequested ( )

virtual

Returns true of help was requested in the most recent call to Parse.

◆ GetUsage()

std::string vtkCLIOptions::GetUsage ( ) const

Returns usage string.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/VTKExtensions/Core/vtkCLIOptions.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Superclass

Constructor & Destructor Documentation

◆ vtkCLIOptions()

◆ ~vtkCLIOptions()

Member Function Documentation

◆ New() [1/2]

◆ GetClassName()

◆ IsTypeOf()

◆ IsA()

◆ SafeDownCast()

◆ PrintSelf()

◆ New() [2/2]

◆ GetCLI11App()

◆ GetHelp()

◆ SetName()

◆ GetName()

◆ SetDescription()

◆ GetDescription()

◆ SetAllowExtras()

◆ GetAllowExtras()

◆ SetStopOnUnrecognizedArgument()

◆ GetStopOnUnrecognizedArgument()

◆ SetGenerateWarnings()

◆ GetGenerateWarnings()

◆ GenerateWarningsOn()

◆ GenerateWarningsOff()

◆ SetHandleLegacyArgumentFormats()

◆ GetHandleLegacyArgumentFormats()

◆ HandleLegacyArgumentFormatsOn()

◆ HandleLegacyArgumentFormatsOff()

◆ Parse()

◆ GetExtraArguments()

◆ GetLastErrorMessage()

◆ GetHelpRequested()

◆ GetUsage()
