vtkProcessModuleConfiguration Class Reference

runtime configuration for vtkProcessModule More...

#include <vtkProcessModuleConfiguration.h>

Inheritance diagram for vtkProcessModuleConfiguration:

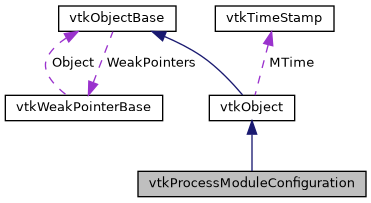

Collaboration diagram for vtkProcessModuleConfiguration:

Public Types
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent) override
virtual bool	GetForceMPIInit ()
	Get whether to call MPI_Init() on this process irrespective of whether MPI is needed on this process. More...
virtual bool	GetForceNoMPIInit ()
	Get whether to not call MPI_Init() on this process irrespective of whether MPI is needed on this process. More...
virtual bool	GetUseMPISSend ()
	Flag indicating whether to use synchronous send (SSend) for MPI communication. More...
virtual bool	GetSymmetricMPIMode ()
	Get whether to use symmetric MPI mode. More...
virtual void	SetSymmetricMPIMode (bool)
	Ideally, this method should not be public. More...
virtual std::string	GetVirtualEnvironmentPath ()
	Get the virtual environment path to set up for Python. More...
virtual vtkLogger::Verbosity	GetLogStdErrVerbosity ()
	Get the verbosity level to use for reporting log messages on stderr. More...
std::string	GetCSLogFileName () const
	Get the filename to use to generate client-server-stream logs, if any. More...
virtual bool	GetEnableStackTrace ()
	Get whether to generate a stack trace after a crash. More...
const std::vector< std::pair< std::string, vtkLogger::Verbosity > > &	GetLogFiles () const
	Returns a vector of pairs for log files requested. More...
bool	PopulateOptions (vtkCLIOptions *options, vtkProcessModule::ProcessTypes processType)
	Populate command line options. More...
Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)
virtual void	DebugOn ()
virtual void	DebugOff ()
bool	GetDebug ()
void	SetDebug (bool debugFlag)
virtual void	Modified ()
virtual vtkMTimeType	GetMTime ()
void	RemoveObserver (unsigned long tag)
void	RemoveObservers (unsigned long event)
void	RemoveObservers (const char *event)
void	RemoveAllObservers ()
int	HasObserver (unsigned long event)
int	HasObserver (const char *event)
int	InvokeEvent (unsigned long event)
int	InvokeEvent (const char *event)
unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)
unsigned long	AddObserver (const char *event, vtkCommand *, float priority=0.0f)
vtkCommand *	GetCommand (unsigned long tag)
void	RemoveObserver (vtkCommand *)
void	RemoveObservers (unsigned long event, vtkCommand *)
void	RemoveObservers (const char *event, vtkCommand *)
int	HasObserver (unsigned long event, vtkCommand *)
int	HasObserver (const char *event, vtkCommand *)
unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)
unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)
unsigned long	AddObserver (unsigned long event, U observer, bool(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)
int	InvokeEvent (unsigned long event, void *callData)
int	InvokeEvent (const char *event, void *callData)
unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)
unsigned long	AddObserver (const char *event, vtkCommand *, float priority=0.0f)
vtkCommand *	GetCommand (unsigned long tag)
void	RemoveObserver (vtkCommand *)
void	RemoveObservers (unsigned long event, vtkCommand *)
void	RemoveObservers (const char *event, vtkCommand *)
int	HasObserver (unsigned long event, vtkCommand *)
int	HasObserver (const char *event, vtkCommand *)
unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)
unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)
unsigned long	AddObserver (unsigned long event, U observer, bool(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)
int	InvokeEvent (unsigned long event, void *callData)
int	InvokeEvent (const char *event, void *callData)
Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const
virtual void	Delete ()
virtual void	FastDelete ()
void	Print (ostream &os)
virtual void	Register (vtkObjectBase *o)
virtual void	UnRegister (vtkObjectBase *o)
void	SetReferenceCount (int)
virtual void	PrintHeader (ostream &os, vtkIndent indent)
virtual void	PrintTrailer (ostream &os, vtkIndent indent)
int	GetReferenceCount ()
void	PrintRevisions (ostream &)
virtual void	PrintHeader (ostream &os, vtkIndent indent)
virtual void	PrintTrailer (ostream &os, vtkIndent indent)
int	GetReferenceCount ()
void	PrintRevisions (ostream &)

Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkProcessModuleConfiguration *	SafeDownCast (vtkObject *o)
static vtkProcessModuleConfiguration *	GetInstance ()
	Provides access to the singleton. More...
static std::string	GetRankAnnotatedFileName (const std::string &fname)
	A helper function to add a rank number to the filename, if needed. More...
Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()
static void	BreakOnError ()
static void	SetGlobalWarningDisplay (int val)
static void	GlobalWarningDisplayOn ()
static void	GlobalWarningDisplayOff ()
static int	GetGlobalWarningDisplay ()
static void	SetGlobalWarningDisplay (int val)
static void	GlobalWarningDisplayOn ()
static void	GlobalWarningDisplayOff ()
static int	GetGlobalWarningDisplay ()
Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)
static vtkObjectBase *	New ()
static vtkObjectBase *	New ()

Protected Member Functions
	vtkProcessModuleConfiguration ()
	~vtkProcessModuleConfiguration () override
Protected Member Functions inherited from vtkObject
	vtkObject ()
virtual	~vtkObject ()
void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE
void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE
void	InternalGrabFocus (vtkCommand *mouseEvents, vtkCommand *keypressEvents=NULL)
void	InternalReleaseFocus ()
void	InternalGrabFocus (vtkCommand *mouseEvents, vtkCommand *keypressEvents=NULL)
void	InternalReleaseFocus ()
Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()
virtual	~vtkObjectBase ()
virtual void	CollectRevisions (ostream &)
virtual void	ReportReferences (vtkGarbageCollector *)
	vtkObjectBase (const vtkObjectBase &)
void	operator= (const vtkObjectBase &)

Additional Inherited Members
Protected Attributes inherited from vtkObject
bool	Debug
vtkTimeStamp	MTime
vtkSubjectHelper *	SubjectHelper
Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount
vtkWeakPointerBase **	WeakPointers

Detailed Description

runtime configuration for vtkProcessModule

vtkProcessModuleConfiguration is a singleton that maintains runtime configuration options that affect how vtkProcessModule is initialized.

Definition at line 24 of file vtkProcessModuleConfiguration.h.

Member Typedef Documentation

Superclass

typedef vtkObject vtkProcessModuleConfiguration::Superclass

Definition at line 27 of file vtkProcessModuleConfiguration.h.

Constructor & Destructor Documentation

vtkProcessModuleConfiguration()

vtkProcessModuleConfiguration::vtkProcessModuleConfiguration ( )

protected

~vtkProcessModuleConfiguration()

vtkProcessModuleConfiguration::~vtkProcessModuleConfiguration ( )

overrideprotected

Member Function Documentation

GetClassName()

virtual const char* vtkProcessModuleConfiguration::GetClassName ( )

virtual

IsTypeOf()

static int vtkProcessModuleConfiguration::IsTypeOf ( const char *  type )

static

IsA()

virtual int vtkProcessModuleConfiguration::IsA ( const char *  type )

virtual

Reimplemented from vtkObjectBase.

SafeDownCast()

static vtkProcessModuleConfiguration* vtkProcessModuleConfiguration::SafeDownCast ( vtkObject *  o )

static

PrintSelf()

void vtkProcessModuleConfiguration::PrintSelf ( ostream &  os, vtkIndent  indent  )

overridevirtual

Reimplemented from vtkObject.

GetInstance()

static vtkProcessModuleConfiguration* vtkProcessModuleConfiguration::GetInstance ( )

static

Provides access to the singleton.

GetForceMPIInit()

virtual bool vtkProcessModuleConfiguration::GetForceMPIInit ( )

virtual

Get whether to call MPI_Init() on this process irrespective of whether MPI is needed on this process.

GetForceNoMPIInit()

virtual bool vtkProcessModuleConfiguration::GetForceNoMPIInit ( )

virtual

Get whether to not call MPI_Init() on this process irrespective of whether MPI is needed on this process.

GetUseMPISSend()

virtual bool vtkProcessModuleConfiguration::GetUseMPISSend ( )

virtual

Flag indicating whether to use synchronous send (SSend) for MPI communication.

GetSymmetricMPIMode()

virtual bool vtkProcessModuleConfiguration::GetSymmetricMPIMode ( )

virtual

Get whether to use symmetric MPI mode.

In this mode is only supported in "batch". In that case, all processes, including the satellites, execute the Python script locally.

SetSymmetricMPIMode()

virtual void vtkProcessModuleConfiguration::SetSymmetricMPIMode ( bool  )

virtual

Ideally, this method should not be public.

However, we are keeping it public to avoid changing to much code at this time.

GetVirtualEnvironmentPath()

virtual std::string vtkProcessModuleConfiguration::GetVirtualEnvironmentPath ( )

virtual

Get the virtual environment path to set up for Python.

GetLogStdErrVerbosity()

virtual vtkLogger::Verbosity vtkProcessModuleConfiguration::GetLogStdErrVerbosity ( )

virtual

Get the verbosity level to use for reporting log messages on stderr.

In other words, all messages at the chosen level and higher are posted to stderr. Default is vtkLogger::VERBOSITY_INVALID.

GetCSLogFileName()

std::string vtkProcessModuleConfiguration::GetCSLogFileName

(

)

const

Get the filename to use to generate client-server-stream logs, if any.

If running in a distributed mode, the filename is automatically changed to include current rank index.

GetEnableStackTrace()

virtual bool vtkProcessModuleConfiguration::GetEnableStackTrace ( )

virtual

Get whether to generate a stack trace after a crash.

This is currently only supported on POSIX systems.

GetLogFiles()

const std::vector<std::pair<std::string, vtkLogger::Verbosity> >& vtkProcessModuleConfiguration::GetLogFiles ( ) const

inline

Returns a vector of pairs for log files requested.

Definition at line 94 of file vtkProcessModuleConfiguration.h.

PopulateOptions()

bool vtkProcessModuleConfiguration::PopulateOptions	(	vtkCLIOptions *	options,
		vtkProcessModule::ProcessTypes	processType
	)

Populate command line options.

processType indicates which type of ParaView process the options are being setup for. That may affect available options.

GetRankAnnotatedFileName()

static std::string vtkProcessModuleConfiguration::GetRankAnnotatedFileName ( const std::string &  fname )

static

A helper function to add a rank number to the filename, if needed.

This is useful to create a separate log file per rank, for example, when executing in parallel. If number of ranks is 1, the filename is unchanged.

---

The documentation for this class was generated from the following file:

• /builds/gitlab-kitware-sciviz-ci/Remoting/Core/vtkProcessModuleConfiguration.h
