There are 3 distinct phases for the operation of a co-processor. More...

#include <vtkCPProcessor.h>

Inheritance diagram for vtkCPProcessor:

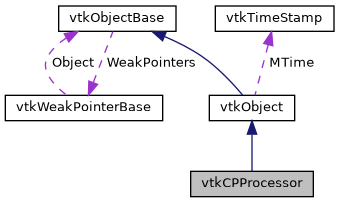

Collaboration diagram for vtkCPProcessor:

[legend]

Public Types
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

virtual int	AddPipeline (vtkCPPipeline *pipeline)
	Add in a pipeline that is externally configured. More...

virtual int	GetNumberOfPipelines ()
	Get the number of pipelines. More...

virtual vtkCPPipeline *	GetPipeline (int which)
	Return a specific pipeline. More...

virtual void	RemovePipeline (vtkCPPipeline *pipeline)
	Remove pipelines. More...

virtual void	RemoveAllPipelines ()

virtual void	SetTemporalCacheSize (int)

virtual int	GetTemporalCacheSize ()

virtual void	MakeTemporalCache (const char *name)

virtual vtkSMSourceProxy *	GetTemporalCache (const char *name)

virtual int	Initialize (const char *workingDirectory=nullptr)
	Initialize the co-processor. More...

virtual int	Initialize (vtkMPICommunicatorOpaqueComm &comm, const char *workingDirectory=nullptr)

virtual int	RequestDataDescription (vtkCPDataDescription *dataDescription)
	Configuration Step: The coprocessor first determines if any coprocessing needs to be done at this TimeStep/Time combination returning 1 if it does and 0 otherwise. More...

virtual int	CoProcess (vtkCPDataDescription *dataDescription)
	Processing Step: Provides the grid and the field data for the co-procesor to process. More...

virtual int	Finalize ()
	Called after all co-processing is complete giving the Co-Processor implementation an opportunity to clean up, before it is destroyed. More...

virtual char *	GetWorkingDirectory ()
	Get the current working directory for outputting Catalyst files. More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkCPProcessor *	New ()

static int	IsTypeOf (const char *type)

static vtkCPProcessor *	SafeDownCast (vtkObject *o)

static const char *	GetInputArrayName ()
	The Catalyst input field data string array name. More...

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkCPProcessor ()

	~vtkCPProcessor () override

virtual vtkObject *	NewInitializationHelper ()
	Create a new instance of the InitializationHelper. More...

virtual void	SetWorkingDirectory (const char *)
	Set the current working directory for outputting Catalyst files. More...

void	FinalizeAndRemovePipelines ()
	Finalizes and remove all pipelines. More...

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Additional Inherited Members
Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Detailed Description

There are 3 distinct phases for the operation of a co-processor.

1) Initialization – set up for the run.
2) Processing – the run.
3) Finalization – clean up before exit.
The processing phase occurs repeatedly and is composed of two distinct steps, namely 1) Configuration (see vtkCPProcessor::ProcessDataDescription) and 2) Processing (see vtkCPProcessor::ProcessData).

Configuration step:
In the first step the Co-Processor implementation is called with a vtkDataDescription describing the data that the simulation can provide This gives the Co-Processor implementation a chance to identify what (if any) of the available data it will process during this pass. By default all of the available data is selected, so that if the Co-Processor implementation does nothing it will receive all data during the Processing step. The Co-Processor implementation should extract what ever meta-data it will need (or alternatively can save a reference to the DataDescription), during the Processing step.

Processing step:
In the second step the Co-Processor implementation is called with the actual data that it has been asked to provide, if any. If no data was selected during the Configuration Step than the provided vtkDataObject may be nullptr.

Definition at line 46 of file vtkCPProcessor.h.

Member Typedef Documentation

◆ Superclass

typedef vtkObject vtkCPProcessor::Superclass

Definition at line 50 of file vtkCPProcessor.h.

Constructor & Destructor Documentation

◆ vtkCPProcessor()

vtkCPProcessor::vtkCPProcessor ( )

protected

◆ ~vtkCPProcessor()

vtkCPProcessor::~vtkCPProcessor ( )

overrideprotected

Member Function Documentation

◆ New()

static vtkCPProcessor* vtkCPProcessor::New ( )

static

◆ GetClassName()

virtual const char* vtkCPProcessor::GetClassName ( )

virtual

◆ IsTypeOf()

static int vtkCPProcessor::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkCPProcessor::IsA ( const char * type )

virtual

Reimplemented from vtkObjectBase.

◆ SafeDownCast()

static vtkCPProcessor* vtkCPProcessor::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkCPProcessor::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkObject.

◆ AddPipeline()

virtual int vtkCPProcessor::AddPipeline ( vtkCPPipeline * pipeline )

virtual

Add in a pipeline that is externally configured.

Returns 1 if successful and 0 otherwise.

◆ GetNumberOfPipelines()

virtual int vtkCPProcessor::GetNumberOfPipelines ( )

virtual

Get the number of pipelines.

◆ GetPipeline()

virtual vtkCPPipeline* vtkCPProcessor::GetPipeline ( int which )

virtual

Return a specific pipeline.

◆ RemovePipeline()

virtual void vtkCPProcessor::RemovePipeline ( vtkCPPipeline * pipeline )

virtual

Remove pipelines.

◆ RemoveAllPipelines()

virtual void vtkCPProcessor::RemoveAllPipelines ( )

virtual

◆ SetTemporalCacheSize()

virtual void vtkCPProcessor::SetTemporalCacheSize ( int )

virtual

◆ GetTemporalCacheSize()

virtual int vtkCPProcessor::GetTemporalCacheSize ( )

virtual

◆ MakeTemporalCache()

virtual void vtkCPProcessor::MakeTemporalCache ( const char * name )

virtual

◆ GetTemporalCache()

virtual vtkSMSourceProxy* vtkCPProcessor::GetTemporalCache ( const char * name )

virtual

◆ Initialize() [1/2]

virtual int vtkCPProcessor::Initialize ( const char * workingDirectory = nullptr )

virtual

Initialize the co-processor.

Returns 1 if successful and 0 otherwise. If Catalyst is built with MPI then Initialize() can also be called with a specific MPI communicator if MPI_COMM_WORLD isn't the proper one. Catalyst is initialized to use MPI_COMM_WORLD by default. Both methods have an optional workingDirectory argument which will set WorkingDirectory so that files will be put relative to this directory.

◆ Initialize() [2/2]

virtual int vtkCPProcessor::Initialize	(	vtkMPICommunicatorOpaqueComm &	comm,
		const char *	workingDirectory = `nullptr`
	)

virtual

◆ GetInputArrayName()

static const char* vtkCPProcessor::GetInputArrayName ( )

inlinestatic

The Catalyst input field data string array name.

This array will be generated automatically by Catalyst and have a single entry that has the input name for identifying the associated vtkCPInputDataDescription. This will allow automatically mapping

Definition at line 94 of file vtkCPProcessor.h.

◆ RequestDataDescription()

virtual int vtkCPProcessor::RequestDataDescription ( vtkCPDataDescription * dataDescription )

virtual

Configuration Step: The coprocessor first determines if any coprocessing needs to be done at this TimeStep/Time combination returning 1 if it does and 0 otherwise.

If coprocessing does need to be performed this time step it fills in the FieldNames array that the coprocessor requires in order to fulfill all the coprocessing requests for this TimeStep/Time combination.

◆ CoProcess()

virtual int vtkCPProcessor::CoProcess ( vtkCPDataDescription * dataDescription )

virtual

Processing Step: Provides the grid and the field data for the co-procesor to process.

Return value is 1 for success and 0 for failure.

◆ Finalize()

virtual int vtkCPProcessor::Finalize ( )

virtual

Called after all co-processing is complete giving the Co-Processor implementation an opportunity to clean up, before it is destroyed.

◆ GetWorkingDirectory()

virtual char* vtkCPProcessor::GetWorkingDirectory ( )

virtual

Get the current working directory for outputting Catalyst files.

If not set then Catalyst output files will be relative to the current working directory. This will not affect where Catalyst looks for Python scripts. WorkingDirectory gets set through the Initialize() methods.

◆ NewInitializationHelper()

virtual vtkObject* vtkCPProcessor::NewInitializationHelper ( )

protectedvirtual

Create a new instance of the InitializationHelper.

◆ SetWorkingDirectory()

virtual void vtkCPProcessor::SetWorkingDirectory ( const char * )

protectedvirtual

Set the current working directory for outputting Catalyst files.

This is a protected method since simulation code adaptors should set this through the Initialize() methods.

◆ FinalizeAndRemovePipelines()

void vtkCPProcessor::FinalizeAndRemovePipelines ( )

protected

Finalizes and remove all pipelines.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Clients/Catalyst/vtkCPProcessor.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Superclass

Constructor & Destructor Documentation

◆ vtkCPProcessor()

◆ ~vtkCPProcessor()

Member Function Documentation

◆ New()

◆ GetClassName()

◆ IsTypeOf()

◆ IsA()

◆ SafeDownCast()

◆ PrintSelf()

◆ AddPipeline()

◆ GetNumberOfPipelines()

◆ GetPipeline()

◆ RemovePipeline()

◆ RemoveAllPipelines()

◆ SetTemporalCacheSize()

◆ GetTemporalCacheSize()

◆ MakeTemporalCache()

◆ GetTemporalCache()

◆ Initialize() [1/2]

◆ Initialize() [2/2]

◆ GetInputArrayName()

◆ RequestDataDescription()

◆ CoProcess()

◆ Finalize()

◆ GetWorkingDirectory()

◆ NewInitializationHelper()

◆ SetWorkingDirectory()

◆ FinalizeAndRemovePipelines()
