vtkGridAxes2DActor Class Reference

actor for an axes plane in a 3D view. More...

#include <vtkGridAxes2DActor.h>

Inheritance diagram for vtkGridAxes2DActor:

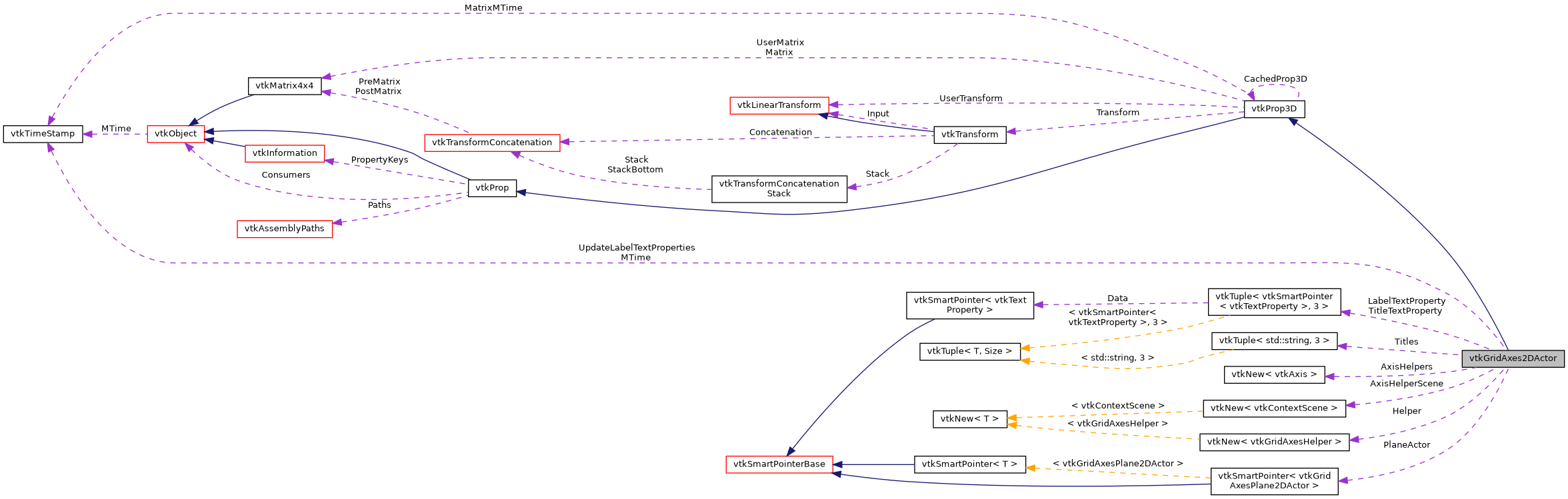

Collaboration diagram for vtkGridAxes2DActor:

Public Types
enum	Faces {   MIN_YZ = vtkGridAxesHelper::MIN_YZ, MIN_ZX = vtkGridAxesHelper::MIN_ZX, MIN_XY = vtkGridAxesHelper::MIN_XY, MAX_YZ = vtkGridAxesHelper::MAX_YZ,   MAX_ZX = vtkGridAxesHelper::MAX_ZX, MAX_XY = vtkGridAxesHelper::MAX_XY }
enum	LabelMasks {   MIN_X = vtkGridAxesHelper::MIN_X, MIN_Y = vtkGridAxesHelper::MIN_Y, MIN_Z = vtkGridAxesHelper::MIN_Z, MAX_X = vtkGridAxesHelper::MAX_X,   MAX_Y = vtkGridAxesHelper::MAX_Y, MAX_Z = vtkGridAxesHelper::MAX_Z }
	Valid values for LabelMask. More...
typedef vtkProp3D	Superclass
Public Types inherited from vtkProp3D
typedef vtkProp	Superclass
Public Types inherited from vtkProp
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent) override
void	GetActors (vtkPropCollection *) override
	For some exporters and other other operations we must be able to collect all the actors or volumes. More...
void	UpdateGeometry (vtkViewport *viewport, bool doRegularUpdate)
	Updates the billboard geometry without performing any rendering, to assist GetActors(). More...
void	SetCustomTickPositions (int axis, vtkDoubleArray *positions)
	Set custom tick positions for each of the axes. More...
int	RenderOpaqueGeometry (vtkViewport *) override
int	RenderTranslucentPolygonalGeometry (vtkViewport *viewport) override
int	RenderOverlay (vtkViewport *viewport) override
int	HasTranslucentPolygonalGeometry () override
void	ReleaseGraphicsResources (vtkWindow *) override
vtkMTimeType	GetMTime () override
	Overridden to include the mtime for the text properties. More...
virtual void	SetGridBounds (double, double, double, double, double, double)
	Set the bounding box defining the grid space. More...
virtual void	SetGridBounds (double [6])
	Set the bounding box defining the grid space. More...
virtual double *	GetGridBounds ()
	Set the bounding box defining the grid space. More...
virtual void	GetGridBounds (double &, double &, double &, double &, double &, double &)
	Set the bounding box defining the grid space. More...
virtual void	GetGridBounds (double [6])
	Set the bounding box defining the grid space. More...
virtual void	SetFace (int)
	Indicate which face of the specified bounds is this class operating with. More...
virtual int	GetFace ()
	Indicate which face of the specified bounds is this class operating with. More...
virtual void	SetLabelMask (unsigned int)
	Set the axes to label. More...
virtual unsigned int	GetLabelMask ()
	Set the axes to label. More...
void	SetProperty (vtkProperty *)
	Get/Set the property used to control the appearance of the rendered grid, including edges. More...
vtkProperty *	GetProperty ()
	Get/Set the property used to control the appearance of the rendered grid, including edges. More...
void	SetTitleTextProperty (int axis, vtkTextProperty *)
	Get/Set the title text properties for each of the coordinate axes. More...
vtkTextProperty *	GetTitleTextProperty (int axis)
	Get/Set the title text properties for each of the coordinate axes. More...
void	SetLabelTextProperty (int axis, vtkTextProperty *)
	Get/Set the label text properties for each of the coordinate axes. More...
vtkTextProperty *	GetLabelTextProperty (int axis)
	Get/Set the label text properties for each of the coordinate axes. More...
void	SetTitle (int axis, const std::string &title)
	Set titles for each of the axes. More...
const std::string &	GetTitle (int axis)
	Set titles for each of the axes. More...
void	SetNotation (int axis, int notation)
	Get/set the numerical notation, standard, scientific or mixed (0, 1, 2). More...
int	GetNotation (int axis)
	Get/set the numerical notation, standard, scientific or mixed (0, 1, 2). More...
void	SetPrecision (int axis, int val)
	Get/set the numerical precision to use, default is 2. More...
int	GetPrecision (int axis)
	Get/set the numerical precision to use, default is 2. More...
void	SetTickLabelFunction (int axis, std::function< double(double)> func)
	Get/Set the function that will be applied to the tick label of each axis. More...
std::function< double(double)>	GetTickLabelFunction (int axis)
	Get/Set the function that will be applied to the tick label of each axis. More...
void	SetGenerateGrid (bool val)
	Turn off to not generate polydata for the plane's grid. More...
bool	GetGenerateGrid ()
	Turn off to not generate polydata for the plane's grid. More...
virtual void	GenerateGridOn ()
	Turn off to not generate polydata for the plane's grid. More...
virtual void	GenerateGridOff ()
	Turn off to not generate polydata for the plane's grid. More...
void	SetGenerateEdges (bool val)
	Turn off to not generate the polydata for the plane's edges. More...
bool	GetGenerateEdges ()
	Turn off to not generate the polydata for the plane's edges. More...
virtual void	GenerateEdgesOn ()
	Turn off to not generate the polydata for the plane's edges. More...
virtual void	GenerateEdgesOff ()
	Turn off to not generate the polydata for the plane's edges. More...
void	SetGenerateTicks (bool val)
	Turn off to not generate the markers for the tick positions. More...
bool	GetGenerateTicks ()
	Turn off to not generate the markers for the tick positions. More...
virtual void	GenerateTicksOn ()
	Turn off to not generate the markers for the tick positions. More...
virtual void	GenerateTicksOff ()
	Turn off to not generate the markers for the tick positions. More...
double *	GetBounds () override
	Returns the prop bounds. More...
virtual void	SetForceOpaque (bool)
	If true, the actor will always be rendered during the opaque pass. More...
virtual bool	GetForceOpaque ()
	If true, the actor will always be rendered during the opaque pass. More...
virtual void	ForceOpaqueOn ()
	If true, the actor will always be rendered during the opaque pass. More...
virtual void	ForceOpaqueOff ()
	If true, the actor will always be rendered during the opaque pass. More...
Public Member Functions inherited from vtkProp3D
vtkProp3D *	NewInstance () const
void	ShallowCopy (vtkProp *prop)
virtual void	SetPosition (double pos[3])
virtual double *	GetPosition ()
virtual void	GetPosition (double data[3])
void	AddPosition (double deltaPosition[3])
void	AddPosition (double deltaX, double deltaY, double deltaZ)
double *	GetCenter ()
double *	GetXRange ()
double *	GetYRange ()
double *	GetZRange ()
double	GetLength ()
void	RotateX (double)
void	RotateY (double)
void	RotateZ (double)
void	RotateWXYZ (double w, double x, double y, double z)
void	SetOrientation (double x, double y, double z)
void	SetOrientation (double orientation[3])
double *	GetOrientationWXYZ ()
void	AddOrientation (double x, double y, double z)
void	AddOrientation (double orentation[3])
void	PokeMatrix (vtkMatrix4x4 *matrix)
void	InitPathTraversal ()
vtkMTimeType	GetUserTransformMatrixMTime ()
virtual void	ComputeMatrix ()
virtual void	SetPosition (double x, double y, double z)
virtual void	SetOrigin (double x, double y, double z)
virtual void	SetOrigin (const double pos[3])
virtual double *	GetOrigin ()
virtual void	GetOrigin (double data[3])
virtual void	SetScale (double x, double y, double z)
virtual void	SetScale (double scale[3])
virtual double *	GetScale ()
virtual void	GetScale (double data[3])
void	SetScale (double s)
void	SetUserTransform (vtkLinearTransform *transform)
virtual vtkLinearTransform *	GetUserTransform ()
void	SetUserMatrix (vtkMatrix4x4 *matrix)
vtkMatrix4x4 *	GetUserMatrix ()
virtual void	GetMatrix (vtkMatrix4x4 *m)
virtual void	GetMatrix (double m[16])
void	GetBounds (double bounds[6])
double *	GetOrientation ()
void	GetOrientation (double orentation[3])
vtkMatrix4x4 *	GetMatrix ()
virtual int	GetIsIdentity ()
virtual void	SetPosition (double x, double y, double z)
virtual void	SetOrigin (double x, double y, double z)
virtual void	SetOrigin (const double pos[3])
virtual double *	GetOrigin ()
virtual void	GetOrigin (double data[3])
virtual void	SetScale (double x, double y, double z)
virtual void	SetScale (double scale[3])
virtual double *	GetScale ()
virtual void	GetScale (double data[3])
void	SetScale (double s)
void	SetUserTransform (vtkLinearTransform *transform)
virtual vtkLinearTransform *	GetUserTransform ()
void	SetUserMatrix (vtkMatrix4x4 *matrix)
vtkMatrix4x4 *	GetUserMatrix ()
virtual void	GetMatrix (vtkMatrix4x4 *m)
virtual void	GetMatrix (double m[16])
void	GetBounds (double bounds[6])
double *	GetOrientation ()
void	GetOrientation (double orentation[3])
vtkMatrix4x4 *	GetMatrix ()
virtual int	GetIsIdentity ()
Public Member Functions inherited from vtkProp
vtkProp *	NewInstance () const
virtual void	Pick ()
virtual bool	HasKeys (vtkInformation *requiredKeys)
virtual void	BuildPaths (vtkAssemblyPaths *paths, vtkAssemblyPath *path)
virtual void	GetActors2D (vtkPropCollection *)
virtual void	GetVolumes (vtkPropCollection *)
virtual void	SetVisibility (int)
virtual int	GetVisibility ()
virtual void	VisibilityOn ()
virtual void	VisibilityOff ()
virtual void	SetPickable (int)
virtual int	GetPickable ()
virtual void	PickableOn ()
virtual void	PickableOff ()
virtual void	SetDragable (int)
virtual int	GetDragable ()
virtual void	DragableOn ()
virtual void	DragableOff ()
virtual vtkMTimeType	GetRedrawMTime ()
virtual void	SetUseBounds (bool)
virtual bool	GetUseBounds ()
virtual void	UseBoundsOn ()
virtual void	UseBoundsOff ()
virtual vtkAssemblyPath *	GetNextPath ()
virtual int	GetNumberOfPaths ()
virtual void	PokeMatrix (vtkMatrix4x4 *vtkNotUsed(matrix))
virtual vtkInformation *	GetPropertyKeys ()
virtual void	SetPropertyKeys (vtkInformation *keys)
virtual int	RenderVolumetricGeometry (vtkViewport *)
virtual bool	RenderFilteredOpaqueGeometry (vtkViewport *v, vtkInformation *requiredKeys)
virtual bool	RenderFilteredTranslucentPolygonalGeometry (vtkViewport *v, vtkInformation *requiredKeys)
virtual bool	RenderFilteredVolumetricGeometry (vtkViewport *v, vtkInformation *requiredKeys)
virtual bool	RenderFilteredOverlay (vtkViewport *v, vtkInformation *requiredKeys)
virtual double	GetEstimatedRenderTime (vtkViewport *)
virtual double	GetEstimatedRenderTime ()
virtual void	SetEstimatedRenderTime (double t)
virtual void	RestoreEstimatedRenderTime ()
virtual void	AddEstimatedRenderTime (double t, vtkViewport *vtkNotUsed(vp))
virtual void	SetAllocatedRenderTime (double t, vtkViewport *vtkNotUsed(v))
virtual double	GetAllocatedRenderTime ()
void	SetRenderTimeMultiplier (double t)
virtual double	GetRenderTimeMultiplier ()
virtual bool	GetSupportsSelection ()
virtual int	GetNumberOfConsumers ()
void	AddConsumer (vtkObject *c)
void	RemoveConsumer (vtkObject *c)
vtkObject *	GetConsumer (int i)
int	IsConsumer (vtkObject *c)
virtual void	GetActors2D (vtkPropCollection *)
virtual void	GetVolumes (vtkPropCollection *)
virtual void	SetVisibility (int)
virtual int	GetVisibility ()
virtual void	VisibilityOn ()
virtual void	VisibilityOff ()
virtual void	SetPickable (int)
virtual int	GetPickable ()
virtual void	PickableOn ()
virtual void	PickableOff ()
virtual void	SetDragable (int)
virtual int	GetDragable ()
virtual void	DragableOn ()
virtual void	DragableOff ()
virtual vtkMTimeType	GetRedrawMTime ()
virtual void	SetUseBounds (bool)
virtual bool	GetUseBounds ()
virtual void	UseBoundsOn ()
virtual void	UseBoundsOff ()
virtual vtkAssemblyPath *	GetNextPath ()
virtual int	GetNumberOfPaths ()
virtual void	PokeMatrix (vtkMatrix4x4 *vtkNotUsed(matrix))
virtual vtkInformation *	GetPropertyKeys ()
virtual void	SetPropertyKeys (vtkInformation *keys)
virtual int	RenderVolumetricGeometry (vtkViewport *)
virtual bool	RenderFilteredOpaqueGeometry (vtkViewport *v, vtkInformation *requiredKeys)
virtual bool	RenderFilteredTranslucentPolygonalGeometry (vtkViewport *v, vtkInformation *requiredKeys)
virtual bool	RenderFilteredVolumetricGeometry (vtkViewport *v, vtkInformation *requiredKeys)
virtual bool	RenderFilteredOverlay (vtkViewport *v, vtkInformation *requiredKeys)
virtual double	GetEstimatedRenderTime (vtkViewport *)
virtual double	GetEstimatedRenderTime ()
virtual void	SetEstimatedRenderTime (double t)
virtual void	RestoreEstimatedRenderTime ()
virtual void	AddEstimatedRenderTime (double t, vtkViewport *vtkNotUsed(vp))
virtual void	SetAllocatedRenderTime (double t, vtkViewport *vtkNotUsed(v))
virtual double	GetAllocatedRenderTime ()
void	SetRenderTimeMultiplier (double t)
virtual double	GetRenderTimeMultiplier ()
virtual bool	GetSupportsSelection ()
virtual int	GetNumberOfConsumers ()
void	AddConsumer (vtkObject *c)
void	RemoveConsumer (vtkObject *c)
vtkObject *	GetConsumer (int i)
int	IsConsumer (vtkObject *c)
Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)
virtual void	DebugOn ()
virtual void	DebugOff ()
bool	GetDebug ()
void	SetDebug (bool debugFlag)
virtual void	Modified ()
void	RemoveObserver (unsigned long tag)
void	RemoveObservers (unsigned long event)
void	RemoveObservers (const char *event)
void	RemoveAllObservers ()
int	HasObserver (unsigned long event)
int	HasObserver (const char *event)
int	InvokeEvent (unsigned long event)
int	InvokeEvent (const char *event)
unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)
unsigned long	AddObserver (const char *event, vtkCommand *, float priority=0.0f)
vtkCommand *	GetCommand (unsigned long tag)
void	RemoveObserver (vtkCommand *)
void	RemoveObservers (unsigned long event, vtkCommand *)
void	RemoveObservers (const char *event, vtkCommand *)
int	HasObserver (unsigned long event, vtkCommand *)
int	HasObserver (const char *event, vtkCommand *)
unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)
unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)
unsigned long	AddObserver (unsigned long event, U observer, bool(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)
int	InvokeEvent (unsigned long event, void *callData)
int	InvokeEvent (const char *event, void *callData)
unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)
unsigned long	AddObserver (const char *event, vtkCommand *, float priority=0.0f)
vtkCommand *	GetCommand (unsigned long tag)
void	RemoveObserver (vtkCommand *)
void	RemoveObservers (unsigned long event, vtkCommand *)
void	RemoveObservers (const char *event, vtkCommand *)
int	HasObserver (unsigned long event, vtkCommand *)
int	HasObserver (const char *event, vtkCommand *)
unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)
unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)
unsigned long	AddObserver (unsigned long event, U observer, bool(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)
int	InvokeEvent (unsigned long event, void *callData)
int	InvokeEvent (const char *event, void *callData)
Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const
virtual void	Delete ()
virtual void	FastDelete ()
void	Print (ostream &os)
virtual void	Register (vtkObjectBase *o)
virtual void	UnRegister (vtkObjectBase *o)
void	SetReferenceCount (int)
virtual void	PrintHeader (ostream &os, vtkIndent indent)
virtual void	PrintTrailer (ostream &os, vtkIndent indent)
int	GetReferenceCount ()
void	PrintRevisions (ostream &)
virtual void	PrintHeader (ostream &os, vtkIndent indent)
virtual void	PrintTrailer (ostream &os, vtkIndent indent)
int	GetReferenceCount ()
void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkGridAxes2DActor *	New ()
static int	IsTypeOf (const char *type)
static vtkGridAxes2DActor *	SafeDownCast (vtkObject *o)
Static Public Member Functions inherited from vtkProp3D
static int	IsTypeOf (const char *type)
static vtkProp3D *	SafeDownCast (vtkObjectBase *o)
Static Public Member Functions inherited from vtkProp
static int	IsTypeOf (const char *type)
static vtkProp *	SafeDownCast (vtkObjectBase *o)
static vtkInformationIntegerKey *	GeneralTextureUnit ()
static vtkInformationDoubleVectorKey *	GeneralTextureTransform ()
Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()
static void	BreakOnError ()
static void	SetGlobalWarningDisplay (int val)
static void	GlobalWarningDisplayOn ()
static void	GlobalWarningDisplayOff ()
static int	GetGlobalWarningDisplay ()
static void	SetGlobalWarningDisplay (int val)
static void	GlobalWarningDisplayOn ()
static void	GlobalWarningDisplayOff ()
static int	GetGlobalWarningDisplay ()
Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)
static vtkObjectBase *	New ()
static vtkObjectBase *	New ()

Protected Member Functions
	vtkGridAxes2DActor ()
	~vtkGridAxes2DActor () override
bool	Update (vtkViewport *viewport)
void	UpdateTextProperties (vtkViewport *viewport)
void	UpdateLabelPositions (vtkViewport *viewport)
void	UpdateTextActors (vtkViewport *viewport)
Protected Member Functions inherited from vtkProp3D
virtual vtkObjectBase *	NewInstanceInternal () const
	vtkProp3D ()
	~vtkProp3D ()
Protected Member Functions inherited from vtkProp
	vtkProp ()
	~vtkProp ()
Protected Member Functions inherited from vtkObject
	vtkObject ()
virtual	~vtkObject ()
void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE
void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE
void	InternalGrabFocus (vtkCommand *mouseEvents, vtkCommand *keypressEvents=NULL)
void	InternalReleaseFocus ()
void	InternalGrabFocus (vtkCommand *mouseEvents, vtkCommand *keypressEvents=NULL)
void	InternalReleaseFocus ()
Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()
virtual	~vtkObjectBase ()
virtual void	CollectRevisions (ostream &)
virtual void	ReportReferences (vtkGarbageCollector *)
	vtkObjectBase (const vtkObjectBase &)
void	operator= (const vtkObjectBase &)

Protected Attributes
double	GridBounds [6]
int	Face
unsigned int	LabelMask
vtkTuple< vtkSmartPointer< vtkTextProperty >, 3 >	TitleTextProperty
vtkTuple< vtkSmartPointer< vtkTextProperty >, 3 >	LabelTextProperty
vtkTuple< std::string, 3 >	Titles
vtkNew< vtkGridAxesHelper >	Helper
vtkSmartPointer< vtkGridAxesPlane2DActor >	PlaneActor
vtkNew< vtkAxis >	AxisHelpers [3]
vtkNew< vtkContextScene >	AxisHelperScene
vtkTimeStamp	UpdateLabelTextPropertiesMTime
bool	ForceOpaque
std::function< double(double)>	TickLabelFunction [3] = { nullptr, nullptr, nullptr }
Protected Attributes inherited from vtkProp3D
vtkLinearTransform *	UserTransform
vtkMatrix4x4 *	UserMatrix
vtkMatrix4x4 *	Matrix
vtkTimeStamp	MatrixMTime
double	Origin [3]
double	Position [3]
double	Orientation [3]
double	Scale [3]
double	Center [3]
vtkTransform *	Transform
double	Bounds [6]
vtkProp3D *	CachedProp3D
int	IsIdentity
Protected Attributes inherited from vtkProp
int	Visibility
int	Pickable
int	Dragable
bool	UseBounds
double	AllocatedRenderTime
double	EstimatedRenderTime
double	SavedEstimatedRenderTime
double	RenderTimeMultiplier
int	NumberOfConsumers
vtkObject **	Consumers
vtkAssemblyPaths *	Paths
vtkInformation *	PropertyKeys
Protected Attributes inherited from vtkObject
bool	Debug
vtkTimeStamp	MTime
vtkSubjectHelper *	SubjectHelper
Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount
vtkWeakPointerBase **	WeakPointers

Friends
class	vtkGridAxes3DActor
class	vtkLabels

Detailed Description

actor for an axes plane in a 3D view.

vtkGridAxes2DActor is a vtkProp3D that renders a single axes plane (or face). Despite the name, it renders a prop in 3D with ability to render lines for the axes bounds along with labels on them.

To use this, one sets the GridBounds and then the Face which identifies the face of the cube defined by the GridBounds along which this prop will render the grid. Parameters available allow additional controls including labeling, grid rendering, edge rendering etc.

See also

vtkGridAxes3DActor

Definition at line 39 of file vtkGridAxes2DActor.h.

Member Typedef Documentation

Superclass

typedef vtkProp3D vtkGridAxes2DActor::Superclass

Definition at line 43 of file vtkGridAxes2DActor.h.

Member Enumeration Documentation

Faces

enum vtkGridAxes2DActor::Faces

Enumerator
MIN_YZ
MIN_ZX
MIN_XY
MAX_YZ
MAX_ZX
MAX_XY

Definition at line 57 of file vtkGridAxes2DActor.h.

LabelMasks

enum vtkGridAxes2DActor::LabelMasks

Valid values for LabelMask.

Enumerator
MIN_X
MIN_Y
MIN_Z
MAX_X
MAX_Y
MAX_Z

Definition at line 78 of file vtkGridAxes2DActor.h.

Constructor & Destructor Documentation

vtkGridAxes2DActor()

vtkGridAxes2DActor::vtkGridAxes2DActor ( )

protected

~vtkGridAxes2DActor()

vtkGridAxes2DActor::~vtkGridAxes2DActor ( )

overrideprotected

Member Function Documentation

New()

static vtkGridAxes2DActor* vtkGridAxes2DActor::New ( )

static

GetClassName()

virtual const char* vtkGridAxes2DActor::GetClassName ( )

virtual

IsTypeOf()

static int vtkGridAxes2DActor::IsTypeOf ( const char *  type )

static

IsA()

virtual int vtkGridAxes2DActor::IsA ( const char *  type )

virtual

Reimplemented from vtkProp3D.

SafeDownCast()

static vtkGridAxes2DActor* vtkGridAxes2DActor::SafeDownCast ( vtkObject *  o )

static

PrintSelf()

void vtkGridAxes2DActor::PrintSelf ( ostream &  os, vtkIndent  indent  )

overridevirtual

Reimplemented from vtkProp3D.

SetGridBounds() [1/2]

virtual void vtkGridAxes2DActor::SetGridBounds ( double  , double  , double  , double  , double  , double    )

virtual

Set the bounding box defining the grid space.

This, together with the Face identify which planar surface this class is interested in. This class is designed to work with a single planar surface.

SetGridBounds() [2/2]

virtual void vtkGridAxes2DActor::SetGridBounds ( double  [6] )

virtual

Set the bounding box defining the grid space.

This, together with the Face identify which planar surface this class is interested in. This class is designed to work with a single planar surface.

GetGridBounds() [1/3]

virtual double* vtkGridAxes2DActor::GetGridBounds ( )

virtual

Set the bounding box defining the grid space.

This, together with the Face identify which planar surface this class is interested in. This class is designed to work with a single planar surface.

GetGridBounds() [2/3]

virtual void vtkGridAxes2DActor::GetGridBounds ( double &  , double &  , double &  , double &  , double &  , double &    )

virtual

Set the bounding box defining the grid space.

This, together with the Face identify which planar surface this class is interested in. This class is designed to work with a single planar surface.

GetGridBounds() [3/3]

virtual void vtkGridAxes2DActor::GetGridBounds ( double  [6] )

virtual

Set the bounding box defining the grid space.

This, together with the Face identify which planar surface this class is interested in. This class is designed to work with a single planar surface.

SetFace()

virtual void vtkGridAxes2DActor::SetFace ( int  )

virtual

Indicate which face of the specified bounds is this class operating with.

GetFace()

virtual int vtkGridAxes2DActor::GetFace ( )

virtual

Indicate which face of the specified bounds is this class operating with.

SetLabelMask()

virtual void vtkGridAxes2DActor::SetLabelMask ( unsigned  int )

virtual

Set the axes to label.

The mask can be generated by or-ing values in vtkGridAxes2DActor::LabelMasks to label multiple axes. Any request to label an axes not present on the selected Face is ignored e.g. if Face is MIN_YZ, then LabelMask set to MIN_X will have no effect.

GetLabelMask()

virtual unsigned int vtkGridAxes2DActor::GetLabelMask ( )

virtual

Set the axes to label.

The mask can be generated by or-ing values in vtkGridAxes2DActor::LabelMasks to label multiple axes. Any request to label an axes not present on the selected Face is ignored e.g. if Face is MIN_YZ, then LabelMask set to MIN_X will have no effect.

GetActors()

void vtkGridAxes2DActor::GetActors ( vtkPropCollection *  )

overridevirtual

For some exporters and other other operations we must be able to collect all the actors or volumes.

These methods are used in that process. In case the viewport is not a consumer of this prop: call UpdateGeometry() first for updated viewport-specific billboard geometry.

Reimplemented from vtkProp.

UpdateGeometry()

void vtkGridAxes2DActor::UpdateGeometry	(	vtkViewport *	viewport,
		bool	doRegularUpdate
	)

Updates the billboard geometry without performing any rendering, to assist GetActors().

SetProperty()

void vtkGridAxes2DActor::SetProperty

(

vtkProperty *

)

Get/Set the property used to control the appearance of the rendered grid, including edges.

GetProperty()

vtkProperty* vtkGridAxes2DActor::GetProperty

(

)

Get/Set the property used to control the appearance of the rendered grid, including edges.

SetTitleTextProperty()

void vtkGridAxes2DActor::SetTitleTextProperty	(	int	axis,
		vtkTextProperty *
	)

Get/Set the title text properties for each of the coordinate axes.

Which properties will be used depends on the selected Face being rendered.

GetTitleTextProperty()

vtkTextProperty* vtkGridAxes2DActor::GetTitleTextProperty

(

int

axis

)

Get/Set the title text properties for each of the coordinate axes.

Which properties will be used depends on the selected Face being rendered.

SetLabelTextProperty()

void vtkGridAxes2DActor::SetLabelTextProperty	(	int	axis,
		vtkTextProperty *
	)

Get/Set the label text properties for each of the coordinate axes.

Which properties will be used depends on the selected Face being rendered.

GetLabelTextProperty()

vtkTextProperty* vtkGridAxes2DActor::GetLabelTextProperty

(

int

axis

)

Get/Set the label text properties for each of the coordinate axes.

Which properties will be used depends on the selected Face being rendered.

SetTitle()

void vtkGridAxes2DActor::SetTitle	(	int	axis,
		const std::string &	title
	)

Set titles for each of the axes.

GetTitle()

const std::string& vtkGridAxes2DActor::GetTitle

(

int

axis

)

Set titles for each of the axes.

SetNotation()

void vtkGridAxes2DActor::SetNotation	(	int	axis,
		int	notation
	)

Get/set the numerical notation, standard, scientific or mixed (0, 1, 2).

Accepted values are vtkAxis::AUTO, vtkAxis::FIXED, vtkAxis::CUSTOM.

GetNotation()

int vtkGridAxes2DActor::GetNotation

(

int

axis

)

Get/set the numerical notation, standard, scientific or mixed (0, 1, 2).

Accepted values are vtkAxis::AUTO, vtkAxis::FIXED, vtkAxis::CUSTOM.

SetPrecision()

void vtkGridAxes2DActor::SetPrecision	(	int	axis,
		int	val
	)

Get/set the numerical precision to use, default is 2.

GetPrecision()

int vtkGridAxes2DActor::GetPrecision

(

int

axis

)

Get/set the numerical precision to use, default is 2.

SetTickLabelFunction()

void vtkGridAxes2DActor::SetTickLabelFunction	(	int	axis,
		std::function< double(double)>	func
	)

Get/Set the function that will be applied to the tick label of each axis.

If nothing is set, then the default is to use whatever was generated by vtkAxis.

The default it to use whatever was generated by vtkAxis.

GetTickLabelFunction()

std::function<double(double)> vtkGridAxes2DActor::GetTickLabelFunction

(

int

axis

)

Get/Set the function that will be applied to the tick label of each axis.

If nothing is set, then the default is to use whatever was generated by vtkAxis.

The default it to use whatever was generated by vtkAxis.

SetCustomTickPositions()

void vtkGridAxes2DActor::SetCustomTickPositions	(	int	axis,
		vtkDoubleArray *	positions
	)

Set custom tick positions for each of the axes.

The positions are deep copied. Set to nullptr to not use custom tick positions for the axis.

SetGenerateGrid()

void vtkGridAxes2DActor::SetGenerateGrid ( bool  val )

inline

Turn off to not generate polydata for the plane's grid.

Definition at line 193 of file vtkGridAxes2DActor.h.

GetGenerateGrid()

bool vtkGridAxes2DActor::GetGenerateGrid ( )

inline

Turn off to not generate polydata for the plane's grid.

Definition at line 194 of file vtkGridAxes2DActor.h.

GenerateGridOn()

virtual void vtkGridAxes2DActor::GenerateGridOn ( )

virtual

Turn off to not generate polydata for the plane's grid.

GenerateGridOff()

virtual void vtkGridAxes2DActor::GenerateGridOff ( )

virtual

Turn off to not generate polydata for the plane's grid.

SetGenerateEdges()

void vtkGridAxes2DActor::SetGenerateEdges ( bool  val )

inline

Turn off to not generate the polydata for the plane's edges.

Definition at line 202 of file vtkGridAxes2DActor.h.

GetGenerateEdges()

bool vtkGridAxes2DActor::GetGenerateEdges ( )

inline

Turn off to not generate the polydata for the plane's edges.

Definition at line 203 of file vtkGridAxes2DActor.h.

GenerateEdgesOn()

virtual void vtkGridAxes2DActor::GenerateEdgesOn ( )

virtual

Turn off to not generate the polydata for the plane's edges.

GenerateEdgesOff()

virtual void vtkGridAxes2DActor::GenerateEdgesOff ( )

virtual

Turn off to not generate the polydata for the plane's edges.

SetGenerateTicks()

void vtkGridAxes2DActor::SetGenerateTicks ( bool  val )

inline

Turn off to not generate the markers for the tick positions.

Which edges are rendered is defined by the TickMask.

Definition at line 212 of file vtkGridAxes2DActor.h.

GetGenerateTicks()

bool vtkGridAxes2DActor::GetGenerateTicks ( )

inline

Turn off to not generate the markers for the tick positions.

Which edges are rendered is defined by the TickMask.

Definition at line 213 of file vtkGridAxes2DActor.h.

GenerateTicksOn()

virtual void vtkGridAxes2DActor::GenerateTicksOn ( )

virtual

Turn off to not generate the markers for the tick positions.

Which edges are rendered is defined by the TickMask.

GenerateTicksOff()

virtual void vtkGridAxes2DActor::GenerateTicksOff ( )

virtual

Turn off to not generate the markers for the tick positions.

Which edges are rendered is defined by the TickMask.

GetBounds()

double* vtkGridAxes2DActor::GetBounds ( void  )

inlineoverridevirtual

Returns the prop bounds.

Implements vtkProp3D.

Definition at line 225 of file vtkGridAxes2DActor.h.

SetForceOpaque()

virtual void vtkGridAxes2DActor::SetForceOpaque ( bool  )

virtual

If true, the actor will always be rendered during the opaque pass.

GetForceOpaque()

virtual bool vtkGridAxes2DActor::GetForceOpaque ( )

virtual

If true, the actor will always be rendered during the opaque pass.

ForceOpaqueOn()

virtual void vtkGridAxes2DActor::ForceOpaqueOn ( )

virtual

If true, the actor will always be rendered during the opaque pass.

ForceOpaqueOff()

virtual void vtkGridAxes2DActor::ForceOpaqueOff ( )

virtual

If true, the actor will always be rendered during the opaque pass.

RenderOpaqueGeometry()

int vtkGridAxes2DActor::RenderOpaqueGeometry ( vtkViewport *  )

overridevirtual

Reimplemented from vtkProp.

RenderTranslucentPolygonalGeometry()

int vtkGridAxes2DActor::RenderTranslucentPolygonalGeometry ( vtkViewport *  viewport )

overridevirtual

Reimplemented from vtkProp.

RenderOverlay()

int vtkGridAxes2DActor::RenderOverlay ( vtkViewport *  viewport )

overridevirtual

Reimplemented from vtkProp.

HasTranslucentPolygonalGeometry()

int vtkGridAxes2DActor::HasTranslucentPolygonalGeometry ( )

overridevirtual

Reimplemented from vtkProp.

ReleaseGraphicsResources()

void vtkGridAxes2DActor::ReleaseGraphicsResources ( vtkWindow *  )

overridevirtual

Reimplemented from vtkProp.

GetMTime()

vtkMTimeType vtkGridAxes2DActor::GetMTime ( )

overridevirtual

Overridden to include the mtime for the text properties.

Reimplemented from vtkProp3D.

Update()

bool vtkGridAxes2DActor::Update ( vtkViewport *  viewport )

protected

UpdateTextProperties()

void vtkGridAxes2DActor::UpdateTextProperties ( vtkViewport *  viewport )

protected

UpdateLabelPositions()

void vtkGridAxes2DActor::UpdateLabelPositions ( vtkViewport *  viewport )

protected

UpdateTextActors()

void vtkGridAxes2DActor::UpdateTextActors ( vtkViewport *  viewport )

protected

Friends And Related Function Documentation

vtkGridAxes3DActor

friend class vtkGridAxes3DActor

friend

Definition at line 260 of file vtkGridAxes2DActor.h.

vtkLabels

friend class vtkLabels

friend

Definition at line 285 of file vtkGridAxes2DActor.h.

Member Data Documentation

GridBounds

double vtkGridAxes2DActor::GridBounds[6]

protected

Definition at line 262 of file vtkGridAxes2DActor.h.

Face

int vtkGridAxes2DActor::Face

protected

Definition at line 263 of file vtkGridAxes2DActor.h.

LabelMask

unsigned int vtkGridAxes2DActor::LabelMask

protected

Definition at line 264 of file vtkGridAxes2DActor.h.

TitleTextProperty

vtkTuple<vtkSmartPointer<vtkTextProperty>, 3> vtkGridAxes2DActor::TitleTextProperty

protected

Definition at line 266 of file vtkGridAxes2DActor.h.

LabelTextProperty

vtkTuple<vtkSmartPointer<vtkTextProperty>, 3> vtkGridAxes2DActor::LabelTextProperty

protected

Definition at line 267 of file vtkGridAxes2DActor.h.

Titles

vtkTuple<std::string, 3> vtkGridAxes2DActor::Titles

protected

Definition at line 268 of file vtkGridAxes2DActor.h.

Helper

vtkNew<vtkGridAxesHelper> vtkGridAxes2DActor::Helper

protected

Definition at line 270 of file vtkGridAxes2DActor.h.

PlaneActor

vtkSmartPointer<vtkGridAxesPlane2DActor> vtkGridAxes2DActor::PlaneActor

protected

Definition at line 271 of file vtkGridAxes2DActor.h.

AxisHelpers

vtkNew<vtkAxis> vtkGridAxes2DActor::AxisHelpers[3]

protected

Definition at line 272 of file vtkGridAxes2DActor.h.

AxisHelperScene

vtkNew<vtkContextScene> vtkGridAxes2DActor::AxisHelperScene

protected

Definition at line 273 of file vtkGridAxes2DActor.h.

UpdateLabelTextPropertiesMTime

vtkTimeStamp vtkGridAxes2DActor::UpdateLabelTextPropertiesMTime

protected

Definition at line 274 of file vtkGridAxes2DActor.h.

ForceOpaque

bool vtkGridAxes2DActor::ForceOpaque

protected

Definition at line 276 of file vtkGridAxes2DActor.h.

TickLabelFunction

std::function<double(double)> vtkGridAxes2DActor::TickLabelFunction[3] = { nullptr, nullptr, nullptr }

protected

Definition at line 277 of file vtkGridAxes2DActor.h.

---

The documentation for this class was generated from the following file:

• /builds/gitlab-kitware-sciviz-ci/Remoting/Views/vtkGridAxes2DActor.h
