#include <vtkPVAnimationCue.h>

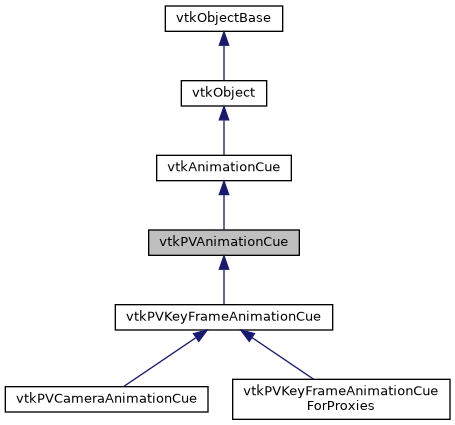

Inheritance diagram for vtkPVAnimationCue:

[legend]

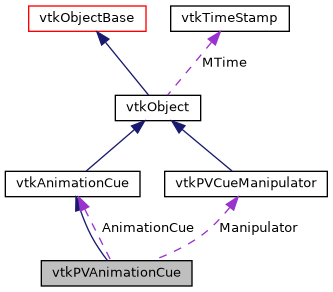

Collaboration diagram for vtkPVAnimationCue:

[legend]

Public Types
typedef vtkAnimationCue	Superclass

Public Types inherited from vtkAnimationCue
enum	TimeCodes

typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override


virtual void	SetAnimatedElement (int)
	The index of the element of the property this cue animates. More...

virtual int	GetAnimatedElement ()
	The index of the element of the property this cue animates. More...


void	SetManipulator (vtkPVCueManipulator *)
	Get/Set the manipulator used to compute values for each instance in the animation. More...

virtual vtkPVCueManipulator *	GetManipulator ()
	Get/Set the manipulator used to compute values for each instance in the animation. More...


virtual void	SetEnabled (int)
	Enable/Disable this cue. More...

virtual int	GetEnabled ()
	Enable/Disable this cue. More...

virtual void	EnabledOn ()
	Enable/Disable this cue. More...

virtual void	EnabledOff ()
	Enable/Disable this cue. More...


virtual void	BeginUpdateAnimationValues ()=0
	Used to update the animated item. More...

virtual void	SetAnimationValue (int index, double value)=0
	Used to update the animated item. More...

virtual void	EndUpdateAnimationValues ()=0
	Used to update the animated item. More...


virtual void	SetUseAnimationTime (bool)
	When set to true, the manipulator is skipped and the key frame value is set by using the ClockTime directly. More...

virtual bool	GetUseAnimationTime ()
	When set to true, the manipulator is skipped and the key frame value is set by using the ClockTime directly. More...


void	Initialize () override
	Overridden to ignore the calls when this->Enabled == false. More...

void	Tick (double currenttime, double deltatime, double clocktime) override
	Overridden to ignore the calls when this->Enabled == false. More...

void	Finalize () override
	Overridden to ignore the calls when this->Enabled == false. More...

Public Member Functions inherited from vtkAnimationCue
vtkAnimationCue *	NewInstance () const

virtual void	SetTimeMode (int mode)

virtual int	GetTimeMode ()

void	SetTimeModeToRelative ()

void	SetTimeModeToNormalized ()

virtual void	SetStartTime (double)

virtual double	GetStartTime ()

virtual void	SetEndTime (double)

virtual double	GetEndTime ()

virtual double	GetAnimationTime ()

virtual double	GetDeltaTime ()

virtual double	GetClockTime ()

virtual void	SetTimeMode (int mode)

virtual int	GetTimeMode ()

void	SetTimeModeToRelative ()

void	SetTimeModeToNormalized ()

virtual void	SetStartTime (double)

virtual double	GetStartTime ()

virtual void	SetEndTime (double)

virtual double	GetEndTime ()

virtual double	GetAnimationTime ()

virtual double	GetDeltaTime ()

virtual double	GetClockTime ()

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static int	IsTypeOf (const char *type)

static vtkPVAnimationCue *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkAnimationCue
static int	IsTypeOf (const char *type)

static vtkAnimationCue *	SafeDownCast (vtkObjectBase *o)

static vtkAnimationCue *	New ()

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkPVAnimationCue ()

	~vtkPVAnimationCue () override


void	StartCueInternal () override

void	TickInternal (double currenttime, double deltatime, double clocktime) override

void	EndCueInternal () override

Protected Member Functions inherited from vtkAnimationCue
virtual vtkObjectBase *	NewInstanceInternal () const

	vtkAnimationCue ()

	~vtkAnimationCue ()

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Protected Attributes
unsigned long	ObserverID

bool	UseAnimationTime

int	AnimatedElement

int	Enabled

vtkAnimationCue *	AnimationCue

vtkPVCueManipulator *	Manipulator

Protected Attributes inherited from vtkAnimationCue
	UNINITIALIZED

	INACTIVE

	ACTIVE

double	StartTime

double	EndTime

int	TimeMode

double	AnimationTime

double	DeltaTime

double	ClockTime

int	CueState

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Friends
class	vtkSMAnimationSceneProxy

Additional Inherited Members
Public Attributes inherited from vtkAnimationCue
	TIMEMODE_NORMALIZED

	TIMEMODE_RELATIVE

Detailed Description

proxy for vtkAnimationCue.

This is a proxy for vtkAnimationCue. All animation proxies are client side proxies. This class needs a vtkPVCueManipulator. The Manipulator performs the actual interpolation.

See also: vtkAnimationCue vtkSMAnimationSceneProxy

Definition at line 26 of file vtkPVAnimationCue.h.

Member Typedef Documentation

◆ Superclass

typedef vtkAnimationCue vtkPVAnimationCue::Superclass

Definition at line 29 of file vtkPVAnimationCue.h.

Constructor & Destructor Documentation

◆ vtkPVAnimationCue()

vtkPVAnimationCue::vtkPVAnimationCue ( )

protected

◆ ~vtkPVAnimationCue()

vtkPVAnimationCue::~vtkPVAnimationCue ( )

overrideprotected

Member Function Documentation

◆ GetClassName()

virtual const char* vtkPVAnimationCue::GetClassName ( )

virtual

Reimplemented in vtkPVCameraAnimationCue, vtkPVKeyFrameAnimationCueForProxies, and vtkPVKeyFrameAnimationCue.

◆ IsTypeOf()

static int vtkPVAnimationCue::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkPVAnimationCue::IsA ( const char * type )

virtual

Reimplemented from vtkAnimationCue.

Reimplemented in vtkPVCameraAnimationCue, vtkPVKeyFrameAnimationCueForProxies, and vtkPVKeyFrameAnimationCue.

◆ SafeDownCast()

static vtkPVAnimationCue* vtkPVAnimationCue::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkPVAnimationCue::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkAnimationCue.

Reimplemented in vtkPVCameraAnimationCue, vtkPVKeyFrameAnimationCueForProxies, and vtkPVKeyFrameAnimationCue.

◆ SetAnimatedElement()

virtual void vtkPVAnimationCue::SetAnimatedElement ( int )

virtual

The index of the element of the property this cue animates.

If the index is -1, the cue will animate all the elements of the animated property.

◆ GetAnimatedElement()

virtual int vtkPVAnimationCue::GetAnimatedElement ( )

virtual

The index of the element of the property this cue animates.

If the index is -1, the cue will animate all the elements of the animated property.

◆ SetManipulator()

void vtkPVAnimationCue::SetManipulator ( vtkPVCueManipulator * )

Get/Set the manipulator used to compute values for each instance in the animation.

Note that the time passed to the Manipulator is normalized [0,1] to the extents of this cue.

◆ GetManipulator()

virtual vtkPVCueManipulator* vtkPVAnimationCue::GetManipulator ( )

virtual

Get/Set the manipulator used to compute values for each instance in the animation.

Note that the time passed to the Manipulator is normalized [0,1] to the extents of this cue.

◆ SetEnabled()

virtual void vtkPVAnimationCue::SetEnabled ( int )

virtual

Enable/Disable this cue.

◆ GetEnabled()

virtual int vtkPVAnimationCue::GetEnabled ( )

virtual

Enable/Disable this cue.

◆ EnabledOn()

virtual void vtkPVAnimationCue::EnabledOn ( )

virtual

Enable/Disable this cue.

◆ EnabledOff()

virtual void vtkPVAnimationCue::EnabledOff ( )

virtual

Enable/Disable this cue.

◆ BeginUpdateAnimationValues()

virtual void vtkPVAnimationCue::BeginUpdateAnimationValues ( )

pure virtual

Used to update the animated item.

This API makes it possible for vtk-level classes to update properties without actually linking with the ServerManager library. This only works since they object are created only on the client.

Implemented in vtkPVKeyFrameAnimationCueForProxies, and vtkPVCameraAnimationCue.

◆ SetAnimationValue()

virtual void vtkPVAnimationCue::SetAnimationValue	(	int	index,
		double	value
	)

pure virtual

Used to update the animated item.

This API makes it possible for vtk-level classes to update properties without actually linking with the ServerManager library. This only works since they object are created only on the client.

Implemented in vtkPVKeyFrameAnimationCueForProxies, and vtkPVCameraAnimationCue.

◆ EndUpdateAnimationValues()

virtual void vtkPVAnimationCue::EndUpdateAnimationValues ( )

pure virtual

Used to update the animated item.

This API makes it possible for vtk-level classes to update properties without actually linking with the ServerManager library. This only works since they object are created only on the client.

Implemented in vtkPVKeyFrameAnimationCueForProxies, and vtkPVCameraAnimationCue.

◆ SetUseAnimationTime()

virtual void vtkPVAnimationCue::SetUseAnimationTime ( bool )

virtual

When set to true, the manipulator is skipped and the key frame value is set by using the ClockTime directly.

false by default.

◆ GetUseAnimationTime()

virtual bool vtkPVAnimationCue::GetUseAnimationTime ( )

virtual

When set to true, the manipulator is skipped and the key frame value is set by using the ClockTime directly.

false by default.

◆ Initialize()

void vtkPVAnimationCue::Initialize ( )

overridevirtual

Overridden to ignore the calls when this->Enabled == false.

Reimplemented from vtkAnimationCue.

◆ Tick()

void vtkPVAnimationCue::Tick	(	double	currenttime,
		double	deltatime,
		double	clocktime
	)

overridevirtual

Overridden to ignore the calls when this->Enabled == false.

Reimplemented from vtkAnimationCue.

◆ Finalize()

void vtkPVAnimationCue::Finalize ( )

overridevirtual

Overridden to ignore the calls when this->Enabled == false.

Reimplemented from vtkAnimationCue.

◆ StartCueInternal()

void vtkPVAnimationCue::StartCueInternal ( )

overrideprotectedvirtual

Reimplemented from vtkAnimationCue.

◆ TickInternal()

void vtkPVAnimationCue::TickInternal	(	double	currenttime,
		double	deltatime,
		double	clocktime
	)

overrideprotectedvirtual

Reimplemented from vtkAnimationCue.

◆ EndCueInternal()

void vtkPVAnimationCue::EndCueInternal ( )

overrideprotectedvirtual

Reimplemented from vtkAnimationCue.

Friends And Related Function Documentation

◆ vtkSMAnimationSceneProxy

friend class vtkSMAnimationSceneProxy

friend

Definition at line 102 of file vtkPVAnimationCue.h.

Member Data Documentation

◆ ObserverID

unsigned long vtkPVAnimationCue::ObserverID

protected

Definition at line 104 of file vtkPVAnimationCue.h.

◆ UseAnimationTime

bool vtkPVAnimationCue::UseAnimationTime

protected

Definition at line 105 of file vtkPVAnimationCue.h.

◆ AnimatedElement

int vtkPVAnimationCue::AnimatedElement

protected

Definition at line 106 of file vtkPVAnimationCue.h.

◆ Enabled

int vtkPVAnimationCue::Enabled

protected

Definition at line 107 of file vtkPVAnimationCue.h.

◆ AnimationCue

vtkAnimationCue* vtkPVAnimationCue::AnimationCue

protected

Definition at line 109 of file vtkPVAnimationCue.h.

◆ Manipulator

vtkPVCueManipulator* vtkPVAnimationCue::Manipulator

protected

Definition at line 110 of file vtkPVAnimationCue.h.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Remoting/Animation/vtkPVAnimationCue.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Superclass

Constructor & Destructor Documentation

◆ vtkPVAnimationCue()

◆ ~vtkPVAnimationCue()

Member Function Documentation

◆ GetClassName()

◆ IsTypeOf()

◆ IsA()

◆ SafeDownCast()

◆ PrintSelf()

◆ SetAnimatedElement()

◆ GetAnimatedElement()

◆ SetManipulator()

◆ GetManipulator()

◆ SetEnabled()

◆ GetEnabled()

◆ EnabledOn()

◆ EnabledOff()

◆ BeginUpdateAnimationValues()

◆ SetAnimationValue()

◆ EndUpdateAnimationValues()

◆ SetUseAnimationTime()

◆ GetUseAnimationTime()

◆ Initialize()

◆ Tick()

◆ Finalize()

◆ StartCueInternal()

◆ TickInternal()

◆ EndCueInternal()

Friends And Related Function Documentation

◆ vtkSMAnimationSceneProxy

Member Data Documentation

◆ ObserverID

◆ UseAnimationTime

◆ AnimatedElement

◆ Enabled

◆ AnimationCue

◆ Manipulator
