vtkPVRenderView specific subclass of vtkPVDataDeliveryManager. More...

#include <vtkPVRenderViewDataDeliveryManager.h>

Inheritance diagram for vtkPVRenderViewDataDeliveryManager:

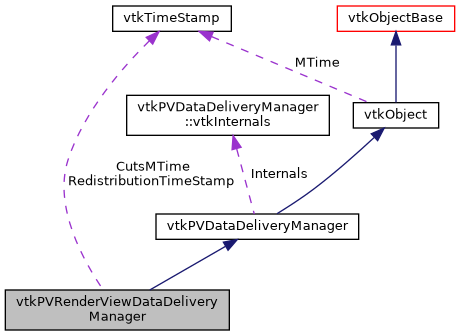

Collaboration diagram for vtkPVRenderViewDataDeliveryManager:

[legend]

Public Types
typedef vtkPVDataDeliveryManager	Superclass

Public Types inherited from vtkPVDataDeliveryManager
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

void	SetDeliverToAllProcesses (vtkPVDataRepresentation *, bool flag, bool low_res, int port=0)
	By default, this class only delivers geometries to nodes that are doing the rendering at a given stage. More...

void	SetDeliverToClientAndRenderingProcesses (vtkPVDataRepresentation *, bool deliver_to_client, bool gather_before_delivery, bool low_res, int port=0)
	By default, this class only delivers geometries to nodes that are doing the rendering at a given stage. More...

void	RedistributeDataForOrderedCompositing (bool use_lod)
	Called by the view on every render when ordered compositing is to be used to ensure that the geometries are redistributed, as needed. More...

void	ClearRedistributedData (bool use_load)
	Removes all redistributed data that may have been redistributed for ordered compositing earlier when using KdTree based redistribution. More...

void	SetOrderedCompositingConfiguration (vtkPVDataRepresentation repr, int config, const double bds, int port=0)
	Pass information how to handle data redistribution when using ordered compositing. More...

void	SetStreamable (vtkPVDataRepresentation *, bool, int port=0)
	Mark a representation as streamable. More...

void	DeliverStreamedPieces (unsigned int size, unsigned int *keys)
	Deliver streamed pieces. More...

bool	GetRepresentationsReadyToStreamPieces (std::vector< unsigned int > &keys)
	Fills up the vector with the keys for representations that have non-null streaming pieces. More...

int	GetDeliveredDataKey (bool low_res) const override
	Views that support changing of which ranks do the rendering at runtime based on things like data sizes, etc. More...


void	SetRedistributionMode (vtkPVDataRepresentation *, int mode, int port=0)
	For representations that have indicated that the data is redistributable (using SetOrderedCompositingConfiguration), this control the mode for redistribution. More...

void	SetRedistributionModeToSplitBoundaryCells (vtkPVDataRepresentation *repr, int port=0)
	For representations that have indicated that the data is redistributable (using SetOrderedCompositingConfiguration), this control the mode for redistribution. More...

void	SetRedistributionModeToDuplicateBoundaryCells (vtkPVDataRepresentation *repr, int port=0)
	For representations that have indicated that the data is redistributable (using SetOrderedCompositingConfiguration), this control the mode for redistribution. More...

void	SetRedistributionModeToUniquelyAssignBoundaryCells (vtkPVDataRepresentation *repr, int port=0)
	For representations that have indicated that the data is redistributable (using SetOrderedCompositingConfiguration), this control the mode for redistribution. More...


void	SetGeometryBounds (vtkPVDataRepresentation repr, const double bds[6], vtkMatrix4x4 matrix=nullptr, int port=0)
	Pass data bounds information. More...

vtkBoundingBox	GetGeometryBounds (vtkPVDataRepresentation *repr, int port=0)
	Pass data bounds information. More...

vtkBoundingBox	GetTransformedGeometryBounds (vtkPVDataRepresentation *repr, int port=0)
	Pass data bounds information. More...


void	SetNextStreamedPiece (vtkPVDataRepresentation repr, vtkDataObject piece, int port=0)
	Passes the current streamed piece. More...

vtkDataObject *	GetCurrentStreamedPiece (vtkPVDataRepresentation *repr, int port=0)
	Passes the current streamed piece. More...

void	ClearStreamedPieces ()
	Passes the current streamed piece. More...


virtual bool	GetUseRedistributedDataAsDeliveredData ()
	When set to true GetDeliveredDataKey returns `REDISTRIBUTED_DATA_KEY` else returns the key returned by GetViewDataDistributionMode. More...

virtual void	SetUseRedistributedDataAsDeliveredData (bool)
	When set to true GetDeliveredDataKey returns `REDISTRIBUTED_DATA_KEY` else returns the key returned by GetViewDataDistributionMode. More...


const std::vector< vtkBoundingBox > &	GetCuts () const
	Provides access to the "cuts" built by this class when doing ordered compositing. More...

vtkTimeStamp	GetCutsMTime () const
	Provides access to the "cuts" built by this class when doing ordered compositing. More...


const std::vector< vtkBoundingBox > &	GetRawCuts () const
	When using an internally generated kd-tree for ordered compositing, this method provides access to the complete kd-tree and the rendering rank assignments for each node in the kd-tree. More...

const std::vector< int > &	GetRawCutsRankAssignments () const
	When using an internally generated kd-tree for ordered compositing, this method provides access to the complete kd-tree and the rendering rank assignments for each node in the kd-tree. More...

Public Member Functions inherited from vtkPVDataDeliveryManager
int	GetSynchronizationMagicNumber ()
	Returned a hash number that can be used to verify that both client and server side are in synch representation wise for delivery. More...

vtkDataObject *	GetPiece (vtkPVDataRepresentation *repr, bool low_res, int port=0)
	Returns the local data object set by calling `SetPiece` (or from the cache). More...

vtkDataObject *	GetDeliveredPiece (vtkPVDataRepresentation *repr, bool low_res, int port=0)
	Returns the data object post-delivery. More...

void	ClearCache (vtkPVDataRepresentation *repr)
	Clear all cached data objects for the given representation. More...

unsigned long	GetVisibleDataSize (bool low_res)
	Returns the size for all visible geometry. More...

bool	NeedsDelivery (vtkMTimeType timestamp, std::vector< unsigned int > &keys_to_deliver, bool use_lod)
	Internal method used to determine the list of representations that need their geometry delivered. More...

void	Deliver (int use_low_res, unsigned int size, unsigned int *keys)
	Triggers delivery for the geometries of indicated representations. More...

void	SetView (vtkPVView *)
	Get/Set the render-view. More...

vtkPVView *	GetView () const
	Get/Set the render-view. More...

void	RegisterRepresentation (vtkPVDataRepresentation *repr)
	View uses these methods to register a representation with the storage. More...

void	UnRegisterRepresentation (vtkPVDataRepresentation *)
	View uses these methods to register a representation with the storage. More...

vtkPVDataRepresentation *	GetRepresentation (unsigned int)
	View uses these methods to register a representation with the storage. More...

void	SetPiece (vtkPVDataRepresentation repr, vtkDataObject data, bool low_res, unsigned long trueSize=0, int port=0)
	Representations (indirectly via vtkPVRenderView::SetPiece()) call this method to register the geometry type they are rendering. More...

bool	HasPiece (vtkPVDataRepresentation *repr, bool low_res=false, int port=0)

vtkAlgorithmOutput *	GetProducer (vtkPVDataRepresentation *, bool low_res, int port=0)
	Provides access to the producer port for the geometry of a registered representation. More...

vtkInformation *	GetPieceInformation (vtkPVDataRepresentation *repr, bool low_res, int port=0)
	Set/Get meta-data container for the specific piece. More...

int	GetNumberOfPorts (vtkPVDataRepresentation *repr)
	Returns number of known port for the representation. More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkPVRenderViewDataDeliveryManager *	New ()

static int	IsTypeOf (const char *type)

static vtkPVRenderViewDataDeliveryManager *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkPVDataDeliveryManager
static int	IsTypeOf (const char *type)

static vtkPVDataDeliveryManager *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkPVRenderViewDataDeliveryManager ()

	~vtkPVRenderViewDataDeliveryManager () override

void	MoveData (vtkPVDataRepresentation *repr, bool low_res, int port) override
	This method is called to request that the subclass do appropriate transfer for the indicated representation. More...

int	GetViewDataDistributionMode (bool low_res) const

int	GetMoveMode (vtkInformation *info, int viewMode) const

Protected Member Functions inherited from vtkPVDataDeliveryManager
	vtkPVDataDeliveryManager ()

	~vtkPVDataDeliveryManager () override

double	GetCacheKey (vtkPVDataRepresentation *repr) const

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Protected Attributes
std::vector< vtkBoundingBox >	Cuts

std::vector< vtkBoundingBox >	RawCuts

std::vector< int >	RawCutsRankAssignments

vtkTimeStamp	CutsMTime

vtkTimeStamp	RedistributionTimeStamp

std::string	LastCutsGeneratorToken

bool	UseRedistributedDataAsDeliveredData = false

Protected Attributes inherited from vtkPVDataDeliveryManager
vtkInternals *	Internals

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Detailed Description

vtkPVRenderView specific subclass of vtkPVDataDeliveryManager.

This class adds vtkPVRenderView specific data movement logic to vtkPVDataDeliveryManager.

Definition at line 31 of file vtkPVRenderViewDataDeliveryManager.h.

Member Typedef Documentation

◆ Superclass

typedef vtkPVDataDeliveryManager vtkPVRenderViewDataDeliveryManager::Superclass

Definition at line 35 of file vtkPVRenderViewDataDeliveryManager.h.

Constructor & Destructor Documentation

◆ vtkPVRenderViewDataDeliveryManager()

vtkPVRenderViewDataDeliveryManager::vtkPVRenderViewDataDeliveryManager ( )

protected

◆ ~vtkPVRenderViewDataDeliveryManager()

vtkPVRenderViewDataDeliveryManager::~vtkPVRenderViewDataDeliveryManager ( )

overrideprotected

Member Function Documentation

◆ New()

static vtkPVRenderViewDataDeliveryManager* vtkPVRenderViewDataDeliveryManager::New ( )

static

◆ GetClassName()

virtual const char* vtkPVRenderViewDataDeliveryManager::GetClassName ( )

virtual

Reimplemented from vtkPVDataDeliveryManager.

◆ IsTypeOf()

static int vtkPVRenderViewDataDeliveryManager::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkPVRenderViewDataDeliveryManager::IsA ( const char * type )

virtual

Reimplemented from vtkPVDataDeliveryManager.

◆ SafeDownCast()

static vtkPVRenderViewDataDeliveryManager* vtkPVRenderViewDataDeliveryManager::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkPVRenderViewDataDeliveryManager::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkPVDataDeliveryManager.

◆ SetDeliverToAllProcesses()

void vtkPVRenderViewDataDeliveryManager::SetDeliverToAllProcesses	(	vtkPVDataRepresentation *	,
		bool	flag,
		bool	low_res,
		int	port = `0`
	)

By default, this class only delivers geometries to nodes that are doing the rendering at a given stage.

However, certain representations, such as data-label representation, or cube-axes representation, need to the geometry to be delivered to all nodes always. That can be done by using this method (via vtkPVRenderView::SetDeliverToAllProcesses()).

◆ SetDeliverToClientAndRenderingProcesses()

void vtkPVRenderViewDataDeliveryManager::SetDeliverToClientAndRenderingProcesses	(	vtkPVDataRepresentation *	,
		bool	deliver_to_client,
		bool	gather_before_delivery,
		bool	low_res,
		int	port = `0`
	)

By default, this class only delivers geometries to nodes that are doing the rendering at a given stage.

However, certain representations, such as text-source representation, need to the geometry to be delivered to the client as well. That can be done by using this method (via vtkPVRenderView::SetDeliverToAllProcesses()). The different between SetDeliverToAllProcesses() and this is that the former gather-and-scatters the data on the server nodes, while the latter will optionally gather the data to deliver to the client and never scatter.

◆ SetRedistributionMode()

void vtkPVRenderViewDataDeliveryManager::SetRedistributionMode	(	vtkPVDataRepresentation *	,
		int	mode,
		int	port = `0`
	)

For representations that have indicated that the data is redistributable (using SetOrderedCompositingConfiguration), this control the mode for redistribution.

Specifically, it indicates how to handle cells that are on the boundary of the redistribution KdTree. Default is to split the cells, one can change it to duplicate cells instead by using mode as vtkDistributedDataFilter::ASSIGN_TO_ALL_INTERSECTING_REGIONS.

◆ SetRedistributionModeToSplitBoundaryCells()

void vtkPVRenderViewDataDeliveryManager::SetRedistributionModeToSplitBoundaryCells	(	vtkPVDataRepresentation *	repr,
		int	port = `0`
	)

For representations that have indicated that the data is redistributable (using SetOrderedCompositingConfiguration), this control the mode for redistribution.

Specifically, it indicates how to handle cells that are on the boundary of the redistribution KdTree. Default is to split the cells, one can change it to duplicate cells instead by using mode as vtkDistributedDataFilter::ASSIGN_TO_ALL_INTERSECTING_REGIONS.

◆ SetRedistributionModeToDuplicateBoundaryCells()

void vtkPVRenderViewDataDeliveryManager::SetRedistributionModeToDuplicateBoundaryCells	(	vtkPVDataRepresentation *	repr,
		int	port = `0`
	)

For representations that have indicated that the data is redistributable (using SetOrderedCompositingConfiguration), this control the mode for redistribution.

Specifically, it indicates how to handle cells that are on the boundary of the redistribution KdTree. Default is to split the cells, one can change it to duplicate cells instead by using mode as vtkDistributedDataFilter::ASSIGN_TO_ALL_INTERSECTING_REGIONS.

◆ SetRedistributionModeToUniquelyAssignBoundaryCells()

void vtkPVRenderViewDataDeliveryManager::SetRedistributionModeToUniquelyAssignBoundaryCells	(	vtkPVDataRepresentation *	repr,
		int	port = `0`
	)

For representations that have indicated that the data is redistributable (using SetOrderedCompositingConfiguration), this control the mode for redistribution.

Specifically, it indicates how to handle cells that are on the boundary of the redistribution KdTree. Default is to split the cells, one can change it to duplicate cells instead by using mode as vtkDistributedDataFilter::ASSIGN_TO_ALL_INTERSECTING_REGIONS.

◆ RedistributeDataForOrderedCompositing()

void vtkPVRenderViewDataDeliveryManager::RedistributeDataForOrderedCompositing ( bool use_lod )

Called by the view on every render when ordered compositing is to be used to ensure that the geometries are redistributed, as needed.

◆ ClearRedistributedData()

void vtkPVRenderViewDataDeliveryManager::ClearRedistributedData ( bool use_load )

Removes all redistributed data that may have been redistributed for ordered compositing earlier when using KdTree based redistribution.

TODO: check is this is still needed.

◆ SetOrderedCompositingConfiguration()

void vtkPVRenderViewDataDeliveryManager::SetOrderedCompositingConfiguration	(	vtkPVDataRepresentation *	repr,
		int	config,
		const double *	bds,
		int	port = `0`
	)

Pass information how to handle data redistribution when using ordered compositing.

◆ SetGeometryBounds()

void vtkPVRenderViewDataDeliveryManager::SetGeometryBounds	(	vtkPVDataRepresentation *	repr,
		const double	bds[6],
		vtkMatrix4x4 *	matrix = `nullptr`,
		int	port = `0`
	)

Pass data bounds information.

◆ GetGeometryBounds()

vtkBoundingBox vtkPVRenderViewDataDeliveryManager::GetGeometryBounds	(	vtkPVDataRepresentation *	repr,
		int	port = `0`
	)

Pass data bounds information.

◆ GetTransformedGeometryBounds()

vtkBoundingBox vtkPVRenderViewDataDeliveryManager::GetTransformedGeometryBounds	(	vtkPVDataRepresentation *	repr,
		int	port = `0`
	)

Pass data bounds information.

◆ SetStreamable()

void vtkPVRenderViewDataDeliveryManager::SetStreamable	(	vtkPVDataRepresentation *	,
		bool	,
		int	port = `0`
	)

Mark a representation as streamable.

Any representation can indicate that it is streamable i.e. the view can call streaming passses on it and it will deliver data incrementally.

◆ SetNextStreamedPiece()

void vtkPVRenderViewDataDeliveryManager::SetNextStreamedPiece	(	vtkPVDataRepresentation *	repr,
		vtkDataObject *	piece,
		int	port = `0`
	)

Passes the current streamed piece.

This is the piece that will be delivered to the rendering node.

◆ GetCurrentStreamedPiece()

vtkDataObject* vtkPVRenderViewDataDeliveryManager::GetCurrentStreamedPiece	(	vtkPVDataRepresentation *	repr,
		int	port = `0`
	)

Passes the current streamed piece.

This is the piece that will be delivered to the rendering node.

◆ ClearStreamedPieces()

void vtkPVRenderViewDataDeliveryManager::ClearStreamedPieces ( )

Passes the current streamed piece.

This is the piece that will be delivered to the rendering node.

◆ DeliverStreamedPieces()

void vtkPVRenderViewDataDeliveryManager::DeliverStreamedPieces	(	unsigned int	size,
		unsigned int *	keys
	)

Deliver streamed pieces.

Unlike regular data, streamed pieces are delivered and released. Representations are expected to manage the pieces once they are delivered to them.

◆ GetRepresentationsReadyToStreamPieces()

bool vtkPVRenderViewDataDeliveryManager::GetRepresentationsReadyToStreamPieces ( std::vector< unsigned int > & keys )

Fills up the vector with the keys for representations that have non-null streaming pieces.

◆ GetUseRedistributedDataAsDeliveredData()

virtual bool vtkPVRenderViewDataDeliveryManager::GetUseRedistributedDataAsDeliveredData ( )

virtual

When set to true GetDeliveredDataKey returns REDISTRIBUTED_DATA_KEY else returns the key returned by GetViewDataDistributionMode.

◆ SetUseRedistributedDataAsDeliveredData()

virtual void vtkPVRenderViewDataDeliveryManager::SetUseRedistributedDataAsDeliveredData ( bool )

virtual

When set to true GetDeliveredDataKey returns REDISTRIBUTED_DATA_KEY else returns the key returned by GetViewDataDistributionMode.

◆ GetDeliveredDataKey()

int vtkPVRenderViewDataDeliveryManager::GetDeliveredDataKey ( bool low_res ) const

overridevirtual

Views that support changing of which ranks do the rendering at runtime based on things like data sizes, etc.

may override this method to provide a unique key for each different mode. This makes it possible to keep delivered data object for each mode separate and thus avoid transfers if the mode is changed on the fly.

Default implementation simply returns 0.

Reimplemented from vtkPVDataDeliveryManager.

◆ GetCuts()

const std::vector<vtkBoundingBox>& vtkPVRenderViewDataDeliveryManager::GetCuts ( ) const

inline

Provides access to the "cuts" built by this class when doing ordered compositing.

Note, this may not be up-to-date unless ordered compositing is being used and are only available on the rendering-ranks i.e. pvserver or pvrenderserver ranks.

Definition at line 159 of file vtkPVRenderViewDataDeliveryManager.h.

◆ GetCutsMTime()

vtkTimeStamp vtkPVRenderViewDataDeliveryManager::GetCutsMTime ( ) const

inline

Provides access to the "cuts" built by this class when doing ordered compositing.

Note, this may not be up-to-date unless ordered compositing is being used and are only available on the rendering-ranks i.e. pvserver or pvrenderserver ranks.

Definition at line 160 of file vtkPVRenderViewDataDeliveryManager.h.

◆ GetRawCuts()

const std::vector<vtkBoundingBox>& vtkPVRenderViewDataDeliveryManager::GetRawCuts ( ) const

inline

When using an internally generated kd-tree for ordered compositing, this method provides access to the complete kd-tree and the rendering rank assignments for each node in the kd-tree.

These are empty when the explicit data bounds are being used to determine sorting order i.e. when vtkPVRenderViewDataDeliveryManager does not generate its own kd tree internally instead relies on the representation provided partitioning.

Definition at line 174 of file vtkPVRenderViewDataDeliveryManager.h.

◆ GetRawCutsRankAssignments()

const std::vector<int>& vtkPVRenderViewDataDeliveryManager::GetRawCutsRankAssignments ( ) const

inline

When using an internally generated kd-tree for ordered compositing, this method provides access to the complete kd-tree and the rendering rank assignments for each node in the kd-tree.

These are empty when the explicit data bounds are being used to determine sorting order i.e. when vtkPVRenderViewDataDeliveryManager does not generate its own kd tree internally instead relies on the representation provided partitioning.

Definition at line 175 of file vtkPVRenderViewDataDeliveryManager.h.

◆ MoveData()

void vtkPVRenderViewDataDeliveryManager::MoveData	(	vtkPVDataRepresentation *	repr,
		bool	low_res,
		int	port
	)

overrideprotectedvirtual

This method is called to request that the subclass do appropriate transfer for the indicated representation.

Implements vtkPVDataDeliveryManager.

◆ GetViewDataDistributionMode()

int vtkPVRenderViewDataDeliveryManager::GetViewDataDistributionMode ( bool low_res ) const

protected

◆ GetMoveMode()

int vtkPVRenderViewDataDeliveryManager::GetMoveMode	(	vtkInformation *	info,
		int	viewMode
	)		const

protected

Member Data Documentation

◆ Cuts

std::vector<vtkBoundingBox> vtkPVRenderViewDataDeliveryManager::Cuts

protected

Definition at line 187 of file vtkPVRenderViewDataDeliveryManager.h.

◆ RawCuts

std::vector<vtkBoundingBox> vtkPVRenderViewDataDeliveryManager::RawCuts

protected

Definition at line 188 of file vtkPVRenderViewDataDeliveryManager.h.

◆ RawCutsRankAssignments

std::vector<int> vtkPVRenderViewDataDeliveryManager::RawCutsRankAssignments

protected

Definition at line 189 of file vtkPVRenderViewDataDeliveryManager.h.

◆ CutsMTime

vtkTimeStamp vtkPVRenderViewDataDeliveryManager::CutsMTime

protected

Definition at line 190 of file vtkPVRenderViewDataDeliveryManager.h.

◆ RedistributionTimeStamp

vtkTimeStamp vtkPVRenderViewDataDeliveryManager::RedistributionTimeStamp

protected

Definition at line 192 of file vtkPVRenderViewDataDeliveryManager.h.

◆ LastCutsGeneratorToken

std::string vtkPVRenderViewDataDeliveryManager::LastCutsGeneratorToken

protected

Definition at line 193 of file vtkPVRenderViewDataDeliveryManager.h.

◆ UseRedistributedDataAsDeliveredData

bool vtkPVRenderViewDataDeliveryManager::UseRedistributedDataAsDeliveredData = false

protected

Definition at line 194 of file vtkPVRenderViewDataDeliveryManager.h.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Remoting/Views/vtkPVRenderViewDataDeliveryManager.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ Superclass

Constructor & Destructor Documentation

◆ vtkPVRenderViewDataDeliveryManager()

◆ ~vtkPVRenderViewDataDeliveryManager()

Member Function Documentation

◆ New()

◆ GetClassName()

◆ IsTypeOf()

◆ IsA()

◆ SafeDownCast()

◆ PrintSelf()

◆ SetDeliverToAllProcesses()

◆ SetDeliverToClientAndRenderingProcesses()

◆ SetRedistributionMode()

◆ SetRedistributionModeToSplitBoundaryCells()

◆ SetRedistributionModeToDuplicateBoundaryCells()

◆ SetRedistributionModeToUniquelyAssignBoundaryCells()

◆ RedistributeDataForOrderedCompositing()

◆ ClearRedistributedData()

◆ SetOrderedCompositingConfiguration()

◆ SetGeometryBounds()

◆ GetGeometryBounds()

◆ GetTransformedGeometryBounds()

◆ SetStreamable()

◆ SetNextStreamedPiece()

◆ GetCurrentStreamedPiece()

◆ ClearStreamedPieces()

◆ DeliverStreamedPieces()

◆ GetRepresentationsReadyToStreamPieces()

◆ GetUseRedistributedDataAsDeliveredData()

◆ SetUseRedistributedDataAsDeliveredData()

◆ GetDeliveredDataKey()

◆ GetCuts()

◆ GetCutsMTime()

◆ GetRawCuts()

◆ GetRawCutsRankAssignments()

◆ MoveData()

◆ GetViewDataDistributionMode()

◆ GetMoveMode()

Member Data Documentation

◆ Cuts

◆ RawCuts

◆ RawCutsRankAssignments

◆ CutsMTime

◆ RedistributionTimeStamp

◆ LastCutsGeneratorToken

◆ UseRedistributedDataAsDeliveredData
