representation for a polar-axes. More...

#include <vtkPolarAxesRepresentation.h>

Inheritance diagram for vtkPolarAxesRepresentation:

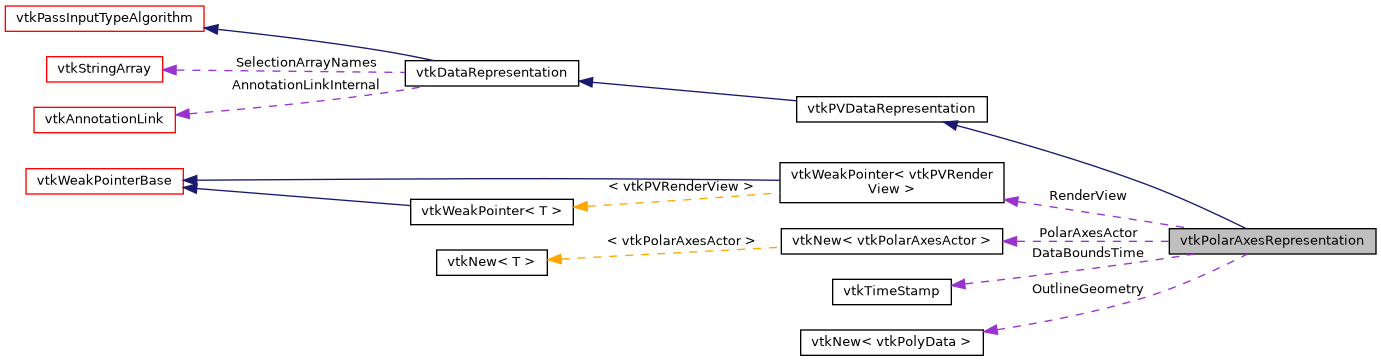

Collaboration diagram for vtkPolarAxesRepresentation:

[legend]

Public Types
typedef vtkPVDataRepresentation	Superclass

Public Types inherited from vtkPVDataRepresentation
enum	{ SkippedUpdateDataEvent = vtkCommand::UserEvent + 91, UpdateTimeChangedEvent }

typedef vtkDataRepresentation	Superclass

Public Types inherited from vtkDataRepresentation
typedef vtkPassInputTypeAlgorithm	Superclass

Public Types inherited from vtkPassInputTypeAlgorithm
typedef vtkAlgorithm	Superclass

Public Types inherited from vtkAlgorithm
enum	DesiredOutputPrecision

enum	DesiredOutputPrecision

typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

virtual double *	GetDataBounds ()
	Get the bounds of the data. More...

virtual void	GetDataBounds (double &, double &, double &, double &, double &, double &)

virtual void	GetDataBounds (double [6])

void	MarkModified () override
	This needs to be called on all instances of vtkPolarAxesRepresentation when the input is modified. More...

int	ProcessViewRequest (vtkInformationRequestKey request_type, vtkInformation inInfo, vtkInformation *outInfo) override
	vtkAlgorithm::ProcessRequest() equivalent for rendering passes. More...

void	SetVisibility (bool visible) override
	Set visibility of the representation. More...

virtual void	SetParentVisibility (bool visible)
	Set (forward) visibility of the parent (composite) representation. More...


virtual void	SetPosition (double, double, double)
	Get/Set the Position to transform the data bounds. More...

virtual void	SetPosition (double [3])
	Get/Set the Position to transform the data bounds. More...

virtual double *	GetPosition ()
	Get/Set the Position to transform the data bounds. More...

virtual void	GetPosition (double &, double &, double &)
	Get/Set the Position to transform the data bounds. More...

virtual void	GetPosition (double [3])
	Get/Set the Position to transform the data bounds. More...


virtual void	SetOrientation (double, double, double)
	Get/Set the Orientation to transform the data bounds. More...

virtual void	SetOrientation (double [3])
	Get/Set the Orientation to transform the data bounds. More...

virtual double *	GetOrientation ()
	Get/Set the Orientation to transform the data bounds. More...

virtual void	GetOrientation (double &, double &, double &)
	Get/Set the Orientation to transform the data bounds. More...

virtual void	GetOrientation (double [3])
	Get/Set the Orientation to transform the data bounds. More...


virtual void	SetScale (double, double, double)
	Get/Set the Scale to transform the data bounds. More...

virtual void	SetScale (double [3])
	Get/Set the Scale to transform the data bounds. More...

virtual double *	GetScale ()
	Get/Set the Scale to transform the data bounds. More...

virtual void	GetScale (double &, double &, double &)
	Get/Set the Scale to transform the data bounds. More...

virtual void	GetScale (double [3])
	Get/Set the Scale to transform the data bounds. More...


virtual void	SetCustomBounds (double, double, double, double, double, double)
	Get/Set custom bounds to use. More...

virtual void	SetCustomBounds (double [6])
	Get/Set custom bounds to use. More...

virtual double *	GetCustomBounds ()
	Get/Set custom bounds to use. More...

virtual void	GetCustomBounds (double &, double &, double &, double &, double &, double &)
	Get/Set custom bounds to use. More...

virtual void	GetCustomBounds (double [6])
	Get/Set custom bounds to use. More...


virtual void	SetEnableCustomBounds (int, int, int)
	Get/Set whether to use custom bounds for a particular dimension. More...

virtual void	SetEnableCustomBounds (int [3])
	Get/Set whether to use custom bounds for a particular dimension. More...

virtual int *	GetEnableCustomBounds ()
	Get/Set whether to use custom bounds for a particular dimension. More...

virtual void	GetEnableCustomBounds (int &, int &, int &)
	Get/Set whether to use custom bounds for a particular dimension. More...

virtual void	GetEnableCustomBounds (int [3])
	Get/Set whether to use custom bounds for a particular dimension. More...


virtual void	SetEnableCustomRange (bool)
	Get/Set the use of a custom range. More...

virtual bool	GetEnableCustomRange ()
	Get/Set the use of a custom range. More...


virtual void	SetCustomRange (double, double)
	Get/Set custom range to use. More...

void	SetCustomRange (double [2])
	Get/Set custom range to use. More...

virtual double *	GetCustomRange ()
	Get/Set custom range to use. More...

virtual void	GetCustomRange (double &, double &)
	Get/Set custom range to use. More...

virtual void	GetCustomRange (double [2])
	Get/Set custom range to use. More...


virtual void	SetEnableAutoPole (bool)
	Get/Set the use of automatically placed pole (origin of the axes). More...

virtual bool	GetEnableAutoPole ()
	Get/Set the use of automatically placed pole (origin of the axes). More...


virtual void	SetEnableCustomAngle (bool)
	Get/Set the use of custom min/max angles. More...

virtual bool	GetEnableCustomAngle ()
	Get/Set the use of custom min/max angles. More...


virtual void	SetMinAngle (double)
	Get/Set the custom min/max angles when EnableCustomAngle is On. More...

virtual double	GetMinAngle ()
	Get/Set the custom min/max angles when EnableCustomAngle is On. More...

virtual void	SetMaxAngle (double)
	Get/Set the custom min/max angles when EnableCustomAngle is On. More...

virtual double	GetMaxAngle ()
	Get/Set the custom min/max angles when EnableCustomAngle is On. More...


virtual void	SetEnableCustomRadius (bool enabled)
	Get/Set the use of custom min radius. More...

virtual bool	GetEnableCustomRadius ()
	Get/Set the use of custom min radius. More...

void	SetEnableCustomMinRadius (bool enabled)
	Get/Set the use of custom min radius. More...

virtual double	GetEnableCustomMinRadius ()
	Get/Set the use of custom min radius. More...


virtual void	SetMinRadius (double)
	Get/Set the custom min radius when EnableCustomMinRadius is On. More...

virtual double	GetMinRadius ()
	Get/Set the custom min radius when EnableCustomMinRadius is On. More...


virtual void	SetEnableCustomMaxRadius (bool)
	Get/Set the use of custom min radius. More...

virtual bool	GetEnableCustomMaxRadius ()
	Get/Set the use of custom min radius. More...


virtual void	SetMaxRadius (double)
	Get/Set the custom min radius when EnableCustomMaxRadius is On. More...

virtual double	GetMaxRadius ()
	Get/Set the custom min radius when EnableCustomMaxRadius is On. More...


virtual bool	GetEnableOverallColor ()
	Set the actor color. More...

virtual void	SetEnableOverallColor (bool enable)
	Set the actor color. More...

virtual void	SetOverallColor (double r, double g, double b)
	Set the actor color. More...

virtual void	SetPolarAxisColor (double r, double g, double b)
	Set the actor color. More...

virtual void	SetPolarArcsColor (double r, double g, double b)
	Set the actor color. More...

virtual void	SetSecondaryPolarArcsColor (double r, double g, double b)
	Set the actor color. More...

virtual void	SetSecondaryRadialAxesColor (double r, double g, double b)
	Set the actor color. More...

virtual void	SetLastRadialAxisColor (double r, double g, double b)
	Set the actor color. More...

virtual void	SetPolarAxisTitleTextProperty (vtkTextProperty *prop)
	Set the actor color. More...

virtual void	SetPolarAxisLabelTextProperty (vtkTextProperty *prop)
	Set the actor color. More...

virtual void	SetLastRadialAxisTextProperty (vtkTextProperty *prop)
	Set the actor color. More...

virtual void	SetSecondaryRadialAxesTextProperty (vtkTextProperty *prop)
	Set the actor color. More...


virtual void	SetLog (bool active)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetNumberOfRadialAxes (vtkIdType val)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetNumberOfPolarAxes (vtkIdType val)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetDeltaAngleRadialAxes (double angle)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetDeltaRangePolarAxes (double range)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetSmallestVisiblePolarAngle (double angle)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetTickLocation (int location)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetRadialUnits (bool use)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetScreenSize (double size)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetPolarAxisTitle (const char *title)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetPolarLabelFormat (const char *format)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetExponentLocation (int location)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetRadialAngleFormat (const char *format)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetEnableDistanceLOD (int enable)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetDistanceLODThreshold (double val)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetEnableViewAngleLOD (int enable)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetViewAngleLODThreshold (double val)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetPolarAxisVisibility (int visible)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetDrawRadialGridlines (int draw)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetDrawPolarArcsGridlines (int draw)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetPolarTitleVisibility (int visible)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetRadialAxisTitleLocation (int location)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetPolarAxisTitleLocation (int location)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetRadialTitleOffset (double offsetX, double offsetY)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetPolarTitleOffset (double offsetX, double offsetY)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetPolarLabelOffset (double offsetY)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetPolarExponentOffset (double offsetY)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetPolarLabelVisibility (int visible)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetArcTicksOriginToPolarAxis (int use)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetRadialAxesOriginToPolarAxis (int use)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetPolarTickVisibility (int visible)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetAxisTickVisibility (int visible)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetAxisMinorTickVisibility (int visible)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetAxisTickMatchesPolarAxes (int enable)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetArcTickVisibility (int visible)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetArcMinorTickVisibility (int visible)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetArcTickMatchesRadialAxes (int enable)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetTickRatioRadiusSize (double ratio)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetArcMajorTickSize (double size)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetPolarAxisMajorTickSize (double size)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetLastRadialAxisMajorTickSize (double size)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetPolarAxisTickRatioSize (double size)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetLastAxisTickRatioSize (double size)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetArcTickRatioSize (double size)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetPolarAxisMajorTickThickness (double thickness)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetLastRadialAxisMajorTickThickness (double thickness)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetArcMajorTickThickness (double thickness)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetPolarAxisTickRatioThickness (double thickness)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetLastAxisTickRatioThickness (double thickness)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetArcTickRatioThickness (double thickness)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetDeltaAngleMajor (double delta)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetDeltaAngleMinor (double delta)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetRadialAxesVisibility (int visible)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetRadialTitleVisibility (int visible)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetPolarArcsVisibility (int visible)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetUse2DMode (int use)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetRatio (double ratio)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetPolarArcResolutionPerDegree (double resolution)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetDeltaRangeMinor (double delta)
	Forwarded to internal vtkPolarAxesActor. More...

virtual void	SetDeltaRangeMajor (double delta)
	Forwarded to internal vtkPolarAxesActor. More...


virtual void	SetRendererType (int)
	Set the renderer to use. More...

virtual int	GetRendererType ()
	Set the renderer to use. More...

Public Member Functions inherited from vtkPVDataRepresentation
void	PrintSelf (ostream &os, vtkIndent indent) override

virtual unsigned int	Initialize (unsigned int minIdAvailable, unsigned int maxIdAvailable)
	Initialize the representation with an identifier range so each internal representation can own a unique ID. More...

unsigned int	GetUniqueIdentifier ()
	Return 0 if the Initialize() method was not called otherwise a unique ID that will be shared across the processes for that same object. More...

virtual bool	GetVisibility ()

virtual vtkDataObject *	GetRenderedDataObject (int vtkNotUsed(port))
	Returns the data object that is rendered from the given input port. More...

double	GetCacheKey () const
	Returns the cache-key the representation is currently using. More...

vtkAlgorithmOutput *	GetInternalOutputPort () override
	Retrieves an output port for the input data object at the specified port and connection index. More...

vtkAlgorithmOutput *	GetInternalOutputPort (int port) override

vtkAlgorithmOutput *	GetInternalOutputPort (int port, int conn) override

vtkView *	GetView () const
	Provides access to the view. More...

vtkMTimeType	GetPipelineDataTime ()
	Returns the timestamp when `RequestData` was executed on the representation. More...

bool	GetNeedsUpdate ()
	Returns true if the representation needs an update. More...

virtual void	SetArrayIdNames (const char vtkNotUsed(pointArray), const char vtkNotUsed(cellArray))
	Specify the array names used for the selection. More...

virtual void	SetUpdateTime (double time)
	Set the update time. More...

virtual double	GetUpdateTime ()
	Set the update time. More...

virtual bool	GetUpdateTimeValid ()
	Get whether the UpdateTime is valid. More...

void	ResetUpdateTime ()
	Get whether the UpdateTime is valid. More...

virtual void	SetForcedCacheKey (double val)
	Generally, caching is within the purview of the vtkPVView (and subclasses). More...

virtual void	SetForceUseCache (bool val)
	Generally, caching is within the purview of the vtkPVView (and subclasses). More...

virtual double	GetForcedCacheKey ()
	Generally, caching is within the purview of the vtkPVView (and subclasses). More...

virtual bool	GetForceUseCache ()
	Generally, caching is within the purview of the vtkPVView (and subclasses). More...

bool	AddToView (vtkView *view) override
	Making these methods public. More...

bool	RemoveFromView (vtkView *view) override
	Making these methods public. More...

virtual void	SetLogName (const std::string &name)
	This is solely intended to simplify debugging and use for any other purpose is vehemently discouraged. More...

const std::string &	GetLogName () const
	This is solely intended to simplify debugging and use for any other purpose is vehemently discouraged. More...

virtual bool	GetHasTemporalPipeline ()
	This flag indicates if the representation is for a temporal pipeline. More...

virtual void	SetHasTemporalPipeline (bool)
	This flag indicates if the representation is for a temporal pipeline. More...

void	SetInputConnection (int port, vtkAlgorithmOutput *input) override
	Overridden to ensure that `MarkModified` is called. More...

void	AddInputConnection (int port, vtkAlgorithmOutput *input) override
	Overridden to ensure that `MarkModified` is called. More...

Public Member Functions inherited from vtkDataRepresentation
vtkDataRepresentation *	NewInstance () const

virtual void	ApplyViewTheme (vtkViewTheme *vtkNotUsed(theme))

virtual vtkSelection *	ConvertSelection (vtkView view, vtkSelection selection)

vtkAlgorithmOutput *	GetInputConnection (int port=0, int index=0)

vtkAnnotationLink *	GetAnnotationLink ()

void	SetAnnotationLink (vtkAnnotationLink *link)

void	Select (vtkView view, vtkSelection selection)

void	Select (vtkView view, vtkSelection selection, bool extend)

void	Annotate (vtkView view, vtkAnnotationLayers annotations)

void	Annotate (vtkView view, vtkAnnotationLayers annotations, bool extend)

virtual void	SetSelectable (bool)

virtual bool	GetSelectable ()

virtual void	SelectableOn ()

virtual void	SelectableOff ()

void	UpdateSelection (vtkSelection *selection)

void	UpdateSelection (vtkSelection *selection, bool extend)

void	UpdateAnnotations (vtkAnnotationLayers *annotations)

void	UpdateAnnotations (vtkAnnotationLayers *annotations, bool extend)

virtual vtkAlgorithmOutput *	GetInternalAnnotationOutputPort ()

virtual vtkAlgorithmOutput *	GetInternalAnnotationOutputPort (int port)

virtual vtkAlgorithmOutput *	GetInternalAnnotationOutputPort (int port, int conn)

virtual vtkAlgorithmOutput *	GetInternalSelectionOutputPort ()

virtual vtkAlgorithmOutput *	GetInternalSelectionOutputPort (int port)

virtual vtkAlgorithmOutput *	GetInternalSelectionOutputPort (int port, int conn)

virtual void	SetSelectionType (int)

virtual int	GetSelectionType ()

virtual void	SetSelectionArrayNames (vtkStringArray *names)

virtual vtkStringArray *	GetSelectionArrayNames ()

virtual void	SetSelectionArrayName (const char *name)

virtual const char *	GetSelectionArrayName ()

vtkAlgorithmOutput *	GetInputConnection (int port=0, int index=0)

vtkAnnotationLink *	GetAnnotationLink ()

void	SetAnnotationLink (vtkAnnotationLink *link)

void	Select (vtkView view, vtkSelection selection)

void	Select (vtkView view, vtkSelection selection, bool extend)

void	Annotate (vtkView view, vtkAnnotationLayers annotations)

void	Annotate (vtkView view, vtkAnnotationLayers annotations, bool extend)

virtual void	SetSelectable (bool)

virtual bool	GetSelectable ()

virtual void	SelectableOn ()

virtual void	SelectableOff ()

void	UpdateSelection (vtkSelection *selection)

void	UpdateSelection (vtkSelection *selection, bool extend)

void	UpdateAnnotations (vtkAnnotationLayers *annotations)

void	UpdateAnnotations (vtkAnnotationLayers *annotations, bool extend)

virtual vtkAlgorithmOutput *	GetInternalAnnotationOutputPort ()

virtual vtkAlgorithmOutput *	GetInternalAnnotationOutputPort (int port)

virtual vtkAlgorithmOutput *	GetInternalAnnotationOutputPort (int port, int conn)

virtual vtkAlgorithmOutput *	GetInternalSelectionOutputPort ()

virtual vtkAlgorithmOutput *	GetInternalSelectionOutputPort (int port)

virtual vtkAlgorithmOutput *	GetInternalSelectionOutputPort (int port, int conn)

virtual void	SetSelectionType (int)

virtual int	GetSelectionType ()

virtual void	SetSelectionArrayNames (vtkStringArray *names)

virtual vtkStringArray *	GetSelectionArrayNames ()

virtual void	SetSelectionArrayName (const char *name)

virtual const char *	GetSelectionArrayName ()

Public Member Functions inherited from vtkPassInputTypeAlgorithm
vtkPassInputTypeAlgorithm *	NewInstance () const

vtkPolyData *	GetPolyDataOutput ()

vtkStructuredPoints *	GetStructuredPointsOutput ()

vtkImageData *	GetImageDataOutput ()

vtkStructuredGrid *	GetStructuredGridOutput ()

vtkUnstructuredGrid *	GetUnstructuredGridOutput ()

vtkRectilinearGrid *	GetRectilinearGridOutput ()

vtkTable *	GetTableOutput ()

vtkGraph *	GetGraphOutput ()

vtkDataObject *	GetInput ()

vtkDataObject *	GetOutput ()

vtkDataObject *	GetOutput (int)

void	SetInputData (vtkDataObject *)

void	SetInputData (int, vtkDataObject *)

void	AddInputData (vtkDataObject *)

void	AddInputData (int, vtkDataObject *)

virtual int	ProcessRequest (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)

vtkDataObject *	GetOutput ()

vtkDataObject *	GetOutput (int)

void	SetInputData (vtkDataObject *)

void	SetInputData (int, vtkDataObject *)

void	AddInputData (vtkDataObject *)

void	AddInputData (int, vtkDataObject *)

virtual int	ProcessRequest (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)

Public Member Functions inherited from vtkAlgorithm
vtkAlgorithm *	NewInstance () const

int	HasExecutive ()

vtkExecutive *	GetExecutive ()

virtual void	SetExecutive (vtkExecutive *executive)

virtual int	ModifyRequest (vtkInformation *request, int when)

vtkInformation *	GetInputPortInformation (int port)

vtkInformation *	GetOutputPortInformation (int port)

int	GetNumberOfInputPorts ()

int	GetNumberOfOutputPorts ()

void	UpdateProgress (double amount)

vtkInformation *	GetInputArrayInformation (int idx)

void	RemoveAllInputs ()

vtkDataObject *	GetOutputDataObject (int port)

virtual void	RemoveInputConnection (int port, vtkAlgorithmOutput *input)

virtual void	RemoveInputConnection (int port, int idx)

virtual void	RemoveAllInputConnections (int port)

int	GetNumberOfInputConnections (int port)

int	GetTotalNumberOfInputConnections ()

vtkAlgorithmOutput *	GetInputConnection (int port, int index)

vtkAlgorithm *	GetInputAlgorithm (int port, int index, int &algPort)

vtkAlgorithm *	GetInputAlgorithm (int port, int index)

vtkExecutive *	GetInputExecutive (int port, int index)

vtkInformation *	GetInputInformation (int port, int index)

vtkInformation *	GetOutputInformation (int port)

virtual int	Update (int port, vtkInformationVector *requests)

virtual int	Update (vtkInformation *requests)

virtual int	UpdateExtent (const int extents[6])

virtual void	UpdateInformation ()

virtual void	UpdateDataObject ()

virtual void	PropagateUpdateExtent ()

virtual void	UpdateWholeExtent ()

void	ConvertTotalInputToPortConnection (int ind, int &port, int &conn)

int	SetUpdateExtentToWholeExtent (int port)

int	SetUpdateExtentToWholeExtent ()

void	SetUpdateExtent (int port, int extent[6])

void	SetUpdateExtent (int extent[6])

int	ProcessRequest (vtkInformation request, vtkCollection inInfo, vtkInformationVector *outInfo)

virtual int	ComputePipelineMTime (vtkInformation request, vtkInformationVector inInfoVec, vtkInformationVector outInfoVec, int requestFromOutputPort, vtkMTimeType *mtime)

virtual vtkInformation *	GetInformation ()

virtual void	SetInformation (vtkInformation *)

void	Register (vtkObjectBase *o) VTK_OVERRIDE

void	UnRegister (vtkObjectBase *o) VTK_OVERRIDE

virtual void	SetAbortExecute (int)

virtual int	GetAbortExecute ()

virtual void	AbortExecuteOn ()

virtual void	AbortExecuteOff ()

virtual void	SetProgress (double)

virtual double	GetProgress ()

void	SetProgressText (const char *ptext)

virtual char *	GetProgressText ()

virtual unsigned long	GetErrorCode ()

virtual void	SetInputArrayToProcess (int idx, int port, int connection, int fieldAssociation, const char *name)

virtual void	SetInputArrayToProcess (int idx, int port, int connection, int fieldAssociation, int fieldAttributeType)

virtual void	SetInputArrayToProcess (int idx, vtkInformation *info)

virtual void	SetInputArrayToProcess (int idx, int port, int connection, const char fieldAssociation, const char attributeTypeorName)

vtkDataObject *	GetInputDataObject (int port, int connection)

virtual void	SetInputConnection (vtkAlgorithmOutput *input)

virtual void	AddInputConnection (vtkAlgorithmOutput *input)

virtual void	SetInputDataObject (int port, vtkDataObject *data)

virtual void	SetInputDataObject (vtkDataObject *data)

virtual void	AddInputDataObject (int port, vtkDataObject *data)

virtual void	AddInputDataObject (vtkDataObject *data)

vtkAlgorithmOutput *	GetOutputPort (int index)

vtkAlgorithmOutput *	GetOutputPort ()

vtkAlgorithm *	GetInputAlgorithm ()

vtkExecutive *	GetInputExecutive ()

vtkInformation *	GetInputInformation ()

virtual void	Update (int port)

virtual void	Update ()

virtual int	UpdatePiece (int piece, int numPieces, int ghostLevels, const int extents[6]=0)

virtual int	UpdateTimeStep (double time, int piece=-1, int numPieces=1, int ghostLevels=0, const int extents[6]=0)

virtual void	SetReleaseDataFlag (int)

virtual int	GetReleaseDataFlag ()

void	ReleaseDataFlagOn ()

void	ReleaseDataFlagOff ()

int	UpdateExtentIsEmpty (vtkInformation pinfo, vtkDataObject output)

int	UpdateExtentIsEmpty (vtkInformation *pinfo, int extentType)

void	SetUpdateExtent (int port, int piece, int numPieces, int ghostLevel)

void	SetUpdateExtent (int piece, int numPieces, int ghostLevel)

int *	GetUpdateExtent ()

int *	GetUpdateExtent (int port)

void	GetUpdateExtent (int &x0, int &x1, int &y0, int &y1, int &z0, int &z1)

void	GetUpdateExtent (int port, int &x0, int &x1, int &y0, int &y1, int &z0, int &z1)

void	GetUpdateExtent (int extent[6])

void	GetUpdateExtent (int port, int extent[6])

int	GetUpdatePiece ()

int	GetUpdatePiece (int port)

int	GetUpdateNumberOfPieces ()

int	GetUpdateNumberOfPieces (int port)

int	GetUpdateGhostLevel ()

int	GetUpdateGhostLevel (int port)

void	SetProgressObserver (vtkProgressObserver *)

virtual vtkProgressObserver *	GetProgressObserver ()

int	ProcessRequest (vtkInformation request, vtkCollection inInfo, vtkInformationVector *outInfo)

virtual int	ComputePipelineMTime (vtkInformation request, vtkInformationVector inInfoVec, vtkInformationVector outInfoVec, int requestFromOutputPort, vtkMTimeType *mtime)

virtual vtkInformation *	GetInformation ()

virtual void	SetInformation (vtkInformation *)

void	Register (vtkObjectBase *o) VTK_OVERRIDE

void	UnRegister (vtkObjectBase *o) VTK_OVERRIDE

virtual void	SetAbortExecute (int)

virtual int	GetAbortExecute ()

virtual void	AbortExecuteOn ()

virtual void	AbortExecuteOff ()

virtual void	SetProgress (double)

virtual double	GetProgress ()

void	SetProgressText (const char *ptext)

virtual char *	GetProgressText ()

virtual unsigned long	GetErrorCode ()

virtual void	SetInputArrayToProcess (int idx, int port, int connection, int fieldAssociation, const char *name)

virtual void	SetInputArrayToProcess (int idx, int port, int connection, int fieldAssociation, int fieldAttributeType)

virtual void	SetInputArrayToProcess (int idx, vtkInformation *info)

virtual void	SetInputArrayToProcess (int idx, int port, int connection, const char fieldAssociation, const char attributeTypeorName)

vtkDataObject *	GetInputDataObject (int port, int connection)

virtual void	SetInputConnection (vtkAlgorithmOutput *input)

virtual void	AddInputConnection (vtkAlgorithmOutput *input)

virtual void	SetInputDataObject (int port, vtkDataObject *data)

virtual void	SetInputDataObject (vtkDataObject *data)

virtual void	AddInputDataObject (int port, vtkDataObject *data)

virtual void	AddInputDataObject (vtkDataObject *data)

vtkAlgorithmOutput *	GetOutputPort (int index)

vtkAlgorithmOutput *	GetOutputPort ()

vtkAlgorithm *	GetInputAlgorithm ()

vtkExecutive *	GetInputExecutive ()

vtkInformation *	GetInputInformation ()

virtual void	Update (int port)

virtual void	Update ()

virtual int	UpdatePiece (int piece, int numPieces, int ghostLevels, const int extents[6]=0)

virtual int	UpdateTimeStep (double time, int piece=-1, int numPieces=1, int ghostLevels=0, const int extents[6]=0)

virtual void	SetReleaseDataFlag (int)

virtual int	GetReleaseDataFlag ()

void	ReleaseDataFlagOn ()

void	ReleaseDataFlagOff ()

int	UpdateExtentIsEmpty (vtkInformation pinfo, vtkDataObject output)

int	UpdateExtentIsEmpty (vtkInformation *pinfo, int extentType)

void	SetUpdateExtent (int port, int piece, int numPieces, int ghostLevel)

void	SetUpdateExtent (int piece, int numPieces, int ghostLevel)

int *	GetUpdateExtent ()

int *	GetUpdateExtent (int port)

void	GetUpdateExtent (int &x0, int &x1, int &y0, int &y1, int &z0, int &z1)

void	GetUpdateExtent (int port, int &x0, int &x1, int &y0, int &y1, int &z0, int &z1)

void	GetUpdateExtent (int extent[6])

void	GetUpdateExtent (int port, int extent[6])

int	GetUpdatePiece ()

int	GetUpdatePiece (int port)

int	GetUpdateNumberOfPieces ()

int	GetUpdateNumberOfPieces (int port)

int	GetUpdateGhostLevel ()

int	GetUpdateGhostLevel (int port)

void	SetProgressObserver (vtkProgressObserver *)

virtual vtkProgressObserver *	GetProgressObserver ()

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkPolarAxesRepresentation *	New ()

static int	IsTypeOf (const char *type)

static vtkPolarAxesRepresentation *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkPVDataRepresentation
static int	IsTypeOf (const char *type)

static vtkPVDataRepresentation *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkDataRepresentation
static vtkDataRepresentation *	New ()

static int	IsTypeOf (const char *type)

static vtkDataRepresentation *	SafeDownCast (vtkObjectBase *o)

Static Public Member Functions inherited from vtkPassInputTypeAlgorithm
static vtkPassInputTypeAlgorithm *	New ()

static int	IsTypeOf (const char *type)

static vtkPassInputTypeAlgorithm *	SafeDownCast (vtkObjectBase *o)

Static Public Member Functions inherited from vtkAlgorithm
static vtkAlgorithm *	New ()

static int	IsTypeOf (const char *type)

static vtkAlgorithm *	SafeDownCast (vtkObjectBase *o)

static vtkInformationIntegerKey *	INPUT_IS_OPTIONAL ()

static vtkInformationIntegerKey *	INPUT_IS_REPEATABLE ()

static vtkInformationInformationVectorKey *	INPUT_REQUIRED_FIELDS ()

static vtkInformationStringVectorKey *	INPUT_REQUIRED_DATA_TYPE ()

static vtkInformationInformationVectorKey *	INPUT_ARRAYS_TO_PROCESS ()

static vtkInformationIntegerKey *	INPUT_PORT ()

static vtkInformationIntegerKey *	INPUT_CONNECTION ()

static vtkInformationIntegerKey *	CAN_PRODUCE_SUB_EXTENT ()

static vtkInformationIntegerKey *	CAN_HANDLE_PIECE_REQUEST ()

static void	SetDefaultExecutivePrototype (vtkExecutive *proto)

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkPolarAxesRepresentation ()

	~vtkPolarAxesRepresentation () override

int	FillInputPortInformation (int port, vtkInformation *info) override

int	RequestData (vtkInformation , vtkInformationVector inputVector, vtkInformationVector ) override

virtual void	InitializeDataBoundsFromData (vtkDataObject *data)

virtual void	UpdateBounds ()

bool	AddToView (vtkView *view) override
	Adds the representation to the view. More...

bool	RemoveFromView (vtkView *view) override
	Removes the representation to the view. More...

Protected Member Functions inherited from vtkPVDataRepresentation
	vtkPVDataRepresentation ()

	~vtkPVDataRepresentation () override

vtkExecutive *	CreateDefaultExecutive () override
	Create a default executive. More...

int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector ) override
	Overridden to invoke vtkCommand::UpdateDataEvent. More...

int	RequestUpdateExtent (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector) override

int	RequestUpdateTime (vtkInformation , vtkInformationVector , vtkInformationVector ) override

Protected Member Functions inherited from vtkDataRepresentation
virtual vtkObjectBase *	NewInstanceInternal () const

	vtkDataRepresentation ()

	~vtkDataRepresentation ()

virtual void	ProcessEvents (vtkObject caller, unsigned long eventId, void callData)

virtual bool	AddToView (vtkView *vtkNotUsed(view))

virtual bool	RemoveFromView (vtkView *vtkNotUsed(view))

virtual vtkAnnotationLayers *	ConvertAnnotations (vtkView view, vtkAnnotationLayers annotations)

vtkTrivialProducer *	GetInternalInput (int port, int conn)

void	SetInternalInput (int port, int conn, vtkTrivialProducer *producer)

virtual void	SetAnnotationLinkInternal (vtkAnnotationLink *link)

Protected Member Functions inherited from vtkPassInputTypeAlgorithm
	vtkPassInputTypeAlgorithm ()

	~vtkPassInputTypeAlgorithm ()

virtual int	RequestUpdateTimeDependentInformation (vtkInformation , vtkInformationVector , vtkInformationVector )

virtual int	FillOutputPortInformation (int port, vtkInformation *info)

vtkDataObject *	GetInput (int port)

virtual int	RequestInformation (vtkInformation , vtkInformationVector , vtkInformationVector )

virtual int	RequestDataObject (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)

virtual int	RequestInformation (vtkInformation , vtkInformationVector , vtkInformationVector )

virtual int	RequestDataObject (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)

Protected Member Functions inherited from vtkAlgorithm
	vtkAlgorithm ()

	~vtkAlgorithm ()

virtual void	SetNumberOfInputPorts (int n)

virtual void	SetNumberOfOutputPorts (int n)

int	InputPortIndexInRange (int index, const char *action)

int	OutputPortIndexInRange (int index, const char *action)

int	GetInputArrayAssociation (int idx, vtkInformationVector **inputVector)

void	ReportReferences (vtkGarbageCollector *) VTK_OVERRIDE

virtual void	SetNumberOfInputConnections (int port, int n)

int	GetInputArrayAssociation (int idx, int connection, vtkInformationVector **inputVector)

int	GetInputArrayAssociation (int idx, vtkDataObject *input)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkInformationVector **inputVector)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkInformationVector **inputVector, int &association)

vtkDataArray *	GetInputArrayToProcess (int idx, int connection, vtkInformationVector **inputVector)

vtkDataArray *	GetInputArrayToProcess (int idx, int connection, vtkInformationVector **inputVector, int &association)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkDataObject *input)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkDataObject *input, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkInformationVector **inputVector)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkInformationVector **inputVector, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, int connection, vtkInformationVector **inputVector)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, int connection, vtkInformationVector **inputVector, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkDataObject *input)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkDataObject *input, int &association)

vtkInformation *	GetInputArrayFieldInformation (int idx, vtkInformationVector **inputVector)

virtual void	SetNthInputConnection (int port, int index, vtkAlgorithmOutput *input)

void	SetInputDataInternal (int port, vtkDataObject *input)

void	AddInputDataInternal (int port, vtkDataObject *input)

int	GetInputArrayAssociation (int idx, int connection, vtkInformationVector **inputVector)

int	GetInputArrayAssociation (int idx, vtkDataObject *input)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkInformationVector **inputVector)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkInformationVector **inputVector, int &association)

vtkDataArray *	GetInputArrayToProcess (int idx, int connection, vtkInformationVector **inputVector)

vtkDataArray *	GetInputArrayToProcess (int idx, int connection, vtkInformationVector **inputVector, int &association)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkDataObject *input)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkDataObject *input, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkInformationVector **inputVector)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkInformationVector **inputVector, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, int connection, vtkInformationVector **inputVector)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, int connection, vtkInformationVector **inputVector, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkDataObject *input)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkDataObject *input, int &association)

vtkInformation *	GetInputArrayFieldInformation (int idx, vtkInformationVector **inputVector)

virtual void	SetErrorCode (unsigned long)

virtual void	SetNthInputConnection (int port, int index, vtkAlgorithmOutput *input)

void	SetInputDataInternal (int port, vtkDataObject *input)

void	AddInputDataInternal (int port, vtkDataObject *input)

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Protected Attributes
vtkNew< vtkPolyData >	OutlineGeometry

vtkNew< vtkPolarAxesActor >	PolarAxesActor

vtkWeakPointer< vtkPVRenderView >	RenderView

double	Position [3] = { 0.0 }

double	Scale [3] = { 1.0 }

double	Orientation [3] = { 0.0 }

double	CustomBounds [6] = { 0.0, 1.0, 0.0, 1.0, 0.0, 1.0 }

int	EnableCustomBounds [3] = { 0 }

double	CustomRange [2] = { 0.0, 1.0 }

bool	EnableCustomRange = false

bool	EnableAutoPole = true

bool	EnableCustomAngle = true

double	MinAngle = 0.0

double	MaxAngle = 90.0

bool	EnableCustomRadius = true

double	MinRadius = 0.0

bool	EnableOverallColor = true

double	OverallColor [3] = { 1.0 }

double	PolarAxisColor [3] = { 1.0 }

double	PolarArcsColor [3] = { 1.0 }

double	SecondaryPolarArcsColor [3] = { 1.0 }

double	SecondaryRadialAxesColor [3] = { 1.0 }

double	LastRadialAxisColor [3] = { 1.0 }

double	DataBounds [6] = { 0.0 }

int	RendererType = vtkPVRenderView::DEFAULT_RENDERER

bool	ParentVisibility = true

vtkTimeStamp	DataBoundsTime

Protected Attributes inherited from vtkPVDataRepresentation
double	UpdateTime

bool	UpdateTimeValid

unsigned int	UniqueIdentifier

Protected Attributes inherited from vtkDataRepresentation
bool	Selectable

int	SelectionType

vtkStringArray *	SelectionArrayNames

Command *	Observer

vtkAnnotationLink *	AnnotationLinkInternal

Protected Attributes inherited from vtkAlgorithm
vtkInformation *	Information

double	Progress

char *	ProgressText

vtkProgressObserver *	ProgressObserver

unsigned long	ErrorCode

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Additional Inherited Members
Public Attributes inherited from vtkAlgorithm
	SINGLE_PRECISION

	DOUBLE_PRECISION

	DEFAULT_PRECISION

int	AbortExecute

Static Protected Member Functions inherited from vtkAlgorithm
static vtkInformationIntegerKey *	PORT_REQUIREMENTS_FILLED ()

Static Protected Attributes inherited from vtkAlgorithm
static vtkExecutive *	DefaultExecutivePrototype

Detailed Description

representation for a polar-axes.

vtkPolarAxesRepresentation is a representation for the Polar-Axes that shows a bounding box with labels around any input dataset.

Definition at line 25 of file vtkPolarAxesRepresentation.h.

Member Typedef Documentation

◆ Superclass

typedef vtkPVDataRepresentation vtkPolarAxesRepresentation::Superclass

Definition at line 29 of file vtkPolarAxesRepresentation.h.

Constructor & Destructor Documentation

◆ vtkPolarAxesRepresentation()

vtkPolarAxesRepresentation::vtkPolarAxesRepresentation ( )

protected

◆ ~vtkPolarAxesRepresentation()

vtkPolarAxesRepresentation::~vtkPolarAxesRepresentation ( )

overrideprotected

Member Function Documentation

◆ New()

static vtkPolarAxesRepresentation* vtkPolarAxesRepresentation::New ( )

static

◆ GetClassName()

virtual const char* vtkPolarAxesRepresentation::GetClassName ( )

virtual

Reimplemented from vtkPVDataRepresentation.

◆ IsTypeOf()

static int vtkPolarAxesRepresentation::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkPolarAxesRepresentation::IsA ( const char * type )

virtual

Reimplemented from vtkPVDataRepresentation.

◆ SafeDownCast()

static vtkPolarAxesRepresentation* vtkPolarAxesRepresentation::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkPolarAxesRepresentation::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkDataRepresentation.

◆ SetPosition() [1/2]

virtual void vtkPolarAxesRepresentation::SetPosition	(	double	,
		double	,
		double
	)

virtual

Get/Set the Position to transform the data bounds.

◆ SetPosition() [2/2]

virtual void vtkPolarAxesRepresentation::SetPosition ( double [3] )

virtual

Get/Set the Position to transform the data bounds.

◆ GetPosition() [1/3]

virtual double* vtkPolarAxesRepresentation::GetPosition ( )

virtual

Get/Set the Position to transform the data bounds.

◆ GetPosition() [2/3]

virtual void vtkPolarAxesRepresentation::GetPosition	(	double &	,
		double &	,
		double &
	)

virtual

Get/Set the Position to transform the data bounds.

◆ GetPosition() [3/3]

virtual void vtkPolarAxesRepresentation::GetPosition ( double [3] )

virtual

Get/Set the Position to transform the data bounds.

◆ SetOrientation() [1/2]

virtual void vtkPolarAxesRepresentation::SetOrientation	(	double	,
		double	,
		double
	)

virtual

Get/Set the Orientation to transform the data bounds.

◆ SetOrientation() [2/2]

virtual void vtkPolarAxesRepresentation::SetOrientation ( double [3] )

virtual

Get/Set the Orientation to transform the data bounds.

◆ GetOrientation() [1/3]

virtual double* vtkPolarAxesRepresentation::GetOrientation ( )

virtual

Get/Set the Orientation to transform the data bounds.

◆ GetOrientation() [2/3]

virtual void vtkPolarAxesRepresentation::GetOrientation	(	double &	,
		double &	,
		double &
	)

virtual

Get/Set the Orientation to transform the data bounds.

◆ GetOrientation() [3/3]

virtual void vtkPolarAxesRepresentation::GetOrientation ( double [3] )

virtual

Get/Set the Orientation to transform the data bounds.

◆ SetScale() [1/2]

virtual void vtkPolarAxesRepresentation::SetScale	(	double	,
		double	,
		double
	)

virtual

Get/Set the Scale to transform the data bounds.

◆ SetScale() [2/2]

virtual void vtkPolarAxesRepresentation::SetScale ( double [3] )

virtual

Get/Set the Scale to transform the data bounds.

◆ GetScale() [1/3]

virtual double* vtkPolarAxesRepresentation::GetScale ( )

virtual

Get/Set the Scale to transform the data bounds.

◆ GetScale() [2/3]

virtual void vtkPolarAxesRepresentation::GetScale	(	double &	,
		double &	,
		double &
	)

virtual

Get/Set the Scale to transform the data bounds.

◆ GetScale() [3/3]

virtual void vtkPolarAxesRepresentation::GetScale ( double [3] )

virtual

Get/Set the Scale to transform the data bounds.

◆ GetDataBounds() [1/3]

virtual double* vtkPolarAxesRepresentation::GetDataBounds ( )

virtual

Get the bounds of the data.

◆ GetDataBounds() [2/3]

virtual void vtkPolarAxesRepresentation::GetDataBounds	(	double &	,
		double &	,
		double &	,
		double &	,
		double &	,
		double &
	)

virtual

◆ GetDataBounds() [3/3]

virtual void vtkPolarAxesRepresentation::GetDataBounds ( double [6] )

virtual

◆ SetCustomBounds() [1/2]

virtual void vtkPolarAxesRepresentation::SetCustomBounds	(	double	,
		double	,
		double	,
		double	,
		double	,
		double
	)

virtual

Get/Set custom bounds to use.

When corresponding CustomBoundsActive is true, the data bounds will be ignored for that direction and CustomBounds will be used instead.

◆ SetCustomBounds() [2/2]

virtual void vtkPolarAxesRepresentation::SetCustomBounds ( double [6] )

virtual

Get/Set custom bounds to use.

When corresponding CustomBoundsActive is true, the data bounds will be ignored for that direction and CustomBounds will be used instead.

◆ GetCustomBounds() [1/3]

virtual double* vtkPolarAxesRepresentation::GetCustomBounds ( )

virtual

Get/Set custom bounds to use.

When corresponding CustomBoundsActive is true, the data bounds will be ignored for that direction and CustomBounds will be used instead.

◆ GetCustomBounds() [2/3]

virtual void vtkPolarAxesRepresentation::GetCustomBounds	(	double &	,
		double &	,
		double &	,
		double &	,
		double &	,
		double &
	)

virtual

Get/Set custom bounds to use.

When corresponding CustomBoundsActive is true, the data bounds will be ignored for that direction and CustomBounds will be used instead.

◆ GetCustomBounds() [3/3]

virtual void vtkPolarAxesRepresentation::GetCustomBounds ( double [6] )

virtual

Get/Set custom bounds to use.

When corresponding CustomBoundsActive is true, the data bounds will be ignored for that direction and CustomBounds will be used instead.

◆ SetEnableCustomBounds() [1/2]

virtual void vtkPolarAxesRepresentation::SetEnableCustomBounds	(	int	,
		int	,
		int
	)

virtual

Get/Set whether to use custom bounds for a particular dimension.

◆ SetEnableCustomBounds() [2/2]

virtual void vtkPolarAxesRepresentation::SetEnableCustomBounds ( int [3] )

virtual

Get/Set whether to use custom bounds for a particular dimension.

◆ GetEnableCustomBounds() [1/3]

virtual int* vtkPolarAxesRepresentation::GetEnableCustomBounds ( )

virtual

Get/Set whether to use custom bounds for a particular dimension.

◆ GetEnableCustomBounds() [2/3]

virtual void vtkPolarAxesRepresentation::GetEnableCustomBounds	(	int &	,
		int &	,
		int &
	)

virtual

Get/Set whether to use custom bounds for a particular dimension.

◆ GetEnableCustomBounds() [3/3]

virtual void vtkPolarAxesRepresentation::GetEnableCustomBounds ( int [3] )

virtual

Get/Set whether to use custom bounds for a particular dimension.

◆ SetEnableCustomRange()

virtual void vtkPolarAxesRepresentation::SetEnableCustomRange ( bool )

virtual

Get/Set the use of a custom range.

◆ GetEnableCustomRange()

virtual bool vtkPolarAxesRepresentation::GetEnableCustomRange ( )

virtual

Get/Set the use of a custom range.

◆ SetCustomRange() [1/2]

virtual void vtkPolarAxesRepresentation::SetCustomRange	(	double	,
		double
	)

virtual

Get/Set custom range to use.

The data bounds will be ignored for that direction and CustomRange will be used instead.

◆ SetCustomRange() [2/2]

void vtkPolarAxesRepresentation::SetCustomRange ( double [2] )

Get/Set custom range to use.

The data bounds will be ignored for that direction and CustomRange will be used instead.

◆ GetCustomRange() [1/3]

virtual double* vtkPolarAxesRepresentation::GetCustomRange ( )

virtual

Get/Set custom range to use.

The data bounds will be ignored for that direction and CustomRange will be used instead.

◆ GetCustomRange() [2/3]

virtual void vtkPolarAxesRepresentation::GetCustomRange	(	double &	,
		double &
	)

virtual

Get/Set custom range to use.

The data bounds will be ignored for that direction and CustomRange will be used instead.

◆ GetCustomRange() [3/3]

virtual void vtkPolarAxesRepresentation::GetCustomRange ( double [2] )

virtual

Get/Set custom range to use.

The data bounds will be ignored for that direction and CustomRange will be used instead.

◆ SetEnableAutoPole()

virtual void vtkPolarAxesRepresentation::SetEnableAutoPole ( bool )

virtual

Get/Set the use of automatically placed pole (origin of the axes).

If on, pole is placed at the center of the bounding box.

◆ GetEnableAutoPole()

virtual bool vtkPolarAxesRepresentation::GetEnableAutoPole ( )

virtual

Get/Set the use of automatically placed pole (origin of the axes).

If on, pole is placed at the center of the bounding box.

◆ SetEnableCustomAngle()

virtual void vtkPolarAxesRepresentation::SetEnableCustomAngle ( bool )

virtual

Get/Set the use of custom min/max angles.

If off, min/max angles are computed relatively to pole position.

◆ GetEnableCustomAngle()

virtual bool vtkPolarAxesRepresentation::GetEnableCustomAngle ( )

virtual

Get/Set the use of custom min/max angles.

If off, min/max angles are computed relatively to pole position.

◆ SetMinAngle()

virtual void vtkPolarAxesRepresentation::SetMinAngle ( double )

virtual

Get/Set the custom min/max angles when EnableCustomAngle is On.

◆ GetMinAngle()

virtual double vtkPolarAxesRepresentation::GetMinAngle ( )

virtual

Get/Set the custom min/max angles when EnableCustomAngle is On.

◆ SetMaxAngle()

virtual void vtkPolarAxesRepresentation::SetMaxAngle ( double )

virtual

Get/Set the custom min/max angles when EnableCustomAngle is On.

◆ GetMaxAngle()

virtual double vtkPolarAxesRepresentation::GetMaxAngle ( )

virtual

Get/Set the custom min/max angles when EnableCustomAngle is On.

◆ SetEnableCustomRadius()

virtual void vtkPolarAxesRepresentation::SetEnableCustomRadius ( bool enabled )

virtual

Get/Set the use of custom min radius.

If off, min radius is computed relatively to pole position.

◆ GetEnableCustomRadius()

virtual bool vtkPolarAxesRepresentation::GetEnableCustomRadius ( )

virtual

Get/Set the use of custom min radius.

If off, min radius is computed relatively to pole position.

◆ SetEnableCustomMinRadius()

void vtkPolarAxesRepresentation::SetEnableCustomMinRadius ( bool enabled )

Get/Set the use of custom min radius.

If off, min radius is computed relatively to pole position.

◆ GetEnableCustomMinRadius()

virtual double vtkPolarAxesRepresentation::GetEnableCustomMinRadius ( )

virtual

Get/Set the use of custom min radius.

If off, min radius is computed relatively to pole position.

◆ SetMinRadius()

virtual void vtkPolarAxesRepresentation::SetMinRadius ( double )

virtual

Get/Set the custom min radius when EnableCustomMinRadius is On.

Default to 0.

◆ GetMinRadius()

virtual double vtkPolarAxesRepresentation::GetMinRadius ( )

virtual

Get/Set the custom min radius when EnableCustomMinRadius is On.

Default to 0.

◆ SetEnableCustomMaxRadius()

virtual void vtkPolarAxesRepresentation::SetEnableCustomMaxRadius ( bool )

virtual

Get/Set the use of custom min radius.

If off, max radius is computed relatively to pole position.

◆ GetEnableCustomMaxRadius()

virtual bool vtkPolarAxesRepresentation::GetEnableCustomMaxRadius ( )

virtual

Get/Set the use of custom min radius.

If off, max radius is computed relatively to pole position.

◆ SetMaxRadius()

virtual void vtkPolarAxesRepresentation::SetMaxRadius ( double )

virtual

Get/Set the custom min radius when EnableCustomMaxRadius is On.

Default to 1.

◆ GetMaxRadius()

virtual double vtkPolarAxesRepresentation::GetMaxRadius ( )

virtual

Get/Set the custom min radius when EnableCustomMaxRadius is On.

Default to 1.

◆ GetEnableOverallColor()

virtual bool vtkPolarAxesRepresentation::GetEnableOverallColor ( )

virtual

Set the actor color.

◆ SetEnableOverallColor()

virtual void vtkPolarAxesRepresentation::SetEnableOverallColor ( bool enable )

virtual

Set the actor color.

◆ SetOverallColor()

virtual void vtkPolarAxesRepresentation::SetOverallColor	(	double	r,
		double	g,
		double	b
	)

virtual

Set the actor color.

◆ SetPolarAxisColor()

virtual void vtkPolarAxesRepresentation::SetPolarAxisColor	(	double	r,
		double	g,
		double	b
	)

virtual

Set the actor color.

◆ SetPolarArcsColor()

virtual void vtkPolarAxesRepresentation::SetPolarArcsColor	(	double	r,
		double	g,
		double	b
	)

virtual

Set the actor color.

◆ SetSecondaryPolarArcsColor()

virtual void vtkPolarAxesRepresentation::SetSecondaryPolarArcsColor	(	double	r,
		double	g,
		double	b
	)

virtual

Set the actor color.

◆ SetSecondaryRadialAxesColor()

virtual void vtkPolarAxesRepresentation::SetSecondaryRadialAxesColor	(	double	r,
		double	g,
		double	b
	)

virtual

Set the actor color.

◆ SetLastRadialAxisColor()

virtual void vtkPolarAxesRepresentation::SetLastRadialAxisColor	(	double	r,
		double	g,
		double	b
	)

virtual

Set the actor color.

◆ SetPolarAxisTitleTextProperty()

virtual void vtkPolarAxesRepresentation::SetPolarAxisTitleTextProperty ( vtkTextProperty * prop )

virtual

Set the actor color.

◆ SetPolarAxisLabelTextProperty()

virtual void vtkPolarAxesRepresentation::SetPolarAxisLabelTextProperty ( vtkTextProperty * prop )

virtual

Set the actor color.

◆ SetLastRadialAxisTextProperty()

virtual void vtkPolarAxesRepresentation::SetLastRadialAxisTextProperty ( vtkTextProperty * prop )

virtual

Set the actor color.

◆ SetSecondaryRadialAxesTextProperty()

virtual void vtkPolarAxesRepresentation::SetSecondaryRadialAxesTextProperty ( vtkTextProperty * prop )

virtual

Set the actor color.

◆ MarkModified()

void vtkPolarAxesRepresentation::MarkModified ( )

inlineoverridevirtual

This needs to be called on all instances of vtkPolarAxesRepresentation when the input is modified.

Reimplemented from vtkPVDataRepresentation.

Definition at line 187 of file vtkPolarAxesRepresentation.h.

◆ ProcessViewRequest()

int vtkPolarAxesRepresentation::ProcessViewRequest	(	vtkInformationRequestKey *	request_type,
		vtkInformation *	inInfo,
		vtkInformation *	outInfo
	)

overridevirtual

vtkAlgorithm::ProcessRequest() equivalent for rendering passes.

This is typically called by the vtkView to request meta-data from the representations or ask them to perform certain tasks e.g. PrepareForRendering

Reimplemented from vtkPVDataRepresentation.

◆ SetVisibility()

void vtkPolarAxesRepresentation::SetVisibility ( bool visible )

overridevirtual

Set visibility of the representation.

Reimplemented from vtkPVDataRepresentation.

◆ SetParentVisibility()

virtual void vtkPolarAxesRepresentation::SetParentVisibility ( bool visible )

virtual

Set (forward) visibility of the parent (composite) representation.

◆ SetLog()

virtual void vtkPolarAxesRepresentation::SetLog ( bool active )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetNumberOfRadialAxes()

virtual void vtkPolarAxesRepresentation::SetNumberOfRadialAxes ( vtkIdType val )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetNumberOfPolarAxes()

virtual void vtkPolarAxesRepresentation::SetNumberOfPolarAxes ( vtkIdType val )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetDeltaAngleRadialAxes()

virtual void vtkPolarAxesRepresentation::SetDeltaAngleRadialAxes ( double angle )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetDeltaRangePolarAxes()

virtual void vtkPolarAxesRepresentation::SetDeltaRangePolarAxes ( double range )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetSmallestVisiblePolarAngle()

virtual void vtkPolarAxesRepresentation::SetSmallestVisiblePolarAngle ( double angle )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetTickLocation()

virtual void vtkPolarAxesRepresentation::SetTickLocation ( int location )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetRadialUnits()

virtual void vtkPolarAxesRepresentation::SetRadialUnits ( bool use )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetScreenSize()

virtual void vtkPolarAxesRepresentation::SetScreenSize ( double size )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetPolarAxisTitle()

virtual void vtkPolarAxesRepresentation::SetPolarAxisTitle ( const char * title )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetPolarLabelFormat()

virtual void vtkPolarAxesRepresentation::SetPolarLabelFormat ( const char * format )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetExponentLocation()

virtual void vtkPolarAxesRepresentation::SetExponentLocation ( int location )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetRadialAngleFormat()

virtual void vtkPolarAxesRepresentation::SetRadialAngleFormat ( const char * format )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetEnableDistanceLOD()

virtual void vtkPolarAxesRepresentation::SetEnableDistanceLOD ( int enable )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetDistanceLODThreshold()

virtual void vtkPolarAxesRepresentation::SetDistanceLODThreshold ( double val )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetEnableViewAngleLOD()

virtual void vtkPolarAxesRepresentation::SetEnableViewAngleLOD ( int enable )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetViewAngleLODThreshold()

virtual void vtkPolarAxesRepresentation::SetViewAngleLODThreshold ( double val )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetPolarAxisVisibility()

virtual void vtkPolarAxesRepresentation::SetPolarAxisVisibility ( int visible )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetDrawRadialGridlines()

virtual void vtkPolarAxesRepresentation::SetDrawRadialGridlines ( int draw )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetDrawPolarArcsGridlines()

virtual void vtkPolarAxesRepresentation::SetDrawPolarArcsGridlines ( int draw )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetPolarTitleVisibility()

virtual void vtkPolarAxesRepresentation::SetPolarTitleVisibility ( int visible )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetRadialAxisTitleLocation()

virtual void vtkPolarAxesRepresentation::SetRadialAxisTitleLocation ( int location )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetPolarAxisTitleLocation()

virtual void vtkPolarAxesRepresentation::SetPolarAxisTitleLocation ( int location )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetRadialTitleOffset()

virtual void vtkPolarAxesRepresentation::SetRadialTitleOffset	(	double	offsetX,
		double	offsetY
	)

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetPolarTitleOffset()

virtual void vtkPolarAxesRepresentation::SetPolarTitleOffset	(	double	offsetX,
		double	offsetY
	)

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetPolarLabelOffset()

virtual void vtkPolarAxesRepresentation::SetPolarLabelOffset ( double offsetY )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetPolarExponentOffset()

virtual void vtkPolarAxesRepresentation::SetPolarExponentOffset ( double offsetY )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetPolarLabelVisibility()

virtual void vtkPolarAxesRepresentation::SetPolarLabelVisibility ( int visible )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetArcTicksOriginToPolarAxis()

virtual void vtkPolarAxesRepresentation::SetArcTicksOriginToPolarAxis ( int use )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetRadialAxesOriginToPolarAxis()

virtual void vtkPolarAxesRepresentation::SetRadialAxesOriginToPolarAxis ( int use )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetPolarTickVisibility()

virtual void vtkPolarAxesRepresentation::SetPolarTickVisibility ( int visible )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetAxisTickVisibility()

virtual void vtkPolarAxesRepresentation::SetAxisTickVisibility ( int visible )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetAxisMinorTickVisibility()

virtual void vtkPolarAxesRepresentation::SetAxisMinorTickVisibility ( int visible )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetAxisTickMatchesPolarAxes()

virtual void vtkPolarAxesRepresentation::SetAxisTickMatchesPolarAxes ( int enable )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetArcTickVisibility()

virtual void vtkPolarAxesRepresentation::SetArcTickVisibility ( int visible )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetArcMinorTickVisibility()

virtual void vtkPolarAxesRepresentation::SetArcMinorTickVisibility ( int visible )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetArcTickMatchesRadialAxes()

virtual void vtkPolarAxesRepresentation::SetArcTickMatchesRadialAxes ( int enable )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetTickRatioRadiusSize()

virtual void vtkPolarAxesRepresentation::SetTickRatioRadiusSize ( double ratio )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetArcMajorTickSize()

virtual void vtkPolarAxesRepresentation::SetArcMajorTickSize ( double size )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetPolarAxisMajorTickSize()

virtual void vtkPolarAxesRepresentation::SetPolarAxisMajorTickSize ( double size )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetLastRadialAxisMajorTickSize()

virtual void vtkPolarAxesRepresentation::SetLastRadialAxisMajorTickSize ( double size )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetPolarAxisTickRatioSize()

virtual void vtkPolarAxesRepresentation::SetPolarAxisTickRatioSize ( double size )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetLastAxisTickRatioSize()

virtual void vtkPolarAxesRepresentation::SetLastAxisTickRatioSize ( double size )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetArcTickRatioSize()

virtual void vtkPolarAxesRepresentation::SetArcTickRatioSize ( double size )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetPolarAxisMajorTickThickness()

virtual void vtkPolarAxesRepresentation::SetPolarAxisMajorTickThickness ( double thickness )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetLastRadialAxisMajorTickThickness()

virtual void vtkPolarAxesRepresentation::SetLastRadialAxisMajorTickThickness ( double thickness )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetArcMajorTickThickness()

virtual void vtkPolarAxesRepresentation::SetArcMajorTickThickness ( double thickness )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetPolarAxisTickRatioThickness()

virtual void vtkPolarAxesRepresentation::SetPolarAxisTickRatioThickness ( double thickness )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetLastAxisTickRatioThickness()

virtual void vtkPolarAxesRepresentation::SetLastAxisTickRatioThickness ( double thickness )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetArcTickRatioThickness()

virtual void vtkPolarAxesRepresentation::SetArcTickRatioThickness ( double thickness )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetDeltaAngleMajor()

virtual void vtkPolarAxesRepresentation::SetDeltaAngleMajor ( double delta )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetDeltaAngleMinor()

virtual void vtkPolarAxesRepresentation::SetDeltaAngleMinor ( double delta )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetRadialAxesVisibility()

virtual void vtkPolarAxesRepresentation::SetRadialAxesVisibility ( int visible )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetRadialTitleVisibility()

virtual void vtkPolarAxesRepresentation::SetRadialTitleVisibility ( int visible )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetPolarArcsVisibility()

virtual void vtkPolarAxesRepresentation::SetPolarArcsVisibility ( int visible )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetUse2DMode()

virtual void vtkPolarAxesRepresentation::SetUse2DMode ( int use )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetRatio()

virtual void vtkPolarAxesRepresentation::SetRatio ( double ratio )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetPolarArcResolutionPerDegree()

virtual void vtkPolarAxesRepresentation::SetPolarArcResolutionPerDegree ( double resolution )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetDeltaRangeMinor()

virtual void vtkPolarAxesRepresentation::SetDeltaRangeMinor ( double delta )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetDeltaRangeMajor()

virtual void vtkPolarAxesRepresentation::SetDeltaRangeMajor ( double delta )

virtual

Forwarded to internal vtkPolarAxesActor.

◆ SetRendererType()

virtual void vtkPolarAxesRepresentation::SetRendererType ( int )

virtual

Set the renderer to use.

Default is to use the vtkPVRenderView::DEFAULT_RENDERER.

◆ GetRendererType()

virtual int vtkPolarAxesRepresentation::GetRendererType ( )

virtual

Set the renderer to use.

Default is to use the vtkPVRenderView::DEFAULT_RENDERER.

◆ FillInputPortInformation()

int vtkPolarAxesRepresentation::FillInputPortInformation	(	int	port,
		vtkInformation *	info
	)

overrideprotectedvirtual

Reimplemented from vtkPassInputTypeAlgorithm.

◆ RequestData()

int vtkPolarAxesRepresentation::RequestData	(	vtkInformation *	,
		vtkInformationVector **	inputVector,
		vtkInformationVector *
	)

overrideprotectedvirtual

Reimplemented from vtkDataRepresentation.

◆ InitializeDataBoundsFromData()

virtual void vtkPolarAxesRepresentation::InitializeDataBoundsFromData ( vtkDataObject * data )

protectedvirtual

◆ UpdateBounds()

virtual void vtkPolarAxesRepresentation::UpdateBounds ( )

protectedvirtual

◆ AddToView()

bool vtkPolarAxesRepresentation::AddToView ( vtkView * view )

overrideprotected

Adds the representation to the view.

This is called from vtkView::AddRepresentation(). Returns true if the addition succeeds.

Subclasses should override this method.

◆ RemoveFromView()

bool vtkPolarAxesRepresentation::RemoveFromView ( vtkView * view )

overrideprotected

Removes the representation to the view.

This is called from vtkView::RemoveRepresentation(). Returns true if the removal succeeds.

Subclasses should override this method.

Member Data Documentation

◆ OutlineGeometry

vtkNew<vtkPolyData> vtkPolarAxesRepresentation::OutlineGeometry

protected

Definition at line 309 of file vtkPolarAxesRepresentation.h.

◆ PolarAxesActor

vtkNew<vtkPolarAxesActor> vtkPolarAxesRepresentation::PolarAxesActor

protected

Definition at line 310 of file vtkPolarAxesRepresentation.h.

◆ RenderView

vtkWeakPointer<vtkPVRenderView> vtkPolarAxesRepresentation::RenderView

protected

Definition at line 311 of file vtkPolarAxesRepresentation.h.

◆ Position

double vtkPolarAxesRepresentation::Position[3] = { 0.0 }

protected

Definition at line 312 of file vtkPolarAxesRepresentation.h.

◆ Scale

double vtkPolarAxesRepresentation::Scale[3] = { 1.0 }

protected

Definition at line 313 of file vtkPolarAxesRepresentation.h.

◆ Orientation

double vtkPolarAxesRepresentation::Orientation[3] = { 0.0 }

protected

Definition at line 314 of file vtkPolarAxesRepresentation.h.

◆ CustomBounds

double vtkPolarAxesRepresentation::CustomBounds[6] = { 0.0, 1.0, 0.0, 1.0, 0.0, 1.0 }

protected

Definition at line 315 of file vtkPolarAxesRepresentation.h.

◆ EnableCustomBounds

int vtkPolarAxesRepresentation::EnableCustomBounds[3] = { 0 }

protected

Definition at line 316 of file vtkPolarAxesRepresentation.h.

◆ CustomRange

double vtkPolarAxesRepresentation::CustomRange[2] = { 0.0, 1.0 }

protected

Definition at line 317 of file vtkPolarAxesRepresentation.h.

◆ EnableCustomRange

bool vtkPolarAxesRepresentation::EnableCustomRange = false

protected

Definition at line 318 of file vtkPolarAxesRepresentation.h.

◆ EnableAutoPole

bool vtkPolarAxesRepresentation::EnableAutoPole = true

protected

Definition at line 319 of file vtkPolarAxesRepresentation.h.

◆ EnableCustomAngle

bool vtkPolarAxesRepresentation::EnableCustomAngle = true

protected

Definition at line 320 of file vtkPolarAxesRepresentation.h.

◆ MinAngle

double vtkPolarAxesRepresentation::MinAngle = 0.0

protected

Definition at line 321 of file vtkPolarAxesRepresentation.h.

◆ MaxAngle

double vtkPolarAxesRepresentation::MaxAngle = 90.0

protected

Definition at line 322 of file vtkPolarAxesRepresentation.h.

◆ EnableCustomRadius

bool vtkPolarAxesRepresentation::EnableCustomRadius = true

protected

Definition at line 324 of file vtkPolarAxesRepresentation.h.

◆ MinRadius

double vtkPolarAxesRepresentation::MinRadius = 0.0

protected

Definition at line 325 of file vtkPolarAxesRepresentation.h.

◆ EnableOverallColor

bool vtkPolarAxesRepresentation::EnableOverallColor = true

protected

Definition at line 326 of file vtkPolarAxesRepresentation.h.

◆ OverallColor

double vtkPolarAxesRepresentation::OverallColor[3] = { 1.0 }

protected

Definition at line 327 of file vtkPolarAxesRepresentation.h.

◆ PolarAxisColor

double vtkPolarAxesRepresentation::PolarAxisColor[3] = { 1.0 }

protected

Definition at line 328 of file vtkPolarAxesRepresentation.h.

◆ PolarArcsColor

double vtkPolarAxesRepresentation::PolarArcsColor[3] = { 1.0 }

protected

Definition at line 329 of file vtkPolarAxesRepresentation.h.

◆ SecondaryPolarArcsColor

double vtkPolarAxesRepresentation::SecondaryPolarArcsColor[3] = { 1.0 }

protected

Definition at line 330 of file vtkPolarAxesRepresentation.h.

◆ SecondaryRadialAxesColor

double vtkPolarAxesRepresentation::SecondaryRadialAxesColor[3] = { 1.0 }

protected

Definition at line 331 of file vtkPolarAxesRepresentation.h.

◆ LastRadialAxisColor

double vtkPolarAxesRepresentation::LastRadialAxisColor[3] = { 1.0 }

protected

Definition at line 332 of file vtkPolarAxesRepresentation.h.

◆ DataBounds

double vtkPolarAxesRepresentation::DataBounds[6] = { 0.0 }

protected

Definition at line 333 of file vtkPolarAxesRepresentation.h.

◆ RendererType

int vtkPolarAxesRepresentation::RendererType = vtkPVRenderView::DEFAULT_RENDERER

protected

Definition at line 334 of file vtkPolarAxesRepresentation.h.

◆ ParentVisibility

bool vtkPolarAxesRepresentation::ParentVisibility = true

protected

Definition at line 335 of file vtkPolarAxesRepresentation.h.

◆ DataBoundsTime

vtkTimeStamp vtkPolarAxesRepresentation::DataBoundsTime

protected

Definition at line 336 of file vtkPolarAxesRepresentation.h.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Remoting/Views/vtkPolarAxesRepresentation.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Superclass

Constructor & Destructor Documentation

◆ vtkPolarAxesRepresentation()

◆ ~vtkPolarAxesRepresentation()

Member Function Documentation

◆ New()

◆ GetClassName()

◆ IsTypeOf()

◆ IsA()

◆ SafeDownCast()

◆ PrintSelf()

◆ SetPosition() [1/2]

◆ SetPosition() [2/2]

◆ GetPosition() [1/3]

◆ GetPosition() [2/3]

◆ GetPosition() [3/3]

◆ SetOrientation() [1/2]

◆ SetOrientation() [2/2]

◆ GetOrientation() [1/3]

◆ GetOrientation() [2/3]

◆ GetOrientation() [3/3]

◆ SetScale() [1/2]

◆ SetScale() [2/2]

◆ GetScale() [1/3]

◆ GetScale() [2/3]

◆ GetScale() [3/3]

◆ GetDataBounds() [1/3]

◆ GetDataBounds() [2/3]

◆ GetDataBounds() [3/3]

◆ SetCustomBounds() [1/2]

◆ SetCustomBounds() [2/2]

◆ GetCustomBounds() [1/3]

◆ GetCustomBounds() [2/3]

◆ GetCustomBounds() [3/3]

◆ SetEnableCustomBounds() [1/2]

◆ SetEnableCustomBounds() [2/2]

◆ GetEnableCustomBounds() [1/3]

◆ GetEnableCustomBounds() [2/3]

◆ GetEnableCustomBounds() [3/3]

◆ SetEnableCustomRange()

◆ GetEnableCustomRange()

◆ SetCustomRange() [1/2]

◆ SetCustomRange() [2/2]

◆ GetCustomRange() [1/3]

◆ GetCustomRange() [2/3]

◆ GetCustomRange() [3/3]

◆ SetEnableAutoPole()

◆ GetEnableAutoPole()

◆ SetEnableCustomAngle()

◆ GetEnableCustomAngle()

◆ SetMinAngle()

◆ GetMinAngle()

◆ SetMaxAngle()

◆ GetMaxAngle()

◆ SetEnableCustomRadius()

◆ GetEnableCustomRadius()

◆ SetEnableCustomMinRadius()

◆ GetEnableCustomMinRadius()

◆ SetMinRadius()

◆ GetMinRadius()

◆ SetEnableCustomMaxRadius()

◆ GetEnableCustomMaxRadius()

◆ SetMaxRadius()

◆ GetMaxRadius()

◆ GetEnableOverallColor()

◆ SetEnableOverallColor()

◆ SetOverallColor()

◆ SetPolarAxisColor()

◆ SetPolarArcsColor()

◆ SetSecondaryPolarArcsColor()

◆ SetSecondaryRadialAxesColor()

◆ SetLastRadialAxisColor()
