is used to locate proxies referred to in state xmls while loading state files. More...

#include <vtkSMProxyLocator.h>

Inheritance diagram for vtkSMProxyLocator:

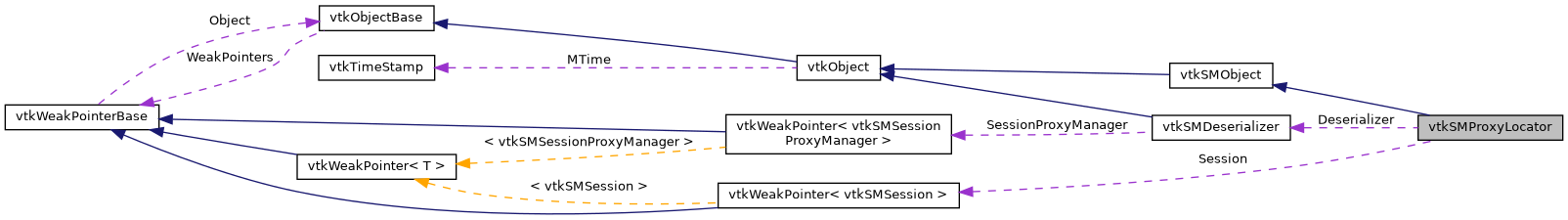

Collaboration diagram for vtkSMProxyLocator:

[legend]

Public Types
typedef vtkSMObject	Superclass

Public Types inherited from vtkSMObject
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

virtual vtkSMProxy *	LocateProxy (vtkTypeUInt32 globalID)
	Locate a proxy with the given "name". More...

virtual void	Clear ()
	Clear the locator. More...

virtual void	GetLocatedProxies (vtkCollection *collectionToFill)
	Copy all the Located proxy into the collection. More...

virtual void	UseSessionToLocateProxy (bool useSessionToo)

virtual void	AssignProxy (vtkTypeUInt32 id, vtkSMProxy *proxy)
	For custom applications managing custom state loading, one can use this method to register proxies with locator to use when LocateProxy() before attempting the standard route i.e. More...


void	SetDeserializer (vtkSMDeserializer *)
	Get/Set the de-serializer to used to locate XMLs/Protobuf for unknown proxies requested to be located using LocateProxy(). More...

virtual vtkSMDeserializer *	GetDeserializer ()
	Get/Set the de-serializer to used to locate XMLs/Protobuf for unknown proxies requested to be located using LocateProxy(). More...


virtual vtkSMSession *	GetSession ()
	Get/Set the session. More...

virtual void	SetSession (vtkSMSession *s)
	Get/Set the session. More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkSMProxyLocator *	New ()

static int	IsTypeOf (const char *type)

static vtkSMProxyLocator *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMObject
static vtkSMObject *	New ()

static int	IsTypeOf (const char *type)

static vtkSMObject *	SafeDownCast (vtkObject *o)

static std::string	CreatePrettyLabel (const std::string &name)
	Return a well-formated label using provided name by adding spaces between lower cases and upper cases: More...

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkSMProxyLocator ()

	~vtkSMProxyLocator () override

virtual vtkSMProxy *	NewProxy (vtkTypeUInt32 globalID)
	Create new proxy with the given id. More...

Protected Member Functions inherited from vtkSMObject
	vtkSMObject ()

	~vtkSMObject () override

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Protected Attributes
vtkSMDeserializer *	Deserializer

vtkWeakPointer< vtkSMSession >	Session

bool	LocateProxyWithSessionToo

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Detailed Description

is used to locate proxies referred to in state xmls while loading state files.

vtkSMProxyLocator is used to locate proxies referred to in state xmls (and otherwise) when loading state files.

Definition at line 24 of file vtkSMProxyLocator.h.

Member Typedef Documentation

◆ Superclass

typedef vtkSMObject vtkSMProxyLocator::Superclass

Definition at line 28 of file vtkSMProxyLocator.h.

Constructor & Destructor Documentation

◆ vtkSMProxyLocator()

vtkSMProxyLocator::vtkSMProxyLocator ( )

protected

◆ ~vtkSMProxyLocator()

vtkSMProxyLocator::~vtkSMProxyLocator ( )

overrideprotected

Member Function Documentation

◆ New()

static vtkSMProxyLocator* vtkSMProxyLocator::New ( )

static

◆ GetClassName()

virtual const char* vtkSMProxyLocator::GetClassName ( )

virtual

Reimplemented from vtkSMObject.

◆ IsTypeOf()

static int vtkSMProxyLocator::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkSMProxyLocator::IsA ( const char * type )

virtual

Reimplemented from vtkSMObject.

◆ SafeDownCast()

static vtkSMProxyLocator* vtkSMProxyLocator::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkSMProxyLocator::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkSMObject.

◆ LocateProxy()

virtual vtkSMProxy* vtkSMProxyLocator::LocateProxy ( vtkTypeUInt32 globalID )

virtual

Locate a proxy with the given "name".

If none can be found returns nullptr. If a proxy with the name was not previously located, it will ask the Deserializer (if any) to create a new proxy is possible.

◆ SetDeserializer()

void vtkSMProxyLocator::SetDeserializer ( vtkSMDeserializer * )

Get/Set the de-serializer to used to locate XMLs/Protobuf for unknown proxies requested to be located using LocateProxy().

◆ GetDeserializer()

virtual vtkSMDeserializer* vtkSMProxyLocator::GetDeserializer ( )

virtual

Get/Set the de-serializer to used to locate XMLs/Protobuf for unknown proxies requested to be located using LocateProxy().

◆ GetSession()

virtual vtkSMSession* vtkSMProxyLocator::GetSession ( )

virtual

Get/Set the session.

◆ SetSession()

virtual void vtkSMProxyLocator::SetSession ( vtkSMSession * s )

virtual

Get/Set the session.

◆ Clear()

virtual void vtkSMProxyLocator::Clear ( )

virtual

Clear the locator.

◆ GetLocatedProxies()

virtual void vtkSMProxyLocator::GetLocatedProxies ( vtkCollection * collectionToFill )

virtual

Copy all the Located proxy into the collection.

This allow to keep a reference to them outside of the current locator. This is needed if we don't want to delete those proxy and if we want to Clear() the current ProxyLocator.

◆ UseSessionToLocateProxy()

virtual void vtkSMProxyLocator::UseSessionToLocateProxy ( bool useSessionToo )

inlinevirtual

Definition at line 68 of file vtkSMProxyLocator.h.

◆ AssignProxy()

virtual void vtkSMProxyLocator::AssignProxy	(	vtkTypeUInt32	id,
		vtkSMProxy *	proxy
	)

virtual

For custom applications managing custom state loading, one can use this method to register proxies with locator to use when LocateProxy() before attempting the standard route i.e.

using the deserializer or session.

◆ NewProxy()

virtual vtkSMProxy* vtkSMProxyLocator::NewProxy ( vtkTypeUInt32 globalID )

protectedvirtual

Create new proxy with the given id.

Default implementation asks the Deserializer, if any, to create a new proxy.

Member Data Documentation

◆ Deserializer

vtkSMDeserializer* vtkSMProxyLocator::Deserializer

protected

Definition at line 91 of file vtkSMProxyLocator.h.

◆ Session

vtkWeakPointer<vtkSMSession> vtkSMProxyLocator::Session

protected

Definition at line 92 of file vtkSMProxyLocator.h.

◆ LocateProxyWithSessionToo

bool vtkSMProxyLocator::LocateProxyWithSessionToo

protected

Definition at line 93 of file vtkSMProxyLocator.h.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Remoting/ServerManager/vtkSMProxyLocator.h
