proxy for a VTK object(s) on a server More...

#include <vtkSMProxy.h>

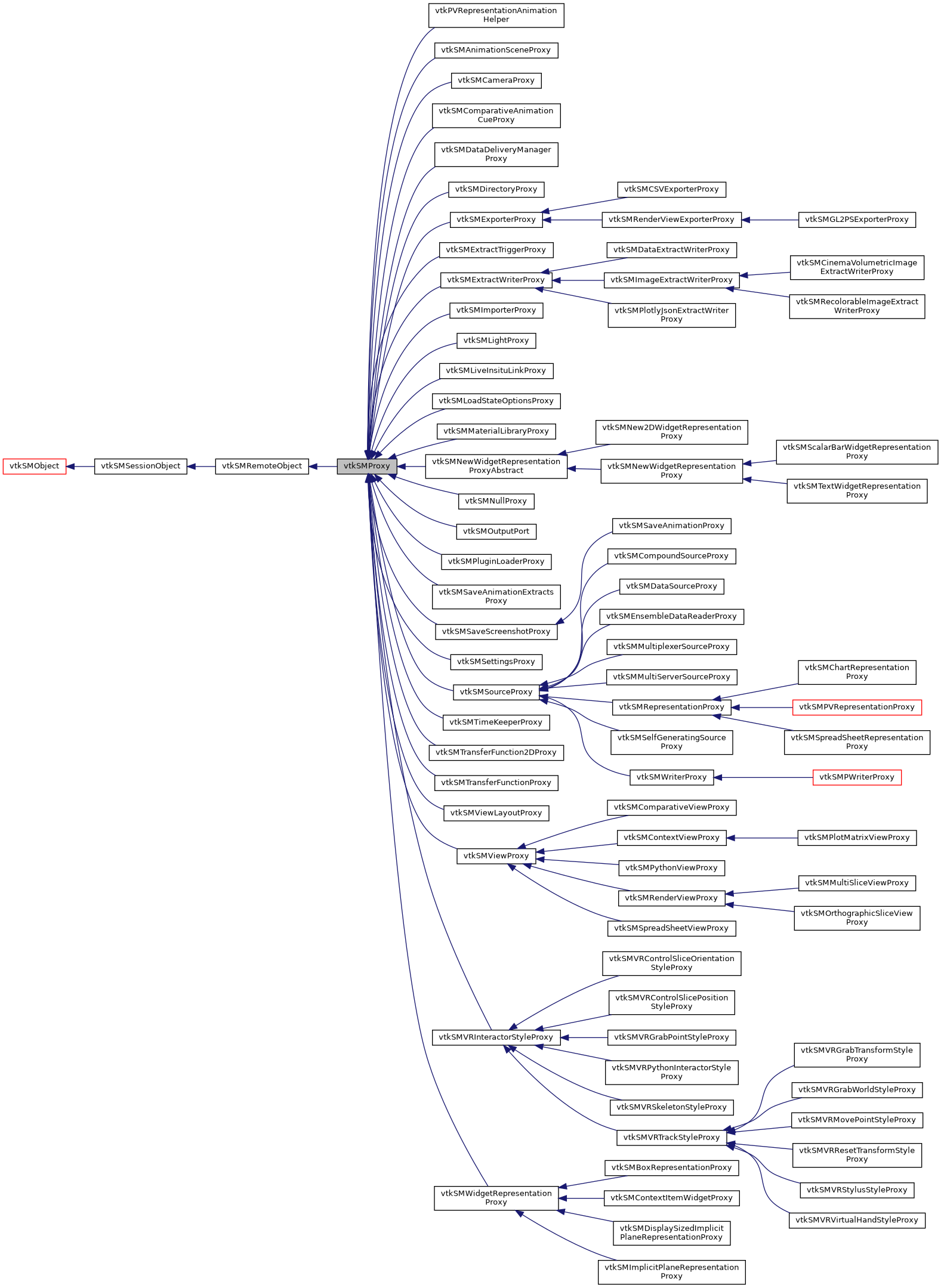

Inheritance diagram for vtkSMProxy:

[legend]

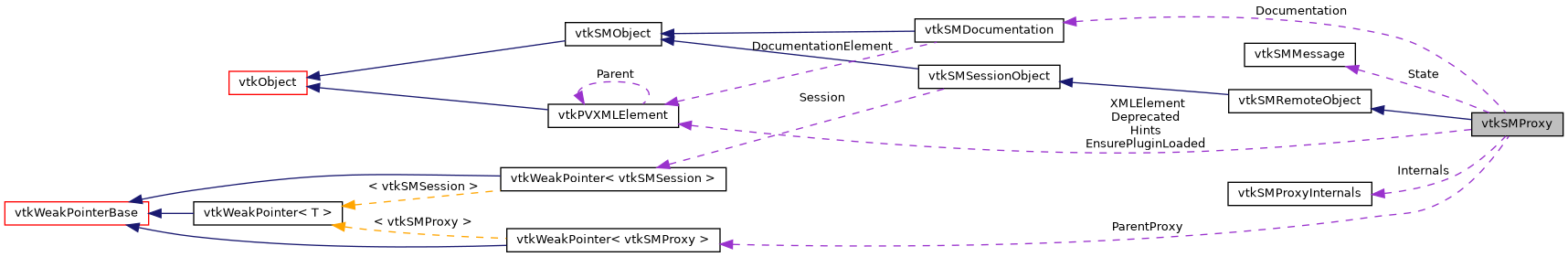

Collaboration diagram for vtkSMProxy:

[legend]

Public Types
enum	ResetPropertiesMode { DEFAULT = 0, ONLY_XML = 1, ONLY_DOMAIN = 2 }

enum	{ COPY_PROXY_PROPERTY_VALUES_BY_REFERENCE = 0, COPY_PROXY_PROPERTY_VALUES_BY_CLONING }
	Flags used for the proxyPropertyCopyFlag argument to the Copy method. More...

typedef vtkSMRemoteObject	Superclass

Public Types inherited from vtkSMRemoteObject
typedef vtkSMSessionObject	Superclass

Public Types inherited from vtkSMSessionObject
typedef vtkSMObject	Superclass

Public Types inherited from vtkSMObject
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

void	SetAnnotation (const char key, const char value)

const char *	GetAnnotation (const char *key)
	Retrieve an annotation with a given key. More...

void	RemoveAnnotation (const char *key)
	Remove a given annotation based on its key to the proxy. More...

void	RemoveAllAnnotations ()
	Remove all proxy annotations. More...

bool	HasAnnotation (const char *key)
	Return true if a given annotation exists. More...

int	GetNumberOfAnnotations ()
	Return the number of available annotations. More...

const char *	GetAnnotationKeyAt (int index)
	Return the nth key of the available annotations. More...

void	SetLocation (vtkTypeUInt32) override
	Get/Set the location where the underlying VTK-objects are created. More...

virtual vtkSMProperty *	GetProperty (const char *name)
	Return the property with the given name. More...

virtual vtkSMProperty *	GetProperty (const char *name, int selfOnly)
	Return a property of the given name from self or one of the sub-proxies. More...

const char *	GetPropertyName (vtkSMProperty *prop)
	Given a property pointer, returns the name that was used to add it to the proxy. More...

virtual void	UpdateVTKObjects ()
	Update the VTK object on the server by pushing the values of all modified properties (un-modified properties are ignored). More...

virtual void	RecreateVTKObjects ()
	Recreate the VTK object for this proxy. More...

void	InvokeCommand (const char *name)
	Convenience method equivalent to UpdateProperty(name, 1). More...

virtual vtkSMPropertyIterator *	NewPropertyIterator ()
	Returns a new (initialized) iterator of the properties. More...

unsigned int	GetNumberOfConsumers ()
	Returns the number of consumers. More...

vtkSMProxy *	GetConsumerProxy (unsigned int idx)
	Returns the consumer of given index. More...

vtkSMProperty *	GetConsumerProperty (unsigned int idx)
	Returns the corresponding property of the consumer of given index. More...

unsigned int	GetNumberOfProducers ()
	Returns the number of proxies this proxy depends on (uses or is connected to through the pipeline). More...

vtkSMProxy *	GetProducerProxy (unsigned int idx)
	Returns a proxy this proxy depends on, given index. More...

vtkSMProperty *	GetProducerProperty (unsigned int idx)
	Returns the property holding a producer proxy given an index. More...

virtual void	UpdatePropertyInformation ()
	Updates all property information by calling UpdateInformation() and populating the values. More...

virtual void	UpdatePropertyInformation (vtkSMProperty *prop)
	Similar to UpdatePropertyInformation() but updates only the given property. More...

virtual void	MarkAllPropertiesAsModified ()
	Marks all properties as modified. More...

virtual void	ResetPropertiesToXMLDefaults ()
	Use this method to set all properties on this proxy to their default values. More...

virtual void	ResetPropertiesToDomainDefaults ()
	Use this method to set all properties on this proxy to their default domains. More...

virtual void	ResetPropertiesToDefault (ResetPropertiesMode mode=DEFAULT)
	Use this method to set all properties on this proxy to their default domain or values. More...

virtual void	MarkModified (vtkSMProxy *modifiedProxy)
	Calls MarkDirty() and invokes ModifiedEvent. More...

bool	IsDeprecated ()
	Returns true if the proxy has a deprecation tag. More...

void	InitializeAndCopyFromProxy (vtkSMProxy *source)
	Given a source proxy, makes this proxy point to the same server-side object (with a new id). More...

virtual void	MarkDirty (vtkSMProxy *modifiedProxy)
	Dirty means this algorithm will execute during next update. More...

vtkObjectBase *	GetClientSideObject ()
	Returns the client side object associated with the VTKObjectID (if any). More...

virtual vtkPVXMLElement *	SaveXMLState (vtkPVXMLElement *root)
	Saves the state of the proxy. More...

virtual vtkPVXMLElement *	SaveXMLState (vtkPVXMLElement root, vtkSMPropertyIterator iter)
	The iterator is use to filter the property available on the given proxy. More...

virtual int	LoadXMLState (vtkPVXMLElement element, vtkSMProxyLocator locator)
	Loads the proxy state from the XML element. More...

void	UpdateSelfAndAllInputs ()
	This method call UpdateVTKObjects on the current pipeline by starting at the sources. More...

bool	GetIsSubProxy ()
	A proxy instance can be a sub-proxy for some other proxy. More...

vtkSMProxy *	GetParentProxy ()
	If this instance is a sub-proxy, this method will return the proxy of which this instance is an immediate sub-proxy. More...

vtkSMProxy *	GetTrueParentProxy ()
	Call GetParentProxy() recursively till a proxy that is not a subproxy of any other proxy is found. More...

void	EnableLocalPushOnly () override
	Allow to switch off any push of state change to the server for that particular object. More...

void	DisableLocalPushOnly () override
	Enable the given remote object to communicate its state normally to the server location. More...

const vtkSMMessage *	GetFullState () override
	This method return the full object state that can be used to create that object from scratch. More...

void	LoadState (const vtkSMMessage msg, vtkSMProxyLocator locator) override
	This method is used to initialise the object to the given state If the definitionOnly Flag is set to True the proxy won't load the properties values and just setup the new proxy hierarchy with all subproxy globalID set. More...

vtkSMPropertyGroup *	GetPropertyGroup (size_t index) const
	Returns the property group at `index` for the proxy. More...

size_t	GetNumberOfPropertyGroups () const
	Returns the number of property groups that the proxy contains. More...

const char *	GetLogNameOrDefault ()
	A helper that makes up an default name if none is provided. More...

bool	GetPropertiesModified ()

virtual std::vector< std::string >	GetPropertiesWithDifferentValues (vtkSMProxy *otherProxy)
	Return the property names that have values different from the otherProxy argument. More...


bool	UpdateProperty (const char *name)
	Update the value of one property (pushed to the server) if it is modified. More...

bool	UpdateProperty (const char *name, int force)
	Update the value of one property (pushed to the server) if it is modified. More...


virtual char *	GetVTKClassName ()
	Returns the type of object managed by the proxy. More...


virtual void	SetVTKClassName (const char *)
	the type of object created by the proxy. More...


virtual char *	GetXMLName ()
	Assigned by the XML parser. More...


virtual char *	GetXMLGroup ()
	Assigned by the XML parser. More...


virtual char *	GetXMLLabel ()
	Assigned by the XML parser. More...


void	Copy (vtkSMProxy *src)
	Copies values of all the properties and sub-proxies from src. More...

void	Copy (vtkSMProxy src, const char exceptionClass)
	Copies values of all the properties and sub-proxies from src. More...

virtual void	Copy (vtkSMProxy src, const char exceptionClass, int proxyPropertyCopyFlag)
	Copies values of all the properties and sub-proxies from src. More...


virtual vtkSMDocumentation *	GetDocumentation ()
	Returns the documentation for this proxy. More...


virtual vtkPVXMLElement *	GetHints ()
	The server manager configuration XML may define `<Hints/>` element for a proxy. More...


virtual int	GetObjectsCreated ()
	Returns if the VTK objects for this proxy have been created. More...


bool	GatherInformation (vtkPVInformation *information)
	Gathers information about this proxy. More...

bool	GatherInformation (vtkPVInformation *information, vtkTypeUInt32 location)
	Gathers information about this proxy. More...


void	PrototypeOn () override
	Allow user to set the remote object to be discard for Undo/Redo action. More...

void	PrototypeOff () override
	Allow user to set the remote object to be discard for Undo/Redo action. More...

void	SetPrototype (bool undo) override
	Allow user to set the remote object to be discard for Undo/Redo action. More...


void	SetLogName (const char *name)
	Log name is a name for this proxy that will be used when logging status messages. More...

virtual char *	GetLogName ()
	Log name is a name for this proxy that will be used when logging status messages. More...

Public Member Functions inherited from vtkSMRemoteObject
void	PrintSelf (ostream &os, vtkIndent indent) override

void	SetSession (vtkSMSession *) override
	Override the SetSession so if the object already have an ID we automatically register it to the associated session. More...

bool	HasGlobalID ()
	Allow the user to test if the RemoteObject has already a GlobalID without assigning a new one to it. More...

virtual bool	IsLocalPushOnly ()
	Let the session be aware that even if the Location is client only, the message should not be send to the server for a general broadcast. More...

virtual vtkTypeUInt32	GetLocation ()
	Get/Set the location where the underlying VTK-objects are created. More...

virtual vtkTypeUInt32	GetGlobalID ()
	Get the global unique id for this object. More...

const char *	GetGlobalIDAsString ()
	Get the global unique id for this object. More...

bool	IsPrototype ()
	Allow user to set the remote object to be discard for Undo/Redo action. More...

Public Member Functions inherited from vtkSMSessionObject
void	PrintSelf (ostream &os, vtkIndent indent) override

virtual vtkSMSessionProxyManager *	GetSessionProxyManager ()
	Return the corresponding ProxyManager if any. More...

virtual vtkSMSession *	GetSession ()
	Get/Set the session on wihch this object exists. More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkSMProxy *	New ()

static int	IsTypeOf (const char *type)

static vtkSMProxy *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMRemoteObject
static int	IsTypeOf (const char *type)

static vtkSMRemoteObject *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMSessionObject
static vtkSMSessionObject *	New ()

static int	IsTypeOf (const char *type)

static vtkSMSessionObject *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMObject
static vtkSMObject *	New ()

static int	IsTypeOf (const char *type)

static vtkSMObject *	SafeDownCast (vtkObject *o)

static std::string	CreatePrettyLabel (const std::string &name)
	Return a well-formated label using provided name by adding spaces between lower cases and upper cases: More...

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkSMProxy ()

	~vtkSMProxy () override

void	ExecuteStream (const vtkClientServerStream &msg, bool ignore_errors=false, vtkTypeUInt32 location=0)
	Invoke that takes a vtkClientServerStream as the argument. More...

virtual void	UpdateAndPushAnnotationState ()

virtual void	AddProperty (const char name, vtkSMProperty prop)
	Add a property with the given key (name). More...

virtual void	MarkConsumersAsDirty (vtkSMProxy *modifiedProxy)
	Calls `MarkDirtyFromProducer` on all consumers. More...

virtual void	MarkDirtyFromProducer (vtkSMProxy modifiedProxy, vtkSMProxy producer, vtkSMProperty *property)
	`MarkConsumersAsDirty` calls this method on each consumer, instead of directly calling `MarkDirty` on the consumer. More...

void	MarkInputsAsDirty ()
	This method is called by vtkSMRepresentationProxy whenever the time request for the pipeline may have potentially changed. More...

virtual void	CreateVTKObjects ()
	Given a class name (by setting VTKClassName) and server ids (by setting ServerIDs), this methods instantiates the objects on the server(s) More...

void	RemoveAllObservers ()
	Cleanup code. More...

virtual void	SetPropertyModifiedFlag (const char *name, int flag)
	Note on property modified flags: The modified flag of each property associated with a proxy is stored in the proxy object instead of in the property itself. More...

void	AddSubProxy (const char name, vtkSMProxy proxy, int overrideOK=0)
	Add a sub-proxy. More...

void	RemoveSubProxy (const char *name)
	Remove a sub-proxy. More...

vtkSMProxy *	GetSubProxy (const char *name)
	Returns a sub-proxy. More...

vtkSMProxy *	GetSubProxy (unsigned int index)
	Returns a sub-proxy. More...

const char *	GetSubProxyName (unsigned int index)
	Returns the name used to store sub-proxy. More...

const char *	GetSubProxyName (vtkSMProxy *)
	Returns the name used to store sub-proxy. More...

unsigned int	GetNumberOfSubProxies ()
	Returns the number of sub-proxies. More...

virtual void	AddConsumer (vtkSMProperty property, vtkSMProxy proxy)
	Called by a proxy property, this adds the property,proxy pair to the list of consumers. More...

virtual void	RemoveConsumer (vtkSMProperty property, vtkSMProxy proxy)
	Remove the property,proxy pair from the list of consumers. More...

virtual void	RemoveAllConsumers ()
	Remove all consumers. More...

void	AddProducer (vtkSMProperty property, vtkSMProxy proxy)
	Called by an proxy/input property to add property, proxy pair to the list of producers. More...

void	RemoveProducer (vtkSMProperty property, vtkSMProxy proxy)
	Remove the property,proxy pair from the list of producers. More...

virtual void	PostUpdateData (bool using_cache)
	This method is called after the algorithm(s) (if any) associated with this proxy execute. More...

void	PostUpdateDataSelfOnly (bool using_cache)
	This is called by `PostUpdateData` to only update state for this proxy without iterative over producers. More...

bool	WarnIfDeprecated ()
	If a proxy is deprecated, prints a warning. More...

bool	LoadPluginIfEnsured ()
	If a proxy need to ensure a plugin is loaded, make sure it is. More...

virtual void	UpdatePipelineInformation ()
	This method simply iterates over subproxies and calls UpdatePipelineInformation() on them. More...

void	LinkProperty (vtkSMProperty inputProperty, vtkSMProperty outputProperty)
	Links properties such that when inputProperty's checked or unchecked values are changed, the outputProperty's corresponding values are also changed. More...

vtkSMPropertyGroup *	NewPropertyGroup (vtkPVXMLElement *propElement)
	Parses the XML to create a new property group. More...

void	AppendPropertyGroup (vtkSMPropertyGroup *group)
	Adds a property groups. More...

void	ExposeSubProxyProperty (const char subproxy_name, const char property_name, const char *exposed_name, int overrideOK=0)
	Expose a subproxy property from the base proxy. More...

virtual void	ExecuteSubProxyEvent (vtkSMProxy o, unsigned long event, void data)
	Handle events fired by subproxies. More...

virtual int	CreateSubProxiesAndProperties (vtkSMSessionProxyManager pm, vtkPVXMLElement element)

virtual void	UpdatePropertyInformationInternal (vtkSMProperty *prop=nullptr)
	Called to update the property information on the property. More...

void	RebuildStateForProperties ()
	vtkSMProxy tracks state of properties on this proxy in an internal State object. More...

virtual void	SetLogNameInternal (const char *name, bool propagate_to_subproxies, bool propagate_to_proxylistdomains)
	Internal method used by `SetLogName` More...

bool	ArePropertiesModified ()
	Indicates if any properties are modified. More...

void	SetHints (vtkPVXMLElement *hints)

void	SetDeprecated (vtkPVXMLElement *deprecated)

void	SetEnsurePluginLoaded (vtkPVXMLElement *ensurePluginLoaded)
	Set the "EnsurePluginLoaded" XML element that is used in LoadPluginIfEnsured. More...

void	SetXMLElement (vtkPVXMLElement *element)

	vtkSMProxy (const vtkSMProxy &)=delete

void	operator= (const vtkSMProxy &)=delete


virtual const vtkClientServerStream &	GetLastResult ()
	Get the last result. More...

virtual const vtkClientServerStream &	GetLastResult (vtkTypeUInt32 location)
	Get the last result. More...


virtual void	SetXMLName (const char *)
	Assigned by the XML parser. More...


virtual void	SetXMLGroup (const char *)
	Assigned by the XML parser. More...


virtual void	SetXMLLabel (const char *)
	Assigned by the XML parser. More...


virtual void	SetXMLSubProxyName (const char *)
	Assigned by the XML parser. More...


vtkSMProperty *	NewProperty (const char *name)
	Creates a new property and initializes it by calling ReadXMLAttributes() with the right XML element. More...

vtkSMProperty *	NewProperty (const char name, vtkPVXMLElement propElement)
	Creates a new property and initializes it by calling ReadXMLAttributes() with the right XML element. More...


virtual int	ReadXMLAttributes (vtkSMSessionProxyManager pm, vtkPVXMLElement element)
	Read attributes from an XML element. More...

void	SetupExposedProperties (const char subproxy_name, vtkPVXMLElement element)
	Read attributes from an XML element. More...

void	SetupSharedProperties (vtkSMProxy subproxy, vtkPVXMLElement element)
	Read attributes from an XML element. More...

Protected Member Functions inherited from vtkSMRemoteObject
	vtkSMRemoteObject ()
	Default constructor. More...

	~vtkSMRemoteObject () override
	Destructor. More...

void	PushState (vtkSMMessage *msg)
	Subclasses can call this method to send a message to its state object on the server processes specified. More...

bool	PullState (vtkSMMessage *msg)
	Subclasses can call this method to pull the state from the state-object on the server processes specified. More...

void	SetGlobalID (vtkTypeUInt32 guid)
	Set the GlobalUniqueId. More...

vtkTypeUInt32	GetFilteredLocation ()

Protected Member Functions inherited from vtkSMSessionObject
	vtkSMSessionObject ()

	~vtkSMSessionObject () override

Protected Member Functions inherited from vtkSMObject
	vtkSMObject ()

	~vtkSMObject () override

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Protected Attributes
bool	NeedsUpdate

char *	VTKClassName

char *	XMLGroup

char *	XMLName

char *	XMLLabel

char *	XMLSubProxyName

int	ObjectsCreated

int	DoNotUpdateImmediately

int	DoNotModifyProperty

int	InUpdateVTKObjects
	Avoids calls to UpdateVTKObjects in UpdateVTKObjects. More...

bool	PropertiesModified
	Flag used to help speed up UpdateVTKObjects and ArePropertiesModified calls. More...

vtkPVXMLElement *	XMLElement

vtkSMDocumentation *	Documentation

vtkPVXMLElement *	Hints = nullptr

vtkPVXMLElement *	Deprecated = nullptr

vtkPVXMLElement *	EnsurePluginLoaded = nullptr

vtkSMMessage *	State

int	InMarkModified

vtkWeakPointer< vtkSMProxy >	ParentProxy

vtkSMProxyInternals *	Internals

vtkSMProxyObserver *	SubProxyObserver

Protected Attributes inherited from vtkSMRemoteObject
vtkTypeUInt32	GlobalID

vtkTypeUInt32	Location

bool	Prototype

bool	ClientOnlyLocationFlag

Protected Attributes inherited from vtkSMSessionObject
vtkWeakPointer< vtkSMSession >	Session
	Identifies the session id to which this object is related. More...

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Friends
class	vtkSMProxyInfo


class	vtkSMCameraLink
	These classes have been declared as friends to minimize the public interface exposed by vtkSMProxy. More...

class	vtkSMCompoundProxy
	These classes have been declared as friends to minimize the public interface exposed by vtkSMProxy. More...

class	vtkSMCompoundSourceProxy
	These classes have been declared as friends to minimize the public interface exposed by vtkSMProxy. More...

class	vtkSMDeserializerProtobuf
	These classes have been declared as friends to minimize the public interface exposed by vtkSMProxy. More...

class	vtkSMInputProperty
	These classes have been declared as friends to minimize the public interface exposed by vtkSMProxy. More...

class	vtkSMMultiServerSourceProxy
	These classes have been declared as friends to minimize the public interface exposed by vtkSMProxy. More...

class	vtkSMNamedPropertyIterator
	These classes have been declared as friends to minimize the public interface exposed by vtkSMProxy. More...

class	vtkSMOrderedPropertyIterator
	These classes have been declared as friends to minimize the public interface exposed by vtkSMProxy. More...

class	vtkSMPreselectionPipeline
	These classes have been declared as friends to minimize the public interface exposed by vtkSMProxy. More...

class	vtkSMProperty
	These classes have been declared as friends to minimize the public interface exposed by vtkSMProxy. More...

class	vtkSMPropertyIterator
	These classes have been declared as friends to minimize the public interface exposed by vtkSMProxy. More...

class	vtkSMProxyObserver
	These classes have been declared as friends to minimize the public interface exposed by vtkSMProxy. More...

class	vtkSMProxyProperty
	These classes have been declared as friends to minimize the public interface exposed by vtkSMProxy. More...

class	vtkSMProxyRegisterUndoElement
	These classes have been declared as friends to minimize the public interface exposed by vtkSMProxy. More...

class	vtkSMProxyUnRegisterUndoElement
	These classes have been declared as friends to minimize the public interface exposed by vtkSMProxy. More...

class	vtkSMSessionProxyManager
	These classes have been declared as friends to minimize the public interface exposed by vtkSMProxy. More...

class	vtkSMSourceProxy
	These classes have been declared as friends to minimize the public interface exposed by vtkSMProxy. More...

class	vtkSMStateLoader
	These classes have been declared as friends to minimize the public interface exposed by vtkSMProxy. More...

class	vtkSMStateLocator
	These classes have been declared as friends to minimize the public interface exposed by vtkSMProxy. More...

class	vtkSMUndoRedoStateLoader
	These classes have been declared as friends to minimize the public interface exposed by vtkSMProxy. More...

class	vtkSMViewProxy
	These classes have been declared as friends to minimize the public interface exposed by vtkSMProxy. More...

char *	SIClassName
	SIClassName identifies the classname for the helper on the server side. More...

virtual void	SetSIClassName (const char *)
	SIClassName identifies the classname for the helper on the server side. More...

virtual char *	GetSIClassName ()
	SIClassName identifies the classname for the helper on the server side. More...

Detailed Description

proxy for a VTK object(s) on a server

vtkSMProxy manages VTK object(s) that are created on a server using the proxy pattern. The managed object is manipulated through properties. The type of object created and managed by vtkSMProxy is determined by the VTKClassName variable. The object is managed by getting the desired property from the proxy, changing it's value and updating the server with UpdateVTKObjects(). A proxy can be composite. Sub-proxies can be added by the proxy manager. This is transparent to the user who sees all properties as if they belong to the root proxy.

A proxy keeps an iVar ConnectionID. This is the connection ID for the connection on which this proxy exists. Currently, since a ParaView client is connected to 1 and only 1 server. This ID is insignificant. However, it provides the ground work to enable a client to connect with multiple servers. ConnectionID must be set immediately after instantiating the proxy (if at all). Changing the ConnectionID after that can be dangerous.

Once a proxy has been defined, it can be listed in another secondary group

<ProxyGroup name="new_group">
 < Proxy group = "group" name ="proxyname" />
</ProxyGroup>

When defining a proxy in the XML configuration file, to derive the property interface from another proxy definition, we can use attributes "base_proxygroup" and "base_proxyname" which identify the proxy group and proxy name of another proxy. Base interfaces can be defined recursively, however care must be taken to avoid cycles.

There are several special XML features available for subproxies.

1) It is possible to share properties among subproxies. eg.
<Proxy name="Display" class="Alpha">
<SubProxy>
<Proxy name="Mapper" class="vtkPolyDataMapper">
<InputProperty name="Input" ...>
...
</InputProperty>
<IntVectorProperty name="ScalarVisibility" ...>
...
</IntVectorProperty>
...
</Proxy>
</SubProxy>
<SubProxy>
<Proxy name="Mapper2" class="vtkPolyDataMapper">
<InputProperty name="Input" ...>
...
</InputProperty>
<IntVectorProperty name="ScalarVisibility" ...>
...
</IntVectorProperty>
...
</Proxy>
<ShareProperties subproxy="Mapper">
<Exception name="Input" />
</ShareProperties>
</SubProxy>
</Proxy>
Thus, subproxies Mapper and Mapper2 share the properties that are common to both; except those listed as exceptions using the "Exception" tag.

2) It is possible for a subproxy to use proxy definition defined elsewhere by identifying the interface with attributes "proxygroup" and "proxyname". eg.
<SubProxy>
<Proxy name="Mapper" proxygroup="mappers" proxyname="PolyDataMapper" />
</SubProxy>

3) It is possible to scope the properties exposed by a subproxy and expose only a fixed set of properties to be accessible from outside. Also, while exposing the property, it can be exposed with a different name. eg.
<Proxy name="Alpha" ....>
....
<SubProxy>
<Proxy name="Mapper" proxygroup="mappers" proxyname="PolyDataMapper" />
<ExposedProperties>
<Property name="LookupTable" exposed_name="MapperLookupTable" />
</ExposedProperties>
</SubProxy>
</Proxy>
Here, for the proxy Alpha, the property with the name LookupTable from its subproxy "Mapper" can be obtained by calling GetProperty("MapperLookupTable") on an instance of the proxy Alpha. "exposed_name" attribute is optional, if not specified, then the "name" is used as the exposed property name. Properties that are not exposed are treated as non-saveable and non-animateable (see vtkSMProperty for details). Exposed property restrictions only work when using the GetProperty on the container proxy (in this case Alpha) or using the PropertyIterator obtained from the container proxy. If one is to some how obtain a pointer to the subproxy and call GetProperty on it (or get a PropertyIterator for the subproxy), the properties exposed by the container class are no longer applicable. If two exposed properties are exposed with the same name, then a Warning is flagged – only one of the two exposed properties will get exposed.

See also: vtkSMProxyManager vtkSMProperty vtkSMSourceProxy vtkSMPropertyIterator

Definition at line 140 of file vtkSMProxy.h.

Member Typedef Documentation

◆ Superclass

typedef vtkSMRemoteObject vtkSMProxy::Superclass

Definition at line 144 of file vtkSMProxy.h.

Member Enumeration Documentation

◆ ResetPropertiesMode

enum vtkSMProxy::ResetPropertiesMode

Enumerator
DEFAULT
ONLY_XML
ONLY_DOMAIN

Definition at line 369 of file vtkSMProxy.h.

◆ anonymous enum

anonymous enum

Flags used for the proxyPropertyCopyFlag argument to the Copy method.

Enumerator
COPY_PROXY_PROPERTY_VALUES_BY_REFERENCE
COPY_PROXY_PROPERTY_VALUES_BY_CLONING

Definition at line 390 of file vtkSMProxy.h.

Constructor & Destructor Documentation

◆ vtkSMProxy() [1/2]

vtkSMProxy::vtkSMProxy ( )

protected

◆ ~vtkSMProxy()

vtkSMProxy::~vtkSMProxy ( )

overrideprotected

◆ vtkSMProxy() [2/2]

vtkSMProxy::vtkSMProxy ( const vtkSMProxy & )

protecteddelete

Member Function Documentation

◆ New()

static vtkSMProxy* vtkSMProxy::New ( )

static

◆ GetClassName()

virtual const char* vtkSMProxy::GetClassName ( )

virtual

Reimplemented from vtkSMRemoteObject.

◆ IsTypeOf()

static int vtkSMProxy::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkSMProxy::IsA ( const char * type )

virtual

Reimplemented from vtkSMRemoteObject.

◆ SafeDownCast()

static vtkSMProxy* vtkSMProxy::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkSMProxy::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkSMObject.

◆ SetAnnotation()

void vtkSMProxy::SetAnnotation	(	const char *	key,
		const char *	value
	)

◆ GetAnnotation()

const char* vtkSMProxy::GetAnnotation ( const char * key )

Retrieve an annotation with a given key.

If not found, this will return nullptr.

◆ RemoveAnnotation()

void vtkSMProxy::RemoveAnnotation ( const char * key )

Remove a given annotation based on its key to the proxy.

◆ RemoveAllAnnotations()

void vtkSMProxy::RemoveAllAnnotations ( )

Remove all proxy annotations.

◆ HasAnnotation()

bool vtkSMProxy::HasAnnotation ( const char * key )

Return true if a given annotation exists.

◆ GetNumberOfAnnotations()

int vtkSMProxy::GetNumberOfAnnotations ( )

Return the number of available annotations.

◆ GetAnnotationKeyAt()

const char* vtkSMProxy::GetAnnotationKeyAt ( int index )

Return the nth key of the available annotations.

◆ SetLocation()

void vtkSMProxy::SetLocation ( vtkTypeUInt32 )

overridevirtual

Get/Set the location where the underlying VTK-objects are created.

The value can be constructed by or-ing vtkSMSession::ServerFlags

Reimplemented from vtkSMRemoteObject.

◆ GetProperty() [1/2]

virtual vtkSMProperty* vtkSMProxy::GetProperty ( const char * name )

inlinevirtual

Return the property with the given name.

If no property is found nullptr is returned.

Definition at line 193 of file vtkSMProxy.h.

◆ GetProperty() [2/2]

virtual vtkSMProperty* vtkSMProxy::GetProperty	(	const char *	name,
		int	selfOnly
	)

virtual

Return a property of the given name from self or one of the sub-proxies.

If selfOnly is set, the sub-proxies are not checked.

◆ GetPropertyName()

const char* vtkSMProxy::GetPropertyName ( vtkSMProperty * prop )

Given a property pointer, returns the name that was used to add it to the proxy.

Returns nullptr if the property is not in the proxy. If the property belongs to a sub-proxy, it returns the exposed name or nullptr if the property is not exposed.

◆ UpdateVTKObjects()

virtual void vtkSMProxy::UpdateVTKObjects ( )

virtual

Update the VTK object on the server by pushing the values of all modified properties (un-modified properties are ignored).

If the object has not been created, it will be created first.

Reimplemented in vtkSMRenderViewProxy, vtkSMCompoundSourceProxy, vtkSMVRPythonInteractorStyleProxy, vtkSMMaterialLibraryProxy, vtkSMBoxRepresentationProxy, and vtkSMEnsembleDataReaderProxy.

◆ RecreateVTKObjects()

virtual void vtkSMProxy::RecreateVTKObjects ( )

virtual

Recreate the VTK object for this proxy.

This is a convenient mechanism to create a new VTK object with the same state as an existing one in its stead.

Reimplemented in vtkSMVRPythonInteractorStyleProxy.

◆ UpdateProperty() [1/2]

bool vtkSMProxy::UpdateProperty ( const char * name )

inline

Update the value of one property (pushed to the server) if it is modified.

If the object has not been created, it will be created first. If force is true, the property is pushed even if it not modified. Return true if UpdateProperty pushes the property value.

Definition at line 235 of file vtkSMProxy.h.

◆ UpdateProperty() [2/2]

bool vtkSMProxy::UpdateProperty	(	const char *	name,
		int	force
	)

Update the value of one property (pushed to the server) if it is modified.

If the object has not been created, it will be created first. If force is true, the property is pushed even if it not modified. Return true if UpdateProperty pushes the property value.

◆ InvokeCommand()

void vtkSMProxy::InvokeCommand ( const char * name )

inline

Convenience method equivalent to UpdateProperty(name, 1).

Definition at line 242 of file vtkSMProxy.h.

◆ GetVTKClassName()

virtual char* vtkSMProxy::GetVTKClassName ( )

virtual

Returns the type of object managed by the proxy.

◆ SetVTKClassName()

virtual void vtkSMProxy::SetVTKClassName ( const char * )

virtual

the type of object created by the proxy.

This is used only when creating the server objects. Once the server object(s) have been created, changing this has no effect.

◆ NewPropertyIterator()

virtual vtkSMPropertyIterator* vtkSMProxy::NewPropertyIterator ( )

virtual

Returns a new (initialized) iterator of the properties.

◆ GetNumberOfConsumers()

unsigned int vtkSMProxy::GetNumberOfConsumers ( )

Returns the number of consumers.

Consumers are proxies that point to this proxy through a property (usually vtkSMProxyProperty)

◆ GetConsumerProxy()

vtkSMProxy* vtkSMProxy::GetConsumerProxy ( unsigned int idx )

Returns the consumer of given index.

Consumers are proxies that point to this proxy through a property (usually vtkSMProxyProperty)

◆ GetConsumerProperty()

vtkSMProperty* vtkSMProxy::GetConsumerProperty ( unsigned int idx )

Returns the corresponding property of the consumer of given index.

Consumers are proxies that point to this proxy through a property (usually vtkSMProxyProperty)

◆ GetNumberOfProducers()

unsigned int vtkSMProxy::GetNumberOfProducers ( )

Returns the number of proxies this proxy depends on (uses or is connected to through the pipeline).

◆ GetProducerProxy()

vtkSMProxy* vtkSMProxy::GetProducerProxy ( unsigned int idx )

Returns a proxy this proxy depends on, given index.

◆ GetProducerProperty()

vtkSMProperty* vtkSMProxy::GetProducerProperty ( unsigned int idx )

Returns the property holding a producer proxy given an index.

Note that this is a property of this proxy and it points to the producer proxy.

◆ GetXMLName()

virtual char* vtkSMProxy::GetXMLName ( )

virtual

Assigned by the XML parser.

The name assigned in the XML configuration. Can be used to figure out the origin of the proxy.

◆ GetXMLGroup()

virtual char* vtkSMProxy::GetXMLGroup ( )

virtual

Assigned by the XML parser.

The group in the XML configuration that this proxy belongs to. Can be used to figure out the origin of the proxy.

◆ GetXMLLabel()

virtual char* vtkSMProxy::GetXMLLabel ( )

virtual

Assigned by the XML parser.

The label assigned in the XML configuration. This is a more user-friendly name for the proxy, although it's cannot be used to locate the proxy.

◆ UpdatePropertyInformation() [1/2]

virtual void vtkSMProxy::UpdatePropertyInformation ( )

virtual

Updates all property information by calling UpdateInformation() and populating the values.

Reimplemented in vtkSMCameraProxy, and vtkSMBoxRepresentationProxy.

◆ UpdatePropertyInformation() [2/2]

virtual void vtkSMProxy::UpdatePropertyInformation ( vtkSMProperty * prop )

virtual

Similar to UpdatePropertyInformation() but updates only the given property.

If the property does not belong to the proxy, the call is ignored.

Reimplemented in vtkSMCameraProxy, and vtkSMBoxRepresentationProxy.

◆ MarkAllPropertiesAsModified()

virtual void vtkSMProxy::MarkAllPropertiesAsModified ( )

virtual

Marks all properties as modified.

This will cause them all to be sent to be sent on the next call to UpdateVTKObjects. This method is useful when the proxy is first created to make sure that the default property values in the properties is synced with the values in the actual objects.

◆ ResetPropertiesToXMLDefaults()

virtual void vtkSMProxy::ResetPropertiesToXMLDefaults ( )

virtual

Use this method to set all properties on this proxy to their default values.

This iterates over all properties on this proxy, thus if this proxy had subproxies, this method will iterate over only the exposed properties and call vtkSMProperty::ResetToXMLDefaults().

◆ ResetPropertiesToDomainDefaults()

virtual void vtkSMProxy::ResetPropertiesToDomainDefaults ( )

virtual

Use this method to set all properties on this proxy to their default domains.

This iterates over all properties on this proxy, thus if this proxy had subproxies, this method will iterate over only the exposed properties and call vtkSMProperty::ResetToDomainDefaults().

◆ ResetPropertiesToDefault()

virtual void vtkSMProxy::ResetPropertiesToDefault ( ResetPropertiesMode mode = DEFAULT )

virtual

Use this method to set all properties on this proxy to their default domain or values.

This iterates over all properties on this proxy, thus if this proxy had subproxies, this method will iterate over only the exposed properties and call correct reset methods. The parameter allows to choose between resetting ONLY_XML, ONLY_DOMAIN or DEFAULT, ie. reset to domain if available, if not reset to xml. default value is DEFAULT.

◆ Copy() [1/3]

void vtkSMProxy::Copy ( vtkSMProxy * src )

Copies values of all the properties and sub-proxies from src.

NOTE: This does NOT create properties and sub-proxies. Only copies values. Mismatched property and sub-proxy pairs are ignored. Properties of type exceptionClass are not copied. This is usually vtkSMInputProperty. proxyPropertyCopyFlag specifies how the values for vtkSMProxyProperty and its subclasses are copied over: by reference or by cloning (ie. creating new instances of the value proxies and synchronizing their values). This is no longer relevant since we don't support COPY_PROXY_PROPERTY_VALUES_BY_CLONING anymore.

◆ Copy() [2/3]

void vtkSMProxy::Copy	(	vtkSMProxy *	src,
		const char *	exceptionClass
	)

Copies values of all the properties and sub-proxies from src.

NOTE: This does NOT create properties and sub-proxies. Only copies values. Mismatched property and sub-proxy pairs are ignored. Properties of type exceptionClass are not copied. This is usually vtkSMInputProperty. proxyPropertyCopyFlag specifies how the values for vtkSMProxyProperty and its subclasses are copied over: by reference or by cloning (ie. creating new instances of the value proxies and synchronizing their values). This is no longer relevant since we don't support COPY_PROXY_PROPERTY_VALUES_BY_CLONING anymore.

◆ Copy() [3/3]

virtual void vtkSMProxy::Copy	(	vtkSMProxy *	src,
		const char *	exceptionClass,
		int	proxyPropertyCopyFlag
	)

virtual

Copies values of all the properties and sub-proxies from src.

NOTE: This does NOT create properties and sub-proxies. Only copies values. Mismatched property and sub-proxy pairs are ignored. Properties of type exceptionClass are not copied. This is usually vtkSMInputProperty. proxyPropertyCopyFlag specifies how the values for vtkSMProxyProperty and its subclasses are copied over: by reference or by cloning (ie. creating new instances of the value proxies and synchronizing their values). This is no longer relevant since we don't support COPY_PROXY_PROPERTY_VALUES_BY_CLONING anymore.

◆ MarkModified()

virtual void vtkSMProxy::MarkModified ( vtkSMProxy * modifiedProxy )

virtual

Calls MarkDirty() and invokes ModifiedEvent.

◆ GetDocumentation()

virtual vtkSMDocumentation* vtkSMProxy::GetDocumentation ( )

virtual

Returns the documentation for this proxy.

◆ GetHints()

virtual vtkPVXMLElement* vtkSMProxy::GetHints ( )

virtual

The server manager configuration XML may define <Hints/> element for a proxy.

Hints are metadata associated with the proxy. The Server Manager does not (and should not) interpret the hints. Hints provide a mechanism to add GUI pertinant information to the server manager XML. Returns the XML element for the hints associated with this proxy, if any, otherwise returns nullptr.

◆ GetObjectsCreated()

virtual int vtkSMProxy::GetObjectsCreated ( )

virtual

Returns if the VTK objects for this proxy have been created.

◆ IsDeprecated()

bool vtkSMProxy::IsDeprecated ( )

inline

Returns true if the proxy has a deprecation tag.

Definition at line 450 of file vtkSMProxy.h.

◆ InitializeAndCopyFromProxy()

void vtkSMProxy::InitializeAndCopyFromProxy ( vtkSMProxy * source )

Given a source proxy, makes this proxy point to the same server-side object (with a new id).

This method copies connection id as well as server ids. This method can be called only once on an uninitialized proxy (CreateVTKObjects() also initialized a proxy) This is useful to make two (or more) proxies represent the same VTK object. This method does not copy IDs for any subproxies.

◆ MarkDirty()

virtual void vtkSMProxy::MarkDirty ( vtkSMProxy * modifiedProxy )

virtual

Dirty means this algorithm will execute during next update.

This all marks all consumers as dirty.

Reimplemented in vtkSMRenderViewProxy, vtkSMSourceProxy, vtkSMRepresentationProxy, vtkSMComparativeViewProxy, and vtkSMMultiServerSourceProxy.

◆ GetClientSideObject()

vtkObjectBase* vtkSMProxy::GetClientSideObject ( )

Returns the client side object associated with the VTKObjectID (if any).

Returns 0 otherwise.

◆ GatherInformation() [1/2]

bool vtkSMProxy::GatherInformation ( vtkPVInformation * information )

Gathers information about this proxy.

On success, the information object is filled up with details about the VTK object.

◆ GatherInformation() [2/2]

bool vtkSMProxy::GatherInformation	(	vtkPVInformation *	information,
		vtkTypeUInt32	location
	)

Gathers information about this proxy.

On success, the information object is filled up with details about the VTK object.

◆ SaveXMLState() [1/2]

virtual vtkPVXMLElement* vtkSMProxy::SaveXMLState ( vtkPVXMLElement * root )

virtual

Saves the state of the proxy.

This state can be reloaded to create a new proxy that is identical the present state of this proxy. The resulting proxy's XML hieratchy is returned, in addition if the root argument is not nullptr then it's also inserted as a nested element. This call saves all a proxy's properties, including exposed properties and sub-proxies. More control is provided by the following overload.

Reimplemented in vtkSMViewLayoutProxy, and vtkSMComparativeAnimationCueProxy.

◆ SaveXMLState() [2/2]

virtual vtkPVXMLElement* vtkSMProxy::SaveXMLState	(	vtkPVXMLElement *	root,
		vtkSMPropertyIterator *	iter
	)

virtual

The iterator is use to filter the property available on the given proxy.

Reimplemented in vtkSMViewLayoutProxy, vtkSMMultiplexerSourceProxy, vtkSMComparativeAnimationCueProxy, and vtkSMSelfGeneratingSourceProxy.

◆ LoadXMLState()

virtual int vtkSMProxy::LoadXMLState	(	vtkPVXMLElement *	element,
		vtkSMProxyLocator *	locator
	)

virtual

Loads the proxy state from the XML element.

Returns 0 on failure. locator is used to locate other proxies that may be referred to in the state XML (which happens in case of properties of type vtkSMProxyProperty or subclasses). If locator is nullptr, then such properties are left unchanged.

Reimplemented in vtkSMViewLayoutProxy, vtkSMRepresentationProxy, vtkSMMultiplexerSourceProxy, vtkSMComparativeAnimationCueProxy, vtkSMAnimationSceneProxy, and vtkSMSelfGeneratingSourceProxy.

◆ PrototypeOn()

void vtkSMProxy::PrototypeOn ( )

overridevirtual

Allow user to set the remote object to be discard for Undo/Redo action.

By default, any remote object is Undoable. This override the RemoteObject ones to propagate the flag to the sub-proxy

Reimplemented from vtkSMRemoteObject.

◆ PrototypeOff()

void vtkSMProxy::PrototypeOff ( )

overridevirtual

Allow user to set the remote object to be discard for Undo/Redo action.

By default, any remote object is Undoable. This override the RemoteObject ones to propagate the flag to the sub-proxy

Reimplemented from vtkSMRemoteObject.

◆ SetPrototype()

void vtkSMProxy::SetPrototype ( bool undo )

overridevirtual

Allow user to set the remote object to be discard for Undo/Redo action.

By default, any remote object is Undoable. This override the RemoteObject ones to propagate the flag to the sub-proxy

Reimplemented from vtkSMRemoteObject.

◆ UpdateSelfAndAllInputs()

void vtkSMProxy::UpdateSelfAndAllInputs ( )

This method call UpdateVTKObjects on the current pipeline by starting at the sources.

The sources are found by getting the Input of all the filter along the pipeline.

◆ GetIsSubProxy()

bool vtkSMProxy::GetIsSubProxy ( )

A proxy instance can be a sub-proxy for some other proxy.

In that case, this method returns true.

◆ GetParentProxy()

vtkSMProxy* vtkSMProxy::GetParentProxy ( )

If this instance is a sub-proxy, this method will return the proxy of which this instance is an immediate sub-proxy.

◆ GetTrueParentProxy()

vtkSMProxy* vtkSMProxy::GetTrueParentProxy ( )

Call GetParentProxy() recursively till a proxy that is not a subproxy of any other proxy is found.

May return this instance, if this is not a subproxy of any other proxy.

◆ EnableLocalPushOnly()

void vtkSMProxy::EnableLocalPushOnly ( )

overridevirtual

Allow to switch off any push of state change to the server for that particular object.

This is used when we load a state based on a server notification. In that particular case, the server is already aware of that new state, so we keep those changes local.

Reimplemented from vtkSMRemoteObject.

◆ DisableLocalPushOnly()

void vtkSMProxy::DisableLocalPushOnly ( )

overridevirtual

Enable the given remote object to communicate its state normally to the server location.

Reimplemented from vtkSMRemoteObject.

◆ GetFullState()

const vtkSMMessage* vtkSMProxy::GetFullState ( )

overridevirtual

This method return the full object state that can be used to create that object from scratch.

Reimplemented from vtkSMRemoteObject.

◆ LoadState()

void vtkSMProxy::LoadState	(	const vtkSMMessage *	msg,
		vtkSMProxyLocator *	locator
	)

overridevirtual

This method is used to initialise the object to the given state If the definitionOnly Flag is set to True the proxy won't load the properties values and just setup the new proxy hierarchy with all subproxy globalID set.

This allow to split the load process in 2 step to prevent invalid state when property refere to a sub-proxy that does not exist yet.

Reimplemented from vtkSMRemoteObject.

Reimplemented in vtkSMViewLayoutProxy.

◆ GetPropertyGroup()

vtkSMPropertyGroup* vtkSMProxy::GetPropertyGroup ( size_t index ) const

Returns the property group at index for the proxy.

◆ GetNumberOfPropertyGroups()

size_t vtkSMProxy::GetNumberOfPropertyGroups ( ) const

Returns the number of property groups that the proxy contains.

◆ SetLogName()

void vtkSMProxy::SetLogName ( const char * name )

Log name is a name for this proxy that will be used when logging status messages.

This helps make the log more user friendly by making sure it uses names that the user can easily map to objects shown in the user interface.

This method will set the log name for this proxy and iterate over all subproxies and set log name for each using the provided name as prefix.

Furthermore, for all properties with vtkSMProxyListDomain, it will set log name for proxies in those domains to use the provided name as prefix as well.

Note: The use of this name for any other purpose than logging is strictly discouraged.

◆ GetLogName()

virtual char* vtkSMProxy::GetLogName ( )

virtual

Log name is a name for this proxy that will be used when logging status messages.

This helps make the log more user friendly by making sure it uses names that the user can easily map to objects shown in the user interface.

This method will set the log name for this proxy and iterate over all subproxies and set log name for each using the provided name as prefix.

Furthermore, for all properties with vtkSMProxyListDomain, it will set log name for proxies in those domains to use the provided name as prefix as well.

Note: The use of this name for any other purpose than logging is strictly discouraged.

◆ GetLogNameOrDefault()

const char* vtkSMProxy::GetLogNameOrDefault ( )

A helper that makes up an default name if none is provided.

◆ GetPropertiesModified()

bool vtkSMProxy::GetPropertiesModified ( )

inline

Definition at line 609 of file vtkSMProxy.h.

◆ GetPropertiesWithDifferentValues()

virtual std::vector<std::string> vtkSMProxy::GetPropertiesWithDifferentValues ( vtkSMProxy * otherProxy )

virtual

Return the property names that have values different from the otherProxy argument.

◆ ExecuteStream()

void vtkSMProxy::ExecuteStream	(	const vtkClientServerStream &	msg,
		bool	ignore_errors = `false`,
		vtkTypeUInt32	location = `0`
	)

protected

Invoke that takes a vtkClientServerStream as the argument.

◆ UpdateAndPushAnnotationState()

virtual void vtkSMProxy::UpdateAndPushAnnotationState ( )

protectedvirtual

◆ GetLastResult() [1/2]

virtual const vtkClientServerStream& vtkSMProxy::GetLastResult ( )

protectedvirtual

Get the last result.

◆ GetLastResult() [2/2]

virtual const vtkClientServerStream& vtkSMProxy::GetLastResult ( vtkTypeUInt32 location )

protectedvirtual

Get the last result.

◆ AddProperty()

virtual void vtkSMProxy::AddProperty	(	const char *	name,
		vtkSMProperty *	prop
	)

protectedvirtual

Add a property with the given key (name).

The name can then be used to retrieve the property with GetProperty(). If a property with the given name has been added before, it will be replaced. This includes properties in sub-proxies.

◆ MarkConsumersAsDirty()

virtual void vtkSMProxy::MarkConsumersAsDirty ( vtkSMProxy * modifiedProxy )

protectedvirtual

Calls MarkDirtyFromProducer on all consumers.

◆ MarkDirtyFromProducer()

virtual void vtkSMProxy::MarkDirtyFromProducer	(	vtkSMProxy *	modifiedProxy,
		vtkSMProxy *	producer,
		vtkSMProperty *	property
	)

protectedvirtual

MarkConsumersAsDirty calls this method on each consumer, instead of directly calling MarkDirty on the consumer.

This provides the consumer with potentially useful insight about which producer the modification is coming from which can be useful e.g. vtkSMRepresentationProxy.

Default implementation simply calls this->MarkDirty(modifiedProxy).

Reimplemented in vtkSMRepresentationProxy.

◆ MarkInputsAsDirty()

void vtkSMProxy::MarkInputsAsDirty ( )

protected

This method is called by vtkSMRepresentationProxy whenever the time request for the pipeline may have potentially changed.

While this does not mean that the pipeline will re-execute, it does indicate that the pipeline could execute and hence to ensure we update data information (and other state) correctly when PostUpdateData gets called, need to ensure the upstream pipeline on the proxy side realizes it may need update. This method simply toggles NeedsUpdate flag and propagate up the producer chain through input properties.

◆ SetXMLName()

virtual void vtkSMProxy::SetXMLName ( const char * )

protectedvirtual

Assigned by the XML parser.

The name assigned in the XML configuration. Can be used to figure out the origin of the proxy.

◆ SetXMLGroup()

virtual void vtkSMProxy::SetXMLGroup ( const char * )

protectedvirtual

Assigned by the XML parser.

The group in the XML configuration that this proxy belongs to. Can be used to figure out the origin of the proxy.

◆ SetXMLLabel()

virtual void vtkSMProxy::SetXMLLabel ( const char * )

protectedvirtual

Assigned by the XML parser.

The label assigned in the XML configuration. This is a more user-friendly name for the proxy, although it's cannot be used to locate the proxy.

◆ SetXMLSubProxyName()

virtual void vtkSMProxy::SetXMLSubProxyName ( const char * )

protectedvirtual

Assigned by the XML parser.

It is used to figure out the origin of the definition of that proxy. By default, it stay nullptr, only in-line subProxy do specify this field so when the definition is sent to the server, it can retrieve the in-line definition of that proxy.

◆ CreateVTKObjects()

virtual void vtkSMProxy::CreateVTKObjects ( )

protectedvirtual

Given a class name (by setting VTKClassName) and server ids (by setting ServerIDs), this methods instantiates the objects on the server(s)

Reimplemented in vtkSMPVRepresentationProxy, vtkSMRenderViewProxy, vtkSMViewProxy, vtkSMSourceProxy, vtkSMRepresentationProxy, vtkSMMultiplexerSourceProxy, vtkSMCompoundSourceProxy, vtkSMTimeKeeperProxy, vtkSMSettingsProxy, vtkSMScalarBarWidgetRepresentationProxy, vtkSMComparativeViewProxy, vtkSMContextViewProxy, vtkSMComparativeAnimationCueProxy, vtkSMLiveInsituLinkProxy, vtkSMAnimationSceneProxy, vtkSMSelfGeneratingSourceProxy, vtkSMNewWidgetRepresentationProxy, vtkSMImageExtractWriterProxy, vtkSMNew2DWidgetRepresentationProxy, vtkSMOrthographicSliceViewProxy, vtkSMBoxRepresentationProxy, vtkSMPlotMatrixViewProxy, vtkSMRecolorableImageExtractWriterProxy, vtkSMLightProxy, vtkSMSpreadSheetViewProxy, vtkSMTextWidgetRepresentationProxy, and vtkSMNullProxy.

◆ RemoveAllObservers()

void vtkSMProxy::RemoveAllObservers ( )

protected

Cleanup code.

Remove all observers from all properties assigned to this proxy. Called before deleting properties. This also removes observers on subproxies.

◆ SetPropertyModifiedFlag()

virtual void vtkSMProxy::SetPropertyModifiedFlag	(	const char *	name,
		int	flag
	)

protectedvirtual

Note on property modified flags: The modified flag of each property associated with a proxy is stored in the proxy object instead of in the property itself.

Here is a brief explanation of how modified flags are used:

1. When a property is modified, the modified flag is set
2. In UpdateVTKObjects(), the proxy visits all properties and calls AppendCommandToStream() on each modified property. It also resets the modified flag.

The reason why the modified flag is stored in the proxy instead of property is in item 2 above. If multiple proxies were sharing the same property, the first one would reset the modified flag in UpdateVTKObjects() and then others would not call AppendCommandToStream() in their turn. Therefore, each proxy has to keep track of all properties it updated. This is done by adding observers to the properties. When a property is modified, it invokes all observers and the observers set the appropriate flags in the proxies. Changes the modified flag of a property. Used by the observers

Reimplemented in vtkSMPVRepresentationProxy, vtkSMSettingsProxy, vtkSMChartRepresentationProxy, vtkSMSpreadSheetRepresentationProxy, and vtkSMEnsembleDataReaderProxy.

◆ AddSubProxy()

void vtkSMProxy::AddSubProxy	(	const char *	name,
		vtkSMProxy *	proxy,
		int	overrideOK = `0`
	)

protected

Add a sub-proxy.

If the overrideOK flag is set, then no warning is printed when a new subproxy replaces a preexisting one.

◆ RemoveSubProxy()

void vtkSMProxy::RemoveSubProxy ( const char * name )

protected

Remove a sub-proxy.

◆ GetSubProxy() [1/2]

vtkSMProxy* vtkSMProxy::GetSubProxy ( const char * name )

protected

Returns a sub-proxy.

Returns 0 if sub-proxy does not exist.

◆ GetSubProxy() [2/2]

vtkSMProxy* vtkSMProxy::GetSubProxy ( unsigned int index )

protected

Returns a sub-proxy.

Returns 0 if sub-proxy does not exist.

◆ GetSubProxyName() [1/2]

const char* vtkSMProxy::GetSubProxyName ( unsigned int index )

protected

Returns the name used to store sub-proxy.

Returns 0 if sub-proxy does not exist.

◆ GetSubProxyName() [2/2]

const char* vtkSMProxy::GetSubProxyName ( vtkSMProxy * )

protected

Returns the name used to store sub-proxy.

Returns 0 is the sub-proxy does not exist.

◆ GetNumberOfSubProxies()

unsigned int vtkSMProxy::GetNumberOfSubProxies ( )

protected

Returns the number of sub-proxies.

◆ AddConsumer()

virtual void vtkSMProxy::AddConsumer	(	vtkSMProperty *	property,
		vtkSMProxy *	proxy
	)

protectedvirtual

Called by a proxy property, this adds the property,proxy pair to the list of consumers.

Reimplemented in vtkSMRepresentationProxy.

◆ RemoveConsumer()

virtual void vtkSMProxy::RemoveConsumer	(	vtkSMProperty *	property,
		vtkSMProxy *	proxy
	)

protectedvirtual

Remove the property,proxy pair from the list of consumers.

Reimplemented in vtkSMRepresentationProxy.

◆ RemoveAllConsumers()

virtual void vtkSMProxy::RemoveAllConsumers ( )

protectedvirtual

Remove all consumers.

Reimplemented in vtkSMRepresentationProxy.

◆ AddProducer()

void vtkSMProxy::AddProducer	(	vtkSMProperty *	property,
		vtkSMProxy *	proxy
	)

protected

Called by an proxy/input property to add property, proxy pair to the list of producers.

◆ RemoveProducer()

void vtkSMProxy::RemoveProducer	(	vtkSMProperty *	property,
		vtkSMProxy *	proxy
	)

protected

Remove the property,proxy pair from the list of producers.

◆ PostUpdateData()

virtual void vtkSMProxy::PostUpdateData ( bool using_cache )

protectedvirtual

This method is called after the algorithm(s) (if any) associated with this proxy execute.

Subclasses overwrite this method to add necessary functionality.

using_cache is set to true when the pipeline update was requested but skipped because the result was previously generated. This happens when using playing animations with cache enabled.

Reimplemented in vtkSMSourceProxy, and vtkSMRepresentationProxy.

◆ PostUpdateDataSelfOnly()

void vtkSMProxy::PostUpdateDataSelfOnly ( bool using_cache )

protected

This is called by PostUpdateData to only update state for this proxy without iterative over producers.

◆ WarnIfDeprecated()

bool vtkSMProxy::WarnIfDeprecated ( )

protected

If a proxy is deprecated, prints a warning.

◆ LoadPluginIfEnsured()

bool vtkSMProxy::LoadPluginIfEnsured ( )

protected

If a proxy need to ensure a plugin is loaded, make sure it is.

◆ UpdatePipelineInformation()

virtual void vtkSMProxy::UpdatePipelineInformation ( )

protectedvirtual

This method simply iterates over subproxies and calls UpdatePipelineInformation() on them.

vtkSMSourceProxy overrides this method (makes it public) and updates the pipeline information.

Reimplemented in vtkSMSourceProxy, and vtkSMImporterProxy.

◆ NewProperty() [1/2]

vtkSMProperty* vtkSMProxy::NewProperty ( const char * name )

protected

Creates a new property and initializes it by calling ReadXMLAttributes() with the right XML element.

◆ NewProperty() [2/2]

vtkSMProperty* vtkSMProxy::NewProperty	(	const char *	name,
		vtkPVXMLElement *	propElement
	)

protected

Creates a new property and initializes it by calling ReadXMLAttributes() with the right XML element.

◆ LinkProperty()

void vtkSMProxy::LinkProperty	(	vtkSMProperty *	inputProperty,
		vtkSMProperty *	outputProperty
	)

protected

Links properties such that when inputProperty's checked or unchecked values are changed, the outputProperty's corresponding values are also changed.

◆ NewPropertyGroup()

vtkSMPropertyGroup* vtkSMProxy::NewPropertyGroup ( vtkPVXMLElement * propElement )

protected

Parses the XML to create a new property group.

This can handle <PropertyGroup/> elements defined in both regular Proxy section or when exposing properties from sub-proxies.

◆ AppendPropertyGroup()

void vtkSMProxy::AppendPropertyGroup ( vtkSMPropertyGroup * group )

protected

Adds a property groups.

◆ ReadXMLAttributes()

virtual int vtkSMProxy::ReadXMLAttributes	(	vtkSMSessionProxyManager *	pm,
		vtkPVXMLElement *	element
	)

protectedvirtual

Read attributes from an XML element.

Reimplemented in vtkSMPVRepresentationProxy, vtkSMViewProxy, vtkSMSourceProxy, vtkSMCompoundSourceProxy, vtkSMContextViewProxy, vtkSMSettingsProxy, vtkSMWriterProxy, vtkSMExporterProxy, vtkSMImporterProxy, vtkSMGL2PSExporterProxy, and vtkSMChartRepresentationProxy.

◆ SetupExposedProperties()

void vtkSMProxy::SetupExposedProperties	(	const char *	subproxy_name,
		vtkPVXMLElement *	element
	)

protected

Read attributes from an XML element.

◆ SetupSharedProperties()

void vtkSMProxy::SetupSharedProperties	(	vtkSMProxy *	subproxy,
		vtkPVXMLElement *	element
	)

protected

Read attributes from an XML element.

◆ ExposeSubProxyProperty()

void vtkSMProxy::ExposeSubProxyProperty	(	const char *	subproxy_name,
		const char *	property_name,
		const char *	exposed_name,
		int	overrideOK = `0`
	)

protected

Expose a subproxy property from the base proxy.

The property with the name "property_name" on the subproxy with the name "subproxy_name" is exposed with the name "exposed_name". If the overrideOK flag is set, then no warning is printed when a new exposed property replaces a preexisting one.

◆ ExecuteSubProxyEvent()

virtual void vtkSMProxy::ExecuteSubProxyEvent	(	vtkSMProxy *	o,
		unsigned long	event,
		void *	data
	)

protectedvirtual

Handle events fired by subproxies.

◆ CreateSubProxiesAndProperties()

virtual int vtkSMProxy::CreateSubProxiesAndProperties	(	vtkSMSessionProxyManager *	pm,
		vtkPVXMLElement *	element
	)

protectedvirtual

Reimplemented in vtkSMMultiplexerSourceProxy.

◆ UpdatePropertyInformationInternal()

virtual void vtkSMProxy::UpdatePropertyInformationInternal ( vtkSMProperty * prop = nullptr )

protectedvirtual

Called to update the property information on the property.

It is assured that the property passed in as an argument is a self property. Both the overloads of UpdatePropertyInformation() call this method, so subclass can override this method to perform special tasks.

◆ RebuildStateForProperties()

void vtkSMProxy::RebuildStateForProperties ( )

protected

vtkSMProxy tracks state of properties on this proxy in an internal State object.

Since it tracks all the properties by index, if there's a potential for the properties order to have changed, then this method must be called after the changes have happened so that vtkSMProxy can rebuild this->State. Currently, this is only relevant for vtkSMSelfGeneratingSourceProxy and similar that add new properties at run time.

◆ SetLogNameInternal()

virtual void vtkSMProxy::SetLogNameInternal	(	const char *	name,
		bool	propagate_to_subproxies,
		bool	propagate_to_proxylistdomains
	)

protectedvirtual

Internal method used by SetLogName

Reimplemented in vtkSMSourceProxy.

◆ SetSIClassName()

virtual void vtkSMProxy::SetSIClassName ( const char * )

protectedvirtual

SIClassName identifies the classname for the helper on the server side.

◆ GetSIClassName()

virtual char* vtkSMProxy::GetSIClassName ( )

protectedvirtual

SIClassName identifies the classname for the helper on the server side.

◆ ArePropertiesModified()

bool vtkSMProxy::ArePropertiesModified ( )

protected

Indicates if any properties are modified.

◆ SetHints()

void vtkSMProxy::SetHints ( vtkPVXMLElement * hints )

protected

◆ SetDeprecated()

void vtkSMProxy::SetDeprecated ( vtkPVXMLElement * deprecated )

protected

◆ SetEnsurePluginLoaded()

void vtkSMProxy::SetEnsurePluginLoaded ( vtkPVXMLElement * ensurePluginLoaded )

protected

Set the "EnsurePluginLoaded" XML element that is used in LoadPluginIfEnsured.

◆ SetXMLElement()

void vtkSMProxy::SetXMLElement ( vtkPVXMLElement * element )

protected

◆ operator=()

void vtkSMProxy::operator= ( const vtkSMProxy & )

protecteddelete

Friends And Related Function Documentation
