property representing pointer(s) to vtkObject(s) More...

#include <vtkSMProxyProperty.h>

Inheritance diagram for vtkSMProxyProperty:

[legend]

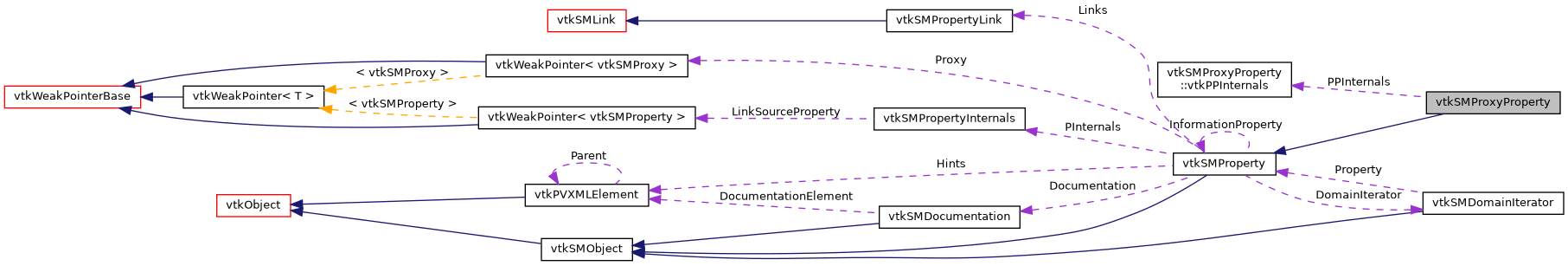

Collaboration diagram for vtkSMProxyProperty:

[legend]

Classes
class	vtkPPInternals
	This class is used by vtkSMProxyProperty to keep track of the proxies. More...

Public Types
typedef vtkSMProperty	Superclass

Public Types inherited from vtkSMProperty
typedef vtkSMObject	Superclass

Public Types inherited from vtkSMObject
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

virtual void	SetProxies (unsigned int numElements, vtkSMProxy *proxies[])
	Sets the value of the property to the list of proxies specified. More...

bool	IsProxyAdded (vtkSMProxy *proxy)
	Returns if the given proxy is already added to the property. More...

virtual void	RemoveAllUncheckedProxies ()
	Removes all unchecked proxies. More...

void	ClearUncheckedElements () override
	Use this method to clear unchecked values set of this property. More...

unsigned int	GetNumberOfProxies ()
	Returns the number of proxies. More...

unsigned int	GetNumberOfUncheckedProxies ()
	Returns the number of unchecked proxies. More...

vtkSMProxy *	GetProxy (unsigned int idx)
	Return a proxy. More...

vtkSMProxy *	GetUncheckedProxy (unsigned int idx)
	Return a proxy. More...

void	Copy (vtkSMProperty *src) override
	Copy all property values. More...

void	UpdateAllInputs () override
	Update all proxies referred by this property (if any). More...

bool	IsValueDefault () override
	Returns true if the property's value is different from the default value. More...

void	ResetToXMLDefaults () override
	For properties that support specifying defaults in XML configuration, this method will reset the property value to the default values specified in the XML. More...


virtual void	AddProxy (vtkSMProxy *proxy)
	Add/remove/set a proxy to the list of proxies. More...

virtual void	SetProxy (unsigned int idx, vtkSMProxy *proxy)
	Add/remove/set a proxy to the list of proxies. More...

virtual void	RemoveProxy (vtkSMProxy *proxy)
	Add/remove/set a proxy to the list of proxies. More...

virtual void	RemoveAllProxies ()
	Add/remove/set a proxy to the list of proxies. More...


virtual void	AddUncheckedProxy (vtkSMProxy *proxy)
	Add an unchecked proxy. More...

virtual void	SetUncheckedProxy (unsigned int idx, vtkSMProxy *proxy)
	Add an unchecked proxy. More...


void	SetNumberOfProxies (unsigned int count)
	Set the number of proxies. More...

void	SetNumberOfUncheckedProxies (unsigned int count)
	Set the number of proxies. More...

Public Member Functions inherited from vtkSMProperty
int	IsInDomains ()
	Returns true if all values are in all domains, false otherwise. More...

int	IsInDomains (vtkSMDomain **domain)
	Overload of IsInDomains() that provides a mechanism to return the first domain that fails the check. More...

void	UnRegister (vtkObjectBase *obj) override
	Overloaded to break the reference loop caused by the internal domain iterator. More...

vtkSMDomainIterator *	NewDomainIterator ()
	Creates, initializes and returns a new domain iterator. More...

vtkSMDomain *	GetDomain (const char *name)
	Returns a domain give a name. More...

vtkSMDomain *	FindDomain (const char *classname)
	Returns the first domain which is of the specified type. More...

template<class DomainType >
DomainType *	FindDomain ()
	Same as FindDomain(classname), except the classname is deduced from the type. More...

unsigned int	GetNumberOfDomains ()
	Returns the number of domains this property has. More...

void	AddDomain (const char name, vtkSMDomain dom)
	Properties can have one or more domains. More...

virtual void	AddLinkedProperty (vtkSMProperty *targetProperty)
	Add a link to a property whose value should be synchronized with this property value. More...

virtual void	RemoveLinkedProperty (vtkSMProperty *targetProperty)
	Remove a link to a property added with AddLinkedProperty() More...

virtual void	RemoveFromSourceLink ()
	Remove a link from the source property. More...

void	ResetToDefault ()
	Simply calls this->ResetToDomainDefaults() and if that returns false, calls this->ResetToXMLDefaults(). More...

virtual bool	ResetToDomainDefaults (bool use_unchecked_values=false)
	Iterates over all domains and call SetDefaultValues() on each domain until the first one returns true i.e. More...

vtkSMProxy *	GetParent ()
	Get the proxy to which this property belongs. More...

virtual bool	IsStateIgnored ()

bool	HasDomainsWithRequiredProperties ()
	Returns true if the property has a domain with required properties. More...

virtual void	SetCommand (const char *)
	The command name used to set the value on the server object. More...

virtual char *	GetCommand ()
	The command name used to set the value on the server object. More...

virtual void	SetImmediateUpdate (int)
	If ImmediateUpdate is true, the value of the property will be pushed to the server as soon as it is modified. More...

virtual int	GetImmediateUpdate ()
	If ImmediateUpdate is true, the value of the property will be pushed to the server as soon as it is modified. More...

virtual int	GetInformationOnly ()
	Is InformationOnly is set to true, this property is used to get information from server instead of setting values. More...

virtual int	GetIgnoreSynchronization ()
	If IgnoreSynchronization is set to true, this property is used to prevent that property from being updated when changed remotely by another collaborative client. More...

virtual vtkSMProperty *	GetInformationProperty ()
	Get the associated information property. More...

virtual void	SetAnimateable (int)
	Get/Set if the property is animateable. More...

virtual int	GetAnimateable ()
	Get/Set if the property is animateable. More...

virtual void	SetIsInternal (int)
	Get/Set if the property is internal to server manager. More...

virtual int	GetIsInternal ()
	Get/Set if the property is internal to server manager. More...

virtual void	SetNoCustomDefault (int)
	Set/Get whether the property should ignore custom default settings. More...

virtual int	GetNoCustomDefault ()
	Set/Get whether the property should ignore custom default settings. More...

virtual void	SetPanelVisibility (const char *)
	Set/Get the panel visibility for the property. More...

virtual char *	GetPanelVisibility ()
	Set/Get the panel visibility for the property. More...

virtual void	SetPanelVisibilityDefaultForRepresentation (const char *)
	Set/Get the panel visibility to default if the current representation type matches `representation`. More...

virtual char *	GetPanelVisibilityDefaultForRepresentation ()
	Set/Get the panel visibility to default if the current representation type matches `representation`. More...

virtual void	SetPanelWidget (const char *)
	Set/Get the name of the custom panel widget to use for the property. More...

virtual char *	GetPanelWidget ()
	Set/Get the name of the custom panel widget to use for the property. More...

virtual void	SetDisableSubTrace (const char *)
	Set/Get the tracing of sub property of this property. More...

virtual char *	GetDisableSubTrace ()
	Set/Get the tracing of sub property of this property. More...

virtual vtkSMDocumentation *	GetDocumentation ()
	Returns the documentation for this proxy. More...

virtual char *	GetXMLLabel ()
	The label assigned by the xml parser. More...

virtual char *	GetXMLName ()
	The name assigned by the xml parser. More...

virtual int	GetRepeatable ()
	If repeatable, a property can have 1 or more values of the same kind. More...

virtual vtkPVXMLElement *	GetHints ()
	The server manager configuration XML may define `<Hints/>` element for a property. More...

void	SetHints (vtkPVXMLElement *hints)
	The server manager configuration XML may define `<Hints/>` element for a property. More...

void	Modified () override
	Overridden to support blocking of modified events. More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkSMProxyProperty *	New ()

static int	IsTypeOf (const char *type)

static vtkSMProxyProperty *	SafeDownCast (vtkObject *o)


static void	EnableProxyCreation ()
	When we load ProxyManager state we want Proxy/InputProperty to be able to create the corresponding missing proxy. More...

static void	DisableProxyCreation ()
	When we load ProxyManager state we want Proxy/InputProperty to be able to create the corresponding missing proxy. More...

static bool	CanCreateProxy ()
	When we load ProxyManager state we want Proxy/InputProperty to be able to create the corresponding missing proxy. More...

Static Public Member Functions inherited from vtkSMProperty
static vtkSMProperty *	New ()

static int	IsTypeOf (const char *type)

static vtkSMProperty *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMObject
static vtkSMObject *	New ()

static int	IsTypeOf (const char *type)

static vtkSMObject *	SafeDownCast (vtkObject *o)

static std::string	CreatePrettyLabel (const std::string &name)
	Return a well-formated label using provided name by adding spaces between lower cases and upper cases: More...

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkSMProxyProperty ()

	~vtkSMProxyProperty () override

void	WriteTo (vtkSMMessage *msg) override
	Let the property write its content into the stream. More...

void	ReadFrom (const vtkSMMessage msg, int msg_offset, vtkSMProxyLocator ) override
	Let the property read and set its content from the stream. More...

int	ReadXMLAttributes (vtkSMProxy parent, vtkPVXMLElement element) override
	Set the appropriate ivars from the xml element. More...

void	SaveStateValues (vtkPVXMLElement *propertyElement) override
	Generic method used to generate XML state. More...

virtual vtkPVXMLElement *	AddProxyElementState (vtkPVXMLElement *prop, unsigned int idx)
	Fill state property/proxy XML element with proxy info. More...

int	LoadState (vtkPVXMLElement element, vtkSMProxyLocator loader) override
	Updates state from an XML element. More...

void	OnUpdateDataEvent ()
	Called when a producer fires the vtkCommand::UpdateDataEvent. More...

Protected Member Functions inherited from vtkSMProperty
	vtkSMProperty ()

	~vtkSMProperty () override

virtual void	ReadFrom (const vtkSMMessage , int vtkNotUsed(message_offset), vtkSMProxyLocator )
	Let the property read and set its content from the stream. More...

vtkSMProperty *	NewProperty (const char *name)
	Internal. More...

void	AddDependent (vtkSMDomain *dom)
	Internal. More...

void	RemoveAllDependents ()
	Removes all dependents. More...

void	UpdateDomains ()
	Calls Update() on all domains contained by the property as well as all dependent domains. More...

virtual void	SaveState (vtkPVXMLElement parent, const char property_name, const char *uid, int saveDomains=1)
	Save the property state in XML. More...

virtual void	SaveDomainState (vtkPVXMLElement propertyElement, const char uid)
	Save property domain. More...

virtual void	SetXMLLabel (const char *)

virtual void	SetInformationOnly (int)

virtual void	SetIgnoreSynchronization (int)

void	SetInformationProperty (vtkSMProperty *ip)

void	SetDocumentation (vtkSMDocumentation *)

void	SetParent (vtkSMProxy *proxy)

virtual void	SetStateIgnored (bool)

virtual void	StateIgnoredOn ()

virtual void	StateIgnoredOff ()

virtual void	SetXMLName (const char *)
	The name assigned by the xml parser. More...

bool	SetBlockModifiedEvents (bool block)
	Block/unblock modified events, returns the current state of the block flag. More...

virtual bool	GetPendingModifiedEvents ()
	Returns if any modified evetns are pending. More...

Protected Member Functions inherited from vtkSMObject
	vtkSMObject ()

	~vtkSMObject () override

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Protected Attributes
vtkPPInternals *	PPInternals

Protected Attributes inherited from vtkSMProperty
vtkPVXMLElement *	Hints

char *	Command

vtkSMPropertyInternals *	PInternals

int	ImmediateUpdate

int	Animateable

int	IsInternal

int	NoCustomDefault

char *	XMLName

char *	XMLLabel

char *	PanelVisibility

char *	PanelVisibilityDefaultForRepresentation

char *	PanelWidget

char *	DisableSubTrace

vtkSMDomainIterator *	DomainIterator

int	InformationOnly

int	IgnoreSynchronization

vtkSMInformationHelper *	InformationHelper

vtkSMProperty *	InformationProperty

vtkSMDocumentation *	Documentation

int	Repeatable

vtkWeakPointer< vtkSMProxy >	Proxy

bool	StateIgnored

vtkSMPropertyLink *	Links

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Static Protected Attributes
static bool	CreateProxyAllowed

Friends
class	vtkSMProxy

class	vtkPPInternals

Detailed Description

property representing pointer(s) to vtkObject(s)

vtkSMProxyProperty is a concrete sub-class of vtkSMProperty representing pointer(s) to vtkObject(s) (through vtkSMProxy).

vtkSMProperty::UpdateDomains() is called by vtkSMProperty itself whenever its unchecked values are modified. In case of proxy-properties, the dependent domains typically tend to depend on the data information provided by the source-proxies added to the property. Thus, to ensure that the domains get updated if the data information changes, vtkSMProxyProperty ensures that vtkSMProperty::UpdateDomains() is called whenever any of the added proxies fires the vtkCommand::UpdateDataEvent (which is fired whenever the pipeline us updated through the ServerManager indicating that the data-information last used may have been invalidated).

Besides the standard set of attributes, the following XML attributes are supported:

command : identifies the method to call on the VTK object e.g. AddRepresentation.
clean_command : if present, called once before invoking the method specified by command every time the property value is pushed e.g. RemoveAllRepresentations. If property can take multiple values then the command is called for for each of the values after the clean command for every push.
remove_command : an alternative to clean_command where instead of resetting and adding all the values for every push, this simply calls the specified method to remove the vtk-objects no longer referred to e.g. RemoveRepresentation.
argument_type : identifies the type for value passed to the method on the VTK object. Accepted values are "VTK", "SMProxy" or "SIProxy". Default is VTK.
null_on_empty : if set to 1, whenever the property's value changes to empty i.e. it contains no proxies, the command is called on the VTK object with nullptr argument useful when there's no clean_command that can be called on the VTK object to unset the property e.g. SetLookupTable(nullptr).
skip_dependency: obsolete and no longer supported. This was intended for vtkSMRepresentationProxy to distinguish between proxy connections that invalidate representation pipeline (e.g. input) and those that don't (e.g. LookupTable). vtkSMRepresentationProxy now handles this automatically.
See also
vtkSMProperty

Definition at line 57 of file vtkSMProxyProperty.h.

Member Typedef Documentation

◆ Superclass

typedef vtkSMProperty vtkSMProxyProperty::Superclass

Definition at line 73 of file vtkSMProxyProperty.h.

Constructor & Destructor Documentation

◆ vtkSMProxyProperty()

vtkSMProxyProperty::vtkSMProxyProperty ( )

protected

◆ ~vtkSMProxyProperty()

vtkSMProxyProperty::~vtkSMProxyProperty ( )

overrideprotected

Member Function Documentation

◆ EnableProxyCreation()

static void vtkSMProxyProperty::EnableProxyCreation ( )

static

When we load ProxyManager state we want Proxy/InputProperty to be able to create the corresponding missing proxy.

Although when the goal is to load a state on any standard proxy, we do not want that proxy property be able to create new proxy based on some previous state.

◆ DisableProxyCreation()

static void vtkSMProxyProperty::DisableProxyCreation ( )

static

When we load ProxyManager state we want Proxy/InputProperty to be able to create the corresponding missing proxy.

Although when the goal is to load a state on any standard proxy, we do not want that proxy property be able to create new proxy based on some previous state.

◆ CanCreateProxy()

static bool vtkSMProxyProperty::CanCreateProxy ( )

static

When we load ProxyManager state we want Proxy/InputProperty to be able to create the corresponding missing proxy.

Although when the goal is to load a state on any standard proxy, we do not want that proxy property be able to create new proxy based on some previous state.

◆ New()

static vtkSMProxyProperty* vtkSMProxyProperty::New ( )

static

◆ GetClassName()

virtual const char* vtkSMProxyProperty::GetClassName ( )

virtual

Reimplemented from vtkSMProperty.

Reimplemented in vtkSMInputProperty.

◆ IsTypeOf()

static int vtkSMProxyProperty::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkSMProxyProperty::IsA ( const char * type )

virtual

Reimplemented from vtkSMProperty.

Reimplemented in vtkSMInputProperty.

◆ SafeDownCast()

static vtkSMProxyProperty* vtkSMProxyProperty::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkSMProxyProperty::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkSMProperty.

◆ AddProxy()

virtual void vtkSMProxyProperty::AddProxy ( vtkSMProxy * proxy )

virtual

Add/remove/set a proxy to the list of proxies.

For SetProxy, the property automatically resizes to accommodate the index specified.

◆ SetProxy()

virtual void vtkSMProxyProperty::SetProxy	(	unsigned int	idx,
		vtkSMProxy *	proxy
	)

virtual

Add/remove/set a proxy to the list of proxies.

For SetProxy, the property automatically resizes to accommodate the index specified.

◆ RemoveProxy()

virtual void vtkSMProxyProperty::RemoveProxy ( vtkSMProxy * proxy )

virtual

Add/remove/set a proxy to the list of proxies.

For SetProxy, the property automatically resizes to accommodate the index specified.

◆ RemoveAllProxies()

virtual void vtkSMProxyProperty::RemoveAllProxies ( )

virtual

Add/remove/set a proxy to the list of proxies.

For SetProxy, the property automatically resizes to accommodate the index specified.

◆ SetProxies()

virtual void vtkSMProxyProperty::SetProxies	(	unsigned int	numElements,
		vtkSMProxy *	proxies[]
	)

virtual

Sets the value of the property to the list of proxies specified.

◆ IsProxyAdded()

bool vtkSMProxyProperty::IsProxyAdded ( vtkSMProxy * proxy )

Returns if the given proxy is already added to the property.

◆ AddUncheckedProxy()

virtual void vtkSMProxyProperty::AddUncheckedProxy ( vtkSMProxy * proxy )

virtual

Add an unchecked proxy.

Does not modify the property. Unchecked proxies are used by domains when verifying whether a value is acceptable. To check if a value is in the domains, you can do the following:

* - RemoveAllUncheckedProxies()
* - AddUncheckedProxy(proxy)
* - IsInDomains()
*

◆ SetUncheckedProxy()

virtual void vtkSMProxyProperty::SetUncheckedProxy	(	unsigned int	idx,
		vtkSMProxy *	proxy
	)

virtual

Add an unchecked proxy.

Does not modify the property. Unchecked proxies are used by domains when verifying whether a value is acceptable. To check if a value is in the domains, you can do the following:

* - RemoveAllUncheckedProxies()
* - AddUncheckedProxy(proxy)
* - IsInDomains()
*

◆ RemoveAllUncheckedProxies()

virtual void vtkSMProxyProperty::RemoveAllUncheckedProxies ( )

virtual

Removes all unchecked proxies.

◆ ClearUncheckedElements()

void vtkSMProxyProperty::ClearUncheckedElements ( )

inlineoverridevirtual

Use this method to clear unchecked values set of this property.

Reimplemented from vtkSMProperty.

Definition at line 117 of file vtkSMProxyProperty.h.

◆ GetNumberOfProxies()

unsigned int vtkSMProxyProperty::GetNumberOfProxies ( )

Returns the number of proxies.

◆ GetNumberOfUncheckedProxies()

unsigned int vtkSMProxyProperty::GetNumberOfUncheckedProxies ( )

Returns the number of unchecked proxies.

◆ SetNumberOfProxies()

void vtkSMProxyProperty::SetNumberOfProxies ( unsigned int count )

Set the number of proxies.

◆ SetNumberOfUncheckedProxies()

void vtkSMProxyProperty::SetNumberOfUncheckedProxies ( unsigned int count )

Set the number of proxies.

◆ GetProxy()

vtkSMProxy* vtkSMProxyProperty::GetProxy ( unsigned int idx )

Return a proxy.

No bounds check is performed.

◆ GetUncheckedProxy()

vtkSMProxy* vtkSMProxyProperty::GetUncheckedProxy ( unsigned int idx )

Return a proxy.

No bounds check is performed.

◆ Copy()

void vtkSMProxyProperty::Copy ( vtkSMProperty * src )

overridevirtual

Copy all property values.

This method behaves differently for properties with vtkSMProxyListDomain and those without it. If the property has a vtkSMProxyListDomain, then the property is acting as an enumeration, giving user ability to pick one of the available proxies in the domain, hence a Copy request, will find an equivalent proxy on the target's domain and set that as the value of the target property.

Reimplemented from vtkSMProperty.

◆ UpdateAllInputs()

void vtkSMProxyProperty::UpdateAllInputs ( )

overridevirtual

Update all proxies referred by this property (if any).

Reimplemented from vtkSMProperty.

◆ IsValueDefault()

bool vtkSMProxyProperty::IsValueDefault ( )

overridevirtual

Returns true if the property's value is different from the default value.

This is used as a hint by the state saving code to determine if the value should be written to the file or if the defaults are sufficient.

Reimplemented from vtkSMProperty.

◆ ResetToXMLDefaults()

void vtkSMProxyProperty::ResetToXMLDefaults ( )

overridevirtual

For properties that support specifying defaults in XML configuration, this method will reset the property value to the default values specified in the XML.

Simply clears the property.

Reimplemented from vtkSMProperty.

◆ WriteTo()

void vtkSMProxyProperty::WriteTo ( vtkSMMessage * msg )

overrideprotectedvirtual

Let the property write its content into the stream.

Reimplemented from vtkSMProperty.

◆ ReadFrom()

void vtkSMProxyProperty::ReadFrom	(	const vtkSMMessage *	msg,
		int	msg_offset,
		vtkSMProxyLocator *
	)

overrideprotected

Let the property read and set its content from the stream.

◆ ReadXMLAttributes()

int vtkSMProxyProperty::ReadXMLAttributes	(	vtkSMProxy *	parent,
		vtkPVXMLElement *	element
	)

overrideprotectedvirtual

Set the appropriate ivars from the xml element.

Should be overwritten by subclass if adding ivars.

Reimplemented from vtkSMProperty.

◆ SaveStateValues()

void vtkSMProxyProperty::SaveStateValues ( vtkPVXMLElement * propertyElement )

overrideprotectedvirtual

Generic method used to generate XML state.

Reimplemented from vtkSMProperty.

◆ AddProxyElementState()

virtual vtkPVXMLElement* vtkSMProxyProperty::AddProxyElementState	(	vtkPVXMLElement *	prop,
		unsigned int	idx
	)

protectedvirtual

Fill state property/proxy XML element with proxy info.

Return the created proxy XML element that has been added as a child in the property definition. If prop == nullptr, you must Delete yourself the result otherwise prop is olding a reference to the proxy element

Reimplemented in vtkSMInputProperty.

◆ LoadState()

int vtkSMProxyProperty::LoadState	(	vtkPVXMLElement *	element,
		vtkSMProxyLocator *	loader
	)

overrideprotectedvirtual

Updates state from an XML element.

Returns 0 on failure.

Reimplemented from vtkSMProperty.

◆ OnUpdateDataEvent()

void vtkSMProxyProperty::OnUpdateDataEvent ( )

inlineprotected

Called when a producer fires the vtkCommand::UpdateDataEvent.

We update all dependent domains since the data-information may have changed.

Definition at line 215 of file vtkSMProxyProperty.h.

Friends And Related Function Documentation

◆ vtkSMProxy

friend class vtkSMProxy

friend

Definition at line 186 of file vtkSMProxyProperty.h.

◆ vtkPPInternals

friend class vtkPPInternals

friend

Definition at line 221 of file vtkSMProxyProperty.h.

Member Data Documentation

◆ CreateProxyAllowed

bool vtkSMProxyProperty::CreateProxyAllowed

staticprotected

Definition at line 219 of file vtkSMProxyProperty.h.

◆ PPInternals

vtkPPInternals* vtkSMProxyProperty::PPInternals

protected

Definition at line 223 of file vtkSMProxyProperty.h.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Remoting/ServerManager/vtkSMProxyProperty.h

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ Superclass

Constructor & Destructor Documentation

◆ vtkSMProxyProperty()

◆ ~vtkSMProxyProperty()

Member Function Documentation

◆ EnableProxyCreation()

◆ DisableProxyCreation()

◆ CanCreateProxy()

◆ New()

◆ GetClassName()

◆ IsTypeOf()

◆ IsA()

◆ SafeDownCast()

◆ PrintSelf()

◆ AddProxy()

◆ SetProxy()

◆ RemoveProxy()

◆ RemoveAllProxies()

◆ SetProxies()

◆ IsProxyAdded()

◆ AddUncheckedProxy()

◆ SetUncheckedProxy()

◆ RemoveAllUncheckedProxies()

◆ ClearUncheckedElements()

◆ GetNumberOfProxies()

◆ GetNumberOfUncheckedProxies()

◆ SetNumberOfProxies()

◆ SetNumberOfUncheckedProxies()

◆ GetProxy()

◆ GetUncheckedProxy()

◆ Copy()

◆ UpdateAllInputs()

◆ IsValueDefault()

◆ ResetToXMLDefaults()

◆ WriteTo()

◆ ReadFrom()

◆ ReadXMLAttributes()

◆ SaveStateValues()

◆ AddProxyElementState()

◆ LoadState()

◆ OnUpdateDataEvent()

Friends And Related Function Documentation

◆ vtkSMProxy

◆ vtkPPInternals

Member Data Documentation

◆ CreateProxyAllowed

◆ PPInternals
