implementation for View that includes render window and renderers. More...

#include <vtkSMRenderViewProxy.h>

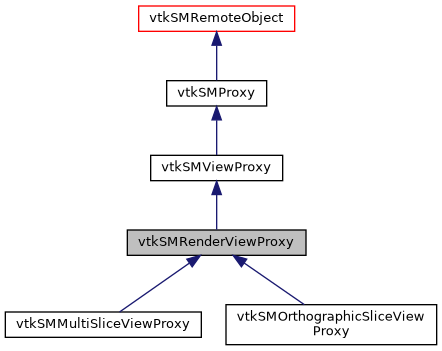

Inheritance diagram for vtkSMRenderViewProxy:

[legend]

Collaboration diagram for vtkSMRenderViewProxy:

[legend]

Public Types
enum	CameraAdjustmentType : int { CameraAdjustmentType::Roll = 0, CameraAdjustmentType::Elevation, CameraAdjustmentType::Azimuth, CameraAdjustmentType::Zoom }

typedef vtkSMViewProxy	Superclass

Public Types inherited from vtkSMViewProxy
enum	{ PrepareContextForRendering = vtkCommand::UserEvent + 1 }

typedef vtkSMProxy	Superclass

Public Types inherited from vtkSMProxy
enum	ResetPropertiesMode { DEFAULT = 0, ONLY_XML = 1, ONLY_DOMAIN = 2 }

enum	{ COPY_PROXY_PROPERTY_VALUES_BY_REFERENCE = 0, COPY_PROXY_PROPERTY_VALUES_BY_CLONING }
	Flags used for the proxyPropertyCopyFlag argument to the Copy method. More...

typedef vtkSMRemoteObject	Superclass

Public Types inherited from vtkSMRemoteObject
typedef vtkSMSessionObject	Superclass

Public Types inherited from vtkSMSessionObject
typedef vtkSMObject	Superclass

Public Types inherited from vtkSMObject
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

vtkSMRepresentationProxy *	Pick (int x, int y)
	Convenience method to pick a location. More...

vtkSMRepresentationProxy *	PickBlock (int x, int y, unsigned int &flatIndex, int &rank)
	Convenience method to pick a block in a multi-block data set. More...

bool	ConvertDisplayToPointOnSurface (const int display_position[2], double world_position[3], double world_normal[3], bool snapOnMeshPoint=false)
	Given a location is display coordinates (pixels), tries to compute and return the world location and normal on a surface, if possible. More...

virtual bool	IsSelectionAvailable ()
	Checks if color depth is sufficient to support selection. More...

void	SynchronizeGeometryBounds ()
	Call SynchronizeGeometryBounds server side. More...

virtual void	ZoomTo (vtkSMProxy *representation, bool closest=false, double offsetRatio=0.9)
	Convenience method for zooming to a representation. More...

void	SetupInteractor (vtkRenderWindowInteractor *iren) override
	A client process need to set the interactor to enable interactivity. More...

vtkRenderWindowInteractor *	GetInteractor () override
	Returns the interactor. More...

vtkRenderer *	GetRenderer ()
	Returns the client-side renderer (composited or 3D). More...

void	UpdateVTKObjects () override
	Filter changes to the OSPRay rendering method, to transfer the pathtracing materials from client to server only when they are acutally needed. More...

void	SynchronizeCameraProperties ()
	This method calls UpdateInformation on the Camera Proxy and sets the Camera properties according to the info properties. More...

virtual bool	LastRenderWasInteractive ()
	Returns true if the most recent render indeed employed low-res rendering. More...

void	Update () override
	Called vtkPVView::Update on the server-side. More...

bool	GetNeedsUpdate () override
	We override that method to handle LOD and non-LOD NeedsUpdate in transparent manner. More...

bool	StreamingUpdate (bool render_if_needed)
	Called to render a streaming pass. More...

const char *	GetRepresentationType (vtkSMSourceProxy *producer, int outputPort) override
	Overridden to check through the various representations that this view can create. More...

vtkRenderWindow *	GetRenderWindow () override
	Returns the render window used by this view. More...

vtkSMViewProxyInteractorHelper *	GetInteractorHelper ()
	Provides access to the vtkSMViewProxyInteractorHelper object that handles the interaction/view sync. More...

vtkFloatArray *	CaptureDepthBuffer ()
	Access to the Z buffer. More...

virtual const char *	GetSelectionRepresentationProxyName ()
	Get the SelectionRepresentation proxy name. More...

virtual void	CopySelectionRepresentationProperties (vtkSMProxy vtkNotUsed(fromSelectionRep), vtkSMProxy vtkNotUsed(toSelectionRep))
	Function to copy selection representation properties. More...

void	ComputeVisibleBounds (vtkSMProxy representation, double bounds)
	Compute the bounds of the visible data on the given representation. More...

bool	ClearSelectionCache (bool force=false)
	Tries to clear the selection cache (if needed). More...


bool	SelectSurfaceCells (const int region[4], vtkCollection selectedRepresentations, vtkCollection selectionSources, bool multiple_selections=false, int modifier=0, bool select_blocks=false, const char *arrayName=nullptr)
	Makes a new selection source proxy. More...

bool	SelectSurfacePoints (const int region[4], vtkCollection selectedRepresentations, vtkCollection selectionSources, bool multiple_selections=false, int modifier=0, bool select_blocks=false, const char *arrayName=nullptr)
	Makes a new selection source proxy. More...

bool	SelectFrustumCells (const int region[4], vtkCollection selectedRepresentations, vtkCollection selectionSources, bool multiple_selections=false)
	Makes a new selection source proxy. More...

bool	SelectFrustumPoints (const int region[4], vtkCollection selectedRepresentations, vtkCollection selectionSources, bool multiple_selections=false)
	Makes a new selection source proxy. More...

bool	SelectPolygonPoints (vtkIntArray polygon, vtkCollection selectedRepresentations, vtkCollection *selectionSources, bool multiple_selections=false, int modifier=0, bool selectBlocks=false)
	Makes a new selection source proxy. More...

bool	SelectPolygonCells (vtkIntArray polygon, vtkCollection selectedRepresentations, vtkCollection *selectionSources, bool multiple_selections=false, int modifier=0, bool selectBlocks=false)
	Makes a new selection source proxy. More...


bool	ComputeVisibleScalarRange (const int region[4], int fieldAssociation, const char *scalarName, int component, double range[])
	Returns the range for visible elements in the current view. More...

bool	ComputeVisibleScalarRange (int fieldAssociation, const char *scalarName, int component, double range[])
	Returns the range for visible elements in the current view. More...


void	ResetCamera (bool closest=false, double offsetRatio=0.9)
	For backwards compatibility in Python scripts. More...

void	ResetCamera (double bounds[6], bool closest=false, double offsetRatio=0.9)
	For backwards compatibility in Python scripts. More...

void	ResetCamera (double xmin, double xmax, double ymin, double ymax, double zmin, double zmax, bool closest=false, double offsetRatio=0.9)
	For backwards compatibility in Python scripts. More...


virtual const char *	IsSelectVisibleCellsAvailable ()
	Similar to IsSelectionAvailable(), however, on failure returns the error message otherwise 0. More...

virtual const char *	IsSelectVisiblePointsAvailable ()
	Similar to IsSelectionAvailable(), however, on failure returns the error message otherwise 0. More...


vtkCamera *	GetActiveCamera ()
	Returns the client-side active camera object. More...

void	AdjustActiveCamera (const CameraAdjustmentType &, const double &)
	Returns the client-side active camera object. More...

void	AdjustActiveCamera (const int &, const double &)
	Returns the client-side active camera object. More...

void	AdjustAzimuth (const double &value)
	Returns the client-side active camera object. More...

void	AdjustElevation (const double &value)
	Returns the client-side active camera object. More...

void	AdjustRoll (const double &value)
	Returns the client-side active camera object. More...

void	AdjustZoom (const double &value)
	Returns the client-side active camera object. More...

void	ApplyIsometricView ()
	Returns the client-side active camera object. More...

void	ResetActiveCameraToDirection (const double &look_x, const double &look_y, const double &look_z, const double &up_x, const double &up_y, const double &up_z)
	Returns the client-side active camera object. More...

void	ResetActiveCameraToPositiveX ()
	Returns the client-side active camera object. More...

void	ResetActiveCameraToNegativeX ()
	Returns the client-side active camera object. More...

void	ResetActiveCameraToPositiveY ()
	Returns the client-side active camera object. More...

void	ResetActiveCameraToNegativeY ()
	Returns the client-side active camera object. More...

void	ResetActiveCameraToPositiveZ ()
	Returns the client-side active camera object. More...

void	ResetActiveCameraToNegativeZ ()
	Returns the client-side active camera object. More...

Public Member Functions inherited from vtkSMViewProxy
void	PrintSelf (ostream &os, vtkIndent indent) override

virtual void	StillRender ()
	Renders the view using full resolution. More...

virtual void	InteractiveRender ()
	Renders the view using lower resolution is possible. More...

virtual bool	CanDisplayData (vtkSMSourceProxy *producer, int outputPort)
	Returns true if the view can display the data produced by the producer's port. More...

virtual vtkSMRepresentationProxy *	CreateDefaultRepresentation (vtkSMProxy *, int)
	Create a default representation for the given source proxy. More...

virtual vtkSMRepresentationProxy *	FindRepresentation (vtkSMSourceProxy *producer, int outputPort)
	Finds the representation proxy showing the data produced by the provided producer, if any. More...

vtkView *	GetClientSideView ()
	Returns the client-side vtkView, if any. More...

int	WriteImage (const char filename, const char writerName, int magnification=1)
	Saves a screenshot of the view to disk. More...

int	WriteImage (const char filename, const char writerName, int magnificationX, int magnificationY)

virtual bool	HasDirtyRepresentation ()
	Return true any internal representation is dirty. More...

virtual bool	MakeRenderWindowInteractor (bool quiet=false)
	Creates a default render window interactor for the vtkRenderWindow and sets it up on the local process if the local process supports interaction. More...

virtual void	SetEnable (bool)
	Enable/Disable a view. More...

virtual bool	GetEnable ()
	Enable/Disable a view. More...

virtual void	EnableOn ()
	Enable/Disable a view. More...

virtual void	EnableOff ()
	Enable/Disable a view. More...

vtkImageData *	CaptureWindow (int magnification)
	Captures a image from this view. More...

vtkImageData *	CaptureWindow (int magnificationX, int magnificationY)
	Captures a image from this view. More...

virtual bool	HideOtherRepresentationsIfNeeded (vtkSMProxy *repr)
	Method used to hide other representations if the view has a `<ShowOneRepresentationAtATime/>` hint. More...

virtual void	RepresentationVisibilityChanged (vtkSMProxy *repr, bool new_visibility)
	Certain views maintain properties (or other state) that should be updated when visibility of representations is changed e.g. More...

Public Member Functions inherited from vtkSMProxy
void	SetAnnotation (const char key, const char value)

const char *	GetAnnotation (const char *key)
	Retrieve an annotation with a given key. More...

void	RemoveAnnotation (const char *key)
	Remove a given annotation based on its key to the proxy. More...

void	RemoveAllAnnotations ()
	Remove all proxy annotations. More...

bool	HasAnnotation (const char *key)
	Return true if a given annotation exists. More...

int	GetNumberOfAnnotations ()
	Return the number of available annotations. More...

const char *	GetAnnotationKeyAt (int index)
	Return the nth key of the available annotations. More...

void	SetLocation (vtkTypeUInt32) override
	Get/Set the location where the underlying VTK-objects are created. More...

virtual vtkSMProperty *	GetProperty (const char *name)
	Return the property with the given name. More...

virtual vtkSMProperty *	GetProperty (const char *name, int selfOnly)
	Return a property of the given name from self or one of the sub-proxies. More...

const char *	GetPropertyName (vtkSMProperty *prop)
	Given a property pointer, returns the name that was used to add it to the proxy. More...

virtual void	RecreateVTKObjects ()
	Recreate the VTK object for this proxy. More...

void	InvokeCommand (const char *name)
	Convenience method equivalent to UpdateProperty(name, 1). More...

virtual vtkSMPropertyIterator *	NewPropertyIterator ()
	Returns a new (initialized) iterator of the properties. More...

unsigned int	GetNumberOfConsumers ()
	Returns the number of consumers. More...

vtkSMProxy *	GetConsumerProxy (unsigned int idx)
	Returns the consumer of given index. More...

vtkSMProperty *	GetConsumerProperty (unsigned int idx)
	Returns the corresponding property of the consumer of given index. More...

unsigned int	GetNumberOfProducers ()
	Returns the number of proxies this proxy depends on (uses or is connected to through the pipeline). More...

vtkSMProxy *	GetProducerProxy (unsigned int idx)
	Returns a proxy this proxy depends on, given index. More...

vtkSMProperty *	GetProducerProperty (unsigned int idx)
	Returns the property holding a producer proxy given an index. More...

virtual void	UpdatePropertyInformation ()
	Updates all property information by calling UpdateInformation() and populating the values. More...

virtual void	UpdatePropertyInformation (vtkSMProperty *prop)
	Similar to UpdatePropertyInformation() but updates only the given property. More...

virtual void	MarkAllPropertiesAsModified ()
	Marks all properties as modified. More...

virtual void	ResetPropertiesToXMLDefaults ()
	Use this method to set all properties on this proxy to their default values. More...

virtual void	ResetPropertiesToDomainDefaults ()
	Use this method to set all properties on this proxy to their default domains. More...

virtual void	ResetPropertiesToDefault (ResetPropertiesMode mode=DEFAULT)
	Use this method to set all properties on this proxy to their default domain or values. More...

virtual void	MarkModified (vtkSMProxy *modifiedProxy)
	Calls MarkDirty() and invokes ModifiedEvent. More...

bool	IsDeprecated ()
	Returns true if the proxy has a deprecation tag. More...

void	InitializeAndCopyFromProxy (vtkSMProxy *source)
	Given a source proxy, makes this proxy point to the same server-side object (with a new id). More...

vtkObjectBase *	GetClientSideObject ()
	Returns the client side object associated with the VTKObjectID (if any). More...

virtual vtkPVXMLElement *	SaveXMLState (vtkPVXMLElement *root)
	Saves the state of the proxy. More...

virtual vtkPVXMLElement *	SaveXMLState (vtkPVXMLElement root, vtkSMPropertyIterator iter)
	The iterator is use to filter the property available on the given proxy. More...

virtual int	LoadXMLState (vtkPVXMLElement element, vtkSMProxyLocator locator)
	Loads the proxy state from the XML element. More...

void	UpdateSelfAndAllInputs ()
	This method call UpdateVTKObjects on the current pipeline by starting at the sources. More...

bool	GetIsSubProxy ()
	A proxy instance can be a sub-proxy for some other proxy. More...

vtkSMProxy *	GetParentProxy ()
	If this instance is a sub-proxy, this method will return the proxy of which this instance is an immediate sub-proxy. More...

vtkSMProxy *	GetTrueParentProxy ()
	Call GetParentProxy() recursively till a proxy that is not a subproxy of any other proxy is found. More...

void	EnableLocalPushOnly () override
	Allow to switch off any push of state change to the server for that particular object. More...

void	DisableLocalPushOnly () override
	Enable the given remote object to communicate its state normally to the server location. More...

const vtkSMMessage *	GetFullState () override
	This method return the full object state that can be used to create that object from scratch. More...

void	LoadState (const vtkSMMessage msg, vtkSMProxyLocator locator) override
	This method is used to initialise the object to the given state If the definitionOnly Flag is set to True the proxy won't load the properties values and just setup the new proxy hierarchy with all subproxy globalID set. More...

vtkSMPropertyGroup *	GetPropertyGroup (size_t index) const
	Returns the property group at `index` for the proxy. More...

size_t	GetNumberOfPropertyGroups () const
	Returns the number of property groups that the proxy contains. More...

const char *	GetLogNameOrDefault ()
	A helper that makes up an default name if none is provided. More...

bool	GetPropertiesModified ()

virtual std::vector< std::string >	GetPropertiesWithDifferentValues (vtkSMProxy *otherProxy)
	Return the property names that have values different from the otherProxy argument. More...

bool	UpdateProperty (const char *name)
	Update the value of one property (pushed to the server) if it is modified. More...

bool	UpdateProperty (const char *name, int force)
	Update the value of one property (pushed to the server) if it is modified. More...

virtual char *	GetVTKClassName ()
	Returns the type of object managed by the proxy. More...

virtual void	SetVTKClassName (const char *)
	the type of object created by the proxy. More...

virtual char *	GetXMLName ()
	Assigned by the XML parser. More...

virtual char *	GetXMLGroup ()
	Assigned by the XML parser. More...

virtual char *	GetXMLLabel ()
	Assigned by the XML parser. More...

void	Copy (vtkSMProxy *src)
	Copies values of all the properties and sub-proxies from src. More...

void	Copy (vtkSMProxy src, const char exceptionClass)
	Copies values of all the properties and sub-proxies from src. More...

virtual void	Copy (vtkSMProxy src, const char exceptionClass, int proxyPropertyCopyFlag)
	Copies values of all the properties and sub-proxies from src. More...

virtual vtkSMDocumentation *	GetDocumentation ()
	Returns the documentation for this proxy. More...

virtual vtkPVXMLElement *	GetHints ()
	The server manager configuration XML may define `<Hints/>` element for a proxy. More...

virtual int	GetObjectsCreated ()
	Returns if the VTK objects for this proxy have been created. More...

bool	GatherInformation (vtkPVInformation *information)
	Gathers information about this proxy. More...

bool	GatherInformation (vtkPVInformation *information, vtkTypeUInt32 location)
	Gathers information about this proxy. More...

void	PrototypeOn () override
	Allow user to set the remote object to be discard for Undo/Redo action. More...

void	PrototypeOff () override
	Allow user to set the remote object to be discard for Undo/Redo action. More...

void	SetPrototype (bool undo) override
	Allow user to set the remote object to be discard for Undo/Redo action. More...

void	SetLogName (const char *name)
	Log name is a name for this proxy that will be used when logging status messages. More...

virtual char *	GetLogName ()
	Log name is a name for this proxy that will be used when logging status messages. More...

Public Member Functions inherited from vtkSMRemoteObject
void	SetSession (vtkSMSession *) override
	Override the SetSession so if the object already have an ID we automatically register it to the associated session. More...

bool	HasGlobalID ()
	Allow the user to test if the RemoteObject has already a GlobalID without assigning a new one to it. More...

virtual bool	IsLocalPushOnly ()
	Let the session be aware that even if the Location is client only, the message should not be send to the server for a general broadcast. More...

virtual vtkTypeUInt32	GetLocation ()
	Get/Set the location where the underlying VTK-objects are created. More...

virtual vtkTypeUInt32	GetGlobalID ()
	Get the global unique id for this object. More...

const char *	GetGlobalIDAsString ()
	Get the global unique id for this object. More...

bool	IsPrototype ()
	Allow user to set the remote object to be discard for Undo/Redo action. More...

Public Member Functions inherited from vtkSMSessionObject
virtual vtkSMSessionProxyManager *	GetSessionProxyManager ()
	Return the corresponding ProxyManager if any. More...

virtual vtkSMSession *	GetSession ()
	Get/Set the session on wihch this object exists. More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkSMRenderViewProxy *	New ()

static int	IsTypeOf (const char *type)

static vtkSMRenderViewProxy *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMViewProxy
static vtkSMViewProxy *	New ()

static int	IsTypeOf (const char *type)

static vtkSMViewProxy *	SafeDownCast (vtkObject *o)

static vtkSMViewProxy *	FindView (vtkSMProxy repr, const char reggroup="views")
	Helper method to locate a view to which the representation has been added. More...

static void	SetTransparentBackground (bool val)
	Sets whether screenshots have a transparent background. More...

static bool	GetTransparentBackground ()
	Sets whether screenshots have a transparent background. More...

static bool	HideOtherRepresentationsIfNeeded (vtkSMViewProxy self, vtkSMProxy repr)
	Method used to hide other representations if the view has a `<ShowOneRepresentationAtATime/>` hint. More...

static void	RepresentationVisibilityChanged (vtkSMViewProxy self, vtkSMProxy repr, bool new_visibility)
	Certain views maintain properties (or other state) that should be updated when visibility of representations is changed e.g. More...

Static Public Member Functions inherited from vtkSMProxy
static vtkSMProxy *	New ()

static int	IsTypeOf (const char *type)

static vtkSMProxy *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMRemoteObject
static int	IsTypeOf (const char *type)

static vtkSMRemoteObject *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMSessionObject
static vtkSMSessionObject *	New ()

static int	IsTypeOf (const char *type)

static vtkSMSessionObject *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMObject
static vtkSMObject *	New ()

static int	IsTypeOf (const char *type)

static vtkSMObject *	SafeDownCast (vtkObject *o)

static std::string	CreatePrettyLabel (const std::string &name)
	Return a well-formated label using provided name by adding spaces between lower cases and upper cases: More...

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkSMRenderViewProxy ()

	~vtkSMRenderViewProxy () override

void	RenderForImageCapture () override
	Overridden to call this->InteractiveRender() if "UseInteractiveRenderingForScreenshots" is true. More...

void	UpdateLOD ()
	Calls UpdateLOD() on the vtkPVRenderView. More...

void	MarkDirty (vtkSMProxy *modifiedProxy) override
	Overridden to ensure that we clean up the selection cache on the server side. More...

bool	SelectFrustumInternal (const int region[4], vtkCollection selectedRepresentations, vtkCollection selectionSources, bool multiple_selections, int fieldAssociation)

bool	SelectPolygonInternal (vtkIntArray polygon, vtkCollection selectedRepresentations, vtkCollection *selectionSources, bool multiple_selections, int fieldAssociation, int modifier, bool selectBlocks)

vtkTypeUInt32	PreRender (bool interactive) override

void	PostRender (bool interactive) override

bool	FetchLastSelection (bool multiple_selections, vtkCollection selectedRepresentations, vtkCollection selectionSources, int modifier, bool selectBlocks)
	Fetches the LastSelection from the data-server and then converts it to a selection source proxy and returns that. More...

void	CreateVTKObjects () override
	Called at the end of CreateVTKObjects(). More...

bool	IsInSelectionMode ()
	Returns true if the proxy is in interaction mode that corresponds to making a selection i.e. More...

void	NewMasterCallback (vtkObject src, unsigned long event, void data)

Protected Member Functions inherited from vtkSMViewProxy
	vtkSMViewProxy ()

	~vtkSMViewProxy () override

virtual vtkImageData *	CaptureWindowInternal (int magnificationX, int magnificationY)
	Capture an image from the view's render window. More...

virtual vtkTypeUInt32	PreRender (bool vtkNotUsed(interactive))
	This method is called before executing code that could cause a render on the underlying vtkPVView. More...

virtual void	PostRender (bool vtkNotUsed(interactive))

virtual bool	IsContextReadyForRendering ()
	Subclasses should override this method and return false if the rendering context is not ready for rendering at this moment. More...

void	CreateVTKObjects () override
	Called at the end of CreateVTKObjects(). More...

int	ReadXMLAttributes (vtkSMSessionProxyManager pm, vtkPVXMLElement element) override
	Read attributes from an XML element. More...

bool	GetLocalProcessSupportsInteraction ()
	Convenience method to call vtkPVView::SafeDownCast(this->GetClientSideObject())->GetLocalProcessSupportsInteraction();. More...

virtual vtkSMDataDeliveryManagerProxy *	GetDeliveryManager ()
	Provides access to the delivery manager proxy, if any. More...

virtual void	SetDefaultRepresentationName (const char *)

Protected Member Functions inherited from vtkSMProxy
	vtkSMProxy ()

	~vtkSMProxy () override

void	ExecuteStream (const vtkClientServerStream &msg, bool ignore_errors=false, vtkTypeUInt32 location=0)
	Invoke that takes a vtkClientServerStream as the argument. More...

virtual void	UpdateAndPushAnnotationState ()

virtual void	AddProperty (const char name, vtkSMProperty prop)
	Add a property with the given key (name). More...

virtual void	MarkConsumersAsDirty (vtkSMProxy *modifiedProxy)
	Calls `MarkDirtyFromProducer` on all consumers. More...

virtual void	MarkDirtyFromProducer (vtkSMProxy modifiedProxy, vtkSMProxy producer, vtkSMProperty *property)
	`MarkConsumersAsDirty` calls this method on each consumer, instead of directly calling `MarkDirty` on the consumer. More...

void	MarkInputsAsDirty ()
	This method is called by vtkSMRepresentationProxy whenever the time request for the pipeline may have potentially changed. More...

void	RemoveAllObservers ()
	Cleanup code. More...

virtual void	SetPropertyModifiedFlag (const char *name, int flag)
	Note on property modified flags: The modified flag of each property associated with a proxy is stored in the proxy object instead of in the property itself. More...

void	AddSubProxy (const char name, vtkSMProxy proxy, int overrideOK=0)
	Add a sub-proxy. More...

void	RemoveSubProxy (const char *name)
	Remove a sub-proxy. More...

vtkSMProxy *	GetSubProxy (const char *name)
	Returns a sub-proxy. More...

vtkSMProxy *	GetSubProxy (unsigned int index)
	Returns a sub-proxy. More...

const char *	GetSubProxyName (unsigned int index)
	Returns the name used to store sub-proxy. More...

const char *	GetSubProxyName (vtkSMProxy *)
	Returns the name used to store sub-proxy. More...

unsigned int	GetNumberOfSubProxies ()
	Returns the number of sub-proxies. More...

virtual void	AddConsumer (vtkSMProperty property, vtkSMProxy proxy)
	Called by a proxy property, this adds the property,proxy pair to the list of consumers. More...

virtual void	RemoveConsumer (vtkSMProperty property, vtkSMProxy proxy)
	Remove the property,proxy pair from the list of consumers. More...

virtual void	RemoveAllConsumers ()
	Remove all consumers. More...

void	AddProducer (vtkSMProperty property, vtkSMProxy proxy)
	Called by an proxy/input property to add property, proxy pair to the list of producers. More...

void	RemoveProducer (vtkSMProperty property, vtkSMProxy proxy)
	Remove the property,proxy pair from the list of producers. More...

virtual void	PostUpdateData (bool using_cache)
	This method is called after the algorithm(s) (if any) associated with this proxy execute. More...

void	PostUpdateDataSelfOnly (bool using_cache)
	This is called by `PostUpdateData` to only update state for this proxy without iterative over producers. More...

bool	WarnIfDeprecated ()
	If a proxy is deprecated, prints a warning. More...

bool	LoadPluginIfEnsured ()
	If a proxy need to ensure a plugin is loaded, make sure it is. More...

virtual void	UpdatePipelineInformation ()
	This method simply iterates over subproxies and calls UpdatePipelineInformation() on them. More...

void	LinkProperty (vtkSMProperty inputProperty, vtkSMProperty outputProperty)
	Links properties such that when inputProperty's checked or unchecked values are changed, the outputProperty's corresponding values are also changed. More...

vtkSMPropertyGroup *	NewPropertyGroup (vtkPVXMLElement *propElement)
	Parses the XML to create a new property group. More...

void	AppendPropertyGroup (vtkSMPropertyGroup *group)
	Adds a property groups. More...

void	ExposeSubProxyProperty (const char subproxy_name, const char property_name, const char *exposed_name, int overrideOK=0)
	Expose a subproxy property from the base proxy. More...

virtual void	ExecuteSubProxyEvent (vtkSMProxy o, unsigned long event, void data)
	Handle events fired by subproxies. More...

virtual int	CreateSubProxiesAndProperties (vtkSMSessionProxyManager pm, vtkPVXMLElement element)

virtual void	UpdatePropertyInformationInternal (vtkSMProperty *prop=nullptr)
	Called to update the property information on the property. More...

void	RebuildStateForProperties ()
	vtkSMProxy tracks state of properties on this proxy in an internal State object. More...

virtual void	SetLogNameInternal (const char *name, bool propagate_to_subproxies, bool propagate_to_proxylistdomains)
	Internal method used by `SetLogName` More...

bool	ArePropertiesModified ()
	Indicates if any properties are modified. More...

void	SetHints (vtkPVXMLElement *hints)

void	SetDeprecated (vtkPVXMLElement *deprecated)

void	SetEnsurePluginLoaded (vtkPVXMLElement *ensurePluginLoaded)
	Set the "EnsurePluginLoaded" XML element that is used in LoadPluginIfEnsured. More...

void	SetXMLElement (vtkPVXMLElement *element)

	vtkSMProxy (const vtkSMProxy &)=delete

void	operator= (const vtkSMProxy &)=delete

virtual const vtkClientServerStream &	GetLastResult ()
	Get the last result. More...

virtual const vtkClientServerStream &	GetLastResult (vtkTypeUInt32 location)
	Get the last result. More...

virtual void	SetXMLName (const char *)
	Assigned by the XML parser. More...

virtual void	SetXMLGroup (const char *)
	Assigned by the XML parser. More...

virtual void	SetXMLLabel (const char *)
	Assigned by the XML parser. More...

virtual void	SetXMLSubProxyName (const char *)
	Assigned by the XML parser. More...

vtkSMProperty *	NewProperty (const char *name)
	Creates a new property and initializes it by calling ReadXMLAttributes() with the right XML element. More...

vtkSMProperty *	NewProperty (const char name, vtkPVXMLElement propElement)
	Creates a new property and initializes it by calling ReadXMLAttributes() with the right XML element. More...

void	SetupExposedProperties (const char subproxy_name, vtkPVXMLElement element)
	Read attributes from an XML element. More...

void	SetupSharedProperties (vtkSMProxy subproxy, vtkPVXMLElement element)
	Read attributes from an XML element. More...

virtual void	SetSIClassName (const char *)
	SIClassName identifies the classname for the helper on the server side. More...

virtual char *	GetSIClassName ()
	SIClassName identifies the classname for the helper on the server side. More...

Protected Member Functions inherited from vtkSMRemoteObject
	vtkSMRemoteObject ()
	Default constructor. More...

	~vtkSMRemoteObject () override
	Destructor. More...

void	PushState (vtkSMMessage *msg)
	Subclasses can call this method to send a message to its state object on the server processes specified. More...

bool	PullState (vtkSMMessage *msg)
	Subclasses can call this method to pull the state from the state-object on the server processes specified. More...

void	SetGlobalID (vtkTypeUInt32 guid)
	Set the GlobalUniqueId. More...

vtkTypeUInt32	GetFilteredLocation ()

Protected Member Functions inherited from vtkSMSessionObject
	vtkSMSessionObject ()

	~vtkSMSessionObject () override

Protected Member Functions inherited from vtkSMObject
	vtkSMObject ()

	~vtkSMObject () override

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Protected Attributes
bool	IsSelectionCached

unsigned long	NewMasterObserverId

bool	NeedsUpdateLOD

Protected Attributes inherited from vtkSMViewProxy
char *	DefaultRepresentationName

bool	Enable

Protected Attributes inherited from vtkSMProxy
bool	NeedsUpdate

char *	VTKClassName

char *	XMLGroup

char *	XMLName

char *	XMLLabel

char *	XMLSubProxyName

int	ObjectsCreated

int	DoNotUpdateImmediately

int	DoNotModifyProperty

int	InUpdateVTKObjects
	Avoids calls to UpdateVTKObjects in UpdateVTKObjects. More...

bool	PropertiesModified
	Flag used to help speed up UpdateVTKObjects and ArePropertiesModified calls. More...

vtkPVXMLElement *	XMLElement

vtkSMDocumentation *	Documentation

vtkPVXMLElement *	Hints = nullptr

vtkPVXMLElement *	Deprecated = nullptr

vtkPVXMLElement *	EnsurePluginLoaded = nullptr

vtkSMMessage *	State

int	InMarkModified

vtkWeakPointer< vtkSMProxy >	ParentProxy

vtkSMProxyInternals *	Internals

vtkSMProxyObserver *	SubProxyObserver

char *	SIClassName
	SIClassName identifies the classname for the helper on the server side. More...

Protected Attributes inherited from vtkSMRemoteObject
vtkTypeUInt32	GlobalID

vtkTypeUInt32	Location

bool	Prototype

bool	ClientOnlyLocationFlag

Protected Attributes inherited from vtkSMSessionObject
vtkWeakPointer< vtkSMSession >	Session
	Identifies the session id to which this object is related. More...

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Detailed Description

implementation for View that includes render window and renderers.

vtkSMRenderViewProxy is a 3D view consisting for a render window and two renderers: 1 for 3D geometry and 1 for overlaid 2D geometry.

Definition at line 27 of file vtkSMRenderViewProxy.h.

Member Typedef Documentation

◆ Superclass

typedef vtkSMViewProxy vtkSMRenderViewProxy::Superclass

Definition at line 31 of file vtkSMRenderViewProxy.h.

Member Enumeration Documentation

◆ CameraAdjustmentType

enum vtkSMRenderViewProxy::CameraAdjustmentType : int

strong

Enumerator
Roll
Elevation
Azimuth
Zoom

Definition at line 160 of file vtkSMRenderViewProxy.h.

Constructor & Destructor Documentation

◆ vtkSMRenderViewProxy()

vtkSMRenderViewProxy::vtkSMRenderViewProxy ( )

protected

◆ ~vtkSMRenderViewProxy()

vtkSMRenderViewProxy::~vtkSMRenderViewProxy ( )

overrideprotected

Member Function Documentation

◆ New()

static vtkSMRenderViewProxy* vtkSMRenderViewProxy::New ( )

static

◆ GetClassName()

virtual const char* vtkSMRenderViewProxy::GetClassName ( )

virtual

Reimplemented from vtkSMViewProxy.

Reimplemented in vtkSMMultiSliceViewProxy, and vtkSMOrthographicSliceViewProxy.

◆ IsTypeOf()

static int vtkSMRenderViewProxy::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkSMRenderViewProxy::IsA ( const char * type )

virtual

Reimplemented from vtkSMViewProxy.

Reimplemented in vtkSMMultiSliceViewProxy, and vtkSMOrthographicSliceViewProxy.

◆ SafeDownCast()

static vtkSMRenderViewProxy* vtkSMRenderViewProxy::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkSMRenderViewProxy::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkSMProxy.

◆ SelectSurfaceCells()

bool vtkSMRenderViewProxy::SelectSurfaceCells	(	const int	region[4],
		vtkCollection *	selectedRepresentations,
		vtkCollection *	selectionSources,
		bool	multiple_selections = `false`,
		int	modifier = `0`,
		bool	select_blocks = `false`,
		const char *	arrayName = `nullptr`
	)

Makes a new selection source proxy.

◆ SelectSurfacePoints()

bool vtkSMRenderViewProxy::SelectSurfacePoints	(	const int	region[4],
		vtkCollection *	selectedRepresentations,
		vtkCollection *	selectionSources,
		bool	multiple_selections = `false`,
		int	modifier = `0`,
		bool	select_blocks = `false`,
		const char *	arrayName = `nullptr`
	)

Makes a new selection source proxy.

◆ SelectFrustumCells()

bool vtkSMRenderViewProxy::SelectFrustumCells	(	const int	region[4],
		vtkCollection *	selectedRepresentations,
		vtkCollection *	selectionSources,
		bool	multiple_selections = `false`
	)

Makes a new selection source proxy.

◆ SelectFrustumPoints()

bool vtkSMRenderViewProxy::SelectFrustumPoints	(	const int	region[4],
		vtkCollection *	selectedRepresentations,
		vtkCollection *	selectionSources,
		bool	multiple_selections = `false`
	)

Makes a new selection source proxy.

◆ SelectPolygonPoints()

bool vtkSMRenderViewProxy::SelectPolygonPoints	(	vtkIntArray *	polygon,
		vtkCollection *	selectedRepresentations,
		vtkCollection *	selectionSources,
		bool	multiple_selections = `false`,
		int	modifier = `0`,
		bool	selectBlocks = `false`
	)

Makes a new selection source proxy.

◆ SelectPolygonCells()

bool vtkSMRenderViewProxy::SelectPolygonCells	(	vtkIntArray *	polygon,
		vtkCollection *	selectedRepresentations,
		vtkCollection *	selectionSources,
		bool	multiple_selections = `false`,
		int	modifier = `0`,
		bool	selectBlocks = `false`
	)

Makes a new selection source proxy.

◆ ComputeVisibleScalarRange() [1/2]

bool vtkSMRenderViewProxy::ComputeVisibleScalarRange	(	const int	region[4],
		int	fieldAssociation,
		const char *	scalarName,
		int	component,
		double	range[]
	)

Returns the range for visible elements in the current view.

◆ ComputeVisibleScalarRange() [2/2]

bool vtkSMRenderViewProxy::ComputeVisibleScalarRange	(	int	fieldAssociation,
		const char *	scalarName,
		int	component,
		double	range[]
	)

Returns the range for visible elements in the current view.

◆ Pick()

vtkSMRepresentationProxy* vtkSMRenderViewProxy::Pick	(	int	x,
		int	y
	)

Convenience method to pick a location.

Internally uses SelectSurfaceCells to locate the picked object. In future, we can make this faster.

◆ PickBlock()

vtkSMRepresentationProxy* vtkSMRenderViewProxy::PickBlock	(	int	x,
		int	y,
		unsigned int &	flatIndex,
		int &	rank
	)

Convenience method to pick a block in a multi-block data set.

Will return the selected representation. Furthermore, if it is a multi-block data set the flat index of the selected block will be returned in flatIndex.

With introduction of vtkPartitionedDataSet and vtkPartitionedDataSetCollection, flatIndex is no longer consistent across ranks and hence this method was changed to return the rank number as well.

◆ ConvertDisplayToPointOnSurface()

bool vtkSMRenderViewProxy::ConvertDisplayToPointOnSurface	(	const int	display_position[2],
		double	world_position[3],
		double	world_normal[3],
		bool	snapOnMeshPoint = `false`
	)

Given a location is display coordinates (pixels), tries to compute and return the world location and normal on a surface, if possible.

Returns true if the conversion was successful, else assigns the focal point and plane normal and returns false. If Snap on mesh point is true, it will return a point and normal from the mesh only. If point or normal were not available, they will have a vector of std::numeric_limits<double>::quiet_NaN().

◆ IsSelectionAvailable()

virtual bool vtkSMRenderViewProxy::IsSelectionAvailable ( )

virtual

Checks if color depth is sufficient to support selection.

If not, will return 0 and any calls to SelectVisibleCells will quietly return an empty selection.

◆ SynchronizeGeometryBounds()

void vtkSMRenderViewProxy::SynchronizeGeometryBounds ( )

Call SynchronizeGeometryBounds server side.

◆ ResetCamera() [1/3]

void vtkSMRenderViewProxy::ResetCamera	(	bool	closest = `false`,
		double	offsetRatio = `0.9`
	)

For backwards compatibility in Python scripts.

OffsetRatio can be used to add a zoom offset (only applicable when closest is true).

◆ ResetCamera() [2/3]

void vtkSMRenderViewProxy::ResetCamera	(	double	bounds[6],
		bool	closest = `false`,
		double	offsetRatio = `0.9`
	)

For backwards compatibility in Python scripts.

OffsetRatio can be used to add a zoom offset (only applicable when closest is true).

◆ ResetCamera() [3/3]

void vtkSMRenderViewProxy::ResetCamera	(	double	xmin,
		double	xmax,
		double	ymin,
		double	ymax,
		double	zmin,
		double	zmax,
		bool	closest = `false`,
		double	offsetRatio = `0.9`
	)

For backwards compatibility in Python scripts.

OffsetRatio can be used to add a zoom offset (only applicable when closest is true).

◆ ZoomTo()

virtual void vtkSMRenderViewProxy::ZoomTo	(	vtkSMProxy *	representation,
		bool	closest = `false`,
		double	offsetRatio = `0.9`
	)

virtual

Convenience method for zooming to a representation.

OffsetRatio can be used to add a zoom offset (only applicable when closest is true).

◆ IsSelectVisibleCellsAvailable()

virtual const char* vtkSMRenderViewProxy::IsSelectVisibleCellsAvailable ( )

virtual

Similar to IsSelectionAvailable(), however, on failure returns the error message otherwise 0.

◆ IsSelectVisiblePointsAvailable()

virtual const char* vtkSMRenderViewProxy::IsSelectVisiblePointsAvailable ( )

virtual

Similar to IsSelectionAvailable(), however, on failure returns the error message otherwise 0.

Reimplemented in vtkSMMultiSliceViewProxy.

◆ SetupInteractor()

void vtkSMRenderViewProxy::SetupInteractor ( vtkRenderWindowInteractor * iren )

overridevirtual

A client process need to set the interactor to enable interactivity.

Use this method to set the interactor and initialize it as needed by the RenderView. This include changing the interactor style as well as overriding VTK rendering to use the Proxy/ViewProxy API instead.

Reimplemented from vtkSMViewProxy.

◆ GetInteractor()

vtkRenderWindowInteractor* vtkSMRenderViewProxy::GetInteractor ( )

overridevirtual

Returns the interactor.

Reimplemented from vtkSMViewProxy.

◆ GetRenderer()

vtkRenderer* vtkSMRenderViewProxy::GetRenderer ( )

Returns the client-side renderer (composited or 3D).

◆ UpdateVTKObjects()

void vtkSMRenderViewProxy::UpdateVTKObjects ( )

overridevirtual

Filter changes to the OSPRay rendering method, to transfer the pathtracing materials from client to server only when they are acutally needed.

Use this method instead of UpdateProperty when changing the OSPRay back-end for the default materials to load properly.

Reimplemented from vtkSMProxy.
