undo/redo stack. More...

#include <vtkUndoStack.h>

Inheritance diagram for vtkUndoStack:

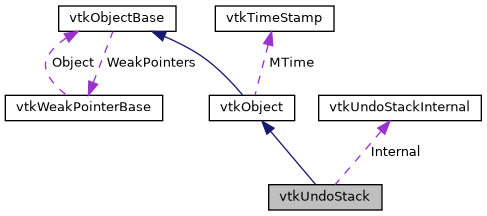

Collaboration diagram for vtkUndoStack:

[legend]

Public Types
enum	EventIds { UndoSetRemovedEvent = 1989, UndoSetClearedEvent = 1990 }

typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

virtual void	Push (const char label, vtkUndoSet changeSet)
	Push an undo set on the Undo stack. More...

const char *	GetUndoSetLabel (unsigned int position)
	Returns the label for the set at the given Undo position. More...

const char *	GetRedoSetLabel (unsigned int position)
	Returns the label for the set at the given Redo position. More...

unsigned int	GetNumberOfUndoSets ()
	Returns the number of sets on the undo stack. More...

unsigned int	GetNumberOfRedoSets ()
	Returns the number of sets on the undo stack. More...

int	CanUndo ()
	Returns if undo operation can be performed. More...

int	CanRedo ()
	Returns if redo operation can be performed. More...

virtual vtkUndoSet *	GetNextUndoSet ()
	Get the UndoSet on the top of the Undo stack, if any. More...

virtual vtkUndoSet *	GetNextRedoSet ()
	Get the UndoSet on the top of the Redo stack, if any. More...

virtual int	Undo ()
	Performs an Undo using the set on the top of the undo stack. More...

virtual int	Redo ()
	Performs a Redo using the set on the top of the redo stack. More...

void	PopUndoStack ()
	Pop the undo stack. More...

void	PopRedoStack ()
	Pop the redo stack. More...

void	Clear ()
	Clears all the undo/redo elements from the stack. More...


virtual bool	GetInUndo ()
	Returns if the stack is currently being undone. More...


virtual bool	GetInRedo ()
	Returns if the stack is currently being redone. More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkUndoStack *	New ()

static int	IsTypeOf (const char *type)

static vtkUndoStack *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Attributes
vtkUndoStackInternal *	Internal

int	StackDepth

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

virtual void	SetStackDepth (int)
	Get set the maximum stack depth. More...

virtual int	GetStackDepth ()
	Get set the maximum stack depth. More...

	vtkUndoStack ()
	Get set the maximum stack depth. More...

	~vtkUndoStack () override
	Get set the maximum stack depth. More...

Additional Inherited Members
Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Detailed Description

undo/redo stack.

This an undo stack. Each undo/redo-able operation is a vtkUndoSet object. This class fires a vtkCommand::ModifiedEvent when the undo/redo stack changes.

On Undo, vtkUndoSet::Undo is called on the vtkUndoSet at the top of the undo stack and the set is pushed onto the top of the redo stack. On Redo, vtkUndoSet::Redo is called on the vtkUndoSet at the top of the redo stack and the set is pushed onto the top of the undo stack. When a vtkUndoSet is pushed on the undo stack, the redo stack is cleared.

Each undo set are assigned user-readable labels providing information about the operation(s) that will be undone/redone.

vtkUndoElement, vtkUndoSet and vtkUndoStack form the undo/redo framework core.

See also: vtkUndoSet vtkUndoElement

Definition at line 35 of file vtkUndoStack.h.

Member Typedef Documentation

◆ Superclass

typedef vtkObject vtkUndoStack::Superclass

Definition at line 45 of file vtkUndoStack.h.

Member Enumeration Documentation

◆ EventIds

enum vtkUndoStack::EventIds

Enumerator
UndoSetRemovedEvent
UndoSetClearedEvent

Definition at line 38 of file vtkUndoStack.h.

Constructor & Destructor Documentation

◆ vtkUndoStack()

vtkUndoStack::vtkUndoStack ( )

protected

Get set the maximum stack depth.

As more entries are pushed on the stack, if its size exceeds this limit then old entries will be removed. Default is 10.

◆ ~vtkUndoStack()

vtkUndoStack::~vtkUndoStack ( )

overrideprotected

Get set the maximum stack depth.

As more entries are pushed on the stack, if its size exceeds this limit then old entries will be removed. Default is 10.

Member Function Documentation

◆ New()

static vtkUndoStack* vtkUndoStack::New ( )

static

◆ GetClassName()

virtual const char* vtkUndoStack::GetClassName ( )

virtual

Reimplemented in vtkSMUndoStack.

◆ IsTypeOf()

static int vtkUndoStack::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkUndoStack::IsA ( const char * type )

virtual

Reimplemented from vtkObjectBase.

Reimplemented in vtkSMUndoStack.

◆ SafeDownCast()

static vtkUndoStack* vtkUndoStack::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkUndoStack::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkObject.

◆ Push()

virtual void vtkUndoStack::Push	(	const char *	label,
		vtkUndoSet *	changeSet
	)

virtual

Push an undo set on the Undo stack.

This will clear any sets in the Redo stack.

Reimplemented in vtkSMUndoStack.

◆ GetUndoSetLabel()

const char* vtkUndoStack::GetUndoSetLabel ( unsigned int position )

Returns the label for the set at the given Undo position.

0 is the current undo set, 1 is the one preceding to the current one and so on.

Returns: nullptr is no set exists at the given index, otherwise the label for the change set.

◆ GetRedoSetLabel()

const char* vtkUndoStack::GetRedoSetLabel ( unsigned int position )

Returns the label for the set at the given Redo position.

0 is the next set to redo, 1 is the one after the next one and so on.

Returns: nullptr is no set exists at the given index, otherwise the label for the change set.

◆ GetNumberOfUndoSets()

unsigned int vtkUndoStack::GetNumberOfUndoSets ( )

Returns the number of sets on the undo stack.

◆ GetNumberOfRedoSets()

unsigned int vtkUndoStack::GetNumberOfRedoSets ( )

Returns the number of sets on the undo stack.

◆ CanUndo()

int vtkUndoStack::CanUndo ( )

inline

Returns if undo operation can be performed.

Definition at line 85 of file vtkUndoStack.h.

◆ CanRedo()

int vtkUndoStack::CanRedo ( )

inline

Returns if redo operation can be performed.

Definition at line 90 of file vtkUndoStack.h.

◆ GetNextUndoSet()

virtual vtkUndoSet* vtkUndoStack::GetNextUndoSet ( )

virtual

Get the UndoSet on the top of the Undo stack, if any.

◆ GetNextRedoSet()

virtual vtkUndoSet* vtkUndoStack::GetNextRedoSet ( )

virtual

Get the UndoSet on the top of the Redo stack, if any.

◆ Undo()

virtual int vtkUndoStack::Undo ( )

virtual

Performs an Undo using the set on the top of the undo stack.

The set is poped from the undo stack and pushed at the top of the redo stack. Before undo begins, it fires vtkCommand::StartEvent and when undo completes, it fires vtkCommand::EndEvent.

Returns: the status of the operation.

Reimplemented in vtkSMUndoStack.

◆ Redo()

virtual int vtkUndoStack::Redo ( )

virtual

Performs a Redo using the set on the top of the redo stack.

The set is poped from the redo stack and pushed at the top of the undo stack. Before redo begins, it fires vtkCommand::StartEvent and when redo completes, it fires vtkCommand::EndEvent.

Returns: the status of the operation.

Reimplemented in vtkSMUndoStack.

◆ PopUndoStack()

void vtkUndoStack::PopUndoStack ( )

Pop the undo stack.

The UndoElement on the top of the undo stack is popped from the undo stack and pushed on the redo stack. This is same as Undo() except that the vtkUndoElement::Undo() is not invoked.

◆ PopRedoStack()

void vtkUndoStack::PopRedoStack ( )

Pop the redo stack.

The UndoElement on the top of the redo stack is popped and then pushed on the undo stack. This is same as Redo() except that vtkUndoElement::Redo() is not invoked.

◆ Clear()

void vtkUndoStack::Clear ( )

Clears all the undo/redo elements from the stack.

◆ GetInUndo()

virtual bool vtkUndoStack::GetInUndo ( )

virtual

Returns if the stack is currently being undone.

◆ GetInRedo()

virtual bool vtkUndoStack::GetInRedo ( )

virtual

Returns if the stack is currently being redone.

◆ SetStackDepth()

virtual void vtkUndoStack::SetStackDepth ( int )

virtual

Get set the maximum stack depth.

As more entries are pushed on the stack, if its size exceeds this limit then old entries will be removed. Default is 10.

◆ GetStackDepth()

virtual int vtkUndoStack::GetStackDepth ( )

virtual

Get set the maximum stack depth.

As more entries are pushed on the stack, if its size exceeds this limit then old entries will be removed. Default is 10.

Member Data Documentation

◆ Internal

vtkUndoStackInternal* vtkUndoStack::Internal

protected

Definition at line 167 of file vtkUndoStack.h.

◆ StackDepth

int vtkUndoStack::StackDepth

protected

Definition at line 168 of file vtkUndoStack.h.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/VTKExtensions/Core/vtkUndoStack.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Superclass

Member Enumeration Documentation

◆ EventIds

Constructor & Destructor Documentation

◆ vtkUndoStack()

◆ ~vtkUndoStack()

Member Function Documentation

◆ New()

◆ GetClassName()

◆ IsTypeOf()

◆ IsA()

◆ SafeDownCast()

◆ PrintSelf()

◆ Push()

◆ GetUndoSetLabel()

◆ GetRedoSetLabel()

◆ GetNumberOfUndoSets()

◆ GetNumberOfRedoSets()

◆ CanUndo()

◆ CanRedo()

◆ GetNextUndoSet()

◆ GetNextRedoSet()

◆ Undo()

◆ Redo()

◆ PopUndoStack()

◆ PopRedoStack()

◆ Clear()

◆ GetInUndo()

◆ GetInRedo()

◆ SetStackDepth()

◆ GetStackDepth()

Member Data Documentation

◆ Internal

◆ StackDepth
