This is the undo/redo stack for the Server Manager. More...

#include <vtkSMUndoStack.h>

Inheritance diagram for vtkSMUndoStack:

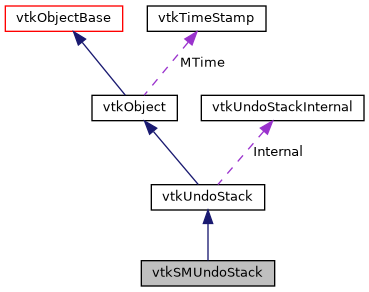

Collaboration diagram for vtkSMUndoStack:

[legend]

Public Types
enum	EventIds { PushUndoSetEvent = 1987, ObjectCreationEvent = 1988 }

typedef vtkUndoStack	Superclass

Public Types inherited from vtkUndoStack
enum	EventIds { UndoSetRemovedEvent = 1989, UndoSetClearedEvent = 1990 }

typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

void	Push (const char label, vtkUndoSet changeSet) override
	Push an undo set on the Undo stack. More...

int	Undo () override
	Performs an Undo using the set on the top of the undo stack. More...

int	Redo () override
	Performs a Redo using the set on the top of the redo stack. More...

Public Member Functions inherited from vtkUndoStack
void	PrintSelf (ostream &os, vtkIndent indent) override

const char *	GetUndoSetLabel (unsigned int position)
	Returns the label for the set at the given Undo position. More...

const char *	GetRedoSetLabel (unsigned int position)
	Returns the label for the set at the given Redo position. More...

unsigned int	GetNumberOfUndoSets ()
	Returns the number of sets on the undo stack. More...

unsigned int	GetNumberOfRedoSets ()
	Returns the number of sets on the undo stack. More...

int	CanUndo ()
	Returns if undo operation can be performed. More...

int	CanRedo ()
	Returns if redo operation can be performed. More...

virtual vtkUndoSet *	GetNextUndoSet ()
	Get the UndoSet on the top of the Undo stack, if any. More...

virtual vtkUndoSet *	GetNextRedoSet ()
	Get the UndoSet on the top of the Redo stack, if any. More...

void	PopUndoStack ()
	Pop the undo stack. More...

void	PopRedoStack ()
	Pop the redo stack. More...

void	Clear ()
	Clears all the undo/redo elements from the stack. More...

virtual bool	GetInUndo ()
	Returns if the stack is currently being undone. More...

virtual bool	GetInRedo ()
	Returns if the stack is currently being redone. More...

virtual void	SetStackDepth (int)
	Get set the maximum stack depth. More...

virtual int	GetStackDepth ()
	Get set the maximum stack depth. More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkSMUndoStack *	New ()

static int	IsTypeOf (const char *type)

static vtkSMUndoStack *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkUndoStack
static vtkUndoStack *	New ()

static int	IsTypeOf (const char *type)

static vtkUndoStack *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkSMUndoStack ()

	~vtkSMUndoStack () override

void	FillWithRemoteObjects (vtkUndoSet undoSet, vtkCollection collection)

Protected Member Functions inherited from vtkUndoStack
	vtkUndoStack ()
	Get set the maximum stack depth. More...

	~vtkUndoStack () override
	Get set the maximum stack depth. More...

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Additional Inherited Members
Protected Attributes inherited from vtkUndoStack
vtkUndoStackInternal *	Internal

int	StackDepth

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Detailed Description

This is the undo/redo stack for the Server Manager.

This provides a unified face for undo/redo irrespective of number of connections, their type etc etc.

On every undo/redo, it fetches the XML state change from the server. vtkSMUndoRedoStateLoader is used to generate a vtkUndoSet object from the XML. GUI can subclass vtkSMUndoRedoStateLoader to handle GUI specific XML elements. The loader instance must be set before performing the undo, otherwise vtkSMUndoRedoStateLoader is used.

This class also provides API to push any vtkUndoSet instance on to a server. GUI can use this to push its own changes that is undoable across connections.

See also: vtkSMUndoStackBuilder

Definition at line 35 of file vtkSMUndoStack.h.

Member Typedef Documentation

◆ Superclass

typedef vtkUndoStack vtkSMUndoStack::Superclass

Definition at line 39 of file vtkSMUndoStack.h.

Member Enumeration Documentation

◆ EventIds

enum vtkSMUndoStack::EventIds

Enumerator
PushUndoSetEvent
ObjectCreationEvent

Definition at line 66 of file vtkSMUndoStack.h.

Constructor & Destructor Documentation

◆ vtkSMUndoStack()

vtkSMUndoStack::vtkSMUndoStack ( )

protected

◆ ~vtkSMUndoStack()

vtkSMUndoStack::~vtkSMUndoStack ( )

overrideprotected

Member Function Documentation

◆ New()

static vtkSMUndoStack* vtkSMUndoStack::New ( )

static

◆ GetClassName()

virtual const char* vtkSMUndoStack::GetClassName ( )

virtual

Reimplemented from vtkUndoStack.

◆ IsTypeOf()

static int vtkSMUndoStack::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkSMUndoStack::IsA ( const char * type )

virtual

Reimplemented from vtkUndoStack.

◆ SafeDownCast()

static vtkSMUndoStack* vtkSMUndoStack::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkSMUndoStack::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkObject.

◆ Push()

void vtkSMUndoStack::Push	(	const char *	label,
		vtkUndoSet *	changeSet
	)

overridevirtual

Push an undo set on the Undo stack.

This will clear any sets in the Redo stack.

Reimplemented from vtkUndoStack.

◆ Undo()

int vtkSMUndoStack::Undo ( )

overridevirtual

Performs an Undo using the set on the top of the undo stack.

The set is poped from the undo stack and pushed at the top of the redo stack. Before undo begins, it fires vtkCommand::StartEvent and when undo completes, it fires vtkCommand::EndEvent.

Returns: the status of the operation.

Reimplemented from vtkUndoStack.

◆ Redo()

int vtkSMUndoStack::Redo ( )

overridevirtual

Performs a Redo using the set on the top of the redo stack.

The set is poped from the redo stack and pushed at the top of the undo stack. Before redo begins, it fires vtkCommand::StartEvent and when redo completes, it fires vtkCommand::EndEvent.

Returns: the status of the operation.

Reimplemented from vtkUndoStack.

◆ FillWithRemoteObjects()

void vtkSMUndoStack::FillWithRemoteObjects	(	vtkUndoSet *	undoSet,
		vtkCollection *	collection
	)

protected

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Remoting/ServerManager/vtkSMUndoStack.h
