Abstract class for specifying fields over grids. More...

#include <vtkCPFieldBuilder.h>

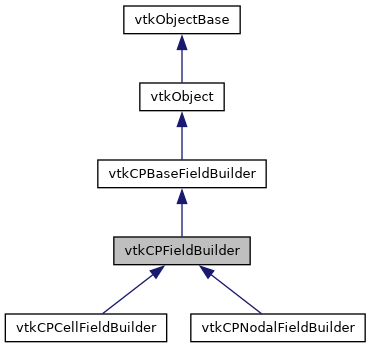

Inheritance diagram for vtkCPFieldBuilder:

[legend]

Collaboration diagram for vtkCPFieldBuilder:

[legend]

Public Types
typedef vtkCPBaseFieldBuilder	Superclass

Public Types inherited from vtkCPBaseFieldBuilder
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

void	BuildField (unsigned long TimeStep, double Time, vtkDataSet *Grid) override=0
	Return a field on Grid. More...


virtual void	SetArrayName (const char *)
	Return the highest order of discretization of the field. More...

virtual char *	GetArrayName ()
	Return the highest order of discretization of the field. More...


void	SetTensorFieldFunction (vtkCPTensorFieldFunction *TFF)
	Set/get TensorFieldFunction. More...

vtkCPTensorFieldFunction *	GetTensorFieldFunction ()
	Set/get TensorFieldFunction. More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static int	IsTypeOf (const char *type)

static vtkCPFieldBuilder *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkCPBaseFieldBuilder
static int	IsTypeOf (const char *type)

static vtkCPBaseFieldBuilder *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkCPFieldBuilder ()

	~vtkCPFieldBuilder () override

Protected Member Functions inherited from vtkCPBaseFieldBuilder
	vtkCPBaseFieldBuilder ()
	Return the highest order of discretization of the field. More...

	~vtkCPBaseFieldBuilder () override

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Additional Inherited Members
Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Detailed Description

Abstract class for specifying fields over grids.

Abstract class for specifying fields over grids for a test driver.

Definition at line 18 of file vtkCPFieldBuilder.h.

Member Typedef Documentation

◆ Superclass

typedef vtkCPBaseFieldBuilder vtkCPFieldBuilder::Superclass

Definition at line 21 of file vtkCPFieldBuilder.h.

Constructor & Destructor Documentation

◆ vtkCPFieldBuilder()

vtkCPFieldBuilder::vtkCPFieldBuilder ( )

protected

◆ ~vtkCPFieldBuilder()

vtkCPFieldBuilder::~vtkCPFieldBuilder ( )

overrideprotected

Member Function Documentation

◆ GetClassName()

virtual const char* vtkCPFieldBuilder::GetClassName ( )

virtual

Reimplemented from vtkCPBaseFieldBuilder.

Reimplemented in vtkCPCellFieldBuilder, and vtkCPNodalFieldBuilder.

◆ IsTypeOf()

static int vtkCPFieldBuilder::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkCPFieldBuilder::IsA ( const char * type )

virtual

Reimplemented from vtkCPBaseFieldBuilder.

Reimplemented in vtkCPCellFieldBuilder, and vtkCPNodalFieldBuilder.

◆ SafeDownCast()

static vtkCPFieldBuilder* vtkCPFieldBuilder::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkCPFieldBuilder::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkCPBaseFieldBuilder.

Reimplemented in vtkCPNodalFieldBuilder.

◆ BuildField()

void vtkCPFieldBuilder::BuildField	(	unsigned long	TimeStep,
		double	Time,
		vtkDataSet *	Grid
	)

overridepure virtual

Return a field on Grid.

Implements vtkCPBaseFieldBuilder.

Implemented in vtkCPCellFieldBuilder, and vtkCPNodalFieldBuilder.

◆ SetArrayName()

virtual void vtkCPFieldBuilder::SetArrayName ( const char * )

virtual

Return the highest order of discretization of the field.

virtual unsigned int GetHighestFieldOrder() = 0; Set/get the name of the field array.

◆ GetArrayName()

virtual char* vtkCPFieldBuilder::GetArrayName ( )

virtual

Return the highest order of discretization of the field.

virtual unsigned int GetHighestFieldOrder() = 0; Set/get the name of the field array.

◆ SetTensorFieldFunction()

void vtkCPFieldBuilder::SetTensorFieldFunction ( vtkCPTensorFieldFunction * TFF )

Set/get TensorFieldFunction.

◆ GetTensorFieldFunction()

vtkCPTensorFieldFunction* vtkCPFieldBuilder::GetTensorFieldFunction ( )

Set/get TensorFieldFunction.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Adaptors/CatalystTestDriver/vtkCPFieldBuilder.h
