Parallel version of vtkEnSightGoldReader. More...

#include <vtkPEnSightGoldReader.h>

Inheritance diagram for vtkPEnSightGoldReader:

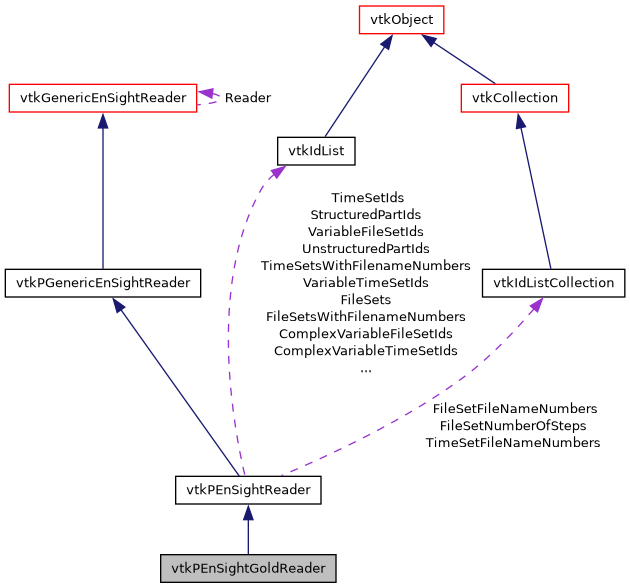

Collaboration diagram for vtkPEnSightGoldReader:

[legend]

Public Types
typedef vtkPEnSightReader	Superclass

Public Types inherited from vtkPEnSightReader
enum	ElementTypesList { POINT = 0, BAR2 = 1, BAR3 = 2, NSIDED = 3, TRIA3 = 4, TRIA6 = 5, QUAD4 = 6, QUAD8 = 7, NFACED = 8, TETRA4 = 9, TETRA10 = 10, PYRAMID5 = 11, PYRAMID13 = 12, HEXA8 = 13, HEXA20 = 14, PENTA6 = 15, PENTA15 = 16, NUMBER_OF_ELEMENT_TYPES = 17 }

enum	VariableTypesList { SCALAR_PER_NODE = 0, VECTOR_PER_NODE = 1, TENSOR_SYMM_PER_NODE = 2, SCALAR_PER_ELEMENT = 3, VECTOR_PER_ELEMENT = 4, TENSOR_SYMM_PER_ELEMENT = 5, SCALAR_PER_MEASURED_NODE = 6, VECTOR_PER_MEASURED_NODE = 7, COMPLEX_SCALAR_PER_NODE = 8, COMPLEX_VECTOR_PER_NODE = 9, COMPLEX_SCALAR_PER_ELEMENT = 10, COMPLEX_VECTOR_PER_ELEMENT = 11 }

enum	SectionTypeList { COORDINATES = 0, BLOCK = 1, ELEMENT = 2 }

typedef vtkPGenericEnSightReader	Superclass

Public Types inherited from vtkPGenericEnSightReader
typedef vtkGenericEnSightReader	Superclass

Public Types inherited from vtkGenericEnSightReader
enum	FileTypes

typedef vtkMultiBlockDataSetAlgorithm	Superclass

Public Types inherited from vtkMultiBlockDataSetAlgorithm
typedef vtkAlgorithm	Superclass

Public Types inherited from vtkAlgorithm
enum	DesiredOutputPrecision

enum	DesiredOutputPrecision

typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

Public Member Functions inherited from vtkPEnSightReader
void	PrintSelf (ostream &os, vtkIndent indent) override

virtual char *	GetMeasuredFileName ()
	Get the Measured file name. More...

virtual char *	GetMatchFileName ()
	Get the Match file name. More...

Public Member Functions inherited from vtkPGenericEnSightReader
void	PrintSelf (ostream &os, vtkIndent indent) override

Public Member Functions inherited from vtkGenericEnSightReader
vtkGenericEnSightReader *	NewInstance () const

const char *	GetDescription (int n)

const char *	GetComplexDescription (int n)

const char *	GetDescription (int n, int type)

int	DetermineEnSightVersion (int quiet=0)

vtkGenericEnSightReader *	GetReader ()

void	SetCaseFileName (const char *fileName)

virtual char *	GetCaseFileName ()

virtual void	SetFilePath (const char *)

virtual char *	GetFilePath ()

virtual int	GetEnSightVersion ()

virtual int	GetNumberOfVariables ()

virtual int	GetNumberOfComplexVariables ()

int	GetNumberOfVariables (int type)

virtual int	GetNumberOfScalarsPerNode ()

virtual int	GetNumberOfVectorsPerNode ()

virtual int	GetNumberOfTensorsSymmPerNode ()

virtual int	GetNumberOfScalarsPerElement ()

virtual int	GetNumberOfVectorsPerElement ()

virtual int	GetNumberOfTensorsSymmPerElement ()

virtual int	GetNumberOfScalarsPerMeasuredNode ()

virtual int	GetNumberOfVectorsPerMeasuredNode ()

virtual int	GetNumberOfComplexScalarsPerNode ()

virtual int	GetNumberOfComplexVectorsPerNode ()

virtual int	GetNumberOfComplexScalarsPerElement ()

virtual int	GetNumberOfComplexVectorsPerElement ()

int	GetVariableType (int n)

int	GetComplexVariableType (int n)

virtual void	SetTimeValue (float value)

virtual float	GetTimeValue ()

virtual float	GetMinimumTimeValue ()

virtual float	GetMaximumTimeValue ()

virtual vtkDataArrayCollection *	GetTimeSets ()

virtual void	ReadAllVariablesOn ()

virtual void	ReadAllVariablesOff ()

virtual void	SetReadAllVariables (int)

virtual int	GetReadAllVariables ()

virtual vtkDataArraySelection *	GetPointDataArraySelection ()

virtual vtkDataArraySelection *	GetCellDataArraySelection ()

int	GetNumberOfPointArrays ()

int	GetNumberOfCellArrays ()

const char *	GetPointArrayName (int index)

const char *	GetCellArrayName (int index)

int	GetPointArrayStatus (const char *name)

int	GetCellArrayStatus (const char *name)

void	SetPointArrayStatus (const char *name, int status)

void	SetCellArrayStatus (const char *name, int status)

void	SetByteOrderToBigEndian ()

void	SetByteOrderToLittleEndian ()

virtual void	SetByteOrder (int)

virtual int	GetByteOrder ()

const char *	GetByteOrderAsString ()

virtual char *	GetGeometryFileName ()

virtual void	SetParticleCoordinatesByIndex (int)

virtual int	GetParticleCoordinatesByIndex ()

virtual void	ParticleCoordinatesByIndexOn ()

virtual void	ParticleCoordinatesByIndexOff ()

void	SetCaseFileName (const char *fileName)

virtual char *	GetCaseFileName ()

virtual void	SetFilePath (const char *)

virtual char *	GetFilePath ()

virtual int	GetEnSightVersion ()

virtual int	GetNumberOfVariables ()

virtual int	GetNumberOfComplexVariables ()

int	GetNumberOfVariables (int type)

virtual int	GetNumberOfScalarsPerNode ()

virtual int	GetNumberOfVectorsPerNode ()

virtual int	GetNumberOfTensorsSymmPerNode ()

virtual int	GetNumberOfScalarsPerElement ()

virtual int	GetNumberOfVectorsPerElement ()

virtual int	GetNumberOfTensorsSymmPerElement ()

virtual int	GetNumberOfScalarsPerMeasuredNode ()

virtual int	GetNumberOfVectorsPerMeasuredNode ()

virtual int	GetNumberOfComplexScalarsPerNode ()

virtual int	GetNumberOfComplexVectorsPerNode ()

virtual int	GetNumberOfComplexScalarsPerElement ()

virtual int	GetNumberOfComplexVectorsPerElement ()

int	GetVariableType (int n)

int	GetComplexVariableType (int n)

virtual void	SetTimeValue (float value)

virtual float	GetTimeValue ()

virtual float	GetMinimumTimeValue ()

virtual float	GetMaximumTimeValue ()

virtual vtkDataArrayCollection *	GetTimeSets ()

virtual void	ReadAllVariablesOn ()

virtual void	ReadAllVariablesOff ()

virtual void	SetReadAllVariables (int)

virtual int	GetReadAllVariables ()

virtual vtkDataArraySelection *	GetPointDataArraySelection ()

virtual vtkDataArraySelection *	GetCellDataArraySelection ()

int	GetNumberOfPointArrays ()

int	GetNumberOfCellArrays ()

const char *	GetPointArrayName (int index)

const char *	GetCellArrayName (int index)

int	GetPointArrayStatus (const char *name)

int	GetCellArrayStatus (const char *name)

void	SetPointArrayStatus (const char *name, int status)

void	SetCellArrayStatus (const char *name, int status)

void	SetByteOrderToBigEndian ()

void	SetByteOrderToLittleEndian ()

virtual void	SetByteOrder (int)

virtual int	GetByteOrder ()

const char *	GetByteOrderAsString ()

virtual char *	GetGeometryFileName ()

virtual void	SetParticleCoordinatesByIndex (int)

virtual int	GetParticleCoordinatesByIndex ()

virtual void	ParticleCoordinatesByIndexOn ()

virtual void	ParticleCoordinatesByIndexOff ()

Public Member Functions inherited from vtkMultiBlockDataSetAlgorithm
vtkMultiBlockDataSetAlgorithm *	NewInstance () const

vtkMultiBlockDataSet *	GetOutput ()

vtkMultiBlockDataSet *	GetOutput (int)

void	SetInputData (vtkDataObject *)

void	SetInputData (int, vtkDataObject *)

virtual int	ProcessRequest (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)

vtkMultiBlockDataSet *	GetOutput ()

vtkMultiBlockDataSet *	GetOutput (int)

void	SetInputData (vtkDataObject *)

void	SetInputData (int, vtkDataObject *)

virtual int	ProcessRequest (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)

Public Member Functions inherited from vtkAlgorithm
vtkAlgorithm *	NewInstance () const

int	HasExecutive ()

vtkExecutive *	GetExecutive ()

virtual void	SetExecutive (vtkExecutive *executive)

virtual int	ModifyRequest (vtkInformation *request, int when)

vtkInformation *	GetInputPortInformation (int port)

vtkInformation *	GetOutputPortInformation (int port)

int	GetNumberOfInputPorts ()

int	GetNumberOfOutputPorts ()

void	UpdateProgress (double amount)

vtkInformation *	GetInputArrayInformation (int idx)

void	RemoveAllInputs ()

vtkDataObject *	GetOutputDataObject (int port)

virtual void	RemoveInputConnection (int port, vtkAlgorithmOutput *input)

virtual void	RemoveInputConnection (int port, int idx)

virtual void	RemoveAllInputConnections (int port)

int	GetNumberOfInputConnections (int port)

int	GetTotalNumberOfInputConnections ()

vtkAlgorithmOutput *	GetInputConnection (int port, int index)

vtkAlgorithm *	GetInputAlgorithm (int port, int index, int &algPort)

vtkAlgorithm *	GetInputAlgorithm (int port, int index)

vtkExecutive *	GetInputExecutive (int port, int index)

vtkInformation *	GetInputInformation (int port, int index)

vtkInformation *	GetOutputInformation (int port)

virtual int	Update (int port, vtkInformationVector *requests)

virtual int	Update (vtkInformation *requests)

virtual int	UpdateExtent (const int extents[6])

virtual void	UpdateInformation ()

virtual void	UpdateDataObject ()

virtual void	PropagateUpdateExtent ()

virtual void	UpdateWholeExtent ()

void	ConvertTotalInputToPortConnection (int ind, int &port, int &conn)

int	SetUpdateExtentToWholeExtent (int port)

int	SetUpdateExtentToWholeExtent ()

void	SetUpdateExtent (int port, int extent[6])

void	SetUpdateExtent (int extent[6])

int	ProcessRequest (vtkInformation request, vtkCollection inInfo, vtkInformationVector *outInfo)

virtual int	ComputePipelineMTime (vtkInformation request, vtkInformationVector inInfoVec, vtkInformationVector outInfoVec, int requestFromOutputPort, vtkMTimeType *mtime)

virtual vtkInformation *	GetInformation ()

virtual void	SetInformation (vtkInformation *)

void	Register (vtkObjectBase *o) VTK_OVERRIDE

void	UnRegister (vtkObjectBase *o) VTK_OVERRIDE

virtual void	SetAbortExecute (int)

virtual int	GetAbortExecute ()

virtual void	AbortExecuteOn ()

virtual void	AbortExecuteOff ()

virtual void	SetProgress (double)

virtual double	GetProgress ()

void	SetProgressText (const char *ptext)

virtual char *	GetProgressText ()

virtual unsigned long	GetErrorCode ()

virtual void	SetInputArrayToProcess (int idx, int port, int connection, int fieldAssociation, const char *name)

virtual void	SetInputArrayToProcess (int idx, int port, int connection, int fieldAssociation, int fieldAttributeType)

virtual void	SetInputArrayToProcess (int idx, vtkInformation *info)

virtual void	SetInputArrayToProcess (int idx, int port, int connection, const char fieldAssociation, const char attributeTypeorName)

vtkDataObject *	GetInputDataObject (int port, int connection)

virtual void	SetInputConnection (int port, vtkAlgorithmOutput *input)

virtual void	SetInputConnection (vtkAlgorithmOutput *input)

virtual void	AddInputConnection (int port, vtkAlgorithmOutput *input)

virtual void	AddInputConnection (vtkAlgorithmOutput *input)

virtual void	SetInputDataObject (int port, vtkDataObject *data)

virtual void	SetInputDataObject (vtkDataObject *data)

virtual void	AddInputDataObject (int port, vtkDataObject *data)

virtual void	AddInputDataObject (vtkDataObject *data)

vtkAlgorithmOutput *	GetOutputPort (int index)

vtkAlgorithmOutput *	GetOutputPort ()

vtkAlgorithm *	GetInputAlgorithm ()

vtkExecutive *	GetInputExecutive ()

vtkInformation *	GetInputInformation ()

virtual void	Update (int port)

virtual void	Update ()

virtual int	UpdatePiece (int piece, int numPieces, int ghostLevels, const int extents[6]=0)

virtual int	UpdateTimeStep (double time, int piece=-1, int numPieces=1, int ghostLevels=0, const int extents[6]=0)

virtual void	SetReleaseDataFlag (int)

virtual int	GetReleaseDataFlag ()

void	ReleaseDataFlagOn ()

void	ReleaseDataFlagOff ()

int	UpdateExtentIsEmpty (vtkInformation pinfo, vtkDataObject output)

int	UpdateExtentIsEmpty (vtkInformation *pinfo, int extentType)

void	SetUpdateExtent (int port, int piece, int numPieces, int ghostLevel)

void	SetUpdateExtent (int piece, int numPieces, int ghostLevel)

int *	GetUpdateExtent ()

int *	GetUpdateExtent (int port)

void	GetUpdateExtent (int &x0, int &x1, int &y0, int &y1, int &z0, int &z1)

void	GetUpdateExtent (int port, int &x0, int &x1, int &y0, int &y1, int &z0, int &z1)

void	GetUpdateExtent (int extent[6])

void	GetUpdateExtent (int port, int extent[6])

int	GetUpdatePiece ()

int	GetUpdatePiece (int port)

int	GetUpdateNumberOfPieces ()

int	GetUpdateNumberOfPieces (int port)

int	GetUpdateGhostLevel ()

int	GetUpdateGhostLevel (int port)

void	SetProgressObserver (vtkProgressObserver *)

virtual vtkProgressObserver *	GetProgressObserver ()

int	ProcessRequest (vtkInformation request, vtkCollection inInfo, vtkInformationVector *outInfo)

virtual int	ComputePipelineMTime (vtkInformation request, vtkInformationVector inInfoVec, vtkInformationVector outInfoVec, int requestFromOutputPort, vtkMTimeType *mtime)

virtual vtkInformation *	GetInformation ()

virtual void	SetInformation (vtkInformation *)

void	Register (vtkObjectBase *o) VTK_OVERRIDE

void	UnRegister (vtkObjectBase *o) VTK_OVERRIDE

virtual void	SetAbortExecute (int)

virtual int	GetAbortExecute ()

virtual void	AbortExecuteOn ()

virtual void	AbortExecuteOff ()

virtual void	SetProgress (double)

virtual double	GetProgress ()

void	SetProgressText (const char *ptext)

virtual char *	GetProgressText ()

virtual unsigned long	GetErrorCode ()

virtual void	SetInputArrayToProcess (int idx, int port, int connection, int fieldAssociation, const char *name)

virtual void	SetInputArrayToProcess (int idx, int port, int connection, int fieldAssociation, int fieldAttributeType)

virtual void	SetInputArrayToProcess (int idx, vtkInformation *info)

virtual void	SetInputArrayToProcess (int idx, int port, int connection, const char fieldAssociation, const char attributeTypeorName)

vtkDataObject *	GetInputDataObject (int port, int connection)

virtual void	SetInputConnection (int port, vtkAlgorithmOutput *input)

virtual void	SetInputConnection (vtkAlgorithmOutput *input)

virtual void	AddInputConnection (int port, vtkAlgorithmOutput *input)

virtual void	AddInputConnection (vtkAlgorithmOutput *input)

virtual void	SetInputDataObject (int port, vtkDataObject *data)

virtual void	SetInputDataObject (vtkDataObject *data)

virtual void	AddInputDataObject (int port, vtkDataObject *data)

virtual void	AddInputDataObject (vtkDataObject *data)

vtkAlgorithmOutput *	GetOutputPort (int index)

vtkAlgorithmOutput *	GetOutputPort ()

vtkAlgorithm *	GetInputAlgorithm ()

vtkExecutive *	GetInputExecutive ()

vtkInformation *	GetInputInformation ()

virtual void	Update (int port)

virtual void	Update ()

virtual int	UpdatePiece (int piece, int numPieces, int ghostLevels, const int extents[6]=0)

virtual int	UpdateTimeStep (double time, int piece=-1, int numPieces=1, int ghostLevels=0, const int extents[6]=0)

virtual void	SetReleaseDataFlag (int)

virtual int	GetReleaseDataFlag ()

void	ReleaseDataFlagOn ()

void	ReleaseDataFlagOff ()

int	UpdateExtentIsEmpty (vtkInformation pinfo, vtkDataObject output)

int	UpdateExtentIsEmpty (vtkInformation *pinfo, int extentType)

void	SetUpdateExtent (int port, int piece, int numPieces, int ghostLevel)

void	SetUpdateExtent (int piece, int numPieces, int ghostLevel)

int *	GetUpdateExtent ()

int *	GetUpdateExtent (int port)

void	GetUpdateExtent (int &x0, int &x1, int &y0, int &y1, int &z0, int &z1)

void	GetUpdateExtent (int port, int &x0, int &x1, int &y0, int &y1, int &z0, int &z1)

void	GetUpdateExtent (int extent[6])

void	GetUpdateExtent (int port, int extent[6])

int	GetUpdatePiece ()

int	GetUpdatePiece (int port)

int	GetUpdateNumberOfPieces ()

int	GetUpdateNumberOfPieces (int port)

int	GetUpdateGhostLevel ()

int	GetUpdateGhostLevel (int port)

void	SetProgressObserver (vtkProgressObserver *)

virtual vtkProgressObserver *	GetProgressObserver ()

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkPEnSightGoldReader *	New ()

static int	IsTypeOf (const char *type)

static vtkPEnSightGoldReader *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkPEnSightReader
static int	IsTypeOf (const char *type)

static vtkPEnSightReader *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkPGenericEnSightReader
static vtkPGenericEnSightReader *	New ()

static int	IsTypeOf (const char *type)

static vtkPGenericEnSightReader *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkGenericEnSightReader
static vtkGenericEnSightReader *	New ()

static int	IsTypeOf (const char *type)

static vtkGenericEnSightReader *	SafeDownCast (vtkObjectBase *o)

static int	CanReadFile (const char *casefilename)

Static Public Member Functions inherited from vtkMultiBlockDataSetAlgorithm
static vtkMultiBlockDataSetAlgorithm *	New ()

static int	IsTypeOf (const char *type)

static vtkMultiBlockDataSetAlgorithm *	SafeDownCast (vtkObjectBase *o)

Static Public Member Functions inherited from vtkAlgorithm
static vtkAlgorithm *	New ()

static int	IsTypeOf (const char *type)

static vtkAlgorithm *	SafeDownCast (vtkObjectBase *o)

static vtkInformationIntegerKey *	INPUT_IS_OPTIONAL ()

static vtkInformationIntegerKey *	INPUT_IS_REPEATABLE ()

static vtkInformationInformationVectorKey *	INPUT_REQUIRED_FIELDS ()

static vtkInformationStringVectorKey *	INPUT_REQUIRED_DATA_TYPE ()

static vtkInformationInformationVectorKey *	INPUT_ARRAYS_TO_PROCESS ()

static vtkInformationIntegerKey *	INPUT_PORT ()

static vtkInformationIntegerKey *	INPUT_CONNECTION ()

static vtkInformationIntegerKey *	CAN_PRODUCE_SUB_EXTENT ()

static vtkInformationIntegerKey *	CAN_HANDLE_PIECE_REQUEST ()

static void	SetDefaultExecutivePrototype (vtkExecutive *proto)

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkPEnSightGoldReader ()

	~vtkPEnSightGoldReader () override

int	ReadGeometryFile (const char fileName, int timeStep, vtkMultiBlockDataSet output) override
	Read the geometry file. More...

int	ReadMeasuredGeometryFile (const char fileName, int timeStep, vtkMultiBlockDataSet output) override
	Read the measured geometry file. More...

int	ReadScalarsPerNode (const char fileName, const char description, int timeStep, vtkMultiBlockDataSet *output, int measured=0, int numberOfComponents=1, int component=0) override
	Read scalars per node for this dataset. More...

int	ReadVectorsPerNode (const char fileName, const char description, int timeStep, vtkMultiBlockDataSet *output, int measured=0) override
	Read vectors per node for this dataset. More...

int	ReadTensorsPerNode (const char fileName, const char description, int timeStep, vtkMultiBlockDataSet *output) override
	Read tensors per node for this dataset. More...

int	ReadScalarsPerElement (const char fileName, const char description, int timeStep, vtkMultiBlockDataSet *output, int numberOfComponents=1, int component=0) override
	Read scalars per element for this dataset. More...

int	ReadVectorsPerElement (const char fileName, const char description, int timeStep, vtkMultiBlockDataSet *output) override
	Read vectors per element for this dataset. More...

int	ReadTensorsPerElement (const char fileName, const char description, int timeStep, vtkMultiBlockDataSet *output) override
	Read tensors per element for this dataset. More...

int	CreateUnstructuredGridOutput (int partId, char line[256], const char name, vtkMultiBlockDataSet output) override
	Read an unstructured part (partId) from the geometry file and create a vtkUnstructuredGrid output. More...

int	CreateStructuredGridOutput (int partId, char line[256], const char name, vtkMultiBlockDataSet output) override
	Read a structured part from the geometry file and create a vtkStructuredGrid output. More...

int	CreateRectilinearGridOutput (int partId, char line[256], const char name, vtkMultiBlockDataSet output)
	Read a structured part from the geometry file and create a vtkRectilinearGrid output. More...

int	CreateImageDataOutput (int partId, char line[256], const char name, vtkMultiBlockDataSet output)
	Read a structured part from the geometry file and create a vtkImageData output. More...

int	ReadOrSkipCoordinates (vtkPoints points, long offset, int partId, int lineRead, char *line, bool skip)
	Read Coordinates, or just skip the part in the file. More...

int	InjectCoordinatesAtEnd (vtkUnstructuredGrid *output, long coordinatesOffset, int partId)
	Internal method to inject coordinates at the end of a part read for unstructured data. More...

int	CheckForUndefOrPartial (const char *line)
	Skip next line in file if the 'undef' or 'partial' keyword was specified after a sectional keyword. More...

Protected Member Functions inherited from vtkPEnSightReader
	vtkPEnSightReader ()

	~vtkPEnSightReader () override

int	RequestInformation (vtkInformation , vtkInformationVector , vtkInformationVector ) override

int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector ) override

int	ReadVariableFiles (vtkMultiBlockDataSet *output)
	Read the variable files. More...

virtual int	CreateUnstructuredGridOutput (int partId, char line[80], const char name, vtkMultiBlockDataSet output)=0
	Read an unstructured part (partId) from the geometry file and create a vtkUnstructuredGrid output. More...

virtual int	CreateStructuredGridOutput (int partId, char line[80], const char name, vtkMultiBlockDataSet output)=0
	Read a structured part from the geometry file and create a vtkStructuredGridOutput. More...

void	AddVariableFileName (const char fileName1, const char fileName2=nullptr)
	Add another file name to the list for a particular variable type. More...

void	AddVariableDescription (const char *description)
	Add another description to the list for a particular variable type. More...

void	AddVariableType ()
	Record the variable type for the variable line just read. More...

int	GetElementType (const char *line)
	Determine the element type from a line read a file. More...

int	GetSectionType (const char *line)
	Determine the section type from a line read a file. More...

void	ReplaceWildcards (char *filename, int num)
	Replace the *'s in the filename with the given filename number. More...

void	RemoveLeadingBlanks (char *line)
	Remove leading blank spaces from a string. More...

vtkPEnSightReaderCellIds *	GetCellIds (int index, int cellType)
	Get the list for the given output index and cell type. More...

vtkPEnSightReaderCellIds *	GetPointIds (int index)
	Distributed Read Only. More...

void	AddToBlock (vtkMultiBlockDataSet output, unsigned int blockNo, vtkDataSet dataset)
	Convenience method use to convert the readers from VTK 5 multiblock API to the current composite data infrastructure. More...

vtkDataSet *	GetDataSetFromBlock (vtkMultiBlockDataSet *output, unsigned int blockNo)
	Convenience method use to convert the readers from VTK 5 multiblock API to the current composite data infrastructure. More...

void	SetBlockName (vtkMultiBlockDataSet output, unsigned int blockNo, const char name)
	Set the name of a block. More...

void	MapToGlobalIds (const vtkIdType inputIds, vtkIdType numPoints, int partId, vtkIdType globalIds)
	Convenience method to map the point ids from current rank to global ids. More...

void	PrepareStructuredDimensionsForDistribution (int partId, int oldDimensions, int newDimensions, int splitDimension, int splitDimensionBeginIndex, int ghostLevel, vtkUnsignedCharArray pointGhostArray, vtkUnsignedCharArray cellGhostArray)

virtual void	SetUseTimeSets (int)

virtual int	GetUseTimeSets ()

virtual void	UseTimeSetsOn ()

virtual void	UseTimeSetsOff ()

virtual void	SetUseFileSets (int)

virtual int	GetUseFileSets ()

virtual void	UseFileSetsOn ()

virtual void	UseFileSetsOff ()

int	CheckOutputConsistency ()

virtual void	SetMeasuredFileName (const char *)
	Set the Measured file name. More...

virtual void	SetMatchFileName (const char *)
	Set the Match file name. More...

int	ReadCaseFile ()
	Read the case file. More...

int	ReadCaseFileGeometry (char *line)
	Read the case file. More...

int	ReadCaseFileVariable (char *line)
	Read the case file. More...

int	ReadCaseFileTime (char *line)
	Read the case file. More...

int	ReadCaseFileFile (char *line)
	Read the case file. More...

vtkIdType	GetTotalNumberOfCellIds (int index)
	Distributed Read Only. More...

vtkIdType	GetLocalTotalNumberOfCellIds (int index)
	Distributed Read Only. More...

void	InsertNextCellAndId (vtkUnstructuredGrid , int vtkCellType, vtkIdType numPoints, vtkIdType points, int partId, int ensightCellType, vtkIdType globalId, vtkIdType numElements, const std::vector< vtkIdType > &faces={})
	Merge InsertNextCell & GetId->InsertNextId Take Distributed Read into account. More...

void	InsertVariableComponent (vtkFloatArray array, int i, int component, float content, int partId, int ensightCellType, int insertionType)
	Merge InsertNextCell & GetId->InsertNextId Take Distributed Read into account. More...

Protected Member Functions inherited from vtkPGenericEnSightReader
	vtkPGenericEnSightReader ()

	~vtkPGenericEnSightReader () override

int	RequestInformation (vtkInformation , vtkInformationVector , vtkInformationVector ) override

int	GetMultiProcessLocalProcessId ()
	Multi Process cache. More...

int	GetMultiProcessNumberOfProcesses ()
	Multi Process cache. More...

Protected Member Functions inherited from vtkGenericEnSightReader
virtual vtkObjectBase *	NewInstanceInternal () const

	vtkGenericEnSightReader ()

	~vtkGenericEnSightReader ()

virtual int	FillOutputPortInformation (int port, vtkInformation *info)

virtual void	ClearForNewCaseFileName ()

int	ReadLine (char result[256])

int	ReadBinaryLine (char result[80])

int	ReadNextDataLine (char result[256])

void	SelectionModified ()

char **	CreateStringArray (int numStrings)

void	DestroyStringArray (int numStrings, char **strings)

void	SetDataArraySelectionSetsFromVariables ()

void	SetDataArraySelectionSetsFromReader ()

void	SetReaderDataArraySelectionSetsFromSelf ()

virtual void	SetTimeSets (vtkDataArrayCollection *)

int	InsertNewPartId (int partId)

virtual void	SetGeometryFileName (const char *)

void	AddVariableDescription (const char *description)

void	AddComplexVariableDescription (const char *description)

void	AddVariableType (int variableType)

void	AddComplexVariableType (int variableType)

int	ReplaceWildcards (char *fileName, int timeSet, int fileSet)

void	ReplaceWildcardsHelper (char *fileName, int num)

virtual void	SetGeometryFileName (const char *)

void	AddVariableDescription (const char *description)

void	AddComplexVariableDescription (const char *description)

void	AddVariableType (int variableType)

void	AddComplexVariableType (int variableType)

int	ReplaceWildcards (char *fileName, int timeSet, int fileSet)

void	ReplaceWildcardsHelper (char *fileName, int num)

Protected Member Functions inherited from vtkMultiBlockDataSetAlgorithm
	vtkMultiBlockDataSetAlgorithm ()

	~vtkMultiBlockDataSetAlgorithm ()

virtual vtkExecutive *	CreateDefaultExecutive ()

virtual int	FillInputPortInformation (int port, vtkInformation *info)

vtkDataObject *	GetInput (int port)

virtual int	RequestDataObject (vtkInformation , vtkInformationVector , vtkInformationVector )

virtual int	RequestUpdateExtent (vtkInformation , vtkInformationVector , vtkInformationVector )

virtual int	RequestDataObject (vtkInformation , vtkInformationVector , vtkInformationVector )

virtual int	RequestUpdateExtent (vtkInformation , vtkInformationVector , vtkInformationVector )

Protected Member Functions inherited from vtkAlgorithm
	vtkAlgorithm ()

	~vtkAlgorithm ()

virtual void	SetNumberOfInputPorts (int n)

virtual void	SetNumberOfOutputPorts (int n)

int	InputPortIndexInRange (int index, const char *action)

int	OutputPortIndexInRange (int index, const char *action)

int	GetInputArrayAssociation (int idx, vtkInformationVector **inputVector)

void	ReportReferences (vtkGarbageCollector *) VTK_OVERRIDE

virtual void	SetNumberOfInputConnections (int port, int n)

int	GetInputArrayAssociation (int idx, int connection, vtkInformationVector **inputVector)

int	GetInputArrayAssociation (int idx, vtkDataObject *input)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkInformationVector **inputVector)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkInformationVector **inputVector, int &association)

vtkDataArray *	GetInputArrayToProcess (int idx, int connection, vtkInformationVector **inputVector)

vtkDataArray *	GetInputArrayToProcess (int idx, int connection, vtkInformationVector **inputVector, int &association)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkDataObject *input)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkDataObject *input, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkInformationVector **inputVector)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkInformationVector **inputVector, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, int connection, vtkInformationVector **inputVector)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, int connection, vtkInformationVector **inputVector, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkDataObject *input)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkDataObject *input, int &association)

vtkInformation *	GetInputArrayFieldInformation (int idx, vtkInformationVector **inputVector)

virtual void	SetNthInputConnection (int port, int index, vtkAlgorithmOutput *input)

void	SetInputDataInternal (int port, vtkDataObject *input)

void	AddInputDataInternal (int port, vtkDataObject *input)

int	GetInputArrayAssociation (int idx, int connection, vtkInformationVector **inputVector)

int	GetInputArrayAssociation (int idx, vtkDataObject *input)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkInformationVector **inputVector)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkInformationVector **inputVector, int &association)

vtkDataArray *	GetInputArrayToProcess (int idx, int connection, vtkInformationVector **inputVector)

vtkDataArray *	GetInputArrayToProcess (int idx, int connection, vtkInformationVector **inputVector, int &association)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkDataObject *input)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkDataObject *input, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkInformationVector **inputVector)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkInformationVector **inputVector, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, int connection, vtkInformationVector **inputVector)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, int connection, vtkInformationVector **inputVector, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkDataObject *input)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkDataObject *input, int &association)

vtkInformation *	GetInputArrayFieldInformation (int idx, vtkInformationVector **inputVector)

virtual void	SetErrorCode (unsigned long)

virtual void	SetNthInputConnection (int port, int index, vtkAlgorithmOutput *input)

void	SetInputDataInternal (int port, vtkDataObject *input)

void	AddInputDataInternal (int port, vtkDataObject *input)

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Protected Attributes
UndefPartialInternal *	UndefPartial
	Handle the undef / partial support for EnSight gold. More...

int	NodeIdsListed

int	ElementIdsListed

Protected Attributes inherited from vtkPEnSightReader
int	CaseFileRead

char *	MeasuredFileName

char *	MatchFileName

vtkPEnSightReaderCellIdsType *	CellIds

vtkPEnSightReaderCellIdsType *	PointIds

vtkIdList *	UnstructuredPartIds

vtkIdList *	StructuredPartIds

bool	CoordinatesAtEnd

bool	InjectGlobalElementIds

bool	InjectGlobalNodeIds

int	LastPointId

int	VariableMode

char **	VariableFileNames

char **	ComplexVariableFileNames

vtkIdList *	VariableTimeSetIds

vtkIdList *	ComplexVariableTimeSetIds

vtkIdList *	VariableFileSetIds

vtkIdList *	ComplexVariableFileSetIds

vtkIdListCollection *	TimeSetFileNameNumbers

vtkIdList *	TimeSetsWithFilenameNumbers

vtkIdListCollection *	FileSetFileNameNumbers

vtkIdList *	FileSetsWithFilenameNumbers

vtkIdListCollection *	FileSetNumberOfSteps

vtkIdList *	TimeSetIds

vtkIdList *	FileSets

int	GeometryTimeSet

int	GeometryFileSet

int	MeasuredTimeSet

int	MeasuredFileSet

float	GeometryTimeValue

float	MeasuredTimeValue

int	UseTimeSets

int	UseFileSets

int	NumberOfGeometryParts

int	NumberOfMeasuredPoints

int	NumberOfNewOutputs

int	InitialRead

double	ActualTimeValue

int	GhostLevels

std::map< std::string, std::map< int, long > >	FileOffsets

Protected Attributes inherited from vtkPGenericEnSightReader
int	MultiProcessLocalProcessId

int	MultiProcessNumberOfProcesses

Protected Attributes inherited from vtkGenericEnSightReader
istream *	IS

FILE *	IFile

vtkGenericEnSightReader *	Reader

char *	CaseFileName

char *	GeometryFileName

char *	FilePath

int *	VariableTypes

int *	ComplexVariableTypes

char **	VariableDescriptions

char **	ComplexVariableDescriptions

int	NumberOfVariables

int	NumberOfComplexVariables

int	NumberOfScalarsPerNode

int	NumberOfVectorsPerNode

int	NumberOfTensorsSymmPerNode

int	NumberOfScalarsPerElement

int	NumberOfVectorsPerElement

int	NumberOfTensorsSymmPerElement

int	NumberOfScalarsPerMeasuredNode

int	NumberOfVectorsPerMeasuredNode

int	NumberOfComplexScalarsPerNode

int	NumberOfComplexVectorsPerNode

int	NumberOfComplexScalarsPerElement

int	NumberOfComplexVectorsPerElement

float	TimeValue

float	MinimumTimeValue

float	MaximumTimeValue

int	TimeValueInitialized

vtkDataArrayCollection *	TimeSets

int	ReadAllVariables

int	ByteOrder

int	ParticleCoordinatesByIndex

int	EnSightVersion

vtkDataArraySelection *	PointDataArraySelection

vtkDataArraySelection *	CellDataArraySelection

vtkCallbackCommand *	SelectionObserver

int	SelectionModifiedDoNotCallModified

TranslationTableType *	TranslationTable

Protected Attributes inherited from vtkAlgorithm
vtkInformation *	Information

double	Progress

char *	ProgressText

vtkProgressObserver *	ProgressObserver

unsigned long	ErrorCode

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Additional Inherited Members
Public Attributes inherited from vtkGenericEnSightReader
	ENSIGHT_6

	ENSIGHT_6_BINARY

	ENSIGHT_GOLD

	ENSIGHT_GOLD_BINARY

	ENSIGHT_MASTER_SERVER

	FILE_BIG_ENDIAN

	FILE_LITTLE_ENDIAN

	FILE_UNKNOWN_ENDIAN

Public Attributes inherited from vtkAlgorithm
	SINGLE_PRECISION

	DOUBLE_PRECISION

	DEFAULT_PRECISION

int	AbortExecute

Static Protected Member Functions inherited from vtkGenericEnSightReader
static void	SelectionModifiedCallback (vtkObject caller, unsigned long eid, void clientdata, void *calldata)

Static Protected Member Functions inherited from vtkAlgorithm
static vtkInformationIntegerKey *	PORT_REQUIREMENTS_FILLED ()

Static Protected Attributes inherited from vtkAlgorithm
static vtkExecutive *	DefaultExecutivePrototype

Detailed Description

Parallel version of vtkEnSightGoldReader.

*
* Thanks:
* This file has been developed as part of the CARRIOCAS (Distributed
* computation over ultra high optical internet network ) project (
* http://www.carriocas.org/index.php?lng=ang ) of the SYSTEM@TIC French ICT
* Cluster (http://www.systematic-paris-region.org/en/index.html) under the
* supervision of CEA (http://www.cea.fr) and EDF (http://www.edf.fr) by
* Oxalya (http://www.oxalya.com)
*
*

Definition at line 34 of file vtkPEnSightGoldReader.h.

Member Typedef Documentation

◆ Superclass

typedef vtkPEnSightReader vtkPEnSightGoldReader::Superclass

Definition at line 38 of file vtkPEnSightGoldReader.h.

Constructor & Destructor Documentation

◆ vtkPEnSightGoldReader()

vtkPEnSightGoldReader::vtkPEnSightGoldReader ( )

protected

◆ ~vtkPEnSightGoldReader()

vtkPEnSightGoldReader::~vtkPEnSightGoldReader ( )

overrideprotected

Member Function Documentation

◆ New()

static vtkPEnSightGoldReader* vtkPEnSightGoldReader::New ( )

static

◆ GetClassName()

virtual const char* vtkPEnSightGoldReader::GetClassName ( )

virtual

Reimplemented from vtkPEnSightReader.

◆ IsTypeOf()

static int vtkPEnSightGoldReader::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkPEnSightGoldReader::IsA ( const char * type )

virtual

Reimplemented from vtkPEnSightReader.

◆ SafeDownCast()

static vtkPEnSightGoldReader* vtkPEnSightGoldReader::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkPEnSightGoldReader::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkGenericEnSightReader.

◆ ReadGeometryFile()

int vtkPEnSightGoldReader::ReadGeometryFile	(	const char *	fileName,
		int	timeStep,
		vtkMultiBlockDataSet *	output
	)

overrideprotectedvirtual

Read the geometry file.

If an error occurred, 0 is returned; otherwise 1.

Implements vtkPEnSightReader.

◆ ReadMeasuredGeometryFile()

int vtkPEnSightGoldReader::ReadMeasuredGeometryFile	(	const char *	fileName,
		int	timeStep,
		vtkMultiBlockDataSet *	output
	)

overrideprotectedvirtual

Read the measured geometry file.

If an error occurred, 0 is returned; otherwise 1.

Implements vtkPEnSightReader.

◆ ReadScalarsPerNode()

int vtkPEnSightGoldReader::ReadScalarsPerNode	(	const char *	fileName,
		const char *	description,
		int	timeStep,
		vtkMultiBlockDataSet *	output,
		int	measured = `0`,
		int	numberOfComponents = `1`,
		int	component = `0`
	)

overrideprotectedvirtual

Read scalars per node for this dataset.

If an error occurred, 0 is returned; otherwise 1. If there will be more than one component in the data array, it is assumed that 0 is the first component added.

Implements vtkPEnSightReader.

◆ ReadVectorsPerNode()

int vtkPEnSightGoldReader::ReadVectorsPerNode	(	const char *	fileName,
		const char *	description,
		int	timeStep,
		vtkMultiBlockDataSet *	output,
		int	measured = `0`
	)

overrideprotectedvirtual

Read vectors per node for this dataset.

If an error occurred, 0 is returned; otherwise 1.

Implements vtkPEnSightReader.

◆ ReadTensorsPerNode()

int vtkPEnSightGoldReader::ReadTensorsPerNode	(	const char *	fileName,
		const char *	description,
		int	timeStep,
		vtkMultiBlockDataSet *	output
	)

overrideprotectedvirtual

Read tensors per node for this dataset.

If an error occurred, 0 is returned; otherwise 1.

Implements vtkPEnSightReader.

◆ ReadScalarsPerElement()

int vtkPEnSightGoldReader::ReadScalarsPerElement	(	const char *	fileName,
		const char *	description,
		int	timeStep,
		vtkMultiBlockDataSet *	output,
		int	numberOfComponents = `1`,
		int	component = `0`
	)

overrideprotectedvirtual

Read scalars per element for this dataset.

If an error occurred, 0 is returned; otherwise 1. If there will be more than one componenet in the data array, it is assumed that 0 is the first component added.

Implements vtkPEnSightReader.

◆ ReadVectorsPerElement()

int vtkPEnSightGoldReader::ReadVectorsPerElement	(	const char *	fileName,
		const char *	description,
		int	timeStep,
		vtkMultiBlockDataSet *	output
	)

overrideprotectedvirtual

Read vectors per element for this dataset.

If an error occurred, 0 is returned; otherwise 1.

Implements vtkPEnSightReader.

◆ ReadTensorsPerElement()

int vtkPEnSightGoldReader::ReadTensorsPerElement	(	const char *	fileName,
		const char *	description,
		int	timeStep,
		vtkMultiBlockDataSet *	output
	)

overrideprotectedvirtual

Read tensors per element for this dataset.

If an error occurred, 0 is returned; otherwise 1.

Implements vtkPEnSightReader.

◆ CreateUnstructuredGridOutput()

int vtkPEnSightGoldReader::CreateUnstructuredGridOutput	(	int	partId,
		char	line[256],
		const char *	name,
		vtkMultiBlockDataSet *	output
	)

overrideprotected

Read an unstructured part (partId) from the geometry file and create a vtkUnstructuredGrid output.

Return 0 if EOF reached. Return -1 if an error occurred.

◆ CreateStructuredGridOutput()

int vtkPEnSightGoldReader::CreateStructuredGridOutput	(	int	partId,
		char	line[256],
		const char *	name,
		vtkMultiBlockDataSet *	output
	)

overrideprotected

Read a structured part from the geometry file and create a vtkStructuredGrid output.

Return 0 if EOF reached.

◆ CreateRectilinearGridOutput()

int vtkPEnSightGoldReader::CreateRectilinearGridOutput	(	int	partId,
		char	line[256],
		const char *	name,
		vtkMultiBlockDataSet *	output
	)

protected

Read a structured part from the geometry file and create a vtkRectilinearGrid output.

Return 0 if EOF reached.

◆ CreateImageDataOutput()

int vtkPEnSightGoldReader::CreateImageDataOutput	(	int	partId,
		char	line[256],
		const char *	name,
		vtkMultiBlockDataSet *	output
	)

protected

Read a structured part from the geometry file and create a vtkImageData output.

Return 0 if EOF reached.

◆ ReadOrSkipCoordinates()

int vtkPEnSightGoldReader::ReadOrSkipCoordinates	(	vtkPoints *	points,
		long	offset,
		int	partId,
		int *	lineRead,
		char *	line,
		bool	skip
	)

protected

Read Coordinates, or just skip the part in the file.

◆ InjectCoordinatesAtEnd()

int vtkPEnSightGoldReader::InjectCoordinatesAtEnd	(	vtkUnstructuredGrid *	output,
		long	coordinatesOffset,
		int	partId
	)

protected

Internal method to inject coordinates at the end of a part read for unstructured data.

◆ CheckForUndefOrPartial()

int vtkPEnSightGoldReader::CheckForUndefOrPartial ( const char * line )

protected

Skip next line in file if the 'undef' or 'partial' keyword was specified after a sectional keyword.

Member Data Documentation

◆ UndefPartial

UndefPartialInternal* vtkPEnSightGoldReader::UndefPartial

protected

Handle the undef / partial support for EnSight gold.

Definition at line 152 of file vtkPEnSightGoldReader.h.

◆ NodeIdsListed

int vtkPEnSightGoldReader::NodeIdsListed

protected

Definition at line 154 of file vtkPEnSightGoldReader.h.

◆ ElementIdsListed

int vtkPEnSightGoldReader::ElementIdsListed

protected

Definition at line 155 of file vtkPEnSightGoldReader.h.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/VTKExtensions/IOEnSight/vtkPEnSightGoldReader.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Superclass

Constructor & Destructor Documentation

◆ vtkPEnSightGoldReader()

◆ ~vtkPEnSightGoldReader()

Member Function Documentation

◆ New()

◆ GetClassName()

◆ IsTypeOf()

◆ IsA()

◆ SafeDownCast()

◆ PrintSelf()

◆ ReadGeometryFile()

◆ ReadMeasuredGeometryFile()

◆ ReadScalarsPerNode()

◆ ReadVectorsPerNode()

◆ ReadTensorsPerNode()

◆ ReadScalarsPerElement()

◆ ReadVectorsPerElement()

◆ ReadTensorsPerElement()

◆ CreateUnstructuredGridOutput()

◆ CreateStructuredGridOutput()

◆ CreateRectilinearGridOutput()

◆ CreateImageDataOutput()

◆ ReadOrSkipCoordinates()

◆ InjectCoordinatesAtEnd()

◆ CheckForUndefOrPartial()

Member Data Documentation

◆ UndefPartial

◆ NodeIdsListed

◆ ElementIdsListed
