provides information about rendering capabilities. More...

#include <vtkPVRenderingCapabilitiesInformation.h>

Inheritance diagram for vtkPVRenderingCapabilitiesInformation:

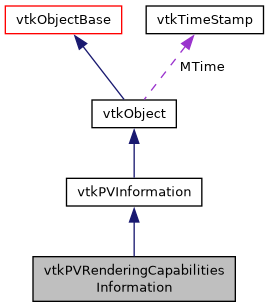

Collaboration diagram for vtkPVRenderingCapabilitiesInformation:

[legend]

Public Types
enum	CapabilitiesMask { NONE = 0, ONSCREEN_RENDERING = 0x01, HEADLESS_RENDERING_USES_OSMESA = 0x04, HEADLESS_RENDERING_USES_EGL = 0x08, HEADLESS_RENDERING = HEADLESS_RENDERING_USES_OSMESA \| HEADLESS_RENDERING_USES_EGL, RENDERING = ONSCREEN_RENDERING \| HEADLESS_RENDERING, OPENGL = 0x10 }

typedef vtkPVInformation	Superclass

Public Types inherited from vtkPVInformation
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

virtual vtkTypeUInt32	GetCapabilities ()
	Returns a 32-bit unsigned integer which represents the capabilities. More...

bool	Supports (vtkTypeUInt32 capability)
	Convenience method to check is any of the requested capabilities are supported. More...

void	CopyFromObject (vtkObject *) override
	Transfer information about a single object into this object. More...

void	AddInformation (vtkPVInformation *) override
	Merge another information object. More...

void	CopyToStream (vtkClientServerStream *) override
	Manage a serialized version of the information. More...

void	CopyFromStream (const vtkClientServerStream *) override
	Manage a serialized version of the information. More...

Public Member Functions inherited from vtkPVInformation
virtual void	CopyParametersToStream (vtkMultiProcessStream &)
	Serialize/Deserialize the parameters that control how/what information is gathered. More...

virtual void	CopyParametersFromStream (vtkMultiProcessStream &)
	Serialize/Deserialize the parameters that control how/what information is gathered. More...

virtual int	GetRootOnly ()
	Set/get whether to gather information only from the root. More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkPVRenderingCapabilitiesInformation *	New ()

static int	IsTypeOf (const char *type)

static vtkPVRenderingCapabilitiesInformation *	SafeDownCast (vtkObject *o)

static bool	Supports (vtkTypeUInt32 capabilities, vtkTypeUInt32 mask)

static vtkTypeUInt32	GetLocalCapabilities ()
	Return local process' capabilities. More...

static vtkSmartPointer< vtkRenderWindow >	NewOffscreenRenderWindow ()
	This creates an off-screen render window based on capabilities of the local process. More...

Static Public Member Functions inherited from vtkPVInformation
static int	IsTypeOf (const char *type)

static vtkPVInformation *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkPVRenderingCapabilitiesInformation ()

	~vtkPVRenderingCapabilitiesInformation () override

Protected Member Functions inherited from vtkPVInformation
	vtkPVInformation ()

	~vtkPVInformation () override

virtual void	SetRootOnly (int)

	vtkPVInformation (const vtkPVInformation &)=delete

void	operator= (const vtkPVInformation &)=delete

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Protected Attributes
vtkTypeUInt32	Capabilities

Protected Attributes inherited from vtkPVInformation
int	RootOnly

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Detailed Description

provides information about rendering capabilities.

Definition at line 19 of file vtkPVRenderingCapabilitiesInformation.h.

Member Typedef Documentation

◆ Superclass

typedef vtkPVInformation vtkPVRenderingCapabilitiesInformation::Superclass

Definition at line 23 of file vtkPVRenderingCapabilitiesInformation.h.

Member Enumeration Documentation

◆ CapabilitiesMask

enum vtkPVRenderingCapabilitiesInformation::CapabilitiesMask

Enumerator
NONE
ONSCREEN_RENDERING	Indicates if onscreen rendering is possible.
HEADLESS_RENDERING_USES_OSMESA	Indicates if headless rendering using OSMesa is possible.
HEADLESS_RENDERING_USES_EGL	Indicates if headless rendering using EGL is possible.
HEADLESS_RENDERING	Indicates if any headless rendering is possible.
RENDERING	Indicates if any rendering is possible.
OPENGL	If rendering is possible, this indicates that that OpenGL version is adequate for basic rendering requirements. This flag can only be set if `RENDERING` is set too.

Definition at line 26 of file vtkPVRenderingCapabilitiesInformation.h.

Constructor & Destructor Documentation

◆ vtkPVRenderingCapabilitiesInformation()

vtkPVRenderingCapabilitiesInformation::vtkPVRenderingCapabilitiesInformation ( )

protected

◆ ~vtkPVRenderingCapabilitiesInformation()

vtkPVRenderingCapabilitiesInformation::~vtkPVRenderingCapabilitiesInformation ( )

overrideprotected

Member Function Documentation

◆ New()

static vtkPVRenderingCapabilitiesInformation* vtkPVRenderingCapabilitiesInformation::New ( )

static

◆ GetClassName()

virtual const char* vtkPVRenderingCapabilitiesInformation::GetClassName ( )

virtual

Reimplemented from vtkPVInformation.

◆ IsTypeOf()

static int vtkPVRenderingCapabilitiesInformation::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkPVRenderingCapabilitiesInformation::IsA ( const char * type )

virtual

Reimplemented from vtkPVInformation.

◆ SafeDownCast()

static vtkPVRenderingCapabilitiesInformation* vtkPVRenderingCapabilitiesInformation::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkPVRenderingCapabilitiesInformation::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkPVInformation.

◆ GetCapabilities()

virtual vtkTypeUInt32 vtkPVRenderingCapabilitiesInformation::GetCapabilities ( )

virtual

Returns a 32-bit unsigned integer which represents the capabilities.

Use CapabilitiesMask to determine which capabilities are supported by all the processes from which the information was gathered.

◆ Supports() [1/2]

bool vtkPVRenderingCapabilitiesInformation::Supports ( vtkTypeUInt32 capability )

inline

Convenience method to check is any of the requested capabilities are supported.

Definition at line 73 of file vtkPVRenderingCapabilitiesInformation.h.

◆ Supports() [2/2]

static bool vtkPVRenderingCapabilitiesInformation::Supports	(	vtkTypeUInt32	capabilities,
		vtkTypeUInt32	mask
	)

inlinestatic

Definition at line 75 of file vtkPVRenderingCapabilitiesInformation.h.

◆ GetLocalCapabilities()

static vtkTypeUInt32 vtkPVRenderingCapabilitiesInformation::GetLocalCapabilities ( )

static

Return local process' capabilities.

◆ NewOffscreenRenderWindow()

static vtkSmartPointer<vtkRenderWindow> vtkPVRenderingCapabilitiesInformation::NewOffscreenRenderWindow ( )

static

This creates an off-screen render window based on capabilities of the local process.

This is useful to query additional OpenGL information, for example.

This may create a non-mapped onscreen render window, if ParaView was built with onscreen GL support) or headless off-screen render window, if ParaView was built with headless GL support (e.g. EGL or OSMesa). Headless is preferred, if available.

Note the returned window hasn't been created yet, i.e. one may need to call vtkRenderWindow::Render() on it before querying OpenGL information, for example.

◆ CopyFromObject()

void vtkPVRenderingCapabilitiesInformation::CopyFromObject ( vtkObject * )

overridevirtual

Transfer information about a single object into this object.

Reimplemented from vtkPVInformation.

◆ AddInformation()

void vtkPVRenderingCapabilitiesInformation::AddInformation ( vtkPVInformation * )

overridevirtual

Merge another information object.

Reimplemented from vtkPVInformation.

◆ CopyToStream()

void vtkPVRenderingCapabilitiesInformation::CopyToStream ( vtkClientServerStream * )

overridevirtual

Manage a serialized version of the information.

Implements vtkPVInformation.

◆ CopyFromStream()

void vtkPVRenderingCapabilitiesInformation::CopyFromStream ( const vtkClientServerStream * )

overridevirtual

Manage a serialized version of the information.

Reimplemented from vtkPVInformation.

Member Data Documentation

◆ Capabilities

vtkTypeUInt32 vtkPVRenderingCapabilitiesInformation::Capabilities

protected

Definition at line 111 of file vtkPVRenderingCapabilitiesInformation.h.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Remoting/Views/vtkPVRenderingCapabilitiesInformation.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ Superclass

Member Enumeration Documentation

◆ CapabilitiesMask

Constructor & Destructor Documentation

◆ vtkPVRenderingCapabilitiesInformation()

◆ ~vtkPVRenderingCapabilitiesInformation()

Member Function Documentation

◆ New()

◆ GetClassName()

◆ IsTypeOf()

◆ IsA()

◆ SafeDownCast()

◆ PrintSelf()

◆ GetCapabilities()

◆ Supports() [1/2]

◆ Supports() [2/2]

◆ GetLocalCapabilities()

◆ NewOffscreenRenderWindow()

◆ CopyFromObject()

◆ AddInformation()

◆ CopyToStream()

◆ CopyFromStream()

Member Data Documentation

◆ Capabilities
