creates a link between two cameras. More...

#include <vtkSMCameraLink.h>

Inheritance diagram for vtkSMCameraLink:

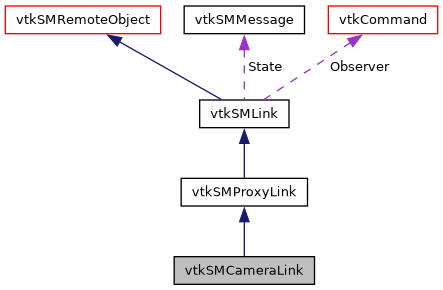

Collaboration diagram for vtkSMCameraLink:

[legend]

Public Types
typedef vtkSMProxyLink	Superclass

Public Types inherited from vtkSMProxyLink
enum	ExceptionListBehavior : int { BLACKLIST = 0, WHITELIST }

typedef vtkSMLink	Superclass

Public Types inherited from vtkSMLink
enum	UpdateDirections { NONE = 0, INPUT = 1, OUTPUT = 2 }

typedef vtkSMRemoteObject	Superclass

Public Types inherited from vtkSMRemoteObject
typedef vtkSMSessionObject	Superclass

Public Types inherited from vtkSMSessionObject
typedef vtkSMObject	Superclass

Public Types inherited from vtkSMObject
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

void	AddLinkedProxy (vtkSMProxy *proxy, int updateDir) override
	Add a property to the link. More...

void	RemoveLinkedProxy (vtkSMProxy *proxy) override
	Remove a linked proxy. More...

virtual void	UpdateViews (vtkSMProxy *caller, bool interactive)
	Update all the views linked with an OUTPUT direction. More...

void	LoadState (const vtkSMMessage msg, vtkSMProxyLocator locator) override
	This method is used to initialise the object to the given state If the definitionOnly Flag is set to True the proxy won't load the properties values and just setup the new proxy hierarchy with all subproxy globalID set. More...


virtual void	SetSynchronizeInteractiveRenders (int)
	Get/Set if the link should synchronize interactive renders as well. More...

virtual int	GetSynchronizeInteractiveRenders ()
	Get/Set if the link should synchronize interactive renders as well. More...

virtual void	SynchronizeInteractiveRendersOn ()
	Get/Set if the link should synchronize interactive renders as well. More...

virtual void	SynchronizeInteractiveRendersOff ()
	Get/Set if the link should synchronize interactive renders as well. More...

Public Member Functions inherited from vtkSMProxyLink
virtual void	LinkProxies (vtkSMProxy proxy1, vtkSMProxy proxy2)
	Utility method to add 2 proxies, both as INPUT and OUTPUT. More...

virtual void	LinkProxyPropertyProxies (vtkSMProxy proxy1, vtkSMProxy proxy2, const char *pname)
	Utility method to link the proxies stored as proxy property of input proxies. More...

vtkSMProxy *	GetLinkedProxy (int index) override
	Get a proxy involved in this link. More...

void	RemoveAllLinks () override
	Remove all links. More...

unsigned int	GetNumberOfLinkedObjects () override
	Get the number of proxies that are involved in this link. More...

unsigned int	GetNumberOfLinkedProxies ()
	Get the number of proxies that are involved in this link. More...

int	GetLinkedObjectDirection (int index) override
	Get the direction of a proxy involved in this link (see vtkSMLink::UpdateDirections) More...

int	GetLinkedProxyDirection (int index)
	Get the direction of a proxy involved in this link (see vtkSMLink::UpdateDirections) More...

void	AddException (const char *propertyname)
	It is possible to exclude certain properties from being synchronized by this link. More...

void	RemoveException (const char *propertyname)
	It is possible to exclude certain properties from being synchronized by this link. More...

void	ClearExceptions ()
	It is possible to exclude certain properties from being synchronized by this link. More...

virtual void	SetExceptionBehavior (int)
	Set/Get exception behavior. More...

virtual int	GetExceptionBehavior ()
	Set/Get exception behavior. More...

void	SetExceptionBehaviorToBlacklist ()
	Set/Get exception behavior. More...

void	SetExceptionBehaviorToWhitelist ()
	Set/Get exception behavior. More...

Public Member Functions inherited from vtkSMLink
const vtkSMMessage *	GetFullState () override
	This method returns the full object state that can be used to create the object from scratch. More...

virtual void	SetPropagateUpdateVTKObjects (int)
	This flag determines if UpdateVTKObjects calls are to be propagated. More...

virtual int	GetPropagateUpdateVTKObjects ()
	This flag determines if UpdateVTKObjects calls are to be propagated. More...

virtual void	PropagateUpdateVTKObjectsOn ()
	This flag determines if UpdateVTKObjects calls are to be propagated. More...

virtual void	PropagateUpdateVTKObjectsOff ()
	This flag determines if UpdateVTKObjects calls are to be propagated. More...

virtual void	SetEnabled (bool)
	Get/Set if the link is enabled. More...

virtual bool	GetEnabled ()
	Get/Set if the link is enabled. More...

Public Member Functions inherited from vtkSMRemoteObject
void	SetSession (vtkSMSession *) override
	Override the SetSession so if the object already have an ID we automatically register it to the associated session. More...

bool	HasGlobalID ()
	Allow the user to test if the RemoteObject has already a GlobalID without assigning a new one to it. More...

virtual void	EnableLocalPushOnly ()
	Allow to switch off any push of state change to the server for that particular object. More...

virtual void	DisableLocalPushOnly ()
	Enable the given remote object to communicate its state normally to the server location. More...

virtual bool	IsLocalPushOnly ()
	Let the session be aware that even if the Location is client only, the message should not be send to the server for a general broadcast. More...

virtual void	SetLocation (vtkTypeUInt32)
	Get/Set the location where the underlying VTK-objects are created. More...

virtual vtkTypeUInt32	GetLocation ()
	Get/Set the location where the underlying VTK-objects are created. More...

virtual vtkTypeUInt32	GetGlobalID ()
	Get the global unique id for this object. More...

const char *	GetGlobalIDAsString ()
	Get the global unique id for this object. More...

virtual void	PrototypeOn ()
	Allow user to set the remote object to be discard for Undo/Redo action. More...

virtual void	PrototypeOff ()
	Allow user to set the remote object to be discard for Undo/Redo action. More...

bool	IsPrototype ()
	Allow user to set the remote object to be discard for Undo/Redo action. More...

virtual void	SetPrototype (bool)
	Allow user to set the remote object to be discard for Undo/Redo action. More...

Public Member Functions inherited from vtkSMSessionObject
virtual vtkSMSessionProxyManager *	GetSessionProxyManager ()
	Return the corresponding ProxyManager if any. More...

virtual vtkSMSession *	GetSession ()
	Get/Set the session on wihch this object exists. More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkSMCameraLink *	New ()

static int	IsTypeOf (const char *type)

static vtkSMCameraLink *	SafeDownCast (vtkObject *o)

static std::set< std::pair< std::string, std::string > >	CameraProperties ()
	Get the list of camera properties to link. More...

Static Public Member Functions inherited from vtkSMProxyLink
static vtkSMProxyLink *	New ()

static int	IsTypeOf (const char *type)

static vtkSMProxyLink *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMLink
static int	IsTypeOf (const char *type)

static vtkSMLink *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMRemoteObject
static int	IsTypeOf (const char *type)

static vtkSMRemoteObject *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMSessionObject
static vtkSMSessionObject *	New ()

static int	IsTypeOf (const char *type)

static vtkSMSessionObject *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMObject
static vtkSMObject *	New ()

static int	IsTypeOf (const char *type)

static vtkSMObject *	SafeDownCast (vtkObject *o)

static std::string	CreatePrettyLabel (const std::string &name)
	Return a well-formated label using provided name by adding spaces between lower cases and upper cases: More...

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkSMCameraLink ()

	~vtkSMCameraLink () override

void	UpdateVTKObjects (vtkSMProxy *proxy) override
	Called when an input proxy is updated (UpdateVTKObjects). More...

void	PropertyModified (vtkSMProxy proxy, const char pname) override
	Called when a property of an input proxy is modified. More...

void	UpdateProperty (vtkSMProxy , const char ) override
	Called when a property is pushed. More...

std::string	GetXMLTagName () override
	Override to ajust to this class name. More...

void	CopyProperties (vtkSMProxy *caller)
	Internal method to copy vtkSMproperty values from caller to all linked proxies. More...

void	ResetCamera (vtkObject *caller)

void	UpdateState () override
	Update the internal protobuf state. More...

Protected Member Functions inherited from vtkSMProxyLink
	vtkSMProxyLink ()

	~vtkSMProxyLink () override

void	SaveXMLState (const char linkname, vtkPVXMLElement parent) override
	Save the state of the link. More...

int	LoadXMLState (vtkPVXMLElement linkElement, vtkSMProxyLocator locator) override
	Load the link state. More...

Protected Member Functions inherited from vtkSMLink
	vtkSMLink ()

	~vtkSMLink () override

void	PushStateToSession ()
	When the state has changed we call that method so the state can be shared if any collaboration is involved. More...

void	ObserveProxyUpdates (vtkSMProxy *proxy)
	Subclasses call this method to observer events on a INPUT proxy. More...

Protected Member Functions inherited from vtkSMRemoteObject
	vtkSMRemoteObject ()
	Default constructor. More...

	~vtkSMRemoteObject () override
	Destructor. More...

void	PushState (vtkSMMessage *msg)
	Subclasses can call this method to send a message to its state object on the server processes specified. More...

bool	PullState (vtkSMMessage *msg)
	Subclasses can call this method to pull the state from the state-object on the server processes specified. More...

void	SetGlobalID (vtkTypeUInt32 guid)
	Set the GlobalUniqueId. More...

vtkTypeUInt32	GetFilteredLocation ()

Protected Member Functions inherited from vtkSMSessionObject
	vtkSMSessionObject ()

	~vtkSMSessionObject () override

Protected Member Functions inherited from vtkSMObject
	vtkSMObject ()

	~vtkSMObject () override

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Protected Attributes
int	SynchronizeInteractiveRenders

Protected Attributes inherited from vtkSMLink
vtkCommand *	Observer

int	PropagateUpdateVTKObjects

bool	Enabled

vtkSMMessage *	State

Protected Attributes inherited from vtkSMRemoteObject
vtkTypeUInt32	GlobalID

vtkTypeUInt32	Location

bool	Prototype

bool	ClientOnlyLocationFlag

Protected Attributes inherited from vtkSMSessionObject
vtkWeakPointer< vtkSMSession >	Session
	Identifies the session id to which this object is related. More...

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Friends
class	vtkInternals

Detailed Description

creates a link between two cameras.

When a link is created between camera A->B, whenever any property on camera A is modified, a property with the same name as the modified property (if any) on camera B is also modified to be the same as the property on the camera A. Similarly whenever camera A->UpdateVTKObjects() is called, B->UpdateVTKObjects() is also fired.

Definition at line 22 of file vtkSMCameraLink.h.

Member Typedef Documentation

◆ Superclass

typedef vtkSMProxyLink vtkSMCameraLink::Superclass

Definition at line 26 of file vtkSMCameraLink.h.

Constructor & Destructor Documentation

◆ vtkSMCameraLink()

vtkSMCameraLink::vtkSMCameraLink ( )

protected

◆ ~vtkSMCameraLink()

vtkSMCameraLink::~vtkSMCameraLink ( )

overrideprotected

Member Function Documentation

◆ New()

static vtkSMCameraLink* vtkSMCameraLink::New ( )

static

◆ GetClassName()

virtual const char* vtkSMCameraLink::GetClassName ( )

virtual

Reimplemented from vtkSMProxyLink.

◆ IsTypeOf()

static int vtkSMCameraLink::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkSMCameraLink::IsA ( const char * type )

virtual

Reimplemented from vtkSMProxyLink.

◆ SafeDownCast()

static vtkSMCameraLink* vtkSMCameraLink::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkSMCameraLink::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkSMProxyLink.

◆ SetSynchronizeInteractiveRenders()

virtual void vtkSMCameraLink::SetSynchronizeInteractiveRenders ( int )

virtual

Get/Set if the link should synchronize interactive renders as well.

On by default.

◆ GetSynchronizeInteractiveRenders()

virtual int vtkSMCameraLink::GetSynchronizeInteractiveRenders ( )

virtual

Get/Set if the link should synchronize interactive renders as well.

On by default.

◆ SynchronizeInteractiveRendersOn()

virtual void vtkSMCameraLink::SynchronizeInteractiveRendersOn ( )

virtual

Get/Set if the link should synchronize interactive renders as well.

On by default.

◆ SynchronizeInteractiveRendersOff()

virtual void vtkSMCameraLink::SynchronizeInteractiveRendersOff ( )

virtual

Get/Set if the link should synchronize interactive renders as well.

On by default.

◆ CameraProperties()

static std::set<std::pair<std::string, std::string> > vtkSMCameraLink::CameraProperties ( )

static

Get the list of camera properties to link.

For each pair, first item is the (information) property to read and the second is the property to set.

◆ AddLinkedProxy()

void vtkSMCameraLink::AddLinkedProxy	(	vtkSMProxy *	proxy,
		int	updateDir
	)

overridevirtual

Add a property to the link.

updateDir determines whether a property of the proxy is read or written. When a property of an input proxy changes, it's value is pushed to all other output proxies in the link. A proxy can be set to be both input and output by setting updateDir to INPUT | OUTPUT

Reimplemented from vtkSMProxyLink.

◆ RemoveLinkedProxy()

void vtkSMCameraLink::RemoveLinkedProxy ( vtkSMProxy * proxy )

overridevirtual

Remove a linked proxy.

Reimplemented from vtkSMProxyLink.

◆ UpdateViews()

virtual void vtkSMCameraLink::UpdateViews	(	vtkSMProxy *	caller,
		bool	interactive
	)

virtual

Update all the views linked with an OUTPUT direction.

interactive indicates if the render is interactive or not.

◆ LoadState()

void vtkSMCameraLink::LoadState	(	const vtkSMMessage *	msg,
		vtkSMProxyLocator *	locator
	)

overridevirtual

This method is used to initialise the object to the given state If the definitionOnly Flag is set to True the proxy won't load the properties values and just setup the new proxy hierarchy with all subproxy globalID set.

This allow to split the load process in 2 step to prevent invalid state when property refere to a sub-proxy that does not exist yet.

Reimplemented from vtkSMProxyLink.

◆ UpdateVTKObjects()

void vtkSMCameraLink::UpdateVTKObjects ( vtkSMProxy * proxy )

overrideprotectedvirtual

Called when an input proxy is updated (UpdateVTKObjects).

Argument is the input proxy.

Reimplemented from vtkSMProxyLink.

◆ PropertyModified()

void vtkSMCameraLink::PropertyModified	(	vtkSMProxy *	proxy,
		const char *	pname
	)

overrideprotectedvirtual

Called when a property of an input proxy is modified.

caller:- the input proxy. pname:- name of the property being modified.

Reimplemented from vtkSMProxyLink.

◆ UpdateProperty()

void vtkSMCameraLink::UpdateProperty	(	vtkSMProxy *	,
		const char *
	)

inlineoverrideprotectedvirtual

Called when a property is pushed.

caller :- the input proxy. pname :- name of property that was pushed.

Reimplemented from vtkSMProxyLink.

Definition at line 97 of file vtkSMCameraLink.h.

◆ GetXMLTagName()

std::string vtkSMCameraLink::GetXMLTagName ( )

inlineoverrideprotectedvirtual

Override to ajust to this class name.

Reimplemented from vtkSMProxyLink.

Definition at line 102 of file vtkSMCameraLink.h.

◆ CopyProperties()

void vtkSMCameraLink::CopyProperties ( vtkSMProxy * caller )

protected

Internal method to copy vtkSMproperty values from caller to all linked proxies.

◆ ResetCamera()

void vtkSMCameraLink::ResetCamera ( vtkObject * caller )

protected

◆ UpdateState()

void vtkSMCameraLink::UpdateState ( )

overrideprotectedvirtual

Update the internal protobuf state.

Reimplemented from vtkSMProxyLink.

Friends And Related Function Documentation

◆ vtkInternals

friend class vtkInternals

friend

Definition at line 122 of file vtkSMCameraLink.h.

Member Data Documentation

◆ SynchronizeInteractiveRenders

int vtkSMCameraLink::SynchronizeInteractiveRenders

protected

Definition at line 112 of file vtkSMCameraLink.h.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Remoting/Views/vtkSMCameraLink.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ Superclass

Constructor & Destructor Documentation

◆ vtkSMCameraLink()

◆ ~vtkSMCameraLink()

Member Function Documentation

◆ New()

◆ GetClassName()

◆ IsTypeOf()

◆ IsA()

◆ SafeDownCast()

◆ PrintSelf()

◆ SetSynchronizeInteractiveRenders()

◆ GetSynchronizeInteractiveRenders()

◆ SynchronizeInteractiveRendersOn()

◆ SynchronizeInteractiveRendersOff()

◆ CameraProperties()

◆ AddLinkedProxy()

◆ RemoveLinkedProxy()

◆ UpdateViews()

◆ LoadState()

◆ UpdateVTKObjects()

◆ PropertyModified()

◆ UpdateProperty()

◆ GetXMLTagName()

◆ CopyProperties()

◆ ResetCamera()

◆ UpdateState()

Friends And Related Function Documentation

◆ vtkInternals

Member Data Documentation

◆ SynchronizeInteractiveRenders
