vtkPVComparativeAnimationCue Class Reference

cue used for parameter animation by the comparative view. More...

#include <vtkPVComparativeAnimationCue.h>

Inheritance diagram for vtkPVComparativeAnimationCue:

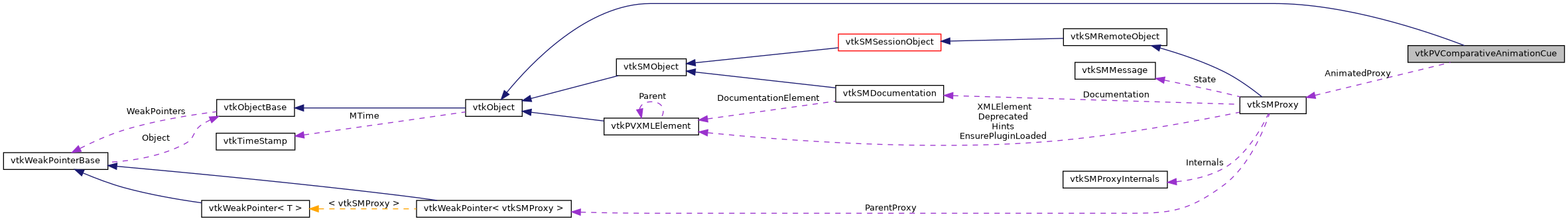

Collaboration diagram for vtkPVComparativeAnimationCue:

Public Types
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent) override
void	UpdateXRange (int y, double minx, double maxx)
	Methods use to fill up the values for the parameter over the comparative grid. More...
void	UpdateYRange (int x, double miny, double maxy)
void	UpdateWholeRange (double mint, double maxt)
void	UpdateValue (int x, int y, double value)
void	UpdateAnimatedValue (int x, int y, int dx, int dy)
	Update the animated property's value based on those specified using the Update. More...
double *	GetValues (int x, int y, int dx, int dy, unsigned int &numValues)
	NOTE: Returned values is only valid until the next call to this method. More...
vtkPVXMLElement *	AppendCommandInfo (vtkPVXMLElement *proxyElem)
int	LoadCommandInfo (vtkPVXMLElement *proxyElement)
void	SetAnimatedProxy (vtkSMProxy *)
	Set/Get the animated proxy. More...
virtual vtkSMProxy *	GetAnimatedProxy ()
	Set/Get the animated proxy. More...
void	RemoveAnimatedProxy ()
	Set/Get the animated proxy. More...
virtual void	SetAnimatedPropertyName (const char *)
	Set/Get the animated property name. More...
virtual char *	GetAnimatedPropertyName ()
	Set/Get the animated property name. More...
virtual void	SetAnimatedDomainName (const char *)
	Set/Get the animated domain name. More...
virtual char *	GetAnimatedDomainName ()
	Set/Get the animated domain name. More...
virtual void	SetAnimatedElement (int)
	The index of the element of the property this cue animates. More...
virtual int	GetAnimatedElement ()
	The index of the element of the property this cue animates. More...
virtual void	SetEnabled (bool)
	Enable/Disable the cue. More...
virtual bool	GetEnabled ()
	Enable/Disable the cue. More...
virtual void	EnabledOn ()
	Enable/Disable the cue. More...
virtual void	EnabledOff ()
	Enable/Disable the cue. More...
void	UpdateXRange (int y, double *minx, double *maxx, unsigned int numvalues)
	Use these methods when the parameter can have multiple values eg. More...
void	UpdateYRange (int x, double *minx, double *maxx, unsigned int numvalues)
	Use these methods when the parameter can have multiple values eg. More...
void	UpdateWholeRange (double *mint, double *maxt, unsigned int numValues)
	Use these methods when the parameter can have multiple values eg. More...
void	UpdateWholeRange (double *mint, double *maxt, unsigned int numValues, bool vertical_first)
	Use these methods when the parameter can have multiple values eg. More...
void	UpdateValue (int x, int y, double *value, unsigned int numValues)
	Use these methods when the parameter can have multiple values eg. More...
double	GetValue (int x, int y, int dx, int dy)
	Computes the value for a particular location in the comparative grid. More...
Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)
virtual void	DebugOn ()
virtual void	DebugOff ()
bool	GetDebug ()
void	SetDebug (bool debugFlag)
virtual void	Modified ()
virtual vtkMTimeType	GetMTime ()
void	RemoveObserver (unsigned long tag)
void	RemoveObservers (unsigned long event)
void	RemoveObservers (const char *event)
void	RemoveAllObservers ()
int	HasObserver (unsigned long event)
int	HasObserver (const char *event)
int	InvokeEvent (unsigned long event)
int	InvokeEvent (const char *event)
unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)
unsigned long	AddObserver (const char *event, vtkCommand *, float priority=0.0f)
vtkCommand *	GetCommand (unsigned long tag)
void	RemoveObserver (vtkCommand *)
void	RemoveObservers (unsigned long event, vtkCommand *)
void	RemoveObservers (const char *event, vtkCommand *)
int	HasObserver (unsigned long event, vtkCommand *)
int	HasObserver (const char *event, vtkCommand *)
unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)
unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)
unsigned long	AddObserver (unsigned long event, U observer, bool(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)
int	InvokeEvent (unsigned long event, void *callData)
int	InvokeEvent (const char *event, void *callData)
unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)
unsigned long	AddObserver (const char *event, vtkCommand *, float priority=0.0f)
vtkCommand *	GetCommand (unsigned long tag)
void	RemoveObserver (vtkCommand *)
void	RemoveObservers (unsigned long event, vtkCommand *)
void	RemoveObservers (const char *event, vtkCommand *)
int	HasObserver (unsigned long event, vtkCommand *)
int	HasObserver (const char *event, vtkCommand *)
unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)
unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)
unsigned long	AddObserver (unsigned long event, U observer, bool(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)
int	InvokeEvent (unsigned long event, void *callData)
int	InvokeEvent (const char *event, void *callData)
Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const
virtual void	Delete ()
virtual void	FastDelete ()
void	Print (ostream &os)
virtual void	Register (vtkObjectBase *o)
virtual void	UnRegister (vtkObjectBase *o)
void	SetReferenceCount (int)
virtual void	PrintHeader (ostream &os, vtkIndent indent)
virtual void	PrintTrailer (ostream &os, vtkIndent indent)
int	GetReferenceCount ()
void	PrintRevisions (ostream &)
virtual void	PrintHeader (ostream &os, vtkIndent indent)
virtual void	PrintTrailer (ostream &os, vtkIndent indent)
int	GetReferenceCount ()
void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkPVComparativeAnimationCue *	New ()
static int	IsTypeOf (const char *type)
static vtkPVComparativeAnimationCue *	SafeDownCast (vtkObject *o)
Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()
static void	BreakOnError ()
static void	SetGlobalWarningDisplay (int val)
static void	GlobalWarningDisplayOn ()
static void	GlobalWarningDisplayOff ()
static int	GetGlobalWarningDisplay ()
static void	SetGlobalWarningDisplay (int val)
static void	GlobalWarningDisplayOn ()
static void	GlobalWarningDisplayOff ()
static int	GetGlobalWarningDisplay ()
Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)
static vtkObjectBase *	New ()
static vtkObjectBase *	New ()

Protected Member Functions
	vtkPVComparativeAnimationCue ()
	~vtkPVComparativeAnimationCue () override
vtkSMProperty *	GetAnimatedProperty ()
	Get the property being animated. More...
vtkSMDomain *	GetAnimatedDomain ()
	Get the domain being animated. More...
Protected Member Functions inherited from vtkObject
	vtkObject ()
virtual	~vtkObject ()
void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE
void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE
void	InternalGrabFocus (vtkCommand *mouseEvents, vtkCommand *keypressEvents=NULL)
void	InternalReleaseFocus ()
void	InternalGrabFocus (vtkCommand *mouseEvents, vtkCommand *keypressEvents=NULL)
void	InternalReleaseFocus ()
Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()
virtual	~vtkObjectBase ()
virtual void	CollectRevisions (ostream &)
virtual void	ReportReferences (vtkGarbageCollector *)
	vtkObjectBase (const vtkObjectBase &)
void	operator= (const vtkObjectBase &)

Protected Attributes
vtkSMProxy *	AnimatedProxy
int	AnimatedElement
char *	AnimatedPropertyName
char *	AnimatedDomainName
double *	Values
bool	Enabled
Protected Attributes inherited from vtkObject
bool	Debug
vtkTimeStamp	MTime
vtkSubjectHelper *	SubjectHelper
Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount
vtkWeakPointerBase **	WeakPointers

Detailed Description

cue used for parameter animation by the comparative view.

vtkPVComparativeAnimationCue is a animation cue used for parameter animation by the ComparativeView. It provides a non-conventional API i.e. without using properties to allow the user to setup parameter values over the comparative grid.

Definition at line 25 of file vtkPVComparativeAnimationCue.h.

Member Typedef Documentation

Superclass

typedef vtkObject vtkPVComparativeAnimationCue::Superclass

Definition at line 29 of file vtkPVComparativeAnimationCue.h.

Constructor & Destructor Documentation

vtkPVComparativeAnimationCue()

vtkPVComparativeAnimationCue::vtkPVComparativeAnimationCue ( )

protected

~vtkPVComparativeAnimationCue()

vtkPVComparativeAnimationCue::~vtkPVComparativeAnimationCue ( )

overrideprotected

Member Function Documentation

New()

static vtkPVComparativeAnimationCue* vtkPVComparativeAnimationCue::New ( )

static

GetClassName()

virtual const char* vtkPVComparativeAnimationCue::GetClassName ( )

virtual

IsTypeOf()

static int vtkPVComparativeAnimationCue::IsTypeOf ( const char *  type )

static

IsA()

virtual int vtkPVComparativeAnimationCue::IsA ( const char *  type )

virtual

Reimplemented from vtkObjectBase.

SafeDownCast()

static vtkPVComparativeAnimationCue* vtkPVComparativeAnimationCue::SafeDownCast ( vtkObject *  o )

static

PrintSelf()

void vtkPVComparativeAnimationCue::PrintSelf ( ostream &  os, vtkIndent  indent  )

overridevirtual

Reimplemented from vtkObject.

SetAnimatedProxy()

void vtkPVComparativeAnimationCue::SetAnimatedProxy

(

vtkSMProxy *

)

Set/Get the animated proxy.

GetAnimatedProxy()

virtual vtkSMProxy* vtkPVComparativeAnimationCue::GetAnimatedProxy ( )

virtual

Set/Get the animated proxy.

RemoveAnimatedProxy()

void vtkPVComparativeAnimationCue::RemoveAnimatedProxy

(

)

Set/Get the animated proxy.

SetAnimatedPropertyName()

virtual void vtkPVComparativeAnimationCue::SetAnimatedPropertyName ( const char *  )

virtual

Set/Get the animated property name.

GetAnimatedPropertyName()

virtual char* vtkPVComparativeAnimationCue::GetAnimatedPropertyName ( )

virtual

Set/Get the animated property name.

SetAnimatedDomainName()

virtual void vtkPVComparativeAnimationCue::SetAnimatedDomainName ( const char *  )

virtual

Set/Get the animated domain name.

GetAnimatedDomainName()

virtual char* vtkPVComparativeAnimationCue::GetAnimatedDomainName ( )

virtual

Set/Get the animated domain name.

SetAnimatedElement()

virtual void vtkPVComparativeAnimationCue::SetAnimatedElement ( int  )

virtual

The index of the element of the property this cue animates.

If the index is -1, the cue will animate all the elements of the animated property.

GetAnimatedElement()

virtual int vtkPVComparativeAnimationCue::GetAnimatedElement ( )

virtual

The index of the element of the property this cue animates.

If the index is -1, the cue will animate all the elements of the animated property.

SetEnabled()

virtual void vtkPVComparativeAnimationCue::SetEnabled ( bool  )

virtual

Enable/Disable the cue.

GetEnabled()

virtual bool vtkPVComparativeAnimationCue::GetEnabled ( )

virtual

Enable/Disable the cue.

EnabledOn()

virtual void vtkPVComparativeAnimationCue::EnabledOn ( )

virtual

Enable/Disable the cue.

EnabledOff()

virtual void vtkPVComparativeAnimationCue::EnabledOff ( )

virtual

Enable/Disable the cue.

UpdateXRange() [1/2]

void vtkPVComparativeAnimationCue::UpdateXRange ( int  y, double  minx, double  maxx  )

inline

Methods use to fill up the values for the parameter over the comparative grid.

These are order dependent methods i.e. the result of calling UpdateXRange() and then UpdateYRange() are different from calling UpdateYRange() and then UpdateXRange(). These methods are convenience methods when the value can only be a single value.

Definition at line 84 of file vtkPVComparativeAnimationCue.h.

UpdateYRange() [1/2]

void vtkPVComparativeAnimationCue::UpdateYRange ( int  x, double  miny, double  maxy  )

inline

Definition at line 85 of file vtkPVComparativeAnimationCue.h.

UpdateWholeRange() [1/3]

void vtkPVComparativeAnimationCue::UpdateWholeRange ( double  mint, double  maxt  )

inline

Definition at line 86 of file vtkPVComparativeAnimationCue.h.

UpdateValue() [1/2]

void vtkPVComparativeAnimationCue::UpdateValue ( int  x, int  y, double  value  )

inline

Definition at line 87 of file vtkPVComparativeAnimationCue.h.

UpdateXRange() [2/2]

void vtkPVComparativeAnimationCue::UpdateXRange	(	int	y,
		double *	minx,
		double *	maxx,
		unsigned int	numvalues
	)

Use these methods when the parameter can have multiple values eg.

IsoValues for the Contour filter. The "AnimatedElement" for such properties must be set to -1, otherwise UpdateAnimatedValue() will raise an error.

UpdateYRange() [2/2]

void vtkPVComparativeAnimationCue::UpdateYRange	(	int	x,
		double *	minx,
		double *	maxx,
		unsigned int	numvalues
	)

Use these methods when the parameter can have multiple values eg.

IsoValues for the Contour filter. The "AnimatedElement" for such properties must be set to -1, otherwise UpdateAnimatedValue() will raise an error.

UpdateWholeRange() [2/3]

void vtkPVComparativeAnimationCue::UpdateWholeRange ( double *  mint, double *  maxt, unsigned int  numValues  )

inline

Use these methods when the parameter can have multiple values eg.

IsoValues for the Contour filter. The "AnimatedElement" for such properties must be set to -1, otherwise UpdateAnimatedValue() will raise an error.

Definition at line 97 of file vtkPVComparativeAnimationCue.h.

UpdateWholeRange() [3/3]

void vtkPVComparativeAnimationCue::UpdateWholeRange	(	double *	mint,
		double *	maxt,
		unsigned int	numValues,
		bool	vertical_first
	)

Use these methods when the parameter can have multiple values eg.

IsoValues for the Contour filter. The "AnimatedElement" for such properties must be set to -1, otherwise UpdateAnimatedValue() will raise an error.

UpdateValue() [2/2]

void vtkPVComparativeAnimationCue::UpdateValue	(	int	x,
		int	y,
		double *	value,
		unsigned int	numValues
	)

Use these methods when the parameter can have multiple values eg.

IsoValues for the Contour filter. The "AnimatedElement" for such properties must be set to -1, otherwise UpdateAnimatedValue() will raise an error.

UpdateAnimatedValue()

void vtkPVComparativeAnimationCue::UpdateAnimatedValue	(	int	x,
		int	y,
		int	dx,
		int	dy
	)

Update the animated property's value based on those specified using the Update.

• methods. (x,y) is the location in the comparative grid, while (dx, dy) are the dimensions of the comparative grid.

GetValue()

double vtkPVComparativeAnimationCue::GetValue ( int  x, int  y, int  dx, int  dy  )

inline

Computes the value for a particular location in the comparative grid.

(x,y) is the location in the comparative grid, while (dx, dy) are the dimensions of the comparative grid.

Definition at line 118 of file vtkPVComparativeAnimationCue.h.

GetValues()

double* vtkPVComparativeAnimationCue::GetValues	(	int	x,
		int	y,
		int	dx,
		int	dy,
		unsigned int &	numValues
	)

NOTE: Returned values is only valid until the next call to this method.

Return value is only valid when numValues > 0.

AppendCommandInfo()

vtkPVXMLElement* vtkPVComparativeAnimationCue::AppendCommandInfo

(

vtkPVXMLElement *

proxyElem

)

LoadCommandInfo()

int vtkPVComparativeAnimationCue::LoadCommandInfo

(

vtkPVXMLElement *

proxyElement

)

GetAnimatedProperty()

vtkSMProperty* vtkPVComparativeAnimationCue::GetAnimatedProperty ( )

protected

Get the property being animated.

GetAnimatedDomain()

vtkSMDomain* vtkPVComparativeAnimationCue::GetAnimatedDomain ( )

protected

Get the domain being animated.

Member Data Documentation

AnimatedProxy

vtkSMProxy* vtkPVComparativeAnimationCue::AnimatedProxy

protected

Definition at line 153 of file vtkPVComparativeAnimationCue.h.

AnimatedElement

int vtkPVComparativeAnimationCue::AnimatedElement

protected

Definition at line 154 of file vtkPVComparativeAnimationCue.h.

AnimatedPropertyName

char* vtkPVComparativeAnimationCue::AnimatedPropertyName

protected

Definition at line 155 of file vtkPVComparativeAnimationCue.h.

AnimatedDomainName

char* vtkPVComparativeAnimationCue::AnimatedDomainName

protected

Definition at line 156 of file vtkPVComparativeAnimationCue.h.

Values

double* vtkPVComparativeAnimationCue::Values

protected

Definition at line 157 of file vtkPVComparativeAnimationCue.h.

Enabled

bool vtkPVComparativeAnimationCue::Enabled

protected

Definition at line 158 of file vtkPVComparativeAnimationCue.h.

---

The documentation for this class was generated from the following file:

• /builds/gitlab-kitware-sciviz-ci/Remoting/Views/vtkPVComparativeAnimationCue.h
