representation for "Histogram View". More...

#include <vtkPVHistogramChartRepresentation.h>

Inheritance diagram for vtkPVHistogramChartRepresentation:

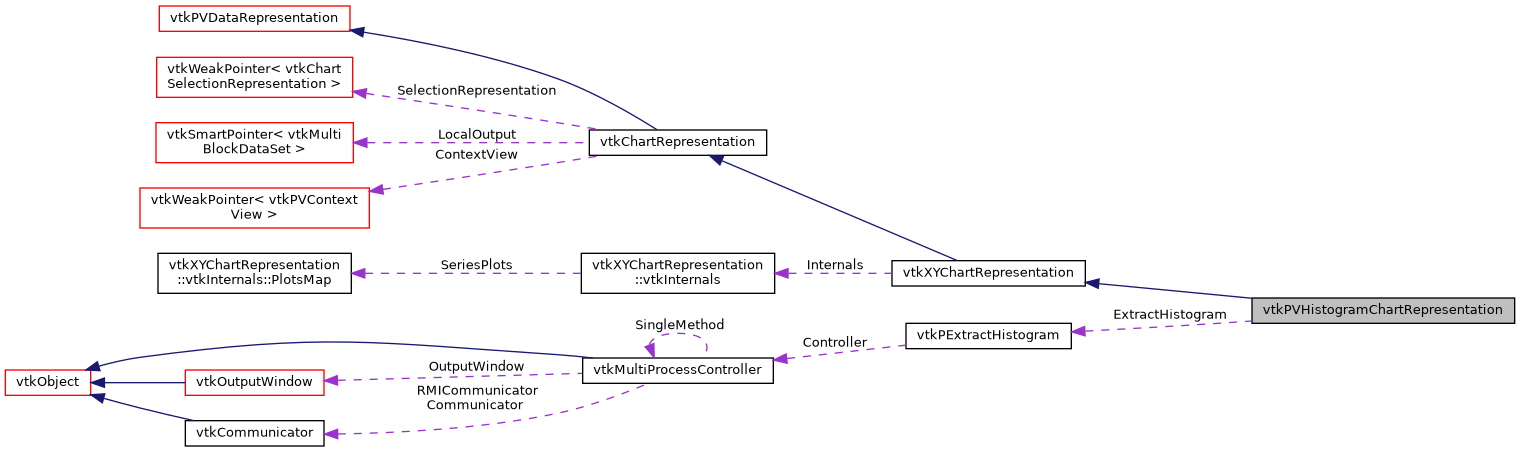

Collaboration diagram for vtkPVHistogramChartRepresentation:

[legend]

Public Types
typedef vtkXYChartRepresentation	Superclass

Public Types inherited from vtkXYChartRepresentation
typedef vtkChartRepresentation	Superclass

Public Types inherited from vtkChartRepresentation
typedef vtkPVDataRepresentation	Superclass

Public Types inherited from vtkPVDataRepresentation
enum	{ SkippedUpdateDataEvent = vtkCommand::UserEvent + 91, UpdateTimeChangedEvent }

typedef vtkDataRepresentation	Superclass

Public Types inherited from vtkDataRepresentation
typedef vtkPassInputTypeAlgorithm	Superclass

Public Types inherited from vtkPassInputTypeAlgorithm
typedef vtkAlgorithm	Superclass

Public Types inherited from vtkAlgorithm
enum	DesiredOutputPrecision

enum	DesiredOutputPrecision

typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

void	SetHistogramColor (double r, double g, double b)
	Sets the color for the histograms. More...

void	SetUseColorMapping (bool colorMapping)
	Sets the histogram to be color mapped by the scalar. More...

void	SetLookupTable (vtkScalarsToColors *lut)
	Sets the lookup table that is used for color mapping by the scalar. More...

void	SetHistogramLineStyle (int style)
	Set the line style for the histogram. More...

vtkSmartPointer< vtkDataObject >	TransformInputData (vtkDataObject *data) override
	Method to be overridden to transform input data to a vtkTable. More...

bool	MapSelectionToInput (vtkSelection *) override
	Overridden to transform id-based selection produced by the histogram view to a threshold-based selection. More...

bool	MapSelectionToView (vtkSelection *sel) override
	Inverse of MapSelectionToInput(). More...


void	SetComponent (int)
	Controls which input data component should be binned, for input arrays with more-than-one component. More...

int	GetComponent ()
	Controls which input data component should be binned, for input arrays with more-than-one component. More...


void	SetBinCount (int)
	Controls the number of bins N in the output histogram data. More...

int	GetBinCount ()
	Controls the number of bins N in the output histogram data. More...


void	SetCenterBinsAroundMinAndMax (bool)
	Get/Set if first and last bins must be centered around the min and max data. More...

bool	GetCenterBinsAroundMinAndMax ()
	Get/Set if first and last bins must be centered around the min and max data. More...


void	SetCustomBinRanges (double min, double max)
	Get/Set custom bin ranges to use. More...

double *	GetCustomBinRanges ()
	Get/Set custom bin ranges to use. More...


void	SetUseCustomBinRanges (bool)
	When set to true, CustomBinRanges will be used instead of using the full range for the selected array. More...

bool	GetUseCustomBinRanges ()
	When set to true, CustomBinRanges will be used instead of using the full range for the selected array. More...


void	SetInputArrayToProcess (int idx, int port, int connection, int fieldAssociation, const char *name) override
	Overload the vtkAlgorithm method to update after the change. More...

Public Member Functions inherited from vtkXYChartRepresentation
void	PrintSelf (ostream &os, vtkIndent indent) override

void	SetVisibility (bool visible) override
	Set visibility of the representation. More...

void	SetChartTypeToLine ()

void	SetChartTypeToPoints ()

void	SetChartTypeToBar ()

void	SetChartTypeToStacked ()

void	SetChartTypeToBag ()

void	SetChartTypeToFunctionalBag ()

void	SetChartTypeToArea ()

vtkChartXY *	GetChart ()
	Returns the vtkChartXY instance from the view to which this representation is added. More...

void	ClearSeriesVisibilities ()

void	ClearLineThicknesses ()

void	ClearLineStyles ()

void	ClearColors ()

void	ClearOpacities ()

void	ClearAxisCorners ()

void	ClearMarkerSizes ()

void	ClearMarkerStyles ()

void	ClearLabels ()

virtual void	SetSelectionColor (double, double, double)

virtual void	SetSelectionColor (double [3])

virtual double *	GetSelectionColor ()

virtual void	GetSelectionColor (double &, double &, double &)

virtual void	GetSelectionColor (double [3])

virtual void	SetChartType (int)
	Get/Set the chart type, defaults to line chart. More...

virtual int	GetChartType ()
	Get/Set the chart type, defaults to line chart. More...

virtual void	SetXAxisSeriesName (const char *)
	Set the series to use as the X-axis. More...

virtual char *	GetXAxisSeriesName ()
	Set the series to use as the X-axis. More...

virtual void	SetUseIndexForXAxis (bool)
	Set whether the index should be used for the x axis. More...

virtual bool	GetUseIndexForXAxis ()
	Set whether the index should be used for the x axis. More...

void	SetSortDataByXAxis (bool val)
	Get/set whether the points in the chart should be sorted by their x-axis value. More...

virtual bool	GetSortDataByXAxis ()
	Get/set whether the points in the chart should be sorted by their x-axis value. More...

void	SetSeriesVisibility (const char *seriesname, bool visible)
	Set/Clear the properties for Y series/columns. More...

void	SetLineThickness (const char *name, double value)
	Set/Clear the properties for Y series/columns. More...

void	SetLineStyle (const char *name, int value)
	Set/Clear the properties for Y series/columns. More...

void	SetColor (const char *name, double r, double g, double b)
	Set/Clear the properties for Y series/columns. More...

void	SetOpacity (const char *seriesname, double opacity)
	Set/Clear the properties for Y series/columns. More...

void	SetAxisCorner (const char *name, int corner)
	Set/Clear the properties for Y series/columns. More...

void	SetMarkerStyle (const char *name, int style)
	Set/Clear the properties for Y series/columns. More...

void	SetMarkerSize (const char *name, double value)
	Set/Clear the properties for Y series/columns. More...

void	SetLabel (const char name, const char label)
	Set/Clear the properties for Y series/columns. More...

void	SetUseColorMapping (const char *name, bool useColorMapping)
	Set/Clear the properties for Y series/columns. More...

void	SetLookupTable (const char name, vtkScalarsToColors lut)
	Set/Clear the properties for Y series/columns. More...

const char *	GetLabel (const char *name) const
	Set/Clear the properties for Y series/columns. More...

virtual void	SetSeriesLabelPrefix (const char *)
	Get/Set the series label prefix. More...

virtual char *	GetSeriesLabelPrefix ()
	Get/Set the series label prefix. More...

bool	Export (vtkAbstractChartExporter *exporter) override
	Called by vtkPVContextView::Export() to export the representation's data to a CSV file. More...

Public Member Functions inherited from vtkChartRepresentation
void	SetSelectionRepresentation (vtkChartSelectionRepresentation *)
	These must only be set during initialization before adding the representation to any views or calling Update(). More...

void	MarkModified () override
	This needs to be called on all instances of vtkGeometryRepresentation when the input is modified. More...

void	SetCompositeDataSetIndex (unsigned int)

void	AddCompositeDataSetIndex (unsigned int)

void	ResetCompositeDataSetIndices ()

unsigned int	Initialize (unsigned int minIdAvailable, unsigned int maxIdAvailable) override
	Override because of internal selection representations that need to be initialized as well. More...

virtual std::string	GetDefaultSeriesLabel (const std::string &tableName, const std::string &columnName)
	Method to provide the default name given the name of a table and a column in that table. More...

void	SetFieldAssociation (int)
	Set the field association for arrays to use. More...

virtual int	GetFieldAssociation ()
	Set the field association for arrays to use. More...

virtual void	SetFlattenTable (int)
	Flatten the table, i.e. More...

virtual int	GetFlattenTable ()
	Flatten the table, i.e. More...

virtual bool	Export (vtkAbstractChartExporter *vtkNotUsed(exporter))
	Called by vtkPVContextView::Export() to export the representation's data to a CSV file. More...

Public Member Functions inherited from vtkPVDataRepresentation
unsigned int	GetUniqueIdentifier ()
	Return 0 if the Initialize() method was not called otherwise a unique ID that will be shared across the processes for that same object. More...

virtual bool	GetVisibility ()

virtual vtkDataObject *	GetRenderedDataObject (int vtkNotUsed(port))
	Returns the data object that is rendered from the given input port. More...

double	GetCacheKey () const
	Returns the cache-key the representation is currently using. More...

vtkAlgorithmOutput *	GetInternalOutputPort () override
	Retrieves an output port for the input data object at the specified port and connection index. More...

vtkAlgorithmOutput *	GetInternalOutputPort (int port) override

vtkAlgorithmOutput *	GetInternalOutputPort (int port, int conn) override

vtkView *	GetView () const
	Provides access to the view. More...

vtkMTimeType	GetPipelineDataTime ()
	Returns the timestamp when `RequestData` was executed on the representation. More...

bool	GetNeedsUpdate ()
	Returns true if the representation needs an update. More...

virtual void	SetArrayIdNames (const char vtkNotUsed(pointArray), const char vtkNotUsed(cellArray))
	Specify the array names used for the selection. More...

virtual void	SetUpdateTime (double time)
	Set the update time. More...

virtual double	GetUpdateTime ()
	Set the update time. More...

virtual bool	GetUpdateTimeValid ()
	Get whether the UpdateTime is valid. More...

void	ResetUpdateTime ()
	Get whether the UpdateTime is valid. More...

virtual void	SetForcedCacheKey (double val)
	Generally, caching is within the purview of the vtkPVView (and subclasses). More...

virtual void	SetForceUseCache (bool val)
	Generally, caching is within the purview of the vtkPVView (and subclasses). More...

virtual double	GetForcedCacheKey ()
	Generally, caching is within the purview of the vtkPVView (and subclasses). More...

virtual bool	GetForceUseCache ()
	Generally, caching is within the purview of the vtkPVView (and subclasses). More...

bool	AddToView (vtkView *view) override
	Making these methods public. More...

bool	RemoveFromView (vtkView *view) override
	Making these methods public. More...

virtual void	SetLogName (const std::string &name)
	This is solely intended to simplify debugging and use for any other purpose is vehemently discouraged. More...

const std::string &	GetLogName () const
	This is solely intended to simplify debugging and use for any other purpose is vehemently discouraged. More...

virtual bool	GetHasTemporalPipeline ()
	This flag indicates if the representation is for a temporal pipeline. More...

virtual void	SetHasTemporalPipeline (bool)
	This flag indicates if the representation is for a temporal pipeline. More...

void	SetInputConnection (int port, vtkAlgorithmOutput *input) override
	Overridden to ensure that `MarkModified` is called. More...

void	AddInputConnection (int port, vtkAlgorithmOutput *input) override
	Overridden to ensure that `MarkModified` is called. More...

Public Member Functions inherited from vtkDataRepresentation
vtkDataRepresentation *	NewInstance () const

virtual void	ApplyViewTheme (vtkViewTheme *vtkNotUsed(theme))

virtual vtkSelection *	ConvertSelection (vtkView view, vtkSelection selection)

vtkAlgorithmOutput *	GetInputConnection (int port=0, int index=0)

vtkAnnotationLink *	GetAnnotationLink ()

void	SetAnnotationLink (vtkAnnotationLink *link)

void	Select (vtkView view, vtkSelection selection)

void	Select (vtkView view, vtkSelection selection, bool extend)

void	Annotate (vtkView view, vtkAnnotationLayers annotations)

void	Annotate (vtkView view, vtkAnnotationLayers annotations, bool extend)

virtual void	SetSelectable (bool)

virtual bool	GetSelectable ()

virtual void	SelectableOn ()

virtual void	SelectableOff ()

void	UpdateSelection (vtkSelection *selection)

void	UpdateSelection (vtkSelection *selection, bool extend)

void	UpdateAnnotations (vtkAnnotationLayers *annotations)

void	UpdateAnnotations (vtkAnnotationLayers *annotations, bool extend)

virtual vtkAlgorithmOutput *	GetInternalAnnotationOutputPort ()

virtual vtkAlgorithmOutput *	GetInternalAnnotationOutputPort (int port)

virtual vtkAlgorithmOutput *	GetInternalAnnotationOutputPort (int port, int conn)

virtual vtkAlgorithmOutput *	GetInternalSelectionOutputPort ()

virtual vtkAlgorithmOutput *	GetInternalSelectionOutputPort (int port)

virtual vtkAlgorithmOutput *	GetInternalSelectionOutputPort (int port, int conn)

virtual void	SetSelectionType (int)

virtual int	GetSelectionType ()

virtual void	SetSelectionArrayNames (vtkStringArray *names)

virtual vtkStringArray *	GetSelectionArrayNames ()

virtual void	SetSelectionArrayName (const char *name)

virtual const char *	GetSelectionArrayName ()

vtkAlgorithmOutput *	GetInputConnection (int port=0, int index=0)

vtkAnnotationLink *	GetAnnotationLink ()

void	SetAnnotationLink (vtkAnnotationLink *link)

void	Select (vtkView view, vtkSelection selection)

void	Select (vtkView view, vtkSelection selection, bool extend)

void	Annotate (vtkView view, vtkAnnotationLayers annotations)

void	Annotate (vtkView view, vtkAnnotationLayers annotations, bool extend)

virtual void	SetSelectable (bool)

virtual bool	GetSelectable ()

virtual void	SelectableOn ()

virtual void	SelectableOff ()

void	UpdateSelection (vtkSelection *selection)

void	UpdateSelection (vtkSelection *selection, bool extend)

void	UpdateAnnotations (vtkAnnotationLayers *annotations)

void	UpdateAnnotations (vtkAnnotationLayers *annotations, bool extend)

virtual vtkAlgorithmOutput *	GetInternalAnnotationOutputPort ()

virtual vtkAlgorithmOutput *	GetInternalAnnotationOutputPort (int port)

virtual vtkAlgorithmOutput *	GetInternalAnnotationOutputPort (int port, int conn)

virtual vtkAlgorithmOutput *	GetInternalSelectionOutputPort ()

virtual vtkAlgorithmOutput *	GetInternalSelectionOutputPort (int port)

virtual vtkAlgorithmOutput *	GetInternalSelectionOutputPort (int port, int conn)

virtual void	SetSelectionType (int)

virtual int	GetSelectionType ()

virtual void	SetSelectionArrayNames (vtkStringArray *names)

virtual vtkStringArray *	GetSelectionArrayNames ()

virtual void	SetSelectionArrayName (const char *name)

virtual const char *	GetSelectionArrayName ()

Public Member Functions inherited from vtkPassInputTypeAlgorithm
vtkPassInputTypeAlgorithm *	NewInstance () const

vtkPolyData *	GetPolyDataOutput ()

vtkStructuredPoints *	GetStructuredPointsOutput ()

vtkImageData *	GetImageDataOutput ()

vtkStructuredGrid *	GetStructuredGridOutput ()

vtkUnstructuredGrid *	GetUnstructuredGridOutput ()

vtkRectilinearGrid *	GetRectilinearGridOutput ()

vtkTable *	GetTableOutput ()

vtkGraph *	GetGraphOutput ()

vtkDataObject *	GetInput ()

vtkDataObject *	GetOutput ()

vtkDataObject *	GetOutput (int)

void	SetInputData (vtkDataObject *)

void	SetInputData (int, vtkDataObject *)

void	AddInputData (vtkDataObject *)

void	AddInputData (int, vtkDataObject *)

virtual int	ProcessRequest (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)

vtkDataObject *	GetOutput ()

vtkDataObject *	GetOutput (int)

void	SetInputData (vtkDataObject *)

void	SetInputData (int, vtkDataObject *)

void	AddInputData (vtkDataObject *)

void	AddInputData (int, vtkDataObject *)

virtual int	ProcessRequest (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)

Public Member Functions inherited from vtkAlgorithm
vtkAlgorithm *	NewInstance () const

int	HasExecutive ()

vtkExecutive *	GetExecutive ()

virtual void	SetExecutive (vtkExecutive *executive)

virtual int	ModifyRequest (vtkInformation *request, int when)

vtkInformation *	GetInputPortInformation (int port)

vtkInformation *	GetOutputPortInformation (int port)

int	GetNumberOfInputPorts ()

int	GetNumberOfOutputPorts ()

void	UpdateProgress (double amount)

vtkInformation *	GetInputArrayInformation (int idx)

void	RemoveAllInputs ()

vtkDataObject *	GetOutputDataObject (int port)

virtual void	RemoveInputConnection (int port, vtkAlgorithmOutput *input)

virtual void	RemoveInputConnection (int port, int idx)

virtual void	RemoveAllInputConnections (int port)

int	GetNumberOfInputConnections (int port)

int	GetTotalNumberOfInputConnections ()

vtkAlgorithmOutput *	GetInputConnection (int port, int index)

vtkAlgorithm *	GetInputAlgorithm (int port, int index, int &algPort)

vtkAlgorithm *	GetInputAlgorithm (int port, int index)

vtkExecutive *	GetInputExecutive (int port, int index)

vtkInformation *	GetInputInformation (int port, int index)

vtkInformation *	GetOutputInformation (int port)

virtual int	Update (int port, vtkInformationVector *requests)

virtual int	Update (vtkInformation *requests)

virtual int	UpdateExtent (const int extents[6])

virtual void	UpdateInformation ()

virtual void	UpdateDataObject ()

virtual void	PropagateUpdateExtent ()

virtual void	UpdateWholeExtent ()

void	ConvertTotalInputToPortConnection (int ind, int &port, int &conn)

int	SetUpdateExtentToWholeExtent (int port)

int	SetUpdateExtentToWholeExtent ()

void	SetUpdateExtent (int port, int extent[6])

void	SetUpdateExtent (int extent[6])

int	ProcessRequest (vtkInformation request, vtkCollection inInfo, vtkInformationVector *outInfo)

virtual int	ComputePipelineMTime (vtkInformation request, vtkInformationVector inInfoVec, vtkInformationVector outInfoVec, int requestFromOutputPort, vtkMTimeType *mtime)

virtual vtkInformation *	GetInformation ()

virtual void	SetInformation (vtkInformation *)

void	Register (vtkObjectBase *o) VTK_OVERRIDE

void	UnRegister (vtkObjectBase *o) VTK_OVERRIDE

virtual void	SetAbortExecute (int)

virtual int	GetAbortExecute ()

virtual void	AbortExecuteOn ()

virtual void	AbortExecuteOff ()

virtual void	SetProgress (double)

virtual double	GetProgress ()

void	SetProgressText (const char *ptext)

virtual char *	GetProgressText ()

virtual unsigned long	GetErrorCode ()

virtual void	SetInputArrayToProcess (int idx, int port, int connection, int fieldAssociation, int fieldAttributeType)

virtual void	SetInputArrayToProcess (int idx, vtkInformation *info)

virtual void	SetInputArrayToProcess (int idx, int port, int connection, const char fieldAssociation, const char attributeTypeorName)

vtkDataObject *	GetInputDataObject (int port, int connection)

virtual void	SetInputConnection (vtkAlgorithmOutput *input)

virtual void	AddInputConnection (vtkAlgorithmOutput *input)

virtual void	SetInputDataObject (int port, vtkDataObject *data)

virtual void	SetInputDataObject (vtkDataObject *data)

virtual void	AddInputDataObject (int port, vtkDataObject *data)

virtual void	AddInputDataObject (vtkDataObject *data)

vtkAlgorithmOutput *	GetOutputPort (int index)

vtkAlgorithmOutput *	GetOutputPort ()

vtkAlgorithm *	GetInputAlgorithm ()

vtkExecutive *	GetInputExecutive ()

vtkInformation *	GetInputInformation ()

virtual void	Update (int port)

virtual void	Update ()

virtual int	UpdatePiece (int piece, int numPieces, int ghostLevels, const int extents[6]=0)

virtual int	UpdateTimeStep (double time, int piece=-1, int numPieces=1, int ghostLevels=0, const int extents[6]=0)

virtual void	SetReleaseDataFlag (int)

virtual int	GetReleaseDataFlag ()

void	ReleaseDataFlagOn ()

void	ReleaseDataFlagOff ()

int	UpdateExtentIsEmpty (vtkInformation pinfo, vtkDataObject output)

int	UpdateExtentIsEmpty (vtkInformation *pinfo, int extentType)

void	SetUpdateExtent (int port, int piece, int numPieces, int ghostLevel)

void	SetUpdateExtent (int piece, int numPieces, int ghostLevel)

int *	GetUpdateExtent ()

int *	GetUpdateExtent (int port)

void	GetUpdateExtent (int &x0, int &x1, int &y0, int &y1, int &z0, int &z1)

void	GetUpdateExtent (int port, int &x0, int &x1, int &y0, int &y1, int &z0, int &z1)

void	GetUpdateExtent (int extent[6])

void	GetUpdateExtent (int port, int extent[6])

int	GetUpdatePiece ()

int	GetUpdatePiece (int port)

int	GetUpdateNumberOfPieces ()

int	GetUpdateNumberOfPieces (int port)

int	GetUpdateGhostLevel ()

int	GetUpdateGhostLevel (int port)

void	SetProgressObserver (vtkProgressObserver *)

virtual vtkProgressObserver *	GetProgressObserver ()

int	ProcessRequest (vtkInformation request, vtkCollection inInfo, vtkInformationVector *outInfo)

virtual int	ComputePipelineMTime (vtkInformation request, vtkInformationVector inInfoVec, vtkInformationVector outInfoVec, int requestFromOutputPort, vtkMTimeType *mtime)

virtual vtkInformation *	GetInformation ()

virtual void	SetInformation (vtkInformation *)

void	Register (vtkObjectBase *o) VTK_OVERRIDE

void	UnRegister (vtkObjectBase *o) VTK_OVERRIDE

virtual void	SetAbortExecute (int)

virtual int	GetAbortExecute ()

virtual void	AbortExecuteOn ()

virtual void	AbortExecuteOff ()

virtual void	SetProgress (double)

virtual double	GetProgress ()

void	SetProgressText (const char *ptext)

virtual char *	GetProgressText ()

virtual unsigned long	GetErrorCode ()

virtual void	SetInputArrayToProcess (int idx, int port, int connection, int fieldAssociation, int fieldAttributeType)

virtual void	SetInputArrayToProcess (int idx, vtkInformation *info)

virtual void	SetInputArrayToProcess (int idx, int port, int connection, const char fieldAssociation, const char attributeTypeorName)

vtkDataObject *	GetInputDataObject (int port, int connection)

virtual void	SetInputConnection (vtkAlgorithmOutput *input)

virtual void	AddInputConnection (vtkAlgorithmOutput *input)

virtual void	SetInputDataObject (int port, vtkDataObject *data)

virtual void	SetInputDataObject (vtkDataObject *data)

virtual void	AddInputDataObject (int port, vtkDataObject *data)

virtual void	AddInputDataObject (vtkDataObject *data)

vtkAlgorithmOutput *	GetOutputPort (int index)

vtkAlgorithmOutput *	GetOutputPort ()

vtkAlgorithm *	GetInputAlgorithm ()

vtkExecutive *	GetInputExecutive ()

vtkInformation *	GetInputInformation ()

virtual void	Update (int port)

virtual void	Update ()

virtual int	UpdatePiece (int piece, int numPieces, int ghostLevels, const int extents[6]=0)

virtual int	UpdateTimeStep (double time, int piece=-1, int numPieces=1, int ghostLevels=0, const int extents[6]=0)

virtual void	SetReleaseDataFlag (int)

virtual int	GetReleaseDataFlag ()

void	ReleaseDataFlagOn ()

void	ReleaseDataFlagOff ()

int	UpdateExtentIsEmpty (vtkInformation pinfo, vtkDataObject output)

int	UpdateExtentIsEmpty (vtkInformation *pinfo, int extentType)

void	SetUpdateExtent (int port, int piece, int numPieces, int ghostLevel)

void	SetUpdateExtent (int piece, int numPieces, int ghostLevel)

int *	GetUpdateExtent ()

int *	GetUpdateExtent (int port)

void	GetUpdateExtent (int &x0, int &x1, int &y0, int &y1, int &z0, int &z1)

void	GetUpdateExtent (int port, int &x0, int &x1, int &y0, int &y1, int &z0, int &z1)

void	GetUpdateExtent (int extent[6])

void	GetUpdateExtent (int port, int extent[6])

int	GetUpdatePiece ()

int	GetUpdatePiece (int port)

int	GetUpdateNumberOfPieces ()

int	GetUpdateNumberOfPieces (int port)

int	GetUpdateGhostLevel ()

int	GetUpdateGhostLevel (int port)

void	SetProgressObserver (vtkProgressObserver *)

virtual vtkProgressObserver *	GetProgressObserver ()

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkPVHistogramChartRepresentation *	New ()

static int	IsTypeOf (const char *type)

static vtkPVHistogramChartRepresentation *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkXYChartRepresentation
static vtkXYChartRepresentation *	New ()

static int	IsTypeOf (const char *type)

static vtkXYChartRepresentation *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkChartRepresentation
static vtkChartRepresentation *	New ()

static int	IsTypeOf (const char *type)

static vtkChartRepresentation *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkPVDataRepresentation
static int	IsTypeOf (const char *type)

static vtkPVDataRepresentation *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkDataRepresentation
static vtkDataRepresentation *	New ()

static int	IsTypeOf (const char *type)

static vtkDataRepresentation *	SafeDownCast (vtkObjectBase *o)

Static Public Member Functions inherited from vtkPassInputTypeAlgorithm
static vtkPassInputTypeAlgorithm *	New ()

static int	IsTypeOf (const char *type)

static vtkPassInputTypeAlgorithm *	SafeDownCast (vtkObjectBase *o)

Static Public Member Functions inherited from vtkAlgorithm
static vtkAlgorithm *	New ()

static int	IsTypeOf (const char *type)

static vtkAlgorithm *	SafeDownCast (vtkObjectBase *o)

static vtkInformationIntegerKey *	INPUT_IS_OPTIONAL ()

static vtkInformationIntegerKey *	INPUT_IS_REPEATABLE ()

static vtkInformationInformationVectorKey *	INPUT_REQUIRED_FIELDS ()

static vtkInformationStringVectorKey *	INPUT_REQUIRED_DATA_TYPE ()

static vtkInformationInformationVectorKey *	INPUT_ARRAYS_TO_PROCESS ()

static vtkInformationIntegerKey *	INPUT_PORT ()

static vtkInformationIntegerKey *	INPUT_CONNECTION ()

static vtkInformationIntegerKey *	CAN_PRODUCE_SUB_EXTENT ()

static vtkInformationIntegerKey *	CAN_HANDLE_PIECE_REQUEST ()

static void	SetDefaultExecutivePrototype (vtkExecutive *proto)

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkPVHistogramChartRepresentation ()

	~vtkPVHistogramChartRepresentation () override

void	PrepareForRendering () override
	This method is called before actual render if this->MTime was modified since the last time this method was called. More...

Protected Member Functions inherited from vtkXYChartRepresentation
	vtkXYChartRepresentation ()

	~vtkXYChartRepresentation () override

bool	RemoveFromView (vtkView *view) override
	Overridden to remove all plots from the view. More...

int	ProcessViewRequest (vtkInformationRequestKey request_type, vtkInformation inInfo, vtkInformation *outInfo) override
	vtkAlgorithm::ProcessRequest() equivalent for rendering passes. More...

int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector ) override
	Subclasses should override this to connect inputs to the internal pipeline as necessary. More...

vtkSmartPointer< vtkDataObject >	TransformTable (vtkSmartPointer< vtkDataObject >) override
	Method to be overridden to apply an operation of the table after it is gathered to the first rank for rendering the chart. More...

void	PrepareForRendering () override
	This method is called before actual render if this->MTime was modified since the last time this method was called. More...

Protected Member Functions inherited from vtkChartRepresentation
	vtkChartRepresentation ()

	~vtkChartRepresentation () override

int	FillInputPortInformation (int port, vtkInformation *info) override
	Fill input port information. More...

bool	AddToView (vtkView *view) override
	Adds the representation to the view. More...

bool	RemoveFromView (vtkView *view) override
	Removes the representation to the view. More...

vtkTable *	GetLocalOutput (bool pre_delivery=false)
	Convenience method to get the first vtkTable from LocalOutput, if any. More...

virtual vtkSmartPointer< vtkDataObject >	ReduceDataToRoot (vtkDataObject *data)
	Chart representation/views expect that the data is reduced to root node and then passed on the rendering nodes. More...

bool	GetLocalOutput (MapOfTables &tables)
	Convenience method to get all vtkTable instances with their associated names. More...

Protected Member Functions inherited from vtkPVDataRepresentation
	vtkPVDataRepresentation ()

	~vtkPVDataRepresentation () override

vtkExecutive *	CreateDefaultExecutive () override
	Create a default executive. More...

int	RequestUpdateExtent (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector) override

int	RequestUpdateTime (vtkInformation , vtkInformationVector , vtkInformationVector ) override

Protected Member Functions inherited from vtkDataRepresentation
virtual vtkObjectBase *	NewInstanceInternal () const

	vtkDataRepresentation ()

	~vtkDataRepresentation ()

virtual void	ProcessEvents (vtkObject caller, unsigned long eventId, void callData)

virtual bool	AddToView (vtkView *vtkNotUsed(view))

virtual bool	RemoveFromView (vtkView *vtkNotUsed(view))

virtual vtkAnnotationLayers *	ConvertAnnotations (vtkView view, vtkAnnotationLayers annotations)

vtkTrivialProducer *	GetInternalInput (int port, int conn)

void	SetInternalInput (int port, int conn, vtkTrivialProducer *producer)

virtual void	SetAnnotationLinkInternal (vtkAnnotationLink *link)

Protected Member Functions inherited from vtkPassInputTypeAlgorithm
	vtkPassInputTypeAlgorithm ()

	~vtkPassInputTypeAlgorithm ()

virtual int	RequestUpdateTimeDependentInformation (vtkInformation , vtkInformationVector , vtkInformationVector )

virtual int	FillOutputPortInformation (int port, vtkInformation *info)

vtkDataObject *	GetInput (int port)

virtual int	RequestInformation (vtkInformation , vtkInformationVector , vtkInformationVector )

virtual int	RequestDataObject (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)

virtual int	RequestInformation (vtkInformation , vtkInformationVector , vtkInformationVector )

virtual int	RequestDataObject (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)

Protected Member Functions inherited from vtkAlgorithm
	vtkAlgorithm ()

	~vtkAlgorithm ()

virtual void	SetNumberOfInputPorts (int n)

virtual void	SetNumberOfOutputPorts (int n)

int	InputPortIndexInRange (int index, const char *action)

int	OutputPortIndexInRange (int index, const char *action)

int	GetInputArrayAssociation (int idx, vtkInformationVector **inputVector)

void	ReportReferences (vtkGarbageCollector *) VTK_OVERRIDE

virtual void	SetNumberOfInputConnections (int port, int n)

int	GetInputArrayAssociation (int idx, int connection, vtkInformationVector **inputVector)

int	GetInputArrayAssociation (int idx, vtkDataObject *input)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkInformationVector **inputVector)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkInformationVector **inputVector, int &association)

vtkDataArray *	GetInputArrayToProcess (int idx, int connection, vtkInformationVector **inputVector)

vtkDataArray *	GetInputArrayToProcess (int idx, int connection, vtkInformationVector **inputVector, int &association)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkDataObject *input)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkDataObject *input, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkInformationVector **inputVector)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkInformationVector **inputVector, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, int connection, vtkInformationVector **inputVector)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, int connection, vtkInformationVector **inputVector, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkDataObject *input)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkDataObject *input, int &association)

vtkInformation *	GetInputArrayFieldInformation (int idx, vtkInformationVector **inputVector)

virtual void	SetNthInputConnection (int port, int index, vtkAlgorithmOutput *input)

void	SetInputDataInternal (int port, vtkDataObject *input)

void	AddInputDataInternal (int port, vtkDataObject *input)

int	GetInputArrayAssociation (int idx, int connection, vtkInformationVector **inputVector)

int	GetInputArrayAssociation (int idx, vtkDataObject *input)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkInformationVector **inputVector)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkInformationVector **inputVector, int &association)

vtkDataArray *	GetInputArrayToProcess (int idx, int connection, vtkInformationVector **inputVector)

vtkDataArray *	GetInputArrayToProcess (int idx, int connection, vtkInformationVector **inputVector, int &association)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkDataObject *input)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkDataObject *input, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkInformationVector **inputVector)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkInformationVector **inputVector, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, int connection, vtkInformationVector **inputVector)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, int connection, vtkInformationVector **inputVector, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkDataObject *input)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkDataObject *input, int &association)

vtkInformation *	GetInputArrayFieldInformation (int idx, vtkInformationVector **inputVector)

virtual void	SetErrorCode (unsigned long)

virtual void	SetNthInputConnection (int port, int index, vtkAlgorithmOutput *input)

void	SetInputDataInternal (int port, vtkDataObject *input)

void	AddInputDataInternal (int port, vtkDataObject *input)

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Protected Attributes
vtkPExtractHistogram *	ExtractHistogram

Protected Attributes inherited from vtkXYChartRepresentation
vtkInternals *	Internals

Protected Attributes inherited from vtkChartRepresentation
int	FieldAssociation

vtkWeakPointer< vtkPVContextView >	ContextView

int	FlattenTable

vtkSmartPointer< vtkMultiBlockDataSet >	LocalOutput

std::set< unsigned int >	CompositeIndices

vtkWeakPointer< vtkChartSelectionRepresentation >	SelectionRepresentation

Protected Attributes inherited from vtkPVDataRepresentation
double	UpdateTime

bool	UpdateTimeValid

unsigned int	UniqueIdentifier

Protected Attributes inherited from vtkDataRepresentation
bool	Selectable

int	SelectionType

vtkStringArray *	SelectionArrayNames

Command *	Observer

vtkAnnotationLink *	AnnotationLinkInternal

Protected Attributes inherited from vtkAlgorithm
vtkInformation *	Information

double	Progress

char *	ProgressText

vtkProgressObserver *	ProgressObserver

unsigned long	ErrorCode

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Additional Inherited Members
Public Attributes inherited from vtkAlgorithm
	SINGLE_PRECISION

	DOUBLE_PRECISION

	DEFAULT_PRECISION

int	AbortExecute

Protected Types inherited from vtkChartRepresentation
typedef std::map< std::string, std::pair< vtkSmartPointer< vtkTable >, unsigned int > >	MapOfTables

Static Protected Member Functions inherited from vtkAlgorithm
static vtkInformationIntegerKey *	PORT_REQUIREMENTS_FILLED ()

Static Protected Attributes inherited from vtkAlgorithm
static vtkExecutive *	DefaultExecutivePrototype

Detailed Description

representation for "Histogram View".

vtkPVHistogramChartRepresentation is the vtkPVDataRepresentation subclass for showing an data in the "Histogram View". The representation pipeline extracts histogram from the input dataset and then shows that in the view.

Definition at line 23 of file vtkPVHistogramChartRepresentation.h.

Member Typedef Documentation

◆ Superclass

typedef vtkXYChartRepresentation vtkPVHistogramChartRepresentation::Superclass

Definition at line 27 of file vtkPVHistogramChartRepresentation.h.

Constructor & Destructor Documentation

◆ vtkPVHistogramChartRepresentation()

vtkPVHistogramChartRepresentation::vtkPVHistogramChartRepresentation ( )

protected

◆ ~vtkPVHistogramChartRepresentation()

vtkPVHistogramChartRepresentation::~vtkPVHistogramChartRepresentation ( )

overrideprotected

Member Function Documentation

◆ New()

static vtkPVHistogramChartRepresentation* vtkPVHistogramChartRepresentation::New ( )

static

◆ GetClassName()

virtual const char* vtkPVHistogramChartRepresentation::GetClassName ( )

virtual

Reimplemented from vtkXYChartRepresentation.

◆ IsTypeOf()

static int vtkPVHistogramChartRepresentation::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkPVHistogramChartRepresentation::IsA ( const char * type )

virtual

Reimplemented from vtkXYChartRepresentation.

◆ SafeDownCast()

static vtkPVHistogramChartRepresentation* vtkPVHistogramChartRepresentation::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkPVHistogramChartRepresentation::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkChartRepresentation.

◆ SetComponent()

void vtkPVHistogramChartRepresentation::SetComponent ( int )

Controls which input data component should be binned, for input arrays with more-than-one component.

◆ GetComponent()

int vtkPVHistogramChartRepresentation::GetComponent ( )

Controls which input data component should be binned, for input arrays with more-than-one component.

◆ SetBinCount()

void vtkPVHistogramChartRepresentation::SetBinCount ( int )

Controls the number of bins N in the output histogram data.

◆ GetBinCount()

int vtkPVHistogramChartRepresentation::GetBinCount ( )

Controls the number of bins N in the output histogram data.

◆ SetCenterBinsAroundMinAndMax()

void vtkPVHistogramChartRepresentation::SetCenterBinsAroundMinAndMax ( bool )

Get/Set if first and last bins must be centered around the min and max data.

This is only used when UseCustomBinRanges is set to false. Default is false.

◆ GetCenterBinsAroundMinAndMax()

bool vtkPVHistogramChartRepresentation::GetCenterBinsAroundMinAndMax ( )

Get/Set if first and last bins must be centered around the min and max data.

This is only used when UseCustomBinRanges is set to false. Default is false.

◆ SetCustomBinRanges()

void vtkPVHistogramChartRepresentation::SetCustomBinRanges	(	double	min,
		double	max
	)

Get/Set custom bin ranges to use.

These are used only when UseCustomBinRanges is set to true.

◆ GetCustomBinRanges()

double* vtkPVHistogramChartRepresentation::GetCustomBinRanges ( )

Get/Set custom bin ranges to use.

These are used only when UseCustomBinRanges is set to true.

◆ SetUseCustomBinRanges()

void vtkPVHistogramChartRepresentation::SetUseCustomBinRanges ( bool )

When set to true, CustomBinRanges will be used instead of using the full range for the selected array.

By default, set to false.

◆ GetUseCustomBinRanges()

bool vtkPVHistogramChartRepresentation::GetUseCustomBinRanges ( )

When set to true, CustomBinRanges will be used instead of using the full range for the selected array.

By default, set to false.

◆ SetHistogramColor()

void vtkPVHistogramChartRepresentation::SetHistogramColor	(	double	r,
		double	g,
		double	b
	)

Sets the color for the histograms.

◆ SetUseColorMapping()

void vtkPVHistogramChartRepresentation::SetUseColorMapping ( bool colorMapping )

Sets the histogram to be color mapped by the scalar.

◆ SetLookupTable()

void vtkPVHistogramChartRepresentation::SetLookupTable ( vtkScalarsToColors * lut )

Sets the lookup table that is used for color mapping by the scalar.

◆ SetHistogramLineStyle()

void vtkPVHistogramChartRepresentation::SetHistogramLineStyle ( int style )

Set the line style for the histogram.

◆ TransformInputData()

vtkSmartPointer<vtkDataObject> vtkPVHistogramChartRepresentation::TransformInputData ( vtkDataObject * data )

overridevirtual

Method to be overridden to transform input data to a vtkTable.

Reimplemented from vtkChartRepresentation.

◆ SetInputArrayToProcess()

void vtkPVHistogramChartRepresentation::SetInputArrayToProcess	(	int	idx,
		int	port,
		int	connection,
		int	fieldAssociation,
		const char *	name
	)

overridevirtual

Overload the vtkAlgorithm method to update after the change.

Reimplemented from vtkAlgorithm.

◆ MapSelectionToInput()

bool vtkPVHistogramChartRepresentation::MapSelectionToInput ( vtkSelection * )

overridevirtual

Overridden to transform id-based selection produced by the histogram view to a threshold-based selection.

Reimplemented from vtkChartRepresentation.

◆ MapSelectionToView()

bool vtkPVHistogramChartRepresentation::MapSelectionToView ( vtkSelection * sel )

overridevirtual

Inverse of MapSelectionToInput().

Reimplemented from vtkChartRepresentation.

◆ PrepareForRendering()

void vtkPVHistogramChartRepresentation::PrepareForRendering ( )

overrideprotectedvirtual

This method is called before actual render if this->MTime was modified since the last time this method was called.

Subclasses should override to update "appearance" related changes that don't affect data. When this method is called, you're assured that this->ContextView is valid. Note that this method will not be called if this->GetVisibility() returns false, this subclasses should also override SetVisibility() to hide "actors" and such.

Reimplemented from vtkChartRepresentation.

Member Data Documentation

◆ ExtractHistogram

vtkPExtractHistogram* vtkPVHistogramChartRepresentation::ExtractHistogram

protected

Definition at line 126 of file vtkPVHistogramChartRepresentation.h.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Remoting/Views/vtkPVHistogramChartRepresentation.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Superclass

Constructor & Destructor Documentation

◆ vtkPVHistogramChartRepresentation()

◆ ~vtkPVHistogramChartRepresentation()

Member Function Documentation

◆ New()

◆ GetClassName()

◆ IsTypeOf()

◆ IsA()

◆ SafeDownCast()

◆ PrintSelf()

◆ SetComponent()

◆ GetComponent()

◆ SetBinCount()

◆ GetBinCount()

◆ SetCenterBinsAroundMinAndMax()

◆ GetCenterBinsAroundMinAndMax()

◆ SetCustomBinRanges()

◆ GetCustomBinRanges()

◆ SetUseCustomBinRanges()

◆ GetUseCustomBinRanges()

◆ SetHistogramColor()

◆ SetUseColorMapping()

◆ SetLookupTable()

◆ SetHistogramLineStyle()

◆ TransformInputData()

◆ SetInputArrayToProcess()

◆ MapSelectionToInput()

◆ MapSelectionToView()

◆ PrepareForRendering()

Member Data Documentation

◆ ExtractHistogram
