vtkChartRepresentation Class Reference

vtkChartRepresentation is the base representation for charting representations. More...

#include <vtkChartRepresentation.h>

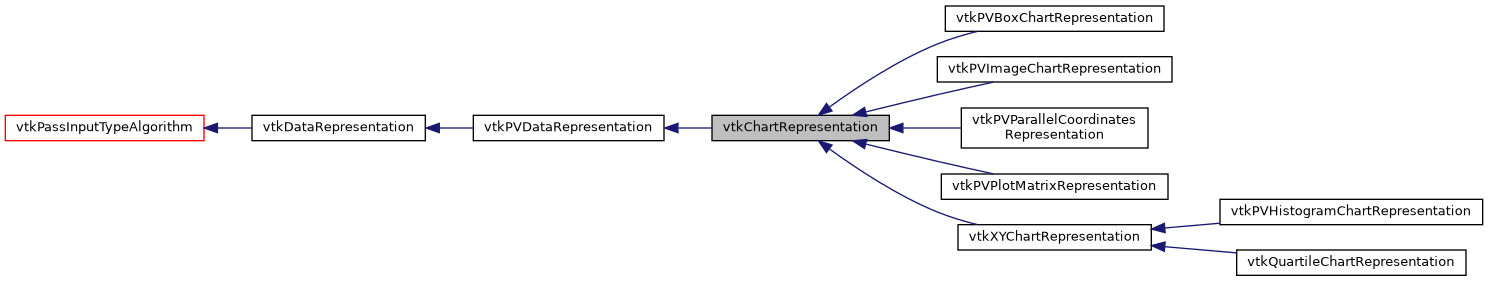

Inheritance diagram for vtkChartRepresentation:

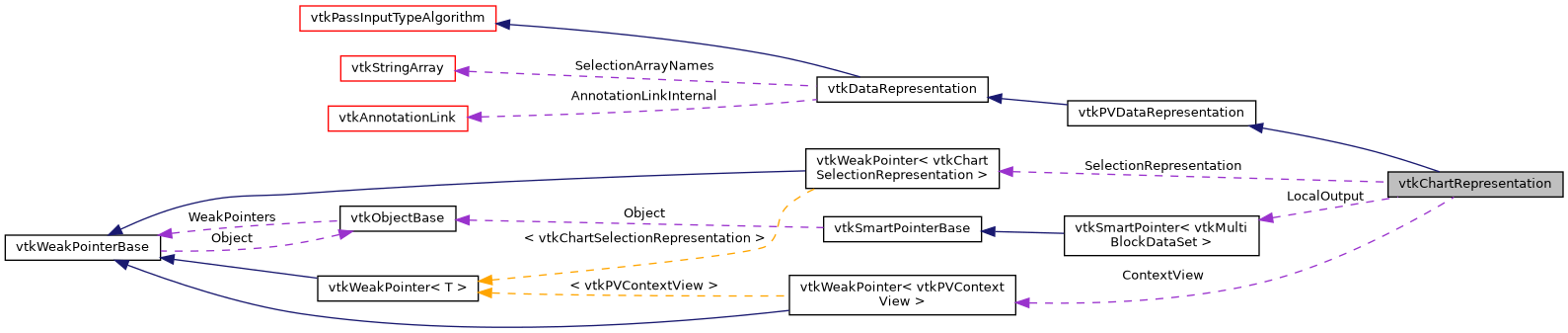

Collaboration diagram for vtkChartRepresentation:

Public Types
typedef vtkPVDataRepresentation	Superclass
Public Types inherited from vtkPVDataRepresentation
enum	{ SkippedUpdateDataEvent = vtkCommand::UserEvent + 91, UpdateTimeChangedEvent }
typedef vtkDataRepresentation	Superclass
Public Types inherited from vtkDataRepresentation
typedef vtkPassInputTypeAlgorithm	Superclass
Public Types inherited from vtkPassInputTypeAlgorithm
typedef vtkAlgorithm	Superclass
Public Types inherited from vtkAlgorithm
enum	DesiredOutputPrecision
enum	DesiredOutputPrecision
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent) override
void	SetSelectionRepresentation (vtkChartSelectionRepresentation *)
	These must only be set during initialization before adding the representation to any views or calling Update(). More...
void	SetVisibility (bool visible) override
	Set visibility of the representation. More...
void	MarkModified () override
	This needs to be called on all instances of vtkGeometryRepresentation when the input is modified. More...
void	SetCompositeDataSetIndex (unsigned int)
void	AddCompositeDataSetIndex (unsigned int)
void	ResetCompositeDataSetIndices ()
unsigned int	Initialize (unsigned int minIdAvailable, unsigned int maxIdAvailable) override
	Override because of internal selection representations that need to be initialized as well. More...
int	ProcessViewRequest (vtkInformationRequestKey *request_type, vtkInformation *inInfo, vtkInformation *outInfo) override
	vtkAlgorithm::ProcessRequest() equivalent for rendering passes. More...
virtual std::string	GetDefaultSeriesLabel (const std::string &tableName, const std::string &columnName)
	Method to provide the default name given the name of a table and a column in that table. More...
virtual bool	MapSelectionToInput (vtkSelection *sel)
	This method is called on the client-side by the vtkPVContextView whenever a new selection is made on all the visible representations in that view. More...
virtual bool	MapSelectionToView (vtkSelection *sel)
	This is the inverse of MapSelectionToInput(). More...
void	SetFieldAssociation (int)
	Set the field association for arrays to use. More...
virtual int	GetFieldAssociation ()
	Set the field association for arrays to use. More...
virtual void	SetFlattenTable (int)
	Flatten the table, i.e. More...
virtual int	GetFlattenTable ()
	Flatten the table, i.e. More...
virtual bool	Export (vtkAbstractChartExporter *vtkNotUsed(exporter))
	Called by vtkPVContextView::Export() to export the representation's data to a CSV file. More...
Public Member Functions inherited from vtkPVDataRepresentation
void	PrintSelf (ostream &os, vtkIndent indent) override
unsigned int	GetUniqueIdentifier ()
	Return 0 if the Initialize() method was not called otherwise a unique ID that will be shared across the processes for that same object. More...
virtual bool	GetVisibility ()
virtual vtkDataObject *	GetRenderedDataObject (int vtkNotUsed(port))
	Returns the data object that is rendered from the given input port. More...
double	GetCacheKey () const
	Returns the cache-key the representation is currently using. More...
vtkAlgorithmOutput *	GetInternalOutputPort () override
	Retrieves an output port for the input data object at the specified port and connection index. More...
vtkAlgorithmOutput *	GetInternalOutputPort (int port) override
vtkAlgorithmOutput *	GetInternalOutputPort (int port, int conn) override
vtkView *	GetView () const
	Provides access to the view. More...
vtkMTimeType	GetPipelineDataTime ()
	Returns the timestamp when RequestData was executed on the representation. More...
bool	GetNeedsUpdate ()
	Returns true if the representation needs an update. More...
virtual void	SetArrayIdNames (const char *vtkNotUsed(pointArray), const char *vtkNotUsed(cellArray))
	Specify the array names used for the selection. More...
virtual void	SetUpdateTime (double time)
	Set the update time. More...
virtual double	GetUpdateTime ()
	Set the update time. More...
virtual bool	GetUpdateTimeValid ()
	Get whether the UpdateTime is valid. More...
void	ResetUpdateTime ()
	Get whether the UpdateTime is valid. More...
virtual void	SetForcedCacheKey (double val)
	Generally, caching is within the purview of the vtkPVView (and subclasses). More...
virtual void	SetForceUseCache (bool val)
	Generally, caching is within the purview of the vtkPVView (and subclasses). More...
virtual double	GetForcedCacheKey ()
	Generally, caching is within the purview of the vtkPVView (and subclasses). More...
virtual bool	GetForceUseCache ()
	Generally, caching is within the purview of the vtkPVView (and subclasses). More...
bool	AddToView (vtkView *view) override
	Making these methods public. More...
bool	RemoveFromView (vtkView *view) override
	Making these methods public. More...
virtual void	SetLogName (const std::string &name)
	This is solely intended to simplify debugging and use for any other purpose is vehemently discouraged. More...
const std::string &	GetLogName () const
	This is solely intended to simplify debugging and use for any other purpose is vehemently discouraged. More...
virtual bool	GetHasTemporalPipeline ()
	This flag indicates if the representation is for a temporal pipeline. More...
virtual void	SetHasTemporalPipeline (bool)
	This flag indicates if the representation is for a temporal pipeline. More...
void	SetInputConnection (int port, vtkAlgorithmOutput *input) override
	Overridden to ensure that MarkModified is called. More...
void	AddInputConnection (int port, vtkAlgorithmOutput *input) override
	Overridden to ensure that MarkModified is called. More...
Public Member Functions inherited from vtkDataRepresentation
vtkDataRepresentation *	NewInstance () const
virtual void	ApplyViewTheme (vtkViewTheme *vtkNotUsed(theme))
virtual vtkSelection *	ConvertSelection (vtkView *view, vtkSelection *selection)
vtkAlgorithmOutput *	GetInputConnection (int port=0, int index=0)
vtkAnnotationLink *	GetAnnotationLink ()
void	SetAnnotationLink (vtkAnnotationLink *link)
void	Select (vtkView *view, vtkSelection *selection)
void	Select (vtkView *view, vtkSelection *selection, bool extend)
void	Annotate (vtkView *view, vtkAnnotationLayers *annotations)
void	Annotate (vtkView *view, vtkAnnotationLayers *annotations, bool extend)
virtual void	SetSelectable (bool)
virtual bool	GetSelectable ()
virtual void	SelectableOn ()
virtual void	SelectableOff ()
void	UpdateSelection (vtkSelection *selection)
void	UpdateSelection (vtkSelection *selection, bool extend)
void	UpdateAnnotations (vtkAnnotationLayers *annotations)
void	UpdateAnnotations (vtkAnnotationLayers *annotations, bool extend)
virtual vtkAlgorithmOutput *	GetInternalAnnotationOutputPort ()
virtual vtkAlgorithmOutput *	GetInternalAnnotationOutputPort (int port)
virtual vtkAlgorithmOutput *	GetInternalAnnotationOutputPort (int port, int conn)
virtual vtkAlgorithmOutput *	GetInternalSelectionOutputPort ()
virtual vtkAlgorithmOutput *	GetInternalSelectionOutputPort (int port)
virtual vtkAlgorithmOutput *	GetInternalSelectionOutputPort (int port, int conn)
virtual void	SetSelectionType (int)
virtual int	GetSelectionType ()
virtual void	SetSelectionArrayNames (vtkStringArray *names)
virtual vtkStringArray *	GetSelectionArrayNames ()
virtual void	SetSelectionArrayName (const char *name)
virtual const char *	GetSelectionArrayName ()
vtkAlgorithmOutput *	GetInputConnection (int port=0, int index=0)
vtkAnnotationLink *	GetAnnotationLink ()
void	SetAnnotationLink (vtkAnnotationLink *link)
void	Select (vtkView *view, vtkSelection *selection)
void	Select (vtkView *view, vtkSelection *selection, bool extend)
void	Annotate (vtkView *view, vtkAnnotationLayers *annotations)
void	Annotate (vtkView *view, vtkAnnotationLayers *annotations, bool extend)
virtual void	SetSelectable (bool)
virtual bool	GetSelectable ()
virtual void	SelectableOn ()
virtual void	SelectableOff ()
void	UpdateSelection (vtkSelection *selection)
void	UpdateSelection (vtkSelection *selection, bool extend)
void	UpdateAnnotations (vtkAnnotationLayers *annotations)
void	UpdateAnnotations (vtkAnnotationLayers *annotations, bool extend)
virtual vtkAlgorithmOutput *	GetInternalAnnotationOutputPort ()
virtual vtkAlgorithmOutput *	GetInternalAnnotationOutputPort (int port)
virtual vtkAlgorithmOutput *	GetInternalAnnotationOutputPort (int port, int conn)
virtual vtkAlgorithmOutput *	GetInternalSelectionOutputPort ()
virtual vtkAlgorithmOutput *	GetInternalSelectionOutputPort (int port)
virtual vtkAlgorithmOutput *	GetInternalSelectionOutputPort (int port, int conn)
virtual void	SetSelectionType (int)
virtual int	GetSelectionType ()
virtual void	SetSelectionArrayNames (vtkStringArray *names)
virtual vtkStringArray *	GetSelectionArrayNames ()
virtual void	SetSelectionArrayName (const char *name)
virtual const char *	GetSelectionArrayName ()
Public Member Functions inherited from vtkPassInputTypeAlgorithm
vtkPassInputTypeAlgorithm *	NewInstance () const
vtkPolyData *	GetPolyDataOutput ()
vtkStructuredPoints *	GetStructuredPointsOutput ()
vtkImageData *	GetImageDataOutput ()
vtkStructuredGrid *	GetStructuredGridOutput ()
vtkUnstructuredGrid *	GetUnstructuredGridOutput ()
vtkRectilinearGrid *	GetRectilinearGridOutput ()
vtkTable *	GetTableOutput ()
vtkGraph *	GetGraphOutput ()
vtkDataObject *	GetInput ()
vtkDataObject *	GetOutput ()
vtkDataObject *	GetOutput (int)
void	SetInputData (vtkDataObject *)
void	SetInputData (int, vtkDataObject *)
void	AddInputData (vtkDataObject *)
void	AddInputData (int, vtkDataObject *)
virtual int	ProcessRequest (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector)
vtkDataObject *	GetOutput ()
vtkDataObject *	GetOutput (int)
void	SetInputData (vtkDataObject *)
void	SetInputData (int, vtkDataObject *)
void	AddInputData (vtkDataObject *)
void	AddInputData (int, vtkDataObject *)
virtual int	ProcessRequest (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector)
Public Member Functions inherited from vtkAlgorithm
vtkAlgorithm *	NewInstance () const
int	HasExecutive ()
vtkExecutive *	GetExecutive ()
virtual void	SetExecutive (vtkExecutive *executive)
virtual int	ModifyRequest (vtkInformation *request, int when)
vtkInformation *	GetInputPortInformation (int port)
vtkInformation *	GetOutputPortInformation (int port)
int	GetNumberOfInputPorts ()
int	GetNumberOfOutputPorts ()
void	UpdateProgress (double amount)
vtkInformation *	GetInputArrayInformation (int idx)
void	RemoveAllInputs ()
vtkDataObject *	GetOutputDataObject (int port)
virtual void	RemoveInputConnection (int port, vtkAlgorithmOutput *input)
virtual void	RemoveInputConnection (int port, int idx)
virtual void	RemoveAllInputConnections (int port)
int	GetNumberOfInputConnections (int port)
int	GetTotalNumberOfInputConnections ()
vtkAlgorithmOutput *	GetInputConnection (int port, int index)
vtkAlgorithm *	GetInputAlgorithm (int port, int index, int &algPort)
vtkAlgorithm *	GetInputAlgorithm (int port, int index)
vtkExecutive *	GetInputExecutive (int port, int index)
vtkInformation *	GetInputInformation (int port, int index)
vtkInformation *	GetOutputInformation (int port)
virtual int	Update (int port, vtkInformationVector *requests)
virtual int	Update (vtkInformation *requests)
virtual int	UpdateExtent (const int extents[6])
virtual void	UpdateInformation ()
virtual void	UpdateDataObject ()
virtual void	PropagateUpdateExtent ()
virtual void	UpdateWholeExtent ()
void	ConvertTotalInputToPortConnection (int ind, int &port, int &conn)
int	SetUpdateExtentToWholeExtent (int port)
int	SetUpdateExtentToWholeExtent ()
void	SetUpdateExtent (int port, int extent[6])
void	SetUpdateExtent (int extent[6])
int	ProcessRequest (vtkInformation *request, vtkCollection *inInfo, vtkInformationVector *outInfo)
virtual int	ComputePipelineMTime (vtkInformation *request, vtkInformationVector **inInfoVec, vtkInformationVector *outInfoVec, int requestFromOutputPort, vtkMTimeType *mtime)
virtual vtkInformation *	GetInformation ()
virtual void	SetInformation (vtkInformation *)
void	Register (vtkObjectBase *o) VTK_OVERRIDE
void	UnRegister (vtkObjectBase *o) VTK_OVERRIDE
virtual void	SetAbortExecute (int)
virtual int	GetAbortExecute ()
virtual void	AbortExecuteOn ()
virtual void	AbortExecuteOff ()
virtual void	SetProgress (double)
virtual double	GetProgress ()
void	SetProgressText (const char *ptext)
virtual char *	GetProgressText ()
virtual unsigned long	GetErrorCode ()
virtual void	SetInputArrayToProcess (int idx, int port, int connection, int fieldAssociation, const char *name)
virtual void	SetInputArrayToProcess (int idx, int port, int connection, int fieldAssociation, int fieldAttributeType)
virtual void	SetInputArrayToProcess (int idx, vtkInformation *info)
virtual void	SetInputArrayToProcess (int idx, int port, int connection, const char *fieldAssociation, const char *attributeTypeorName)
vtkDataObject *	GetInputDataObject (int port, int connection)
virtual void	SetInputConnection (vtkAlgorithmOutput *input)
virtual void	AddInputConnection (vtkAlgorithmOutput *input)
virtual void	SetInputDataObject (int port, vtkDataObject *data)
virtual void	SetInputDataObject (vtkDataObject *data)
virtual void	AddInputDataObject (int port, vtkDataObject *data)
virtual void	AddInputDataObject (vtkDataObject *data)
vtkAlgorithmOutput *	GetOutputPort (int index)
vtkAlgorithmOutput *	GetOutputPort ()
vtkAlgorithm *	GetInputAlgorithm ()
vtkExecutive *	GetInputExecutive ()
vtkInformation *	GetInputInformation ()
virtual void	Update (int port)
virtual void	Update ()
virtual int	UpdatePiece (int piece, int numPieces, int ghostLevels, const int extents[6]=0)
virtual int	UpdateTimeStep (double time, int piece=-1, int numPieces=1, int ghostLevels=0, const int extents[6]=0)
virtual void	SetReleaseDataFlag (int)
virtual int	GetReleaseDataFlag ()
void	ReleaseDataFlagOn ()
void	ReleaseDataFlagOff ()
int	UpdateExtentIsEmpty (vtkInformation *pinfo, vtkDataObject *output)
int	UpdateExtentIsEmpty (vtkInformation *pinfo, int extentType)
void	SetUpdateExtent (int port, int piece, int numPieces, int ghostLevel)
void	SetUpdateExtent (int piece, int numPieces, int ghostLevel)
int *	GetUpdateExtent ()
int *	GetUpdateExtent (int port)
void	GetUpdateExtent (int &x0, int &x1, int &y0, int &y1, int &z0, int &z1)
void	GetUpdateExtent (int port, int &x0, int &x1, int &y0, int &y1, int &z0, int &z1)
void	GetUpdateExtent (int extent[6])
void	GetUpdateExtent (int port, int extent[6])
int	GetUpdatePiece ()
int	GetUpdatePiece (int port)
int	GetUpdateNumberOfPieces ()
int	GetUpdateNumberOfPieces (int port)
int	GetUpdateGhostLevel ()
int	GetUpdateGhostLevel (int port)
void	SetProgressObserver (vtkProgressObserver *)
virtual vtkProgressObserver *	GetProgressObserver ()
int	ProcessRequest (vtkInformation *request, vtkCollection *inInfo, vtkInformationVector *outInfo)
virtual int	ComputePipelineMTime (vtkInformation *request, vtkInformationVector **inInfoVec, vtkInformationVector *outInfoVec, int requestFromOutputPort, vtkMTimeType *mtime)
virtual vtkInformation *	GetInformation ()
virtual void	SetInformation (vtkInformation *)
void	Register (vtkObjectBase *o) VTK_OVERRIDE
void	UnRegister (vtkObjectBase *o) VTK_OVERRIDE
virtual void	SetAbortExecute (int)
virtual int	GetAbortExecute ()
virtual void	AbortExecuteOn ()
virtual void	AbortExecuteOff ()
virtual void	SetProgress (double)
virtual double	GetProgress ()
void	SetProgressText (const char *ptext)
virtual char *	GetProgressText ()
virtual unsigned long	GetErrorCode ()
virtual void	SetInputArrayToProcess (int idx, int port, int connection, int fieldAssociation, const char *name)
virtual void	SetInputArrayToProcess (int idx, int port, int connection, int fieldAssociation, int fieldAttributeType)
virtual void	SetInputArrayToProcess (int idx, vtkInformation *info)
virtual void	SetInputArrayToProcess (int idx, int port, int connection, const char *fieldAssociation, const char *attributeTypeorName)
vtkDataObject *	GetInputDataObject (int port, int connection)
virtual void	SetInputConnection (vtkAlgorithmOutput *input)
virtual void	AddInputConnection (vtkAlgorithmOutput *input)
virtual void	SetInputDataObject (int port, vtkDataObject *data)
virtual void	SetInputDataObject (vtkDataObject *data)
virtual void	AddInputDataObject (int port, vtkDataObject *data)
virtual void	AddInputDataObject (vtkDataObject *data)
vtkAlgorithmOutput *	GetOutputPort (int index)
vtkAlgorithmOutput *	GetOutputPort ()
vtkAlgorithm *	GetInputAlgorithm ()
vtkExecutive *	GetInputExecutive ()
vtkInformation *	GetInputInformation ()
virtual void	Update (int port)
virtual void	Update ()
virtual int	UpdatePiece (int piece, int numPieces, int ghostLevels, const int extents[6]=0)
virtual int	UpdateTimeStep (double time, int piece=-1, int numPieces=1, int ghostLevels=0, const int extents[6]=0)
virtual void	SetReleaseDataFlag (int)
virtual int	GetReleaseDataFlag ()
void	ReleaseDataFlagOn ()
void	ReleaseDataFlagOff ()
int	UpdateExtentIsEmpty (vtkInformation *pinfo, vtkDataObject *output)
int	UpdateExtentIsEmpty (vtkInformation *pinfo, int extentType)
void	SetUpdateExtent (int port, int piece, int numPieces, int ghostLevel)
void	SetUpdateExtent (int piece, int numPieces, int ghostLevel)
int *	GetUpdateExtent ()
int *	GetUpdateExtent (int port)
void	GetUpdateExtent (int &x0, int &x1, int &y0, int &y1, int &z0, int &z1)
void	GetUpdateExtent (int port, int &x0, int &x1, int &y0, int &y1, int &z0, int &z1)
void	GetUpdateExtent (int extent[6])
void	GetUpdateExtent (int port, int extent[6])
int	GetUpdatePiece ()
int	GetUpdatePiece (int port)
int	GetUpdateNumberOfPieces ()
int	GetUpdateNumberOfPieces (int port)
int	GetUpdateGhostLevel ()
int	GetUpdateGhostLevel (int port)
void	SetProgressObserver (vtkProgressObserver *)
virtual vtkProgressObserver *	GetProgressObserver ()
Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)
virtual void	DebugOn ()
virtual void	DebugOff ()
bool	GetDebug ()
void	SetDebug (bool debugFlag)
virtual void	Modified ()
virtual vtkMTimeType	GetMTime ()
void	RemoveObserver (unsigned long tag)
void	RemoveObservers (unsigned long event)
void	RemoveObservers (const char *event)
void	RemoveAllObservers ()
int	HasObserver (unsigned long event)
int	HasObserver (const char *event)
int	InvokeEvent (unsigned long event)
int	InvokeEvent (const char *event)
unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)
unsigned long	AddObserver (const char *event, vtkCommand *, float priority=0.0f)
vtkCommand *	GetCommand (unsigned long tag)
void	RemoveObserver (vtkCommand *)
void	RemoveObservers (unsigned long event, vtkCommand *)
void	RemoveObservers (const char *event, vtkCommand *)
int	HasObserver (unsigned long event, vtkCommand *)
int	HasObserver (const char *event, vtkCommand *)
unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)
unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)
unsigned long	AddObserver (unsigned long event, U observer, bool(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)
int	InvokeEvent (unsigned long event, void *callData)
int	InvokeEvent (const char *event, void *callData)
unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)
unsigned long	AddObserver (const char *event, vtkCommand *, float priority=0.0f)
vtkCommand *	GetCommand (unsigned long tag)
void	RemoveObserver (vtkCommand *)
void	RemoveObservers (unsigned long event, vtkCommand *)
void	RemoveObservers (const char *event, vtkCommand *)
int	HasObserver (unsigned long event, vtkCommand *)
int	HasObserver (const char *event, vtkCommand *)
unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)
unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)
unsigned long	AddObserver (unsigned long event, U observer, bool(T::*callback)(vtkObject *, unsigned long, void *), float priority=0.0f)
int	InvokeEvent (unsigned long event, void *callData)
int	InvokeEvent (const char *event, void *callData)
Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const
virtual void	Delete ()
virtual void	FastDelete ()
void	Print (ostream &os)
void	SetReferenceCount (int)
virtual void	PrintHeader (ostream &os, vtkIndent indent)
virtual void	PrintTrailer (ostream &os, vtkIndent indent)
int	GetReferenceCount ()
void	PrintRevisions (ostream &)
virtual void	PrintHeader (ostream &os, vtkIndent indent)
virtual void	PrintTrailer (ostream &os, vtkIndent indent)
int	GetReferenceCount ()
void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkChartRepresentation *	New ()
static int	IsTypeOf (const char *type)
static vtkChartRepresentation *	SafeDownCast (vtkObject *o)
Static Public Member Functions inherited from vtkPVDataRepresentation
static int	IsTypeOf (const char *type)
static vtkPVDataRepresentation *	SafeDownCast (vtkObject *o)
Static Public Member Functions inherited from vtkDataRepresentation
static vtkDataRepresentation *	New ()
static int	IsTypeOf (const char *type)
static vtkDataRepresentation *	SafeDownCast (vtkObjectBase *o)
Static Public Member Functions inherited from vtkPassInputTypeAlgorithm
static vtkPassInputTypeAlgorithm *	New ()
static int	IsTypeOf (const char *type)
static vtkPassInputTypeAlgorithm *	SafeDownCast (vtkObjectBase *o)
Static Public Member Functions inherited from vtkAlgorithm
static vtkAlgorithm *	New ()
static int	IsTypeOf (const char *type)
static vtkAlgorithm *	SafeDownCast (vtkObjectBase *o)
static vtkInformationIntegerKey *	INPUT_IS_OPTIONAL ()
static vtkInformationIntegerKey *	INPUT_IS_REPEATABLE ()
static vtkInformationInformationVectorKey *	INPUT_REQUIRED_FIELDS ()
static vtkInformationStringVectorKey *	INPUT_REQUIRED_DATA_TYPE ()
static vtkInformationInformationVectorKey *	INPUT_ARRAYS_TO_PROCESS ()
static vtkInformationIntegerKey *	INPUT_PORT ()
static vtkInformationIntegerKey *	INPUT_CONNECTION ()
static vtkInformationIntegerKey *	CAN_PRODUCE_SUB_EXTENT ()
static vtkInformationIntegerKey *	CAN_HANDLE_PIECE_REQUEST ()
static void	SetDefaultExecutivePrototype (vtkExecutive *proto)
Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()
static void	BreakOnError ()
static void	SetGlobalWarningDisplay (int val)
static void	GlobalWarningDisplayOn ()
static void	GlobalWarningDisplayOff ()
static int	GetGlobalWarningDisplay ()
static void	SetGlobalWarningDisplay (int val)
static void	GlobalWarningDisplayOn ()
static void	GlobalWarningDisplayOff ()
static int	GetGlobalWarningDisplay ()
Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)
static vtkObjectBase *	New ()
static vtkObjectBase *	New ()

Protected Types
typedef std::map< std::string, std::pair< vtkSmartPointer< vtkTable >, unsigned int > >	MapOfTables

Protected Member Functions
	vtkChartRepresentation ()
	~vtkChartRepresentation () override
int	FillInputPortInformation (int port, vtkInformation *info) override
	Fill input port information. More...
virtual void	PrepareForRendering ()
	This method is called before actual render if this->MTime was modified since the last time this method was called. More...
int	RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *) override
	Subclasses should override this to connect inputs to the internal pipeline as necessary. More...
bool	AddToView (vtkView *view) override
	Adds the representation to the view. More...
bool	RemoveFromView (vtkView *view) override
	Removes the representation to the view. More...
vtkTable *	GetLocalOutput (bool pre_delivery=false)
	Convenience method to get the first vtkTable from LocalOutput, if any. More...
virtual vtkSmartPointer< vtkDataObject >	TransformInputData (vtkDataObject *data)
	Method to be overridden to transform input data. More...
virtual vtkSmartPointer< vtkDataObject >	ReduceDataToRoot (vtkDataObject *data)
	Chart representation/views expect that the data is reduced to root node and then passed on the rendering nodes. More...
virtual vtkSmartPointer< vtkDataObject >	TransformTable (vtkSmartPointer< vtkDataObject > table)
	Method to be overridden to apply an operation of the table after it is gathered to the first rank for rendering the chart. More...
bool	GetLocalOutput (MapOfTables &tables)
	Convenience method to get all vtkTable instances with their associated names. More...
Protected Member Functions inherited from vtkPVDataRepresentation
	vtkPVDataRepresentation ()
	~vtkPVDataRepresentation () override
vtkExecutive *	CreateDefaultExecutive () override
	Create a default executive. More...
int	RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *) override
	Overridden to invoke vtkCommand::UpdateDataEvent. More...
int	RequestUpdateExtent (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector) override
int	RequestUpdateTime (vtkInformation *, vtkInformationVector **, vtkInformationVector *) override
Protected Member Functions inherited from vtkDataRepresentation
virtual vtkObjectBase *	NewInstanceInternal () const
	vtkDataRepresentation ()
	~vtkDataRepresentation ()
virtual void	ProcessEvents (vtkObject *caller, unsigned long eventId, void *callData)
virtual bool	AddToView (vtkView *vtkNotUsed(view))
virtual bool	RemoveFromView (vtkView *vtkNotUsed(view))
virtual vtkAnnotationLayers *	ConvertAnnotations (vtkView *view, vtkAnnotationLayers *annotations)
vtkTrivialProducer *	GetInternalInput (int port, int conn)
void	SetInternalInput (int port, int conn, vtkTrivialProducer *producer)
virtual void	SetAnnotationLinkInternal (vtkAnnotationLink *link)
Protected Member Functions inherited from vtkPassInputTypeAlgorithm
	vtkPassInputTypeAlgorithm ()
	~vtkPassInputTypeAlgorithm ()
virtual int	RequestUpdateTimeDependentInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int	FillOutputPortInformation (int port, vtkInformation *info)
vtkDataObject *	GetInput (int port)
virtual int	RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int	RequestDataObject (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector)
virtual int	RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int	RequestDataObject (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector)
Protected Member Functions inherited from vtkAlgorithm
	vtkAlgorithm ()
	~vtkAlgorithm ()
virtual void	SetNumberOfInputPorts (int n)
virtual void	SetNumberOfOutputPorts (int n)
int	InputPortIndexInRange (int index, const char *action)
int	OutputPortIndexInRange (int index, const char *action)
int	GetInputArrayAssociation (int idx, vtkInformationVector **inputVector)
void	ReportReferences (vtkGarbageCollector *) VTK_OVERRIDE
virtual void	SetNumberOfInputConnections (int port, int n)
int	GetInputArrayAssociation (int idx, int connection, vtkInformationVector **inputVector)
int	GetInputArrayAssociation (int idx, vtkDataObject *input)
vtkDataArray *	GetInputArrayToProcess (int idx, vtkInformationVector **inputVector)
vtkDataArray *	GetInputArrayToProcess (int idx, vtkInformationVector **inputVector, int &association)
vtkDataArray *	GetInputArrayToProcess (int idx, int connection, vtkInformationVector **inputVector)
vtkDataArray *	GetInputArrayToProcess (int idx, int connection, vtkInformationVector **inputVector, int &association)
vtkDataArray *	GetInputArrayToProcess (int idx, vtkDataObject *input)
vtkDataArray *	GetInputArrayToProcess (int idx, vtkDataObject *input, int &association)
vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkInformationVector **inputVector)
vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkInformationVector **inputVector, int &association)
vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, int connection, vtkInformationVector **inputVector)
vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, int connection, vtkInformationVector **inputVector, int &association)
vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkDataObject *input)
vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkDataObject *input, int &association)
vtkInformation *	GetInputArrayFieldInformation (int idx, vtkInformationVector **inputVector)
virtual void	SetNthInputConnection (int port, int index, vtkAlgorithmOutput *input)
void	SetInputDataInternal (int port, vtkDataObject *input)
void	AddInputDataInternal (int port, vtkDataObject *input)
int	GetInputArrayAssociation (int idx, int connection, vtkInformationVector **inputVector)
int	GetInputArrayAssociation (int idx, vtkDataObject *input)
vtkDataArray *	GetInputArrayToProcess (int idx, vtkInformationVector **inputVector)
vtkDataArray *	GetInputArrayToProcess (int idx, vtkInformationVector **inputVector, int &association)
vtkDataArray *	GetInputArrayToProcess (int idx, int connection, vtkInformationVector **inputVector)
vtkDataArray *	GetInputArrayToProcess (int idx, int connection, vtkInformationVector **inputVector, int &association)
vtkDataArray *	GetInputArrayToProcess (int idx, vtkDataObject *input)
vtkDataArray *	GetInputArrayToProcess (int idx, vtkDataObject *input, int &association)
vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkInformationVector **inputVector)
vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkInformationVector **inputVector, int &association)
vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, int connection, vtkInformationVector **inputVector)
vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, int connection, vtkInformationVector **inputVector, int &association)
vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkDataObject *input)
vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkDataObject *input, int &association)
vtkInformation *	GetInputArrayFieldInformation (int idx, vtkInformationVector **inputVector)
virtual void	SetErrorCode (unsigned long)
virtual void	SetNthInputConnection (int port, int index, vtkAlgorithmOutput *input)
void	SetInputDataInternal (int port, vtkDataObject *input)
void	AddInputDataInternal (int port, vtkDataObject *input)
Protected Member Functions inherited from vtkObject
	vtkObject ()
virtual	~vtkObject ()
void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE
void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE
void	InternalGrabFocus (vtkCommand *mouseEvents, vtkCommand *keypressEvents=NULL)
void	InternalReleaseFocus ()
void	InternalGrabFocus (vtkCommand *mouseEvents, vtkCommand *keypressEvents=NULL)
void	InternalReleaseFocus ()
Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()
virtual	~vtkObjectBase ()
virtual void	CollectRevisions (ostream &)
	vtkObjectBase (const vtkObjectBase &)
void	operator= (const vtkObjectBase &)

Protected Attributes
int	FieldAssociation
vtkWeakPointer< vtkPVContextView >	ContextView
int	FlattenTable
vtkSmartPointer< vtkMultiBlockDataSet >	LocalOutput
std::set< unsigned int >	CompositeIndices
vtkWeakPointer< vtkChartSelectionRepresentation >	SelectionRepresentation
Protected Attributes inherited from vtkPVDataRepresentation
double	UpdateTime
bool	UpdateTimeValid
unsigned int	UniqueIdentifier
Protected Attributes inherited from vtkDataRepresentation
bool	Selectable
int	SelectionType
vtkStringArray *	SelectionArrayNames
Command *	Observer
vtkAnnotationLink *	AnnotationLinkInternal
Protected Attributes inherited from vtkAlgorithm
vtkInformation *	Information
double	Progress
char *	ProgressText
vtkProgressObserver *	ProgressObserver
unsigned long	ErrorCode
Protected Attributes inherited from vtkObject
bool	Debug
vtkTimeStamp	MTime
vtkSubjectHelper *	SubjectHelper
Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount
vtkWeakPointerBase **	WeakPointers

Additional Inherited Members
Public Attributes inherited from vtkAlgorithm
	SINGLE_PRECISION
	DOUBLE_PRECISION
	DEFAULT_PRECISION
int	AbortExecute
Static Protected Member Functions inherited from vtkAlgorithm
static vtkInformationIntegerKey *	PORT_REQUIREMENTS_FILLED ()
Static Protected Attributes inherited from vtkAlgorithm
static vtkExecutive *	DefaultExecutivePrototype

Detailed Description

vtkChartRepresentation is the base representation for charting representations.

Currently, ParaView's charting views are client-side only views that render only on the client side. That being the case, when running in client-server mode or in parallel, the data-delivery mode is fixed. Hence, unlike representations for 3D views, this representation delivers the data in RequestData() itself. This makes it possible for client code to call UpdatePipeline() on the representation proxy and then access the delivered vtkTable on the client.

Definition at line 35 of file vtkChartRepresentation.h.

Member Typedef Documentation

Superclass

typedef vtkPVDataRepresentation vtkChartRepresentation::Superclass

Definition at line 39 of file vtkChartRepresentation.h.

MapOfTables

typedef std::map<std::string, std::pair<vtkSmartPointer<vtkTable>, unsigned int> > vtkChartRepresentation::MapOfTables

protected

Definition at line 226 of file vtkChartRepresentation.h.

Constructor & Destructor Documentation

vtkChartRepresentation()

vtkChartRepresentation::vtkChartRepresentation ( )

protected

~vtkChartRepresentation()

vtkChartRepresentation::~vtkChartRepresentation ( )

overrideprotected

Member Function Documentation

New()

static vtkChartRepresentation* vtkChartRepresentation::New ( )

static

GetClassName()

virtual const char* vtkChartRepresentation::GetClassName ( )

virtual

Reimplemented from vtkPVDataRepresentation.

Reimplemented in vtkPVPlotMatrixRepresentation, vtkXYChartRepresentation, vtkPVImageChartRepresentation, vtkPVHistogramChartRepresentation, vtkPVParallelCoordinatesRepresentation, vtkPVBoxChartRepresentation, and vtkQuartileChartRepresentation.

IsTypeOf()

static int vtkChartRepresentation::IsTypeOf ( const char *  type )

static

IsA()

virtual int vtkChartRepresentation::IsA ( const char *  type )

virtual

Reimplemented from vtkPVDataRepresentation.

Reimplemented in vtkPVPlotMatrixRepresentation, vtkXYChartRepresentation, vtkPVImageChartRepresentation, vtkPVHistogramChartRepresentation, vtkPVParallelCoordinatesRepresentation, vtkPVBoxChartRepresentation, and vtkQuartileChartRepresentation.

SafeDownCast()

static vtkChartRepresentation* vtkChartRepresentation::SafeDownCast ( vtkObject *  o )

static

PrintSelf()

void vtkChartRepresentation::PrintSelf ( ostream &  os, vtkIndent  indent  )

overridevirtual

Reimplemented from vtkDataRepresentation.

Reimplemented in vtkPVPlotMatrixRepresentation, vtkXYChartRepresentation, vtkPVImageChartRepresentation, vtkPVHistogramChartRepresentation, vtkPVParallelCoordinatesRepresentation, vtkPVBoxChartRepresentation, and vtkQuartileChartRepresentation.

SetSelectionRepresentation()

void vtkChartRepresentation::SetSelectionRepresentation

(

vtkChartSelectionRepresentation *

)

These must only be set during initialization before adding the representation to any views or calling Update().

SetVisibility()

void vtkChartRepresentation::SetVisibility ( bool  visible )

overridevirtual

Set visibility of the representation.

Reimplemented from vtkPVDataRepresentation.

Reimplemented in vtkXYChartRepresentation, vtkPVPlotMatrixRepresentation, vtkPVImageChartRepresentation, vtkPVParallelCoordinatesRepresentation, and vtkPVBoxChartRepresentation.

MarkModified()

void vtkChartRepresentation::MarkModified ( )

overridevirtual

This needs to be called on all instances of vtkGeometryRepresentation when the input is modified.

This is essential since the geometry filter does not have any real-input on the client side which messes with the Update requests.

Reimplemented from vtkPVDataRepresentation.

SetFieldAssociation()

void vtkChartRepresentation::SetFieldAssociation

(

int

)

Set the field association for arrays to use.

When changed, this will call MarkModified().

GetFieldAssociation()

virtual int vtkChartRepresentation::GetFieldAssociation ( )

virtual

Set the field association for arrays to use.

When changed, this will call MarkModified().

SetCompositeDataSetIndex()

void vtkChartRepresentation::SetCompositeDataSetIndex

(

unsigned

int

)

AddCompositeDataSetIndex()

void vtkChartRepresentation::AddCompositeDataSetIndex

(

unsigned

int

)

ResetCompositeDataSetIndices()

void vtkChartRepresentation::ResetCompositeDataSetIndices

(

)

Initialize()

unsigned int vtkChartRepresentation::Initialize ( unsigned int  minIdAvailable, unsigned int  maxIdAvailable  )

overridevirtual

Override because of internal selection representations that need to be initialized as well.

Reimplemented from vtkPVDataRepresentation.

ProcessViewRequest()

int vtkChartRepresentation::ProcessViewRequest ( vtkInformationRequestKey *  request_type, vtkInformation *  inInfo, vtkInformation *  outInfo  )

overridevirtual

vtkAlgorithm::ProcessRequest() equivalent for rendering passes.

This is typically called by the vtkView to request meta-data from the representations or ask them to perform certain tasks e.g. PrepareForRendering. Overridden to handle REQUEST_RENDER() to call PrepareForRendering.

Reimplemented from vtkPVDataRepresentation.

Reimplemented in vtkXYChartRepresentation.

GetDefaultSeriesLabel()

virtual std::string vtkChartRepresentation::GetDefaultSeriesLabel ( const std::string &  tableName, const std::string &  columnName  )

virtual

Method to provide the default name given the name of a table and a column in that table.

When overriding this method, ensure that the implementation does not depend on the instance being initialized or have valid data. This method is called on the client-side when filling up the domains for the properties.

Reimplemented in vtkQuartileChartRepresentation.

SetFlattenTable()

virtual void vtkChartRepresentation::SetFlattenTable ( int  )

virtual

Flatten the table, i.e.

split any multicomponent columns into separate components.

GetFlattenTable()

virtual int vtkChartRepresentation::GetFlattenTable ( )

virtual

Flatten the table, i.e.

split any multicomponent columns into separate components.

MapSelectionToInput()

virtual bool vtkChartRepresentation::MapSelectionToInput ( vtkSelection *  sel )

virtual

This method is called on the client-side by the vtkPVContextView whenever a new selection is made on all the visible representations in that view.

The goal of this method is allow the representations to transform the selection created in the view (which is an id-based selection based on the vtkTable that is fed into the vtkChart) to an appropriate selection based on the data going into the representation. Return false if the selection is not applicable to this representation or the conversion cannot be made. Default implementation simply ensures that the FieldType on the selection nodes is set to match up with the FieldAssociation on the representation.

Reimplemented in vtkPVHistogramChartRepresentation.

MapSelectionToView()

virtual bool vtkChartRepresentation::MapSelectionToView ( vtkSelection *  sel )

virtual

This is the inverse of MapSelectionToInput().

In this case, we are converting the selection defined on the input for the representation to a selection that corresponds to elements being rendered in the view. The default implementation checks removes vtkSelectionNode items in sel that don't have the FieldType that matches this->FieldAssociation. Similar to MapSelectionToInput(), this method is expected to transform the sel in place and return false is the selection is not applicable to this representation or the conversion cannot be made.

Reimplemented in vtkPVHistogramChartRepresentation.

Export()

virtual bool vtkChartRepresentation::Export ( vtkAbstractChartExporter *  vtkNotUsedexporter )

inlinevirtual

Called by vtkPVContextView::Export() to export the representation's data to a CSV file.

Return false on failure which will call the exporting process to abort and raise an error. Default implementation simply returns false.

Definition at line 146 of file vtkChartRepresentation.h.

FillInputPortInformation()

int vtkChartRepresentation::FillInputPortInformation ( int  port, vtkInformation *  info  )

overrideprotectedvirtual

Fill input port information.

Reimplemented from vtkPassInputTypeAlgorithm.

PrepareForRendering()

virtual void vtkChartRepresentation::PrepareForRendering ( )

inlineprotectedvirtual

This method is called before actual render if this->MTime was modified since the last time this method was called.

Subclasses should override to update "appearance" related changes that don't affect data. When this method is called, you're assured that this->ContextView is valid. Note that this method will not be called if this->GetVisibility() returns false, this subclasses should also override SetVisibility() to hide "actors" and such.

Reimplemented in vtkXYChartRepresentation, vtkPVPlotMatrixRepresentation, vtkPVHistogramChartRepresentation, vtkQuartileChartRepresentation, vtkPVParallelCoordinatesRepresentation, vtkPVBoxChartRepresentation, and vtkPVImageChartRepresentation.

Definition at line 167 of file vtkChartRepresentation.h.

RequestData()

int vtkChartRepresentation::RequestData ( vtkInformation *  , vtkInformationVector **  , vtkInformationVector *    )

overrideprotectedvirtual

Subclasses should override this to connect inputs to the internal pipeline as necessary.

Since most representations are "meta-filters" (i.e. filters containing other filters), you should create shallow copies of your input before connecting to the internal pipeline. The convenience method GetInternalOutputPort will create a cached shallow copy of a specified input for you. The related helper functions GetInternalAnnotationOutputPort, GetInternalSelectionOutputPort should be used to obtain a selection or annotation port whose selections are localized for a particular input data object.

Reimplemented from vtkDataRepresentation.

Reimplemented in vtkXYChartRepresentation.

AddToView()

bool vtkChartRepresentation::AddToView ( vtkView *  view )

overrideprotected

Adds the representation to the view.

This is called from vtkView::AddRepresentation(). Subclasses should override this method. Returns true if the addition succeeds.

RemoveFromView()

bool vtkChartRepresentation::RemoveFromView ( vtkView *  view )

overrideprotected

Removes the representation to the view.

This is called from vtkView::RemoveRepresentation(). Subclasses should override this method. Returns true if the removal succeeds.

GetLocalOutput() [1/2]

vtkTable* vtkChartRepresentation::GetLocalOutput ( bool  pre_delivery = false )

protected

Convenience method to get the first vtkTable from LocalOutput, if any.

If pre_delivery is true (default is false), then the data from most-recent REQUEST_UPDATE pass is used otherwise the delivered data object from most recent REQUEST_RENDER pass is used.

TransformInputData()

virtual vtkSmartPointer<vtkDataObject> vtkChartRepresentation::TransformInputData ( vtkDataObject *  data )

protectedvirtual

Method to be overridden to transform input data.

The default implementation just returns the data object provided in parameter.

Reimplemented in vtkPVHistogramChartRepresentation.

ReduceDataToRoot()

virtual vtkSmartPointer<vtkDataObject> vtkChartRepresentation::ReduceDataToRoot ( vtkDataObject *  data )

protectedvirtual

Chart representation/views expect that the data is reduced to root node and then passed on the rendering nodes.

This method may be overridden to customize the reduction. The default implementation uses vtkBlockDeliveryPreprocessor to convert to tables and then use vtkPVMergeTablesMultiBlock as the reduction algorithm.

Reimplemented in vtkPVImageChartRepresentation.

TransformTable()

virtual vtkSmartPointer<vtkDataObject> vtkChartRepresentation::TransformTable ( vtkSmartPointer< vtkDataObject >  table )

protectedvirtual

Method to be overridden to apply an operation of the table after it is gathered to the first rank for rendering the chart.

This allows subclasses to operate on the final table. The default implementation just returns the input.

Reimplemented in vtkXYChartRepresentation.

GetLocalOutput() [2/2]

bool vtkChartRepresentation::GetLocalOutput ( MapOfTables &  tables )

protected

Convenience method to get all vtkTable instances with their associated names.

Member Data Documentation

FieldAssociation

int vtkChartRepresentation::FieldAssociation

protected

Definition at line 233 of file vtkChartRepresentation.h.

ContextView

vtkWeakPointer<vtkPVContextView> vtkChartRepresentation::ContextView

protected

Definition at line 234 of file vtkChartRepresentation.h.

FlattenTable

int vtkChartRepresentation::FlattenTable

protected

Definition at line 235 of file vtkChartRepresentation.h.

LocalOutput

vtkSmartPointer<vtkMultiBlockDataSet> vtkChartRepresentation::LocalOutput

protected

Definition at line 237 of file vtkChartRepresentation.h.

CompositeIndices

std::set<unsigned int> vtkChartRepresentation::CompositeIndices

protected

Definition at line 238 of file vtkChartRepresentation.h.

SelectionRepresentation

vtkWeakPointer<vtkChartSelectionRepresentation> vtkChartRepresentation::SelectionRepresentation

protected

Definition at line 240 of file vtkChartRepresentation.h.

---

The documentation for this class was generated from the following file:

• /builds/gitlab-kitware-sciviz-ci/Remoting/Views/vtkChartRepresentation.h
