coordinates rendering between corresponding renderers across multiple processes More...

#include <vtkPVSynchronizedRenderer.h>

Inheritance diagram for vtkPVSynchronizedRenderer:

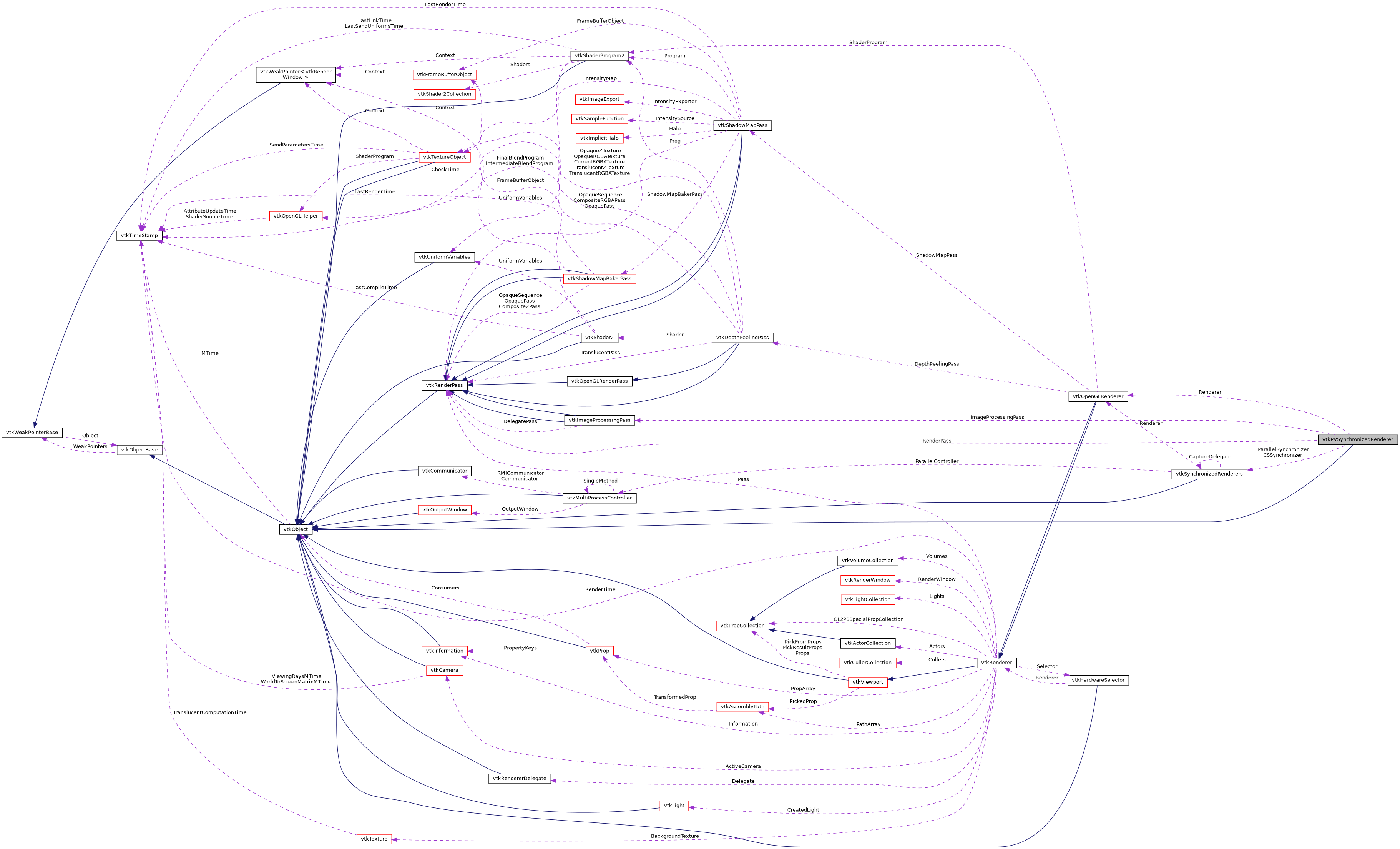

Collaboration diagram for vtkPVSynchronizedRenderer:

[legend]

Public Types
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

void	Initialize (vtkPVSession *session)
	Must be called once to initialize the instance. More...

void	SetOrderedCompositingHelper (vtkOrderedCompositingHelper *helper)
	Used to determine sorting order and use ordered compositing. More...

void	SetRenderer (vtkRenderer *)
	Set the renderer that is being synchronized. More...

void	SetUseDepthBuffer (bool)
	Activates or de-activated the use of Depth Buffer in an ImageProcessingPass. More...

void	SetRenderEmptyImages (bool)
	Enable/Disable empty images optimization. More...

void	SetNVPipeSupport (bool)
	Enable/Disable NVPipe. More...


virtual void	SetDisableIceT (bool)
	Set this flag to true before calling Initialize() to disable using vtkIceTSynchronizedRenderers for parallel rendering. More...

virtual bool	GetDisableIceT ()
	Set this flag to true before calling Initialize() to disable using vtkIceTSynchronizedRenderers for parallel rendering. More...


virtual void	SetEnabled (bool enabled)
	Enable/Disable parallel rendering. More...

virtual bool	GetEnabled ()
	Enable/Disable parallel rendering. More...

virtual void	EnabledOn ()
	Enable/Disable parallel rendering. More...

virtual void	EnabledOff ()
	Enable/Disable parallel rendering. More...


void	SetImageReductionFactor (int)
	Get/Set the image reduction factor. More...

virtual int	GetImageReductionFactor ()
	Get/Set the image reduction factor. More...


void	SetDataReplicatedOnAllProcesses (bool)
	Set to true if data is replicated on all processes. More...

virtual bool	GetDataReplicatedOnAllProcesses ()
	Set to true if data is replicated on all processes. More...

virtual void	DataReplicatedOnAllProcessesOn ()
	Set to true if data is replicated on all processes. More...

virtual void	DataReplicatedOnAllProcessesOff ()
	Set to true if data is replicated on all processes. More...


void	SetImageProcessingPass (vtkImageProcessingPass *)
	Get/Set an image processing pass to process the rendered images. More...

virtual vtkImageProcessingPass *	GetImageProcessingPass ()
	Get/Set an image processing pass to process the rendered images. More...


void	SetRenderPass (vtkRenderPass *)
	Get/Set geometry rendering pass. More...

virtual vtkRenderPass *	GetRenderPass ()
	Get/Set geometry rendering pass. More...


void	ConfigureCompressor (const char *configuration)
	Passes the compressor configuration to the client-server synchronizer, if any. More...

void	SetLossLessCompression (bool)
	Passes the compressor configuration to the client-server synchronizer, if any. More...


void	SetEnableRayTracing (bool val)
	State flags to turn on specialized treatment for ray tracing. More...

virtual bool	GetEnableRayTracing ()
	State flags to turn on specialized treatment for ray tracing. More...

void	SetEnablePathTracing (bool val)
	State flags to turn on specialized treatment for ray tracing. More...

virtual bool	GetEnablePathTracing ()
	State flags to turn on specialized treatment for ray tracing. More...


virtual vtkSynchronizedRenderers *	GetParallelSynchronizer ()
	Not for the faint hearted. More...

virtual vtkSynchronizedRenderers *	GetCSSynchronizer ()
	Not for the faint hearted. More...


virtual void	SetUseFXAA (bool use)
	Enable/disable FXAA antialiasing. More...

virtual bool	GetUseFXAA ()
	Enable/disable FXAA antialiasing. More...


virtual vtkFXAAOptions *	GetFXAAOptions ()
	Set/Get FXAA options. More...

virtual void	SetFXAAOptions (vtkFXAAOptions *)
	Set/Get FXAA options. More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkPVSynchronizedRenderer *	New ()

static int	IsTypeOf (const char *type)

static vtkPVSynchronizedRenderer *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkPVSynchronizedRenderer ()

	~vtkPVSynchronizedRenderer () override

virtual void	SetupPasses ()
	Sets up the render passes on the renderer. More...

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Protected Attributes
vtkSynchronizedRenderers *	CSSynchronizer

vtkSynchronizedRenderers *	ParallelSynchronizer

vtkImageProcessingPass *	ImageProcessingPass

vtkRenderPass *	RenderPass

bool	Enabled

bool	DisableIceT

int	ImageReductionFactor

vtkOpenGLRenderer *	Renderer

bool	UseDepthBuffer

bool	RenderEmptyImages

bool	DataReplicatedOnAllProcesses

bool	EnableRayTracing

bool	EnablePathTracing

bool	UseFXAA = false

vtkFXAAOptions *	FXAAOptions = nullptr

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Detailed Description

coordinates rendering between corresponding renderers across multiple processes

vtkPVSynchronizedRenderer coordinates rendering between renderers that are split across multiple ranks. It internally uses other vtkSynchronizedRenderers subclasses based on the operation mode to do the actual coordination such as vtkCaveSynchronizedRenderers, vtkIceTSynchronizedRenderers, vtkPVClientServerSynchronizedRenderers and vtkCompositedSynchronizedRenderers.

Definition at line 33 of file vtkPVSynchronizedRenderer.h.

Member Typedef Documentation

◆ Superclass

typedef vtkObject vtkPVSynchronizedRenderer::Superclass

Definition at line 37 of file vtkPVSynchronizedRenderer.h.

Constructor & Destructor Documentation

◆ vtkPVSynchronizedRenderer()

vtkPVSynchronizedRenderer::vtkPVSynchronizedRenderer ( )

protected

◆ ~vtkPVSynchronizedRenderer()

vtkPVSynchronizedRenderer::~vtkPVSynchronizedRenderer ( )

overrideprotected

Member Function Documentation

◆ New()

static vtkPVSynchronizedRenderer* vtkPVSynchronizedRenderer::New ( )

static

◆ GetClassName()

virtual const char* vtkPVSynchronizedRenderer::GetClassName ( )

virtual

◆ IsTypeOf()

static int vtkPVSynchronizedRenderer::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkPVSynchronizedRenderer::IsA ( const char * type )

virtual

Reimplemented from vtkObjectBase.

◆ SafeDownCast()

static vtkPVSynchronizedRenderer* vtkPVSynchronizedRenderer::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkPVSynchronizedRenderer::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkObject.

◆ SetDisableIceT()

virtual void vtkPVSynchronizedRenderer::SetDisableIceT ( bool )

virtual

Set this flag to true before calling Initialize() to disable using vtkIceTSynchronizedRenderers for parallel rendering.

Default value is setup using vtkPVRenderViewSettings::GetDisableIceT.

◆ GetDisableIceT()

virtual bool vtkPVSynchronizedRenderer::GetDisableIceT ( )

virtual

Set this flag to true before calling Initialize() to disable using vtkIceTSynchronizedRenderers for parallel rendering.

Default value is setup using vtkPVRenderViewSettings::GetDisableIceT.

◆ Initialize()

void vtkPVSynchronizedRenderer::Initialize ( vtkPVSession * session )

Must be called once to initialize the instance.

This will create appropriate internal vtkSynchronizedRenderers subclasses based on the process type and session provided.

◆ SetOrderedCompositingHelper()

void vtkPVSynchronizedRenderer::SetOrderedCompositingHelper ( vtkOrderedCompositingHelper * helper )

Used to determine sorting order and use ordered compositing.

Set to nullptr to not use ordered compositing and instead use depth-buffer based compositing, if applicable.

◆ SetRenderer()

void vtkPVSynchronizedRenderer::SetRenderer ( vtkRenderer * )

Set the renderer that is being synchronized.

◆ SetEnabled()

virtual void vtkPVSynchronizedRenderer::SetEnabled ( bool enabled )

virtual

Enable/Disable parallel rendering.

◆ GetEnabled()

virtual bool vtkPVSynchronizedRenderer::GetEnabled ( )

virtual

Enable/Disable parallel rendering.

◆ EnabledOn()

virtual void vtkPVSynchronizedRenderer::EnabledOn ( )

virtual

Enable/Disable parallel rendering.

◆ EnabledOff()

virtual void vtkPVSynchronizedRenderer::EnabledOff ( )

virtual

Enable/Disable parallel rendering.

◆ SetImageReductionFactor()

void vtkPVSynchronizedRenderer::SetImageReductionFactor ( int )

Get/Set the image reduction factor.

This needs to be set on all processes and must match up.

◆ GetImageReductionFactor()

virtual int vtkPVSynchronizedRenderer::GetImageReductionFactor ( )

virtual

Get/Set the image reduction factor.

This needs to be set on all processes and must match up.

◆ SetDataReplicatedOnAllProcesses()

void vtkPVSynchronizedRenderer::SetDataReplicatedOnAllProcesses ( bool )

Set to true if data is replicated on all processes.

This will enable IceT to minimize communications since data is available on all process. Off by default.

◆ GetDataReplicatedOnAllProcesses()

virtual bool vtkPVSynchronizedRenderer::GetDataReplicatedOnAllProcesses ( )

virtual

Set to true if data is replicated on all processes.

This will enable IceT to minimize communications since data is available on all process. Off by default.

◆ DataReplicatedOnAllProcessesOn()

virtual void vtkPVSynchronizedRenderer::DataReplicatedOnAllProcessesOn ( )

virtual

Set to true if data is replicated on all processes.

This will enable IceT to minimize communications since data is available on all process. Off by default.

◆ DataReplicatedOnAllProcessesOff()

virtual void vtkPVSynchronizedRenderer::DataReplicatedOnAllProcessesOff ( )

virtual

Set to true if data is replicated on all processes.

This will enable IceT to minimize communications since data is available on all process. Off by default.

◆ SetImageProcessingPass()

void vtkPVSynchronizedRenderer::SetImageProcessingPass ( vtkImageProcessingPass * )

Get/Set an image processing pass to process the rendered images.

◆ GetImageProcessingPass()

virtual vtkImageProcessingPass* vtkPVSynchronizedRenderer::GetImageProcessingPass ( )

virtual

Get/Set an image processing pass to process the rendered images.

◆ SetRenderPass()

void vtkPVSynchronizedRenderer::SetRenderPass ( vtkRenderPass * )

Get/Set geometry rendering pass.

This pass is used to render the geometry. If none specified then default rendering pipeline is used. This is typically the render-pass pipeline after the CameraPass. The CameraPass is setup by ParaView specially since ParaView needs some customizations for multiviews/icet etc.

◆ GetRenderPass()

virtual vtkRenderPass* vtkPVSynchronizedRenderer::GetRenderPass ( )

virtual

Get/Set geometry rendering pass.

This pass is used to render the geometry. If none specified then default rendering pipeline is used. This is typically the render-pass pipeline after the CameraPass. The CameraPass is setup by ParaView specially since ParaView needs some customizations for multiviews/icet etc.

◆ ConfigureCompressor()

void vtkPVSynchronizedRenderer::ConfigureCompressor ( const char * configuration )

Passes the compressor configuration to the client-server synchronizer, if any.

This affects the image compression used to relay images back to the client. See vtkPVClientServerSynchronizedRenderers::ConfigureCompressor() for details.

◆ SetLossLessCompression()

void vtkPVSynchronizedRenderer::SetLossLessCompression ( bool )

Passes the compressor configuration to the client-server synchronizer, if any.

This affects the image compression used to relay images back to the client. See vtkPVClientServerSynchronizedRenderers::ConfigureCompressor() for details.

◆ SetUseDepthBuffer()

void vtkPVSynchronizedRenderer::SetUseDepthBuffer ( bool )

Activates or de-activated the use of Depth Buffer in an ImageProcessingPass.

◆ SetRenderEmptyImages()

void vtkPVSynchronizedRenderer::SetRenderEmptyImages ( bool )

Enable/Disable empty images optimization.

◆ SetNVPipeSupport()

void vtkPVSynchronizedRenderer::SetNVPipeSupport ( bool )

Enable/Disable NVPipe.

◆ SetEnableRayTracing()

void vtkPVSynchronizedRenderer::SetEnableRayTracing ( bool val )

State flags to turn on specialized treatment for ray tracing.

◆ GetEnableRayTracing()

virtual bool vtkPVSynchronizedRenderer::GetEnableRayTracing ( )

virtual

State flags to turn on specialized treatment for ray tracing.

◆ SetEnablePathTracing()

void vtkPVSynchronizedRenderer::SetEnablePathTracing ( bool val )

State flags to turn on specialized treatment for ray tracing.

◆ GetEnablePathTracing()

virtual bool vtkPVSynchronizedRenderer::GetEnablePathTracing ( )

virtual

State flags to turn on specialized treatment for ray tracing.

◆ GetParallelSynchronizer()

virtual vtkSynchronizedRenderers* vtkPVSynchronizedRenderer::GetParallelSynchronizer ( )

virtual

Not for the faint hearted.

This internal vtkSynchronizedRenderers instances are exposed for advanced users that want to do advanced tricks with rendering. These will change without notice. Do not use them unless you know what you are doing. ParallelSynchronizer is the vtkSynchronizedRenderers used to synchronize rendering between processes in an MPI group – typically vtkIceTSynchronizedRenderers when available. CSSynchronizer is the client-server vtkSynchronizedRenderers used in client-server configurations.

◆ GetCSSynchronizer()

virtual vtkSynchronizedRenderers* vtkPVSynchronizedRenderer::GetCSSynchronizer ( )

virtual

Not for the faint hearted.

This internal vtkSynchronizedRenderers instances are exposed for advanced users that want to do advanced tricks with rendering. These will change without notice. Do not use them unless you know what you are doing. ParallelSynchronizer is the vtkSynchronizedRenderers used to synchronize rendering between processes in an MPI group – typically vtkIceTSynchronizedRenderers when available. CSSynchronizer is the client-server vtkSynchronizedRenderers used in client-server configurations.

◆ SetUseFXAA()

virtual void vtkPVSynchronizedRenderer::SetUseFXAA ( bool use )

virtual

Enable/disable FXAA antialiasing.

◆ GetUseFXAA()

virtual bool vtkPVSynchronizedRenderer::GetUseFXAA ( )

virtual

Enable/disable FXAA antialiasing.

◆ GetFXAAOptions()

virtual vtkFXAAOptions* vtkPVSynchronizedRenderer::GetFXAAOptions ( )

virtual

Set/Get FXAA options.

◆ SetFXAAOptions()

virtual void vtkPVSynchronizedRenderer::SetFXAAOptions ( vtkFXAAOptions * )

virtual

Set/Get FXAA options.

◆ SetupPasses()

virtual void vtkPVSynchronizedRenderer::SetupPasses ( )

protectedvirtual

Sets up the render passes on the renderer.

This won't get called on processes where vtkIceTSynchronizedRenderers is used. In that case the passes are forwarded to the vtkIceTSynchronizedRenderers instance.

Member Data Documentation

◆ CSSynchronizer

vtkSynchronizedRenderers* vtkPVSynchronizedRenderer::CSSynchronizer

protected

Definition at line 198 of file vtkPVSynchronizedRenderer.h.

◆ ParallelSynchronizer

vtkSynchronizedRenderers* vtkPVSynchronizedRenderer::ParallelSynchronizer

protected

Definition at line 199 of file vtkPVSynchronizedRenderer.h.

◆ ImageProcessingPass

vtkImageProcessingPass* vtkPVSynchronizedRenderer::ImageProcessingPass

protected

Definition at line 200 of file vtkPVSynchronizedRenderer.h.

◆ RenderPass

vtkRenderPass* vtkPVSynchronizedRenderer::RenderPass

protected

Definition at line 201 of file vtkPVSynchronizedRenderer.h.

◆ Enabled

bool vtkPVSynchronizedRenderer::Enabled

protected

Definition at line 203 of file vtkPVSynchronizedRenderer.h.

◆ DisableIceT

bool vtkPVSynchronizedRenderer::DisableIceT

protected

Definition at line 204 of file vtkPVSynchronizedRenderer.h.

◆ ImageReductionFactor

int vtkPVSynchronizedRenderer::ImageReductionFactor

protected

Definition at line 205 of file vtkPVSynchronizedRenderer.h.

◆ Renderer

vtkOpenGLRenderer* vtkPVSynchronizedRenderer::Renderer

protected

Definition at line 206 of file vtkPVSynchronizedRenderer.h.

◆ UseDepthBuffer

bool vtkPVSynchronizedRenderer::UseDepthBuffer

protected

Definition at line 208 of file vtkPVSynchronizedRenderer.h.

◆ RenderEmptyImages

bool vtkPVSynchronizedRenderer::RenderEmptyImages

protected

Definition at line 209 of file vtkPVSynchronizedRenderer.h.

◆ DataReplicatedOnAllProcesses

bool vtkPVSynchronizedRenderer::DataReplicatedOnAllProcesses

protected

Definition at line 210 of file vtkPVSynchronizedRenderer.h.

◆ EnableRayTracing

bool vtkPVSynchronizedRenderer::EnableRayTracing

protected

Definition at line 212 of file vtkPVSynchronizedRenderer.h.

◆ EnablePathTracing

bool vtkPVSynchronizedRenderer::EnablePathTracing

protected

Definition at line 213 of file vtkPVSynchronizedRenderer.h.

◆ UseFXAA

bool vtkPVSynchronizedRenderer::UseFXAA = false

protected

Definition at line 215 of file vtkPVSynchronizedRenderer.h.

◆ FXAAOptions

vtkFXAAOptions* vtkPVSynchronizedRenderer::FXAAOptions = nullptr

protected

Definition at line 216 of file vtkPVSynchronizedRenderer.h.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Remoting/Views/vtkPVSynchronizedRenderer.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ Superclass

Constructor & Destructor Documentation

◆ vtkPVSynchronizedRenderer()

◆ ~vtkPVSynchronizedRenderer()

Member Function Documentation

◆ New()

◆ GetClassName()

◆ IsTypeOf()

◆ IsA()

◆ SafeDownCast()

◆ PrintSelf()

◆ SetDisableIceT()

◆ GetDisableIceT()

◆ Initialize()

◆ SetOrderedCompositingHelper()

◆ SetRenderer()

◆ SetEnabled()

◆ GetEnabled()

◆ EnabledOn()

◆ EnabledOff()

◆ SetImageReductionFactor()

◆ GetImageReductionFactor()

◆ SetDataReplicatedOnAllProcesses()

◆ GetDataReplicatedOnAllProcesses()

◆ DataReplicatedOnAllProcessesOn()

◆ DataReplicatedOnAllProcessesOff()

◆ SetImageProcessingPass()

◆ GetImageProcessingPass()

◆ SetRenderPass()

◆ GetRenderPass()

◆ ConfigureCompressor()

◆ SetLossLessCompression()

◆ SetUseDepthBuffer()

◆ SetRenderEmptyImages()

◆ SetNVPipeSupport()

◆ SetEnableRayTracing()

◆ GetEnableRayTracing()

◆ SetEnablePathTracing()

◆ GetEnablePathTracing()

◆ GetParallelSynchronizer()

◆ GetCSSynchronizer()

◆ SetUseFXAA()

◆ GetUseFXAA()

◆ GetFXAAOptions()

◆ SetFXAAOptions()

◆ SetupPasses()

Member Data Documentation

◆ CSSynchronizer

◆ ParallelSynchronizer

◆ ImageProcessingPass

◆ RenderPass

◆ Enabled

◆ DisableIceT

◆ ImageReductionFactor

◆ Renderer

◆ UseDepthBuffer

◆ RenderEmptyImages

◆ DataReplicatedOnAllProcesses

◆ EnableRayTracing

◆ EnablePathTracing

◆ UseFXAA

◆ FXAAOptions
