helper class to write animation geometry in a data file. More...

#include <vtkSMAnimationSceneGeometryWriter.h>

Inheritance diagram for vtkSMAnimationSceneGeometryWriter:

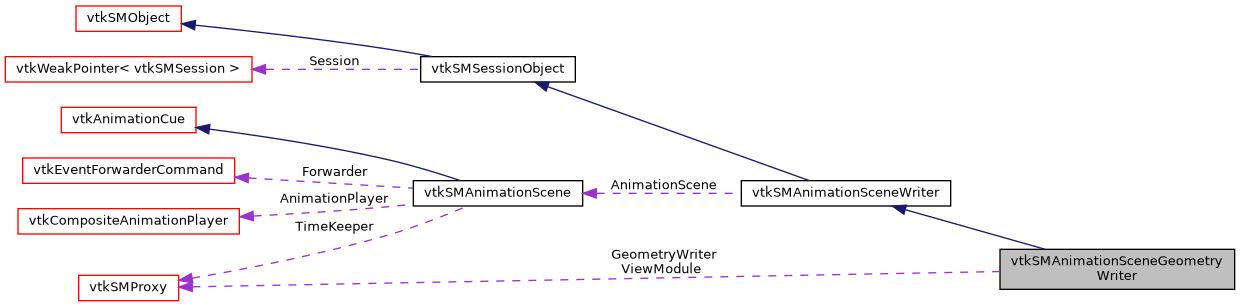

Collaboration diagram for vtkSMAnimationSceneGeometryWriter:

[legend]

Public Types
typedef vtkSMAnimationSceneWriter	Superclass

Public Types inherited from vtkSMAnimationSceneWriter
typedef vtkSMSessionObject	Superclass

Public Types inherited from vtkSMSessionObject
typedef vtkSMObject	Superclass

Public Types inherited from vtkSMObject
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

virtual vtkSMProxy *	GetViewModule ()

void	SetViewModule (vtkSMProxy *)

Public Member Functions inherited from vtkSMAnimationSceneWriter
void	PrintSelf (ostream &os, vtkIndent indent) override

virtual void	SetAnimationScene (vtkSMProxy *)
	Convenience method to set the proxy. More...

bool	Save ()
	Begin the saving. More...

virtual void	SetAnimationScene (vtkSMAnimationScene *)
	Get/Set the animation scene that this writer will write. More...

virtual vtkSMAnimationScene *	GetAnimationScene ()
	Get/Set the animation scene that this writer will write. More...

virtual void	SetFileName (const char *)
	Get/Set the filename. More...

virtual char *	GetFileName ()
	Get/Set the filename. More...

virtual void	SetStartFileCount (int)
	Get/Set the start file count. More...

virtual int	GetStartFileCount ()
	Get/Set the start file count. More...

virtual void	SetPlaybackTimeWindow (double, double)
	Get/Set time window that we want to write If PlaybackTimeWindow[0] > PlaybackTimeWindow[1] that mean that we want to export the full time range available. More...

void	SetPlaybackTimeWindow (double [2])
	Get/Set time window that we want to write If PlaybackTimeWindow[0] > PlaybackTimeWindow[1] that mean that we want to export the full time range available. More...

virtual double *	GetPlaybackTimeWindow ()
	Get/Set time window that we want to write If PlaybackTimeWindow[0] > PlaybackTimeWindow[1] that mean that we want to export the full time range available. More...

virtual void	GetPlaybackTimeWindow (double &, double &)
	Get/Set time window that we want to write If PlaybackTimeWindow[0] > PlaybackTimeWindow[1] that mean that we want to export the full time range available. More...

virtual void	GetPlaybackTimeWindow (double [2])
	Get/Set time window that we want to write If PlaybackTimeWindow[0] > PlaybackTimeWindow[1] that mean that we want to export the full time range available. More...

virtual void	SetStride (int)
	Set/Get The stride which is used to extract the next frame. More...

virtual int	GetStride ()
	Set/Get The stride which is used to extract the next frame. More...

Public Member Functions inherited from vtkSMSessionObject
void	PrintSelf (ostream &os, vtkIndent indent) override

virtual vtkSMSessionProxyManager *	GetSessionProxyManager ()
	Return the corresponding ProxyManager if any. More...

virtual void	SetSession (vtkSMSession *)
	Get/Set the session on wihch this object exists. More...

virtual vtkSMSession *	GetSession ()
	Get/Set the session on wihch this object exists. More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkSMAnimationSceneGeometryWriter *	New ()

static int	IsTypeOf (const char *type)

static vtkSMAnimationSceneGeometryWriter *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMAnimationSceneWriter
static int	IsTypeOf (const char *type)

static vtkSMAnimationSceneWriter *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMSessionObject
static vtkSMSessionObject *	New ()

static int	IsTypeOf (const char *type)

static vtkSMSessionObject *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMObject
static vtkSMObject *	New ()

static int	IsTypeOf (const char *type)

static vtkSMObject *	SafeDownCast (vtkObject *o)

static std::string	CreatePrettyLabel (const std::string &name)
	Return a well-formated label using provided name by adding spaces between lower cases and upper cases: More...

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkSMAnimationSceneGeometryWriter ()

	~vtkSMAnimationSceneGeometryWriter () override

bool	SaveInitialize (int startCount) override
	Called to initialize saving. More...

bool	SaveFrame (double time) override
	Called to save a particular frame. More...

bool	SaveFinalize () override
	Called to finalize saving. More...

Protected Member Functions inherited from vtkSMAnimationSceneWriter
	vtkSMAnimationSceneWriter ()

	~vtkSMAnimationSceneWriter () override

void	ExecuteEvent (vtkObject caller, unsigned long eventid, void calldata)

Protected Member Functions inherited from vtkSMSessionObject
	vtkSMSessionObject ()

	~vtkSMSessionObject () override

Protected Member Functions inherited from vtkSMObject
	vtkSMObject ()

	~vtkSMObject () override

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Protected Attributes
vtkSMProxy *	GeometryWriter

vtkSMProxy *	ViewModule

Protected Attributes inherited from vtkSMAnimationSceneWriter
unsigned long	ObserverID

vtkSMAnimationScene *	AnimationScene

bool	Saving

bool	SaveFailed

char *	FileName

double	PlaybackTimeWindow [2]

int	StartFileCount

int	Stride = 1

Protected Attributes inherited from vtkSMSessionObject
vtkWeakPointer< vtkSMSession >	Session
	Identifies the session id to which this object is related. More...

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Detailed Description

helper class to write animation geometry in a data file.

vtkSMAnimationSceneGeometryWriter is a concrete implementation of vtkSMAnimationSceneWriter that can write the geometry as a data file. This writer can only write the visible geometry in one view.

Definition at line 21 of file vtkSMAnimationSceneGeometryWriter.h.

Member Typedef Documentation

◆ Superclass

typedef vtkSMAnimationSceneWriter vtkSMAnimationSceneGeometryWriter::Superclass

Definition at line 26 of file vtkSMAnimationSceneGeometryWriter.h.

Constructor & Destructor Documentation

◆ vtkSMAnimationSceneGeometryWriter()

vtkSMAnimationSceneGeometryWriter::vtkSMAnimationSceneGeometryWriter ( )

protected

◆ ~vtkSMAnimationSceneGeometryWriter()

vtkSMAnimationSceneGeometryWriter::~vtkSMAnimationSceneGeometryWriter ( )

overrideprotected

Member Function Documentation

◆ New()

static vtkSMAnimationSceneGeometryWriter* vtkSMAnimationSceneGeometryWriter::New ( )

static

◆ GetClassName()

virtual const char* vtkSMAnimationSceneGeometryWriter::GetClassName ( )

virtual

Reimplemented from vtkSMAnimationSceneWriter.

◆ IsTypeOf()

static int vtkSMAnimationSceneGeometryWriter::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkSMAnimationSceneGeometryWriter::IsA ( const char * type )

virtual

Reimplemented from vtkSMAnimationSceneWriter.

◆ SafeDownCast()

static vtkSMAnimationSceneGeometryWriter* vtkSMAnimationSceneGeometryWriter::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkSMAnimationSceneGeometryWriter::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkObject.

◆ GetViewModule()

virtual vtkSMProxy* vtkSMAnimationSceneGeometryWriter::GetViewModule ( )

virtual

◆ SetViewModule()

void vtkSMAnimationSceneGeometryWriter::SetViewModule ( vtkSMProxy * )

◆ SaveInitialize()

bool vtkSMAnimationSceneGeometryWriter::SaveInitialize ( int startCount )

overrideprotectedvirtual

Called to initialize saving.

Implements vtkSMAnimationSceneWriter.

◆ SaveFrame()

bool vtkSMAnimationSceneGeometryWriter::SaveFrame ( double time )

overrideprotectedvirtual

Called to save a particular frame.

Implements vtkSMAnimationSceneWriter.

◆ SaveFinalize()

bool vtkSMAnimationSceneGeometryWriter::SaveFinalize ( )

overrideprotectedvirtual

Called to finalize saving.

Implements vtkSMAnimationSceneWriter.

Member Data Documentation

◆ GeometryWriter

vtkSMProxy* vtkSMAnimationSceneGeometryWriter::GeometryWriter

protected

Definition at line 53 of file vtkSMAnimationSceneGeometryWriter.h.

◆ ViewModule

vtkSMProxy* vtkSMAnimationSceneGeometryWriter::ViewModule

protected

Definition at line 54 of file vtkSMAnimationSceneGeometryWriter.h.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Remoting/Animation/vtkSMAnimationSceneGeometryWriter.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ Superclass

Constructor & Destructor Documentation

◆ vtkSMAnimationSceneGeometryWriter()

◆ ~vtkSMAnimationSceneGeometryWriter()

Member Function Documentation

◆ New()

◆ GetClassName()

◆ IsTypeOf()

◆ IsA()

◆ SafeDownCast()

◆ PrintSelf()

◆ GetViewModule()

◆ SetViewModule()

◆ SaveInitialize()

◆ SaveFrame()

◆ SaveFinalize()

Member Data Documentation

◆ GeometryWriter

◆ ViewModule
