controller for extract generation More...

#include <vtkSMExtractsController.h>

Inheritance diagram for vtkSMExtractsController:

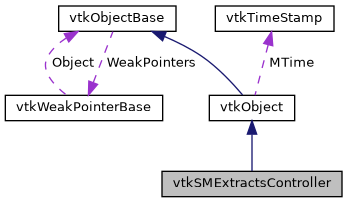

Collaboration diagram for vtkSMExtractsController:

[legend]

Public Types
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

const char *	GetRealExtractsOutputDirectory () const
	Returns the extract output directory to use. More...

bool	Extract (vtkSMProxy *extractor)
	Generate the extract for the current state. More...

bool	Extract (vtkSMSessionProxyManager *pxm)
	Generate the extract for the current state. More...

bool	Extract ()
	Generate the extract for the current state. More...

bool	Extract (vtkCollection *collection)
	Generate extract s for the current state using only the extractors in the collection. More...

bool	IsTriggerActivated (vtkSMProxy *extractor)
	Same as `IsAnyTriggerActivated` except only check the selected extractor's trigger definition. More...

std::vector< vtkSMProxy * >	FindExtractors (vtkSMProxy *proxy) const
	Returns a list of extractors associated with the proxy. More...

std::vector< vtkSMProxy * >	GetSupportedExtractorPrototypes (vtkSMProxy *proxy) const
	Returns a list of prototype proxies for extractors that can be attached to the given `proxy`. More...

bool	CanExtract (vtkSMProxy extractor, const std::vector< vtkSMProxy > &inputs) const
	Returns true is the given extractor (or prototype of the same) can extract the selected set of proxies at the same time. More...

bool	CanExtract (vtkSMProxy extractor, vtkSMProxy input) const

vtkSMProxy *	CreateSteeringExtractor (vtkSMProxy proxy, const char registrationName=nullptr) const
	Creates and initializes a new steering extractor. More...

vtkSMProxy *	GetInputForExtractor (vtkSMProxy *extractor) const
	Given an extractor proxy, returns the producer for the extractor, if any. More...

vtkTable *	GetSummaryTable () const
	Get access to the summary table generated so far. More...

void	ResetSummaryTable ()
	Reset summary table. More...

bool	SaveSummaryTable (const std::string &fname, vtkSMSessionProxyManager *pxm)
	Saves summary table to a file. More...


virtual void	SetTimeStep (int)
	Information about current time/timestep. More...

virtual int	GetTimeStep ()
	Information about current time/timestep. More...

virtual void	SetTime (double)
	Information about current time/timestep. More...

virtual double	GetTime ()
	Information about current time/timestep. More...


virtual void	SetExtractsOutputDirectory (const char *)
	Get/Set the root directory to use for writing extracts. More...

virtual char *	GetExtractsOutputDirectory ()
	Get/Set the root directory to use for writing extracts. More...


bool	IsAnyTriggerActivated (vtkSMSessionProxyManager *pxm)
	Check if any of the extractors registered with the chosen proxy-manager (or active proxy-manager, is none specified) has their trigger activated given the current state of the application and the values for Time and TimeStep set on the controller. More...

bool	IsAnyTriggerActivated ()
	Check if any of the extractors registered with the chosen proxy-manager (or active proxy-manager, is none specified) has their trigger activated given the current state of the application and the values for Time and TimeStep set on the controller. More...

bool	IsAnyTriggerActivated (vtkCollection *collection)
	Check if any of the extractors registered with the chosen proxy-manager (or active proxy-manager, is none specified) has their trigger activated given the current state of the application and the values for Time and TimeStep set on the controller. More...


vtkSMProxy *	CreateExtractor (vtkSMProxy proxy, const char xmlname, const char *registrationName=nullptr) const
	Creates, initializes and registers a new extractor of the chosen type. More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkSMExtractsController *	New ()

static int	IsTypeOf (const char *type)

static vtkSMExtractsController *	SafeDownCast (vtkObject *o)

static bool	IsExtractor (vtkSMProxy extractor, vtkSMProxy proxy)
	Returns true is the `extractor` is an extractor for the `proxy`. More...

static bool	IsExtractorEnabled (vtkSMProxy *extractor)
	Returns true of the extractor is enabled. More...

static void	SetExtractorEnabled (vtkSMProxy *extractor, bool val)
	Enable/disable an extractor. More...

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkSMExtractsController ()

	~vtkSMExtractsController () override

std::string	GetName (vtkSMExtractWriterProxy *writer)
	Returns a friendly name derived from the extract writer. More...


bool	CreateExtractsOutputDirectory (vtkSMSessionProxyManager *pxm) const
	These methods are intended to be use by vtkSMExtractWriterProxy and subclasses to ensure chosen output directories are created before attempting to generate extracts. More...

bool	CreateDir (const std::string &dname, vtkSMSessionProxyManager *pxm) const
	These methods are intended to be use by vtkSMExtractWriterProxy and subclasses to ensure chosen output directories are created before attempting to generate extracts. More...

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

using	SummaryParametersT = std::map< std::string, std::string >
	Called by vtkSMExtractWriterProxy subclasses to add an entry to the summary table. More...

bool	AddSummaryEntry (vtkSMExtractWriterProxy *writer, const std::string &filename, const SummaryParametersT &params=SummaryParametersT{})
	Called by vtkSMExtractWriterProxy subclasses to add an entry to the summary table. More...

Additional Inherited Members
Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Detailed Description

controller for extract generation

vtkSMExtractsController is a controllers that provides API to handle various aspects of extractors and extract generation mechanisms supported by ParaView.

It provides API to query, create extractors of known types. It also provides API to generate extracts using the defined extractors.

Summary of generated extracts

vtkSMExtractsController generates a summary table for all extracts generated. Each row in this summary table corresponds to an extract generated. Each column provides information about that extract. Filename for the extract is stored in a column named FILE_[type] where [type] is replaced by the extension of the file. Other columns are used to stored named values that characterize the extract.

Currently, this summary table is used to generated a Cinema specification which can be used to explore the generated extracts using Cinema tools (https://cinemascience.github.io/).

Definition at line 45 of file vtkSMExtractsController.h.

Member Typedef Documentation

◆ Superclass

typedef vtkObject vtkSMExtractsController::Superclass

Definition at line 49 of file vtkSMExtractsController.h.

◆ SummaryParametersT

using vtkSMExtractsController::SummaryParametersT = std::map<std::string, std::string>

Called by vtkSMExtractWriterProxy subclasses to add an entry to the summary table.

Note, this must be called for every extract written out by the extract writer.

Definition at line 209 of file vtkSMExtractsController.h.

Constructor & Destructor Documentation

◆ vtkSMExtractsController()

vtkSMExtractsController::vtkSMExtractsController ( )

protected

◆ ~vtkSMExtractsController()

vtkSMExtractsController::~vtkSMExtractsController ( )

overrideprotected

Member Function Documentation

◆ New()

static vtkSMExtractsController* vtkSMExtractsController::New ( )

static

◆ GetClassName()

virtual const char* vtkSMExtractsController::GetClassName ( )

virtual

◆ IsTypeOf()

static int vtkSMExtractsController::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkSMExtractsController::IsA ( const char * type )

virtual

Reimplemented from vtkObjectBase.

◆ SafeDownCast()

static vtkSMExtractsController* vtkSMExtractsController::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkSMExtractsController::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkObject.
