vtkGeometryRepresentationWithFaces extends vtkGeometryRepresentation to add support for rendering back and front faces separately (with different visibility and properties). More...

#include <vtkGeometryRepresentationWithFaces.h>

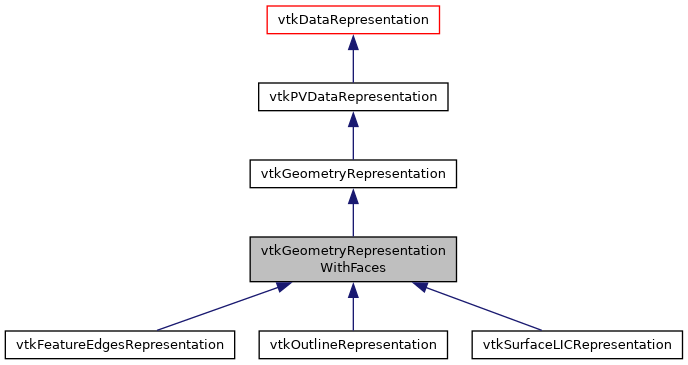

Inheritance diagram for vtkGeometryRepresentationWithFaces:

[legend]

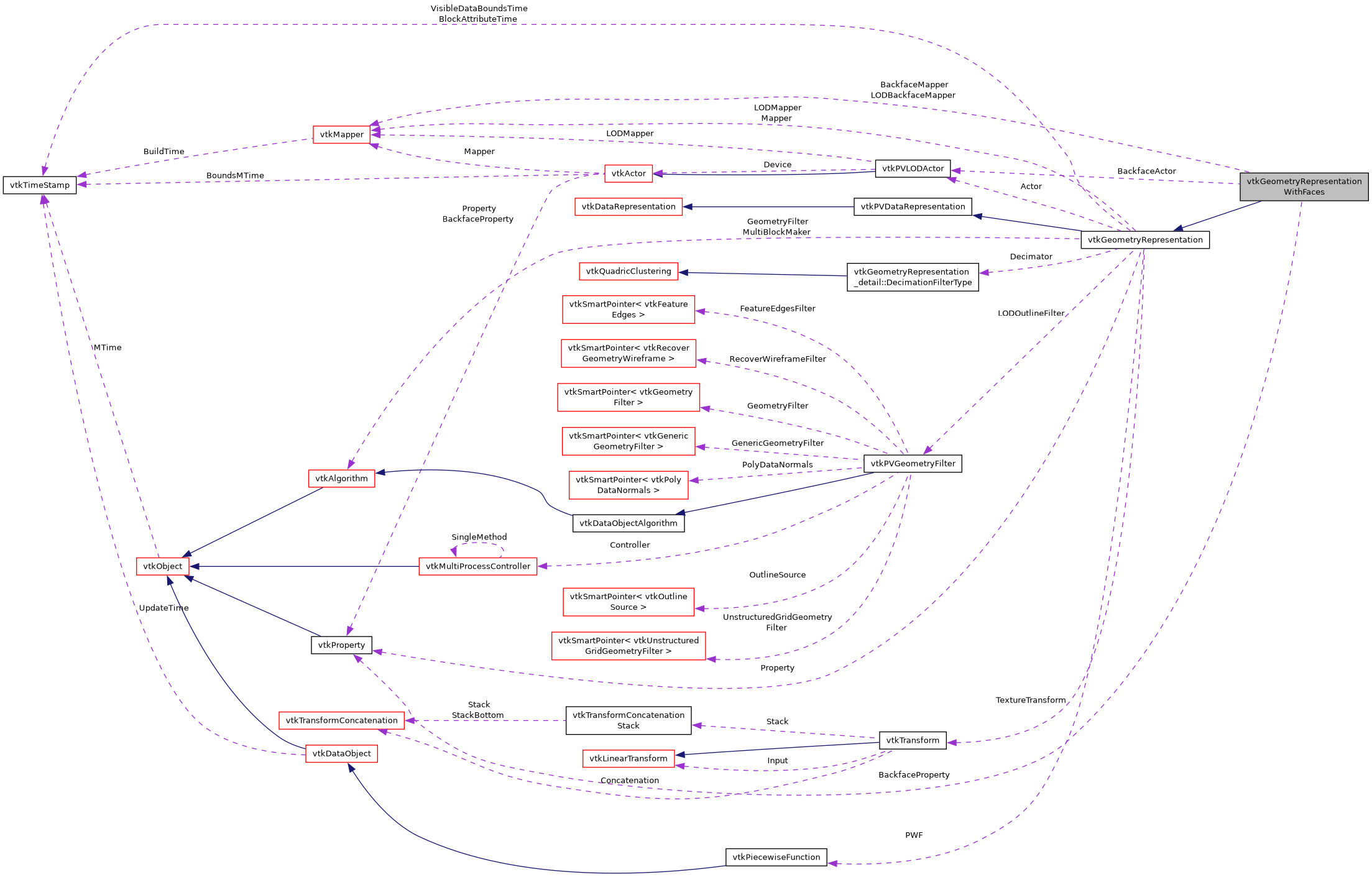

Collaboration diagram for vtkGeometryRepresentationWithFaces:

[legend]

Public Types
enum	RepresentationTypesEx { FOLLOW_FRONTFACE = 400, CULL_BACKFACE = 401, CULL_FRONTFACE = 402 }

typedef vtkGeometryRepresentation	Superclass

Public Types inherited from vtkGeometryRepresentation
enum	RepresentationTypes { POINTS = VTK_POINTS, WIREFRAME = VTK_WIREFRAME, SURFACE = VTK_SURFACE, SURFACE_WITH_EDGES = 3 }

typedef vtkPVDataRepresentation	Superclass

Public Types inherited from vtkPVDataRepresentation
enum	{ SkippedUpdateDataEvent = vtkCommand::UserEvent + 91, UpdateTimeChangedEvent }

typedef vtkDataRepresentation	Superclass

Public Types inherited from vtkDataRepresentation
typedef vtkPassInputTypeAlgorithm	Superclass

Public Types inherited from vtkPassInputTypeAlgorithm
typedef vtkAlgorithm	Superclass

Public Types inherited from vtkAlgorithm
enum	DesiredOutputPrecision

enum	DesiredOutputPrecision

typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

int	ProcessViewRequest (vtkInformationRequestKey request_type, vtkInformation inInfo, vtkInformation *outInfo) override
	vtkAlgorithm::ProcessRequest() equivalent for rendering passes. More...

void	SetVisibility (bool val) override
	Get/Set the visibility for this representation. More...

void	SetBackfaceAmbientColor (double r, double g, double b)

void	SetBackfaceDiffuseColor (double r, double g, double b)

void	SetBackfaceOpacity (double val)


virtual void	SetBackfaceRepresentation (int)
	Set the backface representation. More...

virtual int	GetBackfaceRepresentation ()
	Set the backface representation. More...

Public Member Functions inherited from vtkGeometryRepresentation
virtual void	SetSuppressLOD (bool suppress)
	Enable/Disable LOD;. More...

virtual void	SetRepresentation (const char *)
	Overload to set representation type using string. More...

vtkDataObject *	GetRenderedDataObject (int port) override
	Returns the data object that is rendered from the given input port. More...

virtual void	SetNormalArray (const char *val)
	Set the normal array used for smooth shading. More...

virtual void	SetTCoordArray (const char *val)
	Set the texture coordinates array used for texture mapping. More...

virtual void	SetTangentArray (const char *val)
	Set the tangent coordinates array used for normal mapping. More...

virtual void	SetUseOutline (int)

void	SetTriangulate (int)

void	SetNonlinearSubdivisionLevel (int)

void	SetMatchBoundariesIgnoringCellOrder (int)

virtual void	SetGenerateFeatureEdges (bool)

void	SetComputePointNormals (bool)

void	SetSplitting (bool)

void	SetFeatureAngle (double)

virtual void	SetAmbientColor (double r, double g, double b)

virtual void	SetColor (double r, double g, double b)

virtual void	SetDiffuseColor (double r, double g, double b)

virtual void	SetLighting (bool lighting)

virtual void	SetEdgeColor (double r, double g, double b)

virtual void	SetInteractiveSelectionColor (double r, double g, double b)

virtual void	SetInterpolation (int val)

virtual void	SetLineWidth (double val)

virtual void	SetOpacity (double val)

virtual void	SetEdgeOpacity (double val)

virtual void	SetPointSize (double val)

virtual void	SetSpecularColor (double r, double g, double b)

virtual void	SetSpecularPower (double val)

virtual void	SetLuminosity (double val)

virtual void	SetRenderPointsAsSpheres (bool)

virtual void	SetRenderLinesAsTubes (bool)

virtual void	SetRoughness (double val)

virtual void	SetMetallic (double val)

virtual void	SetEdgeTint (double r, double g, double b)

virtual void	SetAnisotropy (double val)

virtual void	SetAnisotropyRotation (double val)

virtual void	SetBaseIOR (double val)

virtual void	SetCoatIOR (double val)

virtual void	SetCoatStrength (double val)

virtual void	SetCoatRoughness (double val)

virtual void	SetCoatNormalScale (double val)

virtual void	SetCoatColor (double r, double g, double b)

virtual void	SetBaseColorTexture (vtkTexture *tex)

virtual void	SetMaterialTexture (vtkTexture *tex)

virtual void	SetAnisotropyTexture (vtkTexture *tex)

virtual void	SetNormalTexture (vtkTexture *tex)

virtual void	SetCoatNormalTexture (vtkTexture *tex)

virtual void	SetEmissiveTexture (vtkTexture *tex)

virtual void	SetNormalScale (double val)

virtual void	SetOcclusionStrength (double val)

virtual void	SetEmissiveFactor (double rval, double gval, double bval)

virtual void	SetShowTexturesOnBackface (bool)

virtual void	SetOrientation (double, double, double)

virtual void	SetOrigin (double, double, double)

virtual void	SetPickable (int val)

virtual void	SetPosition (double, double, double)

virtual void	SetScale (double, double, double)

virtual void	SetTexture (vtkTexture *)

virtual void	SetUserTransform (const double[16])

virtual void	SetFlipTextures (bool)

virtual void	SetCoordinateSystem (int)

virtual void	SetTextureTransform (vtkTransform *)

virtual vtkTransform *	GetTextureTransform ()

virtual void	SetRepeatTextures (bool)

virtual bool	GetRepeatTextures ()

virtual void	SetInterpolateTextures (bool)

virtual bool	GetInterpolateTextures ()

virtual void	SetUseMipmapTextures (bool)

virtual bool	GetUseMipmapTextures ()

virtual void	SetInterpolateScalarsBeforeMapping (int val)

virtual void	SetLookupTable (vtkScalarsToColors *val)

virtual void	SetColorMissingArraysWithNanColor (bool val)

virtual void	SetSeamlessU (bool)

virtual void	SetSeamlessV (bool)

virtual void	SetSelection (vtkSelection *selection)
	Sets the selection used by the mapper. More...

vtkPVLODActor *	GetActor ()
	Provides access to the actor used by this representation. More...

const char *	GetColorArrayName ()
	Convenience method to get the array name used to scalar color with. More...

virtual void	SetMaterial (const char *)
	For OSPRay, choose from among available materials. More...

virtual void	SetShaderReplacements (const char *)
	Specify shader replacements using a Json string. More...

void	SetArrayIdNames (const char pointArray, const char cellArray) override
	Specify the array names used for the selection. More...

void	SetBlockColorsDistinctValues (int distinctValues)
	Determines the number of distinct values in vtkBlockColors See also vtkPVGeometryFilter. More...

int	GetBlockColorsDistinctValues ()
	Determines the number of distinct values in vtkBlockColors See also vtkPVGeometryFilter. More...

virtual void	DisableLightingOn ()
	Disables the lighting on the object. More...

virtual void	DisableLightingOff ()
	Disables the lighting on the object. More...

virtual void	SetDisableLighting (bool)
	Disables the lighting on the object. More...

virtual bool	GetDisableLighting ()
	Disables the lighting on the object. More...

virtual void	SetAmbient (double)
	Set the lighting properties of the object. More...

virtual void	SetDiffuse (double)
	Set the lighting properties of the object. More...

virtual void	SetSpecular (double)
	Set the lighting properties of the object. More...

virtual double	GetAmbient ()
	Set the lighting properties of the object. More...

virtual double	GetDiffuse ()
	Set the lighting properties of the object. More...

virtual double	GetSpecular ()
	Set the lighting properties of the object. More...

void	SetCoordinateShiftScaleMethod (int val)
	Set the shift scale method for the point coordinates see vtkOpenGLVertexBufferObject.h for more information. More...

int	GetCoordinateShiftScaleMethod ()
	Set the shift scale method for the point coordinates see vtkOpenGLVertexBufferObject.h for more information. More...

virtual void	SetRepresentation (int)
	Set the representation type. More...

virtual int	GetRepresentation ()
	Set the representation type. More...

virtual void	SetRequestGhostCellsIfNeeded (bool)
	Representations that use geometry representation as the internal representation should turn this flag off so that we don't end up requesting ghost cells twice. More...

virtual bool	GetRequestGhostCellsIfNeeded ()
	Representations that use geometry representation as the internal representation should turn this flag off so that we don't end up requesting ghost cells twice. More...

virtual void	RequestGhostCellsIfNeededOn ()
	Representations that use geometry representation as the internal representation should turn this flag off so that we don't end up requesting ghost cells twice. More...

virtual void	RequestGhostCellsIfNeededOff ()
	Representations that use geometry representation as the internal representation should turn this flag off so that we don't end up requesting ghost cells twice. More...

virtual void	SetMapScalars (int val)
	Sets if scalars are mapped through a color-map or are used directly as colors. More...

virtual void	SetStatic (int val)
	Sets if scalars are mapped through a color-map or are used directly as colors. More...

virtual void	SetActiveAssembly (const char *)
	Get/Set the name of the assembly to use for mapping block visibilities, colors and opacities. More...

virtual char *	GetActiveAssembly ()
	Get/Set the name of the assembly to use for mapping block visibilities, colors and opacities. More...

void	AddBlockSelector (const char *selector)
	Update list of selectors that determine the selected blocks. More...

void	RemoveAllBlockSelectors ()
	Update list of selectors that determine the selected blocks. More...

void	SetBlockColor (const char *selector, double r, double g, double b)
	Set the color for a single block. More...

void	RemoveAllBlockColors ()
	Set the color for a single block. More...

void	SetBlockOpacity (const char *selector, double opacity)
	Set the opacity for a single block. More...

void	RemoveAllBlockOpacities ()
	Set the opacity for a single block. More...

void	SetBlockInterpolateScalarsBeforeMapping (const char *selector, bool interpolate)
	Set if to interpolate scalars before mapping for a single block. More...

void	RemoveAllBlockInterpolateScalarsBeforeMappings ()
	Set if to interpolate scalars before mapping for a single block. More...

void	SetBlockMapScalars (const char *selector, int val)
	Set the block to map scalars for a single block. More...

void	RemoveAllBlockMapScalars ()
	Set the block to map scalars for a single block. More...

void	SetBlockArrayName (const char selector, int assoc, const char arrayName)
	Set the color array for a single block. More...

void	RemoveAllBlockArrayNames ()
	Set the color array for a single block. More...

void	SetBlockLookupTable (vtkScalarsToColors *lut)
	Set the look up table for a single block. More...

void	RemoveAllBlockLookupTables ()
	Set the look up table for a single block. More...

virtual void	SetEnableScaling (int v)
	For OSPRay controls sizing of implicit spheres (points) and cylinders (lines) More...

virtual void	SetScalingArrayName (const char *)
	For OSPRay controls sizing of implicit spheres (points) and cylinders (lines) More...

virtual void	SetScalingFunction (vtkPiecewiseFunction *pwf)
	For OSPRay controls sizing of implicit spheres (points) and cylinders (lines) More...

virtual void	SetUseDataPartitions (bool)
	Specify whether or not to redistribute the data. More...

virtual bool	GetUseDataPartitions ()
	Specify whether or not to redistribute the data. More...

virtual void	SetUseShaderReplacements (bool)
	Specify whether or not to shader replacements string must be used. More...

virtual bool	GetUseShaderReplacements ()
	Specify whether or not to shader replacements string must be used. More...

void	SetPlaceHolderDataType (int datatype)
	Set/Get the placeholder data type. More...

virtual int	GetPlaceHolderDataType ()
	Set/Get the placeholder data type. More...

Public Member Functions inherited from vtkPVDataRepresentation
void	PrintSelf (ostream &os, vtkIndent indent) override

virtual void	MarkModified ()
	This is one of the most important functions. More...

virtual unsigned int	Initialize (unsigned int minIdAvailable, unsigned int maxIdAvailable)
	Initialize the representation with an identifier range so each internal representation can own a unique ID. More...

unsigned int	GetUniqueIdentifier ()
	Return 0 if the Initialize() method was not called otherwise a unique ID that will be shared across the processes for that same object. More...

virtual bool	GetVisibility ()

virtual vtkDataObject *	GetRenderedDataObject (int vtkNotUsed(port))
	Returns the data object that is rendered from the given input port. More...

double	GetCacheKey () const
	Returns the cache-key the representation is currently using. More...

vtkAlgorithmOutput *	GetInternalOutputPort () override
	Retrieves an output port for the input data object at the specified port and connection index. More...

vtkAlgorithmOutput *	GetInternalOutputPort (int port) override

vtkAlgorithmOutput *	GetInternalOutputPort (int port, int conn) override

vtkView *	GetView () const
	Provides access to the view. More...

vtkMTimeType	GetPipelineDataTime ()
	Returns the timestamp when `RequestData` was executed on the representation. More...

bool	GetNeedsUpdate ()
	Returns true if the representation needs an update. More...

virtual void	SetArrayIdNames (const char vtkNotUsed(pointArray), const char vtkNotUsed(cellArray))
	Specify the array names used for the selection. More...

virtual void	SetUpdateTime (double time)
	Set the update time. More...

virtual double	GetUpdateTime ()
	Set the update time. More...

virtual bool	GetUpdateTimeValid ()
	Get whether the UpdateTime is valid. More...

void	ResetUpdateTime ()
	Get whether the UpdateTime is valid. More...

virtual void	SetForcedCacheKey (double val)
	Generally, caching is within the purview of the vtkPVView (and subclasses). More...

virtual void	SetForceUseCache (bool val)
	Generally, caching is within the purview of the vtkPVView (and subclasses). More...

virtual double	GetForcedCacheKey ()
	Generally, caching is within the purview of the vtkPVView (and subclasses). More...

virtual bool	GetForceUseCache ()
	Generally, caching is within the purview of the vtkPVView (and subclasses). More...

bool	AddToView (vtkView *view) override
	Making these methods public. More...

bool	RemoveFromView (vtkView *view) override
	Making these methods public. More...

virtual void	SetLogName (const std::string &name)
	This is solely intended to simplify debugging and use for any other purpose is vehemently discouraged. More...

const std::string &	GetLogName () const
	This is solely intended to simplify debugging and use for any other purpose is vehemently discouraged. More...

virtual bool	GetHasTemporalPipeline ()
	This flag indicates if the representation is for a temporal pipeline. More...

virtual void	SetHasTemporalPipeline (bool)
	This flag indicates if the representation is for a temporal pipeline. More...

void	SetInputConnection (int port, vtkAlgorithmOutput *input) override
	Overridden to ensure that `MarkModified` is called. More...

void	AddInputConnection (int port, vtkAlgorithmOutput *input) override
	Overridden to ensure that `MarkModified` is called. More...

Public Member Functions inherited from vtkDataRepresentation
vtkDataRepresentation *	NewInstance () const

virtual void	ApplyViewTheme (vtkViewTheme *vtkNotUsed(theme))

virtual vtkSelection *	ConvertSelection (vtkView view, vtkSelection selection)

vtkAlgorithmOutput *	GetInputConnection (int port=0, int index=0)

vtkAnnotationLink *	GetAnnotationLink ()

void	SetAnnotationLink (vtkAnnotationLink *link)

void	Select (vtkView view, vtkSelection selection)

void	Select (vtkView view, vtkSelection selection, bool extend)

void	Annotate (vtkView view, vtkAnnotationLayers annotations)

void	Annotate (vtkView view, vtkAnnotationLayers annotations, bool extend)

virtual void	SetSelectable (bool)

virtual bool	GetSelectable ()

virtual void	SelectableOn ()

virtual void	SelectableOff ()

void	UpdateSelection (vtkSelection *selection)

void	UpdateSelection (vtkSelection *selection, bool extend)

void	UpdateAnnotations (vtkAnnotationLayers *annotations)

void	UpdateAnnotations (vtkAnnotationLayers *annotations, bool extend)

virtual vtkAlgorithmOutput *	GetInternalAnnotationOutputPort ()

virtual vtkAlgorithmOutput *	GetInternalAnnotationOutputPort (int port)

virtual vtkAlgorithmOutput *	GetInternalAnnotationOutputPort (int port, int conn)

virtual vtkAlgorithmOutput *	GetInternalSelectionOutputPort ()

virtual vtkAlgorithmOutput *	GetInternalSelectionOutputPort (int port)

virtual vtkAlgorithmOutput *	GetInternalSelectionOutputPort (int port, int conn)

virtual void	SetSelectionType (int)

virtual int	GetSelectionType ()

virtual void	SetSelectionArrayNames (vtkStringArray *names)

virtual vtkStringArray *	GetSelectionArrayNames ()

virtual void	SetSelectionArrayName (const char *name)

virtual const char *	GetSelectionArrayName ()

vtkAlgorithmOutput *	GetInputConnection (int port=0, int index=0)

vtkAnnotationLink *	GetAnnotationLink ()

void	SetAnnotationLink (vtkAnnotationLink *link)

void	Select (vtkView view, vtkSelection selection)

void	Select (vtkView view, vtkSelection selection, bool extend)

void	Annotate (vtkView view, vtkAnnotationLayers annotations)

void	Annotate (vtkView view, vtkAnnotationLayers annotations, bool extend)

virtual void	SetSelectable (bool)

virtual bool	GetSelectable ()

virtual void	SelectableOn ()

virtual void	SelectableOff ()

void	UpdateSelection (vtkSelection *selection)

void	UpdateSelection (vtkSelection *selection, bool extend)

void	UpdateAnnotations (vtkAnnotationLayers *annotations)

void	UpdateAnnotations (vtkAnnotationLayers *annotations, bool extend)

virtual vtkAlgorithmOutput *	GetInternalAnnotationOutputPort ()

virtual vtkAlgorithmOutput *	GetInternalAnnotationOutputPort (int port)

virtual vtkAlgorithmOutput *	GetInternalAnnotationOutputPort (int port, int conn)

virtual vtkAlgorithmOutput *	GetInternalSelectionOutputPort ()

virtual vtkAlgorithmOutput *	GetInternalSelectionOutputPort (int port)

virtual vtkAlgorithmOutput *	GetInternalSelectionOutputPort (int port, int conn)

virtual void	SetSelectionType (int)

virtual int	GetSelectionType ()

virtual void	SetSelectionArrayNames (vtkStringArray *names)

virtual vtkStringArray *	GetSelectionArrayNames ()

virtual void	SetSelectionArrayName (const char *name)

virtual const char *	GetSelectionArrayName ()

Public Member Functions inherited from vtkPassInputTypeAlgorithm
vtkPassInputTypeAlgorithm *	NewInstance () const

vtkPolyData *	GetPolyDataOutput ()

vtkStructuredPoints *	GetStructuredPointsOutput ()

vtkImageData *	GetImageDataOutput ()

vtkStructuredGrid *	GetStructuredGridOutput ()

vtkUnstructuredGrid *	GetUnstructuredGridOutput ()

vtkRectilinearGrid *	GetRectilinearGridOutput ()

vtkTable *	GetTableOutput ()

vtkGraph *	GetGraphOutput ()

vtkDataObject *	GetInput ()

vtkDataObject *	GetOutput ()

vtkDataObject *	GetOutput (int)

void	SetInputData (vtkDataObject *)

void	SetInputData (int, vtkDataObject *)

void	AddInputData (vtkDataObject *)

void	AddInputData (int, vtkDataObject *)

virtual int	ProcessRequest (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)

vtkDataObject *	GetOutput ()

vtkDataObject *	GetOutput (int)

void	SetInputData (vtkDataObject *)

void	SetInputData (int, vtkDataObject *)

void	AddInputData (vtkDataObject *)

void	AddInputData (int, vtkDataObject *)

virtual int	ProcessRequest (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)

Public Member Functions inherited from vtkAlgorithm
vtkAlgorithm *	NewInstance () const

int	HasExecutive ()

vtkExecutive *	GetExecutive ()

virtual void	SetExecutive (vtkExecutive *executive)

virtual int	ModifyRequest (vtkInformation *request, int when)

vtkInformation *	GetInputPortInformation (int port)

vtkInformation *	GetOutputPortInformation (int port)

int	GetNumberOfInputPorts ()

int	GetNumberOfOutputPorts ()

void	UpdateProgress (double amount)

vtkInformation *	GetInputArrayInformation (int idx)

void	RemoveAllInputs ()

vtkDataObject *	GetOutputDataObject (int port)

virtual void	RemoveInputConnection (int port, vtkAlgorithmOutput *input)

virtual void	RemoveInputConnection (int port, int idx)

virtual void	RemoveAllInputConnections (int port)

int	GetNumberOfInputConnections (int port)

int	GetTotalNumberOfInputConnections ()

vtkAlgorithmOutput *	GetInputConnection (int port, int index)

vtkAlgorithm *	GetInputAlgorithm (int port, int index, int &algPort)

vtkAlgorithm *	GetInputAlgorithm (int port, int index)

vtkExecutive *	GetInputExecutive (int port, int index)

vtkInformation *	GetInputInformation (int port, int index)

vtkInformation *	GetOutputInformation (int port)

virtual int	Update (int port, vtkInformationVector *requests)

virtual int	Update (vtkInformation *requests)

virtual int	UpdateExtent (const int extents[6])

virtual void	UpdateInformation ()

virtual void	UpdateDataObject ()

virtual void	PropagateUpdateExtent ()

virtual void	UpdateWholeExtent ()

void	ConvertTotalInputToPortConnection (int ind, int &port, int &conn)

int	SetUpdateExtentToWholeExtent (int port)

int	SetUpdateExtentToWholeExtent ()

void	SetUpdateExtent (int port, int extent[6])

void	SetUpdateExtent (int extent[6])

int	ProcessRequest (vtkInformation request, vtkCollection inInfo, vtkInformationVector *outInfo)

virtual int	ComputePipelineMTime (vtkInformation request, vtkInformationVector inInfoVec, vtkInformationVector outInfoVec, int requestFromOutputPort, vtkMTimeType *mtime)

virtual vtkInformation *	GetInformation ()

virtual void	SetInformation (vtkInformation *)

void	Register (vtkObjectBase *o) VTK_OVERRIDE

void	UnRegister (vtkObjectBase *o) VTK_OVERRIDE

virtual void	SetAbortExecute (int)

virtual int	GetAbortExecute ()

virtual void	AbortExecuteOn ()

virtual void	AbortExecuteOff ()

virtual void	SetProgress (double)

virtual double	GetProgress ()

void	SetProgressText (const char *ptext)

virtual char *	GetProgressText ()

virtual unsigned long	GetErrorCode ()

virtual void	SetInputArrayToProcess (int idx, int port, int connection, int fieldAssociation, const char *name)

virtual void	SetInputArrayToProcess (int idx, int port, int connection, int fieldAssociation, int fieldAttributeType)

virtual void	SetInputArrayToProcess (int idx, vtkInformation *info)

virtual void	SetInputArrayToProcess (int idx, int port, int connection, const char fieldAssociation, const char attributeTypeorName)

vtkDataObject *	GetInputDataObject (int port, int connection)

virtual void	SetInputConnection (vtkAlgorithmOutput *input)

virtual void	AddInputConnection (vtkAlgorithmOutput *input)

virtual void	SetInputDataObject (int port, vtkDataObject *data)

virtual void	SetInputDataObject (vtkDataObject *data)

virtual void	AddInputDataObject (int port, vtkDataObject *data)

virtual void	AddInputDataObject (vtkDataObject *data)

vtkAlgorithmOutput *	GetOutputPort (int index)

vtkAlgorithmOutput *	GetOutputPort ()

vtkAlgorithm *	GetInputAlgorithm ()

vtkExecutive *	GetInputExecutive ()

vtkInformation *	GetInputInformation ()

virtual void	Update (int port)

virtual void	Update ()

virtual int	UpdatePiece (int piece, int numPieces, int ghostLevels, const int extents[6]=0)

virtual int	UpdateTimeStep (double time, int piece=-1, int numPieces=1, int ghostLevels=0, const int extents[6]=0)

virtual void	SetReleaseDataFlag (int)

virtual int	GetReleaseDataFlag ()

void	ReleaseDataFlagOn ()

void	ReleaseDataFlagOff ()

int	UpdateExtentIsEmpty (vtkInformation pinfo, vtkDataObject output)

int	UpdateExtentIsEmpty (vtkInformation *pinfo, int extentType)

void	SetUpdateExtent (int port, int piece, int numPieces, int ghostLevel)

void	SetUpdateExtent (int piece, int numPieces, int ghostLevel)

int *	GetUpdateExtent ()

int *	GetUpdateExtent (int port)

void	GetUpdateExtent (int &x0, int &x1, int &y0, int &y1, int &z0, int &z1)

void	GetUpdateExtent (int port, int &x0, int &x1, int &y0, int &y1, int &z0, int &z1)

void	GetUpdateExtent (int extent[6])

void	GetUpdateExtent (int port, int extent[6])

int	GetUpdatePiece ()

int	GetUpdatePiece (int port)

int	GetUpdateNumberOfPieces ()

int	GetUpdateNumberOfPieces (int port)

int	GetUpdateGhostLevel ()

int	GetUpdateGhostLevel (int port)

void	SetProgressObserver (vtkProgressObserver *)

virtual vtkProgressObserver *	GetProgressObserver ()

int	ProcessRequest (vtkInformation request, vtkCollection inInfo, vtkInformationVector *outInfo)

virtual int	ComputePipelineMTime (vtkInformation request, vtkInformationVector inInfoVec, vtkInformationVector outInfoVec, int requestFromOutputPort, vtkMTimeType *mtime)

virtual vtkInformation *	GetInformation ()

virtual void	SetInformation (vtkInformation *)

void	Register (vtkObjectBase *o) VTK_OVERRIDE

void	UnRegister (vtkObjectBase *o) VTK_OVERRIDE

virtual void	SetAbortExecute (int)

virtual int	GetAbortExecute ()

virtual void	AbortExecuteOn ()

virtual void	AbortExecuteOff ()

virtual void	SetProgress (double)

virtual double	GetProgress ()

void	SetProgressText (const char *ptext)

virtual char *	GetProgressText ()

virtual unsigned long	GetErrorCode ()

virtual void	SetInputArrayToProcess (int idx, int port, int connection, int fieldAssociation, const char *name)

virtual void	SetInputArrayToProcess (int idx, int port, int connection, int fieldAssociation, int fieldAttributeType)

virtual void	SetInputArrayToProcess (int idx, vtkInformation *info)

virtual void	SetInputArrayToProcess (int idx, int port, int connection, const char fieldAssociation, const char attributeTypeorName)

vtkDataObject *	GetInputDataObject (int port, int connection)

virtual void	SetInputConnection (vtkAlgorithmOutput *input)

virtual void	AddInputConnection (vtkAlgorithmOutput *input)

virtual void	SetInputDataObject (int port, vtkDataObject *data)

virtual void	SetInputDataObject (vtkDataObject *data)

virtual void	AddInputDataObject (int port, vtkDataObject *data)

virtual void	AddInputDataObject (vtkDataObject *data)

vtkAlgorithmOutput *	GetOutputPort (int index)

vtkAlgorithmOutput *	GetOutputPort ()

vtkAlgorithm *	GetInputAlgorithm ()

vtkExecutive *	GetInputExecutive ()

vtkInformation *	GetInputInformation ()

virtual void	Update (int port)

virtual void	Update ()

virtual int	UpdatePiece (int piece, int numPieces, int ghostLevels, const int extents[6]=0)

virtual int	UpdateTimeStep (double time, int piece=-1, int numPieces=1, int ghostLevels=0, const int extents[6]=0)

virtual void	SetReleaseDataFlag (int)

virtual int	GetReleaseDataFlag ()

void	ReleaseDataFlagOn ()

void	ReleaseDataFlagOff ()

int	UpdateExtentIsEmpty (vtkInformation pinfo, vtkDataObject output)

int	UpdateExtentIsEmpty (vtkInformation *pinfo, int extentType)

void	SetUpdateExtent (int port, int piece, int numPieces, int ghostLevel)

void	SetUpdateExtent (int piece, int numPieces, int ghostLevel)

int *	GetUpdateExtent ()

int *	GetUpdateExtent (int port)

void	GetUpdateExtent (int &x0, int &x1, int &y0, int &y1, int &z0, int &z1)

void	GetUpdateExtent (int port, int &x0, int &x1, int &y0, int &y1, int &z0, int &z1)

void	GetUpdateExtent (int extent[6])

void	GetUpdateExtent (int port, int extent[6])

int	GetUpdatePiece ()

int	GetUpdatePiece (int port)

int	GetUpdateNumberOfPieces ()

int	GetUpdateNumberOfPieces (int port)

int	GetUpdateGhostLevel ()

int	GetUpdateGhostLevel (int port)

void	SetProgressObserver (vtkProgressObserver *)

virtual vtkProgressObserver *	GetProgressObserver ()

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkGeometryRepresentationWithFaces *	New ()

static int	IsTypeOf (const char *type)

static vtkGeometryRepresentationWithFaces *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkGeometryRepresentation
static vtkGeometryRepresentation *	New ()

static int	IsTypeOf (const char *type)

static vtkGeometryRepresentation *	SafeDownCast (vtkObject *o)

static bool	GetBounds (vtkDataObject dataObject, double bounds[6], vtkCompositeDataDisplayAttributes cdAttributes)
	Convenience method to get bounds from a dataset/composite dataset. More...

Static Public Member Functions inherited from vtkPVDataRepresentation
static int	IsTypeOf (const char *type)

static vtkPVDataRepresentation *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkDataRepresentation
static vtkDataRepresentation *	New ()

static int	IsTypeOf (const char *type)

static vtkDataRepresentation *	SafeDownCast (vtkObjectBase *o)

Static Public Member Functions inherited from vtkPassInputTypeAlgorithm
static vtkPassInputTypeAlgorithm *	New ()

static int	IsTypeOf (const char *type)

static vtkPassInputTypeAlgorithm *	SafeDownCast (vtkObjectBase *o)

Static Public Member Functions inherited from vtkAlgorithm
static vtkAlgorithm *	New ()

static int	IsTypeOf (const char *type)

static vtkAlgorithm *	SafeDownCast (vtkObjectBase *o)

static vtkInformationIntegerKey *	INPUT_IS_OPTIONAL ()

static vtkInformationIntegerKey *	INPUT_IS_REPEATABLE ()

static vtkInformationInformationVectorKey *	INPUT_REQUIRED_FIELDS ()

static vtkInformationStringVectorKey *	INPUT_REQUIRED_DATA_TYPE ()

static vtkInformationInformationVectorKey *	INPUT_ARRAYS_TO_PROCESS ()

static vtkInformationIntegerKey *	INPUT_PORT ()

static vtkInformationIntegerKey *	INPUT_CONNECTION ()

static vtkInformationIntegerKey *	CAN_PRODUCE_SUB_EXTENT ()

static vtkInformationIntegerKey *	CAN_HANDLE_PIECE_REQUEST ()

static void	SetDefaultExecutivePrototype (vtkExecutive *proto)

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkGeometryRepresentationWithFaces ()

	~vtkGeometryRepresentationWithFaces () override

void	SetupDefaults () override
	This method is called in the constructor. More...

bool	AddToView (vtkView *view) override
	Adds the representation to the view. More...

bool	RemoveFromView (vtkView *view) override
	Removes the representation to the view. More...

void	UpdateColoringParameters () override
	Passes on parameters to vtkProperty and vtkMapper. More...

bool	NeedsOrderedCompositing () override
	Returns true if this representation has translucent geometry. More...

Protected Member Functions inherited from vtkGeometryRepresentation
	vtkGeometryRepresentation ()

	~vtkGeometryRepresentation () override

int	FillInputPortInformation (int port, vtkInformation *info) override
	Fill input port information. More...

int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector ) override
	Subclasses should override this to connect inputs to the internal pipeline as necessary. More...

int	RequestUpdateExtent (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector) override
	Overridden to request correct ghost-level to avoid internal surfaces. More...

bool	AddToView (vtkView *view) override
	Adds the representation to the view. More...

bool	RemoveFromView (vtkView *view) override
	Removes the representation to the view. More...

virtual vtkPVLODActor *	GetRenderedProp ()
	Used in ConvertSelection to locate the prop used for actual rendering. More...

void	HandleGeometryRepresentationProgress (vtkObject caller, unsigned long, void )

void	PopulateBlockAttributes (vtkCompositeDataDisplayAttributes attrs, vtkDataObject outputData)
	Block attributes in a mapper are referenced to each block through DataObject pointers. More...

void	ComputeVisibleDataBounds ()
	Computes the bounds of the visible data based on the block visibilities in the composite data attributes of the mapper. More...

void	UpdateShaderReplacements ()
	Update the mapper with the shader replacement strings if feature is enabled. More...

virtual void	SetPointArrayToProcess (int p, const char *val)
	Used by SetNormalArray, SetTCoordArray and SetTangentArray. More...

void	UpdateGeneralTextureTransform ()
	This is called whenever the texture transformation matrix changes. More...

Protected Member Functions inherited from vtkPVDataRepresentation
	vtkPVDataRepresentation ()

	~vtkPVDataRepresentation () override

vtkExecutive *	CreateDefaultExecutive () override
	Create a default executive. More...

int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector ) override
	Overridden to invoke vtkCommand::UpdateDataEvent. More...

int	RequestUpdateExtent (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector) override

int	RequestUpdateTime (vtkInformation , vtkInformationVector , vtkInformationVector ) override

Protected Member Functions inherited from vtkDataRepresentation
virtual vtkObjectBase *	NewInstanceInternal () const

	vtkDataRepresentation ()

	~vtkDataRepresentation ()

virtual void	ProcessEvents (vtkObject caller, unsigned long eventId, void callData)

virtual bool	AddToView (vtkView *vtkNotUsed(view))

virtual bool	RemoveFromView (vtkView *vtkNotUsed(view))

virtual vtkAnnotationLayers *	ConvertAnnotations (vtkView view, vtkAnnotationLayers annotations)

vtkTrivialProducer *	GetInternalInput (int port, int conn)

void	SetInternalInput (int port, int conn, vtkTrivialProducer *producer)

virtual void	SetAnnotationLinkInternal (vtkAnnotationLink *link)

Protected Member Functions inherited from vtkPassInputTypeAlgorithm
	vtkPassInputTypeAlgorithm ()

	~vtkPassInputTypeAlgorithm ()

virtual int	RequestUpdateTimeDependentInformation (vtkInformation , vtkInformationVector , vtkInformationVector )

virtual int	FillOutputPortInformation (int port, vtkInformation *info)

vtkDataObject *	GetInput (int port)

virtual int	RequestInformation (vtkInformation , vtkInformationVector , vtkInformationVector )

virtual int	RequestDataObject (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)

virtual int	RequestInformation (vtkInformation , vtkInformationVector , vtkInformationVector )

virtual int	RequestDataObject (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)

Protected Member Functions inherited from vtkAlgorithm
	vtkAlgorithm ()

	~vtkAlgorithm ()

virtual void	SetNumberOfInputPorts (int n)

virtual void	SetNumberOfOutputPorts (int n)

int	InputPortIndexInRange (int index, const char *action)

int	OutputPortIndexInRange (int index, const char *action)

int	GetInputArrayAssociation (int idx, vtkInformationVector **inputVector)

void	ReportReferences (vtkGarbageCollector *) VTK_OVERRIDE

virtual void	SetNumberOfInputConnections (int port, int n)

int	GetInputArrayAssociation (int idx, int connection, vtkInformationVector **inputVector)

int	GetInputArrayAssociation (int idx, vtkDataObject *input)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkInformationVector **inputVector)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkInformationVector **inputVector, int &association)

vtkDataArray *	GetInputArrayToProcess (int idx, int connection, vtkInformationVector **inputVector)

vtkDataArray *	GetInputArrayToProcess (int idx, int connection, vtkInformationVector **inputVector, int &association)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkDataObject *input)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkDataObject *input, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkInformationVector **inputVector)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkInformationVector **inputVector, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, int connection, vtkInformationVector **inputVector)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, int connection, vtkInformationVector **inputVector, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkDataObject *input)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkDataObject *input, int &association)

vtkInformation *	GetInputArrayFieldInformation (int idx, vtkInformationVector **inputVector)

virtual void	SetNthInputConnection (int port, int index, vtkAlgorithmOutput *input)

void	SetInputDataInternal (int port, vtkDataObject *input)

void	AddInputDataInternal (int port, vtkDataObject *input)

int	GetInputArrayAssociation (int idx, int connection, vtkInformationVector **inputVector)

int	GetInputArrayAssociation (int idx, vtkDataObject *input)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkInformationVector **inputVector)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkInformationVector **inputVector, int &association)

vtkDataArray *	GetInputArrayToProcess (int idx, int connection, vtkInformationVector **inputVector)

vtkDataArray *	GetInputArrayToProcess (int idx, int connection, vtkInformationVector **inputVector, int &association)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkDataObject *input)

vtkDataArray *	GetInputArrayToProcess (int idx, vtkDataObject *input, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkInformationVector **inputVector)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkInformationVector **inputVector, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, int connection, vtkInformationVector **inputVector)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, int connection, vtkInformationVector **inputVector, int &association)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkDataObject *input)

vtkAbstractArray *	GetInputAbstractArrayToProcess (int idx, vtkDataObject *input, int &association)

vtkInformation *	GetInputArrayFieldInformation (int idx, vtkInformationVector **inputVector)

virtual void	SetErrorCode (unsigned long)

virtual void	SetNthInputConnection (int port, int index, vtkAlgorithmOutput *input)

void	SetInputDataInternal (int port, vtkDataObject *input)

void	AddInputDataInternal (int port, vtkDataObject *input)

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Protected Attributes
vtkMapper *	BackfaceMapper

vtkMapper *	LODBackfaceMapper

vtkPVLODActor *	BackfaceActor

vtkProperty *	BackfaceProperty

int	BackfaceRepresentation

Protected Attributes inherited from vtkGeometryRepresentation
vtkAlgorithm *	GeometryFilter

vtkAlgorithm *	MultiBlockMaker

vtkGeometryRepresentation_detail::DecimationFilterType *	Decimator

vtkPVGeometryFilter *	LODOutlineFilter

vtkMapper *	Mapper

vtkMapper *	LODMapper

vtkPVLODActor *	Actor

vtkProperty *	Property

char *	ActiveAssembly = nullptr

bool	RepeatTextures

bool	InterpolateTextures

bool	UseMipmapTextures

vtkTransform *	TextureTransform

double	Ambient

double	Specular

double	Diffuse

int	Representation

bool	SuppressLOD

bool	RequestGhostCellsIfNeeded

double	VisibleDataBounds [6]

vtkTimeStamp	VisibleDataBoundsTime

vtkPiecewiseFunction *	PWF

bool	UseDataPartitions

bool	UseShaderReplacements

std::string	ShaderReplacementsString

bool	BlockAttrChanged = false

vtkTimeStamp	BlockAttributeTime

bool	UpdateBlockAttrLOD = false

int	PlaceHolderDataType = VTK_PARTITIONED_DATA_SET_COLLECTION

std::vector< std::string >	BlockSelectors
	Configurable through vtkGeometryRepresentation API. More...

std::vector< std::pair< std::string, vtkVector3d > >	BlockColors
	Configurable through vtkGeometryRepresentation API. More...

std::vector< std::pair< std::string, double > >	BlockOpacities
	Configurable through vtkGeometryRepresentation API. More...

std::vector< std::pair< std::string, bool > >	BlockInterpolateScalarsBeforeMapping
	Configurable through vtkGeometryRepresentation API. More...

std::vector< std::pair< std::string, int > >	BlockColorModes
	Configurable through vtkGeometryRepresentation API. More...

std::vector< std::pair< std::string, std::pair< int, std::string > > >	BlockArrayNames
	Configurable through vtkGeometryRepresentation API. More...

std::vector< vtkScalarsToColors * >	BlockLookupTables
	Configurable through vtkGeometryRepresentation API. More...

std::vector< std::pair< std::string, bool > >	BlockScalarVisibilities
	Configured internally in vtkGeometryRepresentation. More...

std::vector< std::pair< std::string, bool > >	BlockUseLookupTableScalarRanges
	Configured internally in vtkGeometryRepresentation. More...

std::vector< std::pair< vtkDataObject *, vtkIdType > >	BlockFieldDataTupleIds
	Configured internally in vtkGeometryRepresentation. More...

Protected Attributes inherited from vtkPVDataRepresentation
double	UpdateTime

bool	UpdateTimeValid

unsigned int	UniqueIdentifier

Protected Attributes inherited from vtkDataRepresentation
bool	Selectable

int	SelectionType

vtkStringArray *	SelectionArrayNames

Command *	Observer

vtkAnnotationLink *	AnnotationLinkInternal

Protected Attributes inherited from vtkAlgorithm
vtkInformation *	Information

double	Progress

char *	ProgressText

vtkProgressObserver *	ProgressObserver

unsigned long	ErrorCode

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Additional Inherited Members
Public Attributes inherited from vtkAlgorithm
	SINGLE_PRECISION

	DOUBLE_PRECISION

	DEFAULT_PRECISION

int	AbortExecute

Static Protected Member Functions inherited from vtkAlgorithm
static vtkInformationIntegerKey *	PORT_REQUIREMENTS_FILLED ()

Static Protected Attributes inherited from vtkAlgorithm
static vtkExecutive *	DefaultExecutivePrototype

Detailed Description

vtkGeometryRepresentationWithFaces extends vtkGeometryRepresentation to add support for rendering back and front faces separately (with different visibility and properties).

Definition at line 17 of file vtkGeometryRepresentationWithFaces.h.

Member Typedef Documentation

◆ Superclass

typedef vtkGeometryRepresentation vtkGeometryRepresentationWithFaces::Superclass

Definition at line 21 of file vtkGeometryRepresentationWithFaces.h.

Member Enumeration Documentation

◆ RepresentationTypesEx

enum vtkGeometryRepresentationWithFaces::RepresentationTypesEx

Enumerator
FOLLOW_FRONTFACE
CULL_BACKFACE
CULL_FRONTFACE

Definition at line 24 of file vtkGeometryRepresentationWithFaces.h.

Constructor & Destructor Documentation

◆ vtkGeometryRepresentationWithFaces()

vtkGeometryRepresentationWithFaces::vtkGeometryRepresentationWithFaces ( )

protected

◆ ~vtkGeometryRepresentationWithFaces()

vtkGeometryRepresentationWithFaces::~vtkGeometryRepresentationWithFaces ( )

overrideprotected

Member Function Documentation

◆ New()

static vtkGeometryRepresentationWithFaces* vtkGeometryRepresentationWithFaces::New ( )

static

◆ GetClassName()

virtual const char* vtkGeometryRepresentationWithFaces::GetClassName ( )

virtual

Reimplemented from vtkGeometryRepresentation.

Reimplemented in vtkSurfaceLICRepresentation, vtkFeatureEdgesRepresentation, and vtkOutlineRepresentation.

◆ IsTypeOf()

static int vtkGeometryRepresentationWithFaces::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkGeometryRepresentationWithFaces::IsA ( const char * type )

virtual

Reimplemented from vtkGeometryRepresentation.

Reimplemented in vtkSurfaceLICRepresentation, vtkFeatureEdgesRepresentation, and vtkOutlineRepresentation.

◆ SafeDownCast()

static vtkGeometryRepresentationWithFaces* vtkGeometryRepresentationWithFaces::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkGeometryRepresentationWithFaces::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkGeometryRepresentation.

Reimplemented in vtkSurfaceLICRepresentation, and vtkOutlineRepresentation.

◆ ProcessViewRequest()

int vtkGeometryRepresentationWithFaces::ProcessViewRequest	(	vtkInformationRequestKey *	request_type,
		vtkInformation *	inInfo,
		vtkInformation *	outInfo
	)

overridevirtual

vtkAlgorithm::ProcessRequest() equivalent for rendering passes.

This is typically called by the vtkView to request meta-data from the representations or ask them to perform certain tasks e.g. PrepareForRendering.

Reimplemented from vtkGeometryRepresentation.

Reimplemented in vtkSurfaceLICRepresentation.

◆ SetVisibility()

void vtkGeometryRepresentationWithFaces::SetVisibility ( bool val )

overridevirtual

Get/Set the visibility for this representation.

When the visibility of representation of false, all view passes are ignored.

Reimplemented from vtkGeometryRepresentation.

◆ SetBackfaceRepresentation()

virtual void vtkGeometryRepresentationWithFaces::SetBackfaceRepresentation ( int )

virtual

Set the backface representation.

◆ GetBackfaceRepresentation()

virtual int vtkGeometryRepresentationWithFaces::GetBackfaceRepresentation ( )

virtual

Set the backface representation.

◆ SetBackfaceAmbientColor()

void vtkGeometryRepresentationWithFaces::SetBackfaceAmbientColor	(	double	r,
		double	g,
		double	b
	)

◆ SetBackfaceDiffuseColor()

void vtkGeometryRepresentationWithFaces::SetBackfaceDiffuseColor	(	double	r,
		double	g,
		double	b
	)

◆ SetBackfaceOpacity()

void vtkGeometryRepresentationWithFaces::SetBackfaceOpacity ( double val )

◆ SetupDefaults()

void vtkGeometryRepresentationWithFaces::SetupDefaults ( )

overrideprotectedvirtual

This method is called in the constructor.

If the subclasses override any of the iVar vtkObject's of this class e.g. the Mappers, GeometryFilter etc., they should call this method again in their constructor. It must be totally safe to call this method repeatedly.

Reimplemented from vtkGeometryRepresentation.

◆ AddToView()

bool vtkGeometryRepresentationWithFaces::AddToView ( vtkView * view )

overrideprotected

Adds the representation to the view.

This is called from vtkView::AddRepresentation(). Subclasses should override this method. Returns true if the addition succeeds.

◆ RemoveFromView()

bool vtkGeometryRepresentationWithFaces::RemoveFromView ( vtkView * view )

overrideprotected

Removes the representation to the view.

This is called from vtkView::RemoveRepresentation(). Subclasses should override this method. Returns true if the removal succeeds.

◆ UpdateColoringParameters()

void vtkGeometryRepresentationWithFaces::UpdateColoringParameters ( )

overrideprotectedvirtual

Passes on parameters to vtkProperty and vtkMapper.

Reimplemented from vtkGeometryRepresentation.

Reimplemented in vtkSurfaceLICRepresentation.

◆ NeedsOrderedCompositing()

bool vtkGeometryRepresentationWithFaces::NeedsOrderedCompositing ( )

overrideprotectedvirtual

Returns true if this representation has translucent geometry.

Unlike vtkActor::HasTranslucentPolygonalGeometry which cannot be called in Update, this method can be called in Update i.e. before the mapper has all the data to decide if it is doing translucent rendering.

Reimplemented from vtkGeometryRepresentation.

Member Data Documentation

◆ BackfaceMapper

vtkMapper* vtkGeometryRepresentationWithFaces::BackfaceMapper

protected

Definition at line 93 of file vtkGeometryRepresentationWithFaces.h.

◆ LODBackfaceMapper

vtkMapper* vtkGeometryRepresentationWithFaces::LODBackfaceMapper

protected

Definition at line 94 of file vtkGeometryRepresentationWithFaces.h.

◆ BackfaceActor

vtkPVLODActor* vtkGeometryRepresentationWithFaces::BackfaceActor

protected

Definition at line 95 of file vtkGeometryRepresentationWithFaces.h.

◆ BackfaceProperty

vtkProperty* vtkGeometryRepresentationWithFaces::BackfaceProperty

protected

Definition at line 96 of file vtkGeometryRepresentationWithFaces.h.

◆ BackfaceRepresentation

int vtkGeometryRepresentationWithFaces::BackfaceRepresentation

protected

Definition at line 97 of file vtkGeometryRepresentationWithFaces.h.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Remoting/Views/vtkGeometryRepresentationWithFaces.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Superclass

Member Enumeration Documentation

◆ RepresentationTypesEx

Constructor & Destructor Documentation

◆ vtkGeometryRepresentationWithFaces()

◆ ~vtkGeometryRepresentationWithFaces()

Member Function Documentation

◆ New()

◆ GetClassName()

◆ IsTypeOf()

◆ IsA()

◆ SafeDownCast()

◆ PrintSelf()

◆ ProcessViewRequest()

◆ SetVisibility()

◆ SetBackfaceRepresentation()

◆ GetBackfaceRepresentation()

◆ SetBackfaceAmbientColor()

◆ SetBackfaceDiffuseColor()

◆ SetBackfaceOpacity()

◆ SetupDefaults()

◆ AddToView()

◆ RemoveFromView()

◆ UpdateColoringParameters()

◆ NeedsOrderedCompositing()

Member Data Documentation

◆ BackfaceMapper

◆ LODBackfaceMapper

◆ BackfaceActor

◆ BackfaceProperty

◆ BackfaceRepresentation
