vtkPVSessionCore is used by vtkSMSession. More...

#include <vtkPVSessionCore.h>

Inheritance diagram for vtkPVSessionCore:

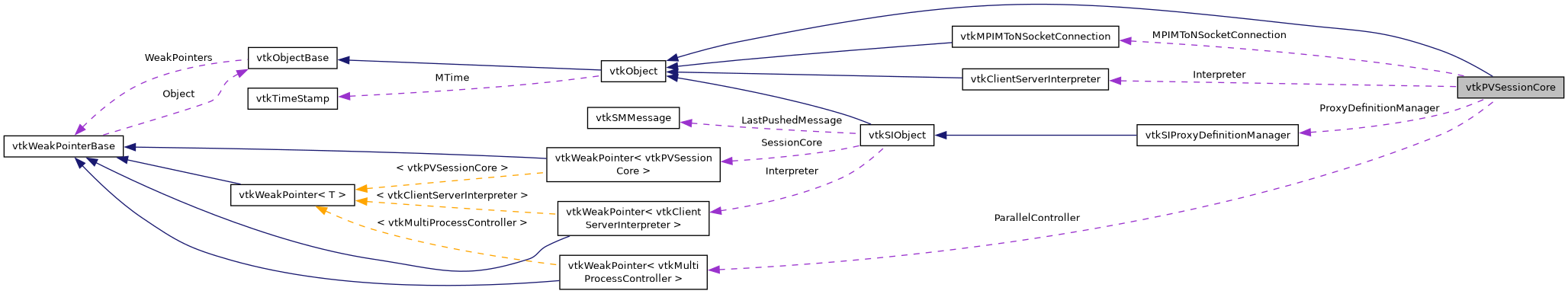

Collaboration diagram for vtkPVSessionCore:

[legend]

Public Types
enum	MessageTypes { PUSH_STATE = 12, PULL_STATE = 13, EXECUTE_STREAM = 14, GATHER_INFORMATION = 15, REGISTER_SI = 16, UNREGISTER_SI = 17 }

typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

virtual void	PushState (vtkSMMessage *message)
	Push the state message. More...

virtual void	PullState (vtkSMMessage *message)
	Pull the state message from the local SI object instances. More...

virtual void	ExecuteStream (vtkTypeUInt32 location, const vtkClientServerStream &stream, bool ignore_errors=false)
	Execute a command on the given processes. More...

virtual const vtkClientServerStream &	GetLastResult ()
	Returns the response of the ExecuteStream() call from the location. More...

virtual void	UnRegisterSIObject (vtkSMMessage *message)
	Notify that the given SIObject is not used anymore . More...

virtual void	RegisterSIObject (vtkSMMessage *message)
	Notify that the given SIObject is used. More...

vtkSIObject *	GetSIObject (vtkTypeUInt32 globalid)
	Returns a vtkSIObject or subclass given its global id, if any otherwise return nullptr;. More...

vtkObject *	GetRemoteObject (vtkTypeUInt32 globalid)
	Return a vtkObject given its global id if any otherwise return nullptr;. More...

void	RegisterRemoteObject (vtkTypeUInt32 globalid, vtkObject *obj)
	Register a remote object. More...

void	UnRegisterRemoteObject (vtkTypeUInt32 globalid)
	Unregister a remote object. More...

virtual bool	GatherInformation (vtkTypeUInt32 location, vtkPVInformation *information, vtkTypeUInt32 globalid)
	Gather information about an object referred by the `globalid`. More...

int	GetNumberOfProcesses ()
	Returns the number of processes. More...

virtual vtkTypeUInt32	GetNextGlobalUniqueIdentifier ()
	Provides the next available identifier. More...

virtual vtkTypeUInt32	GetNextChunkGlobalUniqueIdentifier (vtkTypeUInt32 chunkSize)
	Return the first Id of the requested chunk. More...

void	PushStateSatelliteCallback ()

void	ExecuteStreamSatelliteCallback ()

void	GatherInformationStatelliteCallback ()

void	RegisterSIObjectSatelliteCallback ()

void	UnRegisterSIObjectSatelliteCallback ()

virtual void	GetAllRemoteObjects (vtkCollection *collection)
	Allow the user to fill a vtkCollection with all RemoteObjects This is useful when you want to hold a reference to them to prevent any deletion across several method call. More...

void	GarbageCollectSIObject (int *clientIds, int nbClients)
	Delete SIObject that are held by clients that disappeared from the given list. More...


virtual vtkClientServerInterpreter *	GetInterpreter ()
	Provides access to the interpreter. More...


virtual vtkSIProxyDefinitionManager *	GetProxyDefinitionManager ()
	Provides access to the proxy definition manager. More...


void	SetMPIMToNSocketConnection (vtkMPIMToNSocketConnection *)
	Get/Set the socket connection used to communicate between data=server and render-server processes. More...

virtual vtkMPIMToNSocketConnection *	GetMPIMToNSocketConnection ()
	Get/Set the socket connection used to communicate between data=server and render-server processes. More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkPVSessionCore *	New ()

static int	IsTypeOf (const char *type)

static vtkPVSessionCore *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Types
enum	{ ROOT_SATELLITE_RMI_TAG = 887822, ROOT_SATELLITE_INFO_TAG = 887823 }

Protected Member Functions
	vtkPVSessionCore ()

	~vtkPVSessionCore () override

virtual void	PushStateInternal (vtkSMMessage *)
	This will create a vtkSIObject and/or execute some update on the vtkObject that it own. More...

virtual void	ExecuteStreamInternal (const vtkClientServerStream &stream, bool ignore_errors)
	This will execute localy the given vtkClientServerStream either by calling method on the vtkSIObject or its internal vtkObject. More...

bool	GatherInformationInternal (vtkPVInformation *information, vtkTypeUInt32 globalid)
	This will gather information on the local vtkObjects through the local vtkSIObjects. More...

bool	CollectInformation (vtkPVInformation *)
	Gather information across MPI satellites. More...

virtual void	RegisterSIObjectInternal (vtkSMMessage *message)
	Increment reference count of a local vtkSIObject. More...

virtual void	UnRegisterSIObjectInternal (vtkSMMessage *message)
	Decrement reference count of a local vtkSIObject. More...

void	OnInterpreterError (vtkObject , unsigned long, void calldata)
	Callback for reporting interpreter errors. More...

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Protected Attributes
vtkSIProxyDefinitionManager *	ProxyDefinitionManager

vtkWeakPointer< vtkMultiProcessController >	ParallelController

vtkClientServerInterpreter *	Interpreter

vtkMPIMToNSocketConnection *	MPIMToNSocketConnection

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Detailed Description

vtkPVSessionCore is used by vtkSMSession.

vtkPVSessionCore handle the communication to MPI satellites and ServerImplementation code instantiation and execution. On the other hand, the vtkSMSession dispatch the request to the right process and therefore to the right vtkPVSessionCore instance.

Definition at line 30 of file vtkPVSessionCore.h.

Member Typedef Documentation

◆ Superclass

typedef vtkObject vtkPVSessionCore::Superclass

Definition at line 34 of file vtkPVSessionCore.h.

Member Enumeration Documentation

◆ MessageTypes

enum vtkPVSessionCore::MessageTypes

Enumerator
PUSH_STATE
PULL_STATE
EXECUTE_STREAM
GATHER_INFORMATION
REGISTER_SI
UNREGISTER_SI

Definition at line 150 of file vtkPVSessionCore.h.

◆ anonymous enum

anonymous enum

protected

Enumerator
ROOT_SATELLITE_RMI_TAG
ROOT_SATELLITE_INFO_TAG

Definition at line 223 of file vtkPVSessionCore.h.

Constructor & Destructor Documentation

◆ vtkPVSessionCore()

vtkPVSessionCore::vtkPVSessionCore ( )

protected

◆ ~vtkPVSessionCore()

vtkPVSessionCore::~vtkPVSessionCore ( )

overrideprotected

Member Function Documentation

◆ New()

static vtkPVSessionCore* vtkPVSessionCore::New ( )

static

◆ GetClassName()

virtual const char* vtkPVSessionCore::GetClassName ( )

virtual

Reimplemented in vtkPVCatalystSessionCore.

◆ IsTypeOf()

static int vtkPVSessionCore::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkPVSessionCore::IsA ( const char * type )

virtual

Reimplemented from vtkObjectBase.

Reimplemented in vtkPVCatalystSessionCore.

◆ SafeDownCast()

static vtkPVSessionCore* vtkPVSessionCore::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkPVSessionCore::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkObject.

◆ GetInterpreter()

virtual vtkClientServerInterpreter* vtkPVSessionCore::GetInterpreter ( )

virtual

Provides access to the interpreter.

◆ GetProxyDefinitionManager()

virtual vtkSIProxyDefinitionManager* vtkPVSessionCore::GetProxyDefinitionManager ( )

virtual

Provides access to the proxy definition manager.

◆ PushState()

virtual void vtkPVSessionCore::PushState ( vtkSMMessage * message )

virtual

Push the state message.

This might forward the message to the MPI statellites if needed.

◆ PullState()

virtual void vtkPVSessionCore::PullState ( vtkSMMessage * message )

virtual

Pull the state message from the local SI object instances.

◆ ExecuteStream()

virtual void vtkPVSessionCore::ExecuteStream	(	vtkTypeUInt32	location,
		const vtkClientServerStream &	stream,
		bool	ignore_errors = `false`
	)

virtual

Execute a command on the given processes.

Use GetLastResult() to obtain the last result after the command stream is evaluated. Once can set ignore_errors to true, to ignore any interpreting errors.

◆ GetLastResult()

virtual const vtkClientServerStream& vtkPVSessionCore::GetLastResult ( )

virtual

Returns the response of the ExecuteStream() call from the location.

Note if location refers to multiple processes, then the reply is only fetched from the "closest" process.

◆ UnRegisterSIObject()

virtual void vtkPVSessionCore::UnRegisterSIObject ( vtkSMMessage * message )

virtual

Notify that the given SIObject is not used anymore .

This does not necessary delete the SIObject specially if this one is used by other local SIObject. It only decrease its reference count.

◆ RegisterSIObject()

virtual void vtkPVSessionCore::RegisterSIObject ( vtkSMMessage * message )

virtual

Notify that the given SIObject is used.

It only increase its reference count.

◆ GetSIObject()

vtkSIObject* vtkPVSessionCore::GetSIObject ( vtkTypeUInt32 globalid )

Returns a vtkSIObject or subclass given its global id, if any otherwise return nullptr;.

◆ GetRemoteObject()

vtkObject* vtkPVSessionCore::GetRemoteObject ( vtkTypeUInt32 globalid )

Return a vtkObject given its global id if any otherwise return nullptr;.

◆ RegisterRemoteObject()

void vtkPVSessionCore::RegisterRemoteObject	(	vtkTypeUInt32	globalid,
		vtkObject *	obj
	)

Register a remote object.

◆ UnRegisterRemoteObject()

void vtkPVSessionCore::UnRegisterRemoteObject ( vtkTypeUInt32 globalid )

Unregister a remote object.

◆ GatherInformation()

virtual bool vtkPVSessionCore::GatherInformation	(	vtkTypeUInt32	location,
		vtkPVInformation *	information,
		vtkTypeUInt32	globalid
	)

virtual

Gather information about an object referred by the globalid.

location identifies the processes to gather the information from.

Reimplemented in vtkPVCatalystSessionCore.

◆ GetNumberOfProcesses()

int vtkPVSessionCore::GetNumberOfProcesses ( )

Returns the number of processes.

This simply calls the GetNumberOfProcesses() on this->ParallelController

◆ SetMPIMToNSocketConnection()

void vtkPVSessionCore::SetMPIMToNSocketConnection ( vtkMPIMToNSocketConnection * )

Get/Set the socket connection used to communicate between data=server and render-server processes.

This is valid only on data-server and render-server processes.

◆ GetMPIMToNSocketConnection()

virtual vtkMPIMToNSocketConnection* vtkPVSessionCore::GetMPIMToNSocketConnection ( )

virtual

Get/Set the socket connection used to communicate between data=server and render-server processes.

This is valid only on data-server and render-server processes.

◆ GetNextGlobalUniqueIdentifier()

virtual vtkTypeUInt32 vtkPVSessionCore::GetNextGlobalUniqueIdentifier ( )

virtual

Provides the next available identifier.

This implementation works locally. without any code distribution. To support the distributed architecture the vtkSMSessionClient override those method to call them on the DATA_SERVER vtkPVSessionBase instance.

◆ GetNextChunkGlobalUniqueIdentifier()

virtual vtkTypeUInt32 vtkPVSessionCore::GetNextChunkGlobalUniqueIdentifier ( vtkTypeUInt32 chunkSize )

virtual

Return the first Id of the requested chunk.

1 = ReverveNextIdChunk(10); | Reserved ids [1,2,3,4,5,6,7,8,9,10] 11 = ReverveNextIdChunk(10);| Reserved ids [11,12,13,14,15,16,17,18,19,20] b = a + 10;

◆ PushStateSatelliteCallback()

void vtkPVSessionCore::PushStateSatelliteCallback ( )

◆ ExecuteStreamSatelliteCallback()

void vtkPVSessionCore::ExecuteStreamSatelliteCallback ( )

◆ GatherInformationStatelliteCallback()

void vtkPVSessionCore::GatherInformationStatelliteCallback ( )

◆ RegisterSIObjectSatelliteCallback()

void vtkPVSessionCore::RegisterSIObjectSatelliteCallback ( )

◆ UnRegisterSIObjectSatelliteCallback()

void vtkPVSessionCore::UnRegisterSIObjectSatelliteCallback ( )

◆ GetAllRemoteObjects()

virtual void vtkPVSessionCore::GetAllRemoteObjects ( vtkCollection * collection )

virtual

Allow the user to fill a vtkCollection with all RemoteObjects This is useful when you want to hold a reference to them to prevent any deletion across several method call.

◆ GarbageCollectSIObject()

void vtkPVSessionCore::GarbageCollectSIObject	(	int *	clientIds,
		int	nbClients
	)

Delete SIObject that are held by clients that disappeared from the given list.

◆ PushStateInternal()

virtual void vtkPVSessionCore::PushStateInternal ( vtkSMMessage * )

protectedvirtual

This will create a vtkSIObject and/or execute some update on the vtkObject that it own.

◆ ExecuteStreamInternal()

virtual void vtkPVSessionCore::ExecuteStreamInternal	(	const vtkClientServerStream &	stream,
		bool	ignore_errors
	)

protectedvirtual

This will execute localy the given vtkClientServerStream either by calling method on the vtkSIObject or its internal vtkObject.

◆ GatherInformationInternal()

bool vtkPVSessionCore::GatherInformationInternal	(	vtkPVInformation *	information,
		vtkTypeUInt32	globalid
	)

protected

This will gather information on the local vtkObjects through the local vtkSIObjects.

◆ CollectInformation()

bool vtkPVSessionCore::CollectInformation ( vtkPVInformation * )

protected

Gather information across MPI satellites.

◆ RegisterSIObjectInternal()

virtual void vtkPVSessionCore::RegisterSIObjectInternal ( vtkSMMessage * message )

protectedvirtual

Increment reference count of a local vtkSIObject.

◆ UnRegisterSIObjectInternal()

virtual void vtkPVSessionCore::UnRegisterSIObjectInternal ( vtkSMMessage * message )

protectedvirtual

Decrement reference count of a local vtkSIObject.

This might not result in an actual deletion of the object if this one is used by another SIObject.

◆ OnInterpreterError()

void vtkPVSessionCore::OnInterpreterError	(	vtkObject *	,
		unsigned	long,
		void *	calldata
	)

protected

Callback for reporting interpreter errors.

Member Data Documentation

◆ ProxyDefinitionManager

vtkSIProxyDefinitionManager* vtkPVSessionCore::ProxyDefinitionManager

protected

Definition at line 229 of file vtkPVSessionCore.h.

◆ ParallelController

vtkWeakPointer<vtkMultiProcessController> vtkPVSessionCore::ParallelController

protected

Definition at line 230 of file vtkPVSessionCore.h.

◆ Interpreter

vtkClientServerInterpreter* vtkPVSessionCore::Interpreter

protected

Definition at line 231 of file vtkPVSessionCore.h.

◆ MPIMToNSocketConnection

vtkMPIMToNSocketConnection* vtkPVSessionCore::MPIMToNSocketConnection

protected

Definition at line 232 of file vtkPVSessionCore.h.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Remoting/ServerManager/vtkPVSessionCore.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ Superclass

Member Enumeration Documentation

◆ MessageTypes

◆ anonymous enum

Constructor & Destructor Documentation

◆ vtkPVSessionCore()

◆ ~vtkPVSessionCore()

Member Function Documentation

◆ New()

◆ GetClassName()

◆ IsTypeOf()

◆ IsA()

◆ SafeDownCast()

◆ PrintSelf()

◆ GetInterpreter()

◆ GetProxyDefinitionManager()

◆ PushState()

◆ PullState()

◆ ExecuteStream()

◆ GetLastResult()

◆ UnRegisterSIObject()

◆ RegisterSIObject()

◆ GetSIObject()

◆ GetRemoteObject()

◆ RegisterRemoteObject()

◆ UnRegisterRemoteObject()

◆ GatherInformation()

◆ GetNumberOfProcesses()

◆ SetMPIMToNSocketConnection()

◆ GetMPIMToNSocketConnection()

◆ GetNextGlobalUniqueIdentifier()

◆ GetNextChunkGlobalUniqueIdentifier()

◆ PushStateSatelliteCallback()

◆ ExecuteStreamSatelliteCallback()

◆ GatherInformationStatelliteCallback()

◆ RegisterSIObjectSatelliteCallback()

◆ UnRegisterSIObjectSatelliteCallback()

◆ GetAllRemoteObjects()

◆ GarbageCollectSIObject()

◆ PushStateInternal()

◆ ExecuteStreamInternal()

◆ GatherInformationInternal()

◆ CollectInformation()

◆ RegisterSIObjectInternal()

◆ UnRegisterSIObjectInternal()

◆ OnInterpreterError()

Member Data Documentation

◆ ProxyDefinitionManager

◆ ParallelController

◆ Interpreter

◆ MPIMToNSocketConnection
