object responsible for managing XML proxies definitions More...

#include <vtkSIProxyDefinitionManager.h>

Inheritance diagram for vtkSIProxyDefinitionManager:

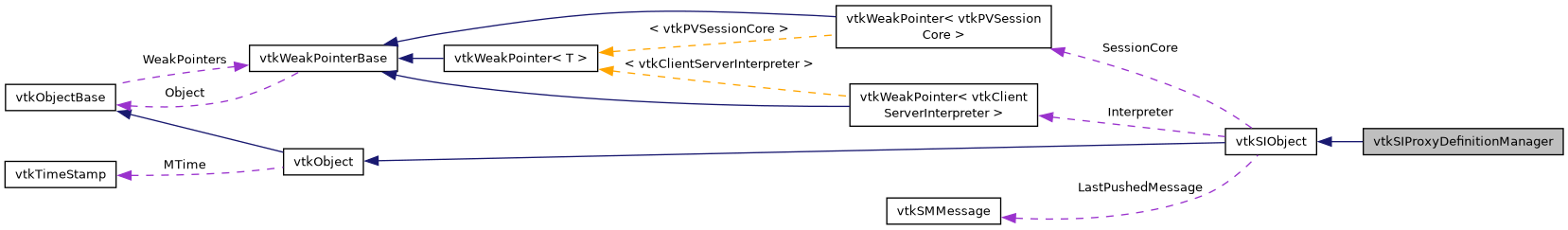

Collaboration diagram for vtkSIProxyDefinitionManager:

[legend]

Classes
struct	RegisteredDefinitionInformation
	Information object used in Event notification. More...

Public Types
enum	Events { ProxyDefinitionsUpdated = 2000, CompoundProxyDefinitionsUpdated = 2001 }

enum	{ ALL_DEFINITIONS = 0, CORE_DEFINITIONS = 1, CUSTOM_DEFINITIONS = 2 }
	Return a new configured iterator for traversing a set of proxy definition for all the available groups. More...

typedef vtkSIObject	Superclass

Public Types inherited from vtkSIObject
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

bool	HasDefinition (const char groupName, const char proxyName)
	Return true if the XML Definition was found. More...

void	RemoveCustomProxyDefinition (const char group, const char name)
	Given its name, remove a custom proxy definition. More...

void	ClearCustomProxyDefinitions ()
	Remove all registered custom proxy definitions. More...

void	SaveCustomProxyDefinitions (vtkPVXMLElement *root)
	Save registered custom proxy definitions. More...

VTK_NEWINSTANCE vtkPVProxyDefinitionIterator *	NewIterator (int scope=ALL_DEFINITIONS)
	Return a NEW instance of vtkPVProxyDefinitionIterator configured to get through all the definition available for the requested scope. More...

vtkPVProxyDefinitionIterator *	NewSingleGroupIterator (const char *groupName, int scope=ALL_DEFINITIONS)
	Return a new configured iterator for traversing a set of proxy definition for only one GroupName. More...

void	EnableXMLProxyDefnitionUpdate (bool)
	Deactivate the modification of the ProxyDefinitions for that given vtkSIProxyDefinitionManager to make sure update only come from the remote server and not plugin loaded on the client. More...

void	Push (vtkSMMessage *msg) override
	Push a new state to the underneath implementation The provided implementation just store the message and return it at the Pull one. More...

void	Pull (vtkSMMessage *msg) override
	Pull the current state of the underneath implementation The provided implementation update the given message with the one that has been previously pushed. More...


vtkPVXMLElement *	GetProxyDefinition (const char group, const char name, bool throwError)
	Returns a registered proxy definition or return a nullptr otherwise. More...

vtkPVXMLElement *	GetProxyDefinition (const char group, const char name)
	Returns a registered proxy definition or return a nullptr otherwise. More...


vtkPVXMLElement *	GetCollapsedProxyDefinition (const char group, const char name, const char *subProxyName, bool throwError)
	Returns the same thing as GetProxyDefinition in a flatten manner. More...

vtkPVXMLElement *	GetCollapsedProxyDefinition (const char group, const char name, const char *subProxyName)
	Returns the same thing as GetProxyDefinition in a flatten manner. More...


void	AddCustomProxyDefinition (const char group, const char name, vtkPVXMLElement *top)
	Add a custom proxy definition. More...

void	AddCustomProxyDefinition (const char groupName, const char proxyName, const char *xmlcontents)
	Add a custom proxy definition. More...


void	LoadCustomProxyDefinitions (vtkPVXMLElement *root)
	Load custom proxy definitions and register them. More...

void	LoadCustomProxyDefinitionsFromString (const char *xmlContent)
	Load custom proxy definitions and register them. More...


bool	LoadConfigurationXML (vtkPVXMLElement *root)
	Loads server-manager configuration xml. More...

bool	LoadConfigurationXMLFromString (const char *xmlContent)
	Loads server-manager configuration xml. More...

Public Member Functions inherited from vtkSIObject
virtual void	AboutToDelete ()
	This method is called before the deletion of the SIObject. More...

virtual void	Initialize (vtkPVSessionCore *session)
	Initializes the instance. More...

vtkClientServerInterpreter *	GetInterpreter ()
	Provides access to the Interpreter. More...

vtkSIObject *	GetSIObject (vtkTypeUInt32 globalid) const
	Convenience method to obtain a vtkSIObject subclass given its global id. More...

vtkObject *	GetRemoteObject (vtkTypeUInt32 globalid)
	Convenience method to obtain a vtkObject subclass given its global id. More...

virtual void	SetGlobalID (vtkTypeUInt32)
	Get/Set the global id for this object. More...

virtual vtkTypeUInt32	GetGlobalID ()
	Get/Set the global id for this object. More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkSIProxyDefinitionManager *	New ()

static int	IsTypeOf (const char *type)

static vtkSIProxyDefinitionManager *	SafeDownCast (vtkObject *o)

static vtkTypeUInt32	GetReservedGlobalID ()
	Returns the ID reserved for the proxy definition manager. More...

static void	PatchXMLProperty (vtkPVXMLElement *propElement)
	For now we dynamically convert InformationHelper into the correct si_class and attribute sets. More...

Static Public Member Functions inherited from vtkSIObject
static vtkSIObject *	New ()

static int	IsTypeOf (const char *type)

static vtkSIObject *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkSIProxyDefinitionManager ()

	~vtkSIProxyDefinitionManager () override

void	AttachEnsurePluginLoadedToProxies (vtkPVXMLElement *proxy, const std::string &ensurePluginLoaded)
	Helper method that add a EnsurePluginLoaded XML element with name ensurePluginLoaded for a provided proxy definition. More...

void	AttachShowInMenuHintsToProxy (vtkPVXMLElement *proxy)
	Helper method that add a ShowInMenu Hint for a proxy definition. More...

void	AttachShowInMenuHintsToProxyFromProxyGroups (vtkPVXMLElement *root)
	Helper method that add a ShowInMenu Hint for any proxy definition that lie in a sources or filters group. More...

void	AddElement (const char groupName, const char proxyName, vtkPVXMLElement *element)
	Called by the XML parser to add an element from which a proxy can be created. More...

bool	AddCustomProxyDefinitionInternal (const char group, const char name, vtkPVXMLElement *top)
	Implementation for add custom proxy definition. More...

void	MergeProxyDefinition (vtkPVXMLElement element, vtkPVXMLElement elementToFill)
	Integrate a ProxyDefinition into another ProxyDefinition by merging them. More...

void	InvalidateCollapsedDefinition ()
	Method used to clear the Flatten version of the definition. More...

vtkPVXMLElement *	GetProxyElement (const char groupName, const char proxyName)
	Given the proxy name and group name, returns the XML element for the proxy. More...

vtkPVXMLElement *	ExtractSubProxy (vtkPVXMLElement proxyDefinition, const char subProxyName)
	Convenient method used to extract sub-proxy definition inside a proxy definition. More...

void	InvokeCustomDefitionsUpdated ()
	Called when custom definitions are updated. More...


bool	LoadConfigurationXML (vtkPVXMLElement *root, bool attachShowInMenuHints, bool invoke=true, const std::string &ensurePluginLoaded="")
	Loads server-manager configuration xml. More...

bool	LoadConfigurationXMLFromString (const char *xmlContent, bool attachShowInMenuHints, bool invoke=true, const std::string &ensurePluginLoaded="")
	Loads server-manager configuration xml. More...


void	OnPluginLoaded (vtkObject caller, unsigned long event, void calldata)
	Callback called when a plugin is loaded. More...

void	HandlePlugin (vtkPVPlugin *)
	Callback called when a plugin is loaded. More...

Protected Member Functions inherited from vtkSIObject
	vtkSIObject ()

	~vtkSIObject () override

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Additional Inherited Members
Protected Attributes inherited from vtkSIObject
vtkWeakPointer< vtkClientServerInterpreter >	Interpreter

vtkWeakPointer< vtkPVSessionCore >	SessionCore

vtkSMMessage *	LastPushedMessage

vtkTypeUInt32	GlobalID

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Detailed Description

object responsible for managing XML proxies definitions

vtkSIProxyDefinitionManager is a class that manages XML proxies definition. It maintains a map of vtkPVXMLElement (populated by the XML parser) from which it can extract Hint, Documentation, Properties, Domains definition.

This class fires the following events:

vtkSIProxyDefinitionManager::ProxyDefinitionsUpdated - Fired any time any definitions are updated. If a group of definitions are being updated (i.e. a new definition is registered, or unregistered, or modified) then this event gets fired after all of them are updated.
vtkSIProxyDefinitionManager::CompoundProxyDefinitionsUpdated - Fired when a custom proxy definition is updated. Similar to ProxyDefinitionsUpdated this is fired after collective updates, if applicable. Note whenever CompoundProxyDefinitionsUpdated is fired, ProxyDefinitionsUpdated is also fired.
vtkCommand::RegisterEvent - Fired when a new proxy definition is registered or an old one modified (through extensions). This is fired for regular proxies as well as custom proxy definitions.
vtkCommand::UnRegisterEvent - Fired when a proxy definition is removed. Since this class only support removing custom proxies, this event is fired only when a custom proxy is removed.

Definition at line 40 of file vtkSIProxyDefinitionManager.h.

Member Typedef Documentation

◆ Superclass

typedef vtkSIObject vtkSIProxyDefinitionManager::Superclass

Definition at line 44 of file vtkSIProxyDefinitionManager.h.

Member Enumeration Documentation

◆ Events

enum vtkSIProxyDefinitionManager::Events

Enumerator
ProxyDefinitionsUpdated
CompoundProxyDefinitionsUpdated

Definition at line 148 of file vtkSIProxyDefinitionManager.h.

◆ anonymous enum

anonymous enum

Return a new configured iterator for traversing a set of proxy definition for all the available groups.

Scope values: 0 : ALL (default in case) 1 : CORE_DEFINITIONS 2 : CUSTOM_DEFINITIONS

Enumerator
ALL_DEFINITIONS
CORE_DEFINITIONS
CUSTOM_DEFINITIONS

Definition at line 163 of file vtkSIProxyDefinitionManager.h.

Constructor & Destructor Documentation

◆ vtkSIProxyDefinitionManager()

vtkSIProxyDefinitionManager::vtkSIProxyDefinitionManager ( )

protected

◆ ~vtkSIProxyDefinitionManager()

vtkSIProxyDefinitionManager::~vtkSIProxyDefinitionManager ( )

overrideprotected

Member Function Documentation

◆ New()

static vtkSIProxyDefinitionManager* vtkSIProxyDefinitionManager::New ( )

static

◆ GetClassName()

virtual const char* vtkSIProxyDefinitionManager::GetClassName ( )

virtual

Reimplemented from vtkSIObject.

◆ IsTypeOf()

static int vtkSIProxyDefinitionManager::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkSIProxyDefinitionManager::IsA ( const char * type )

virtual

Reimplemented from vtkSIObject.

◆ SafeDownCast()

static vtkSIProxyDefinitionManager* vtkSIProxyDefinitionManager::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkSIProxyDefinitionManager::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkSIObject.

◆ GetReservedGlobalID()

static vtkTypeUInt32 vtkSIProxyDefinitionManager::GetReservedGlobalID ( )

static

Returns the ID reserved for the proxy definition manager.

◆ PatchXMLProperty()

static void vtkSIProxyDefinitionManager::PatchXMLProperty ( vtkPVXMLElement * propElement )

static

For now we dynamically convert InformationHelper into the correct si_class and attribute sets.

THIS CODE SHOULD BE REMOVED once InformationHelper have been removed from legacy XML

◆ GetProxyDefinition() [1/2]

vtkPVXMLElement* vtkSIProxyDefinitionManager::GetProxyDefinition	(	const char *	group,
		const char *	name,
		bool	throwError
	)

Returns a registered proxy definition or return a nullptr otherwise.

Moreover, error can be throw if the definition was not found if the flag throwError is true.

◆ GetProxyDefinition() [2/2]

vtkPVXMLElement* vtkSIProxyDefinitionManager::GetProxyDefinition	(	const char *	group,
		const char *	name
	)

inline

Returns a registered proxy definition or return a nullptr otherwise.

Moreover, error can be throw if the definition was not found if the flag throwError is true.

Definition at line 67 of file vtkSIProxyDefinitionManager.h.

◆ HasDefinition()

bool vtkSIProxyDefinitionManager::HasDefinition	(	const char *	groupName,
		const char *	proxyName
	)

Return true if the XML Definition was found.

◆ GetCollapsedProxyDefinition() [1/2]

vtkPVXMLElement* vtkSIProxyDefinitionManager::GetCollapsedProxyDefinition	(	const char *	group,
		const char *	name,
		const char *	subProxyName,
		bool	throwError
	)

Returns the same thing as GetProxyDefinition in a flatten manner.

By flatten, we mean that the class hierarchy has been walked and merged into a single vtkPVXMLElement definition.

◆ GetCollapsedProxyDefinition() [2/2]

vtkPVXMLElement* vtkSIProxyDefinitionManager::GetCollapsedProxyDefinition	(	const char *	group,
		const char *	name,
		const char *	subProxyName
	)

inline

Returns the same thing as GetProxyDefinition in a flatten manner.

By flatten, we mean that the class hierarchy has been walked and merged into a single vtkPVXMLElement definition.

Definition at line 87 of file vtkSIProxyDefinitionManager.h.

◆ AddCustomProxyDefinition() [1/2]

void vtkSIProxyDefinitionManager::AddCustomProxyDefinition	(	const char *	group,
		const char *	name,
		vtkPVXMLElement *	top
	)

Add a custom proxy definition.

Custom definitions are NOT ALLOWED to overrive or overlap any ProxyDefinition that has been defined by parsing server manager proxy configuration files. This can be a compound proxy definition (look at vtkSMCompoundSourceProxy.h) or a regular proxy definition. For all practical purposes, there's no difference between a proxy definition added using this method or by parsing a server manager configuration file.

◆ AddCustomProxyDefinition() [2/2]

void vtkSIProxyDefinitionManager::AddCustomProxyDefinition	(	const char *	groupName,
		const char *	proxyName,
		const char *	xmlcontents
	)

Add a custom proxy definition.

Custom definitions are NOT ALLOWED to overrive or overlap any ProxyDefinition that has been defined by parsing server manager proxy configuration files. This can be a compound proxy definition (look at vtkSMCompoundSourceProxy.h) or a regular proxy definition. For all practical purposes, there's no difference between a proxy definition added using this method or by parsing a server manager configuration file.

◆ RemoveCustomProxyDefinition()

void vtkSIProxyDefinitionManager::RemoveCustomProxyDefinition	(	const char *	group,
		const char *	name
	)

Given its name, remove a custom proxy definition.

Note that this can only be used to remove definitions added using AddCustomProxyDefinition(), cannot be used to remove definitions loaded using vtkSMXMLParser.

◆ ClearCustomProxyDefinitions()

void vtkSIProxyDefinitionManager::ClearCustomProxyDefinitions ( )

Remove all registered custom proxy definitions.

Note that this can only be used to remove definitions added using AddCustomProxyDefinition(), cannot be used to remove definitions loaded using vtkSMXMLParser.

◆ LoadCustomProxyDefinitions()

void vtkSIProxyDefinitionManager::LoadCustomProxyDefinitions ( vtkPVXMLElement * root )

Load custom proxy definitions and register them.

◆ LoadCustomProxyDefinitionsFromString()

void vtkSIProxyDefinitionManager::LoadCustomProxyDefinitionsFromString ( const char * xmlContent )

Load custom proxy definitions and register them.

◆ SaveCustomProxyDefinitions()

void vtkSIProxyDefinitionManager::SaveCustomProxyDefinitions ( vtkPVXMLElement * root )

Save registered custom proxy definitions.

The caller must release the reference to the returned vtkPVXMLElement.

◆ LoadConfigurationXML() [1/2]

bool vtkSIProxyDefinitionManager::LoadConfigurationXML ( vtkPVXMLElement * root )

Loads server-manager configuration xml.

◆ LoadConfigurationXMLFromString() [1/2]

bool vtkSIProxyDefinitionManager::LoadConfigurationXMLFromString ( const char * xmlContent )

Loads server-manager configuration xml.

◆ NewIterator()

VTK_NEWINSTANCE vtkPVProxyDefinitionIterator* vtkSIProxyDefinitionManager::NewIterator ( int scope = ALL_DEFINITIONS )

Return a NEW instance of vtkPVProxyDefinitionIterator configured to get through all the definition available for the requested scope.

Possible scope defined as enum inside vtkSIProxyDefinitionManager: ALL_DEFINITIONS=0 / CORE_DEFINITIONS=1 / CUSTOM_DEFINITIONS=2 Some extra restriction can be set directly on the iterator itself by setting a set of GroupName...

◆ NewSingleGroupIterator()

vtkPVProxyDefinitionIterator* vtkSIProxyDefinitionManager::NewSingleGroupIterator	(	const char *	groupName,
		int	scope = `ALL_DEFINITIONS`
	)

Return a new configured iterator for traversing a set of proxy definition for only one GroupName.

Possible scope defined as enum inside vtkSIProxyDefinitionManager: ALL_DEFINITIONS=0 / CORE_DEFINITIONS=1 / CUSTOM_DEFINITIONS=2

◆ EnableXMLProxyDefnitionUpdate()

void vtkSIProxyDefinitionManager::EnableXMLProxyDefnitionUpdate ( bool )

Deactivate the modification of the ProxyDefinitions for that given vtkSIProxyDefinitionManager to make sure update only come from the remote server and not plugin loaded on the client.

◆ Push()

void vtkSIProxyDefinitionManager::Push ( vtkSMMessage * msg )

overridevirtual

Push a new state to the underneath implementation The provided implementation just store the message and return it at the Pull one.

Reimplemented from vtkSIObject.

◆ Pull()

void vtkSIProxyDefinitionManager::Pull ( vtkSMMessage * msg )

overridevirtual

Pull the current state of the underneath implementation The provided implementation update the given message with the one that has been previously pushed.

Reimplemented from vtkSIObject.

◆ AttachEnsurePluginLoadedToProxies()

void vtkSIProxyDefinitionManager::AttachEnsurePluginLoadedToProxies	(	vtkPVXMLElement *	proxy,
		const std::string &	ensurePluginLoaded
	)

protected

Helper method that add a EnsurePluginLoaded XML element with name ensurePluginLoaded for a provided proxy definition.

◆ AttachShowInMenuHintsToProxy()

void vtkSIProxyDefinitionManager::AttachShowInMenuHintsToProxy ( vtkPVXMLElement * proxy )

protected

Helper method that add a ShowInMenu Hint for a proxy definition.

This allow that given proxy to show up inside the Sources/Filters menu inside the UI.

◆ AttachShowInMenuHintsToProxyFromProxyGroups()

void vtkSIProxyDefinitionManager::AttachShowInMenuHintsToProxyFromProxyGroups ( vtkPVXMLElement * root )

protected

Helper method that add a ShowInMenu Hint for any proxy definition that lie in a sources or filters group.

See also: method AttachShowInMenuHintsToProxy

◆ LoadConfigurationXML() [2/2]

bool vtkSIProxyDefinitionManager::LoadConfigurationXML	(	vtkPVXMLElement *	root,
		bool	attachShowInMenuHints,
		bool	invoke = `true`,
		const std::string &	ensurePluginLoaded = `""`
	)

protected

Loads server-manager configuration xml.

Those method are protected as they allow to automatically add some extra hints for those loaded definition set. This is essentially used when proxy get loaded as legacy proxy don't have those expected Hints. If invoke is true, these method will invoke ProxyDefinitionsUpdated at the end. FIXME: Once those pluging get updated, this extra hint attachment might be removed. Set ensurePluginLoaded to a non empty string to add the EnsurePluginLoaded XML tag to each proxy

◆ LoadConfigurationXMLFromString() [2/2]

bool vtkSIProxyDefinitionManager::LoadConfigurationXMLFromString	(	const char *	xmlContent,
		bool	attachShowInMenuHints,
		bool	invoke = `true`,
		const std::string &	ensurePluginLoaded = `""`
	)

protected

Loads server-manager configuration xml.

Those method are protected as they allow to automatically add some extra hints for those loaded definition set. This is essentially used when proxy get loaded as legacy proxy don't have those expected Hints. If invoke is true, these method will invoke ProxyDefinitionsUpdated at the end. FIXME: Once those pluging get updated, this extra hint attachment might be removed. Set ensurePluginLoaded to a non empty string to add the EnsurePluginLoaded XML tag to each proxy

◆ OnPluginLoaded()

void vtkSIProxyDefinitionManager::OnPluginLoaded	(	vtkObject *	caller,
		unsigned long	event,
		void *	calldata
	)

protected

Callback called when a plugin is loaded.

◆ HandlePlugin()

void vtkSIProxyDefinitionManager::HandlePlugin ( vtkPVPlugin * )

protected

Callback called when a plugin is loaded.

◆ AddElement()

void vtkSIProxyDefinitionManager::AddElement	(	const char *	groupName,
		const char *	proxyName,
		vtkPVXMLElement *	element
	)

protected

Called by the XML parser to add an element from which a proxy can be created.

Called during parsing.

◆ AddCustomProxyDefinitionInternal()

bool vtkSIProxyDefinitionManager::AddCustomProxyDefinitionInternal	(	const char *	group,
		const char *	name,
		vtkPVXMLElement *	top
	)

protected

Implementation for add custom proxy definition.

◆ MergeProxyDefinition()

void vtkSIProxyDefinitionManager::MergeProxyDefinition	(	vtkPVXMLElement *	element,
		vtkPVXMLElement *	elementToFill
	)

protected

Integrate a ProxyDefinition into another ProxyDefinition by merging them.

If properties are overridden is the last property that will last. So when we build a merged definition hierarchy, we should start from the root and go down.

◆ InvalidateCollapsedDefinition()

void vtkSIProxyDefinitionManager::InvalidateCollapsedDefinition ( )

protected

Method used to clear the Flatten version of the definition.

This will force its recomputation when needed. This should be called each time new definition get added. (Not the Custom one since those should NOT conflict with the core definitions.)

◆ GetProxyElement()

vtkPVXMLElement* vtkSIProxyDefinitionManager::GetProxyElement	(	const char *	groupName,
		const char *	proxyName
	)

protected

Given the proxy name and group name, returns the XML element for the proxy.

◆ ExtractSubProxy()

vtkPVXMLElement* vtkSIProxyDefinitionManager::ExtractSubProxy	(	vtkPVXMLElement *	proxyDefinition,
		const char *	subProxyName
	)

protected

Convenient method used to extract sub-proxy definition inside a proxy definition.

If (subProxyName == nullptr) return proxyDefinition;

◆ InvokeCustomDefitionsUpdated()

void vtkSIProxyDefinitionManager::InvokeCustomDefitionsUpdated ( )

protected

Called when custom definitions are updated.

Fires appropriate events.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Remoting/ServerManager/vtkSIProxyDefinitionManager.h

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Superclass

Member Enumeration Documentation

◆ Events

◆ anonymous enum

Constructor & Destructor Documentation

◆ vtkSIProxyDefinitionManager()

◆ ~vtkSIProxyDefinitionManager()

Member Function Documentation

◆ New()

◆ GetClassName()

◆ IsTypeOf()

◆ IsA()

◆ SafeDownCast()

◆ PrintSelf()

◆ GetReservedGlobalID()

◆ PatchXMLProperty()

◆ GetProxyDefinition() [1/2]

◆ GetProxyDefinition() [2/2]

◆ HasDefinition()

◆ GetCollapsedProxyDefinition() [1/2]

◆ GetCollapsedProxyDefinition() [2/2]

◆ AddCustomProxyDefinition() [1/2]

◆ AddCustomProxyDefinition() [2/2]

◆ RemoveCustomProxyDefinition()

◆ ClearCustomProxyDefinitions()

◆ LoadCustomProxyDefinitions()

◆ LoadCustomProxyDefinitionsFromString()

◆ SaveCustomProxyDefinitions()

◆ LoadConfigurationXML() [1/2]

◆ LoadConfigurationXMLFromString() [1/2]

◆ NewIterator()

◆ NewSingleGroupIterator()

◆ EnableXMLProxyDefnitionUpdate()

◆ Push()

◆ Pull()

◆ AttachEnsurePluginLoadedToProxies()

◆ AttachShowInMenuHintsToProxy()

◆ AttachShowInMenuHintsToProxyFromProxyGroups()

◆ LoadConfigurationXML() [2/2]

◆ LoadConfigurationXMLFromString() [2/2]

◆ OnPluginLoaded()

◆ HandlePlugin()

◆ AddElement()

◆ AddCustomProxyDefinitionInternal()

◆ MergeProxyDefinition()

◆ InvalidateCollapsedDefinition()

◆ GetProxyElement()

◆ ExtractSubProxy()

◆ InvokeCustomDefitionsUpdated()
