Class used to broadcast message from one client to the others. More...

#include <vtkSMCollaborationManager.h>

Inheritance diagram for vtkSMCollaborationManager:

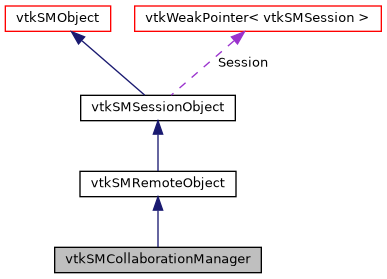

Collaboration diagram for vtkSMCollaborationManager:

[legend]

Public Types
enum	EventType { CollaborationNotification = 12345, UpdateUserName = 12346, UpdateUserList = 12347, UpdateMasterUser = 12348, FollowUserCamera = 12349, CameraChanged = 12350, LastMessageUpdated = 12351 }

typedef vtkSMRemoteObject	Superclass

Public Types inherited from vtkSMRemoteObject
typedef vtkSMSessionObject	Superclass

Public Types inherited from vtkSMSessionObject
typedef vtkSMObject	Superclass

Public Types inherited from vtkSMObject
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

vtkTypeUInt32	GetGlobalID () override
	Get the global unique id for this object. More...

void	SetSession (vtkSMSession *) override
	Override the session setting in order to update only once our current local user id. More...

virtual void	PromoteToMaster (int clientId)
	This method is used promote a new Master user. More...

virtual void	FollowUser (int clientId)
	Share the decision that user should follow that given user if master or follow someone else on your own. More...

int	GetFollowedUser ()
	Return the local followed user. More...

virtual bool	IsMaster ()
	Return true if the current client is the master. More...

virtual int	GetMasterId ()
	Return the userId of the current master. More...

bool	GetDisableFurtherConnections ()
	Return true if further connections are disabled. More...

virtual int	GetUserId ()
	Return the id of the current client. More...

virtual int	GetUserId (int index)
	Return the id of the nth connected client. More...

virtual const char *	GetUserLabel (int userID)
	return the name of the provided userId More...

virtual void	SetUserLabel (const char *userName)
	Update ou local user name. More...

virtual void	SetUserLabel (int userId, const char *userName)
	Update any user name. More...

virtual int	GetNumberOfConnectedClients ()
	return the number of currently connected clients. More...

void	UpdateUserInformations ()
	Request an update of the user list from the server. More...

int	GetServerConnectID ()
	Return the server connect id if this is the master. More...

int	GetConnectID ()
	Return the client connect id. More...

void	SendToOtherClients (vtkSMMessage *msg)
	Send message to other clients which will trigger Observer. More...

const vtkSMMessage *	GetFullState () override
	This method return the state of the connected clients. More...

void	LoadState (const vtkSMMessage msg, vtkSMProxyLocator locator) override
	This method is used to either load its internal connected clients information or to forward messages across clients. More...

void	DisableFurtherConnections (bool disable)
	Enable or disable further connections to the server. More...

void	SetConnectID (int connectID)
	Change the connect-id. More...

const char *	GetLastReceivedMessage () const
	Allow to get the last received message from the chat. More...

Public Member Functions inherited from vtkSMRemoteObject
void	PrintSelf (ostream &os, vtkIndent indent) override

void	SetSession (vtkSMSession *) override
	Override the SetSession so if the object already have an ID we automatically register it to the associated session. More...

bool	HasGlobalID ()
	Allow the user to test if the RemoteObject has already a GlobalID without assigning a new one to it. More...

virtual void	EnableLocalPushOnly ()
	Allow to switch off any push of state change to the server for that particular object. More...

virtual void	DisableLocalPushOnly ()
	Enable the given remote object to communicate its state normally to the server location. More...

virtual bool	IsLocalPushOnly ()
	Let the session be aware that even if the Location is client only, the message should not be send to the server for a general broadcast. More...

virtual void	SetLocation (vtkTypeUInt32)
	Get/Set the location where the underlying VTK-objects are created. More...

virtual vtkTypeUInt32	GetLocation ()
	Get/Set the location where the underlying VTK-objects are created. More...

const char *	GetGlobalIDAsString ()
	Get the global unique id for this object. More...

virtual void	PrototypeOn ()
	Allow user to set the remote object to be discard for Undo/Redo action. More...

virtual void	PrototypeOff ()
	Allow user to set the remote object to be discard for Undo/Redo action. More...

bool	IsPrototype ()
	Allow user to set the remote object to be discard for Undo/Redo action. More...

virtual void	SetPrototype (bool)
	Allow user to set the remote object to be discard for Undo/Redo action. More...

Public Member Functions inherited from vtkSMSessionObject
void	PrintSelf (ostream &os, vtkIndent indent) override

virtual vtkSMSessionProxyManager *	GetSessionProxyManager ()
	Return the corresponding ProxyManager if any. More...

virtual vtkSMSession *	GetSession ()
	Get/Set the session on wihch this object exists. More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkTypeUInt32	GetReservedGlobalID ()
	Return the GlobalID that should be used to refer to the TimeKeeper. More...

static vtkSMCollaborationManager *	New ()

static int	IsTypeOf (const char *type)

static vtkSMCollaborationManager *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMRemoteObject
static int	IsTypeOf (const char *type)

static vtkSMRemoteObject *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMSessionObject
static vtkSMSessionObject *	New ()

static int	IsTypeOf (const char *type)

static vtkSMSessionObject *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMObject
static vtkSMObject *	New ()

static int	IsTypeOf (const char *type)

static vtkSMObject *	SafeDownCast (vtkObject *o)

static std::string	CreatePrettyLabel (const std::string &name)
	Return a well-formated label using provided name by adding spaces between lower cases and upper cases: More...

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkSMCollaborationManager ()
	Default constructor. More...

	~vtkSMCollaborationManager () override
	Destructor. More...

Protected Member Functions inherited from vtkSMRemoteObject
	vtkSMRemoteObject ()
	Default constructor. More...

	~vtkSMRemoteObject () override
	Destructor. More...

void	PushState (vtkSMMessage *msg)
	Subclasses can call this method to send a message to its state object on the server processes specified. More...

bool	PullState (vtkSMMessage *msg)
	Subclasses can call this method to pull the state from the state-object on the server processes specified. More...

void	SetGlobalID (vtkTypeUInt32 guid)
	Set the GlobalUniqueId. More...

vtkTypeUInt32	GetFilteredLocation ()

Protected Member Functions inherited from vtkSMSessionObject
	vtkSMSessionObject ()

	~vtkSMSessionObject () override

Protected Member Functions inherited from vtkSMObject
	vtkSMObject ()

	~vtkSMObject () override

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Additional Inherited Members
Protected Attributes inherited from vtkSMRemoteObject
vtkTypeUInt32	GlobalID

vtkTypeUInt32	Location

bool	Prototype

bool	ClientOnlyLocationFlag

Protected Attributes inherited from vtkSMSessionObject
vtkWeakPointer< vtkSMSession >	Session
	Identifies the session id to which this object is related. More...

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Detailed Description

Class used to broadcast message from one client to the others.

This class allow to trigger protobuf messages on all the clients that are connected to the server. Those clients can attach listeners and handle those message in the way they want. The message sender do not receive its message again, only other clients do.

To listen collaboration notification messages you should have a code that look like that:

collaborationManager->AddObserver( vtkSMCollaborationManager::CollaborationNotification, callback);

void callback(vtkObject* src, unsigned long event, void* method, void* data) { vtkSMMessage* msg = reinterpret_cast<vtkSMMessage*>(data); => do what you want with the message }

Definition at line 36 of file vtkSMCollaborationManager.h.

Member Typedef Documentation

◆ Superclass

typedef vtkSMRemoteObject vtkSMCollaborationManager::Superclass

Definition at line 45 of file vtkSMCollaborationManager.h.

Member Enumeration Documentation

◆ EventType

enum vtkSMCollaborationManager::EventType

Enumerator
CollaborationNotification
UpdateUserName
UpdateUserList
UpdateMasterUser
FollowUserCamera
CameraChanged
LastMessageUpdated

Definition at line 143 of file vtkSMCollaborationManager.h.

Constructor & Destructor Documentation

◆ vtkSMCollaborationManager()

vtkSMCollaborationManager::vtkSMCollaborationManager ( )

protected

Default constructor.

◆ ~vtkSMCollaborationManager()

vtkSMCollaborationManager::~vtkSMCollaborationManager ( )

overrideprotected

Destructor.

Member Function Documentation

◆ GetReservedGlobalID()

static vtkTypeUInt32 vtkSMCollaborationManager::GetReservedGlobalID ( )

static

Return the GlobalID that should be used to refer to the TimeKeeper.

◆ New()

static vtkSMCollaborationManager* vtkSMCollaborationManager::New ( )

static

◆ GetClassName()

virtual const char* vtkSMCollaborationManager::GetClassName ( )

virtual

Reimplemented from vtkSMRemoteObject.

◆ IsTypeOf()

static int vtkSMCollaborationManager::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkSMCollaborationManager::IsA ( const char * type )

virtual

Reimplemented from vtkSMRemoteObject.

◆ SafeDownCast()

static vtkSMCollaborationManager* vtkSMCollaborationManager::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkSMCollaborationManager::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkObject.

◆ GetGlobalID()

vtkTypeUInt32 vtkSMCollaborationManager::GetGlobalID ( )

overridevirtual

Get the global unique id for this object.

If none is set and the session is valid, a new global id will be assigned automatically.

Reimplemented from vtkSMRemoteObject.

◆ SetSession()

void vtkSMCollaborationManager::SetSession ( vtkSMSession * )

overridevirtual

Override the session setting in order to update only once our current local user id.

Reimplemented from vtkSMSessionObject.

◆ PromoteToMaster()

virtual void vtkSMCollaborationManager::PromoteToMaster ( int clientId )

virtual

This method is used promote a new Master user.

Master/Slave user doesn't buy you anything here. It just provide you the information, and it is your call to prevent slaves users to do or achieve some actions inside your client. When you call that method a SMMessage is also propagated to the other client so they could follow who is the Master without fetching the information again.

◆ FollowUser()

virtual void vtkSMCollaborationManager::FollowUser ( int clientId )

virtual

Share the decision that user should follow that given user if master or follow someone else on your own.

◆ GetFollowedUser()

int vtkSMCollaborationManager::GetFollowedUser ( )

Return the local followed user.

◆ IsMaster()

virtual bool vtkSMCollaborationManager::IsMaster ( )

virtual

Return true if the current client is the master.

◆ GetMasterId()

virtual int vtkSMCollaborationManager::GetMasterId ( )

virtual

Return the userId of the current master.

◆ GetDisableFurtherConnections()

bool vtkSMCollaborationManager::GetDisableFurtherConnections ( )

Return true if further connections are disabled.

◆ GetUserId() [1/2]

virtual int vtkSMCollaborationManager::GetUserId ( )

virtual

Return the id of the current client.

◆ GetUserId() [2/2]

virtual int vtkSMCollaborationManager::GetUserId ( int index )

virtual

Return the id of the nth connected client.

In the list you will find yourself as well.

◆ GetUserLabel()

virtual const char* vtkSMCollaborationManager::GetUserLabel ( int userID )

virtual

return the name of the provided userId

◆ SetUserLabel() [1/2]

virtual void vtkSMCollaborationManager::SetUserLabel ( const char * userName )

virtual

Update ou local user name.

◆ SetUserLabel() [2/2]

virtual void vtkSMCollaborationManager::SetUserLabel	(	int	userId,
		const char *	userName
	)

virtual

Update any user name.

◆ GetNumberOfConnectedClients()

virtual int vtkSMCollaborationManager::GetNumberOfConnectedClients ( )

virtual

return the number of currently connected clients.

This size is used to bound the GetUserId() method.

◆ UpdateUserInformations()

void vtkSMCollaborationManager::UpdateUserInformations ( )

Request an update of the user list from the server.

(A pull request is done)

◆ GetServerConnectID()

int vtkSMCollaborationManager::GetServerConnectID ( )

Return the server connect id if this is the master.

Else return -1.

◆ GetConnectID()

int vtkSMCollaborationManager::GetConnectID ( )

Return the client connect id.

◆ SendToOtherClients()

void vtkSMCollaborationManager::SendToOtherClients ( vtkSMMessage * msg )

Send message to other clients which will trigger Observer.

◆ GetFullState()

const vtkSMMessage* vtkSMCollaborationManager::GetFullState ( )

overridevirtual

This method return the state of the connected clients.

Reimplemented from vtkSMRemoteObject.

◆ LoadState()

void vtkSMCollaborationManager::LoadState	(	const vtkSMMessage *	msg,
		vtkSMProxyLocator *	locator
	)

overridevirtual

This method is used to either load its internal connected clients information or to forward messages across clients.

Reimplemented from vtkSMRemoteObject.

◆ DisableFurtherConnections()

void vtkSMCollaborationManager::DisableFurtherConnections ( bool disable )

Enable or disable further connections to the server.

Already connected clients stay connected.

◆ SetConnectID()

void vtkSMCollaborationManager::SetConnectID ( int connectID )

Change the connect-id.

Already connected clients stay connected.

Parameters

connectID the new connect-id for the server.

◆ GetLastReceivedMessage()

const char* vtkSMCollaborationManager::GetLastReceivedMessage ( ) const

Allow to get the last received message from the chat.

Easy API to be wrapped and used in python scripting.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Remoting/ServerManager/vtkSMCollaborationManager.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Superclass

Member Enumeration Documentation

◆ EventType

Constructor & Destructor Documentation

◆ vtkSMCollaborationManager()

◆ ~vtkSMCollaborationManager()

Member Function Documentation

◆ GetReservedGlobalID()

◆ New()

◆ GetClassName()

◆ IsTypeOf()

◆ IsA()

◆ SafeDownCast()

◆ PrintSelf()

◆ GetGlobalID()

◆ SetSession()

◆ PromoteToMaster()

◆ FollowUser()

◆ GetFollowedUser()

◆ IsMaster()

◆ GetMasterId()

◆ GetDisableFurtherConnections()

◆ GetUserId() [1/2]

◆ GetUserId() [2/2]

◆ GetUserLabel()

◆ SetUserLabel() [1/2]

◆ SetUserLabel() [2/2]

◆ GetNumberOfConnectedClients()

◆ UpdateUserInformations()

◆ GetServerConnectID()

◆ GetConnectID()

◆ SendToOtherClients()

◆ GetFullState()

◆ LoadState()

◆ DisableFurtherConnections()

◆ SetConnectID()

◆ GetLastReceivedMessage()
