abstract superclass for all vector properties More...

#include <vtkSMVectorProperty.h>

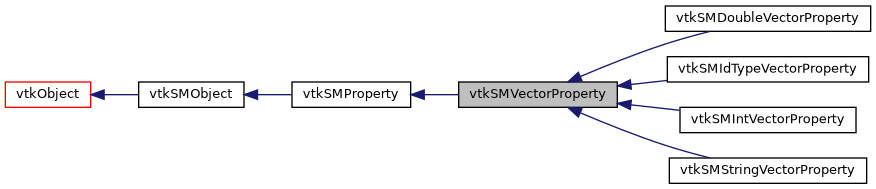

Inheritance diagram for vtkSMVectorProperty:

[legend]

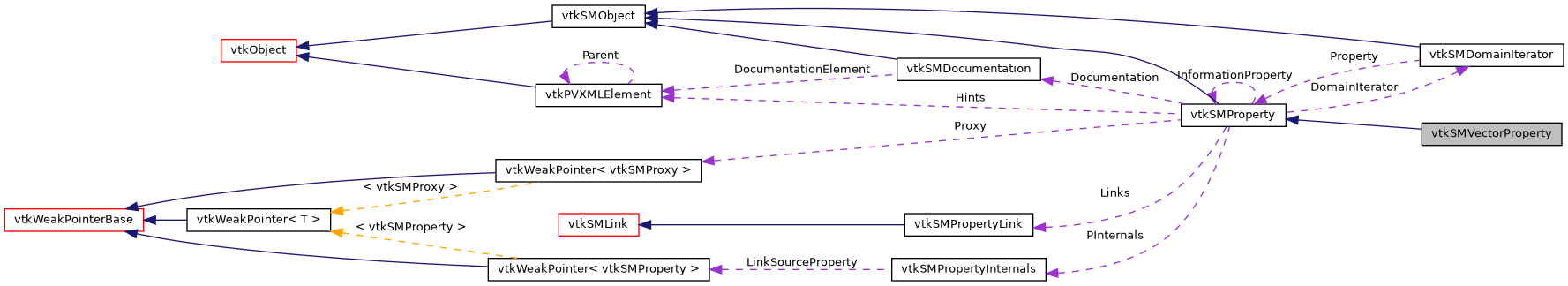

Collaboration diagram for vtkSMVectorProperty:

[legend]

Public Types
typedef vtkSMProperty	Superclass

Public Types inherited from vtkSMProperty
typedef vtkSMObject	Superclass

Public Types inherited from vtkSMObject
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

virtual unsigned int	GetNumberOfElements ()=0
	Returns the size of the vector. More...

virtual void	SetNumberOfElements (unsigned int num)=0
	Sets the size of the vector. More...

void	Copy (vtkSMProperty *src) override
	Copy all property values. More...

virtual void	SetInitialString (const char *)

virtual char *	GetInitialString ()

bool	ResetToDomainDefaults (bool use_unchecked_values=false) override
	Overridden to add support to load defaults from this->GetInformationProperty(), if one exists. More...


virtual unsigned int	GetNumberOfUncheckedElements ()=0
	API for setting unchecked element values. More...

virtual void	SetNumberOfUncheckedElements (unsigned int num)=0
	API for setting unchecked element values. More...

void	ClearUncheckedElements () override=0
	API for setting unchecked element values. More...


virtual int	GetRepeatCommand ()
	If RepeatCommand is true, the command is invoked multiple times, each time with NumberOfElementsPerCommand values. More...

virtual void	SetRepeatCommand (int)
	If RepeatCommand is true, the command is invoked multiple times, each time with NumberOfElementsPerCommand values. More...

virtual void	RepeatCommandOn ()
	If RepeatCommand is true, the command is invoked multiple times, each time with NumberOfElementsPerCommand values. More...

virtual void	RepeatCommandOff ()
	If RepeatCommand is true, the command is invoked multiple times, each time with NumberOfElementsPerCommand values. More...


virtual int	GetNumberOfElementsPerCommand ()
	If RepeatCommand is true, the command is invoked multiple times, each time with NumberOfElementsPerCommand values. More...

virtual void	SetNumberOfElementsPerCommand (int)
	If RepeatCommand is true, the command is invoked multiple times, each time with NumberOfElementsPerCommand values. More...


virtual int	GetUseIndex ()
	If UseIndex and RepeatCommand are true, the property will add an index integer before each command. More...

virtual void	SetUseIndex (int)
	If UseIndex and RepeatCommand are true, the property will add an index integer before each command. More...

virtual void	UseIndexOn ()
	If UseIndex and RepeatCommand are true, the property will add an index integer before each command. More...

virtual void	UseIndexOff ()
	If UseIndex and RepeatCommand are true, the property will add an index integer before each command. More...


virtual void	SetCleanCommand (const char *)
	Command that can be used to remove all values. More...

virtual char *	GetCleanCommand ()
	Command that can be used to remove all values. More...


virtual void	SetSetNumberCommand (const char *)
	If SetNumberCommand is set, it is called before Command with the number of arguments as the parameter. More...

virtual char *	GetSetNumberCommand ()
	If SetNumberCommand is set, it is called before Command with the number of arguments as the parameter. More...

Public Member Functions inherited from vtkSMProperty
int	IsInDomains ()
	Returns true if all values are in all domains, false otherwise. More...

int	IsInDomains (vtkSMDomain **domain)
	Overload of IsInDomains() that provides a mechanism to return the first domain that fails the check. More...

void	UnRegister (vtkObjectBase *obj) override
	Overloaded to break the reference loop caused by the internal domain iterator. More...

vtkSMDomainIterator *	NewDomainIterator ()
	Creates, initializes and returns a new domain iterator. More...

vtkSMDomain *	GetDomain (const char *name)
	Returns a domain give a name. More...

vtkSMDomain *	FindDomain (const char *classname)
	Returns the first domain which is of the specified type. More...

template<class DomainType >
DomainType *	FindDomain ()
	Same as FindDomain(classname), except the classname is deduced from the type. More...

unsigned int	GetNumberOfDomains ()
	Returns the number of domains this property has. More...

void	AddDomain (const char name, vtkSMDomain dom)
	Properties can have one or more domains. More...

virtual void	AddLinkedProperty (vtkSMProperty *targetProperty)
	Add a link to a property whose value should be synchronized with this property value. More...

virtual void	RemoveLinkedProperty (vtkSMProperty *targetProperty)
	Remove a link to a property added with AddLinkedProperty() More...

virtual void	RemoveFromSourceLink ()
	Remove a link from the source property. More...

void	ResetToDefault ()
	Simply calls this->ResetToDomainDefaults() and if that returns false, calls this->ResetToXMLDefaults(). More...

virtual void	ResetToXMLDefaults ()
	For properties that support specifying defaults in XML configuration, this method will reset the property value to the default values specified in the XML. More...

vtkSMProxy *	GetParent ()
	Get the proxy to which this property belongs. More...

virtual bool	IsStateIgnored ()

virtual bool	IsValueDefault ()
	Returns true if the property's value is different from the default value. More...

bool	HasDomainsWithRequiredProperties ()
	Returns true if the property has a domain with required properties. More...

virtual void	SetCommand (const char *)
	The command name used to set the value on the server object. More...

virtual char *	GetCommand ()
	The command name used to set the value on the server object. More...

virtual void	SetImmediateUpdate (int)
	If ImmediateUpdate is true, the value of the property will be pushed to the server as soon as it is modified. More...

virtual int	GetImmediateUpdate ()
	If ImmediateUpdate is true, the value of the property will be pushed to the server as soon as it is modified. More...

virtual int	GetInformationOnly ()
	Is InformationOnly is set to true, this property is used to get information from server instead of setting values. More...

virtual int	GetIgnoreSynchronization ()
	If IgnoreSynchronization is set to true, this property is used to prevent that property from being updated when changed remotely by another collaborative client. More...

virtual vtkSMProperty *	GetInformationProperty ()
	Get the associated information property. More...

virtual void	SetAnimateable (int)
	Get/Set if the property is animateable. More...

virtual int	GetAnimateable ()
	Get/Set if the property is animateable. More...

virtual void	SetIsInternal (int)
	Get/Set if the property is internal to server manager. More...

virtual int	GetIsInternal ()
	Get/Set if the property is internal to server manager. More...

virtual void	SetNoCustomDefault (int)
	Set/Get whether the property should ignore custom default settings. More...

virtual int	GetNoCustomDefault ()
	Set/Get whether the property should ignore custom default settings. More...

virtual void	SetPanelVisibility (const char *)
	Set/Get the panel visibility for the property. More...

virtual char *	GetPanelVisibility ()
	Set/Get the panel visibility for the property. More...

virtual void	SetPanelVisibilityDefaultForRepresentation (const char *)
	Set/Get the panel visibility to default if the current representation type matches `representation`. More...

virtual char *	GetPanelVisibilityDefaultForRepresentation ()
	Set/Get the panel visibility to default if the current representation type matches `representation`. More...

virtual void	SetPanelWidget (const char *)
	Set/Get the name of the custom panel widget to use for the property. More...

virtual char *	GetPanelWidget ()
	Set/Get the name of the custom panel widget to use for the property. More...

virtual void	SetDisableSubTrace (const char *)
	Set/Get the tracing of sub property of this property. More...

virtual char *	GetDisableSubTrace ()
	Set/Get the tracing of sub property of this property. More...

virtual vtkSMDocumentation *	GetDocumentation ()
	Returns the documentation for this proxy. More...

virtual char *	GetXMLLabel ()
	The label assigned by the xml parser. More...

virtual char *	GetXMLName ()
	The name assigned by the xml parser. More...

virtual int	GetRepeatable ()
	If repeatable, a property can have 1 or more values of the same kind. More...

virtual vtkPVXMLElement *	GetHints ()
	The server manager configuration XML may define `<Hints/>` element for a property. More...

void	SetHints (vtkPVXMLElement *hints)
	The server manager configuration XML may define `<Hints/>` element for a property. More...

void	Modified () override
	Overridden to support blocking of modified events. More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static int	IsTypeOf (const char *type)

static vtkSMVectorProperty *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMProperty
static vtkSMProperty *	New ()

static int	IsTypeOf (const char *type)

static vtkSMProperty *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMObject
static vtkSMObject *	New ()

static int	IsTypeOf (const char *type)

static vtkSMObject *	SafeDownCast (vtkObject *o)

static std::string	CreatePrettyLabel (const std::string &name)
	Return a well-formated label using provided name by adding spaces between lower cases and upper cases: More...

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkSMVectorProperty ()

	~vtkSMVectorProperty () override

int	ReadXMLAttributes (vtkSMProxy parent, vtkPVXMLElement element) override
	Set the appropriate ivars from the xml element. More...

Protected Member Functions inherited from vtkSMProperty
	vtkSMProperty ()

	~vtkSMProperty () override

virtual void	WriteTo (vtkSMMessage *msg)
	Let the property write its content into the stream. More...

virtual void	ReadFrom (const vtkSMMessage , int vtkNotUsed(message_offset), vtkSMProxyLocator )
	Let the property read and set its content from the stream. More...

virtual void	UpdateAllInputs ()
	Update all proxies referred by this property (if any). More...

vtkSMProperty *	NewProperty (const char *name)
	Internal. More...

void	AddDependent (vtkSMDomain *dom)
	Internal. More...

void	RemoveAllDependents ()
	Removes all dependents. More...

void	UpdateDomains ()
	Calls Update() on all domains contained by the property as well as all dependent domains. More...

virtual void	SaveState (vtkPVXMLElement parent, const char property_name, const char *uid, int saveDomains=1)
	Save the property state in XML. More...

virtual void	SaveStateValues (vtkPVXMLElement *propertyElement)
	This method must be overridden by concrete class in order to save the real property data. More...

virtual void	SaveDomainState (vtkPVXMLElement propertyElement, const char uid)
	Save property domain. More...

virtual int	LoadState (vtkPVXMLElement element, vtkSMProxyLocator loader)
	Updates state from an XML element. More...

virtual void	SetXMLLabel (const char *)

virtual void	SetInformationOnly (int)

virtual void	SetIgnoreSynchronization (int)

void	SetInformationProperty (vtkSMProperty *ip)

void	SetDocumentation (vtkSMDocumentation *)

void	SetParent (vtkSMProxy *proxy)

virtual void	SetStateIgnored (bool)

virtual void	StateIgnoredOn ()

virtual void	StateIgnoredOff ()

virtual void	SetXMLName (const char *)
	The name assigned by the xml parser. More...

bool	SetBlockModifiedEvents (bool block)
	Block/unblock modified events, returns the current state of the block flag. More...

virtual bool	GetPendingModifiedEvents ()
	Returns if any modified evetns are pending. More...

Protected Member Functions inherited from vtkSMObject
	vtkSMObject ()

	~vtkSMObject () override

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Protected Attributes
int	RepeatCommand

int	NumberOfElementsPerCommand

int	UseIndex

char *	CleanCommand

char *	SetNumberCommand

char *	InitialString

Protected Attributes inherited from vtkSMProperty
vtkPVXMLElement *	Hints

char *	Command

vtkSMPropertyInternals *	PInternals

int	ImmediateUpdate

int	Animateable

int	IsInternal

int	NoCustomDefault

char *	XMLName

char *	XMLLabel

char *	PanelVisibility

char *	PanelVisibilityDefaultForRepresentation

char *	PanelWidget

char *	DisableSubTrace

vtkSMDomainIterator *	DomainIterator

int	InformationOnly

int	IgnoreSynchronization

vtkSMInformationHelper *	InformationHelper

vtkSMProperty *	InformationProperty

vtkSMDocumentation *	Documentation

int	Repeatable

vtkWeakPointer< vtkSMProxy >	Proxy

bool	StateIgnored

vtkSMPropertyLink *	Links

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Detailed Description

abstract superclass for all vector properties

vtkSMVectorProperty defines an interface common to all vector properties as well as some common settings. A vector property contains a list of values passed to one or more invocations of a command. How the values are distributed to the different invocations is controlled by several parameters.

Definition at line 20 of file vtkSMVectorProperty.h.

Member Typedef Documentation

◆ Superclass

typedef vtkSMProperty vtkSMVectorProperty::Superclass

Definition at line 23 of file vtkSMVectorProperty.h.

Constructor & Destructor Documentation

◆ vtkSMVectorProperty()

vtkSMVectorProperty::vtkSMVectorProperty ( )

protected

◆ ~vtkSMVectorProperty()

vtkSMVectorProperty::~vtkSMVectorProperty ( )

overrideprotected

Member Function Documentation

◆ GetClassName()

virtual const char* vtkSMVectorProperty::GetClassName ( )

virtual

Reimplemented from vtkSMProperty.

Reimplemented in vtkSMStringVectorProperty, vtkSMIdTypeVectorProperty, vtkSMDoubleVectorProperty, and vtkSMIntVectorProperty.

◆ IsTypeOf()

static int vtkSMVectorProperty::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkSMVectorProperty::IsA ( const char * type )

virtual

Reimplemented from vtkSMProperty.

Reimplemented in vtkSMStringVectorProperty, vtkSMIdTypeVectorProperty, vtkSMDoubleVectorProperty, and vtkSMIntVectorProperty.

◆ SafeDownCast()

static vtkSMVectorProperty* vtkSMVectorProperty::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkSMVectorProperty::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkSMProperty.

◆ GetNumberOfElements()

virtual unsigned int vtkSMVectorProperty::GetNumberOfElements ( )

pure virtual

Returns the size of the vector.

Implemented in vtkSMStringVectorProperty, vtkSMIdTypeVectorProperty, vtkSMDoubleVectorProperty, and vtkSMIntVectorProperty.

◆ SetNumberOfElements()

virtual void vtkSMVectorProperty::SetNumberOfElements ( unsigned int num )

pure virtual

Sets the size of the vector.

Implemented in vtkSMStringVectorProperty, vtkSMIdTypeVectorProperty, vtkSMDoubleVectorProperty, and vtkSMIntVectorProperty.

◆ GetNumberOfUncheckedElements()

virtual unsigned int vtkSMVectorProperty::GetNumberOfUncheckedElements ( )

pure virtual

API for setting unchecked element values.

Implemented in vtkSMStringVectorProperty, vtkSMIdTypeVectorProperty, vtkSMIntVectorProperty, and vtkSMDoubleVectorProperty.

◆ SetNumberOfUncheckedElements()

virtual void vtkSMVectorProperty::SetNumberOfUncheckedElements ( unsigned int num )

pure virtual

API for setting unchecked element values.

Implemented in vtkSMIntVectorProperty, vtkSMDoubleVectorProperty, vtkSMIdTypeVectorProperty, and vtkSMStringVectorProperty.

◆ ClearUncheckedElements()

void vtkSMVectorProperty::ClearUncheckedElements ( )

overridepure virtual

API for setting unchecked element values.

Reimplemented from vtkSMProperty.

Implemented in vtkSMStringVectorProperty, vtkSMIdTypeVectorProperty, vtkSMDoubleVectorProperty, and vtkSMIntVectorProperty.

◆ GetRepeatCommand()

virtual int vtkSMVectorProperty::GetRepeatCommand ( )

virtual

If RepeatCommand is true, the command is invoked multiple times, each time with NumberOfElementsPerCommand values.
