vtkPVContextView adopts vtkContextView so that it can be used in ParaView configurations. More...

#include <vtkPVContextView.h>

Inheritance diagram for vtkPVContextView:

[legend]

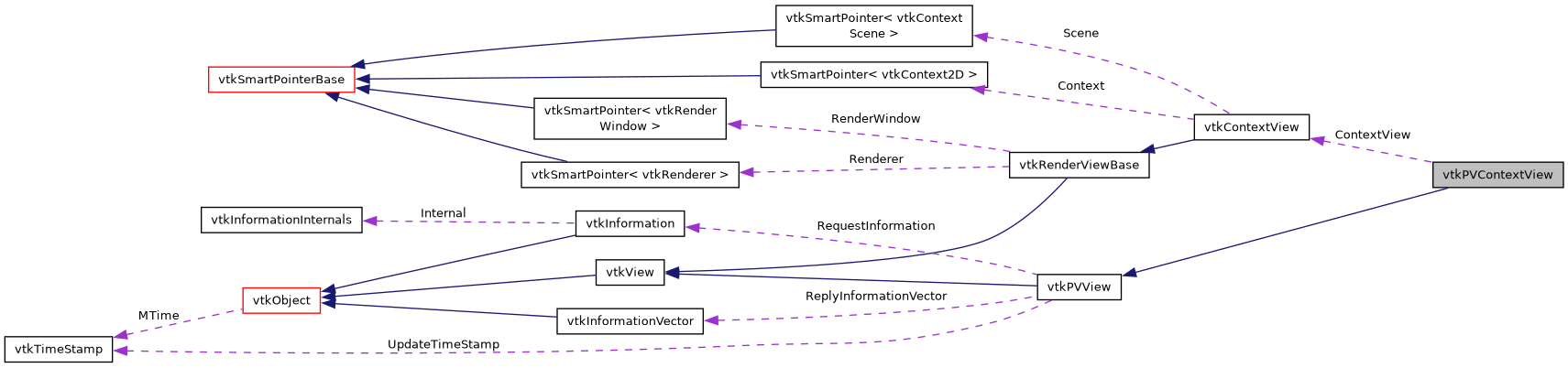

Collaboration diagram for vtkPVContextView:

[legend]

Public Types
typedef vtkPVView	Superclass

Public Types inherited from vtkPVView
typedef vtkView	Superclass

Public Types inherited from vtkView
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

void	StillRender () override
	Triggers a high-resolution render. More...

void	InteractiveRender () override
	Triggers a interactive render. More...

virtual vtkAbstractContextItem *	GetContextItem ()=0
	Get the context item. More...

virtual void	SetSelection (vtkChartRepresentation repr, vtkSelection selection)=0
	Representations can use this method to set the selection for a particular representation. More...

vtkSelection *	GetSelection ()
	Get the current selection created in the view. More...


virtual vtkContextView *	GetContextView ()
	Get the context view. More...


virtual void	SetupInteractor (vtkRenderWindowInteractor *)
	Set the interactor. More...

vtkRenderWindowInteractor *	GetInteractor ()
	Set the interactor. More...


virtual bool	Export (vtkAbstractChartExporter *exporter)
	Export the contents of this view using the exporter. More...


virtual void	SetTitle (const char *)
	Get/Set the title. More...

virtual char *	GetTitle ()
	Get/Set the title. More...


virtual void	SetTitleFont (const char *family, int pointSize, bool bold, bool italic)=0
	Get/Set the font of the title. More...

virtual void	SetTitleFontFamily (const char *family)=0
	Get/Set the font of the title. More...

virtual void	SetTitleFontSize (int pointSize)=0
	Get/Set the font of the title. More...

virtual void	SetTitleBold (bool bold)=0
	Get/Set the font of the title. More...

virtual void	SetTitleItalic (bool italic)=0
	Get/Set the font of the title. More...

virtual void	SetTitleFontFile (const char *file)=0
	Get/Set the font of the title. More...

virtual const char *	GetTitleFontFamily ()=0
	Get/Set the font of the title. More...

virtual int	GetTitleFontSize ()=0
	Get/Set the font of the title. More...

virtual int	GetTitleFontBold ()=0
	Get/Set the font of the title. More...

virtual int	GetTitleFontItalic ()=0
	Get/Set the font of the title. More...


virtual void	SetTitleColor (double red, double green, double blue)=0
	Get/Set the color of the title. More...

virtual double *	GetTitleColor ()=0
	Get/Set the color of the title. More...

Public Member Functions inherited from vtkPVView
void	PrintSelf (ostream &os, vtkIndent indent) override

virtual void	SetPPI (int)
	Description: Set the screen PPI. More...

virtual int	GetPPI ()

virtual bool	GetViewTimeValid ()
	Get ViewTimeValid. More...

void	Update () override
	Overridden to not call Update() directly on the input representations, instead use ProcessViewRequest() for all vtkPVDataRepresentations. More...

bool	InTileDisplayMode ()
	Returns true if the application is currently in tile display mode. More...

bool	InCaveDisplayMode ()
	Returns true if the application is currently in cave/immersive display mode. More...

bool	GetLocalProcessSupportsInteraction ()
	Returns true if the local process can support interaction. More...

vtkRenderWindow *	GetRenderWindow ()
	If this view needs a render window (not all views may use one), this method can be used to get the render window associated with this view on the current process. More...

virtual void	ScaleRendererViewports (const double viewport[4])
	vtkViewLayout calls this method to update the total viewport available for this view. More...

vtkMTimeType	GetUpdateTimeStamp ()
	Provides access to the time when Update() was last called. More...

virtual void	Deliver (int use_lod, unsigned int size, unsigned int *representation_ids)
	Called on all processes to request data-delivery for the list of representations. More...

virtual bool	IsCached (vtkPVDataRepresentation *)
	Called in `vtkPVDataRepresentation::ProcessViewRequest` to check if the representation already has cached data. More...

virtual void	ClearCache (vtkPVDataRepresentation *)
	Called by `vtkPVDataRepresentation` whenever `vtkPVDataRepresentation::MarkModified` is called. More...

virtual void	SetPosition (int, int)
	Set the position on this view in the multiview configuration. More...

virtual int *	GetPosition ()
	Set the position on this view in the multiview configuration. More...

virtual void	GetPosition (int &, int &)
	Set the position on this view in the multiview configuration. More...

virtual void	GetPosition (int [2])
	Set the position on this view in the multiview configuration. More...

virtual void	SetSize (int, int)
	Set the size of this view in the multiview configuration. More...

virtual int *	GetSize ()
	Set the size of this view in the multiview configuration. More...

virtual void	GetSize (int &, int &)
	Set the size of this view in the multiview configuration. More...

virtual void	GetSize (int [2])
	Set the size of this view in the multiview configuration. More...

virtual void	SetViewTime (double value)
	Get/Set the time this view is showing. More...

virtual double	GetViewTime ()
	Get/Set the time this view is showing. More...

virtual void	SetCacheKey (double)
	Get/Set the cache key. More...

virtual double	GetCacheKey ()
	Get/Set the cache key. More...

virtual void	SetUseCache (bool)
	Get/Set whether caching is enabled. More...

virtual bool	GetUseCache ()
	Get/Set whether caching is enabled. More...

virtual void	PrepareForScreenshot ()
	These methods are used to setup the view for capturing screen shots. More...

virtual void	CleanupAfterScreenshot ()
	These methods are used to setup the view for capturing screen shots. More...

void	SetTileScale (int x, int y)
	When saving screenshots with tiling, these methods get called. More...

void	SetTileViewport (double x0, double y0, double x1, double y1)
	When saving screenshots with tiling, these methods get called. More...

virtual void	SetLogName (const std::string &name)
	This is solely intended to simplify debugging and use for any other purpose is vehemently discouraged. More...

const std::string &	GetLogName () const
	This is solely intended to simplify debugging and use for any other purpose is vehemently discouraged. More...

void	SetDeliveryManager (vtkPVDataDeliveryManager *)
	Provides access to data delivery & cache manager for this view. More...

virtual vtkPVDataDeliveryManager *	GetDeliveryManager ()
	Provides access to data delivery & cache manager for this view. More...

Public Member Functions inherited from vtkView
vtkView *	NewInstance () const

void	AddRepresentation (vtkDataRepresentation *rep)

void	SetRepresentation (vtkDataRepresentation *rep)

vtkDataRepresentation *	AddRepresentationFromInputConnection (vtkAlgorithmOutput *conn)

vtkDataRepresentation *	SetRepresentationFromInputConnection (vtkAlgorithmOutput *conn)

vtkDataRepresentation *	AddRepresentationFromInput (vtkDataObject *input)

vtkDataRepresentation *	SetRepresentationFromInput (vtkDataObject *input)

void	RemoveRepresentation (vtkDataRepresentation *rep)

void	RemoveRepresentation (vtkAlgorithmOutput *rep)

void	RemoveAllRepresentations ()

int	GetNumberOfRepresentations ()

vtkDataRepresentation *	GetRepresentation (int index=0)

bool	IsRepresentationPresent (vtkDataRepresentation *rep)

virtual void	ApplyViewTheme (vtkViewTheme *vtkNotUsed(theme))

vtkCommand *	GetObserver ()

void	RegisterProgress (vtkObject algorithm, const char message=NULL)

void	UnRegisterProgress (vtkObject *algorithm)

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static int	IsTypeOf (const char *type)

static vtkPVContextView *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkPVView
static int	IsTypeOf (const char *type)

static vtkPVView *	SafeDownCast (vtkObject *o)

static void	SetEnableStreaming (bool)

static bool	GetEnableStreaming ()

static vtkInformationObjectBaseKey *	VIEW ()
	Key used to pass the vtkPVView pointer to the representation during any of the view passes such as REQUEST_UPDATE(), REQUEST_UPDATE_LOD(), REQUEST_RENDER(), etc. More...

static vtkInformationRequestKey *	REQUEST_UPDATE ()
	This is a Update-Data pass. More...

static vtkInformationRequestKey *	REQUEST_UPDATE_LOD ()
	This is a Update-LOD-Data pass. More...

static vtkInformationRequestKey *	REQUEST_RENDER ()
	This is a render pass. More...

static void	SetPiece (vtkInformation info, vtkPVDataRepresentation repr, vtkDataObject *data, unsigned long trueSize=0, int port=0)

static vtkDataObject *	GetPiece (vtkInformation info, vtkPVDataRepresentation repr, int port=0)

static vtkDataObject *	GetDeliveredPiece (vtkInformation info, vtkPVDataRepresentation repr, int port=0)

static void	SetPieceLOD (vtkInformation info, vtkPVDataRepresentation repr, vtkDataObject *data, unsigned long trueSize=0, int port=0)

static vtkDataObject *	GetPieceLOD (vtkInformation info, vtkPVDataRepresentation repr, int port=0)

static vtkDataObject *	GetDeliveredPieceLOD (vtkInformation info, vtkPVDataRepresentation repr, int port=0)

static void	SetUseGenericOpenGLRenderWindow (bool val)
	Use this to indicate that the process should use vtkGenericOpenGLRenderWindow rather than vtkRenderWindow when creating an new render window. More...

static bool	GetUseGenericOpenGLRenderWindow ()
	Use this to indicate that the process should use vtkGenericOpenGLRenderWindow rather than vtkRenderWindow when creating an new render window. More...

Static Public Member Functions inherited from vtkView
static vtkView *	New ()

static int	IsTypeOf (const char *type)

static vtkView *	SafeDownCast (vtkObjectBase *o)

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

vtkContextView *	ContextView
	Get/Set the alignement of the title. More...

virtual void	SetTitleAlignment (int alignment)=0
	Get/Set the alignement of the title. More...

virtual int	GetTitleAlignment ()=0
	Get/Set the alignement of the title. More...

	vtkPVContextView ()
	Get/Set the alignement of the title. More...

	~vtkPVContextView () override
	Get/Set the alignement of the title. More...

virtual void	Render (bool interactive)
	Actual rendering implementation. More...

virtual bool	MapSelectionToInput (vtkSelection *)
	Called to transform the selection. More...

virtual std::string	GetFormattedTitle ()
	Method to get the Formatted title after formatting it using the pushed arguments provided by vtkPVStringFormatter. More...

Additional Inherited Members
Protected Member Functions inherited from vtkPVView
	vtkPVView (bool create_render_window=true)

	~vtkPVView () override

vtkRenderWindow *	NewRenderWindow ()
	Subclasses should use this method to create new render windows instead of directly creating a new one. More...

void	SetRenderWindow (vtkRenderWindow *)
	Subclasses can use this method to set the render window created for this view. More...

void	AllReduce (const vtkBoundingBox &source, vtkBoundingBox &dest)
	Reduce bounding box between all participating processes. More...

void	AllReduce (vtkTypeUInt64 source, vtkTypeUInt64 &dest, int operation, bool skip_data_server=false)
	Reduce between all participating processes using the operation (vtkCommunicator::StandardOperations) specified. More...

vtkPVSession *	GetSession ()

virtual bool	GetInCaptureScreenshot ()
	Flag set to true between calls to `PrepareForScreenshot` and `CleanupAfterScreenshot`. More...

void	SynchronizeRepresentationTemporalPipelineStates ()
	Called in Update() to sync HasTemporalPipeline flags between representations on all processes. More...

void	AddRepresentationInternal (vtkDataRepresentation *rep) override
	Overridden to assign IDs to each representation. More...

void	RemoveRepresentationInternal (vtkDataRepresentation *rep) override
	Overridden to assign IDs to each representation. More...

int	CallProcessViewRequest (vtkInformationRequestKey passType, vtkInformation request, vtkInformationVector *reply)
	Subclasses can use this method to trigger a pass on all representations. More...

Protected Member Functions inherited from vtkView
virtual vtkObjectBase *	NewInstanceInternal () const

	vtkView ()

	~vtkView ()

virtual vtkDataRepresentation *	CreateDefaultRepresentation (vtkAlgorithmOutput *conn)

virtual void	ProcessEvents (vtkObject caller, unsigned long eventId, void callData)

virtual void	AddRepresentationInternal (vtkDataRepresentation *vtkNotUsed(rep))

virtual void	RemoveRepresentationInternal (vtkDataRepresentation *vtkNotUsed(rep))

virtual void	ProcessEvents (vtkObject caller, unsigned long eventId, void callData)

virtual void	AddRepresentationInternal (vtkDataRepresentation *vtkNotUsed(rep))

virtual void	RemoveRepresentationInternal (vtkDataRepresentation *vtkNotUsed(rep))

virtual void	SetReuseSingleRepresentation (bool)

virtual bool	GetReuseSingleRepresentation ()

virtual void	ReuseSingleRepresentationOn ()

virtual void	ReuseSingleRepresentationOff ()

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Static Protected Member Functions inherited from vtkPVView
static vtkPVDataDeliveryManager *	GetDeliveryManager (vtkInformation *info)

Protected Attributes inherited from vtkPVView
double	ViewTime

double	CacheKey

bool	UseCache

int	Size [2]

int	Position [2]

int	PPI

vtkTimeStamp	UpdateTimeStamp
	Keeps track of the time when vtkPVRenderView::Update() was called. More...

vtkInformation *	RequestInformation
	These are passed as arguments to vtkDataRepresentation::ProcessViewRequest(). More...

vtkInformationVector *	ReplyInformationVector
	These are passed as arguments to vtkDataRepresentation::ProcessViewRequest(). More...

Protected Attributes inherited from vtkView
bool	ReuseSingleRepresentation

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Detailed Description

vtkPVContextView adopts vtkContextView so that it can be used in ParaView configurations.

Definition at line 31 of file vtkPVContextView.h.

Member Typedef Documentation

◆ Superclass

typedef vtkPVView vtkPVContextView::Superclass

Definition at line 34 of file vtkPVContextView.h.

Constructor & Destructor Documentation

◆ vtkPVContextView()

vtkPVContextView::vtkPVContextView ( )

protected

Get/Set the alignement of the title.

These methods should not be called directly. They are made public only so that the client-server-stream-interpreter can invoke them. Use the corresponding properties to change these values.

◆ ~vtkPVContextView()

vtkPVContextView::~vtkPVContextView ( )

overrideprotected

Get/Set the alignement of the title.

These methods should not be called directly. They are made public only so that the client-server-stream-interpreter can invoke them. Use the corresponding properties to change these values.

Member Function Documentation

◆ GetClassName()

virtual const char* vtkPVContextView::GetClassName ( )

virtual

Reimplemented from vtkPVView.

Reimplemented in vtkPVXYChartView, and vtkPVPlotMatrixView.

◆ IsTypeOf()

static int vtkPVContextView::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkPVContextView::IsA ( const char * type )

virtual

Reimplemented from vtkPVView.

Reimplemented in vtkPVXYChartView, and vtkPVPlotMatrixView.

◆ SafeDownCast()

static vtkPVContextView* vtkPVContextView::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkPVContextView::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkView.

Reimplemented in vtkPVXYChartView, and vtkPVPlotMatrixView.

◆ StillRender()

void vtkPVContextView::StillRender ( )

overridevirtual

Triggers a high-resolution render.

Note: CallOnAllProcesses

Implements vtkPVView.

◆ InteractiveRender()

void vtkPVContextView::InteractiveRender ( )

overridevirtual

Triggers a interactive render.

Based on the settings on the view, this may result in a low-resolution rendering or a simplified geometry rendering.

Note: CallOnAllProcesses

Implements vtkPVView.

◆ GetContextView()

virtual vtkContextView* vtkPVContextView::GetContextView ( )

virtual

Get the context view.

◆ GetContextItem()

virtual vtkAbstractContextItem* vtkPVContextView::GetContextItem ( )

pure virtual

Get the context item.

Implemented in vtkPVXYChartView, and vtkPVPlotMatrixView.

◆ SetupInteractor()

virtual void vtkPVContextView::SetupInteractor ( vtkRenderWindowInteractor * )

virtual

Set the interactor.

Client applications must set the interactor to enable interactivity. Note this method will also change the interactor styles set on the interactor.

◆ GetInteractor()

vtkRenderWindowInteractor* vtkPVContextView::GetInteractor ( )

Set the interactor.

Client applications must set the interactor to enable interactivity. Note this method will also change the interactor styles set on the interactor.

◆ SetSelection()

virtual void vtkPVContextView::SetSelection	(	vtkChartRepresentation *	repr,
		vtkSelection *	selection
	)

pure virtual

Representations can use this method to set the selection for a particular representation.

Subclasses override this method to pass on the selection to the chart using annotation link. Note this is meant to pass selection for the local process alone. The view does not manage data movement for the selection.

Implemented in vtkPVXYChartView, and vtkPVPlotMatrixView.

◆ GetSelection()

vtkSelection* vtkPVContextView::GetSelection ( )

Get the current selection created in the view.

This will call this->MapSelectionToInput() to transform the selection every time a new selection is available. Subclasses should override MapSelectionToInput() to convert the selection, as appropriate.

◆ Export()

virtual bool vtkPVContextView::Export ( vtkAbstractChartExporter * exporter )

virtual

Export the contents of this view using the exporter.

Called vtkChartRepresentation::Export() on all visible representations. This is expected to called only on the client side after a render/update. Thus all data is expected to available on the local process.

◆ SetTitle()

virtual void vtkPVContextView::SetTitle ( const char * )

virtual

Get/Set the title.

These methods should not be called directly. They are made public only so that the client-server-stream-interpreter can invoke them. Use the corresponding properties to change these values.

◆ GetTitle()

virtual char* vtkPVContextView::GetTitle ( )

virtual

Get/Set the title.

These methods should not be called directly. They are made public only so that the client-server-stream-interpreter can invoke them. Use the corresponding properties to change these values.

◆ SetTitleFont()

virtual void vtkPVContextView::SetTitleFont	(	const char *	family,
		int	pointSize,
		bool	bold,
		bool	italic
	)

pure virtual

Get/Set the font of the title.

These methods should not be called directly. They are made public only so that the client-server-stream-interpreter can invoke them. Use the corresponding properties to change these values.

Implemented in vtkPVPlotMatrixView, and vtkPVXYChartView.

◆ SetTitleFontFamily()

virtual void vtkPVContextView::SetTitleFontFamily ( const char * family )

pure virtual

Get/Set the font of the title.

These methods should not be called directly. They are made public only so that the client-server-stream-interpreter can invoke them. Use the corresponding properties to change these values.

Implemented in vtkPVPlotMatrixView, and vtkPVXYChartView.

◆ SetTitleFontSize()

virtual void vtkPVContextView::SetTitleFontSize ( int pointSize )

pure virtual

Get/Set the font of the title.

These methods should not be called directly. They are made public only so that the client-server-stream-interpreter can invoke them. Use the corresponding properties to change these values.

Implemented in vtkPVPlotMatrixView, and vtkPVXYChartView.

◆ SetTitleBold()

virtual void vtkPVContextView::SetTitleBold ( bool bold )

pure virtual

Get/Set the font of the title.

These methods should not be called directly. They are made public only so that the client-server-stream-interpreter can invoke them. Use the corresponding properties to change these values.

Implemented in vtkPVPlotMatrixView, and vtkPVXYChartView.

◆ SetTitleItalic()

virtual void vtkPVContextView::SetTitleItalic ( bool italic )

pure virtual

Get/Set the font of the title.

These methods should not be called directly. They are made public only so that the client-server-stream-interpreter can invoke them. Use the corresponding properties to change these values.

Implemented in vtkPVPlotMatrixView, and vtkPVXYChartView.

◆ SetTitleFontFile()

virtual void vtkPVContextView::SetTitleFontFile ( const char * file )

pure virtual

Get/Set the font of the title.

These methods should not be called directly. They are made public only so that the client-server-stream-interpreter can invoke them. Use the corresponding properties to change these values.

Implemented in vtkPVPlotMatrixView, and vtkPVXYChartView.

◆ GetTitleFontFamily()

virtual const char* vtkPVContextView::GetTitleFontFamily ( )

pure virtual

Get/Set the font of the title.

These methods should not be called directly. They are made public only so that the client-server-stream-interpreter can invoke them. Use the corresponding properties to change these values.

Implemented in vtkPVPlotMatrixView, and vtkPVXYChartView.

◆ GetTitleFontSize()

virtual int vtkPVContextView::GetTitleFontSize ( )

pure virtual

Get/Set the font of the title.

These methods should not be called directly. They are made public only so that the client-server-stream-interpreter can invoke them. Use the corresponding properties to change these values.

Implemented in vtkPVPlotMatrixView, and vtkPVXYChartView.

◆ GetTitleFontBold()

virtual int vtkPVContextView::GetTitleFontBold ( )

pure virtual

Get/Set the font of the title.

These methods should not be called directly. They are made public only so that the client-server-stream-interpreter can invoke them. Use the corresponding properties to change these values.

Implemented in vtkPVPlotMatrixView, and vtkPVXYChartView.

◆ GetTitleFontItalic()

virtual int vtkPVContextView::GetTitleFontItalic ( )

pure virtual

Get/Set the font of the title.

These methods should not be called directly. They are made public only so that the client-server-stream-interpreter can invoke them. Use the corresponding properties to change these values.

Implemented in vtkPVPlotMatrixView, and vtkPVXYChartView.

◆ SetTitleColor()

virtual void vtkPVContextView::SetTitleColor	(	double	red,
		double	green,
		double	blue
	)

pure virtual

Get/Set the color of the title.

These methods should not be called directly. They are made public only so that the client-server-stream-interpreter can invoke them. Use the corresponding properties to change these values.

Implemented in vtkPVPlotMatrixView, and vtkPVXYChartView.

◆ GetTitleColor()

virtual double* vtkPVContextView::GetTitleColor ( )

pure virtual

Get/Set the color of the title.

These methods should not be called directly. They are made public only so that the client-server-stream-interpreter can invoke them. Use the corresponding properties to change these values.

Implemented in vtkPVPlotMatrixView, and vtkPVXYChartView.

◆ SetTitleAlignment()

virtual void vtkPVContextView::SetTitleAlignment ( int alignment )

pure virtual

Get/Set the alignement of the title.

These methods should not be called directly. They are made public only so that the client-server-stream-interpreter can invoke them. Use the corresponding properties to change these values.

Implemented in vtkPVPlotMatrixView, and vtkPVXYChartView.

◆ GetTitleAlignment()

virtual int vtkPVContextView::GetTitleAlignment ( )

pure virtual

Get/Set the alignement of the title.

These methods should not be called directly. They are made public only so that the client-server-stream-interpreter can invoke them. Use the corresponding properties to change these values.

Implemented in vtkPVPlotMatrixView, and vtkPVXYChartView.

◆ Render()

virtual void vtkPVContextView::Render ( bool interactive )

protectedvirtual

Actual rendering implementation.

Reimplemented in vtkPVXYChartView, and vtkPVPlotMatrixView.

◆ MapSelectionToInput()

virtual bool vtkPVContextView::MapSelectionToInput ( vtkSelection * )

protectedvirtual

Called to transform the selection.

This is only called on the client-side. Subclasses should transform the selection in place as needed. Default implementation simply goes to the first visible representation and asks it to transform (by calling vtkChartRepresentation::MapSelectionToInput()). We need to extend the infrastructrue to work properly when making selections in views showing multiple representations, but until that happens, this naive approach works for most cases. Return false on failure.

◆ GetFormattedTitle()

virtual std::string vtkPVContextView::GetFormattedTitle ( )

protectedvirtual

Method to get the Formatted title after formatting it using the pushed arguments provided by vtkPVStringFormatter.

Member Data Documentation

◆ ContextView

vtkContextView* vtkPVContextView::ContextView

protected

Get/Set the alignement of the title.

These methods should not be called directly. They are made public only so that the client-server-stream-interpreter can invoke them. Use the corresponding properties to change these values.

Definition at line 177 of file vtkPVContextView.h.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Remoting/Views/vtkPVContextView.h

Public Types

Public Member Functions

Static Public Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Superclass

Constructor & Destructor Documentation

◆ vtkPVContextView()

◆ ~vtkPVContextView()

Member Function Documentation

◆ GetClassName()

◆ IsTypeOf()

◆ IsA()

◆ SafeDownCast()

◆ PrintSelf()

◆ StillRender()

◆ InteractiveRender()

◆ GetContextView()

◆ GetContextItem()

◆ SetupInteractor()

◆ GetInteractor()

◆ SetSelection()

◆ GetSelection()

◆ Export()

◆ SetTitle()

◆ GetTitle()

◆ SetTitleFont()

◆ SetTitleFontFamily()

◆ SetTitleFontSize()

◆ SetTitleBold()

◆ SetTitleItalic()

◆ SetTitleFontFile()

◆ GetTitleFontFamily()

◆ GetTitleFontSize()

◆ GetTitleFontBold()

◆ GetTitleFontItalic()

◆ SetTitleColor()

◆ GetTitleColor()

◆ SetTitleAlignment()

◆ GetTitleAlignment()

◆ Render()

◆ MapSelectionToInput()

◆ GetFormattedTitle()

Member Data Documentation

◆ ContextView
