list of integers with associated strings More...

#include <vtkSMEnumerationDomain.h>

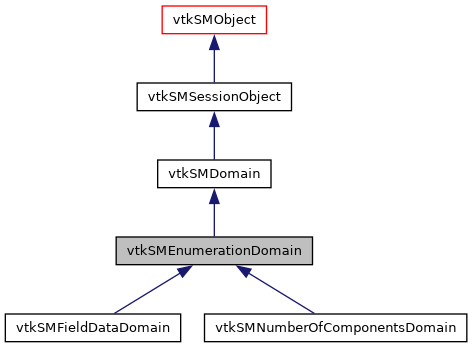

Inheritance diagram for vtkSMEnumerationDomain:

[legend]

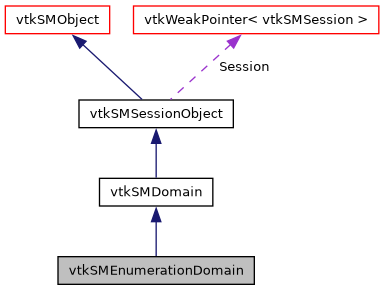

Collaboration diagram for vtkSMEnumerationDomain:

[legend]

Public Types
typedef vtkSMDomain	Superclass

Public Types inherited from vtkSMDomain
enum	IsInDomainReturnCodes { NOT_APPLICABLE = -1, NOT_IN_DOMAIN = 0, IN_DOMAIN = 1 }
	Return values for `IsInDomain` calls. More...

typedef vtkSMSessionObject	Superclass

Public Types inherited from vtkSMSessionObject
typedef vtkSMObject	Superclass

Public Types inherited from vtkSMObject
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

int	IsInDomain (vtkSMProperty *property) override
	Returns true if the value of the property is in the domain. More...

int	IsInDomain (int val, unsigned int &idx)
	Returns true if the int is in the domain. More...

unsigned int	GetNumberOfEntries ()
	Returns the number of entries in the enumeration. More...

int	GetEntryValue (unsigned int idx)
	Returns the integer value of an enumeration entry. More...

const char *	GetEntryText (unsigned int idx)
	Returns the descriptive string of an enumeration entry. More...

const char *	GetEntryTextForValue (int value)
	Returns the text for an enumeration value. More...

int	HasEntryText (const char *text)
	Return 1 is the text is present in the enumeration, otherwise 0. More...

int	GetEntryValueForText (const char *text)
	Get the value for an enumeration text. More...

int	GetEntryValue (const char *text, int &valid)
	Given an entry text, return the integer value. More...

const char *	GetInfoText (unsigned int idx)
	Returns the `info` text for an enumeration entry. More...

void	AddEntry (const char text, int value, const char info=nullptr)
	Add a new enumeration entry. More...

void	RemoveAllEntries ()
	Clear all entries. More...

void	Update (vtkSMProperty *property) override
	Update self based on the "unchecked" values of all required properties. More...

Public Member Functions inherited from vtkSMDomain
virtual int	IsInDomain (vtkSMProperty *vtkNotUsed(property))
	Is the (unchecked) value of the property in the domain? Overwritten by sub-classes. More...

virtual void	SetAnimationValue (vtkSMProperty *, int vtkNotUsed(index), double vtkNotUsed(value))
	Set the value of an element of a property from the animation editor. More...

virtual int	SetDefaultValues (vtkSMProperty *, bool vtkNotUsed(use_unchecked_values))
	A vtkSMProperty is often defined with a default value in the XML itself. More...

vtkSMProperty *	GetProperty ()
	Provides access to the vtkSMProperty on which this domain is hooked up. More...

virtual unsigned int	GetNumberOfInputConnections (const char *function)
	Helper method to get the number of input connections hence the number of available vtkPVDataInformation from input proxy connected to the required property with the given function. More...

vtkSMProperty *	GetRequiredProperty (const char *function)
	Returns a given required property of the given function. More...

virtual char *	GetXMLName ()
	Assigned by the XML parser. More...

virtual bool	GetIsOptional ()
	When the IsOptional flag is set, IsInDomain() always returns true. More...

virtual vtkPVDataInformation *	GetInputDataInformation (const char *function, unsigned int index=0)
	Helper methods to get vtkPVDataInformation from input proxy connected to the required property with the given function and provided input index. More...

virtual vtkPVDataInformation *	GetInputSubsetDataInformation (unsigned int compositeIndex, const char *function, unsigned int index=0)
	Helper methods to get vtkPVDataInformation from input proxy connected to the required property with the given function and provided input index. More...

virtual vtkPVDataInformation *	GetInputSubsetDataInformation (const char selector, const char assemblyName, const char *function, unsigned int index=0)
	Helper methods to get vtkPVDataInformation from input proxy connected to the required property with the given function and provided input index. More...

Public Member Functions inherited from vtkSMSessionObject
void	PrintSelf (ostream &os, vtkIndent indent) override

virtual vtkSMSessionProxyManager *	GetSessionProxyManager ()
	Return the corresponding ProxyManager if any. More...

virtual void	SetSession (vtkSMSession *)
	Get/Set the session on wihch this object exists. More...

virtual vtkSMSession *	GetSession ()
	Get/Set the session on wihch this object exists. More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkSMEnumerationDomain *	New ()

static int	IsTypeOf (const char *type)

static vtkSMEnumerationDomain *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMDomain
static vtkSMDomain *	New ()

static int	IsTypeOf (const char *type)

static vtkSMDomain *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMSessionObject
static vtkSMSessionObject *	New ()

static int	IsTypeOf (const char *type)

static vtkSMSessionObject *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMObject
static vtkSMObject *	New ()

static int	IsTypeOf (const char *type)

static vtkSMObject *	SafeDownCast (vtkObject *o)

static std::string	CreatePrettyLabel (const std::string &name)
	Return a well-formated label using provided name by adding spaces between lower cases and upper cases: More...

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
int	ReadXMLAttributes (vtkSMProperty prop, vtkPVXMLElement element) override
	Set the appropriate ivars from the xml element. More...

void	ChildSaveState (vtkPVXMLElement *domainElement) override
	Add the header and creates a new vtkPVXMLElement for the domain, fills it up with the common attributes. More...

Protected Member Functions inherited from vtkSMDomain
	vtkSMDomain ()

	~vtkSMDomain () override

virtual int	LoadState (vtkPVXMLElement vtkNotUsed(domainElement), vtkSMProxyLocator vtkNotUsed(loader))
	Load the state of the domain from the XML. More...

void	RemoveRequiredProperty (vtkSMProperty *prop)
	Remove the given property from the required properties list. More...

void	AddRequiredProperty (vtkSMProperty prop, const char function)
	Add a new required property to this domain. More...

void	DomainModified ()
	Invokes DomainModifiedEvent. More...

void	InvokeModified ()

unsigned int	GetNumberOfRequiredProperties ()
	Gets the number of required properties added. More...

void	SetProperty (vtkSMProperty *)
	Set the domain's property. More...

void	SaveState (vtkPVXMLElement parent, const char uid)
	Add the header and creates a new vtkPVXMLElement for the domain, fills it up with the common attributes. More...

virtual void	SetIsOptional (bool)
	When the IsOptional flag is set, IsInDomain() always returns true. More...

virtual void	SetXMLName (const char *)
	Assigned by the XML parser. More...

Protected Member Functions inherited from vtkSMSessionObject
	vtkSMSessionObject ()

	~vtkSMSessionObject () override

Protected Member Functions inherited from vtkSMObject
	vtkSMObject ()

	~vtkSMObject () override

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

int	SetDefaultValues (vtkSMProperty *, bool use_unchecked_values) override
	Overridden to ensure that the property's default value is valid for the enumeration, if not it will be set to the first enumeration value. More...

	vtkSMEnumerationDomain ()
	Overridden to ensure that the property's default value is valid for the enumeration, if not it will be set to the first enumeration value. More...

	~vtkSMEnumerationDomain () override
	Overridden to ensure that the property's default value is valid for the enumeration, if not it will be set to the first enumeration value. More...

Additional Inherited Members
Protected Attributes inherited from vtkSMDomain
char *	XMLName

bool	IsOptional

vtkSMDomainInternals *	Internals

Protected Attributes inherited from vtkSMSessionObject
vtkWeakPointer< vtkSMSession >	Session
	Identifies the session id to which this object is related. More...

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Detailed Description

list of integers with associated strings

vtkSMEnumerationDomain represents an enumeration of integer values with associated descriptive strings.

A typical enumeration domain is described as follows in the servermanager configuration xmls.

<IntVectorProperty ...>
  <EnumerationDomain name="enum">
    <Entry text="PNG" value="0"/>
    <Entry text="JPEG" value="1"/>
    ...
  </EnumerationDomain>
</IntVectorProperty>

Where, value is the integral value to use to set the element on the property and text is the descriptive text used in UI and Python script.

Starting with ParaView 5.5, the info attribute is supported on an Entry The value is an additional qualifier for the entry that used in UI to explain the item e.g.

<IntVectorProperty name="Quality">
  <EnumerationDomain name="enum">
    <Entry text="one" value="0" info="no compression" />
    ...
    <Entry text="ten" value="10" info="max compression" />
    ...
  </EnumerationDomain>
</IntVectorProperty>*

If info is specified and non-empty, then the UI will show that text in the combo-box rendered in addition to the text. info has no effect on the Python API i.e.

# either of the following is acceptable, note how `info` has no effect.
writer.Quality = "ten"
# or
writer.Quality = 10

Definition at line 67 of file vtkSMEnumerationDomain.h.

Member Typedef Documentation

◆ Superclass

typedef vtkSMDomain vtkSMEnumerationDomain::Superclass

Definition at line 71 of file vtkSMEnumerationDomain.h.

Constructor & Destructor Documentation

◆ vtkSMEnumerationDomain()

vtkSMEnumerationDomain::vtkSMEnumerationDomain ( )

protected

Overridden to ensure that the property's default value is valid for the enumeration, if not it will be set to the first enumeration value.

◆ ~vtkSMEnumerationDomain()

vtkSMEnumerationDomain::~vtkSMEnumerationDomain ( )

overrideprotected

Overridden to ensure that the property's default value is valid for the enumeration, if not it will be set to the first enumeration value.

Member Function Documentation

◆ New()

static vtkSMEnumerationDomain* vtkSMEnumerationDomain::New ( )

static

◆ GetClassName()

virtual const char* vtkSMEnumerationDomain::GetClassName ( )

virtual

Reimplemented from vtkSMDomain.

Reimplemented in vtkSMFieldDataDomain, and vtkSMNumberOfComponentsDomain.

◆ IsTypeOf()

static int vtkSMEnumerationDomain::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkSMEnumerationDomain::IsA ( const char * type )

virtual

Reimplemented from vtkSMDomain.

Reimplemented in vtkSMFieldDataDomain, and vtkSMNumberOfComponentsDomain.

◆ SafeDownCast()

static vtkSMEnumerationDomain* vtkSMEnumerationDomain::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkSMEnumerationDomain::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkSMDomain.

Reimplemented in vtkSMFieldDataDomain, and vtkSMNumberOfComponentsDomain.

◆ IsInDomain() [1/2]

int vtkSMEnumerationDomain::IsInDomain ( vtkSMProperty * property )

override

Returns true if the value of the property is in the domain.

The property has to be a vtkSMIntVectorProperty. If all vector values are in the domain, it returns 1. It returns 0 otherwise.

◆ IsInDomain() [2/2]

int vtkSMEnumerationDomain::IsInDomain	(	int	val,
		unsigned int &	idx
	)

Returns true if the int is in the domain.

If value is in domain, it's index is return in idx.

◆ GetNumberOfEntries()

unsigned int vtkSMEnumerationDomain::GetNumberOfEntries ( )

Returns the number of entries in the enumeration.

◆ GetEntryValue() [1/2]

int vtkSMEnumerationDomain::GetEntryValue ( unsigned int idx )

Returns the integer value of an enumeration entry.

◆ GetEntryText()

const char* vtkSMEnumerationDomain::GetEntryText ( unsigned int idx )

Returns the descriptive string of an enumeration entry.

◆ GetEntryTextForValue()

const char* vtkSMEnumerationDomain::GetEntryTextForValue ( int value )

Returns the text for an enumeration value.

◆ HasEntryText()

int vtkSMEnumerationDomain::HasEntryText ( const char * text )

Return 1 is the text is present in the enumeration, otherwise 0.

◆ GetEntryValueForText()

int vtkSMEnumerationDomain::GetEntryValueForText ( const char * text )

Get the value for an enumeration text.

The return value is valid only is HasEntryText() returns 1.

◆ GetEntryValue() [2/2]

int vtkSMEnumerationDomain::GetEntryValue	(	const char *	text,
		int &	valid
	)

Given an entry text, return the integer value.

Valid is set to 1 if text is defined, otherwise 0. If valid=0, return value is undefined.

◆ GetInfoText()

const char* vtkSMEnumerationDomain::GetInfoText ( unsigned int idx )

Returns the info text for an enumeration entry.

Parameters

[in] idx - index for the entry (not to confused with value).

Returns: info-text, if non-empty else nullptr.

◆ AddEntry()

void vtkSMEnumerationDomain::AddEntry	(	const char *	text,
		int	value,
		const char *	info = `nullptr`
	)

Add a new enumeration entry.

text cannot be null.

◆ RemoveAllEntries()

void vtkSMEnumerationDomain::RemoveAllEntries ( )

Clear all entries.

◆ Update()

void vtkSMEnumerationDomain::Update ( vtkSMProperty * property )

overridevirtual

Update self based on the "unchecked" values of all required properties.

Overwritten by sub-classes.

Reimplemented from vtkSMDomain.

Reimplemented in vtkSMFieldDataDomain, and vtkSMNumberOfComponentsDomain.

◆ SetDefaultValues()

int vtkSMEnumerationDomain::SetDefaultValues	(	vtkSMProperty *	,
		bool	use_unchecked_values
	)

override

Overridden to ensure that the property's default value is valid for the enumeration, if not it will be set to the first enumeration value.

◆ ReadXMLAttributes()

int vtkSMEnumerationDomain::ReadXMLAttributes	(	vtkSMProperty *	prop,
		vtkPVXMLElement *	element
	)

overrideprotectedvirtual

Set the appropriate ivars from the xml element.

Should be overwritten by subclass if adding ivars.

Reimplemented from vtkSMDomain.

Reimplemented in vtkSMFieldDataDomain, and vtkSMNumberOfComponentsDomain.

◆ ChildSaveState()

void vtkSMEnumerationDomain::ChildSaveState ( vtkPVXMLElement * domainElement )

overrideprotectedvirtual

Add the header and creates a new vtkPVXMLElement for the domain, fills it up with the common attributes.

The newly created element will also be added to the parent element as a child node. Subclasses can override ChildSaveState() method to fill it up with subclass specific values.

Reimplemented from vtkSMDomain.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Remoting/ServerManager/vtkSMEnumerationDomain.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Superclass

Constructor & Destructor Documentation

◆ vtkSMEnumerationDomain()

◆ ~vtkSMEnumerationDomain()

Member Function Documentation

◆ New()

◆ GetClassName()

◆ IsTypeOf()

◆ IsA()

◆ SafeDownCast()

◆ PrintSelf()

◆ IsInDomain() [1/2]

◆ IsInDomain() [2/2]

◆ GetNumberOfEntries()

◆ GetEntryValue() [1/2]

◆ GetEntryText()

◆ GetEntryTextForValue()

◆ HasEntryText()

◆ GetEntryValueForText()

◆ GetEntryValue() [2/2]

◆ GetInfoText()

◆ AddEntry()

◆ RemoveAllEntries()

◆ Update()

◆ SetDefaultValues()

◆ ReadXMLAttributes()

◆ ChildSaveState()
