represents the possible values a property can have More...

#include <vtkSMDomain.h>

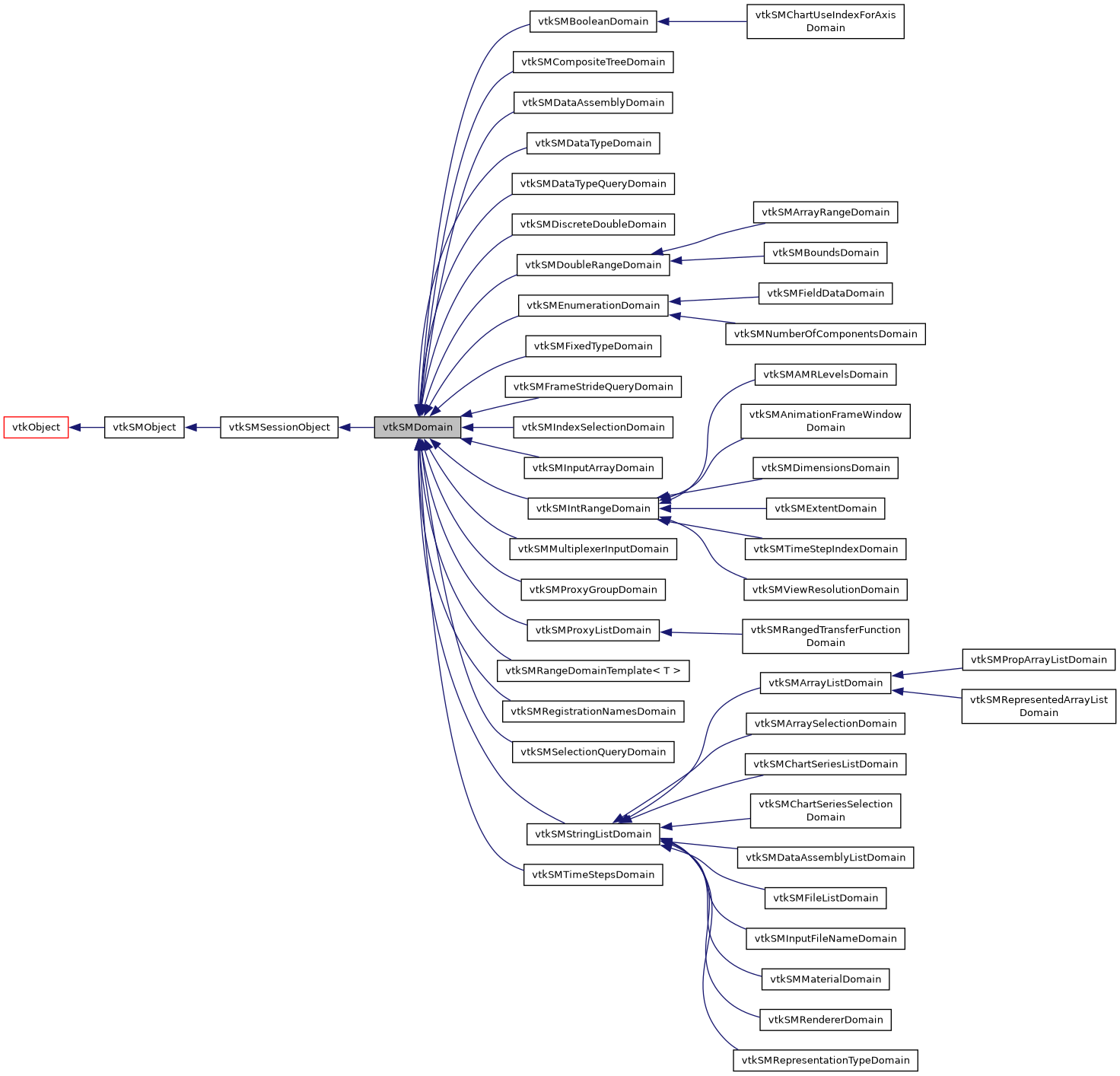

Inheritance diagram for vtkSMDomain:

[legend]

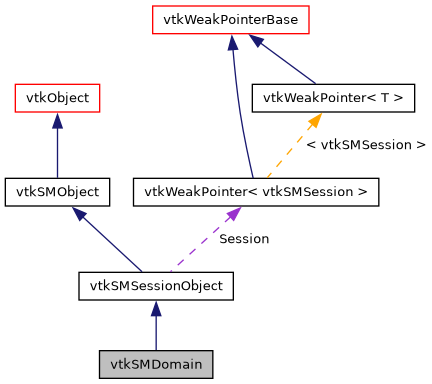

Collaboration diagram for vtkSMDomain:

[legend]

Classes
class	DeferDomainModifiedEvents
	helper to defer firing of vtkCommand::DomainModifiedEvent. More...

Public Types
enum	IsInDomainReturnCodes { NOT_APPLICABLE = -1, NOT_IN_DOMAIN = 0, IN_DOMAIN = 1 }
	Return values for `IsInDomain` calls. More...

typedef vtkSMSessionObject	Superclass

Public Types inherited from vtkSMSessionObject
typedef vtkSMObject	Superclass

Public Types inherited from vtkSMObject
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

virtual int	IsInDomain (vtkSMProperty *vtkNotUsed(property))
	Is the (unchecked) value of the property in the domain? Overwritten by sub-classes. More...

virtual void	Update (vtkSMProperty *requestingProperty)
	Update self based on the "unchecked" values of all required properties. More...

virtual void	SetAnimationValue (vtkSMProperty *, int vtkNotUsed(index), double vtkNotUsed(value))
	Set the value of an element of a property from the animation editor. More...

virtual int	SetDefaultValues (vtkSMProperty *, bool vtkNotUsed(use_unchecked_values))
	A vtkSMProperty is often defined with a default value in the XML itself. More...

vtkSMProperty *	GetProperty ()
	Provides access to the vtkSMProperty on which this domain is hooked up. More...

virtual unsigned int	GetNumberOfInputConnections (const char *function)
	Helper method to get the number of input connections hence the number of available vtkPVDataInformation from input proxy connected to the required property with the given function. More...

vtkSMProperty *	GetRequiredProperty (const char *function)
	Returns a given required property of the given function. More...


virtual char *	GetXMLName ()
	Assigned by the XML parser. More...


virtual bool	GetIsOptional ()
	When the IsOptional flag is set, IsInDomain() always returns true. More...


virtual vtkPVDataInformation *	GetInputDataInformation (const char *function, unsigned int index=0)
	Helper methods to get vtkPVDataInformation from input proxy connected to the required property with the given function and provided input index. More...

virtual vtkPVDataInformation *	GetInputSubsetDataInformation (unsigned int compositeIndex, const char *function, unsigned int index=0)
	Helper methods to get vtkPVDataInformation from input proxy connected to the required property with the given function and provided input index. More...

virtual vtkPVDataInformation *	GetInputSubsetDataInformation (const char selector, const char assemblyName, const char *function, unsigned int index=0)
	Helper methods to get vtkPVDataInformation from input proxy connected to the required property with the given function and provided input index. More...

Public Member Functions inherited from vtkSMSessionObject
void	PrintSelf (ostream &os, vtkIndent indent) override

virtual vtkSMSessionProxyManager *	GetSessionProxyManager ()
	Return the corresponding ProxyManager if any. More...

virtual void	SetSession (vtkSMSession *)
	Get/Set the session on wihch this object exists. More...

virtual vtkSMSession *	GetSession ()
	Get/Set the session on wihch this object exists. More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkSMDomain *	New ()

static int	IsTypeOf (const char *type)

static vtkSMDomain *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMSessionObject
static vtkSMSessionObject *	New ()

static int	IsTypeOf (const char *type)

static vtkSMSessionObject *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMObject
static vtkSMObject *	New ()

static int	IsTypeOf (const char *type)

static vtkSMObject *	SafeDownCast (vtkObject *o)

static std::string	CreatePrettyLabel (const std::string &name)
	Return a well-formated label using provided name by adding spaces between lower cases and upper cases: More...

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkSMDomain ()

	~vtkSMDomain () override

virtual int	LoadState (vtkPVXMLElement vtkNotUsed(domainElement), vtkSMProxyLocator vtkNotUsed(loader))
	Load the state of the domain from the XML. More...

virtual int	ReadXMLAttributes (vtkSMProperty prop, vtkPVXMLElement elem)
	Set the appropriate ivars from the xml element. More...

void	RemoveRequiredProperty (vtkSMProperty *prop)
	Remove the given property from the required properties list. More...

void	AddRequiredProperty (vtkSMProperty prop, const char function)
	Add a new required property to this domain. More...

void	DomainModified ()
	Invokes DomainModifiedEvent. More...

void	InvokeModified ()

unsigned int	GetNumberOfRequiredProperties ()
	Gets the number of required properties added. More...

void	SetProperty (vtkSMProperty *)
	Set the domain's property. More...


void	SaveState (vtkPVXMLElement parent, const char uid)
	Add the header and creates a new vtkPVXMLElement for the domain, fills it up with the common attributes. More...

virtual void	ChildSaveState (vtkPVXMLElement *domainElement)
	Add the header and creates a new vtkPVXMLElement for the domain, fills it up with the common attributes. More...


virtual void	SetIsOptional (bool)
	When the IsOptional flag is set, IsInDomain() always returns true. More...


virtual void	SetXMLName (const char *)
	Assigned by the XML parser. More...

Protected Member Functions inherited from vtkSMSessionObject
	vtkSMSessionObject ()

	~vtkSMSessionObject () override

Protected Member Functions inherited from vtkSMObject
	vtkSMObject ()

	~vtkSMObject () override

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Protected Attributes
char *	XMLName

bool	IsOptional

vtkSMDomainInternals *	Internals

Protected Attributes inherited from vtkSMSessionObject
vtkWeakPointer< vtkSMSession >	Session
	Identifies the session id to which this object is related. More...

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Friends
class	vtkSMProperty

class	DeferDomainModifiedEvents

Detailed Description

represents the possible values a property can have

vtkSMDomain is an abstract class that describes the "domain" of a a widget. A domain is a collection of possible values a property can have.

Each domain can depend on one or more properties to compute it's values. This are called "required" properties and can be set in the XML configuration file.

Every time a domain changes it must fire a vtkCommand::DomainModifiedEvent. Applications may decide to update the UI every-time the domain changes. As a result, domains ideally should only fire that event when their values change for real not just potentially changed.

See also: vtkSMDomain::DeferDomainModifiedEvents.

Definition at line 37 of file vtkSMDomain.h.

Member Typedef Documentation

◆ Superclass

typedef vtkSMSessionObject vtkSMDomain::Superclass

Definition at line 41 of file vtkSMDomain.h.

Member Enumeration Documentation

◆ IsInDomainReturnCodes

enum vtkSMDomain::IsInDomainReturnCodes

Return values for IsInDomain calls.

Enumerator
NOT_APPLICABLE
NOT_IN_DOMAIN
IN_DOMAIN

Definition at line 47 of file vtkSMDomain.h.

Constructor & Destructor Documentation

◆ vtkSMDomain()

vtkSMDomain::vtkSMDomain ( )

protected

◆ ~vtkSMDomain()

vtkSMDomain::~vtkSMDomain ( )

overrideprotected

Member Function Documentation

◆ New()

static vtkSMDomain* vtkSMDomain::New ( )

static

◆ GetClassName()

virtual const char* vtkSMDomain::GetClassName ( )

virtual

Reimplemented from vtkSMSessionObject.

Reimplemented in vtkSMDataAssemblyDomain, vtkSMArrayListDomain, vtkSMCompositeTreeDomain, vtkSMEnumerationDomain, vtkSMInputArrayDomain, vtkSMBoundsDomain, vtkSMFieldDataDomain, vtkSMDataTypeDomain, vtkSMRangeDomainTemplate< T >, vtkSMRegistrationNamesDomain, vtkSMChartSeriesSelectionDomain, vtkSMProxyListDomain, vtkSMDataTypeQueryDomain, vtkSMFrameStrideQueryDomain, vtkSMChartSeriesListDomain, vtkSMDataAssemblyListDomain, vtkSMStringListDomain, vtkSMDoubleRangeDomain, vtkSMRangedTransferFunctionDomain, vtkSMDimensionsDomain, vtkSMIntRangeDomain, vtkSMProxyGroupDomain, vtkSMArraySelectionDomain, vtkSMRepresentationTypeDomain, vtkSMDiscreteDoubleDomain, vtkSMChartUseIndexForAxisDomain, vtkSMRepresentedArrayListDomain, vtkSMNumberOfComponentsDomain, vtkSMAMRLevelsDomain, vtkSMFixedTypeDomain, vtkSMMaterialDomain, vtkSMArrayRangeDomain, vtkSMExtentDomain, vtkSMInputFileNameDomain, vtkSMTimeStepIndexDomain, vtkSMBooleanDomain, vtkSMTimeStepsDomain, vtkSMAnimationFrameWindowDomain, vtkSMMultiplexerInputDomain, vtkSMViewResolutionDomain, vtkSMIndexSelectionDomain, vtkSMSelectionQueryDomain, vtkSMFileListDomain, and vtkSMRendererDomain.

◆ IsTypeOf()

static int vtkSMDomain::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkSMDomain::IsA ( const char * type )

virtual

Reimplemented from vtkSMSessionObject.

Reimplemented in vtkSMDataAssemblyDomain, vtkSMArrayListDomain, vtkSMCompositeTreeDomain, vtkSMEnumerationDomain, vtkSMInputArrayDomain, vtkSMBoundsDomain, vtkSMFieldDataDomain, vtkSMDataTypeDomain, vtkSMRangeDomainTemplate< T >, vtkSMRegistrationNamesDomain, vtkSMChartSeriesSelectionDomain, vtkSMProxyListDomain, vtkSMDataTypeQueryDomain, vtkSMFrameStrideQueryDomain, vtkSMChartSeriesListDomain, vtkSMDataAssemblyListDomain, vtkSMStringListDomain, vtkSMDoubleRangeDomain, vtkSMRangedTransferFunctionDomain, vtkSMDimensionsDomain, vtkSMIntRangeDomain, vtkSMProxyGroupDomain, vtkSMArraySelectionDomain, vtkSMRepresentationTypeDomain, vtkSMDiscreteDoubleDomain, vtkSMChartUseIndexForAxisDomain, vtkSMRepresentedArrayListDomain, vtkSMNumberOfComponentsDomain, vtkSMAMRLevelsDomain, vtkSMFixedTypeDomain, vtkSMMaterialDomain, vtkSMArrayRangeDomain, vtkSMExtentDomain, vtkSMInputFileNameDomain, vtkSMTimeStepIndexDomain, vtkSMBooleanDomain, vtkSMTimeStepsDomain, vtkSMAnimationFrameWindowDomain, vtkSMMultiplexerInputDomain, vtkSMViewResolutionDomain, vtkSMIndexSelectionDomain, vtkSMSelectionQueryDomain, vtkSMFileListDomain, and vtkSMRendererDomain.

◆ SafeDownCast()

static vtkSMDomain* vtkSMDomain::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkSMDomain::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

◆ IsInDomain()

virtual int vtkSMDomain::IsInDomain ( vtkSMProperty * vtkNotUsedproperty )

inlinevirtual

Is the (unchecked) value of the property in the domain? Overwritten by sub-classes.

Returned values as defined in IsInDomainReturnCodes. NOT_APPLICABLE is returned if the domain is not applicable for the property values. NOT_IN_DOMAIN implies that the value is not in domain while IN_DOMAIN implies that the value is acceptable.

Reimplemented in vtkSMCompositeTreeDomain.

Definition at line 64 of file vtkSMDomain.h.

◆ Update()

virtual void vtkSMDomain::Update ( vtkSMProperty * requestingProperty )

virtual

Update self based on the "unchecked" values of all required properties.

Subclasses must override this method to update the domain based on the requestingProperty (and/or other required properties).

Reimplemented in vtkSMEnumerationDomain, vtkSMRangeDomainTemplate< T >, vtkSMDataAssemblyDomain, vtkSMArrayListDomain, vtkSMCompositeTreeDomain, vtkSMFieldDataDomain, vtkSMBoundsDomain, vtkSMStringListDomain, vtkSMDataTypeQueryDomain, vtkSMDiscreteDoubleDomain, vtkSMFrameStrideQueryDomain, vtkSMChartSeriesSelectionDomain, vtkSMChartUseIndexForAxisDomain, vtkSMChartSeriesListDomain, vtkSMDimensionsDomain, vtkSMDataAssemblyListDomain, vtkSMNumberOfComponentsDomain, vtkSMArrayRangeDomain, vtkSMRepresentedArrayListDomain, vtkSMAMRLevelsDomain, vtkSMExtentDomain, vtkSMMaterialDomain, vtkSMTimeStepIndexDomain, vtkSMInputFileNameDomain, vtkSMTimeStepsDomain, vtkSMAnimationFrameWindowDomain, vtkSMViewResolutionDomain, vtkSMSelectionQueryDomain, and vtkSMRendererDomain.

◆ SetAnimationValue()

virtual void vtkSMDomain::SetAnimationValue	(	vtkSMProperty *	,
		int	vtkNotUsedindex,
		double	vtkNotUsedvalue
	)

inlinevirtual

Set the value of an element of a property from the animation editor.

Definition at line 76 of file vtkSMDomain.h.

◆ SetDefaultValues()

virtual int vtkSMDomain::SetDefaultValues	(	vtkSMProperty *	,
		bool	vtkNotUseduse_unchecked_values
	)

inlinevirtual

A vtkSMProperty is often defined with a default value in the XML itself.

However, many times, the default value must be determined at run time. To facilitate this, domains can override this method to compute and set the default value for the property. Note that unlike the compile-time default values, the application must explicitly call this method to initialize the property. If use_unchecked_values is true, the property's unchecked values will be changed by this method. Returns 1 if the domain updated the property. Default implementation does nothing.

Definition at line 91 of file vtkSMDomain.h.

◆ GetXMLName()

virtual char* vtkSMDomain::GetXMLName ( )

virtual

Assigned by the XML parser.

The name assigned in the XML configuration. Can be used to figure out the origin of the domain.

◆ GetIsOptional()

virtual bool vtkSMDomain::GetIsOptional ( )

virtual

When the IsOptional flag is set, IsInDomain() always returns true.

This is used by properties that use domains to provide information (a suggestion to the gui for example) as opposed to restrict their values.

◆ GetProperty()

vtkSMProperty* vtkSMDomain::GetProperty ( )

Provides access to the vtkSMProperty on which this domain is hooked up.

◆ GetInputDataInformation()

virtual vtkPVDataInformation* vtkSMDomain::GetInputDataInformation	(	const char *	function,
		unsigned int	index = `0`
	)

virtual

Helper methods to get vtkPVDataInformation from input proxy connected to the required property with the given function and provided input index.

◆ GetInputSubsetDataInformation() [1/2]

virtual vtkPVDataInformation* vtkSMDomain::GetInputSubsetDataInformation	(	unsigned int	compositeIndex,
		const char *	function,
		unsigned int	index = `0`
	)

virtual

Helper methods to get vtkPVDataInformation from input proxy connected to the required property with the given function and provided input index.

◆ GetInputSubsetDataInformation() [2/2]

virtual vtkPVDataInformation* vtkSMDomain::GetInputSubsetDataInformation	(	const char *	selector,
		const char *	assemblyName,
		const char *	function,
		unsigned int	index = `0`
	)

virtual

Helper methods to get vtkPVDataInformation from input proxy connected to the required property with the given function and provided input index.

◆ GetNumberOfInputConnections()

virtual unsigned int vtkSMDomain::GetNumberOfInputConnections ( const char * function )

virtual

Helper method to get the number of input connections hence the number of available vtkPVDataInformation from input proxy connected to the required property with the given function.

◆ GetRequiredProperty()

vtkSMProperty* vtkSMDomain::GetRequiredProperty ( const char * function )

Returns a given required property of the given function.

Function is a string associated with the require property in the XML file.

◆ SaveState()

void vtkSMDomain::SaveState	(	vtkPVXMLElement *	parent,
		const char *	uid
	)

protected

Add the header and creates a new vtkPVXMLElement for the domain, fills it up with the common attributes.

The newly created element will also be added to the parent element as a child node. Subclasses can override ChildSaveState() method to fill it up with subclass specific values.

◆ ChildSaveState()

virtual void vtkSMDomain::ChildSaveState ( vtkPVXMLElement * domainElement )

protectedvirtual

Add the header and creates a new vtkPVXMLElement for the domain, fills it up with the common attributes.

The newly created element will also be added to the parent element as a child node. Subclasses can override ChildSaveState() method to fill it up with subclass specific values.

Reimplemented in vtkSMProxyListDomain, vtkSMEnumerationDomain, and vtkSMStringListDomain.

◆ LoadState()

virtual int vtkSMDomain::LoadState	(	vtkPVXMLElement *	vtkNotUseddomainElement,
		vtkSMProxyLocator *	vtkNotUsedloader
	)

inlineprotectedvirtual

Load the state of the domain from the XML.

Subclasses generally have no need to load XML state. In fact, serialization of state for domains, in general, is unnecessary for two reasons:

domains whose values are defined in XML will be populated from the configuration xml anyways.
domains whose values depend on data (at runtime) will be repopulated with data values when the XML state is loaded. The only exception to this rule is vtkSMProxyListDomain (presently). vtkSMProxyListDomain needs to try to restore proxies (with proper ids) for the domain.

Definition at line 172 of file vtkSMDomain.h.

◆ ReadXMLAttributes()

virtual int vtkSMDomain::ReadXMLAttributes	(	vtkSMProperty *	prop,
		vtkPVXMLElement *	elem
	)

protectedvirtual

Set the appropriate ivars from the xml element.

Should be overwritten by subclass if adding ivars.

Reimplemented in vtkSMArrayListDomain, vtkSMProxyListDomain, vtkSMEnumerationDomain, vtkSMRangeDomainTemplate< T >, vtkSMInputArrayDomain, vtkSMCompositeTreeDomain, vtkSMBoundsDomain, vtkSMStringListDomain, vtkSMChartSeriesSelectionDomain, vtkSMProxyGroupDomain, vtkSMFieldDataDomain, vtkSMRangedTransferFunctionDomain, vtkSMDataTypeDomain, vtkSMDiscreteDoubleDomain, vtkSMRegistrationNamesDomain, vtkSMChartSeriesListDomain, vtkSMRepresentedArrayListDomain, vtkSMNumberOfComponentsDomain, vtkSMMaterialDomain, and vtkSMRendererDomain.

◆ RemoveRequiredProperty()

void vtkSMDomain::RemoveRequiredProperty ( vtkSMProperty * prop )

protected

Remove the given property from the required properties list.

◆ AddRequiredProperty()

void vtkSMDomain::AddRequiredProperty	(	vtkSMProperty *	prop,
		const char *	function
	)

protected

Add a new required property to this domain.

Whenever the prop fires vtkCommand::UncheckedPropertyModifiedEvent, vtkSMDomain::Update(prop) is called. Also whenever a vtkSMInputProperty is added as a required property, vtkSMDomain::Update(prop) will also be called the vtkCommand::UpdateDataEvent is fired by the proxies contained in that required property.

◆ SetIsOptional()

virtual void vtkSMDomain::SetIsOptional ( bool )

protectedvirtual

When the IsOptional flag is set, IsInDomain() always returns true.

This is used by properties that use domains to provide information (a suggestion to the gui for example) as opposed to restrict their values.

◆ SetXMLName()

virtual void vtkSMDomain::SetXMLName ( const char * )

protectedvirtual

Assigned by the XML parser.

The name assigned in the XML configuration. Can be used to figure out the origin of the domain.

◆ DomainModified()

void vtkSMDomain::DomainModified ( )

protected

Invokes DomainModifiedEvent.

Note that this event must be fired after the domain has changed (ideally, if and only if the domain has changed).

◆ InvokeModified()

void vtkSMDomain::InvokeModified ( )

inlineprotected

Definition at line 225 of file vtkSMDomain.h.

◆ GetNumberOfRequiredProperties()

unsigned int vtkSMDomain::GetNumberOfRequiredProperties ( )

protected

Gets the number of required properties added.

◆ SetProperty()

void vtkSMDomain::SetProperty ( vtkSMProperty * )

protected

Set the domain's property.

This is called by vtkSMProperty when the domain is created.

Friends And Related Function Documentation

◆ vtkSMProperty

friend class vtkSMProperty

friend

Definition at line 184 of file vtkSMDomain.h.

◆ DeferDomainModifiedEvents

friend class DeferDomainModifiedEvents

friend

Definition at line 281 of file vtkSMDomain.h.

Member Data Documentation

◆ XMLName

char* vtkSMDomain::XMLName

protected

Definition at line 273 of file vtkSMDomain.h.

◆ IsOptional

bool vtkSMDomain::IsOptional

protected

Definition at line 274 of file vtkSMDomain.h.

◆ Internals

vtkSMDomainInternals* vtkSMDomain::Internals

protected

Definition at line 275 of file vtkSMDomain.h.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Remoting/ServerManager/vtkSMDomain.h

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ Superclass

Member Enumeration Documentation

◆ IsInDomainReturnCodes

Constructor & Destructor Documentation

◆ vtkSMDomain()

◆ ~vtkSMDomain()

Member Function Documentation

◆ New()

◆ GetClassName()

◆ IsTypeOf()

◆ IsA()

◆ SafeDownCast()

◆ PrintSelf()

◆ IsInDomain()

◆ Update()

◆ SetAnimationValue()

◆ SetDefaultValues()

◆ GetXMLName()

◆ GetIsOptional()

◆ GetProperty()

◆ GetInputDataInformation()

◆ GetInputSubsetDataInformation() [1/2]

◆ GetInputSubsetDataInformation() [2/2]

◆ GetNumberOfInputConnections()

◆ GetRequiredProperty()

◆ SaveState()

◆ ChildSaveState()

◆ LoadState()

◆ ReadXMLAttributes()

◆ RemoveRequiredProperty()

◆ AddRequiredProperty()

◆ SetIsOptional()

◆ SetXMLName()

◆ DomainModified()

◆ InvokeModified()

◆ GetNumberOfRequiredProperties()

◆ SetProperty()

Friends And Related Function Documentation

◆ vtkSMProperty

◆ DeferDomainModifiedEvents

Member Data Documentation

◆ XMLName

◆ IsOptional

◆ Internals
