union of proxies. More...

#include <vtkSMProxyListDomain.h>

Inheritance diagram for vtkSMProxyListDomain:

[legend]

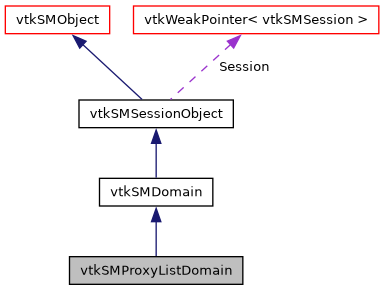

Collaboration diagram for vtkSMProxyListDomain:

[legend]

Classes
struct	ProxyType
	Used to identify a proxy type. More...

Public Types
typedef vtkSMDomain	Superclass

Public Types inherited from vtkSMDomain
enum	IsInDomainReturnCodes { NOT_APPLICABLE = -1, NOT_IN_DOMAIN = 0, IN_DOMAIN = 1 }
	Return values for `IsInDomain` calls. More...

typedef vtkSMSessionObject	Superclass

Public Types inherited from vtkSMSessionObject
typedef vtkSMObject	Superclass

Public Types inherited from vtkSMObject
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

const std::vector< ProxyType > &	GetProxyTypes () const
	Returns a vector of proxy types for the proxies in the domain. More...

unsigned int	GetNumberOfProxyTypes ()
	Returns the number of proxies in the domain. More...

const char *	GetProxyGroup (unsigned int index)
	Returns the xml group name for the proxy at a given index. More...

const char *	GetProxyName (unsigned int index)
	Returns the xml type name for the proxy at a given index. More...

const char *	GetProxyName (vtkSMProxy *proxy)
	If the `proxy` is part of the domain, then this returns the name used for the proxy in the domain. More...

vtkSMProxy *	GetProxyWithName (const char *pname)
	Inverse of `GetProxyName`, returns the first proxy with the given name. More...

int	IsInDomain (vtkSMProperty *property) override
	This always returns true. More...

void	AddProxy (vtkSMProxy *)
	Add a proxy to the domain. More...

bool	HasProxy (vtkSMProxy *)
	Returns if the proxy is present in the domain. More...

unsigned int	GetNumberOfProxies ()
	Get number of proxies in the domain. More...

vtkSMProxy *	GetProxy (unsigned int index)
	Get proxy at a given index. More...

vtkSMProxy *	FindProxy (const char xmlgroup, const char xmlname)
	Find a proxy in the domain of the given group and type. More...

int	RemoveProxy (vtkSMProxy *proxy)
	Removes the first occurrence of the `proxy` in the domain. More...

int	RemoveProxy (unsigned int index)
	Removes the proxy at the given index. More...

void	CreateProxies (vtkSMSessionProxyManager *pxm)
	Creates and populates the domain with the proxy-types. More...

int	SetDefaultValues (vtkSMProperty *prop, bool use_unchecked_values) override
	A vtkSMProperty is often defined with a default value in the XML itself. More...

void	SetLogName (const char *prefix)
	Sets log name for each of the proxy in the domain using the prefix provided. More...


virtual void	SetDefaultIndex (unsigned int)
	Set and Get the default proxy index. More...

virtual unsigned int	GetDefaultIndex ()
	Set and Get the default proxy index. More...

Public Member Functions inherited from vtkSMDomain
virtual int	IsInDomain (vtkSMProperty *vtkNotUsed(property))
	Is the (unchecked) value of the property in the domain? Overwritten by sub-classes. More...

virtual void	Update (vtkSMProperty *requestingProperty)
	Update self based on the "unchecked" values of all required properties. More...

virtual void	SetAnimationValue (vtkSMProperty *, int vtkNotUsed(index), double vtkNotUsed(value))
	Set the value of an element of a property from the animation editor. More...

virtual int	SetDefaultValues (vtkSMProperty *, bool vtkNotUsed(use_unchecked_values))
	A vtkSMProperty is often defined with a default value in the XML itself. More...

vtkSMProperty *	GetProperty ()
	Provides access to the vtkSMProperty on which this domain is hooked up. More...

virtual unsigned int	GetNumberOfInputConnections (const char *function)
	Helper method to get the number of input connections hence the number of available vtkPVDataInformation from input proxy connected to the required property with the given function. More...

vtkSMProperty *	GetRequiredProperty (const char *function)
	Returns a given required property of the given function. More...

virtual char *	GetXMLName ()
	Assigned by the XML parser. More...

virtual bool	GetIsOptional ()
	When the IsOptional flag is set, IsInDomain() always returns true. More...

virtual vtkPVDataInformation *	GetInputDataInformation (const char *function, unsigned int index=0)
	Helper methods to get vtkPVDataInformation from input proxy connected to the required property with the given function and provided input index. More...

virtual vtkPVDataInformation *	GetInputSubsetDataInformation (unsigned int compositeIndex, const char *function, unsigned int index=0)
	Helper methods to get vtkPVDataInformation from input proxy connected to the required property with the given function and provided input index. More...

virtual vtkPVDataInformation *	GetInputSubsetDataInformation (const char selector, const char assemblyName, const char *function, unsigned int index=0)
	Helper methods to get vtkPVDataInformation from input proxy connected to the required property with the given function and provided input index. More...

Public Member Functions inherited from vtkSMSessionObject
void	PrintSelf (ostream &os, vtkIndent indent) override

virtual vtkSMSessionProxyManager *	GetSessionProxyManager ()
	Return the corresponding ProxyManager if any. More...

virtual void	SetSession (vtkSMSession *)
	Get/Set the session on wihch this object exists. More...

virtual vtkSMSession *	GetSession ()
	Get/Set the session on wihch this object exists. More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkSMProxyListDomain *	New ()

static int	IsTypeOf (const char *type)

static vtkSMProxyListDomain *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMDomain
static vtkSMDomain *	New ()

static int	IsTypeOf (const char *type)

static vtkSMDomain *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMSessionObject
static vtkSMSessionObject *	New ()

static int	IsTypeOf (const char *type)

static vtkSMSessionObject *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMObject
static vtkSMObject *	New ()

static int	IsTypeOf (const char *type)

static vtkSMObject *	SafeDownCast (vtkObject *o)

static std::string	CreatePrettyLabel (const std::string &name)
	Return a well-formated label using provided name by adding spaces between lower cases and upper cases: More...

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkSMProxyListDomain ()

	~vtkSMProxyListDomain () override

int	ReadXMLAttributes (vtkSMProperty prop, vtkPVXMLElement element) override
	Set the appropriate ivars from the xml element. More...

void	AddProxy (const char group, const char name)
	Adds a proxy type, used by ReadXMLAttributes(). More...

void	ChildSaveState (vtkPVXMLElement *propertyElement) override
	Save state for this domain. More...

int	LoadState (vtkPVXMLElement domainElement, vtkSMProxyLocator loader) override

void	SetProxies (vtkSMProxy **proxies, unsigned int count)

Protected Member Functions inherited from vtkSMDomain
	vtkSMDomain ()

	~vtkSMDomain () override

virtual int	LoadState (vtkPVXMLElement vtkNotUsed(domainElement), vtkSMProxyLocator vtkNotUsed(loader))
	Load the state of the domain from the XML. More...

void	RemoveRequiredProperty (vtkSMProperty *prop)
	Remove the given property from the required properties list. More...

void	AddRequiredProperty (vtkSMProperty prop, const char function)
	Add a new required property to this domain. More...

void	DomainModified ()
	Invokes DomainModifiedEvent. More...

void	InvokeModified ()

unsigned int	GetNumberOfRequiredProperties ()
	Gets the number of required properties added. More...

void	SetProperty (vtkSMProperty *)
	Set the domain's property. More...

void	SaveState (vtkPVXMLElement parent, const char uid)
	Add the header and creates a new vtkPVXMLElement for the domain, fills it up with the common attributes. More...

virtual void	SetIsOptional (bool)
	When the IsOptional flag is set, IsInDomain() always returns true. More...

virtual void	SetXMLName (const char *)
	Assigned by the XML parser. More...

Protected Member Functions inherited from vtkSMSessionObject
	vtkSMSessionObject ()

	~vtkSMSessionObject () override

Protected Member Functions inherited from vtkSMObject
	vtkSMObject ()

	~vtkSMObject () override

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Protected Attributes
unsigned int	DefaultIndex = 0

Protected Attributes inherited from vtkSMDomain
char *	XMLName

bool	IsOptional

vtkSMDomainInternals *	Internals

Protected Attributes inherited from vtkSMSessionObject
vtkWeakPointer< vtkSMSession >	Session
	Identifies the session id to which this object is related. More...

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Friends
class	vtkSMProxyProperty

Detailed Description

union of proxies.

This domain is a collection of proxies that can be assigned as the value to a vtkSMProxyProperty. The Server Manager configuration defines the proxy types that form this list, while the value of this domain is the list of instances of proxies. Example usage :

<ProxyListDomain name="proxy_list">
  <Proxy group="implicit_functions"
         name="Plane" />
  <Group name="implicit_functions"/>
</ProxyListDomain>

See also: vtkSMDomain vtkSMProxyProperty

Definition at line 40 of file vtkSMProxyListDomain.h.

Member Typedef Documentation

◆ Superclass

typedef vtkSMDomain vtkSMProxyListDomain::Superclass

Definition at line 44 of file vtkSMProxyListDomain.h.

Constructor & Destructor Documentation

◆ vtkSMProxyListDomain()

vtkSMProxyListDomain::vtkSMProxyListDomain ( )

protected

◆ ~vtkSMProxyListDomain()

vtkSMProxyListDomain::~vtkSMProxyListDomain ( )

overrideprotected

Member Function Documentation

◆ New()

static vtkSMProxyListDomain* vtkSMProxyListDomain::New ( )

static

◆ GetClassName()

virtual const char* vtkSMProxyListDomain::GetClassName ( )

virtual

Reimplemented from vtkSMDomain.

Reimplemented in vtkSMRangedTransferFunctionDomain.

◆ IsTypeOf()

static int vtkSMProxyListDomain::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkSMProxyListDomain::IsA ( const char * type )

virtual

Reimplemented from vtkSMDomain.

Reimplemented in vtkSMRangedTransferFunctionDomain.

◆ SafeDownCast()

static vtkSMProxyListDomain* vtkSMProxyListDomain::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkSMProxyListDomain::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkSMDomain.

Reimplemented in vtkSMRangedTransferFunctionDomain.

◆ GetProxyTypes()

const std::vector<ProxyType>& vtkSMProxyListDomain::GetProxyTypes ( ) const

Returns a vector of proxy types for the proxies in the domain.

◆ GetNumberOfProxyTypes()

unsigned int vtkSMProxyListDomain::GetNumberOfProxyTypes ( )

Returns the number of proxies in the domain.

◆ GetProxyGroup()

const char* vtkSMProxyListDomain::GetProxyGroup ( unsigned int index )

Returns the xml group name for the proxy at a given index.

◆ GetProxyName() [1/2]

const char* vtkSMProxyListDomain::GetProxyName ( unsigned int index )

Returns the xml type name for the proxy at a given index.

◆ GetProxyName() [2/2]

const char* vtkSMProxyListDomain::GetProxyName ( vtkSMProxy * proxy )

If the proxy is part of the domain, then this returns the name used for the proxy in the domain.

Returns nullptr otherwise.

◆ GetProxyWithName()

vtkSMProxy* vtkSMProxyListDomain::GetProxyWithName ( const char * pname )

Inverse of GetProxyName, returns the first proxy with the given name.

◆ IsInDomain()

int vtkSMProxyListDomain::IsInDomain ( vtkSMProperty * property )

override

This always returns true.

◆ AddProxy() [1/2]

void vtkSMProxyListDomain::AddProxy ( vtkSMProxy * )

Add a proxy to the domain.

◆ HasProxy()

bool vtkSMProxyListDomain::HasProxy ( vtkSMProxy * )

Returns if the proxy is present in the domain.

◆ GetNumberOfProxies()

unsigned int vtkSMProxyListDomain::GetNumberOfProxies ( )

Get number of proxies in the domain.

◆ GetProxy()

vtkSMProxy* vtkSMProxyListDomain::GetProxy ( unsigned int index )

Get proxy at a given index.

◆ FindProxy()

vtkSMProxy* vtkSMProxyListDomain::FindProxy	(	const char *	xmlgroup,
		const char *	xmlname
	)

Find a proxy in the domain of the given group and type.

◆ RemoveProxy() [1/2]

int vtkSMProxyListDomain::RemoveProxy ( vtkSMProxy * proxy )

Removes the first occurrence of the proxy in the domain.

Returns if the proxy was removed.

◆ RemoveProxy() [2/2]

int vtkSMProxyListDomain::RemoveProxy ( unsigned int index )

Removes the proxy at the given index.

Returns if the proxy was removed.

◆ CreateProxies()

void vtkSMProxyListDomain::CreateProxies ( vtkSMSessionProxyManager * pxm )

Creates and populates the domain with the proxy-types.

Note that the newly created proxies won't be registered with the proxy manager.

◆ SetDefaultValues()

int vtkSMProxyListDomain::SetDefaultValues	(	vtkSMProperty *	prop,
		bool	use_unchecked_values
	)

override

A vtkSMProperty is often defined with a default value in the XML itself.

However, many times, the default value must be determined at run time. To facilitate this, domains can override this method to compute and set the default value for the property. Note that unlike the compile-time default values, the application must explicitly call this method to initialize the property.

◆ SetDefaultIndex()

virtual void vtkSMProxyListDomain::SetDefaultIndex ( unsigned int )

virtual

Set and Get the default proxy index.

◆ GetDefaultIndex()

virtual unsigned int vtkSMProxyListDomain::GetDefaultIndex ( )

virtual

Set and Get the default proxy index.

◆ SetLogName()

void vtkSMProxyListDomain::SetLogName ( const char * prefix )

Sets log name for each of the proxy in the domain using the prefix provided.

◆ ReadXMLAttributes()

int vtkSMProxyListDomain::ReadXMLAttributes	(	vtkSMProperty *	prop,
		vtkPVXMLElement *	element
	)

overrideprotectedvirtual

Set the appropriate ivars from the xml element.

Should be overwritten by subclass if adding ivars.

Reimplemented from vtkSMDomain.

Reimplemented in vtkSMRangedTransferFunctionDomain.

◆ AddProxy() [2/2]

void vtkSMProxyListDomain::AddProxy	(	const char *	group,
		const char *	name
	)

protected

Adds a proxy type, used by ReadXMLAttributes().

◆ ChildSaveState()

void vtkSMProxyListDomain::ChildSaveState ( vtkPVXMLElement * propertyElement )

overrideprotectedvirtual

Save state for this domain.

Reimplemented from vtkSMDomain.

◆ LoadState()

int vtkSMProxyListDomain::LoadState	(	vtkPVXMLElement *	domainElement,
		vtkSMProxyLocator *	loader
	)

overrideprotected

◆ SetProxies()

void vtkSMProxyListDomain::SetProxies	(	vtkSMProxy **	proxies,
		unsigned int	count
	)

protected

Friends And Related Function Documentation

◆ vtkSMProxyProperty

friend class vtkSMProxyProperty

friend

Definition at line 190 of file vtkSMProxyListDomain.h.

Member Data Documentation

◆ DefaultIndex

unsigned int vtkSMProxyListDomain::DefaultIndex = 0

protected

Definition at line 193 of file vtkSMProxyListDomain.h.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Remoting/ServerManager/vtkSMProxyListDomain.h

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ Superclass

Constructor & Destructor Documentation

◆ vtkSMProxyListDomain()

◆ ~vtkSMProxyListDomain()

Member Function Documentation

◆ New()

◆ GetClassName()

◆ IsTypeOf()

◆ IsA()

◆ SafeDownCast()

◆ PrintSelf()

◆ GetProxyTypes()

◆ GetNumberOfProxyTypes()

◆ GetProxyGroup()

◆ GetProxyName() [1/2]

◆ GetProxyName() [2/2]

◆ GetProxyWithName()

◆ IsInDomain()

◆ AddProxy() [1/2]

◆ HasProxy()

◆ GetNumberOfProxies()

◆ GetProxy()

◆ FindProxy()

◆ RemoveProxy() [1/2]

◆ RemoveProxy() [2/2]

◆ CreateProxies()

◆ SetDefaultValues()

◆ SetDefaultIndex()

◆ GetDefaultIndex()

◆ SetLogName()

◆ ReadXMLAttributes()

◆ AddProxy() [2/2]

◆ ChildSaveState()

◆ LoadState()

◆ SetProxies()

Friends And Related Function Documentation

◆ vtkSMProxyProperty

Member Data Documentation

◆ DefaultIndex
