Proxy for a representations. More...

#include <vtkSMRepresentationProxy.h>

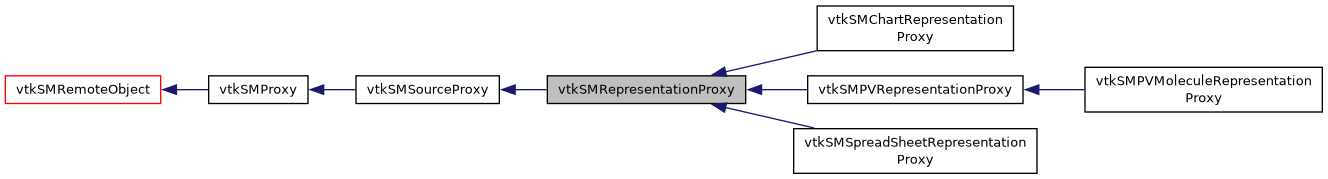

Inheritance diagram for vtkSMRepresentationProxy:

[legend]

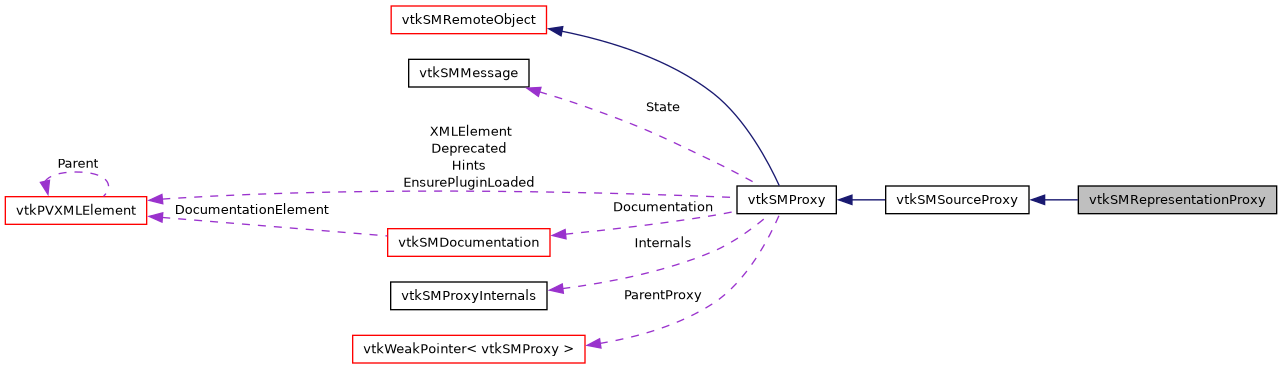

Collaboration diagram for vtkSMRepresentationProxy:

[legend]

Public Types
typedef vtkSMSourceProxy	Superclass

Public Types inherited from vtkSMSourceProxy
enum	ProcessSupportType { SINGLE_PROCESS, MULTIPLE_PROCESSES, BOTH }

typedef vtkSMProxy	Superclass

Public Types inherited from vtkSMProxy
enum	ResetPropertiesMode { DEFAULT = 0, ONLY_XML = 1, ONLY_DOMAIN = 2 }

enum	{ COPY_PROXY_PROPERTY_VALUES_BY_REFERENCE = 0, COPY_PROXY_PROPERTY_VALUES_BY_CLONING }
	Flags used for the proxyPropertyCopyFlag argument to the Copy method. More...

typedef vtkSMRemoteObject	Superclass

Public Types inherited from vtkSMRemoteObject
typedef vtkSMSessionObject	Superclass

Public Types inherited from vtkSMSessionObject
typedef vtkSMObject	Superclass

Public Types inherited from vtkSMObject
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

virtual vtkPVDataInformation *	GetRepresentedDataInformation ()
	Returns information about the data that is finally rendered by this representation. More...

void	UpdatePipeline () override
	Calls Update() on all sources. More...

void	UpdatePipeline (double time) override
	Calls Update() on all sources with the given time request. More...

void	PostUpdateData (bool) override
	Overridden to reset this->MarkedModified flag. More...

virtual void	ViewUpdated (vtkSMProxy *view)
	Called after the view updates. More...

vtkTypeUInt32	GetGlobalID () override
	Overridden to reserve additional IDs for use by internal composite representation. More...

void	MarkDirty (vtkSMProxy *modifiedProxy) override
	Marks the selection proxies dirty as well as chain to superclass. More...


virtual vtkPVProminentValuesInformation *	GetProminentValuesInformation (std::string name, int fieldAssoc, int numComponents, double uncertaintyAllowed=1e-6, double fraction=1e-3, bool force=false)
	Returns information about a specific array component's prominent values (or nullptr). More...

virtual vtkPVProminentValuesInformation *	GetBlockProminentValuesInformation (std::string blockSelector, std::string assemblyName, std::string name, int fieldAssoc, int numComponents, double uncertaintyAllowed=1e-6, double fraction=1e-3, bool force=false)
	Returns information about a specific array component's prominent values (or nullptr). More...

Public Member Functions inherited from vtkSMSourceProxy
void	UpdatePipelineInformation () override
	Calls UpdateInformation() on all sources. More...

virtual unsigned int	GetNumberOfOutputPorts ()
	Return the number of output ports. More...

virtual vtkSMOutputPort *	GetOutputPort (unsigned int idx)
	Return an output port. More...

virtual vtkSMOutputPort *	GetOutputPort (const char *portname)
	Return an output port, given the name for the port. More...

virtual unsigned int	GetOutputPortIndex (const char *portname)
	Returns the port index, given the name of an output port. More...

virtual const char *	GetOutputPortName (unsigned int index)
	Returns the output port name given its index. More...

virtual void	CreateOutputPorts ()
	Creates the output port proxies for this filter. More...

vtkPVDataInformation *	GetSubsetDataInformation (unsigned int outputIdx, unsigned int compositeIndex)
	A `GetSubsetDataInformation` overload that uses composite index. More...

virtual void	CreateSelectionProxies ()
	Creates extract selection proxies for each output port if not already created. More...

void	SetSelectionInput (unsigned int portIndex, vtkSMSourceProxy *input, unsigned int outputPort)
	Set/Get the selection input. More...

void	CleanSelectionInputs (unsigned int portIndex)
	Clean all selection inputs for the given port. More...

vtkSMSourceProxy *	GetSelectionOutput (unsigned int portIndex)
	Returns the source proxy which provides the selected data from the given output port. More...

unsigned int	GetNumberOfAlgorithmOutputPorts ()
	Returns the number of output ports provided by the algorithm. More...

virtual unsigned int	GetNumberOfAlgorithmRequiredInputPorts ()
	Returns the number of non-optional input ports required by the algorithm. More...

virtual int	GetOutputPortsCreated ()
	Returns if the output port proxies have been created. More...

vtkSMDocumentation *	GetOutputPortDocumentation (unsigned int index)
	It is possible to provide some documentation for each output port in the configuration xml. More...

vtkSMDocumentation *	GetOutputPortDocumentation (const char *portname)
	It is possible to provide some documentation for each output port in the configuration xml. More...

vtkPVDataInformation *	GetDataInformation ()
	DataInformation is used by the source proxy to obtain information on the output(s) from the server. More...

vtkPVDataInformation *	GetDataInformation (unsigned int outputIdx)
	DataInformation is used by the source proxy to obtain information on the output(s) from the server. More...

vtkPVDataInformation *	GetSubsetDataInformation (unsigned int outputIdx, const char selector, const char assemblyName=nullptr)
	For composite datasets, `GetDataInformation` returns summary data information for all blocks combined. More...

vtkPVDataInformation *	GetRankDataInformation (int rank)
	Get rank-specific data information. More...

vtkPVDataInformation *	GetRankDataInformation (unsigned int outputIdx, int rank)
	Get rank-specific data information. More...

vtkSMSourceProxy *	GetSelectionInput (unsigned int portIndex)
	API to query selection input set using SetSelectionInput. More...

unsigned int	GetSelectionInputPort (unsigned int portIndex)
	API to query selection input set using SetSelectionInput. More...

virtual int	GetProcessSupport ()
	This returns information about whether the VTK algorithm supports multiple processes or not. More...

virtual bool	GetMPIRequired ()
	This returns information about whether the VTK algorithm explicitly needs MPI to be initialized. More...

Public Member Functions inherited from vtkSMProxy
void	SetAnnotation (const char key, const char value)

const char *	GetAnnotation (const char *key)
	Retrieve an annotation with a given key. More...

void	RemoveAnnotation (const char *key)
	Remove a given annotation based on its key to the proxy. More...

void	RemoveAllAnnotations ()
	Remove all proxy annotations. More...

bool	HasAnnotation (const char *key)
	Return true if a given annotation exists. More...

int	GetNumberOfAnnotations ()
	Return the number of available annotations. More...

const char *	GetAnnotationKeyAt (int index)
	Return the nth key of the available annotations. More...

void	SetLocation (vtkTypeUInt32) override
	Get/Set the location where the underlying VTK-objects are created. More...

virtual vtkSMProperty *	GetProperty (const char *name)
	Return the property with the given name. More...

virtual vtkSMProperty *	GetProperty (const char *name, int selfOnly)
	Return a property of the given name from self or one of the sub-proxies. More...

const char *	GetPropertyName (vtkSMProperty *prop)
	Given a property pointer, returns the name that was used to add it to the proxy. More...

virtual void	UpdateVTKObjects ()
	Update the VTK object on the server by pushing the values of all modified properties (un-modified properties are ignored). More...

virtual void	RecreateVTKObjects ()
	Recreate the VTK object for this proxy. More...

void	InvokeCommand (const char *name)
	Convenience method equivalent to UpdateProperty(name, 1). More...

virtual vtkSMPropertyIterator *	NewPropertyIterator ()
	Returns a new (initialized) iterator of the properties. More...

unsigned int	GetNumberOfConsumers ()
	Returns the number of consumers. More...

vtkSMProxy *	GetConsumerProxy (unsigned int idx)
	Returns the consumer of given index. More...

vtkSMProperty *	GetConsumerProperty (unsigned int idx)
	Returns the corresponding property of the consumer of given index. More...

unsigned int	GetNumberOfProducers ()
	Returns the number of proxies this proxy depends on (uses or is connected to through the pipeline). More...

vtkSMProxy *	GetProducerProxy (unsigned int idx)
	Returns a proxy this proxy depends on, given index. More...

vtkSMProperty *	GetProducerProperty (unsigned int idx)
	Returns the property holding a producer proxy given an index. More...

virtual void	UpdatePropertyInformation ()
	Updates all property information by calling UpdateInformation() and populating the values. More...

virtual void	UpdatePropertyInformation (vtkSMProperty *prop)
	Similar to UpdatePropertyInformation() but updates only the given property. More...

virtual void	MarkAllPropertiesAsModified ()
	Marks all properties as modified. More...

virtual void	ResetPropertiesToXMLDefaults ()
	Use this method to set all properties on this proxy to their default values. More...

virtual void	ResetPropertiesToDomainDefaults ()
	Use this method to set all properties on this proxy to their default domains. More...

virtual void	ResetPropertiesToDefault (ResetPropertiesMode mode=DEFAULT)
	Use this method to set all properties on this proxy to their default domain or values. More...

virtual void	MarkModified (vtkSMProxy *modifiedProxy)
	Calls MarkDirty() and invokes ModifiedEvent. More...

bool	IsDeprecated ()
	Returns true if the proxy has a deprecation tag. More...

void	InitializeAndCopyFromProxy (vtkSMProxy *source)
	Given a source proxy, makes this proxy point to the same server-side object (with a new id). More...

vtkObjectBase *	GetClientSideObject ()
	Returns the client side object associated with the VTKObjectID (if any). More...

virtual vtkPVXMLElement *	SaveXMLState (vtkPVXMLElement *root)
	Saves the state of the proxy. More...

virtual vtkPVXMLElement *	SaveXMLState (vtkPVXMLElement root, vtkSMPropertyIterator iter)
	The iterator is use to filter the property available on the given proxy. More...

void	UpdateSelfAndAllInputs ()
	This method call UpdateVTKObjects on the current pipeline by starting at the sources. More...

bool	GetIsSubProxy ()
	A proxy instance can be a sub-proxy for some other proxy. More...

vtkSMProxy *	GetParentProxy ()
	If this instance is a sub-proxy, this method will return the proxy of which this instance is an immediate sub-proxy. More...

vtkSMProxy *	GetTrueParentProxy ()
	Call GetParentProxy() recursively till a proxy that is not a subproxy of any other proxy is found. More...

void	EnableLocalPushOnly () override
	Allow to switch off any push of state change to the server for that particular object. More...

void	DisableLocalPushOnly () override
	Enable the given remote object to communicate its state normally to the server location. More...

const vtkSMMessage *	GetFullState () override
	This method return the full object state that can be used to create that object from scratch. More...

void	LoadState (const vtkSMMessage msg, vtkSMProxyLocator locator) override
	This method is used to initialise the object to the given state If the definitionOnly Flag is set to True the proxy won't load the properties values and just setup the new proxy hierarchy with all subproxy globalID set. More...

vtkSMPropertyGroup *	GetPropertyGroup (size_t index) const
	Returns the property group at `index` for the proxy. More...

size_t	GetNumberOfPropertyGroups () const
	Returns the number of property groups that the proxy contains. More...

const char *	GetLogNameOrDefault ()
	A helper that makes up an default name if none is provided. More...

bool	GetPropertiesModified ()

virtual std::vector< std::string >	GetPropertiesWithDifferentValues (vtkSMProxy *otherProxy)
	Return the property names that have values different from the otherProxy argument. More...

bool	UpdateProperty (const char *name)
	Update the value of one property (pushed to the server) if it is modified. More...

bool	UpdateProperty (const char *name, int force)
	Update the value of one property (pushed to the server) if it is modified. More...

virtual char *	GetVTKClassName ()
	Returns the type of object managed by the proxy. More...

virtual void	SetVTKClassName (const char *)
	the type of object created by the proxy. More...

virtual char *	GetXMLName ()
	Assigned by the XML parser. More...

virtual char *	GetXMLGroup ()
	Assigned by the XML parser. More...

virtual char *	GetXMLLabel ()
	Assigned by the XML parser. More...

void	Copy (vtkSMProxy *src)
	Copies values of all the properties and sub-proxies from src. More...

void	Copy (vtkSMProxy src, const char exceptionClass)
	Copies values of all the properties and sub-proxies from src. More...

virtual void	Copy (vtkSMProxy src, const char exceptionClass, int proxyPropertyCopyFlag)
	Copies values of all the properties and sub-proxies from src. More...

virtual vtkSMDocumentation *	GetDocumentation ()
	Returns the documentation for this proxy. More...

virtual vtkPVXMLElement *	GetHints ()
	The server manager configuration XML may define `<Hints/>` element for a proxy. More...

virtual int	GetObjectsCreated ()
	Returns if the VTK objects for this proxy have been created. More...

bool	GatherInformation (vtkPVInformation *information)
	Gathers information about this proxy. More...

bool	GatherInformation (vtkPVInformation *information, vtkTypeUInt32 location)
	Gathers information about this proxy. More...

void	PrototypeOn () override
	Allow user to set the remote object to be discard for Undo/Redo action. More...

void	PrototypeOff () override
	Allow user to set the remote object to be discard for Undo/Redo action. More...

void	SetPrototype (bool undo) override
	Allow user to set the remote object to be discard for Undo/Redo action. More...

void	SetLogName (const char *name)
	Log name is a name for this proxy that will be used when logging status messages. More...

virtual char *	GetLogName ()
	Log name is a name for this proxy that will be used when logging status messages. More...

Public Member Functions inherited from vtkSMRemoteObject
void	SetSession (vtkSMSession *) override
	Override the SetSession so if the object already have an ID we automatically register it to the associated session. More...

bool	HasGlobalID ()
	Allow the user to test if the RemoteObject has already a GlobalID without assigning a new one to it. More...

virtual bool	IsLocalPushOnly ()
	Let the session be aware that even if the Location is client only, the message should not be send to the server for a general broadcast. More...

virtual vtkTypeUInt32	GetLocation ()
	Get/Set the location where the underlying VTK-objects are created. More...

const char *	GetGlobalIDAsString ()
	Get the global unique id for this object. More...

bool	IsPrototype ()
	Allow user to set the remote object to be discard for Undo/Redo action. More...

Public Member Functions inherited from vtkSMSessionObject
virtual vtkSMSessionProxyManager *	GetSessionProxyManager ()
	Return the corresponding ProxyManager if any. More...

virtual vtkSMSession *	GetSession ()
	Get/Set the session on wihch this object exists. More...

Public Member Functions inherited from vtkObject
	vtkBaseTypeMacro (vtkObject, vtkObjectBase)

virtual void	DebugOn ()

virtual void	DebugOff ()

bool	GetDebug ()

void	SetDebug (bool debugFlag)

virtual void	Modified ()

virtual vtkMTimeType	GetMTime ()

void	RemoveObserver (unsigned long tag)

void	RemoveObservers (unsigned long event)

void	RemoveObservers (const char *event)

void	RemoveAllObservers ()

int	HasObserver (unsigned long event)

int	HasObserver (const char *event)

int	InvokeEvent (unsigned long event)

int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0f)

unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0f)

vtkCommand *	GetCommand (unsigned long tag)

void	RemoveObserver (vtkCommand *)

void	RemoveObservers (unsigned long event, vtkCommand *)

void	RemoveObservers (const char event, vtkCommand )

int	HasObserver (unsigned long event, vtkCommand *)

int	HasObserver (const char event, vtkCommand )

unsigned long	AddObserver (unsigned long event, U observer, void(T::*callback)(), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, void(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

unsigned long	AddObserver (unsigned long event, U observer, bool(T::callback)(vtkObject , unsigned long, void *), float priority=0.0f)

int	InvokeEvent (unsigned long event, void *callData)

int	InvokeEvent (const char event, void callData)

Public Member Functions inherited from vtkObjectBase
const char *	GetClassName () const

virtual void	Delete ()

virtual void	FastDelete ()

void	Print (ostream &os)

virtual void	Register (vtkObjectBase *o)

virtual void	UnRegister (vtkObjectBase *o)

void	SetReferenceCount (int)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

virtual void	PrintHeader (ostream &os, vtkIndent indent)

virtual void	PrintTrailer (ostream &os, vtkIndent indent)

int	GetReferenceCount ()

void	PrintRevisions (ostream &)

Static Public Member Functions
static vtkSMRepresentationProxy *	New ()

static int	IsTypeOf (const char *type)

static vtkSMRepresentationProxy *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMSourceProxy
static vtkSMSourceProxy *	New ()

static int	IsTypeOf (const char *type)

static vtkSMSourceProxy *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMProxy
static vtkSMProxy *	New ()

static int	IsTypeOf (const char *type)

static vtkSMProxy *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMRemoteObject
static int	IsTypeOf (const char *type)

static vtkSMRemoteObject *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMSessionObject
static vtkSMSessionObject *	New ()

static int	IsTypeOf (const char *type)

static vtkSMSessionObject *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkSMObject
static vtkSMObject *	New ()

static int	IsTypeOf (const char *type)

static vtkSMObject *	SafeDownCast (vtkObject *o)

static std::string	CreatePrettyLabel (const std::string &name)
	Return a well-formated label using provided name by adding spaces between lower cases and upper cases: More...

Static Public Member Functions inherited from vtkObject
static vtkObject *	New ()

static void	BreakOnError ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

static void	SetGlobalWarningDisplay (int val)

static void	GlobalWarningDisplayOn ()

static void	GlobalWarningDisplayOff ()

static int	GetGlobalWarningDisplay ()

Static Public Member Functions inherited from vtkObjectBase
static vtkTypeBool	IsTypeOf (const char *name)

static vtkObjectBase *	New ()

static vtkObjectBase *	New ()

Protected Member Functions
	vtkSMRepresentationProxy ()

	~vtkSMRepresentationProxy () override

void	MarkDirtyFromProducer (vtkSMProxy modifiedProxy, vtkSMProxy producer, vtkSMProperty *property) override
	When the representation is being marked dirty due to a producer i.e. More...

void	AddConsumer (vtkSMProperty property, vtkSMProxy proxy) override
	Called by a proxy property, this adds the property,proxy pair to the list of consumers. More...

void	RemoveConsumer (vtkSMProperty property, vtkSMProxy proxy) override
	Remove the property,proxy pair from the list of consumers. More...

void	RemoveAllConsumers () override
	Remove all consumers. More...

void	CreateVTKObjects () override
	Call superclass' and then assigns a new executive (vtkCompositeDataPipeline) More...

void	OnVTKRepresentationUpdated ()

void	OnVTKRepresentationUpdateSkipped ()

void	OnVTKRepresentationUpdateTimeChanged ()

virtual void	UpdatePipelineInternal (double time, bool doTime)

void	InvalidateDataInformation () override
	Mark the data information as invalid. More...

int	LoadXMLState (vtkPVXMLElement element, vtkSMProxyLocator locator) override
	Overridden to restore this->Servers flag state. More...

Protected Member Functions inherited from vtkSMSourceProxy
	vtkSMSourceProxy ()

	~vtkSMSourceProxy () override

virtual void	SetExecutiveName (const char *)

int	ReadXMLAttributes (vtkSMSessionProxyManager pm, vtkPVXMLElement element) override
	Read attributes from an XML element. More...

void	SetLogNameInternal (const char *name, bool propagate_to_subproxies, bool propagate_to_proxylistdomains) override
	Overridden to pass the logname to the internal ExtractSelection proxies. More...

void	SetOutputPort (unsigned int index, const char name, vtkSMOutputPort port, vtkSMDocumentation *doc)
	Method to set an output port at the given index. More...

void	RemoveAllOutputPorts ()
	Method to set an output port at the given index. More...

void	SetExtractSelectionProxy (unsigned int index, vtkSMSourceProxy *proxy)
	Method to set an output port at the given index. More...

void	RemoveAllExtractSelectionProxies ()
	Method to set an output port at the given index. More...

Protected Member Functions inherited from vtkSMProxy
	vtkSMProxy ()

	~vtkSMProxy () override

void	ExecuteStream (const vtkClientServerStream &msg, bool ignore_errors=false, vtkTypeUInt32 location=0)
	Invoke that takes a vtkClientServerStream as the argument. More...

virtual void	UpdateAndPushAnnotationState ()

virtual void	AddProperty (const char name, vtkSMProperty prop)
	Add a property with the given key (name). More...

virtual void	MarkConsumersAsDirty (vtkSMProxy *modifiedProxy)
	Calls `MarkDirtyFromProducer` on all consumers. More...

void	MarkInputsAsDirty ()
	This method is called by vtkSMRepresentationProxy whenever the time request for the pipeline may have potentially changed. More...

void	RemoveAllObservers ()
	Cleanup code. More...

virtual void	SetPropertyModifiedFlag (const char *name, int flag)
	Note on property modified flags: The modified flag of each property associated with a proxy is stored in the proxy object instead of in the property itself. More...

void	AddSubProxy (const char name, vtkSMProxy proxy, int overrideOK=0)
	Add a sub-proxy. More...

void	RemoveSubProxy (const char *name)
	Remove a sub-proxy. More...

vtkSMProxy *	GetSubProxy (const char *name)
	Returns a sub-proxy. More...

vtkSMProxy *	GetSubProxy (unsigned int index)
	Returns a sub-proxy. More...

const char *	GetSubProxyName (unsigned int index)
	Returns the name used to store sub-proxy. More...

const char *	GetSubProxyName (vtkSMProxy *)
	Returns the name used to store sub-proxy. More...

unsigned int	GetNumberOfSubProxies ()
	Returns the number of sub-proxies. More...

void	AddProducer (vtkSMProperty property, vtkSMProxy proxy)
	Called by an proxy/input property to add property, proxy pair to the list of producers. More...

void	RemoveProducer (vtkSMProperty property, vtkSMProxy proxy)
	Remove the property,proxy pair from the list of producers. More...

void	PostUpdateDataSelfOnly (bool using_cache)
	This is called by `PostUpdateData` to only update state for this proxy without iterative over producers. More...

bool	WarnIfDeprecated ()
	If a proxy is deprecated, prints a warning. More...

bool	LoadPluginIfEnsured ()
	If a proxy need to ensure a plugin is loaded, make sure it is. More...

void	LinkProperty (vtkSMProperty inputProperty, vtkSMProperty outputProperty)
	Links properties such that when inputProperty's checked or unchecked values are changed, the outputProperty's corresponding values are also changed. More...

vtkSMPropertyGroup *	NewPropertyGroup (vtkPVXMLElement *propElement)
	Parses the XML to create a new property group. More...

void	AppendPropertyGroup (vtkSMPropertyGroup *group)
	Adds a property groups. More...

void	ExposeSubProxyProperty (const char subproxy_name, const char property_name, const char *exposed_name, int overrideOK=0)
	Expose a subproxy property from the base proxy. More...

virtual void	ExecuteSubProxyEvent (vtkSMProxy o, unsigned long event, void data)
	Handle events fired by subproxies. More...

virtual int	CreateSubProxiesAndProperties (vtkSMSessionProxyManager pm, vtkPVXMLElement element)

virtual void	UpdatePropertyInformationInternal (vtkSMProperty *prop=nullptr)
	Called to update the property information on the property. More...

void	RebuildStateForProperties ()
	vtkSMProxy tracks state of properties on this proxy in an internal State object. More...

bool	ArePropertiesModified ()
	Indicates if any properties are modified. More...

void	SetHints (vtkPVXMLElement *hints)

void	SetDeprecated (vtkPVXMLElement *deprecated)

void	SetEnsurePluginLoaded (vtkPVXMLElement *ensurePluginLoaded)
	Set the "EnsurePluginLoaded" XML element that is used in LoadPluginIfEnsured. More...

void	SetXMLElement (vtkPVXMLElement *element)

	vtkSMProxy (const vtkSMProxy &)=delete

void	operator= (const vtkSMProxy &)=delete

virtual const vtkClientServerStream &	GetLastResult ()
	Get the last result. More...

virtual const vtkClientServerStream &	GetLastResult (vtkTypeUInt32 location)
	Get the last result. More...

virtual void	SetXMLName (const char *)
	Assigned by the XML parser. More...

virtual void	SetXMLGroup (const char *)
	Assigned by the XML parser. More...

virtual void	SetXMLLabel (const char *)
	Assigned by the XML parser. More...

virtual void	SetXMLSubProxyName (const char *)
	Assigned by the XML parser. More...

vtkSMProperty *	NewProperty (const char *name)
	Creates a new property and initializes it by calling ReadXMLAttributes() with the right XML element. More...

vtkSMProperty *	NewProperty (const char name, vtkPVXMLElement propElement)
	Creates a new property and initializes it by calling ReadXMLAttributes() with the right XML element. More...

void	SetupExposedProperties (const char subproxy_name, vtkPVXMLElement element)
	Read attributes from an XML element. More...

void	SetupSharedProperties (vtkSMProxy subproxy, vtkPVXMLElement element)
	Read attributes from an XML element. More...

virtual void	SetSIClassName (const char *)
	SIClassName identifies the classname for the helper on the server side. More...

virtual char *	GetSIClassName ()
	SIClassName identifies the classname for the helper on the server side. More...

Protected Member Functions inherited from vtkSMRemoteObject
	vtkSMRemoteObject ()
	Default constructor. More...

	~vtkSMRemoteObject () override
	Destructor. More...

void	PushState (vtkSMMessage *msg)
	Subclasses can call this method to send a message to its state object on the server processes specified. More...

bool	PullState (vtkSMMessage *msg)
	Subclasses can call this method to pull the state from the state-object on the server processes specified. More...

void	SetGlobalID (vtkTypeUInt32 guid)
	Set the GlobalUniqueId. More...

vtkTypeUInt32	GetFilteredLocation ()

Protected Member Functions inherited from vtkSMSessionObject
	vtkSMSessionObject ()

	~vtkSMSessionObject () override

Protected Member Functions inherited from vtkSMObject
	vtkSMObject ()

	~vtkSMObject () override

Protected Member Functions inherited from vtkObject
	vtkObject ()

virtual	~vtkObject ()

void	RegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	UnRegisterInternal (vtkObjectBase *, vtkTypeBool check) VTK_OVERRIDE

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

void	InternalGrabFocus (vtkCommand mouseEvents, vtkCommand keypressEvents=NULL)

void	InternalReleaseFocus ()

Protected Member Functions inherited from vtkObjectBase
	vtkObjectBase ()

virtual	~vtkObjectBase ()

virtual void	CollectRevisions (ostream &)

virtual void	ReportReferences (vtkGarbageCollector *)

	vtkObjectBase (const vtkObjectBase &)

void	operator= (const vtkObjectBase &)

Friends
class	vtkPVComparativeViewNS::vtkCloningVectorOfRepresentations

static bool	SetRepresentationType (vtkSMProxy repr, const char type)
	Set the representation type. More...

static const char *	GetRepresentationType (vtkSMProxy *repr)
	Set the representation type. More...

virtual bool	SetRepresentationType (const char *type)
	Set the representation type. More...

const char *	GetRepresentationType ()
	Set the representation type. More...

static bool	IsVolumeRendering (vtkSMProxy *repr)
	Convenient method to check if this representation is currently rendering volumes, using 2D Transfer function. More...

static bool	GetUsing2DTransferFunction (vtkSMProxy *repr)
	Convenient method to check if this representation is currently rendering volumes, using 2D Transfer function. More...

bool	IsVolumeRendering ()
	Convenient method to check if this representation is currently rendering volumes, using 2D Transfer function. More...

bool	GetUsing2DTransferFunction ()
	Convenient method to check if this representation is currently rendering volumes, using 2D Transfer function. More...

Additional Inherited Members
Protected Attributes inherited from vtkSMSourceProxy
int	OutputPortsCreated

int	ProcessSupport

bool	MPIRequired

char *	ExecutiveName

bool	DisableSelectionProxies

bool	SelectionProxiesCreated

Protected Attributes inherited from vtkSMProxy
bool	NeedsUpdate

char *	VTKClassName

char *	XMLGroup

char *	XMLName

char *	XMLLabel

char *	XMLSubProxyName

int	ObjectsCreated

int	DoNotUpdateImmediately

int	DoNotModifyProperty

int	InUpdateVTKObjects
	Avoids calls to UpdateVTKObjects in UpdateVTKObjects. More...

bool	PropertiesModified
	Flag used to help speed up UpdateVTKObjects and ArePropertiesModified calls. More...

vtkPVXMLElement *	XMLElement

vtkSMDocumentation *	Documentation

vtkPVXMLElement *	Hints = nullptr

vtkPVXMLElement *	Deprecated = nullptr

vtkPVXMLElement *	EnsurePluginLoaded = nullptr

vtkSMMessage *	State

int	InMarkModified

vtkWeakPointer< vtkSMProxy >	ParentProxy

vtkSMProxyInternals *	Internals

vtkSMProxyObserver *	SubProxyObserver

char *	SIClassName
	SIClassName identifies the classname for the helper on the server side. More...

Protected Attributes inherited from vtkSMRemoteObject
vtkTypeUInt32	GlobalID

vtkTypeUInt32	Location

bool	Prototype

bool	ClientOnlyLocationFlag

Protected Attributes inherited from vtkSMSessionObject
vtkWeakPointer< vtkSMSession >	Session
	Identifies the session id to which this object is related. More...

Protected Attributes inherited from vtkObject
bool	Debug

vtkTimeStamp	MTime

vtkSubjectHelper *	SubjectHelper

Protected Attributes inherited from vtkObjectBase
vtkAtomicInt32	ReferenceCount

vtkWeakPointerBase **	WeakPointers

Detailed Description

Proxy for a representations.

vtkSMRepresentationProxy is a vtkSMSourceProxy subclass that is designed to be used either directly or as a superclass for "data" representations i.e. representation that have an input (as against proxies for annotations such as 3D widgets).

Special handling of `MarkDirty`

vtkSMProxy::MarkDirty is a mechanism that ParaView uses to know on the client side (i.e. in the server-manager layer) when a pipeline on the server side is "dirty" or has potential to execute on an update causing things like data information to be invalidated. Simply speaking, when a property on a vtkSMProxy is modified and pushed (using vtkSMProxy::UpdateVTKObjects or vtkSMProxy::UpdateProperty), it calls this->MarkDirty(this). vtkSMProxy::MarkDirty invokes vtkSMProxy::MarkConsumersAsDirty which results in any consumers of this dirtied proxy also getting the notification. Consumers (and conversely producers) are setup via ProxyProperty and InputProperty connections. For standard data processing pipelines, this mechanism works quite well. Consider a filter proxy, say Clip, which has an input set via a InputProperty and a implicit function set via a ProxyProperty. If either the input or the implicit function is modified, it is reasonable to expect the Clip filter to re-execute on an UpdatePipeline call. Whether the call will truly cause the VTK pipeline (server side) to execute is not that important. The pipeline may not re-execute and that's not a big deal.

Things get a little complicated for representations, however. Data representations don't necessary have valid input connections on all processes where their VTK objects are present (note, representations create VTK objects on all process while data input is only available on the data server nodes). As a result representations have to be explicitly told to re-execute following upstream changes since they cannot rely on their VTK-level upstream. Re-executing a representation means regenerating the geometry or data artifacts for rendering, redelivering them to the rendering nodes, etc. It can also mean cleaning up any caches the representation built for flip-book animation support. In other words, re-executing a representation is non-trivial task. Thus, we want do it only when absolutely needed.

The explicit pipeline update is often referred to as "update suppression" and handled by vtkPVDataRepresentation and vtkPVDataRepresentationPipeline. In short, calling Update on vtkPVDataRepresentation has no effect unless vtkPVDataRepresentation::MarkModified was explicitly called at some point since the last Update.

To explicitly call vtkPVDataRepresentation::MarkModified for only those cases where the representation must be re-executed, we follow the following strategy.

vtkPVDataRepresentation subclasses explicitly call this->MarkModified when a public API that invalidates the data pipeline is invoked.
vtkSMRepresentationProxy overrides vtkSMProxy::MarkDirtyFromProducer to call MarkModified on the VTK object if the producer was connected to the representation via a InputProperty and not a ProxyProperty. The assumption is that InputProperty connections typically imply pipeline connections while ProxyProperty connections are other supporting VTK objects e.g. LUT.

Definition at line 78 of file vtkSMRepresentationProxy.h.

Member Typedef Documentation

◆ Superclass

typedef vtkSMSourceProxy vtkSMRepresentationProxy::Superclass

Definition at line 82 of file vtkSMRepresentationProxy.h.

Constructor & Destructor Documentation

◆ vtkSMRepresentationProxy()

vtkSMRepresentationProxy::vtkSMRepresentationProxy ( )

protected

◆ ~vtkSMRepresentationProxy()

vtkSMRepresentationProxy::~vtkSMRepresentationProxy ( )

overrideprotected

Member Function Documentation

◆ New()

static vtkSMRepresentationProxy* vtkSMRepresentationProxy::New ( )

static

◆ GetClassName()

virtual const char* vtkSMRepresentationProxy::GetClassName ( )

virtual

Reimplemented from vtkSMSourceProxy.

Reimplemented in vtkSMPVRepresentationProxy, vtkSMPVMoleculeRepresentationProxy, vtkSMChartRepresentationProxy, and vtkSMSpreadSheetRepresentationProxy.

◆ IsTypeOf()

static int vtkSMRepresentationProxy::IsTypeOf ( const char * type )

static

◆ IsA()

virtual int vtkSMRepresentationProxy::IsA ( const char * type )

virtual

Reimplemented from vtkSMSourceProxy.

Reimplemented in vtkSMPVRepresentationProxy, vtkSMPVMoleculeRepresentationProxy, vtkSMChartRepresentationProxy, and vtkSMSpreadSheetRepresentationProxy.

◆ SafeDownCast()

static vtkSMRepresentationProxy* vtkSMRepresentationProxy::SafeDownCast ( vtkObject * o )

static

◆ PrintSelf()

void vtkSMRepresentationProxy::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

overridevirtual

Reimplemented from vtkSMSourceProxy.

Reimplemented in vtkSMSpreadSheetRepresentationProxy.

◆ GetRepresentedDataInformation()

virtual vtkPVDataInformation* vtkSMRepresentationProxy::GetRepresentedDataInformation ( )

virtual

Returns information about the data that is finally rendered by this representation.

◆ GetProminentValuesInformation()

virtual vtkPVProminentValuesInformation* vtkSMRepresentationProxy::GetProminentValuesInformation	(	std::string	name,
		int	fieldAssoc,
		int	numComponents,
		double	uncertaintyAllowed = `1e-6`,
		double	fraction = `1e-3`,
		bool	force = `false`
	)

virtual

Returns information about a specific array component's prominent values (or nullptr).

The name, fieldAssoc, and numComponents arguments specify which arrays on the input dataset to examine. Because multiblock datasets may have multiple arrays of the same name on different blocks, and these arrays may not have the same storage type or number of components, this method requires you to specify the number of components per tuple the array(s) of interest must have. You may call GetRepresentedDataInformation() to obtain the number of components for any array.

See vtkAbstractArray::GetProminentComponentValues for more information about the uncertaintyAllowed and fraction arguments.

◆ GetBlockProminentValuesInformation()

virtual vtkPVProminentValuesInformation* vtkSMRepresentationProxy::GetBlockProminentValuesInformation	(	std::string	blockSelector,
		std::string	assemblyName,
		std::string	name,
		int	fieldAssoc,
		int	numComponents,
		double	uncertaintyAllowed = `1e-6`,
		double	fraction = `1e-3`,
		bool	force = `false`
	)

virtual

Returns information about a specific array component's prominent values (or nullptr).

The name, fieldAssoc, and numComponents arguments specify which arrays on the input dataset to examine. Because multiblock datasets may have multiple arrays of the same name on different blocks, and these arrays may not have the same storage type or number of components, this method requires you to specify the number of components per tuple the array(s) of interest must have. You may call GetRepresentedDataInformation() to obtain the number of components for any array.

See vtkAbstractArray::GetProminentComponentValues for more information about the uncertaintyAllowed and fraction arguments.

◆ UpdatePipeline() [1/2]

void vtkSMRepresentationProxy::UpdatePipeline ( )

overridevirtual

Calls Update() on all sources.

It also creates output ports if they are not already created.

Reimplemented from vtkSMSourceProxy.

◆ UpdatePipeline() [2/2]

void vtkSMRepresentationProxy::UpdatePipeline ( double time )

overridevirtual

Calls Update() on all sources with the given time request.

It also creates output ports if they are not already created.

Reimplemented from vtkSMSourceProxy.

◆ PostUpdateData()

void vtkSMRepresentationProxy::PostUpdateData ( bool )

overridevirtual

Overridden to reset this->MarkedModified flag.

Reimplemented from vtkSMSourceProxy.

◆ ViewUpdated()

virtual void vtkSMRepresentationProxy::ViewUpdated ( vtkSMProxy * view )

virtual

Called after the view updates.

Reimplemented in vtkSMPVRepresentationProxy.

◆ GetGlobalID()

vtkTypeUInt32 vtkSMRepresentationProxy::GetGlobalID ( )

overridevirtual

Overridden to reserve additional IDs for use by internal composite representation.

Reimplemented from vtkSMSourceProxy.

◆ SetRepresentationType() [1/2]

virtual bool vtkSMRepresentationProxy::SetRepresentationType ( const char * type )

virtual

Set the representation type.

Default implementation simply updates the "Representation" property, if present with the value provided. Subclasses can override this method to add custom logic to manage the representation state to support the change e.g. pick a scalar color array when switching to Volume or Slice representation, for example. Returns true, if the change was successful, otherwise returns false.

Reimplemented in vtkSMPVRepresentationProxy.

◆ SetRepresentationType() [2/2]

static bool vtkSMRepresentationProxy::SetRepresentationType	(	vtkSMProxy *	repr,
		const char *	type
	)

inlinestatic

Set the representation type.

Default implementation simply updates the "Representation" property, if present with the value provided. Subclasses can override this method to add custom logic to manage the representation state to support the change e.g. pick a scalar color array when switching to Volume or Slice representation, for example. Returns true, if the change was successful, otherwise returns false.

Definition at line 153 of file vtkSMRepresentationProxy.h.

◆ GetRepresentationType() [1/2]

const char* vtkSMRepresentationProxy::GetRepresentationType ( )

Set the representation type.

Default implementation simply updates the "Representation" property, if present with the value provided. Subclasses can override this method to add custom logic to manage the representation state to support the change e.g. pick a scalar color array when switching to Volume or Slice representation, for example. Returns true, if the change was successful, otherwise returns false.

◆ GetRepresentationType() [2/2]

static const char* vtkSMRepresentationProxy::GetRepresentationType ( vtkSMProxy * repr )

inlinestatic

Set the representation type.

Default implementation simply updates the "Representation" property, if present with the value provided. Subclasses can override this method to add custom logic to manage the representation state to support the change e.g. pick a scalar color array when switching to Volume or Slice representation, for example. Returns true, if the change was successful, otherwise returns false.

Definition at line 159 of file vtkSMRepresentationProxy.h.

◆ IsVolumeRendering() [1/2]

static bool vtkSMRepresentationProxy::IsVolumeRendering ( vtkSMProxy * repr )

inlinestatic

Convenient method to check if this representation is currently rendering volumes, using 2D Transfer function.

Definition at line 171 of file vtkSMRepresentationProxy.h.

◆ IsVolumeRendering() [2/2]

bool vtkSMRepresentationProxy::IsVolumeRendering ( )

Convenient method to check if this representation is currently rendering volumes, using 2D Transfer function.

◆ GetUsing2DTransferFunction() [1/2]

static bool vtkSMRepresentationProxy::GetUsing2DTransferFunction ( vtkSMProxy * repr )

inlinestatic

Convenient method to check if this representation is currently rendering volumes, using 2D Transfer function.

Definition at line 177 of file vtkSMRepresentationProxy.h.

◆ GetUsing2DTransferFunction() [2/2]

bool vtkSMRepresentationProxy::GetUsing2DTransferFunction ( )

Convenient method to check if this representation is currently rendering volumes, using 2D Transfer function.

◆ MarkDirty()

void vtkSMRepresentationProxy::MarkDirty ( vtkSMProxy * modifiedProxy )

overridevirtual

Marks the selection proxies dirty as well as chain to superclass.

Reimplemented from vtkSMSourceProxy.

◆ MarkDirtyFromProducer()

void vtkSMRepresentationProxy::MarkDirtyFromProducer	(	vtkSMProxy *	modifiedProxy,
		vtkSMProxy *	producer,
		vtkSMProperty *	property
	)

overrideprotectedvirtual

When the representation is being marked dirty due to a producer i.e.

a proxy-property input-property connection, we need to decide if the representation's data pipeline is indeed invalidated or is this simply a "rendering" change. We override this method to make that distinction.

Reimplemented from vtkSMProxy.

◆ AddConsumer()

void vtkSMRepresentationProxy::AddConsumer	(	vtkSMProperty *	property,
		vtkSMProxy *	proxy
	)

overrideprotectedvirtual

Called by a proxy property, this adds the property,proxy pair to the list of consumers.

Reimplemented from vtkSMProxy.

◆ RemoveConsumer()

void vtkSMRepresentationProxy::RemoveConsumer	(	vtkSMProperty *	property,
		vtkSMProxy *	proxy
	)

overrideprotectedvirtual

Remove the property,proxy pair from the list of consumers.

Reimplemented from vtkSMProxy.

◆ RemoveAllConsumers()

void vtkSMRepresentationProxy::RemoveAllConsumers ( )

overrideprotectedvirtual

Remove all consumers.

Reimplemented from vtkSMProxy.

◆ CreateVTKObjects()

void vtkSMRepresentationProxy::CreateVTKObjects ( )

overrideprotectedvirtual

Call superclass' and then assigns a new executive (vtkCompositeDataPipeline)

Reimplemented from vtkSMSourceProxy.

◆ OnVTKRepresentationUpdated()

void vtkSMRepresentationProxy::OnVTKRepresentationUpdated ( )

protected

◆ OnVTKRepresentationUpdateSkipped()

void vtkSMRepresentationProxy::OnVTKRepresentationUpdateSkipped ( )

protected

◆ OnVTKRepresentationUpdateTimeChanged()

void vtkSMRepresentationProxy::OnVTKRepresentationUpdateTimeChanged ( )

protected

◆ UpdatePipelineInternal()

virtual void vtkSMRepresentationProxy::UpdatePipelineInternal	(	double	time,
		bool	doTime
	)

protectedvirtual

◆ InvalidateDataInformation()

void vtkSMRepresentationProxy::InvalidateDataInformation ( )

overrideprotectedvirtual

Mark the data information as invalid.

Reimplemented from vtkSMSourceProxy.

◆ LoadXMLState()

int vtkSMRepresentationProxy::LoadXMLState	(	vtkPVXMLElement *	element,
		vtkSMProxyLocator *	locator
	)

overrideprotectedvirtual

Overridden to restore this->Servers flag state.

Reimplemented from vtkSMProxy.

Friends And Related Function Documentation

◆ vtkPVComparativeViewNS::vtkCloningVectorOfRepresentations

friend class vtkPVComparativeViewNS::vtkCloningVectorOfRepresentations

friend

Definition at line 243 of file vtkSMRepresentationProxy.h.

The documentation for this class was generated from the following file:

/builds/gitlab-kitware-sciviz-ci/Remoting/Views/vtkSMRepresentationProxy.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Friends

Additional Inherited Members

Detailed Description

Special handling of `MarkDirty`

Member Typedef Documentation

◆ Superclass

Constructor & Destructor Documentation

◆ vtkSMRepresentationProxy()

◆ ~vtkSMRepresentationProxy()

Member Function Documentation

◆ New()

◆ GetClassName()

◆ IsTypeOf()

◆ IsA()

◆ SafeDownCast()

◆ PrintSelf()

◆ GetRepresentedDataInformation()

◆ GetProminentValuesInformation()

◆ GetBlockProminentValuesInformation()

◆ UpdatePipeline() [1/2]

◆ UpdatePipeline() [2/2]

◆ PostUpdateData()

◆ ViewUpdated()

◆ GetGlobalID()

◆ SetRepresentationType() [1/2]

◆ SetRepresentationType() [2/2]

◆ GetRepresentationType() [1/2]

◆ GetRepresentationType() [2/2]

◆ IsVolumeRendering() [1/2]

◆ IsVolumeRendering() [2/2]

◆ GetUsing2DTransferFunction() [1/2]

◆ GetUsing2DTransferFunction() [2/2]

◆ MarkDirty()

◆ MarkDirtyFromProducer()

◆ AddConsumer()

◆ RemoveConsumer()

◆ RemoveAllConsumers()

◆ CreateVTKObjects()

◆ OnVTKRepresentationUpdated()

◆ OnVTKRepresentationUpdateSkipped()

◆ OnVTKRepresentationUpdateTimeChanged()

◆ UpdatePipelineInternal()

◆ InvalidateDataInformation()

◆ LoadXMLState()

Friends And Related Function Documentation

◆ vtkPVComparativeViewNS::vtkCloningVectorOfRepresentations
